2
i
COMFORT

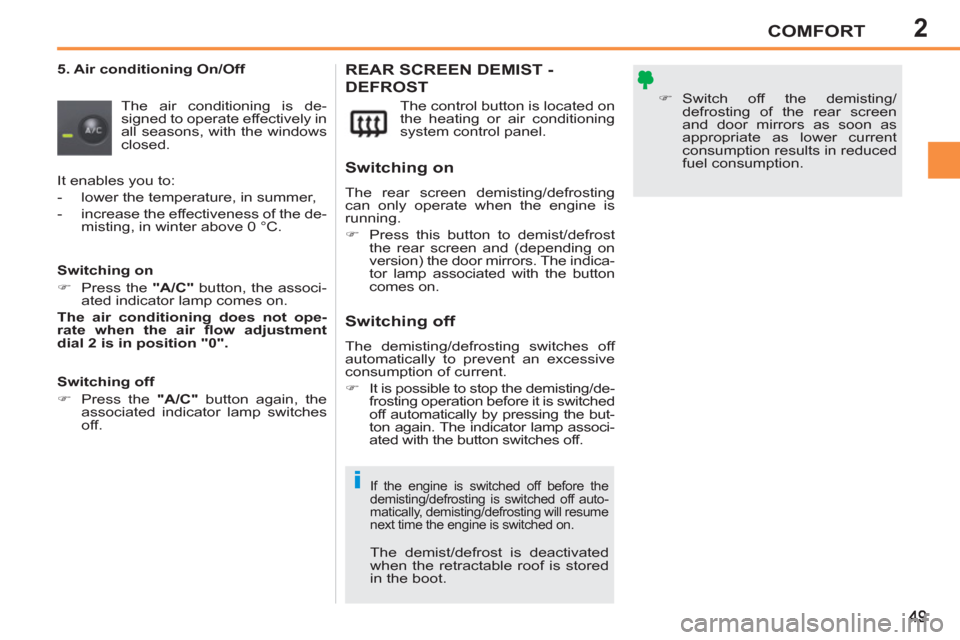

5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DEMIST -
DEFROST
)
Switch off the demisting/
defrosting of the rear screen
and door mirrors as soon as
appropriate as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before the
demisting/defrosting is switched off auto-
matically, demisting/defrosting will resume
next time the engine is switched on.
Switching on
The rear screen demisting/defrosting
can only operate when the engine is
running.
)
Press this button to demist/defrost
the rear screen and (depending on
version) the door mirrors. The indica-
tor lamp associated with the button
comes on.
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
)
It is possible to stop the demisting/de-
frosting operation before it is switched
off automatically by pressing the but-
ton again. The indicator lamp associ-
ated with the button switches off. It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de-
misting, in winter above 0 °C.
Switching on
)
Press the "A/C"
button, the associ-
ated indicator lamp comes on.
The air conditioning does not ope-
rate when the air fl ow adjustment
dial 2 is in position "0".
Switching off
)
Press the "A/C"
button again, the
associated indicator lamp switches
off.
The demist/defrost is deactivated
when the retractable roof is stored
in the boot.
Page 52 of 224
2
i
i
COMFORT
50
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will only reach its opti-
mum level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
the side windows and the footwells
only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to alter the value
displayed in order to obtain the re-
quired level of comfort. The system
corrects the temperature differ-
ence automatically and as quickly
as possible.
The air conditioning can only operate
with the engine running.
The driver and his front passen-
ger can each set the tempera-
ture to suit their requirements.
)
Turn dial 2
or 3
to the left to reduce
the value or to the right to increase it.
A setting around 21 enables you to
obtain an optimum level of comfort.
Depending on your requirements, a set-
ting between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left/right setting difference of
more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice...).
)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
)
Press the "AUTO"
button.
The "AUTO"
symbol is dis-
played.

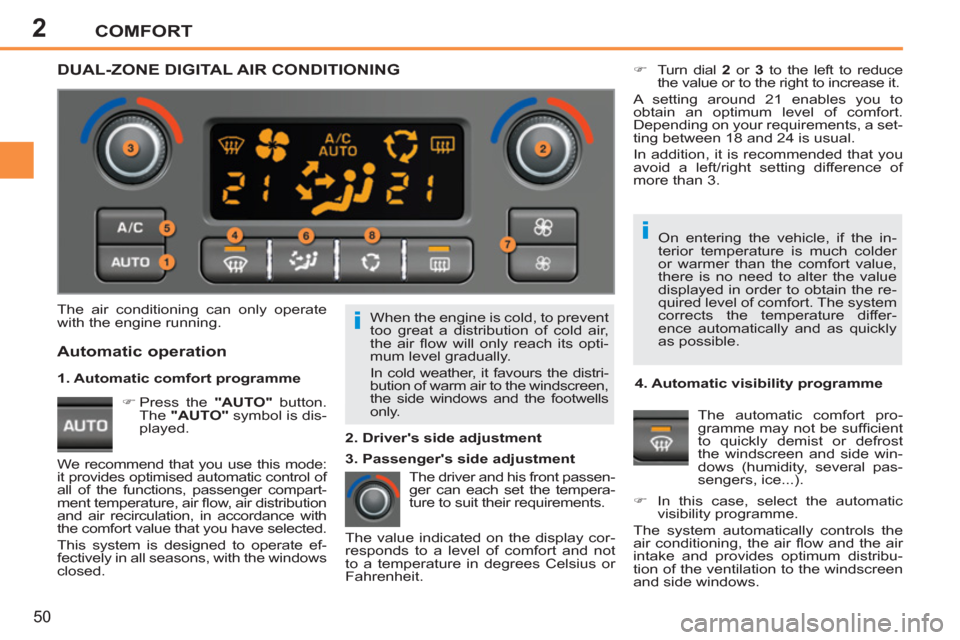

2. Driver's side adjustment
DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend that you use this mode:
it provides optimised automatic control of
all of the functions, passenger compart-
ment temperature, air fl ow, air distribution
and air recirculation, in accordance with
the comfort value that you have selected.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
1. Automatic comfort programme
3. Passenger's side adjustment
Page 53 of 224
2
!
!
i
COMFORT
51
)
To exit this programme, press the "visi-
bility"
button again or the "AUTO"
but-
ton, the indicator lamp on the button
switches off and "AUTO"
is displayed.
)
Press this button to switch
the air conditioning off.

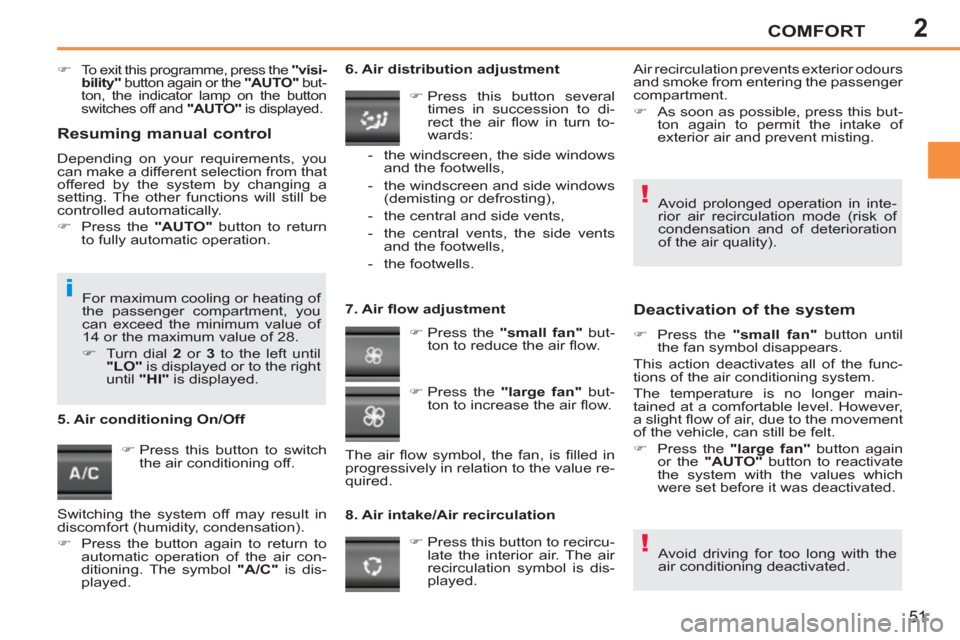

6. Air distribution adjustment
)
Press this button several
times in succession to di-
rect the air fl ow in turn to-
wards:
7. Air fl ow adjustment
)
Press the "small fan"
but-
ton to reduce the air fl ow.
8. Air intake/Air recirculation
Deactivation of the system
)
Press the "small fan"
button until
the fan symbol disappears.
This action deactivates all of the func-
tions of the air conditioning system.
The temperature is no longer main-
tained at a comfortable level. However,
a slight fl ow of air, due to the movement
of the vehicle, can still be felt.
)
Press the "large fan"
button again
or the "AUTO"
button to reactivate
the system with the values which
were set before it was deactivated.
)
Press this button to recircu-
late the interior air. The air
recirculation symbol is dis-
played.
5. Air conditioning On/Off
Avoid driving for too long with the
air conditioning deactivated. Avoid prolonged operation in inte-
rior air recirculation mode (risk of
condensation and of deterioration
of the air quality).
- the windscreen, the side windows
and the footwells,
- the windscreen and side windows
(demisting or defrosting),
- the central and side vents,
- the central vents, the side vents
and the footwells,
- the footwells.
)
Press the "large fan"
but-
ton to increase the air fl ow.
The air fl ow symbol, the fan, is fi lled in
progressively in relation to the value re-
quired. Air recirculation prevents exterior odours
and smoke from entering the passenger
compartment.
)
As soon as possible, press this but-
ton again to permit the intake of
exterior air and prevent misting.
For maximum cooling or heating of
the passenger compartment, you
can exceed the minimum value of
14 or the maximum value of 28.
)
Turn dial 2
or 3
to the left until
"LO"
is displayed or to the right
until "HI"
is displayed.
Resuming manual control
Depending on your requirements, you
can make a different selection from that
offered by the system by changing a
setting. The other functions will still be
controlled automatically.
)
Press the "AUTO"
button to return
to fully automatic operation.
Switching the system off may result in
discomfort (humidity, condensation).
)
Press the button again to return to
automatic operation of the air con-
ditioning. The symbol "A/C"
is dis-
played.
Page 54 of 224
2COMFORT
52

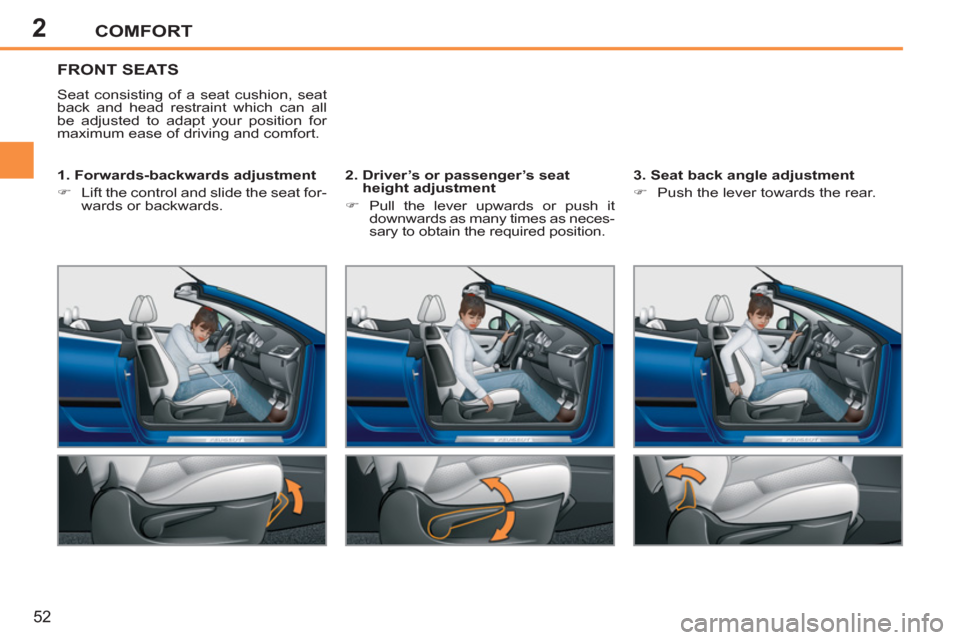

FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to adapt your position for
maximum ease of driving and comfort.
1. Forwards-backwards adjustment
)
Lift the control and slide the seat for-
wards or backwards.
2. Driver’s or passenger’s seat
height adjustment
)
Pull the lever upwards or push it
downwards as many times as neces-
sary to obtain the required position.
3. Seat back angle adjustment
)
Push the lever towards the rear.
Page 55 of 224
2
!
!
COMFORT
No person or object must prevent
the seat runner from returning to
its initial position; return to this po-
sition is necessary for the seat to
lock in place.

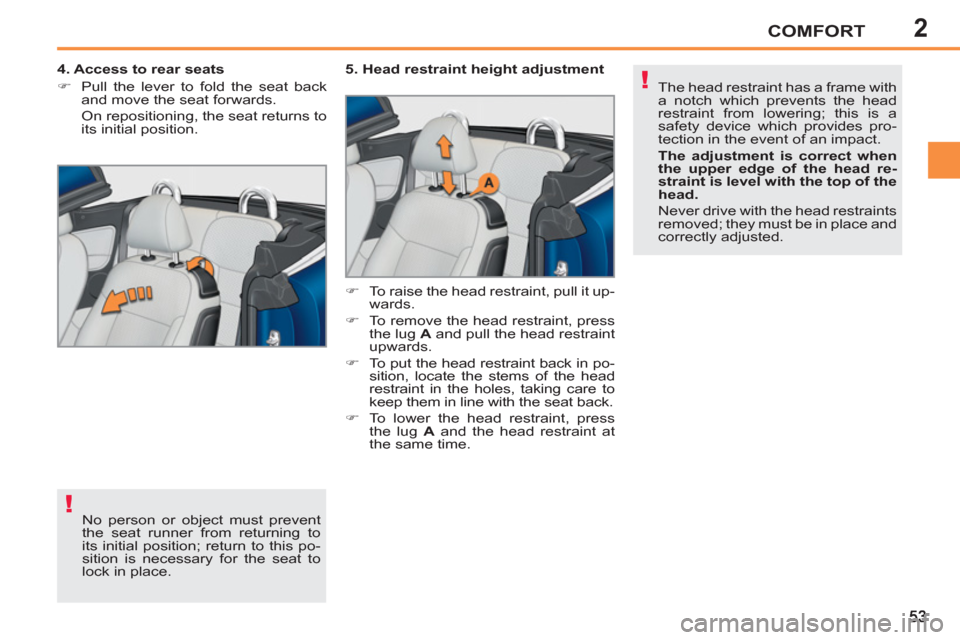

4. Access to rear seats
)
Pull the lever to fold the seat back
and move the seat forwards.
On repositioning, the seat returns to
its initial position.
5. Head restraint height adjustment
)
To raise the head restraint, pull it up-
wards.
)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.
)
To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care to
keep them in line with the seat back.
)
To lower the head restraint, press
the lug A
and the head restraint at
the same time. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.
The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Page 56 of 224
2
!!
COMFORT
54
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to ensure your protection
should the vehicle roll over.
Following an accident, have the roll-
over bars checked by a PEUGEOT
dealer.
STEERING WHEEL ADJUSTMENT
)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.
Page 57 of 224
2
i
!
COMFORT
55

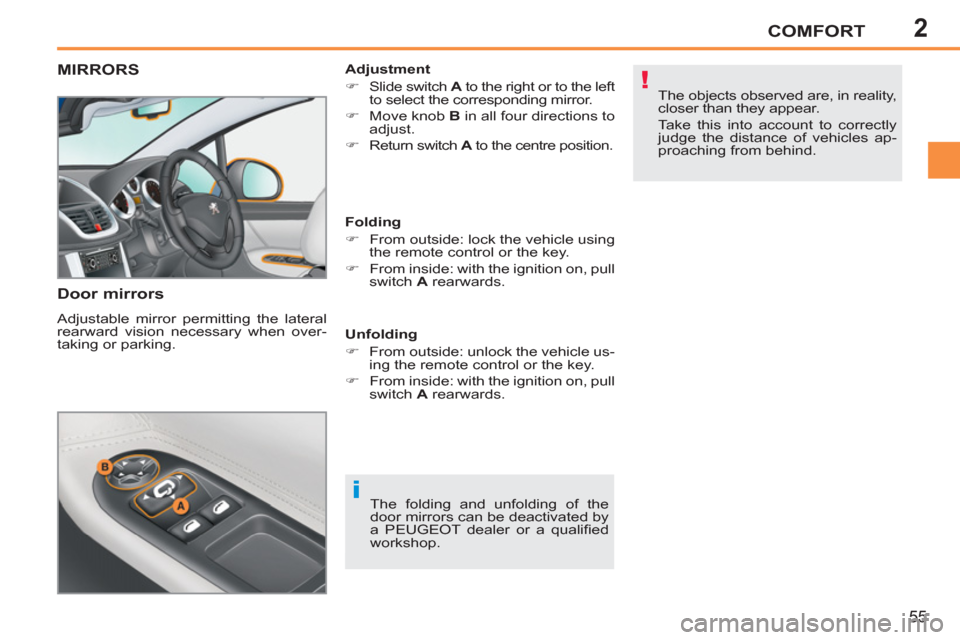

MIRRORS
Door mirrors
Adjustable mirror permitting the lateral
rearward vision necessary when over-
taking or parking.
Adjustment
)
Slide switch A
to the right or to the left
to select the corresponding mirror.
)
Move knob B
in all four directions to
adjust.
)
Return switch A
to the centre position.
The folding and unfolding of the
door mirrors can be deactivated by
a PEUGEOT dealer or a qualifi ed
workshop.
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on, pull
switch A
rearwards.
Unfolding
)
From outside: unlock the vehicle us-
ing the remote control or the key.
)
From inside: with the ignition on, pull
switch A
rearwards. The objects observed are, in reality,
closer than they appear.
Take this into account to correctly
judge the distance of vehicles ap-
proaching from behind.
Page 58 of 224
2
!
i
COMFORT
56

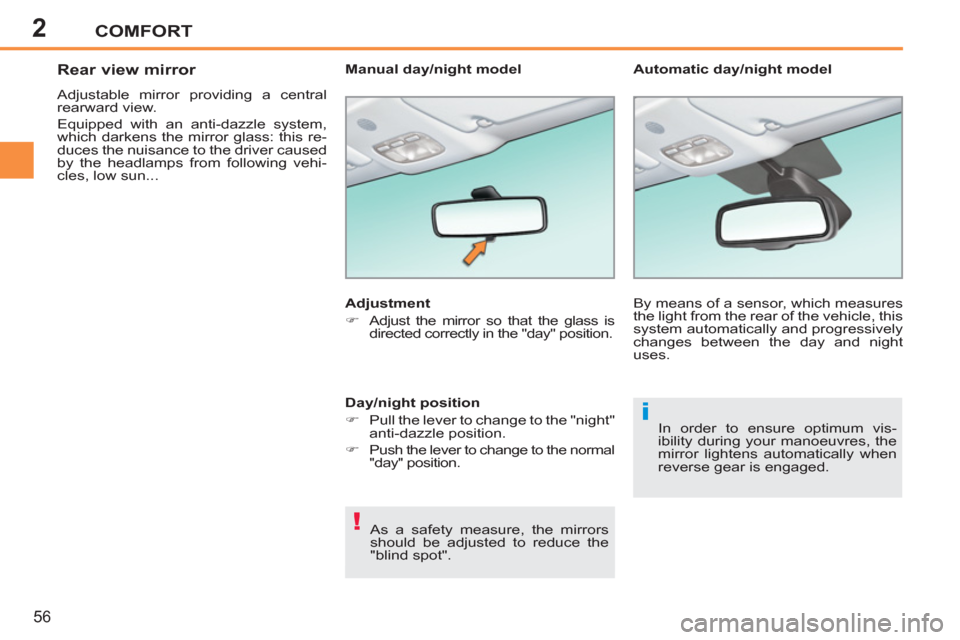

Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...
Adjustment
)
Adjust the mirror so that the glass is
directed correctly in the "day" position.
As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".
In order to ensure optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
Automatic day/night model
Manual day/night model
Day/night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the normal
"day" position.
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
Page 59 of 224
2
!
COMFORT

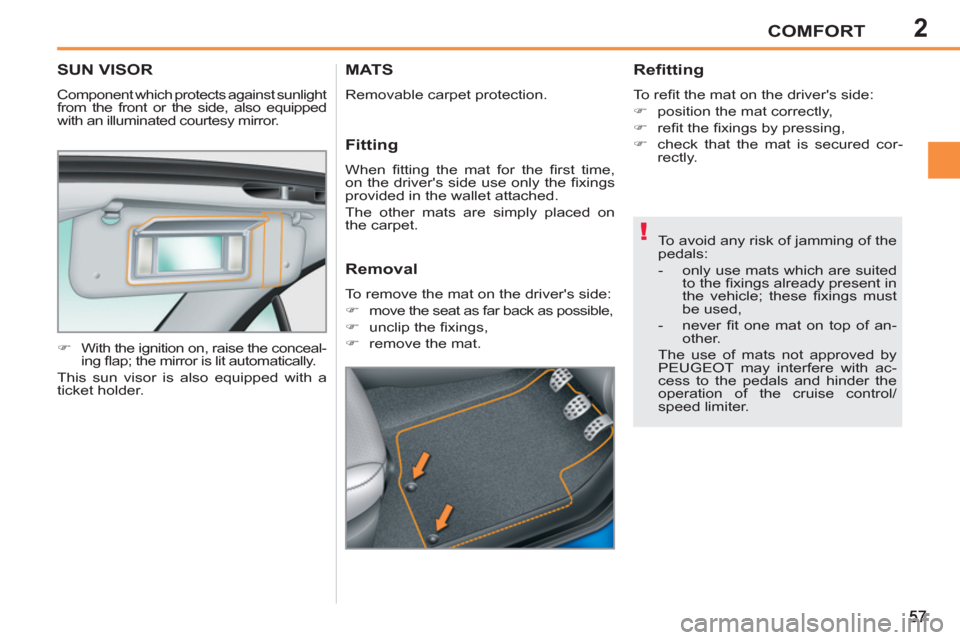

SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.
)
With the ignition on, raise the conceal-
ing fl ap; the mirror is lit automatically.
This sun visor is also equipped with a
ticket holder.
To avoid any risk of jamming of the
pedals:
- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must
be used,
- never fi t one mat on top of an-
other.
The use of mats not approved by
PEUGEOT may interfere with ac-
cess to the pedals and hinder the
operation of the cruise control/
speed limiter.
MATS
Removable carpet protection.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured cor-
rectly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as possible,
)
unclip the fi xings,
)
remove the mat.
Page 60 of 224
2COMFORT
58

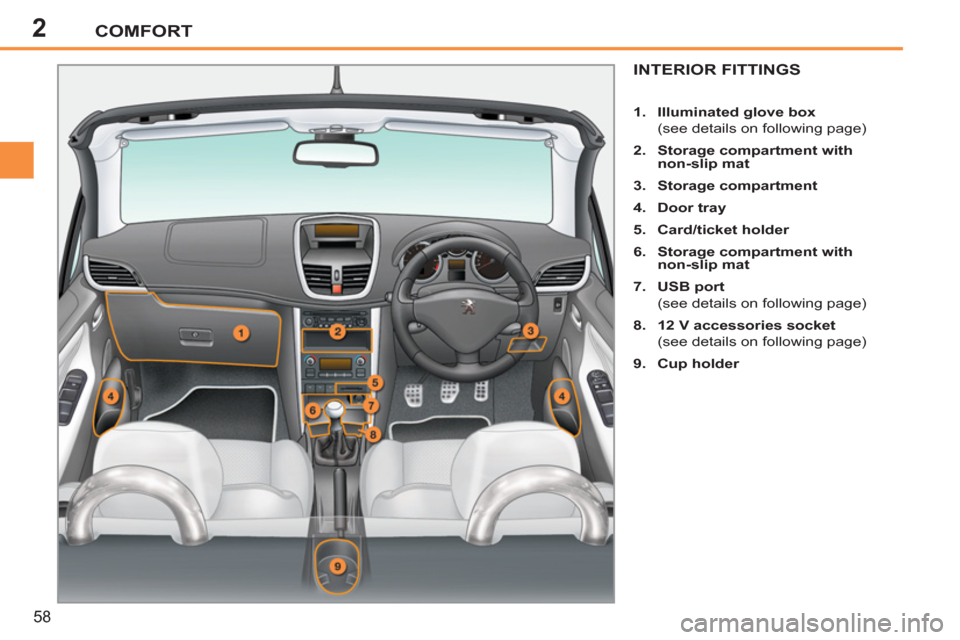

INTERIOR FITTINGS
1.
Illuminated glove box
(see details on following page)
2.
Storage compartment with
non-slip mat
3.
Storage compartment
4.
Door tray
5.
Card/ticket holder
6.
Storage compartment with
non-slip mat
7.
USB port
(see details on following page)
8.
12 V accessories socket
(see details on following page)
9.
Cup holder
