PEUGEOT 207 CC 2011 User Guide

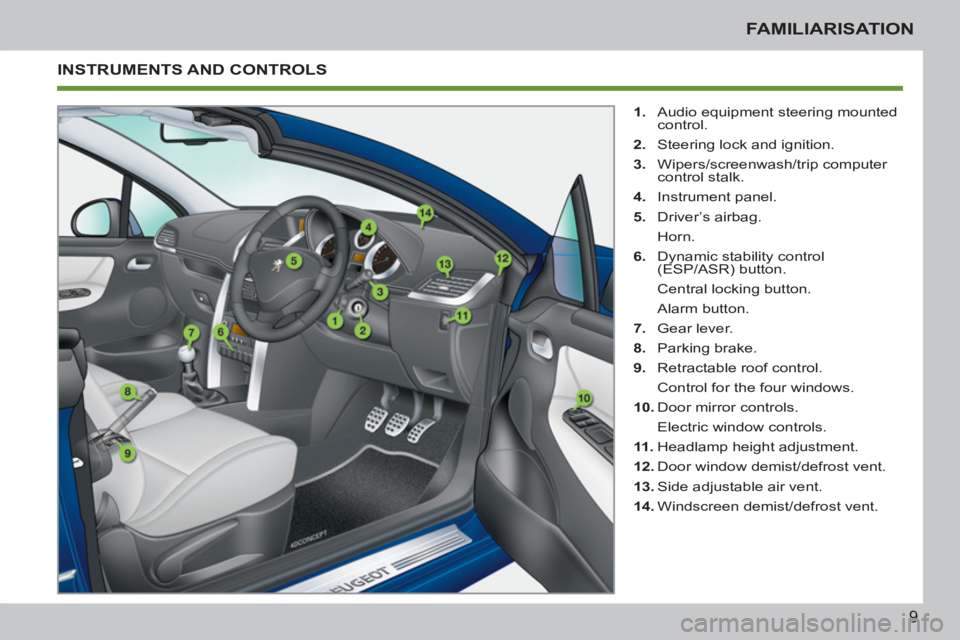

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Audio equipment steering mounted
control.

2.
Steering lock and ignition.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Dynamic stability control
(ESP/ASR) button.
Central locking button.
Alarm button.

7.
Gear lever.

8.
Parking brake.

9.
Retractable roof control.
Control for the four windows.

10.
Door mirror controls.
Electric window controls.

11 .
Headlamp height adjustment.

12.
Door window demist/defrost vent.

13.
Side adjustable air vent.

14.
Windscreen demist/defrost vent.

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustments control.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicators
control stalk.

4.
Hazard warning lamps switch.

5.
Multifunction screen.
Seat belt fastening status warning
lamps.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Speaker (medium tweeter).

9.
Glove box/Passenger’s airbag
deactivation/Audio/video sockets/
Fusebox.

10.
Bonnet release lever.

11 .
12 V accessory socket.

12.
USB port.

13.
Heating/air conditioning controls.

14.
Storage compartment.

15.
Audio and telematics system.

16.
Central adjustable air vents.

i
!

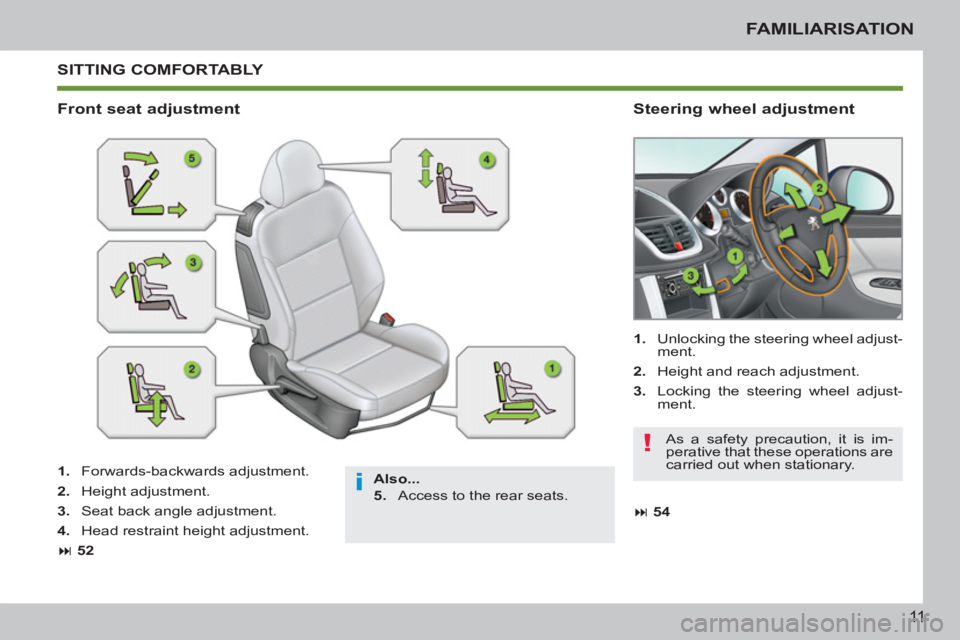

11
FAMILIARISATION
SITTING COMFORTABLY

Also...


5.
Access to the rear seats.


Front seat adjustment
Steering wheel adjustment


1.
Forwards-backwards adjustment.

2.
Height adjustment.

3.
Seat back angle adjustment.

4.
Head restraint height adjustment.



52

1.
Unlocking the steering wheel adjust-
ment.

2.
Height and reach adjustment.

3.
Locking the steering wheel adjust-
ment.
As a safety precaution, it is im-
perative that these operations are
carried out when stationary.



54

i

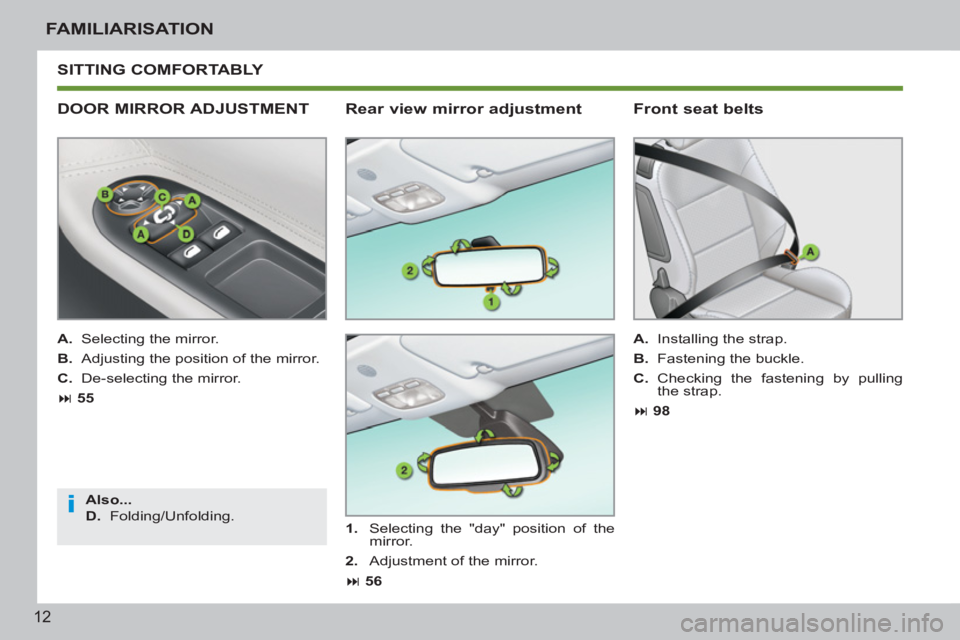

12
FAMILIARISATION
SITTING COMFORTABLY

DOOR MIRROR ADJUSTMENT


A.
Selecting the mirror.

B.
Adjusting the position of the mirror.

C.
De-selecting the mirror.



55

Also...


D.
Folding/Unfolding.


Rear view mirror adjustment



1.
Selecting the "day" position of the
mirror.

2.
Adjustment of the mirror.



56



Front seat belts



A.
Installing the strap.

B.
Fastening the buckle.

C.
Checking the fastening by pulling
the strap.



98

i

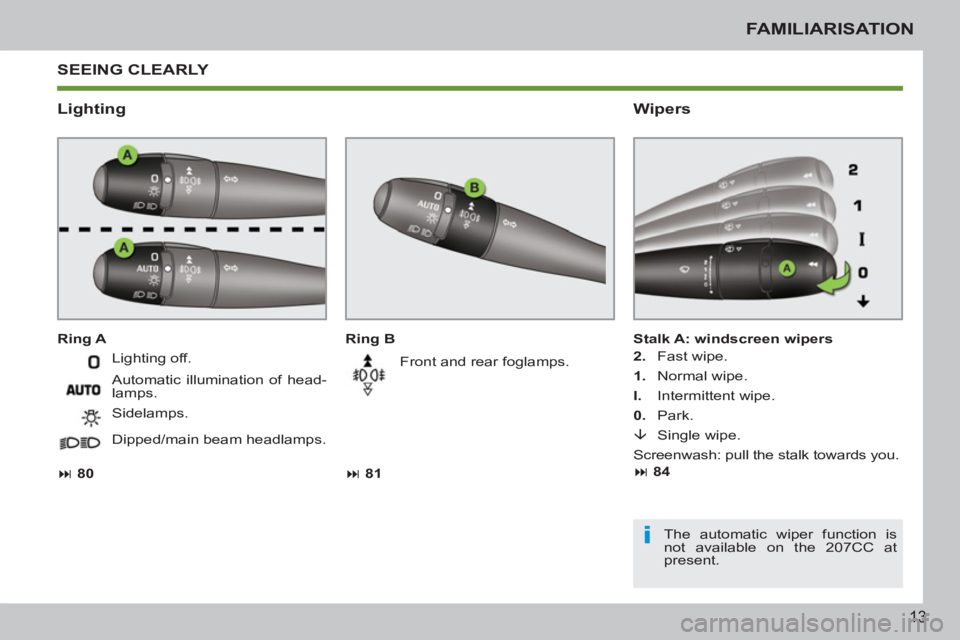

13
FAMILIARISATION
SEEING CLEARLY

Lighting
Wipers


Ring B



81

Front and rear foglamps.
Ring A
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.



80

Stalk A: windscreen wipers

2.
Fast wipe.

1.
Normal wipe.

I.
Intermittent wipe.

0.
Park.

È
Single wipe.
Screenwash: pull the stalk towards you.



84
The automatic wiper function is
not available on the 207CC at
present.

–

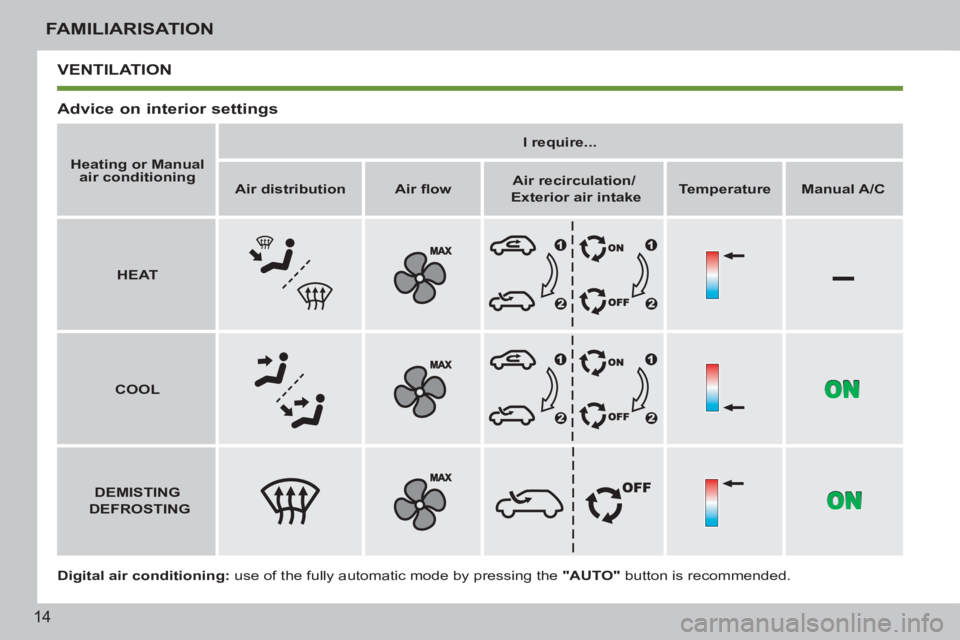

14
FAMILIARISATION

Digital air conditioning:
use of the fully automatic mode by pressing the "AUTO"
button is recommended.

Heating or Manual
air conditioning



I require...




Air distribution



Air fl ow



Air recirculation/


Exterior air intake



Temperature



Manual A/C




HEAT















COOL















DEMISTING

DEFROSTING












VENTILATION

Advice on interior settings

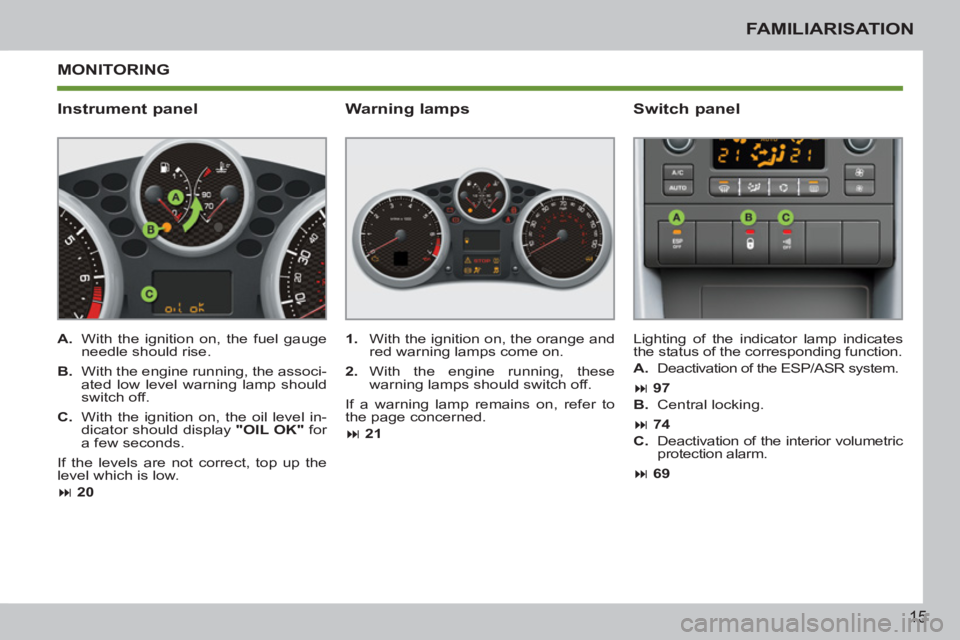

15
FAMILIARISATION
MONITORING

Instrument panel
Switch panel



A.
With the ignition on, the fuel gauge
needle should rise.

B.
With the engine running, the associ-
ated low level warning lamp should
switch off.

C.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
level which is low.



20
Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
Deactivation of the ESP/ASR system.



97

B.
Central locking.

74

C.
Deactivation of the interior volumetric
protection alarm.



69



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should switch off.
If a warning lamp remains on, refer to
the page concerned.



21



Warning lamps

!

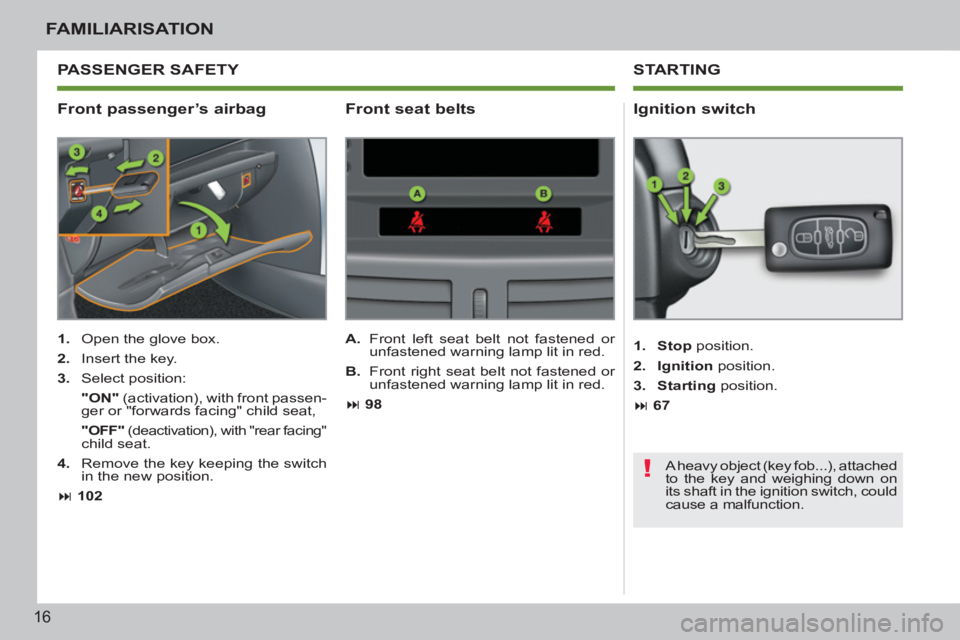

16
FAMILIARISATION

Front passenger’s airbag
Ignition switch



1.
Open the glove box.

2.
Insert the key.

3.
Select position:
"ON"
(activation), with front passen-
ger or "forwards facing" child seat,

"OFF"
(deactivation), with "rear facing" child seat.

4.
Remove the key keeping the switch
in the new position.



102


1.
Stop
position.

2.
Ignition
position.

3.
Starting
position.



67


A.
Front left seat belt not fastened or
unfastened warning lamp lit in red.

B.
Front right seat belt not fastened or
unfastened warning lamp lit in red.



98



Front seat belts


A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

PASSENGER SAFETY STARTING

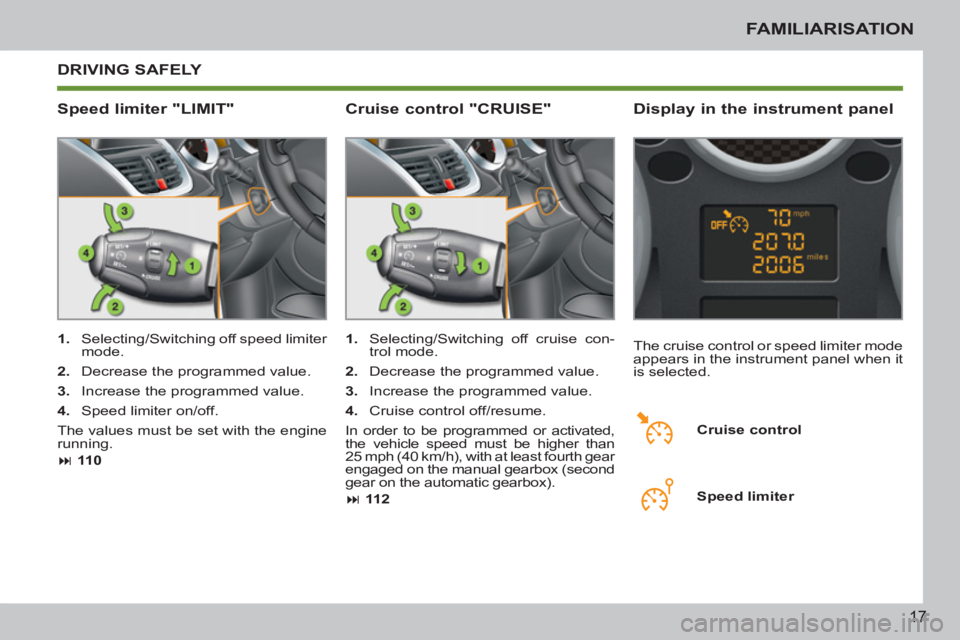

17
FAMILIARISATION
DRIVING SAFELY

Speed limiter "LIMIT"
Display in the instrument panel



1.
Selecting/Switching off speed limiter
mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter on/off.
The values must be set with the engine
running.



110
The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.

1.
Selecting/Switching off cruise con-
trol mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Cruise control off/resume.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth gear
engaged on the manual gearbox (second
gear on the automatic gearbox).



112



Cruise control "CRUISE"
Cruise control

Speed limiter

18

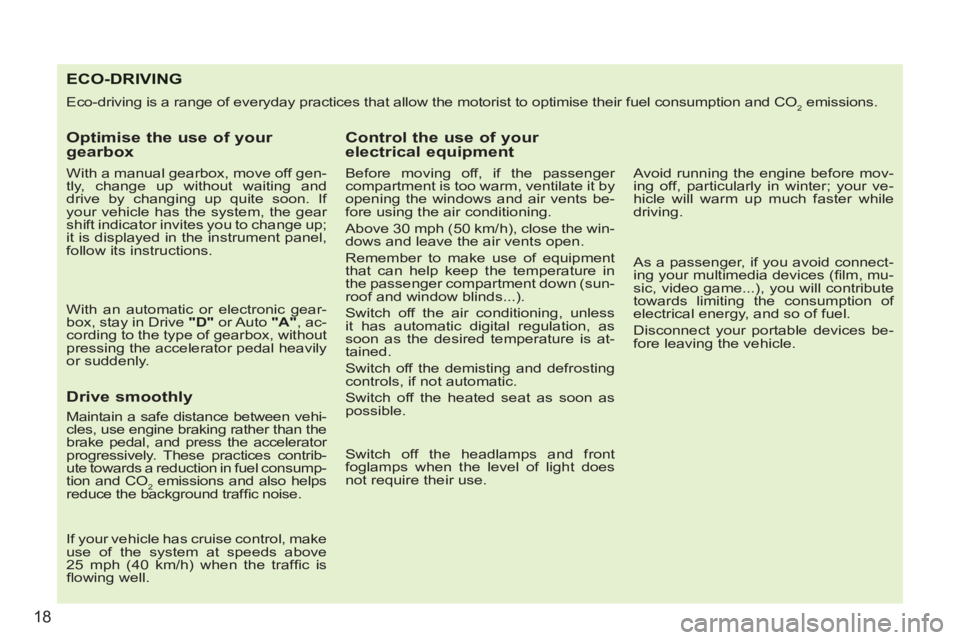

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between vehi-
cles, use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contrib-
ute towards a reduction in fuel consump-
tion and CO
2 emissions and also helps
reduce the background traffi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun-
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before mov-
ing off, particularly in winter; your ve-
hicle will warm up much faster while
driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.
