PEUGEOT 207 CC 2011 Owners Manual

Handbook

!

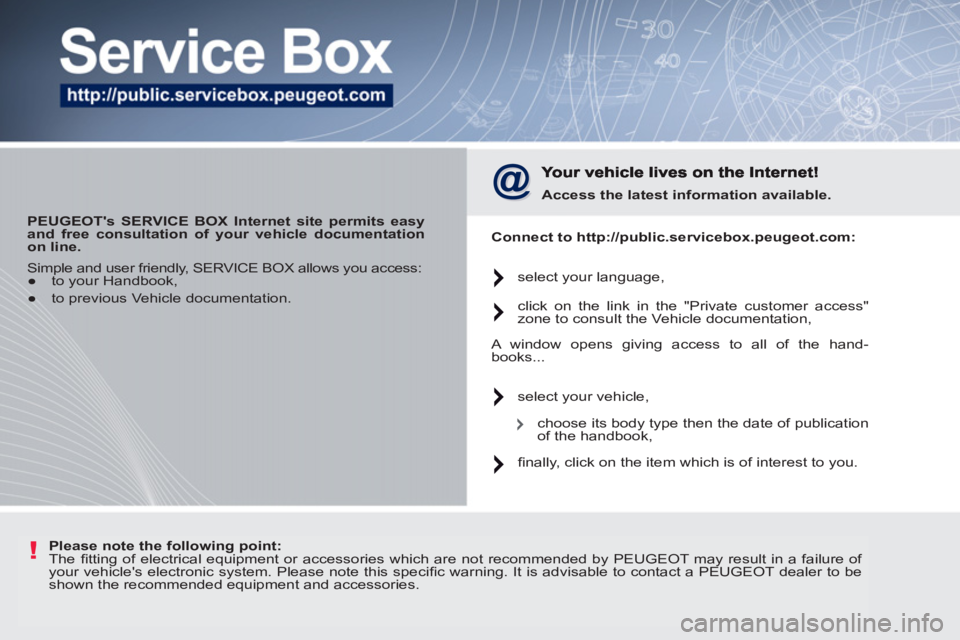

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.



Access the latest information available.


Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you access:


●
to your Handbook,

●
to previous Vehicle documentation.


Please note the following point:

The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of
your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer to be
shown the recommended equipment and accessories. select your language,
click on the link in the "Private customer access"
zone to consult the Vehicle documentation,
A window opens giving access to all of the hand-
books...
select your vehicle,
choose its body type then the date of publication
of the handbook,
fi nally, click on the item which is of interest to you.

!
i

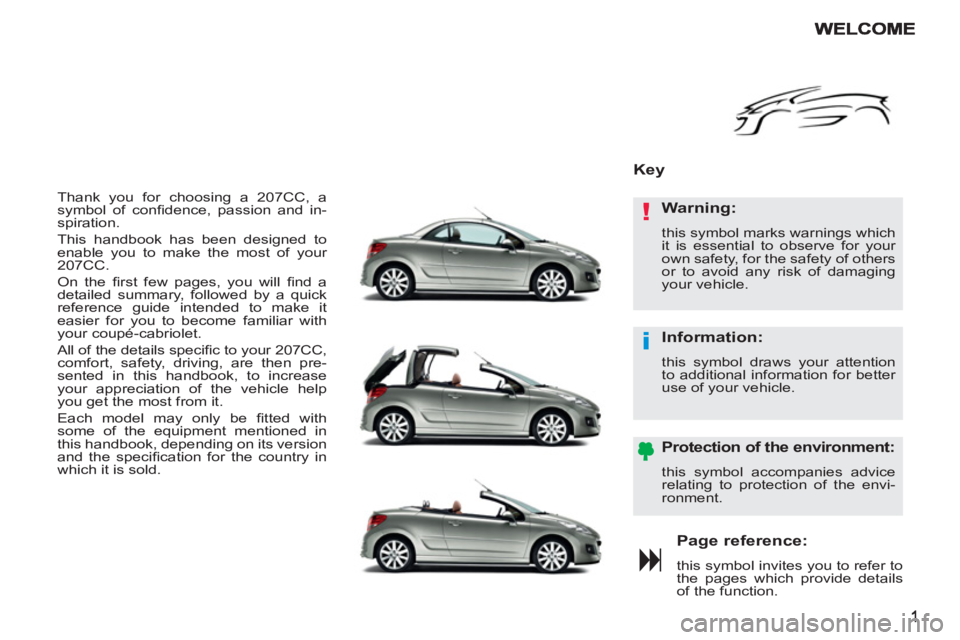

Thank you for choosing a 207CC, a
symbol of confi dence, passion and in-
spiration.
This handbook has been designed to
enable you to make the most of your
207CC.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your coupé-cabriolet.
All of the details specifi c to your 207CC,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle help
you get the most from it.
Each model may only be fi tted with
some of the equipment mentioned in
this handbook, depending on its version
and the specifi cation for the country in
which it is sold.

Page reference:

this symbol invites you to refer to
the pages which provide details
of the function.


Key


Protection of the environment:

this symbol accompanies advice
relating to protection of the envi-
ronment.


Information:

this symbol draws your attention
to additional information for better
use of your vehicle.


Warning:

this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.

2

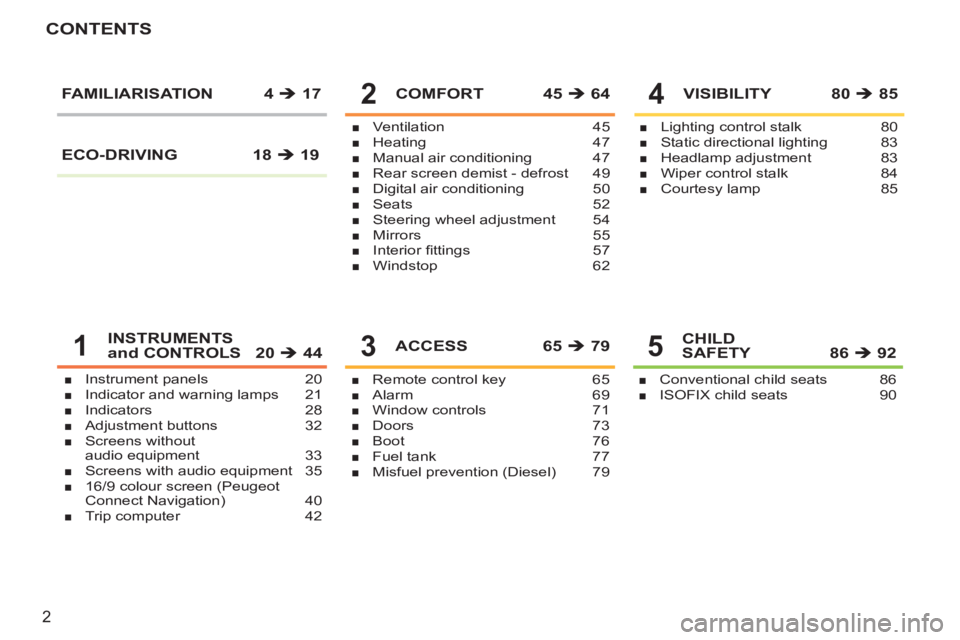

CONTENTS
Instrument panels 20
Indicator and warning lamps 21
Indicators 28
Adjustment buttons 32
Screens without
audio equipment 33
Screens with audio equipment 35
16/9 colour screen (Peugeot
Connect Navigation) 40
Trip computer 42■
■
■
■
■
■
■
■
Ventilation 45
Heating 47
Manual air conditioning 47
Rear screen demist - defrost 49
Digital air conditioning 50
Seats 52
Steering wheel adjustment 54
Mirrors 55
Interior fi ttings 57
Windstop 62■
■
■
■
■
■
■
■
■
■
COMFORT 45 Î 64
Remote control key 65
Alarm 69
Window controls 71
Doors 73
Boot 76
Fuel tank 77
Misfuel prevention (Diesel) 79■
■
■
■
■
■
■
ACCESS 65 Î 79
Lighting control stalk 80
Static directional lighting 83
Headlamp adjustment 83
Wiper control stalk 84
Courtesy lamp 85■
■
■
■
■
VISIBILITY 80 Î 85
Conventional child seats 86
ISOFIX child seats 90■
■
CHILD
SAFETY 86 Î 92 FAMILIARISATION 4 Î 17
INSTRUMENTS
and CONTROLS 20 Î 445
4
3
2
1
ECO-DRIVING 18 Î 19

3
CONTENTS
Direction indicators 93
Emergency or assistance
call 93
Hazard warning lamps 94
Horn 94
Tyre under-infl ation detection 95
Braking assistance
systems 96
Trajectory control
systems 97
Seat belts 98
Airbags 101■
■
■
■
■
■
■
■
■
SAFETY 93 Î 104
Parking brake 105
Manual gearbox 105
Gear shift indicator 106
Automatic gearbox 107
Speed limiter 110
Cruise control 112
Parking sensors 114■
■
■
■
■
■
■
DRIVING 105 Î 11 5
Bonnet 117
Running out of fuel (Diesel) 117
Petrol engines 118
Diesel engine 119
Checking levels 120
Checks 121■
■
■
■
■
■
CHECKS
116 Î 122
Temporary puncture
repair kit 123
Changing a wheel 128
Changing a bulb 132
Changing a fuse 136
Battery 141
Energy economy mode 143
Changing a wiper blade 143
Towing the vehicle 144
Towing a trailer 145
Accessories 147■
■
■
■
■
■
■
■
■
■
PRACTICAL
INFORMATION 123 Î 147
Petrol engines 148
Weights (petrol) 149
Diesel engine 150
Weights (Diesel) 151
Dimensions 152
Identifi cation markings 153■
■
■
■
■
■
TECHNICAL
D ATA 148 Î 154
AUDIO EQUIPMENT
and TELEMATICS 155 Î 210
Emergency or assistance 155Peugeot Connect Navigation (RNEG) 157
Peugeot Connect Sound (RD5) 189■
■
■
ALPHABETICAL
INDEX 215 Î 218
7
86
9
10
VISUAL
SEARCH 211 Î 214

4
FAMILIARISATION
EXTERIOR

Retractable roof
This system enables you to change from
a "coupé" confi guration to a "cabriolet"
confi guration and vice versa with a sin-
gle action.



6


Directional lighting
This additional lighting automatically
provides extended visibility when
turning.



83

Visual and audible rear parking
sensors
This system provides a warning when
reversing by detecting obstacles located
behind the vehicle.



114


Tyre under-infl ation detection
This system monitors the pressure in
each tyre and warns you of a punc-
ture or drop in pressure.



95

Windstop
In the "cabriolet" confi guration,
this system reduces wind tur-
bulence in the front seats.



61


Temporary tyre repair kit
This kit is a complete system, con-
sisting of a compressor and an inte-
gral sealant, for the temporary repair
of a tyre.



123

ii
5
FAMILIARISATION

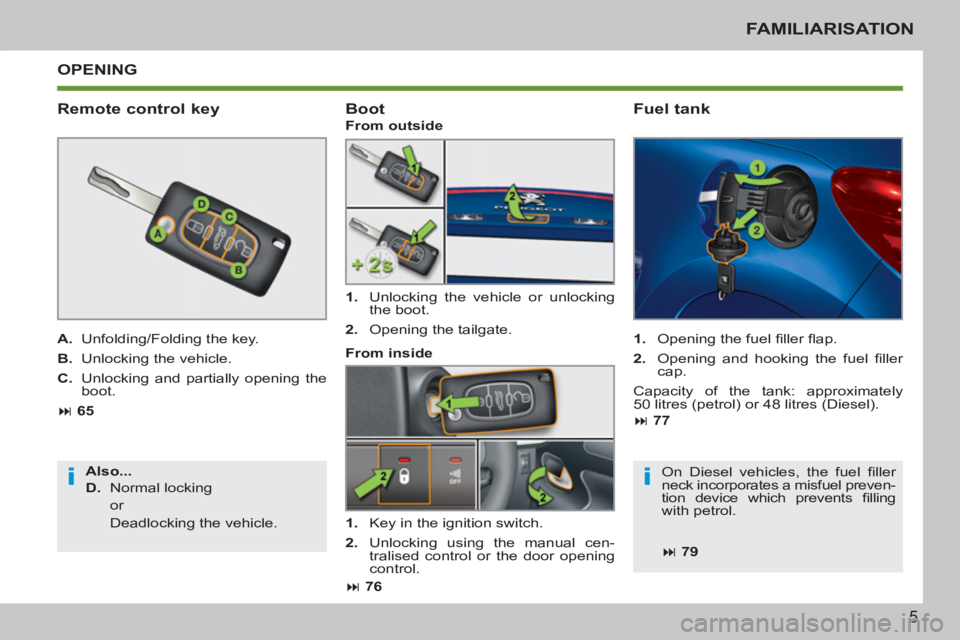

OPENING

Remote control key


A.
Unfolding/Folding the key.

B.
Unlocking the vehicle.

C.
Unlocking and partially opening the
boot.



65

Also...


D.
Normal locking
or
Deadlocking the vehicle.


Fuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
50 litres (petrol) or 48 litres (Diesel).



77


Boot


From outside

From inside

1.
Unlocking the vehicle or unlocking
the boot.

2.
Opening the tailgate.



1.
Key in the ignition switch.

2.
Unlocking using the manual cen-
tralised control or the door opening
control.



76


On Diesel vehicles, the fuel fi ller
neck incorporates a misfuel preven-
tion device which prevents fi lling
with petrol.



79

! !
i
6
FAMILIARISATION
OPENING

Retractable roof

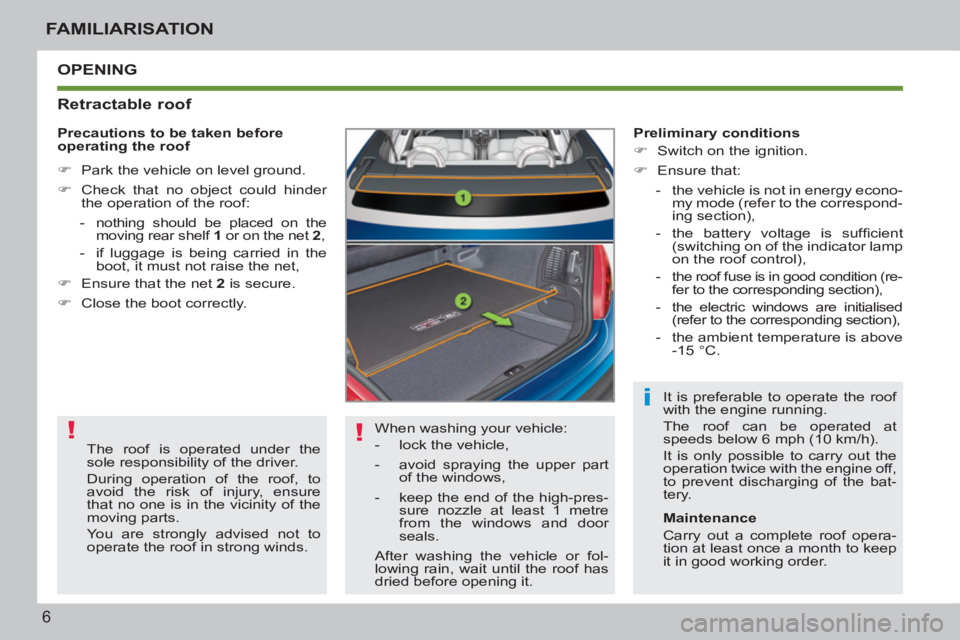

When washing your vehicle:


- lock the vehicle,

- avoid spraying the upper part
of the windows,

- keep the end of the high-pres-
sure nozzle at least 1 metre
from the windows and door
seals.
After washing the vehicle or fol-
lowing rain, wait until the roof has
dried before opening it. The roof is operated under the
sole responsibility of the driver.
During operation of the roof, to
avoid the risk of injury, ensure
that no one is in the vicinity of the
moving parts.
You are strongly advised not to
operate the roof in strong winds. It is preferable to operate the roof
with the engine running.
The roof can be operated at
speeds below 6 mph (10 km/h).
It is only possible to carry out the
operation twice with the engine off,
to prevent discharging of the bat-
tery.

Preliminary conditions


)
Switch on the ignition.

)
Ensure that:


- the vehicle is not in energy econo-
my mode (refer to the correspond-
ing section),

- the battery voltage is suffi cient
(switching on of the indicator lamp
on the roof control),

- the roof fuse is in good condition (re-
fer to the corresponding section),

- the electric windows are initialised
(refer to the corresponding section),

- the ambient temperature is above
-15 °C.

Precautions to be taken before
operating the roof


)
Park the vehicle on level ground.

)
Check that no object could hinder
the operation of the roof:


- nothing should be placed on the
moving rear shelf 1
or on the net 2
,

- if luggage is being carried in the
boot, it must not raise the net,

)
Ensure that the net 2
is secure.

)
Close the boot correctly.

Maintenance
Carry out a complete roof opera-
tion at least once a month to keep
it in good working order.

i
!
!
7
FAMILIARISATION
OPENING

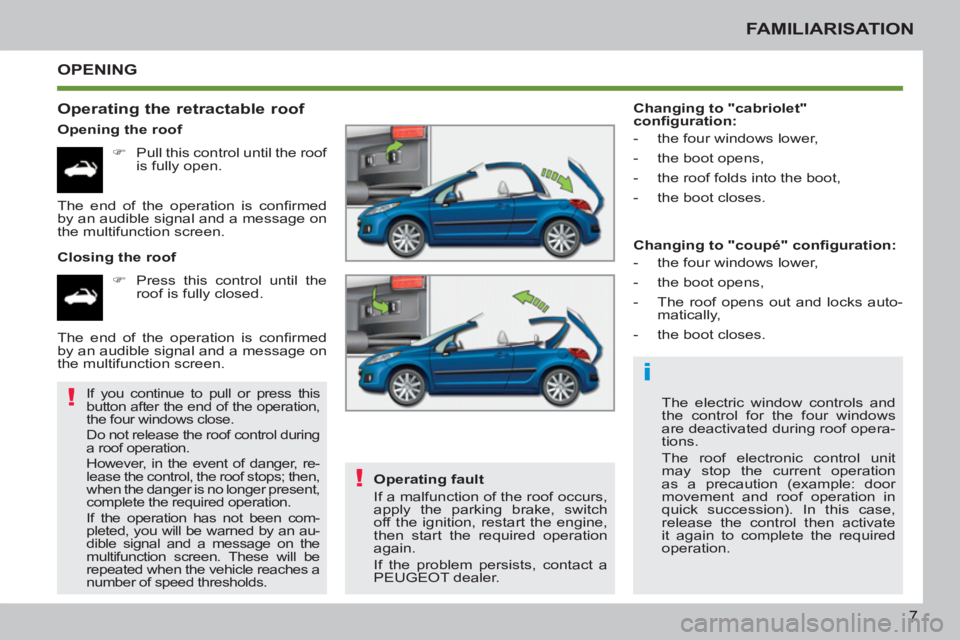

Operating the retractable roof


Opening the roof


)
Pull this control until the roof
is fully open.

Closing the roof


)
Press this control until the
roof is fully closed.

If you continue to pull or press this
button after the end of the operation,
the four windows close.
Do not release the roof control during
a roof operation.
However, in the event of danger, re-
lease the control, the roof stops; then,
when the danger is no longer present,
complete the required operation.
If the operation has not been com-
pleted, you will be warned by an au-
dible signal and a message on the
multifunction screen. These will be
repeated when the vehicle reaches a
number of speed thresholds.


Changing to "cabriolet"
confi guration:


- the four windows lower,

- the boot opens,

- the roof folds into the boot,

- the boot closes.

The electric window controls and
the control for the four windows
are deactivated during roof opera-
tions.
The roof electronic control unit
may stop the current operation
as a precaution (example: door
movement and roof operation in
quick succession). In this case,
release the control then activate
it again to complete the required
operation.

Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch
off the ignition, restart the engine,
then start the required operation
again.
If the problem persists, contact a
PEUGEOT dealer.
Changing to "coupé" confi guration:


- the four windows lower,

- the boot opens,

- The roof opens out and locks auto-
matically,

- the boot closes. The end of the operation is confi rmed
by an audible signal and a message on
the multifunction screen.

The end of the operation is confi rmed
by an audible signal and a message on
the multifunction screen.

8
FAMILIARISATION

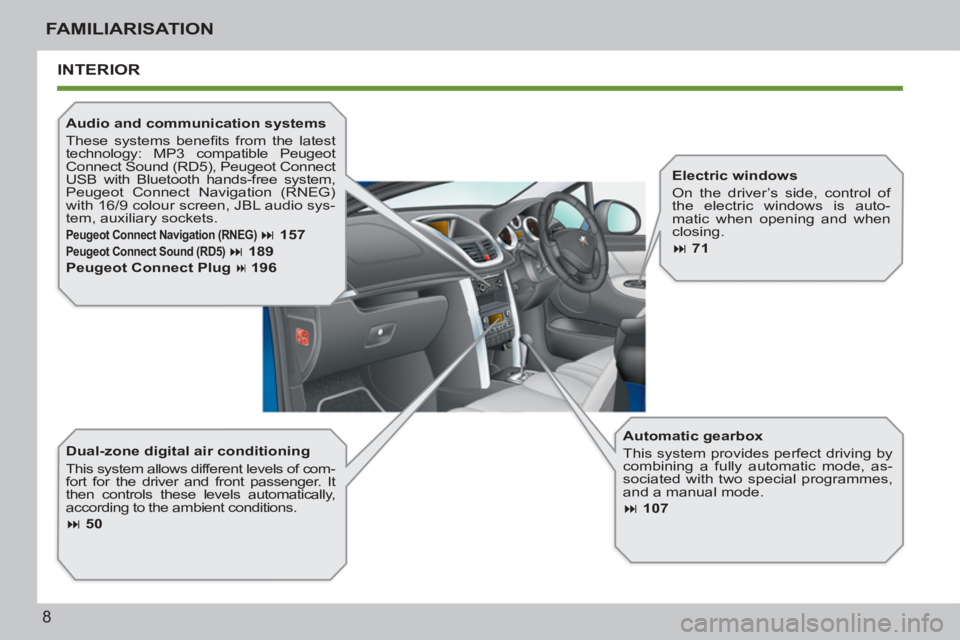

INTERIOR


Dual-zone digital air conditioning
This system allows different levels of com-
fort for the driver and front passenger. It
then controls these levels automatically,
according to the ambient conditions.



50

Automatic gearbox
This system provides perfect driving by
combining a fully automatic mode, as-
sociated with two special programmes,
and a manual mode.



107

Audio and communication systems
These systems benefi ts from the latest
technology: MP3 compatible Peugeot
Connect Sound (RD5), Peugeot Connect
USB with Bluetooth hands-free system,
Peugeot Connect Navigation (RNEG)
with 16/9 colour screen, JBL audio sys-
tem, auxiliary sockets.

Peugeot Connect Navigation (RNEG)
157


Peugeot Connect Sound (RD5)


189

Peugeot Connect Plug



196


Electric windows
On the driver’s side, control of
the electric windows is auto-
matic when opening and when
closing.



71
