COMFORT
50
FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to adapt your position for
maximum ease of driving and comfort.
1 . F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Lift the control and slide the seat for-
wards or backwards. 2. Driver's or passenger's seat
h e i g h t a d j u s t m e n t
Full the lever upwards or push it
downwards as many times as neces-
sary to obtain the required position. 3 . S e a t b a c k a n g l e a d j u s t m e n t
Push the lever towards the rear.
Page 52 of 207
!
!
COMFORT
51
No person or object must prevent
the seat slide from returning to its
initial position; return to this posi-
tion is necessary for the seat to
lock in place.
4. Access to rear seats
Pull the lever to fold the seat back
and move the seat forwards.
On repositioning, the seat returns to its initial position. 5 . H e a d r e s t r a i n t h e i g h t a d j u s t m e n t
To raise the head restraint, pull it up-
wards.
To remove the head restraint, press
the lug A and pull the head restraint
upwards.
To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care to
keep them in line with the seat back.
To lower the head restraint, press
the lug A and the head restraint at
the same time. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.
T h e a d j u s t m e n t i s c o r r e c t w h e n t h e
u p p e r e d g e o f t h e h e a d r e s t r a i n t i s
l e v e l w i t h t h e t o p o f t h e h e a d .
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Page 53 of 207
!i!
COMFORT
52

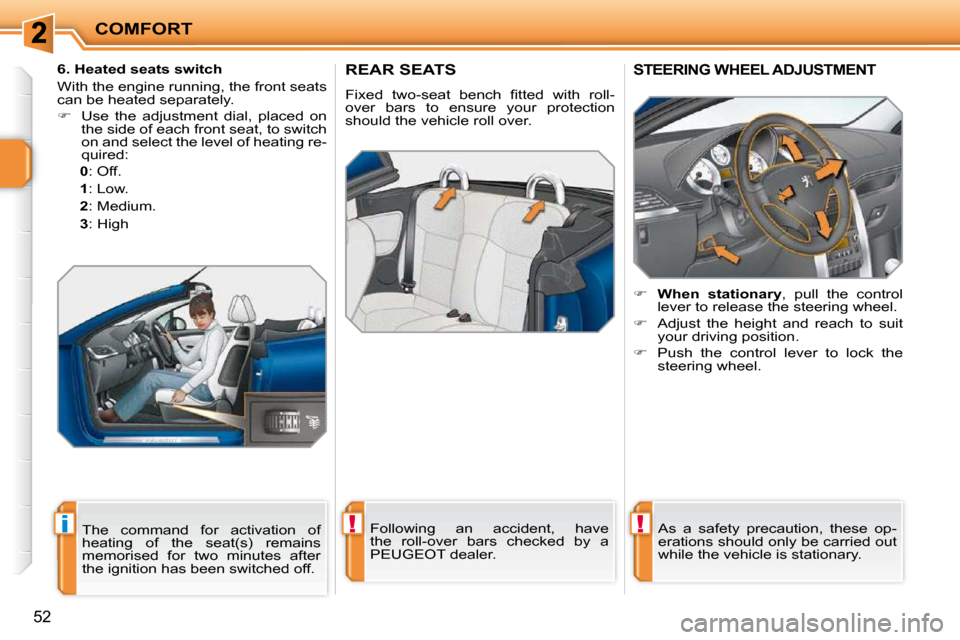

REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to ensure your protection
should the vehicle roll over. Following an accident, have
the roll-over bars checked by a
PEUGEOT dealer.
The command for activation of
heating of the seat(s) remains
memorised for two minutes after
the ignition has been switched off.
6 . H e a t e d s e a t s s w i t c h
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.
Page 54 of 207
!i!
COMFORT
52
REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to ensure your protection
should the vehicle roll over. Following an accident, have
the roll-over bars checked by a
PEUGEOT dealer.
The command for activation of
heating of the seat(s) remains
memorised for two minutes after
the ignition has been switched off.
6 . H e a t e d s e a t s s w i t c h
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.
Page 55 of 207
i
!
COMFORT
53

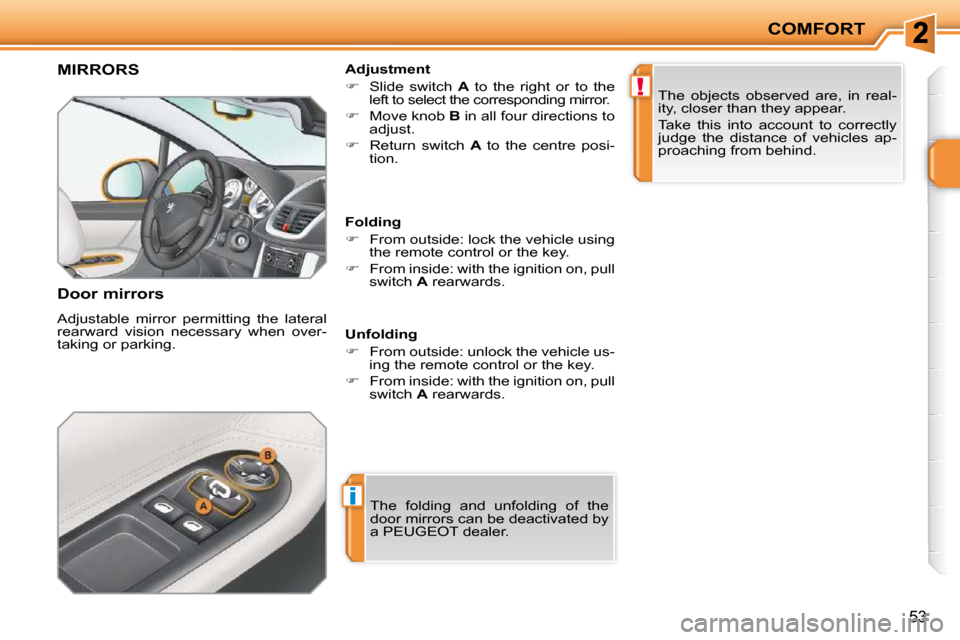

MIRRORS
Door mirrors
Adjustable mirror permitting the lateral
rearward vision necessary when over-
taking or parking. A d j u s t m e n t
Slide switch A to the right or to the
left to select the corresponding mirror.
Move knob B in all four directions to
adjust.
Return switch A to the centre posi-
tion.
The folding and unfolding of the
door mirrors can be deactivated by
a PEUGEOT dealer.
Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
switch A rearwards.
Unfolding
From outside: unlock the vehicle us-
ing the remote control or the key.
From inside: with the ignition on, pull
switch A rearwards. The objects observed are, in real-
ity, closer than they appear.
Take this into account to correctly
judge the distance of vehicles ap-
proaching from behind.
Page 56 of 207
!
i
COMFORT
54
R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
A d j u s t m e n t
Adjust the mirror so that the glass is di-
r e c t e d c o r r e c t l y i n t h e " d a y " p o s i t i o n .
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " . In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
A u t o m a t i c d a y / n i g h t m o d e l
M a n u a l d a y / n i g h t m o d e l
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the nor-
m a l " d a y " p o s i t i o n . By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beam of following vehicles, the sun...
Page 57 of 207
!
COMFORT
55
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.
With the ignition on, raise the con-
c e a l i n g fl a p ; t h e m i r r o r i s l i t a u t o m a t i -
cally.
This sun visor is also equipped with a
ticket holder. To avoid any risk of jamming of the
pedals:
- only use mats which are suited
t o t h e fi x i n g s a l r e a d y p r e s e n t i n
the vehicle; it is imperative that
these are used,
- n e v e r fi t o n e m a t o n t o p o f a n - other. Removable carpet protection. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured cor-
rectly.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
T o r e m o v e t h e m a t o n t h e d r i v e r ' s s i d e :
move the seat as far back as possible,
u n c l i p t h e fi x i n g s ,
remove the mat.
Page 58 of 207
COMFORT
56
INTERIOR FITTINGS
1. Illuminated glove box
(see details on following page)
2. Storage compartment
w i t h
non-slip mat
3. Card
/ticket
h o l d e r
4. Door tray
5. S t o r a g e c o m p a r t m e n t w i t h
non-slip mat
6. USB port
(see details on following page)
7. 12 V accessories socket
(see details on following page)
8. C u p h o l d e r
Page 59 of 207
COMFORT
57
Illuminated glove box
This has an upper open storage com-
partment, a recess and locations for
s t o r i n g a b o t t l e o f w a t e r , t h e v e h i c l e ' s
handbook, ...
Its lid has locations for storing a pen, a pair
of spectacles, tokens, cards, a can, ...
I t i s fi t t e d w i t h a l o c k .
To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger airbag de-
activation switch A .
I f t h e v e h i c l e i s fi t t e d w i t h a i r c o n d i -
tioning, it provides access to the ven-
tilation nozzle B , which can be opened
or closed, distributing the same condi-
tioned air as the vents in the passenger
compartment. 12 V accessories socket
To connect a 12 V accessory (max
power: 120 Watts), lift the cover and
connect a suitable adaptor. PEUGEOT CONNECT USB
This connection box, consisting of an
auxiliary JACK socket and a USB port,
is located on the centre console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
or USB memory stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
t h e v e h i c l e ' s s p e a k e r s .
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the use of this
equipment, refer to the Peugeot Con-
n e c t S o u n d p a r t o f t h e " A u d i o a n d T e l e -
m a t i c s " s e c t i o n .
Page 60 of 207
COMFORT
57
Illuminated glove box
This has an upper open storage com-
partment, a recess and locations for
s t o r i n g a b o t t l e o f w a t e r , t h e v e h i c l e ' s
handbook, ...
Its lid has locations for storing a pen, a pair
of spectacles, tokens, cards, a can, ...
I t i s fi t t e d w i t h a l o c k .
To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger airbag de-
activation switch A .
I f t h e v e h i c l e i s fi t t e d w i t h a i r c o n d i -
tioning, it provides access to the ven-
tilation nozzle B , which can be opened
or closed, distributing the same condi-
tioned air as the vents in the passenger
compartment. 12 V accessories socket
To connect a 12 V accessory (max
power: 120 Watts), lift the cover and
connect a suitable adaptor. PEUGEOT CONNECT USB
This connection box, consisting of an
auxiliary JACK socket and a USB port,
is located on the centre console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
or USB memory stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
t h e v e h i c l e ' s s p e a k e r s .
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the use of this
equipment, refer to the Peugeot Con-
n e c t S o u n d p a r t o f t h e " A u d i o a n d T e l e -
m a t i c s " s e c t i o n .
