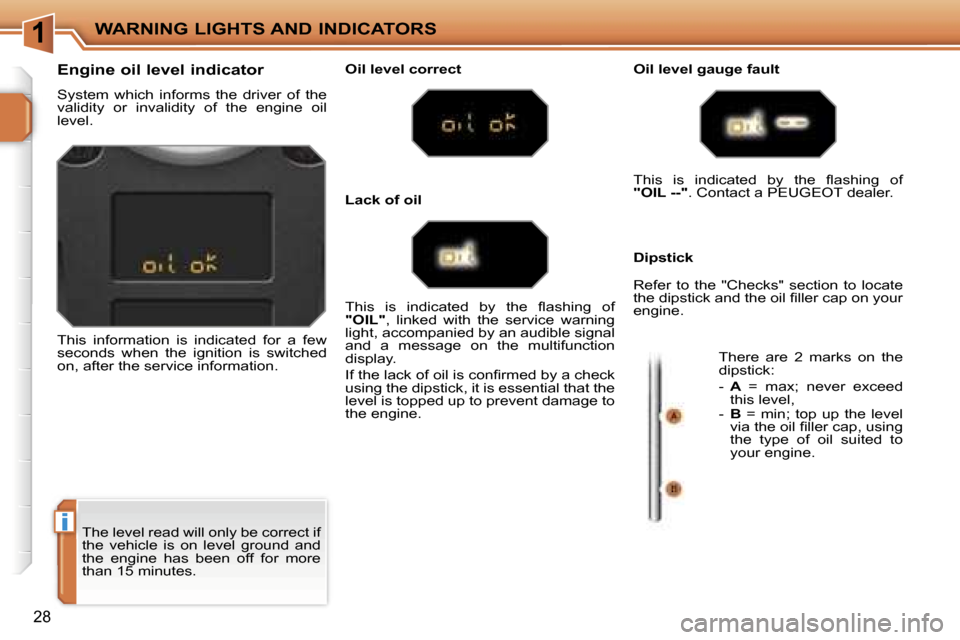

WARNING LIGHTS AND INDICATORS
28
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver of the
validity or invalidity of the engine oil
level.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.Oil level correct
Lack of oil
Oil level gauge fault
Dipstick
This is indicated by the flashing of
"OIL"
, linked with the service warning
light, accompanied by an audible signal
and a message on the multifunction
display.
If the lack of oil is confirmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the flashing of
"OIL --"
. Contact a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil filler cap on your
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level,
- B = min; top up the level
via the oil filler cap, using
the type of oil suited to
your engine.

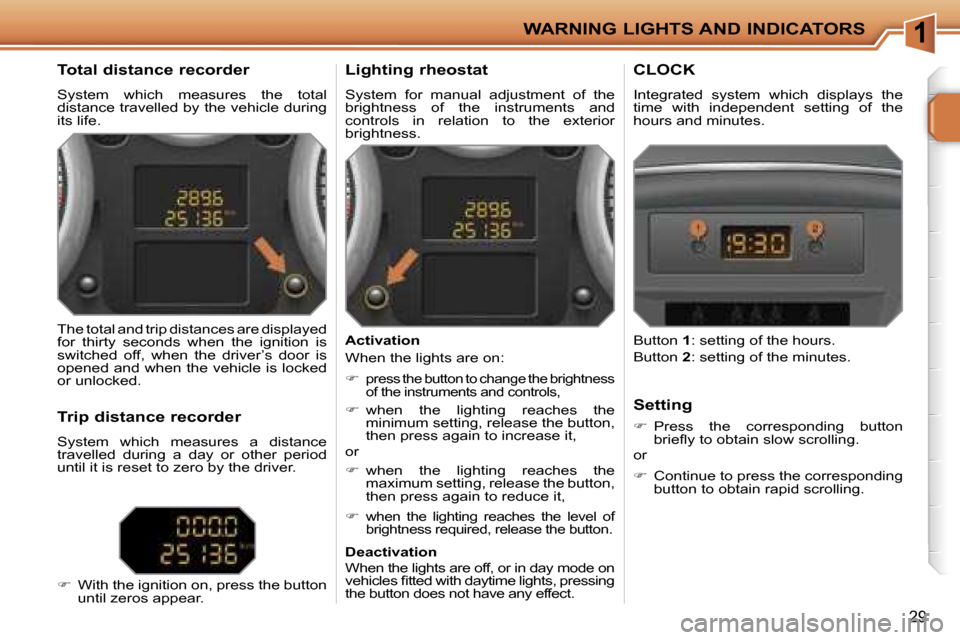

1WARNING LIGHTS AND INDICATORS
29
Total distance recorder
System which measures the total
distance travelled by the vehicle during
its life.
Lighting rheostat
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
CLOCK
Integrated system which displays the
time with independent setting of the
hours and minutes.
The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver’s door is
opened and when the vehicle is locked
or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.
 With the ignition on, press the button
until zeros appear. Activation
When the lights are on:


press the button to change the brightness
of the instruments and controls,
 when the lighting reaches the
minimum setting, release the button,
then press again to increase it,
or
 when the lighting reaches the
maximum setting, release the button,
then press again to reduce it,

when the lighting reaches the level of
brightness required, release the button.
Button 1: setting of the hours.
Button 2: setting of the minutes.
Deactivation
When the lights are off, or in day mode on
vehicles fitted with daytime lights, pressing
the button does not have any effect.
Setting
 Press the corresponding button
briefly to obtain slow scrolling.
or
 Continue to press the corresponding
button to obtain rapid scrolling.

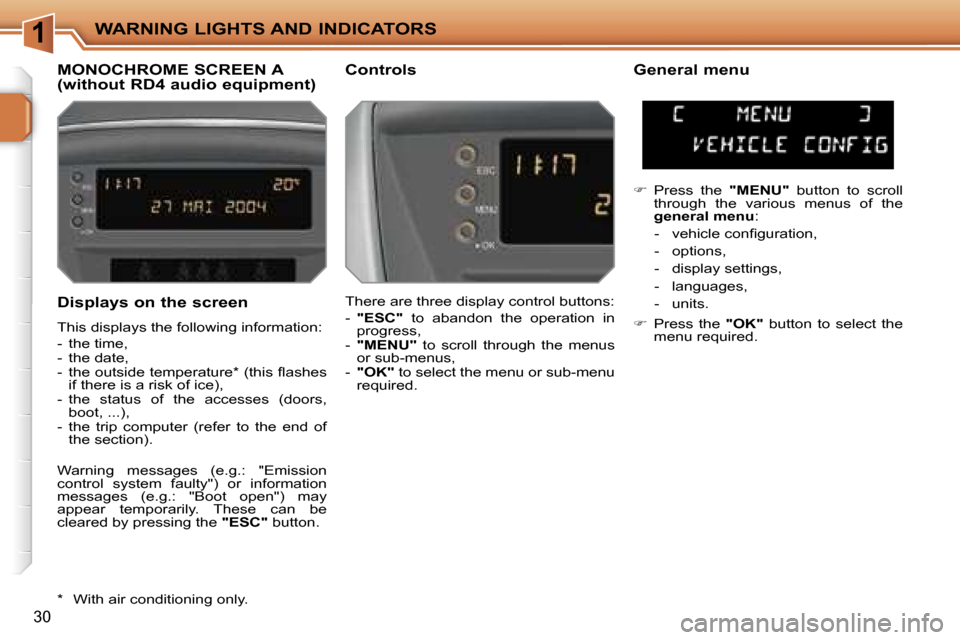

1WARNING LIGHTS AND INDICATORS
30
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature* (this flashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may
appear temporarily. These can be
cleared by pressing the "ESC" button.
MONOCHROME SCREEN A
(without RD4 audio equipment) Controls General menu
There are three display control buttons:
-
"ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-menu
required. 
Press the "MENU" button to scroll
through the various menus of the
general menu :
- vehicle configuration,
- options,
- display settings,
- languages,
- units.
 Press the "OK" button to select the
menu required.
* With air conditioning only.

1
!
WARNING LIGHTS AND INDICATORS
31
Vehicle configuration
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Units
Once the "Units" menu has been
selected, you can change the units of
the following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
 Once you have selected a setting,
press the "OK" button to change its
value.
 Wait for approximately ten seconds
without any action to allow the
changed data to be recorded or
press the "ESC" button to cancel.
The display then returns to the normal
display.
Once the "Vehicle configuration" menu
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "follow-me-home" lighting (refer to the "Visibility" section),
For safety reasons, configuration
of the multifunction displays by
the driver must take place when
stationary.

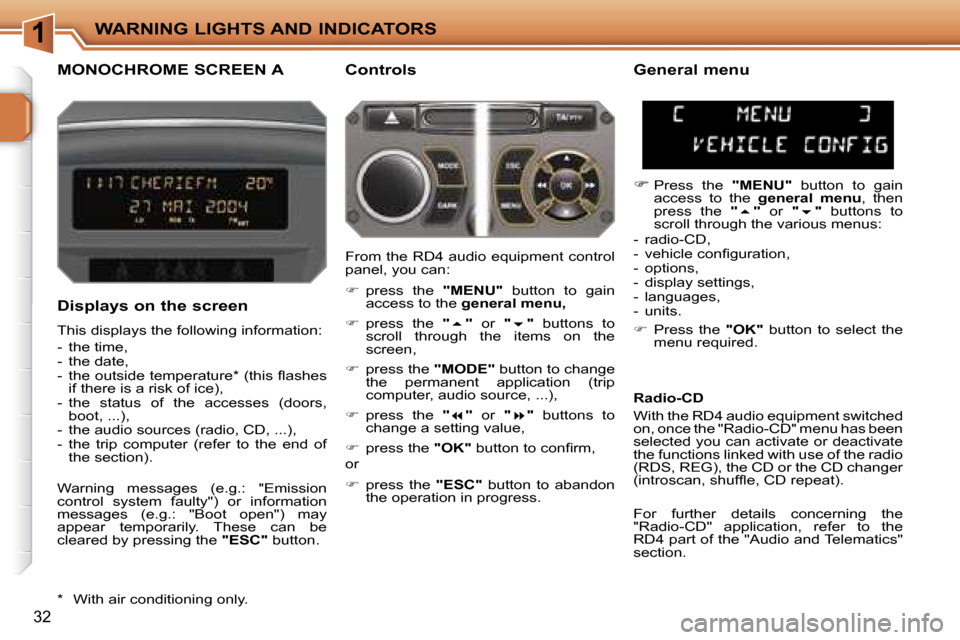

1WARNING LIGHTS AND INDICATORS
32
MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature* (this flashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may
appear temporarily. These can be
cleared by pressing the "ESC" button.
General menu
 Press the "MENU" button to gain
access to the general menu, then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- vehicle configuration,
- options,
- display settings,
- languages,
- units.
 Press the "OK" button to select the
menu required.
From the RD4 audio equipment control
panel, you can:

press the "MENU" button to gain
access to the general menu,
 press the " " or " " buttons to
scroll through the items on the
screen,
 press the "MODE" button to change
the permanent application (trip
computer, audio source, ...),
 press the " " or " " buttons to
change a setting value,
 press the "OK" button to confirm,
or
 press the "ESC" button to abandon
the operation in progress. Radio-CD
With the RD4 audio equipment switched
on, once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
(introscan, shuffle, CD repeat).
For further details concerning the
"Radio-CD" application, refer to the
RD4 part of the "Audio and Telematics"
section.
* With air conditioning only.

1
!

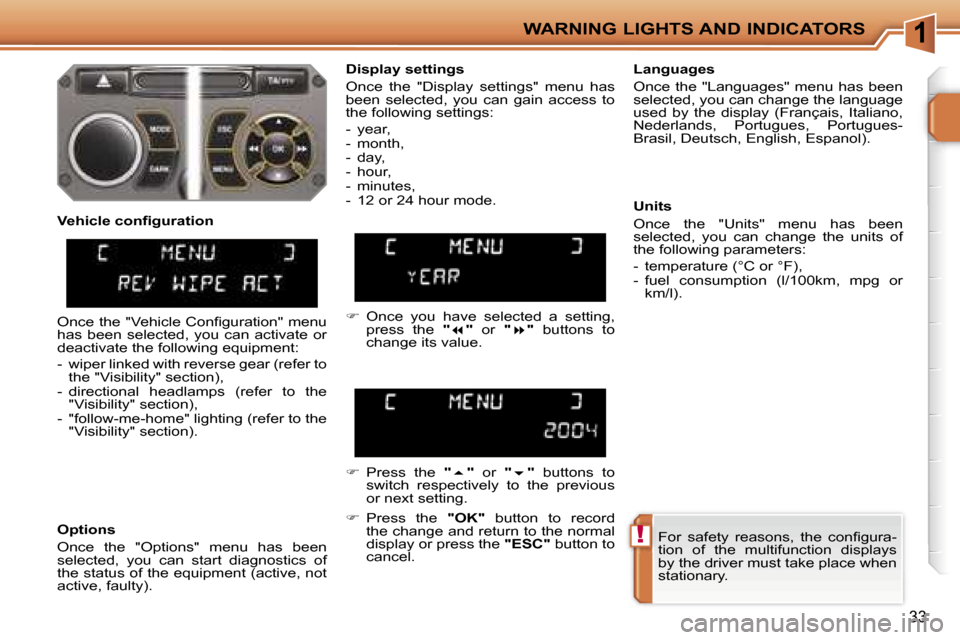

WARNING LIGHTS AND INDICATORS
33
For safety reasons, the configura-
tion of the multifunction displays
by the driver must take place when
stationary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been
selected, you can change the units of
the following parameters:
- temperature (°C or °F),
- fuel consumption (l/100km, mpg or
km/l).
 Once you have selected a setting,
press the " " or " " buttons to
change its value.
 Press the " " or " " buttons to
switch respectively to the previous
or next setting.
 Press the "OK" button to record
the change and return to the normal
display or press the "ESC" button to
cancel.
Vehicle configuration
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
Once the "Vehicle Configuration" menu
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to
the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "follow-me-home" lighting (refer to the "Visibility" section).

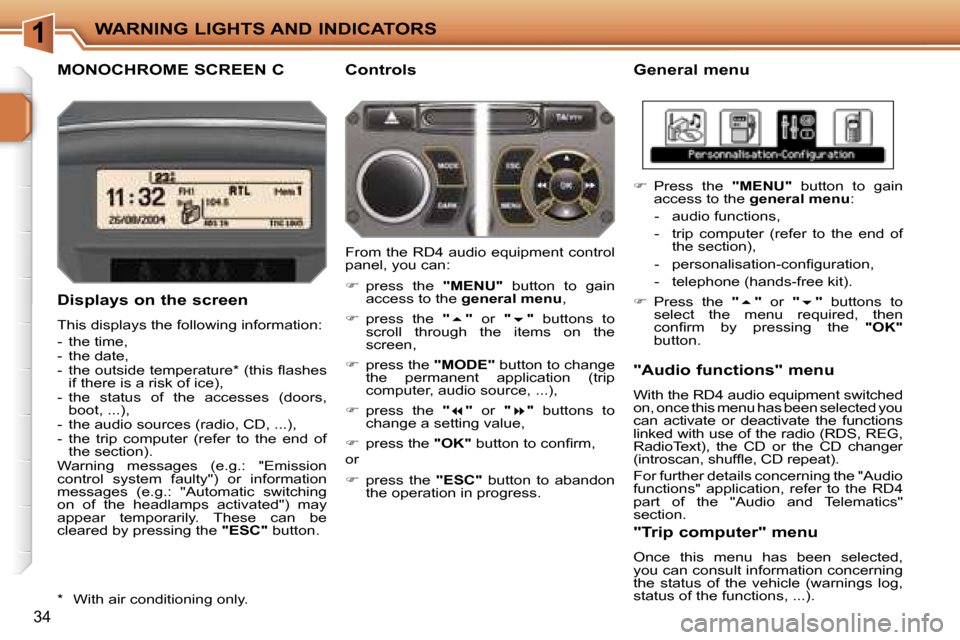

1WARNING LIGHTS AND INDICATORS
34
MONOCHROME SCREEN CGeneral menu
Displays on the screen
This displays the following information:
- the time,
- the date,
- the outside temperature* (this flashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may
appear temporarily. These can be
cleared by pressing the "ESC" button.
"Audio functions" menu
With the RD4 audio equipment switched
on, once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText), the CD or the CD changer
(introscan, shuffle, CD repeat).
For further details concerning the "Audio
functions" application, refer to the RD4
part of the "Audio and Telematics"
section.
Controls
From the RD4 audio equipment control
panel, you can:
 press the "MENU" button to gain
access to the general menu ,
 press the " " or " " buttons to
scroll through the items on the
screen,
 press the "MODE" button to change
the permanent application (trip
computer, audio source, ...),
 press the " " or " " buttons to
change a setting value,
 press the "OK" button to confirm,
or
 press the "ESC" button to abandon
the operation in progress. 
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- trip computer (refer to the end of the section),
- personalisation-configuration,
- telephone (hands-free kit).
 Press the " " or " " buttons to
select the menu required, then
confirm by pressing the "OK"
button.
* With air conditioning only.
"Trip computer" menu
Once this menu has been selected,
you can consult information concerning
the status of the vehicle (warnings log,
status of the functions, ...).

1
!

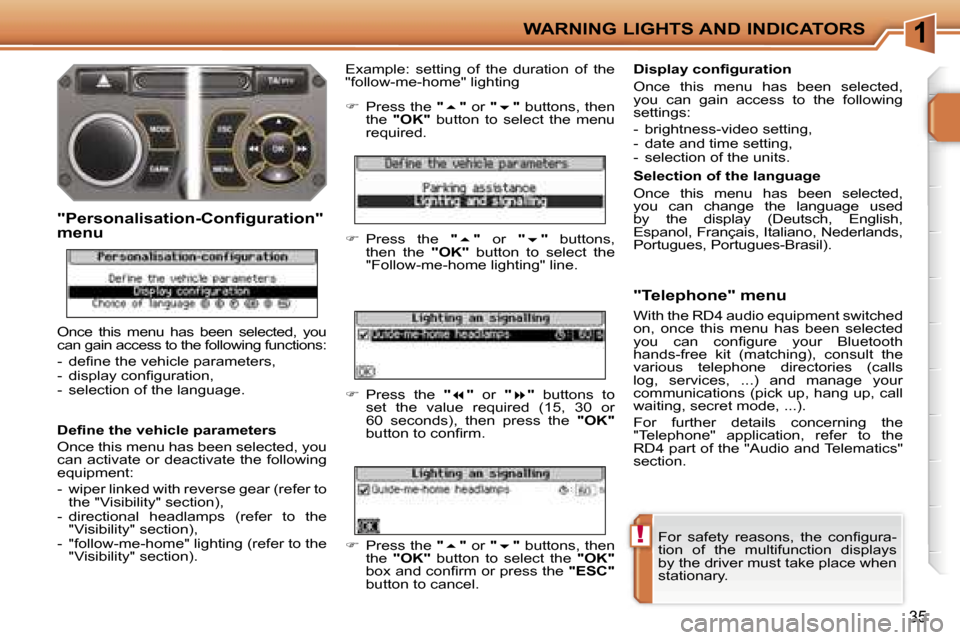

WARNING LIGHTS AND INDICATORS
35
For safety reasons, the configura-
tion of the multifunction displays
by the driver must take place when
stationary.
Define the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked with reverse gear (refer to
the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "follow-me-home" lighting (refer to the "Visibility" section).
"Telephone" menu
With the RD4 audio equipment switched
on, once this menu has been selected
you can configure your Bluetooth
hands-free kit (matching), consult the
various telephone directories (calls
log, services, ...) and manage your
communications (pick up, hang up, call
waiting, secret mode, ...).
For further details concerning the
"Telephone" application, refer to the
RD4 part of the "Audio and Telematics"
section.
Display configuration
Once this menu has been selected,
you can gain access to the following
settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Selection of the language
Once this menu has been selected,
you can change the language used
by the display (Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Portugues-Brasil).
Example: setting of the duration of the
"follow-me-home" lighting
"Personalisation-Configuration"
menu
Once this menu has been selected, you
can gain access to the following functions:
- define the vehicle parameters,
- display configuration,
- selection of the language. 
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
 Press the " " or " " buttons,
then the "OK" button to select the
"Follow-me-home lighting" line.
 Press the " " or " " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
button to confirm.
 Press the " " or " " buttons, then
the "OK" button to select the "OK"
box and confirm or press the "ESC"
button to cancel.

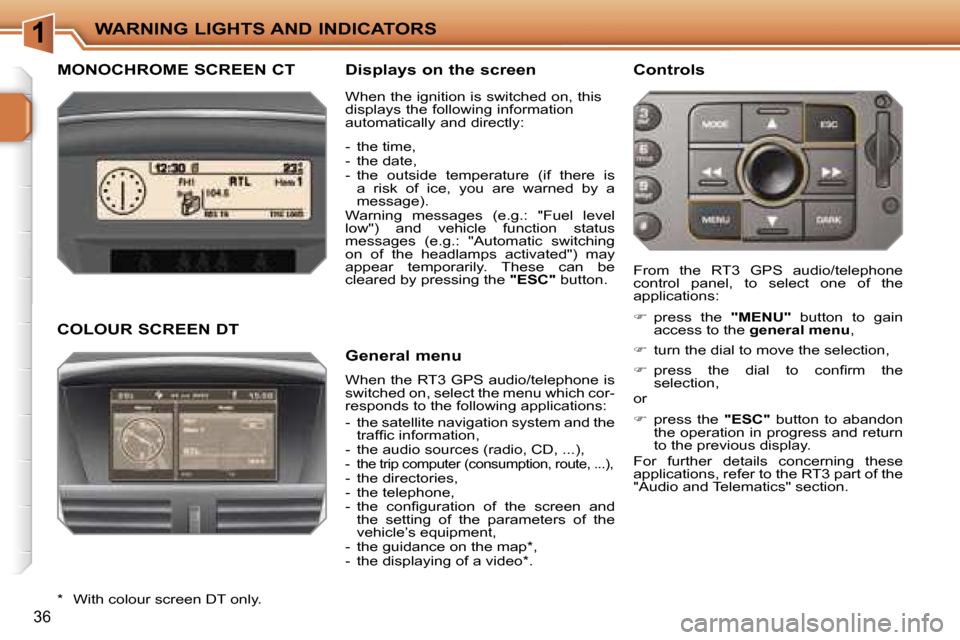

1WARNING LIGHTS AND INDICATORS
36
MONOCHROME SCREEN CT Displays on the screen
When the RT3 GPS audio/telephone is
switched on, select the menu which cor-
responds to the following applications:
- the satellite navigation system and the traffic information,
- the audio sources (radio, CD, ...),
- the trip computer (consumption, route, ...),- the directories,
- the telephone,
- the configuration of the screen and the setting of the parameters of the
vehicle’s equipment,
- the guidance on the map*,
- the displaying of a video*.
Controls
When the ignition is switched on, this
displays the following information
automatically and directly:
- the time,
- the date,
- the outside temperature (if there is a risk of ice, you are warned by a
message).
Warning messages (e.g.: "Fuel level
low") and vehicle function status
messages (e.g.: "Automatic switching
on of the headlamps activated") may
appear temporarily. These can be
cleared by pressing the "ESC" button. From the RT3 GPS audio/telephone
control panel, to select one of the
applications:

press the "MENU" button to gain
access to the general menu ,
 turn the dial to move the selection,
 press the dial to confirm the
selection,
or
 press the "ESC" button to abandon
the operation in progress and return
to the previous display.
For further details concerning these
applications, refer to the RT3 part of the
"Audio and Telematics" section.
COLOUR SCREEN DT
General menu
* With colour screen DT only.

1WARNING LIGHTS AND INDICATORS
37
Define the vehicle parameters
Once the "Define the vehicle
parameters" menu has been selected,
you can activate or deactivate certain
driving and comfort equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- "follow-me-home" lighting and duration (refer to the "Visibility" section). Example: setting the duration of the
"follow-me-home" lighting

Turn the dial to select the "Lighting
configuration" menu, then press it
to confirm.
 Select the line "Duration of the
"follow-me-home" lighting" then
confirm.
"Configuration" menu

Press the "MENU" button on the
RT3 GPS audio/telephone to gain
access to the general menu.
 Turn the dial to select the
"Configuration" menu, then press
it to confirm.
Once this menu has been selected,
you can gain access to the following
functions:
 Select the duration then press the
dial.
 Turn the dial to set the value required
(15, 30 or 60 seconds), then press
the dial.
 Select the "OK" box, then confirm.
