Peugeot 207 Dag 2005.5 Owner's Guide

1
!
i
WARNING LIGHTS AND INDICATORS
38
For safety reasons, configuration
of the multifunction displays by
the driver must take place when
stationary.
The configuration CD-ROM is
required for changing the voice
used by the voice synthesiser
(male or female) or the language
used by the system.
Once the "Display configuration" menu
has been selected, you gain access to
the following parameters:
- selection of the palette of colours
available for the display*,
- setting of the brightness and brilliance of the display,
- setting of the voice commands; setting of the voice synthesiser (volume, male
or female); activation of the auxiliary
input AUX*,
- from the "international parameters", setting of the date and time (12 or
24 hour mode, adjustment of the
minutes on GPS); selection of the
units (temperature in °Celsius or
°Fahrenheit; consumption in l/100 km
or mpg or km/l),
- selection of the display, information and voice commands language (Français,
English, Italiano, Portugues, Espanol,
Deutsch, Nederlands).
Display configuration
"Video" menu*
You can connect video equipment
(camcorder, digital camera, DVD
player, ...) to the three audio/video
sockets, located in the glove box.
Videos can only be displayed when
stationary.
Once this menu has been selected, you
can select:
- "Activate video mode" to activate/ deactivate the video,
- "Video parameters" to set the display format, the brightness, the contrast
and the colours.
 Press the "MODE" or "DARK"
button to disconnect the displaying
of the video.
 Press the "SOURCE" button several
times in succession to select an
audio source other than that of the
video.
* With colour screen DT only.

1WARNING LIGHTS AND INDICATORS
39
TRIP COMPUTER
 Press the button, located at the end
of the wipers stalk , to display the
various items of trip computer data
in succession. The trip computer data is the following:
System which provides current infor-
mation concerning the route travelled
(range, consumption, ...).
 Press the control for more than
two seconds to reset the distance
travelled, the average consumption
and the average speed to zero.
Monochrome screen AZero reset
Data displays
- the range,
- the current consumption,
- the distance travelled,
- the average consumption,
- the average speed.

1
!
i
i
WARNING LIGHTS AND INDICATORS
41

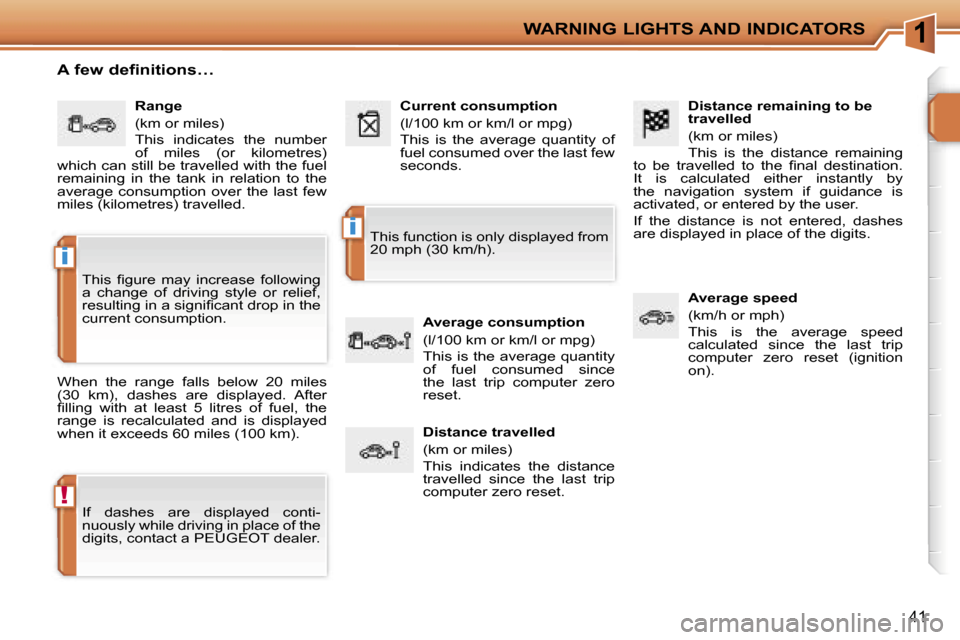

Distance remaining to be
travelled
(km or miles)
This is the distance remaining
to be travelled to the final destination.
It is calculated either instantly by
the navigation system if guidance is
activated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Average speed
(km/h or mph)
This is the average speed
calculated since the last trip
computer zero reset (ignition
on).
Range
(km or miles)
This indicates the number
of miles (or kilometres)
which can still be travelled with the fuel
remaining in the tank in relation to the
average consumption over the last few
miles (kilometres) travelled. Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed over the last few
seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since
the last trip computer zero
reset.
Distance travelled
(km or miles)
This indicates the distance
travelled since the last trip
computer zero reset.
A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After
filling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km). If dashes are displayed conti-
nuously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
This figure may increase following
a change of driving style or relief,
resulting in a significant drop in the
current consumption.

1WARNING LIGHTS AND INDICATORS
40
Colour screen DT
- the current information tab with:
• the range,• the current consumption,• the distance remaining to be travelled,
Monochrome screen CT
Route zero resetMonochrome screen C
 Press the button, located at the
end of the wipers stalk , to display
the various trip computer tabs in
succession:
Data displays
 When the route required is displayed,
press the control for more than two
seconds.
- the route "1" tab with:
• the distance travelled,• the average consumption,• the average speed,
for the first route. - the route
"2" tab with:
• the distance travelled,• the average consumption,• the average speed,
for the second route.
Routes "1" and "2" are independent
but their use is identical.
Route "1" permits, for example, daily
calculations, and route "2" monthly
calculations.
TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, consumption, …).

1
!
i
i
WARNING LIGHTS AND INDICATORS
41
Distance remaining to be
travelled
(km or miles)
This is the distance remaining
to be travelled to the final destination.
It is calculated either instantly by
the navigation system if guidance is
activated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Average speed
(km/h or mph)
This is the average speed
calculated since the last trip
computer zero reset (ignition
on).
Range
(km or miles)
This indicates the number
of miles (or kilometres)
which can still be travelled with the fuel
remaining in the tank in relation to the
average consumption over the last few
miles (kilometres) travelled. Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed over the last few
seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since
the last trip computer zero
reset.
Distance travelled
(km or miles)
This indicates the distance
travelled since the last trip
computer zero reset.
A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After
filling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km). If dashes are displayed conti-
nuously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
This figure may increase following
a change of driving style or relief,
resulting in a significant drop in the
current consumption.

1WARNING LIGHTS AND INDICATORS
42

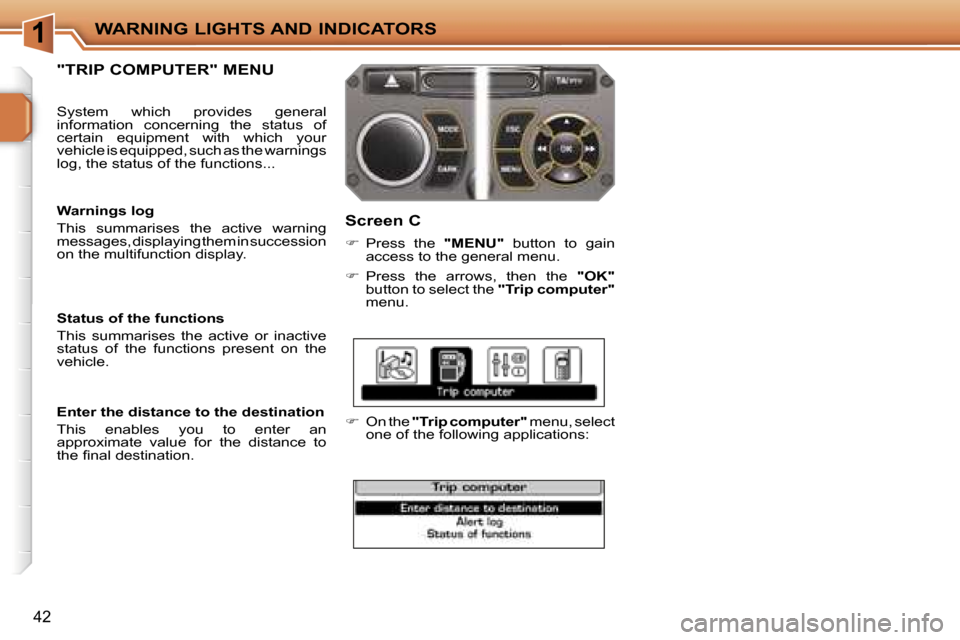

"TRIP COMPUTER" MENUScreen C
 Press the "MENU" button to gain
access to the general menu.
 Press the arrows, then the "OK"
button to select the "Trip computer"
menu.
 On the "Trip computer" menu, select
one of the following applications:
Warnings log
This summarises the active warning
messages, displaying them in succession
on the multifunction display.
Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Enter the distance to the destination
This enables you to enter an
approximate value for the distance to
the final destination.
System which provides general
information concerning the status of
certain equipment with which your
vehicle is equipped, such as the warnings
log, the status of the functions...

1WARNING LIGHTS AND INDICATORS
43
Trip computer configuration
This function enables you to enter
the distance to the destination (when
no guidance is activated; otherwise,
the information is provided by the
navigation) and change the units (°C or
°F, km and litres, miles and Gallons or
km and km/litre).
Diagnostics
This presents the information relating
to the warnings log, the level of charge
remaining in the back-up battery and
the number of satellites which can be
seen by the GPS system.Screen CT or DT
 Press the "MENU" button to gain
access to the general menu.
 Turn the dial and press it to select
the "Trip computer" menu.
 On the "Trip computer" menu, select
one of the following applications:
Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.

2COMFORT
44
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle’s
passenger compartment.
Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables
you to diffuse the air in the passenger
compartment combining several air
vents.
The air flow control enables you to
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger
compartment is filtered and originates
either from the outside via the grille
located at the base of the windscreen or
from the inside in air recirculation mode.
Control panel
The controls of this system are grouped
together on control panel
A on the centre
console. Depending on the model, the
functions offered are:
- the level of comfort required,
- the air flow,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air conditioning controls.
Air diffusion
1. Windscreen de-icing or demisting
vents.
2. Front side window de-icing or
demisting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing
vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.

2
i
COMFORT
45

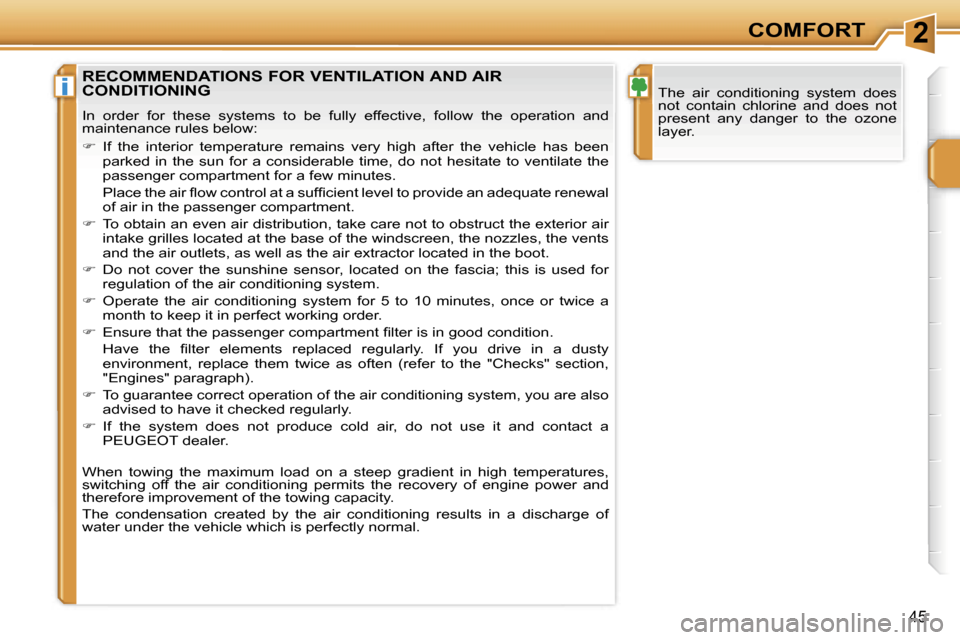

The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance rules below:
 If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
Place the air flow control at a sufficient level to provide an a dequate renewal
of air in the passenger compartment.
 To obtain an even air distribution, take care not to obstru ct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
 Do not cover the sunshine sensor, located on the fascia; thi s is used for
regulation of the air conditioning system.
 Operate the air conditioning system for 5 to 10 minutes, once or twice a
month to keep it in perfect working order.
 Ensure that the passenger compartment filter is in good condition .
Have the filter elements replaced regularly. If you drive in a dusty
environment, replace them twice as often (refer to the "Checks" secti on,
"Engines" paragraph).
 To guarantee correct operation of the air conditioning system, you are also
advised to have it checked regularly.
 If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.

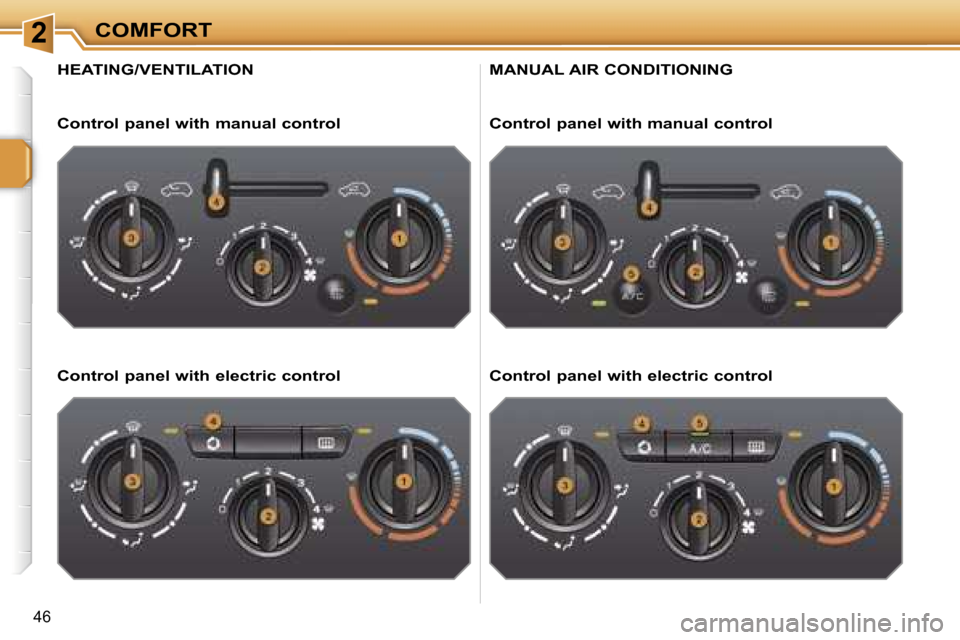

2COMFORT
46
HEATING/VENTILATION
Control panel with manual control
Control panel with electric controlMANUAL AIR CONDITIONING
Control panel with manual control
Control panel with electric control
