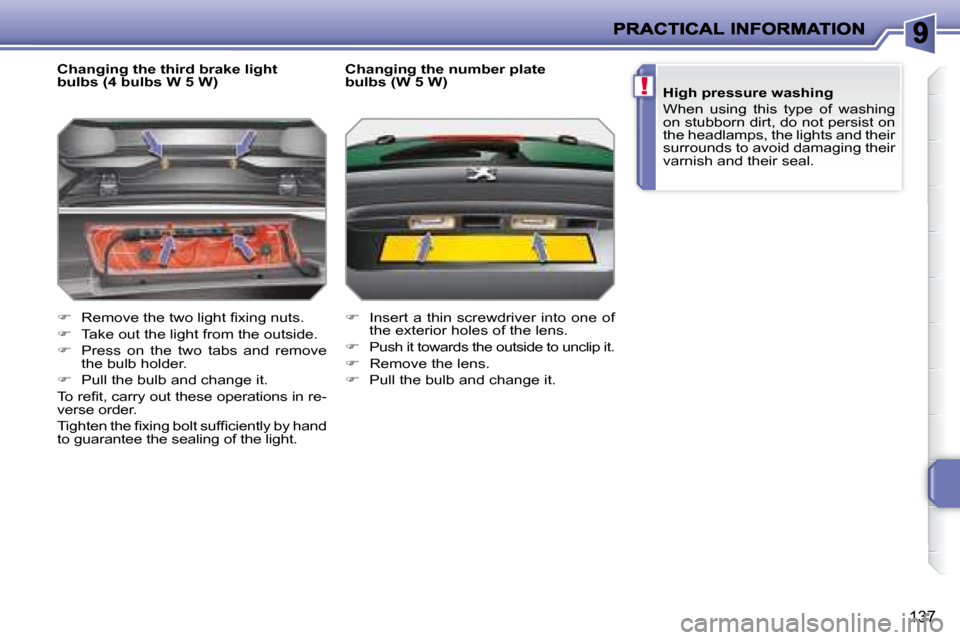

Changing the third brake light
bulbs (4 bulbs W 5 W)
R e m o v e t h e t w o l i g h t i x i n g n u t s .
Take out the light from the outside.
Press on the two tabs and remove
the bulb holder.
Pull the bulb and change it.
T o r e i t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
T i g h t e n t h e i x i n g b o l t s u f i c i e n t l y b y h a n d
to guarantee the sealing of the light. Changing the number plate
bulbs (W 5 W)
Insert a thin screwdriver into one of
the exterior holes of the lens.
Push it towards the outside to unclip it.
Remove the lens.
Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.
Page 152 of 223
140
Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, CD changer,
multifunction display, clock, steering wheel
c o n t r o l s , t y r e u n d e r - i n l a t i o n d e t e c t i o n , t r a i l e r f u s e
box.
F9 30 A Front 12 V socket, rear 12 V socket (SW).
F10 15 A Alarm siren, alarm control unit, directional he adlamps.
F11 15 A
Diagnostic socket, low current ignition switch, aut
omatic
gearbox control unit.
F12 15 A R a i n / b r i g h t n e s s s e n s o r , a m p l i i e r , t r a i l e r f u s e b o x ,
driving school module.
F13 5 A Engine fuse box, ABS relay, dual-function brake
switch.
F14 15 A Instrument panel, seat belt warning lights bar,
headlamp adjustment, air conditioning, hands-free
kit, rear parking assistance control unit, air bags.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and exterior mirrors de-icing.
SH - PARC shunt.
Page 153 of 223
141
Engine compartment fuses
The fuse box is placed in the engine
compartment, near the battery (left-
hand side).
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-
responding paragraph).
W h e n y o u h a v e i n i s h e d , c l o s e t h e
cover carefully to guarantee the
sealing of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister solenoid valves (1.6 l
16V
T H P ) , a i r l o w s e n s o r ( D i e s e l ) , i n j e c t i o n p u m p ( D i e s e l ) ,
water in diesel sensor (Diesel), EGR solenoid valve s,
air heating (Diesel).
F2 15 A Horn.
F3 10 A Front and rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (petrol), Turbo solenoid valves
(1.6 l 16V THP).
F6 10 A Vehicle speed sensor, automatic gearbox.
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
protection unit (Diesel).
F8 25 A Starter control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A Engine control unit actuators (petrol: ignition coils,
solenoid valves, oxygen sensors, injectors, heaters,
controlled thermostat) (Diesel: solenoid valves, he
aters).
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low / High speed.
Page 154 of 223
142
Fuse N° Rating Functions
F13 40 A Built-in systems interface supply (
ignition positive).
F14 30 A Diesel heater (Diesel).
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l protection for the electrical systems. All work on the maxi-fuses must be carried out by a PEUGEOT dealer.
Maxi-fuse table
Fuse N° Rating Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A / 30 A ABS/ESP pump.
MF3 * 20 A / 30 A ABS/ESP solenoid valves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A Additional fan assembly (1.6 l 16V THP).
MF7 * 80 A Passenger compartment fuse box.
MF8 * - Not used.
Box 2
MF9 * 80 A Heating unit (Diesel).
MF10 * 80 A Electric power steering.
MF11 * 40 A Valvetronic electric motor (1.6 l 16V THP).
Page 158 of 223
!
i
145
A l a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
sponding paragraph).
If the telephone is being used at
this time:
- it will be maintained for 5 minutes with the RD4 audio equipment
hands-free kit,
- i t w i l l s t i l l b e p o s s i b l e t o i n i s h the call with the RT4 GPS au-
dio/telephone.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f i c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lights, etc. for a
maximum combined duration of thirty
minutes. Exiting economy mode
These functions are reactivated auto-
matically next time the vehicle is driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be
double the duration for which the en-
gine is left running. However, this period
w i l l a l w a y s b e b e t w e e n i v e a n d t h i r t y
minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front or rear wiper blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting a front or rear wiper blade
At the front, check the size of the
wiper blade as the shorter blade is
i t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
