Page 92 of 223
!
82
In fog or snow, the brightness sensor
m a y d e t e c t s u f i c i e n t l i g h t . T h e r e f o r e ,
the lights will not come on automati-
cally.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
c o n i g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected (sensor behind the interior mir-
r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s a r e
switched on.
As soon as the brightness returns to a
s u f i c i e n t l e v e l o r t h e w i n d s c r e e n w i p e r s
are switched off, the lights are switched
off automatically.
"Follow-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p l a s h " u s i n g l e v e r B .
A s e c o n d " h e a d l a m p l a s h " s w i t c h e s
the function off again.
Switching off
The "follow-me-home" lighting is switched
off automatically following the door lock-
ing command, after a given time. Activation
Turn ring A to the " AUTO " position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on accompanied by the
service warning light, an audi-
ble signal and a message on the multi-
function display.
In this case, contact a PEUGEOT dealer.
Daytime lights *
O n v e h i c l e s i t t e d w i t h d a y t i m e l i g h t s ,
the dipped headlamps come on when
the vehicle is started.
This indicator light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
lit, unless the automatic switching on of
the lights mode is activated or the lights
are switched on manually.
Deactivation
Turn ring A to a position other than
" AUTO ". Deactivation is accompa-
nied by a message on the multifunc-
tion display.
* According to country.
Page 93 of 223
!
82
In fog or snow, the brightness sensor
m a y d e t e c t s u f i c i e n t l i g h t . T h e r e f o r e ,
the lights will not come on automati-
cally.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the
"Follow-me-home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
c o n i g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected (sensor behind the interior mir-
r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s a r e
switched on.
As soon as the brightness returns to a
s u f i c i e n t l e v e l o r t h e w i n d s c r e e n w i p e r s
are switched off, the lights are switched
off automatically.
"Follow-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p l a s h " u s i n g l e v e r B .
A s e c o n d " h e a d l a m p l a s h " s w i t c h e s
the function off again.
Switching off
The "follow-me-home" lighting is switched
off automatically following the door lock-
ing command, after a given time. Activation
Turn ring A to the " AUTO " position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on accompanied by the
service warning light, an audi-
ble signal and a message on the multi-
function display.
In this case, contact a PEUGEOT dealer.
Daytime lights *
O n v e h i c l e s i t t e d w i t h d a y t i m e l i g h t s ,
the dipped headlamps come on when
the vehicle is started.
This indicator light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
lit, unless the automatic switching on of
the lights mode is activated or the lights
are switched on manually.
Deactivation
Turn ring A to a position other than
" AUTO ". Deactivation is accompa-
nied by a message on the multifunc-
tion display.
* According to country.
Page 94 of 223
i
83
STATIC DIRECTIONAL
LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
beam to light the inside of the turn with an
additional angle of approximately 30°.
The use of this lighting is optimum
above all at low and average speed
( c i t y d r i v i n g , w i n d i n g r o a d s , . . . ) .
with directional lighting Programming
Switching on
The system is switched on from a cer-
tain speed and a certain angle of rota-
tion of the steering wheel.
Operating fault The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n i g u r a -
tion menu.
By default, this function is
activated.
In the event of a malfunction,
t h i s w a r n i n g l i g h t l a s h e s o n t h e
instrument panel, accompanied
by a message on the multifunc-
tion display.
Contact a PEUGEOT dealer.
Switching off
The system is switched off below a
certain angle of rotation of the steering
wheel.
It is switched off when reverse gear is
engaged.
HEADLAMP ADJUSTMENT
The initial setting is position
"0" .
To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the
load in the vehicle.
0 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised
load.
3. Driver + maximum authorised load.
without directional lighting
Page 96 of 223
!i
85
Windscreen and headlamp
wash
B. rear wiper selection ring:
off,
intermittent wipe,
w i p i n g w i t h s c r e e n w a s h ( i x e d
d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, if the
windscreen wipers are operating, the
rear wiper will start.
Programming
Pull the windscreen wiper stalk to-
wards you. The windscreen wash then
the windscreen wipers operate for a
i x e d p e r i o d .
The headlamp wash is also activated, if
the dipped headlamps are on .
Rear wiper
In the presence of snow or con-
siderable frost and when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
m u l t i f u n c t i o n d i s p l a y c o n i g u r a t i o n
menu. The function is activated or
switched off via the multi-
f u n c t i o n d i s p l a y c o n i g u r a -
tion menu.
By default, this function is
activated.
O n v e h i c l e s i t t e d w i t h a u t o m a t i c
air conditioning, any action on the
windscreen wash control results in
temporary closing of the air intake
to avoid odour inside the passen-
ger compartment.
Page 133 of 223
122
PETROL ENGINES
T h e s e a l l o w y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s l u i d s a n d t o r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t i l t e r .
3. Wash-wipe and headlamp wash
reservoir.
4. A i r i l t e r .
5. B r a k e l u i d r e s e r v o i r .
6. Fuse box.
7. Battery.
8. Dipstick.
9. E n g i n e o i l i l l e r c a p .
Page 134 of 223
123
DIESEL ENGINES
T h e s e a l l o w y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s l u i d s , t o r e p l a c e c e r t a i n c o m p o n e n t s a n d t o r e p r i m e t h e f u e l .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t i l t e r .
3. Wash-wipe and headlamp wash
reservoir.
4. Repriming pump.
5. B r a k e l u i d r e s e r v o i r .
6. Fuse box.
7. Battery.
8. Dipstick.
9. E n g i n e o i l i l l e r c a p .
10. A i r i l t e r .
Page 135 of 223
124
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i i c a n t l y , h a v e t h e
corresponding circuit checked by a
PEUGEOT dealer. Brake fluid level
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when
the ignition is switched on using the oil
level indicator on the instrument panel,
or using the dipstick.
Between two oil changes, the consump-
tion should not exceed 0.5 litre per
600 miles (1,000 km). T h e b r a k e l u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
Coolant level The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the ig-
nition off.
O n v e h i c l e s w h i c h a r e i t t e d w i t h a
p a r t i c l e e m i s s i o n i l t e r , t h e f a n m a y
operate after the vehicle has been
s w i t c h e d o f f , e v e n i f t h e e n g i n e i s
cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. Wash-wipe and headlamp wash *
fluid
T h e m i n i m u m l e v e l o f t h i s l u i d
is indicated by an audible sig-
nal and a message on the mul-
tifunction display.
Top up the level when you stop the ve-
hicle.
* According to country.
Draining the engine
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i i c a t i o n
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations. F l u i d s p e c i i c a t i o n
T h e b r a k e l u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l i l t h e D O T 4 s t a n d a r d s .
Draining the circuit
The coolant does not have to be
changed.
F l u i d s p e c i i c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
F l u i d s p e c i i c a t i o n
To guarantee optimum cleaning and
avoid freezing, water should not be
u s e d t o t o p u p o r r e p l a c e t h i s l u i d .
Page 144 of 223
!
i
i
132

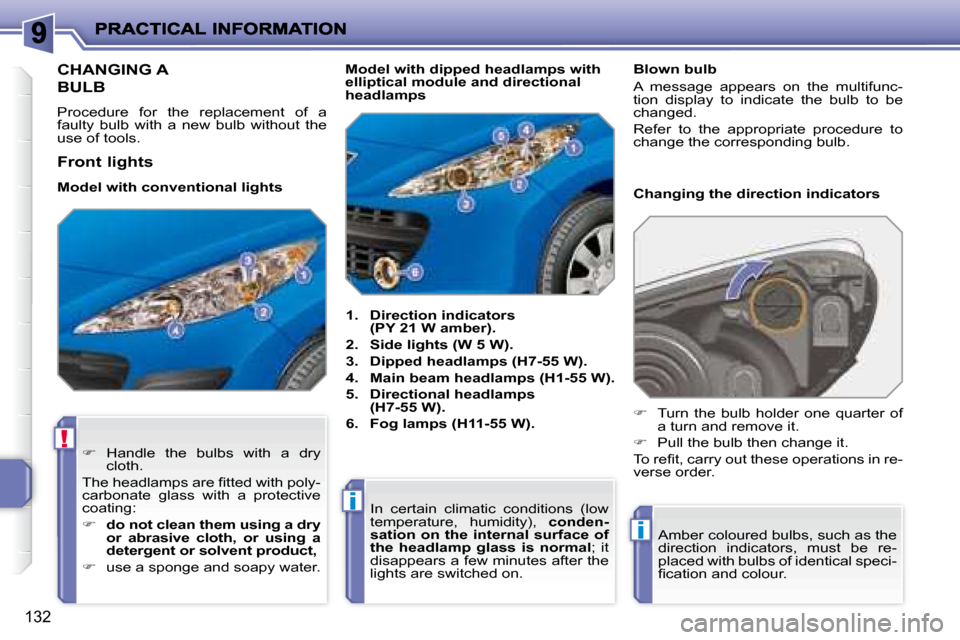

CHANGING A
BULB
Procedure for the replacement of a
faulty bulb with a new bulb without the
use of tools.
1. Direction indicators
(PY 21 W amber).
2. Side lights (W 5 W).
3. Dipped headlamps (H7-55 W).
4. Main beam headlamps (H1-55 W).
5. Directional headlamps
(H7-55 W).
6. Fog lamps (H11-55 W). Changing the direction indicators
Handle the bulbs with a dry
cloth.
T h e h e a d l a m p s a r e i t t e d w i t h p o l y -
carbonate glass with a protective
coating:
do not clean them using a dry
or abrasive cloth, or using a
detergent or solvent product,
use a sponge and soapy water. In certain climatic conditions (low
temperature, humidity),
conden-
sation on the internal surface of
the headlamp glass is normal ; it
disappears a few minutes after the
lights are switched on .
Model with dipped headlamps with
elliptical module and directional
headlamps
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
i c a t i o n a n d c o l o u r .
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb then change it.
T o r e i t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Front lights
Blown bulb
A message appears on the multifunc-
tion display to indicate the bulb to be
changed.
Refer to the appropriate procedure to
change the corresponding bulb.
Model with conventional lights
Page 145 of 223
133

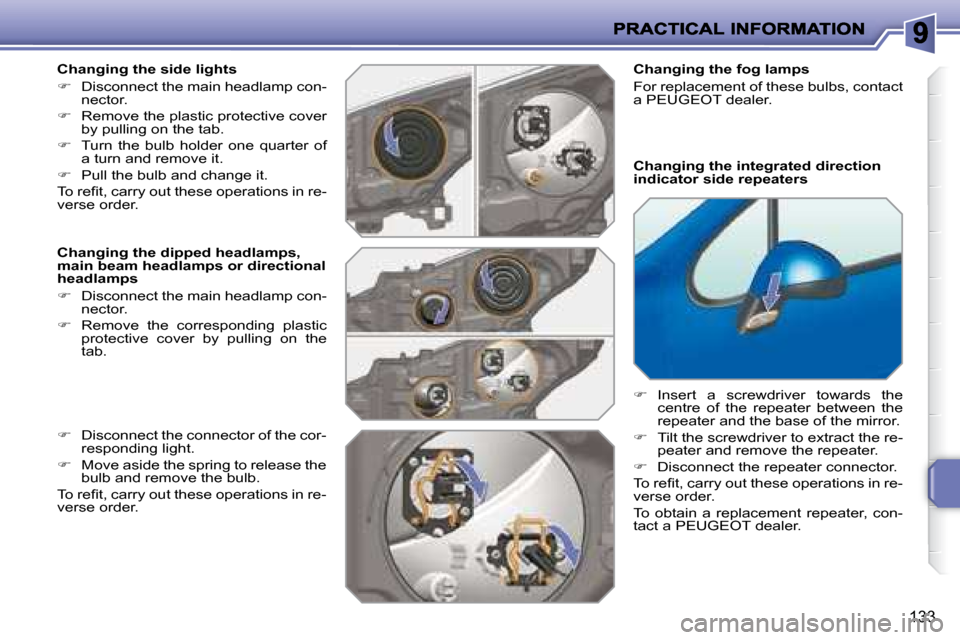

Changing the side lights
Disconnect the main headlamp con-
nector.
Remove the plastic protective cover
by pulling on the tab.
Turn the bulb holder one quarter of
a turn and remove it.
Pull the bulb and change it.
T o r e i t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing the dipped headlamps,
main beam headlamps or directional
headlamps
Disconnect the main headlamp con-
nector.
Remove the corresponding plastic
protective cover by pulling on the
tab. Changing the integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
Tilt the screwdriver to extract the re-
peater and remove the repeater.
Disconnect the repeater connector.
T o r e i t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.
Disconnect the connector of the cor-
responding light.
Move aside the spring to release the
bulb and remove the bulb.
T o r e i t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order. Changing the fog lamps
For replacement of these bulbs, contact
a PEUGEOT dealer.
Page 147 of 223
!
135

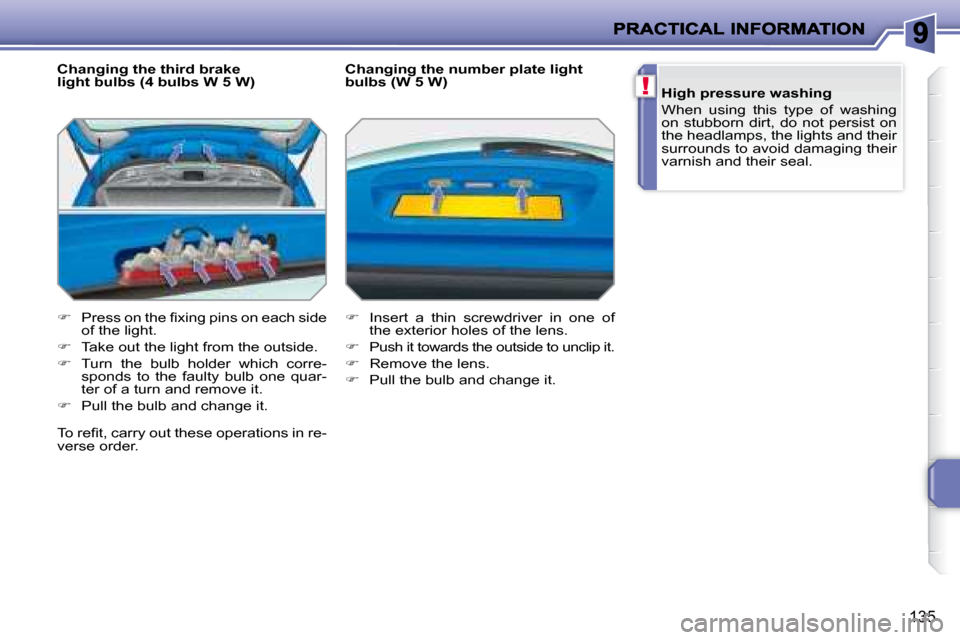

Changing the third brake
light bulbs (4 bulbs W 5 W)
P r e s s o n t h e i x i n g p i n s o n e a c h s i d e
of the light.
Take out the light from the outside.
Turn the bulb holder which corre-
sponds to the faulty bulb one quar-
ter of a turn and remove it.
Pull the bulb and change it. Changing the number plate light
bulbs (W 5 W)
Insert a thin screwdriver in one of
the exterior holes of the lens.
Push it towards the outside to unclip it.
Remove the lens.
Pull the bulb and change it.
T o r e i t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.
