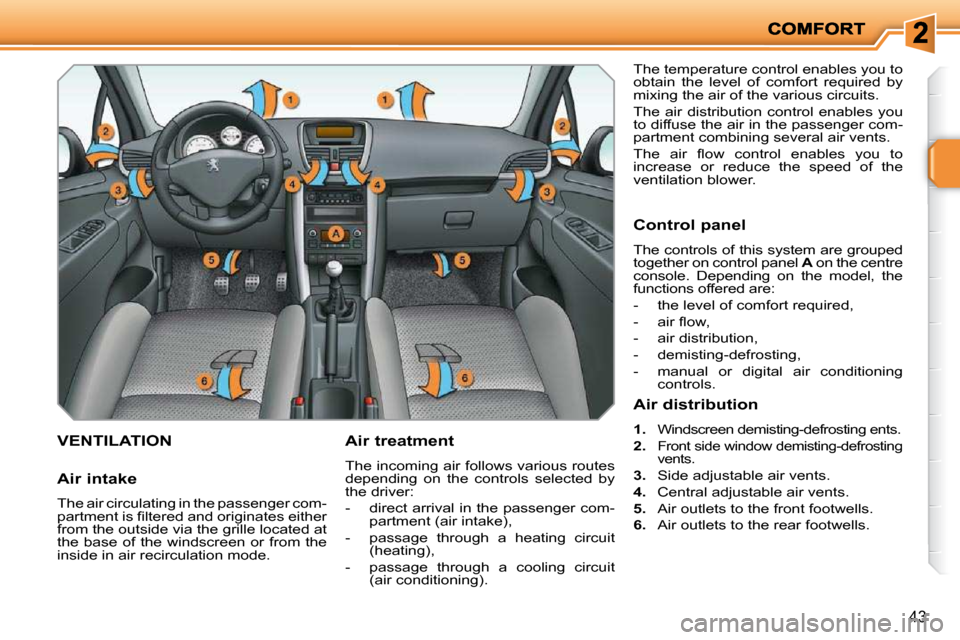

Page 27 of 218
43
VENTILATION Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the centre
console. Depending on the model, the
functions offered are:
- the level of comfort required,
- a i r fl o w ,
- air distribution,
- demisting-defrosting,
- manual or digital air conditioning controls.
Air distribution
1. Windscreen demisting-defrosting ents.
2. Front side window demisting-defrosting
vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.

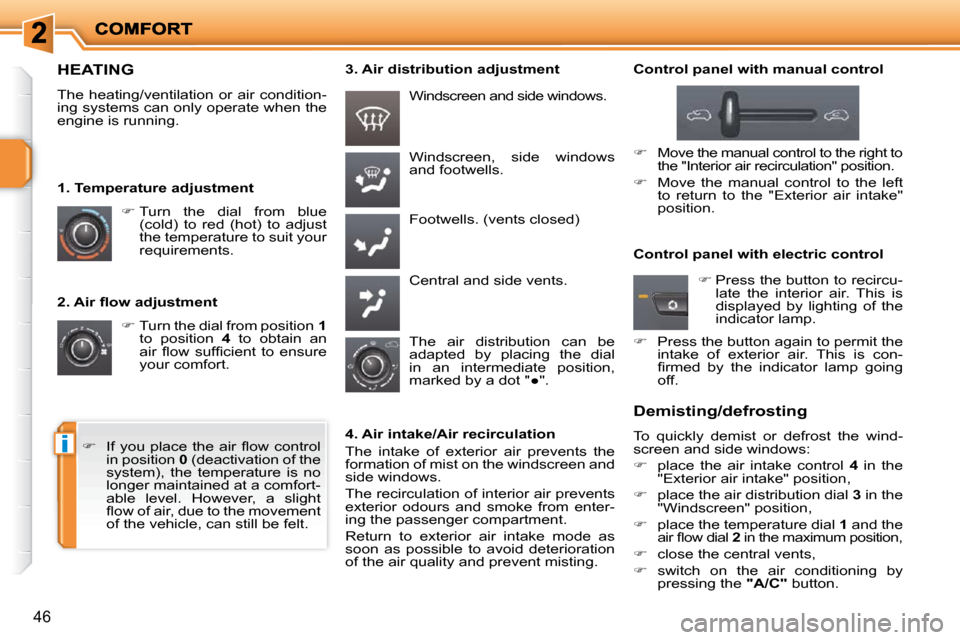

Page 30 of 218
i
46
2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1
to position 4 to obtain an
a i r fl o w s u f fi c i e n t t o e n s u r e
your comfort. Windscreen, side windows
and footwells.
Footwells. (vents closed)
Central and side vents.
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to suit your
requirements. Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The air distribution can be
adapted by placing the dial
in an intermediate position,
m a r k e d b y a d o t "
Page 32 of 218
i
46
2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1
to position 4 to obtain an
a i r fl o w s u f fi c i e n t t o e n s u r e
your comfort. Windscreen, side windows
and footwells.
Footwells. (vents closed)
Central and side vents.
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to suit your
requirements. Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The air distribution can be
adapted by placing the dial
in an intermediate position,
m a r k e d b y a d o t "

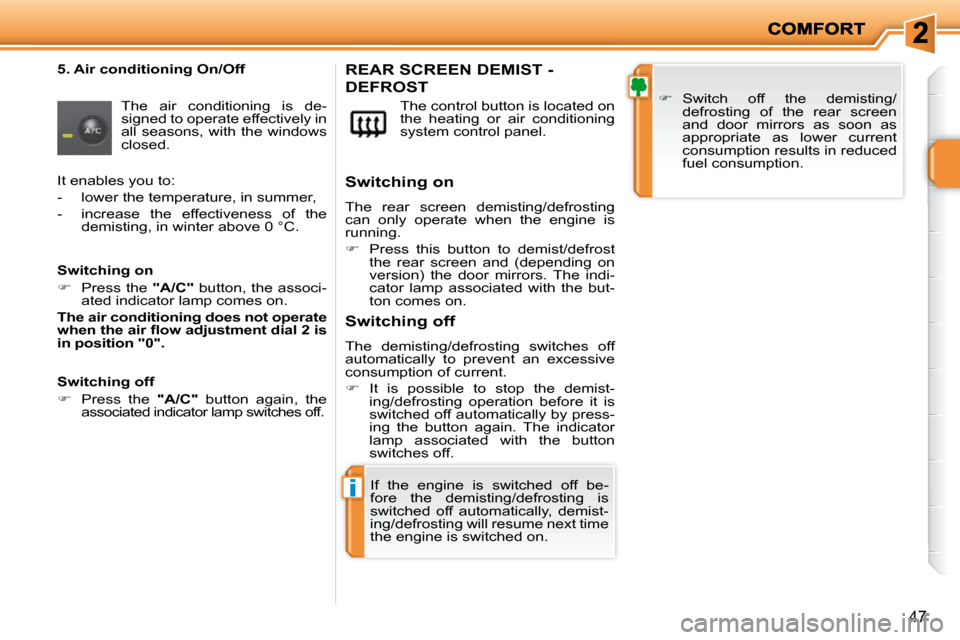

Page 33 of 218
i
47
5. Air conditioning On/Off The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DEMIST -
DEFROST
Switch off the demisting/
defrosting of the rear screen
and door mirrors as soon as
appropriate as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off be-
fore the demisting/defrosting is
switched off automatically, demist-
ing/defrosting will resume next time
the engine is switched on.
S w i t c h i n g o n
The rear screen demisting/defrosting
can only operate when the engine is
running.
Press this button to demist/defrost
the rear screen and (depending on
version) the door mirrors. The indi-
cator lamp associated with the but-
ton comes on.
S w i t c h i n g o f f
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
It is possible to stop the demist-
ing/defrosting operation before it is
switched off automatically by press-
ing the button again. The indicator
lamp associated with the button
switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting, in winter above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator lamp comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p e r a t e
w h e n t h e a i r fl o w a d j u s t m e n t d i a l 2 i s
in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator lamp switches off.
Page 34 of 218
i
47
5. Air conditioning On/Off The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed. The control button is located on
the heating or air conditioning
system control panel. REAR SCREEN DEMIST -
DEFROST
Switch off the demisting/
defrosting of the rear screen
and door mirrors as soon as
appropriate as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off be-
fore the demisting/defrosting is
switched off automatically, demist-
ing/defrosting will resume next time
the engine is switched on.
S w i t c h i n g o n
The rear screen demisting/defrosting
can only operate when the engine is
running.
Press this button to demist/defrost
the rear screen and (depending on
version) the door mirrors. The indi-
cator lamp associated with the but-
ton comes on.
S w i t c h i n g o f f
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
It is possible to stop the demist-
ing/defrosting operation before it is
switched off automatically by press-
ing the button again. The indicator
lamp associated with the button
switches off.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting, in winter above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator lamp comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p e r a t e
w h e n t h e a i r fl o w a d j u s t m e n t d i a l 2 i s
in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator lamp switches off.

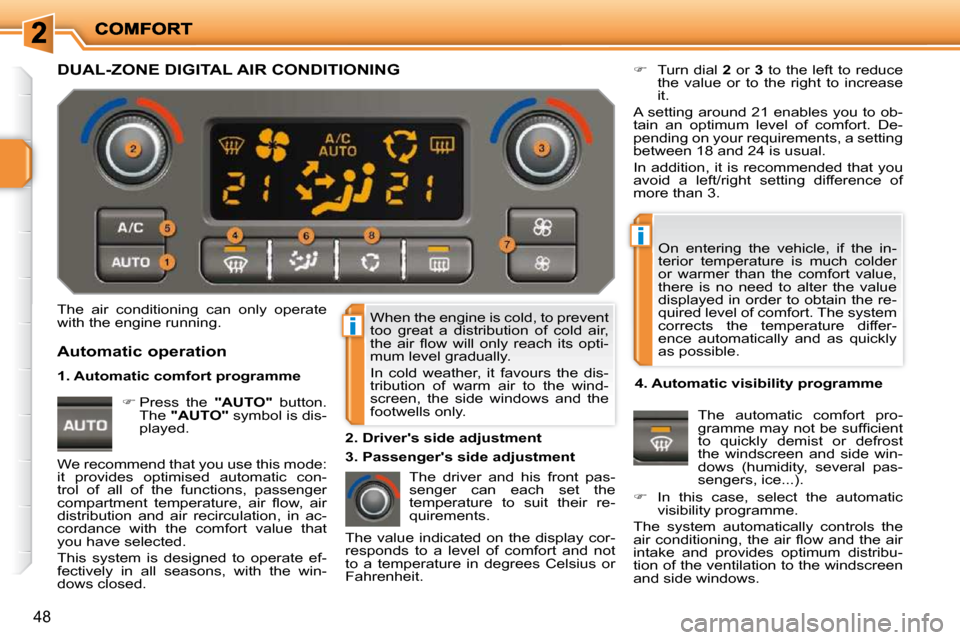

Page 35 of 218
i
i
48
When the engine is cold, to prevent
too great a distribution of cold air,
t h e a i r fl o w w i l l o n l y r e a c h i t s o p t i -
mum level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, the side windows and the
footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to alter the value
displayed in order to obtain the re-
quired level of comfort. The system
corrects the temperature differ-
ence automatically and as quickly
as possible.
The air conditioning can only operate
with the engine running.
The driver and his front pas-
senger can each set the
temperature to suit their re-
quirements.
Turn dial 2 or 3 to the left to reduce
the value or to the right to increase
it.
A setting around 21 enables you to ob-
tain an optimum level of comfort. De-
pending on your requirements, a setting
between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left/right setting difference of
more than 3.
4. Automatic visibility programme The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice...).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
Press the "AUTO" button.
The "AUTO" symbol is dis-
played. 2 . D r i v e r ' s s i d e a d j u s t m e n t
DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend that you use this mode:
it provides optimised automatic con-
trol of all of the functions, passenger
c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w , a i r
distribution and air recirculation, in ac-
cordance with the comfort value that
you have selected.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
1. Automatic comfort programme
3 . P a s s e n g e r ' s s i d e a d j u s t m e n t

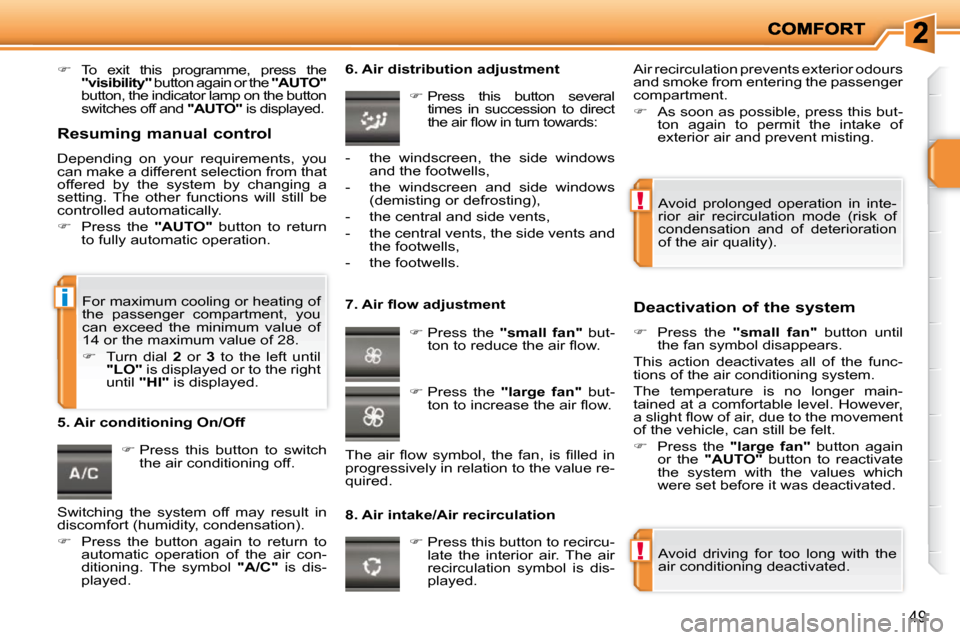

Page 36 of 218
!
!
i
49
To exit this programme, press the
"visibility" button again or the "AUTO"
button, the indicator lamp on the button
switches off and "AUTO" is displayed.
Press this button to switch
the air conditioning off. 6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press this button several
times in succession to direct
t h e a i r fl o w i n t u r n t o w a r d s :
7 . A i r fl o w a d j u s t m e n t
Press the "small fan" but-
t o n t o r e d u c e t h e a i r fl o w .
8. Air intake/Air recirculation D e a c t i v a t i o n o f t h e s y s t e m
Press the "small fan" button until
the fan symbol disappears.
This action deactivates all of the func-
tions of the air conditioning system.
The temperature is no longer main-
tained at a comfortable level. However,
a s l i g h t fl o w o f a i r , d u e t o t h e m o v e m e n t
of the vehicle, can still be felt.
Press the "large fan" button again
or the "AUTO" button to reactivate
the system with the values which
were set before it was deactivated.
Press this button to recircu-
late the interior air. The air
recirculation symbol is dis-
played.
5. Air conditioning On/Off
Avoid driving for too long with the
air conditioning deactivated.
Avoid prolonged operation in inte-
rior air recirculation mode (risk of
condensation and of deterioration
of the air quality).
- the windscreen, the side windows
and the footwells,
- the windscreen and side windows (demisting or defrosting),
- the central and side vents,
- the central vents, the side vents and the footwells,
- the footwells.
Press the "large fan" but-
t o n t o i n c r e a s e t h e a i r fl o w .
T h e a i r fl o w s y m b o l , t h e f a n , i s fi l l e d i n
progressively in relation to the value re-
quired. Air recirculation prevents exterior odours
and smoke from entering the passenger
compartment.
As soon as possible, press this but-
ton again to permit the intake of
exterior air and prevent misting.
For maximum cooling or heating of
the passenger compartment, you
can exceed the minimum value of
14 or the maximum value of 28.
Turn dial 2 or 3 to the left until
"LO" is displayed or to the right
until "HI" is displayed.
Resuming manual control
Depending on your requirements, you
can make a different selection from that
offered by the system by changing a
setting. The other functions will still be
controlled automatically.
Press the "AUTO" button to return
to fully automatic operation.
Switching the system off may result in
discomfort (humidity, condensation).
Press the button again to return to
automatic operation of the air con-
ditioning. The symbol " A/C " is dis-
played.
Page 46 of 218
!
i
57

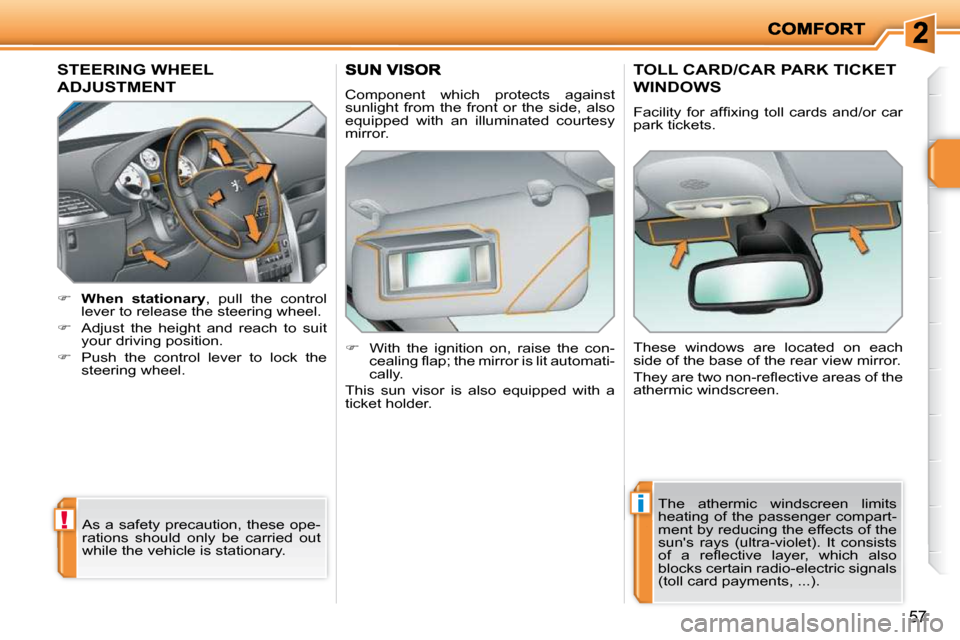

S T E E R I N G W H E E L
ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these ope-
rations should only be carried out
while the vehicle is stationary.
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the con-
c e a l i n g fl a p ; t h e m i r r o r i s l i t a u t o m a t i -
cally.
This sun visor is also equipped with a
ticket holder.
TOLL CARD/CAR PARK TICKET
W I N D O W S
F a c i l i t y f o r a f fi x i n g t o l l c a r d s a n d / o r c a r
park tickets.
These windows are located on each
side of the base of the rear view mirror.
T h e y a r e t w o n o n - r e fl e c t i v e a r e a s o f t h e
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
o f a r e fl e c t i v e l a y e r , w h i c h a l s o
blocks certain radio-electric signals
(toll card payments, ...).
Page 55 of 218
i
ACCESS
66

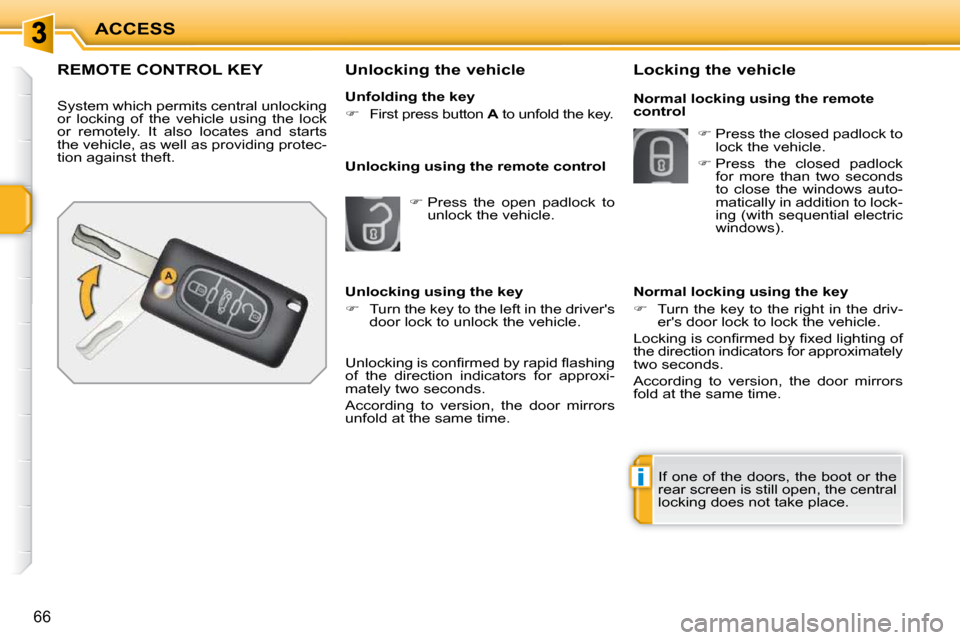

REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec-
tion against theft. Unfolding the key
First press button A to unfold the key.
Unlocking the vehicle
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time. Locking the vehicle
Press the open padlock to
unlock the vehicle.
Unlocking using the key
Turn the key to the left in the driver's
door lock to unlock the vehicle. Normal locking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
Unlocking using the remote control
Press the closed padlock to
lock the vehicle.
Press the closed padlock
for more than two seconds
to close the windows auto-
matically in addition to lock-
ing (with sequential electric
windows).
If one of the doors, the boot or the
rear screen is still open, the central
locking does not take place.
Normal locking using the remote
control
Page 61 of 218
!
i
ACCESS
70
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function. Locking the vehicle with full
alarm
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Reactivation of the interior
volumetric protection
Unlock the vehicle using the unlock-
ing button on the remote control.
Relock the vehicle using the remote
control.
The alarm is active again with both
types of protection; the indicator lamp
on button A fl a s h e s o n c e p e r s e c o n d .
Locking the vehicle with
exterior protection only
Activation
Switch off the ignition and get out of
the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
on button A fl a s h e s o n c e p e r s e c o n d .
Exterior perimiter protection
The system detects opening of the vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp on button A switches off. Deactivation of the interior
volumetric protection
Switch off the ignition.
Within ten seconds, press button A
until the indicator lamp is lit continu-
ously.
Get out of the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The perimeter protection alone remains
activated; the indicator lamp on button A
fl a s h e s o n c e p e r s e c o n d .
