Peugeot 207 Dag 2010 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 207 Dag, Model: Peugeot 207 Dag 2010Pages: 218, PDF Size: 10.34 MB
Page 1 of 218
18
PETROL - DIESEL, MANUAL, 2 TRONIC OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel which groups together the vehicle
operation dials and indicator lamps.
5. Screen.
6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service in-
dicator).
7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
8. "
2 Tronic
" or automatic gearbox.
Indicates the programme selected and the gear engaged.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1000 rpm).
2. Fuel gauge.
Indicates the quantity of fuel remain- ing in the tank.
3. Coolant temperature.
Indicates the temperature of the en- gine coolant (° Celsius).
4. Speedometer.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Speed limiter.
or
Cruise control.
(mph or km/h)
B. Trip distance recorder.
(miles or km)
C. Service indicator.
(miles or km) then,
Engine oil level indicator.
then
Distance recorder.
(miles or km)
These three functions are displayed in succession when the ignition is
switched on.
Screen
For more information, refer to the sec-
tion which corresponds to the function
and to the display associated with it.
Page 2 of 218
!
19
Indicator and warning lamps
Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (wa rning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds whe n the vehicle's ignition is switched on.
When the engine is started, these same warning lam ps should switch off.
If they remain on, before moving off, refer to the information on the warning lamp concerned.
Associated warnings
The switching on of certain warning lamps may be accompanied b y an audible
signal and a message on the multifunction screen. The warning lamps may come on
c o n t i n u o u s l y ( fi x e d ) o r fl a s h .
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Operation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d -
ing system has come into operation.
Warning lamp is on Cause Action/Observations
Left-hand
direction
indicato
r fl a s h i n g w i t h
buzzer. The lighting stalk is pushed
down.
Right-hand
direction
indicator fl a s h i n g w i t h
buzzer. The lighting stalk is pushed
up.
Dipped beam
headlamps fi x e d . The lighting stalk is in the
"Dipped beam headlamps"
position. Turn the control to the desired position
Main beam
headlamps fi x e d . The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.
Page 3 of 218

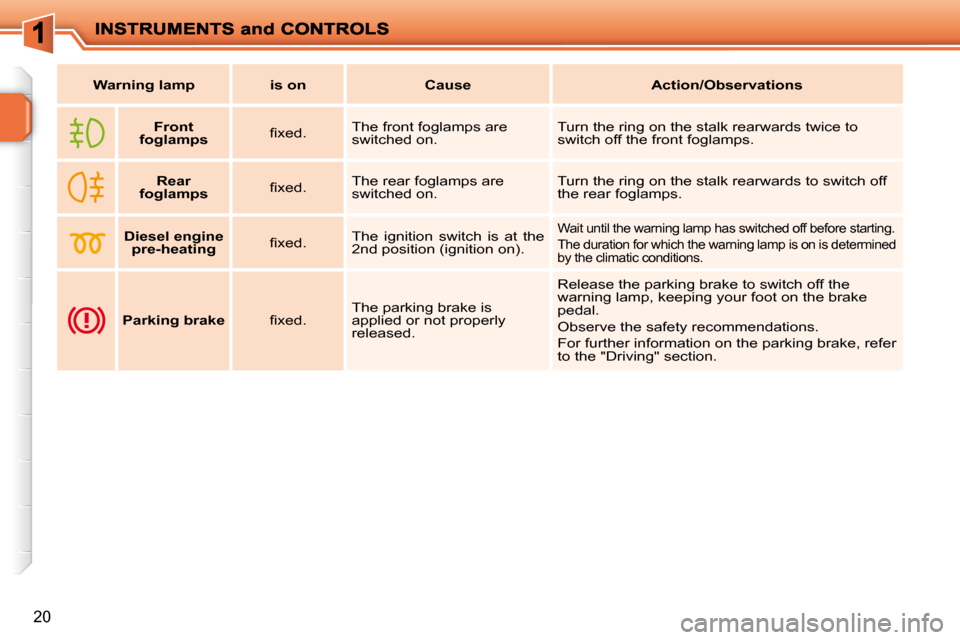

20
Warning lamp is on Cause Action/Observations
Front
foglamps fi x e d . The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.
Rear
foglamps fi x e d . The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.
Diesel engine
pre-heating fi x e d . The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp has switched off before
starting.
The duration for which the warning lamp is on is d etermined
by the climatic conditions.
Parking brake fi x e d . The parking brake is
applied or not properly
released. Release the parking brake to switch off the
warning lamp, keeping your foot on the brake
pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Driving" section.
Page 4 of 218
21
Deactivation warning lamps
I f o n e o f t h e f o l l o w i n g w a r n i n g l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g s y s t e m h a s b e e n s w i t c h e d o f f i n t e n t i o n a l l y .
Warning lamp is on Cause Action/Observations
Passenger's
airbag
system fi x e d . The control, located in the
glove box, is set to the
OFF
position.
The passenger's front
airbag is deactivated.
In this case you can install
a "rear facing" child seat. Set the control to the
ON position to activate the
p a s s e n g e r ' s f r o n t a i r b a g . I n t h i s c a s e , d o n o t fi t a
child seat in the rear-facing position.
The passenger's airbag system is put into service
automatically when the vehicle is started
( ON position).
ESP/ASR fi x e d . The button, located
in the centre of
the dashboard,
is pressed. Its
indicator lamp is on.
The ESP/ASR is
deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR. Its
indicator lamp switches off.
From approximately 30 mph (50 km/h), the
system is reactivated automatically.
The ESP/ASR system is activated automatically
when the vehicle is started.
Page 5 of 218
!

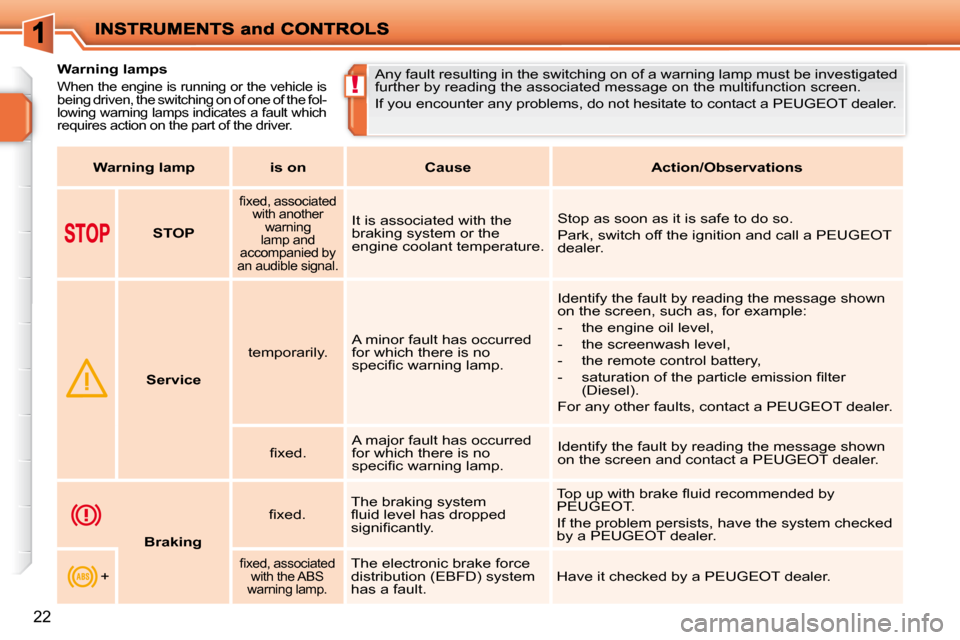

22
Warning lamps
When the engine is running or the vehicle is
being driven, the switching on of one of the fol-
lowing warning lamps indicates a fault which
requires action on the part of the driver. Any fault resulting in the switching on of a warning lamp must be investigated
further by reading the associated message on the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.
Warning lamp is on Cause Action/Observations
STOP
fi x e d , a s s o c i a t e d
with another warning
lamp and
accompanied by
an audible signal.
It is associated with the
braking system or the
engine coolant temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer.
Service temporarily.
A minor fault has occurred
for which there is no
s p e c i fi c w a r n i n g l a m p . Identify the fault by reading the message shown
on the screen, such as, for example:
- the engine oil level,
- the screenwash level,
- the remote control battery,
- s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
(Diesel).
For any other faults, contact a PEUGEOT dealer.
fi x e d . A major fault has occurred
for which there is no
s p e c i fi c w a r n i n g l a m p . Identify the fault by reading the message shown
on the screen and contact a PEUGEOT dealer.
Braking fi x e d .
The braking system
fl u i d l e v e l h a s d r o p p e d
s i g n i fi c a n t l y . T o p u p w i t h b r a k e fl u i d r e c o m m e n d e d b y
PEUGEOT.
If the problem persists, have the system checked
by a PEUGEOT dealer.
+
fi x e d , a s s o c i a t e d with the ABS
warning lamp. The electronic brake force
distribution (EBFD) system
has a fault. Have it checked by a PEUGEOT dealer.
Page 6 of 218
23
Warning lamp is on Cause Action/Observations
Anti-lock
Braking System (ABS) fi x e d .
The anti-lock braking
system has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer without delay.
Dynamic
stability control
(ESP/ASR) fl a s h i n g .
The ESP/ASR regulation is
active. The system optimises traction and improves the
directional stability of the vehicle.
fi x e d . Unless it has been
deactivated with the indicator
lamp on the button on, the
ESP/ASR system is faulty. Have it checked by a PEUGEOT dealer.
Engine
autodiagnosis system fi x e d .
The emission control
system has a fault.
This lamp should switch off when the engine is sta
rted.
If it does not switch off, contact a PEUGEOT deale r
urgently.
fl a s h i n g . The engine management
system has a fault. Risk of destruction of the catalytic convertor.
Have it checked by a PEUGEOT dealer.
Low fuel level fi x e d . W h e n i t fi r s t c o m e s o n t h e r e
remains
approximately
5 litres of
fuel in the tank. You must refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every time the
i g n i t i o n i s s w i t c h e d o n , u n t i l a s u f fi c i e n t a d d i t i o n
of fuel is made.
Fuel tank capacity: approximately 50 litres
(petrol) or 48 litres (Diesel).
Never continue to drive until you run out of fuel
as this could damage the emission control and
injection systems.
Page 7 of 218

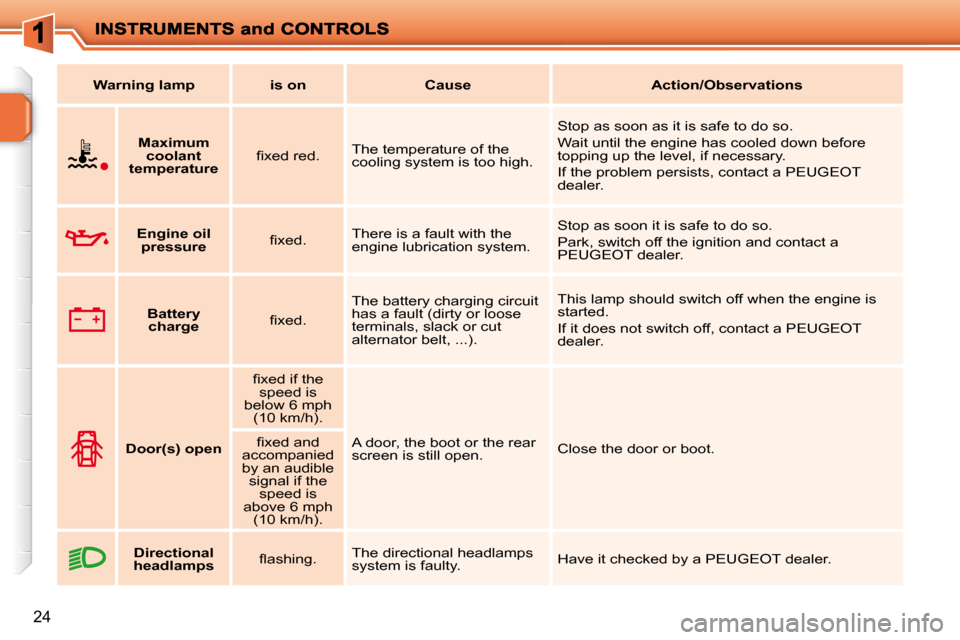

24
Warning lamp is on Cause Action/Observations
Maximum
coolant
temperature fi x e d r e d .
The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer.
Engine oil
pressure fi x e d . There is a fault with the
engine lubrication system. Stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer.
Battery
charge fi x e d . The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). This lamp should switch off when the engine is
started.
If it does not switch off, contact a PEUGEOT
dealer.
Door(s) open fi x e d i f t h e
speed is
below 6 mph (10 km/h).
A door, the boot or the rear
screen is still open. Close the door or boot.
fi x e d a n d
accompanied
by an audible signal if the speed is
above 6 mph (10 km/h).
Directional
headlamps fl a s h i n g . The directional headlamps
system is faulty. Have it checked by a PEUGEOT dealer.
Page 8 of 218

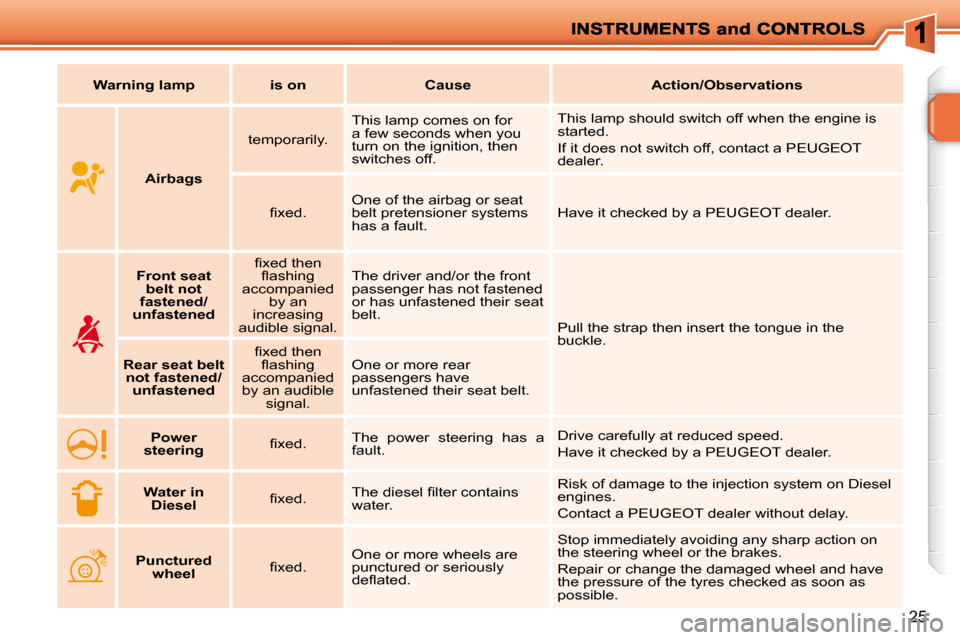

25
Warning lamp is on Cause Action/Observations
Airbags temporarily.
This lamp comes on for
a few seconds when you
turn on the ignition, then
switches off. This lamp should switch off when the engine is
started.
If it does not switch off, contact a PEUGEOT
dealer.
fi x e d . One of the airbag or seat
belt pretensioner systems
has a fault. Have it checked by a PEUGEOT dealer.
Front seat
belt not
fastened/
unfastened fi x e d t h e n
fl a s h i n g
accompanied by an
increasing
audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in the
buckle.
Rear seat belt
not fastened/ unfastened fi x e d t h e n
fl a s h i n g
accompanied
by an audible signal. One or more rear
passengers have
unfastened their seat belt.
Power
steering fi x e d . The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a PEUGEOT dealer.
Water in
Diesel fi x e d . T h e d i e s e l fi l t e r c o n t a i n s
water. Risk of damage to the injection system on Diesel
engines.
Contact a PEUGEOT dealer without delay.
Punctured
wheel fi x e d . One or more wheels are
punctured or seriously
d e fl a t e d . Stop immediately avoiding any sharp action on
the steering wheel or the brakes.
Repair or change the damaged wheel and have
the pressure of the tyres checked as soon as
possible.
Page 9 of 218

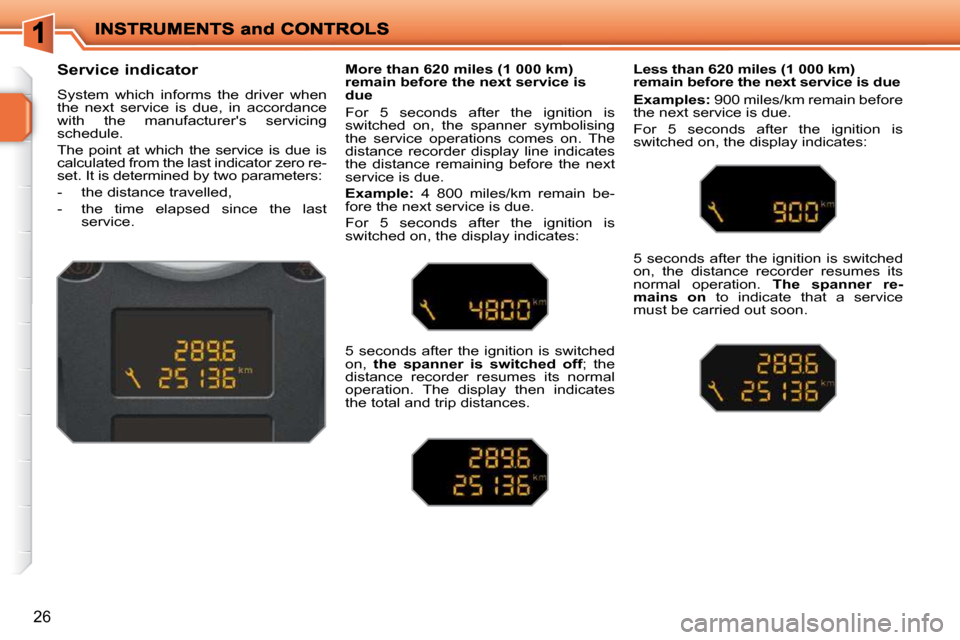

26
Service indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
- the distance travelled,
- the time elapsed since the last service. More than 620 miles (1 000 km)
remain before the next service is
due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.
Example: 4 800 miles/km remain be-
fore the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 620 miles (1 000 km)
remain before the next service is due
Examples: 900 miles/km remain before
the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.
Page 10 of 218
i
i
27
The distance remaining may be
weighted by the time factor, de-
pending on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

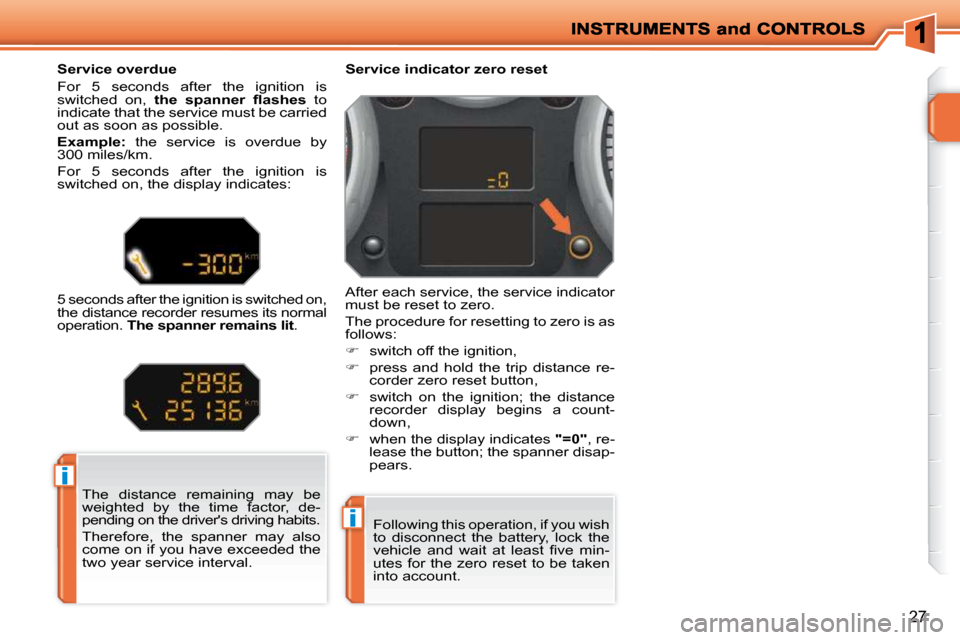

Service overdue
For 5 seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 miles/km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains lit . Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance
recorder display begins a count-
down,
when the display indicates "=0" , re-
lease the button; the spanner disap-
pears.
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n -
utes for the zero reset to be taken
into account.
