Peugeot 208 2015 Owner's Manual - RHD (UK, Australia)

219
208_en_Chap08_Informations-pratiques_ed01-2015

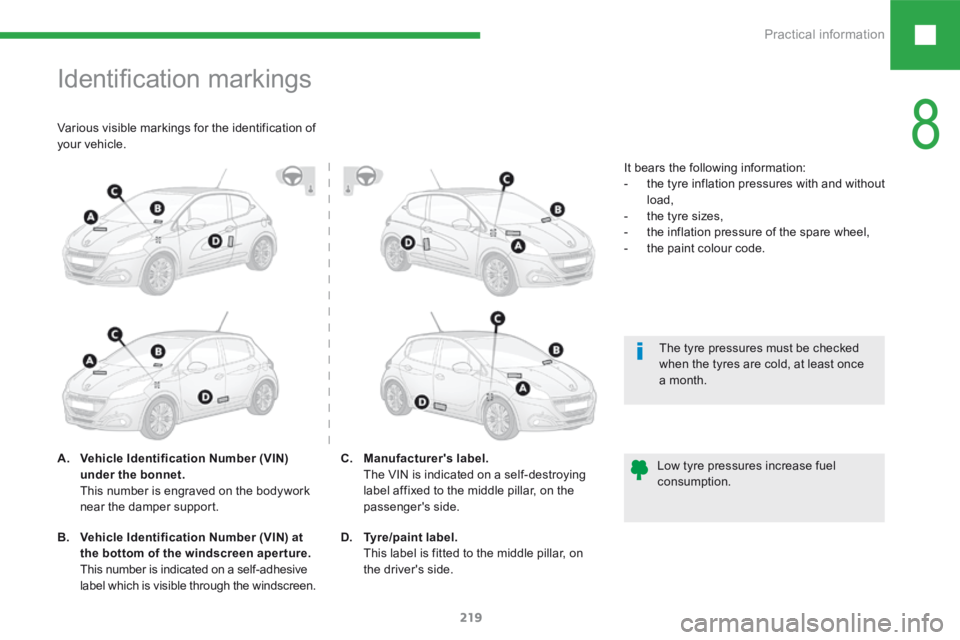

Identification markings
A. Vehicle Identification Number (VIN)
under the bonnet.
This number is engraved on the bodywork
near the damper support. The tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures increase fuel
consumption.
B. Vehicle Identification Number (VIN) at
the bottom of the windscreen aperture.
This number is indicated on a self-adhesive
label which is visible through the windscreen. C.
Manufacturer's label.
The VIN is indicated on a self-destroying
label affixed to the middle pillar, on the
passenger's side.
D. Tyre/paint label.
This label is fitted to the middle pillar, on
the driver's side. It bears the following information:
-
the tyre inflation pressures with and without
load,
- the tyre sizes,
- the inflation pressure of the spare wheel,
- the paint colour code.
Various visible markings for the identification of
your vehicle.
8
Practical information

220
208_en_Chap9a_BTA_ed01-2015

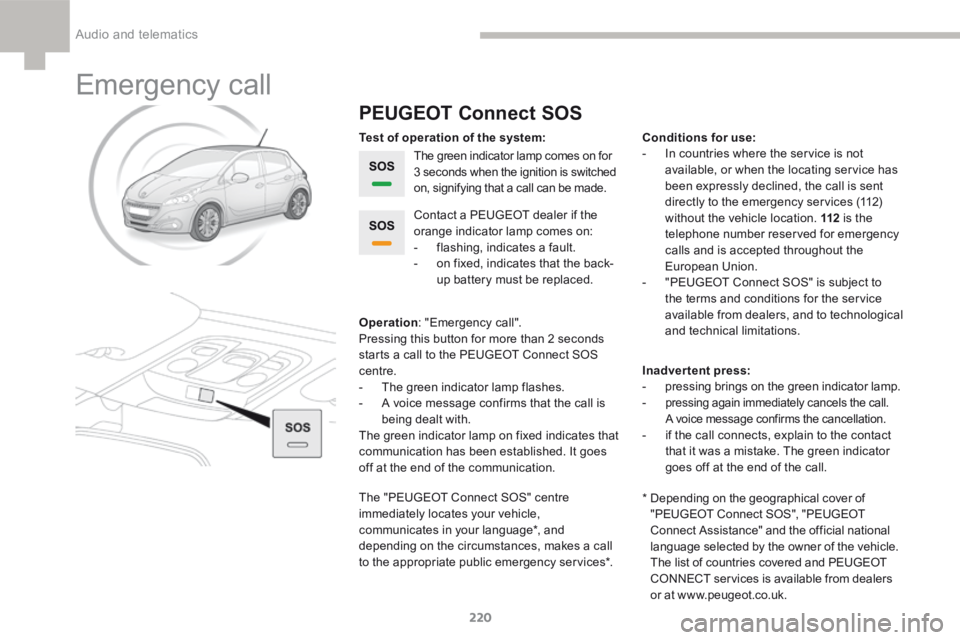

Emergency call
PEUGEOT Connect SOS
The green indicator lamp comes on for
3 seconds when the ignition is switched
on, signifying that a call can be made.
Operation : "Emergency call".
Pressing this button for more than 2 seconds
starts a call to the P EUGEOT Connect SOS
centre.
- The green indicator lamp flashes.
- A voice message confirms that the call is
being dealt with.
The green indicator lamp on fixed indicates that
communication has been established. It goes
off at the end of the communication. Contact a P
EUGEOT dealer if the
orange indicator lamp comes on:
- flashing, indicates a fault.
- on fixed, indicates that the back-
up battery must be replaced.
The " PEUGEOT Connect SOS" centre
immediately locates your vehicle,
communicates in your language*, and
depending on the circumstances, makes a call
to the appropriate public emergency services*. Test of operation of the system: Conditions for use:
- In countries where the service is not
available, or when the locating service has
been expressly declined, the call is sent
directly to the emergency services (112)
without the vehicle location. 112 is the
telephone number reserved for emergency
calls and is accepted throughout the
European Union.
- " PEUGEOT Connect SOS" is subject to
the terms and conditions for the service
available from dealers, and to technological
and technical limitations.
Inadvertent press:
- pressing brings on the green indicator lamp.
-
pressing again immediately cancels the call.
A voice message confirms the cancellation.
- if the call connects, explain to the contact
that it was a mistake. The green indicator
goes off at the end of the call.
* Depending on the geographical cover of
"PEUGEOT Connect SOS", "PEUGEOT
Connect Assistance" and the official national
language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT
CONNECT services is available from dealers
or at www.peugeot.co.uk.
Audio and telematics

221
208_en_Chap9a_BTA_ed01-2015

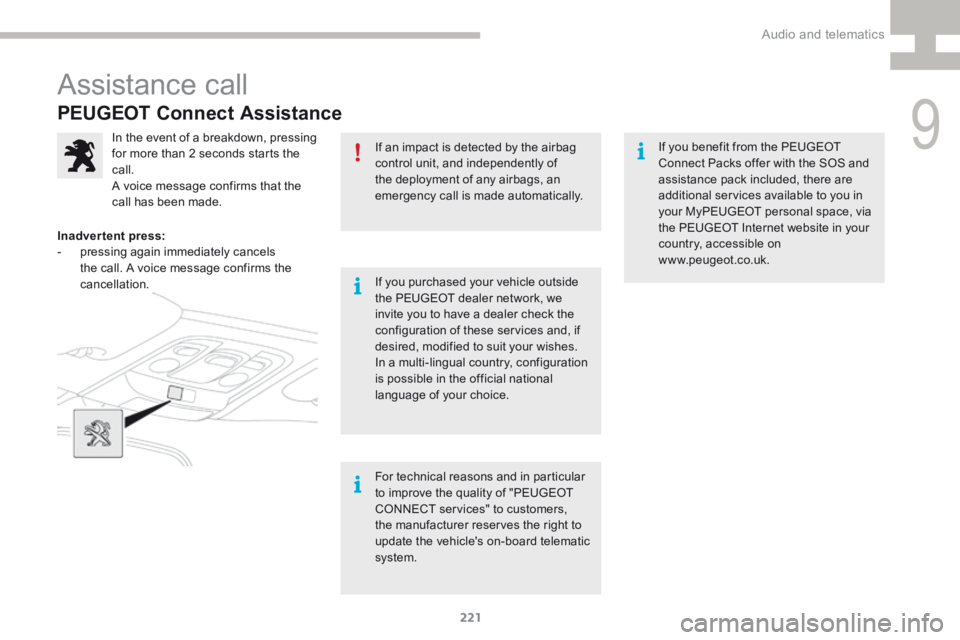

PEUGEOT Connect Assistance
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
If you purchased your vehicle outside
the PEUGEOT dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
In the event of a breakdown, pressing
for more than 2 seconds starts the
call.
A voice message confirms that the
call has been made.
Inadvertent press:
- pressing again immediately cancels
the call. A voice message confirms the
cancellation.
For technical reasons and in particular
to improve the quality of "PEUGEOT
CONNECT services" to customers,
the manufacturer reserves the right to
update the vehicle's on-board telematic
system.If you benefit from the P
EUGEOT
Connect Packs offer with the SOS and
assistance pack included, there are
additional services available to you in
your My PEUGEOT personal space, via
the PEUGEOT Internet website in your
country, accessible on
www.peugeot.co.uk.
Assistance call
9
Audio and telematics

223
208_en_Chap9b_SMEGplus_ed01-2015

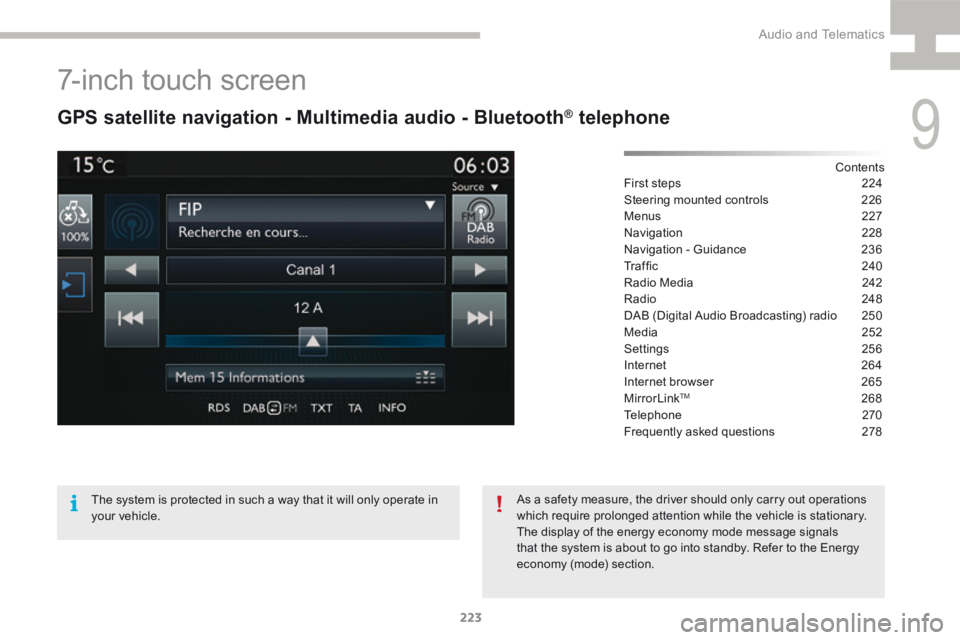

7-inch touch screen
GPS satellite navigation - Multimedia audio - Bluetooth® telephone
Contents
First steps 224
Steering mounted controls 226
Menus 227
Navigation 228
Navigation - Guidance 236
Tr a f fi c 2 4 0
Radio Media 242
Radio 248
DAB (Digital Audio Broadcasting) radio 250
Media 252
Settings 256
Internet 264
Internet browser 265
MirrorLink
TM 268
Telephone 270
Frequently asked questions 278
The system is protected in such a way that it will only operate in
your vehicle. As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of the energy economy mode message signals
that the system is about to go into standby. Refer to the Energy
economy (mode) section.
9
Audio and Telematics

224
208_en_Chap9b_SMEGplus_ed01-2015

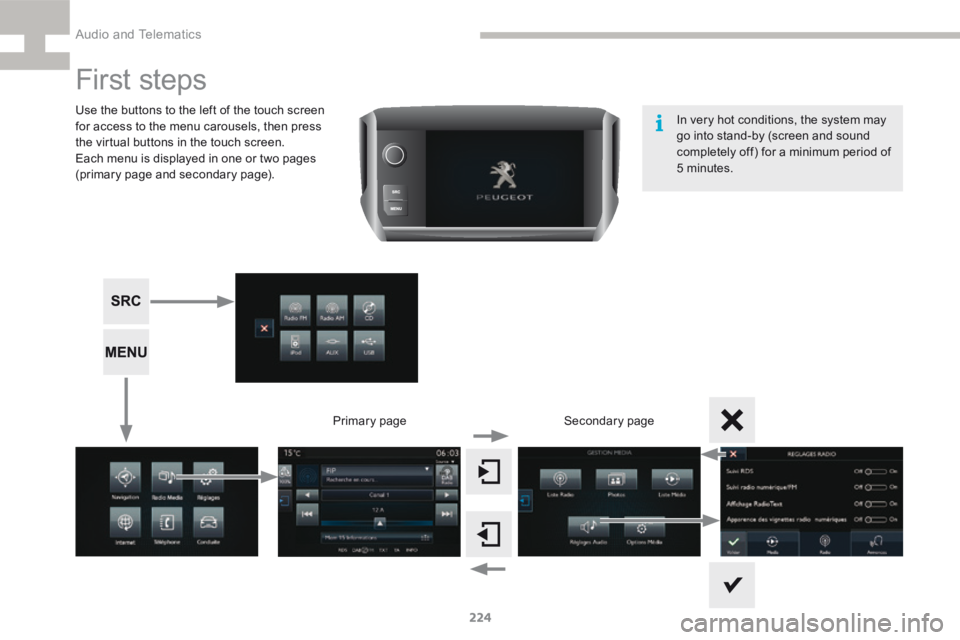

First steps
Use the buttons to the left of the touch screen
for access to the menu carousels, then press
the virtual buttons in the touch screen.
Each menu is displayed in one or two pages
(primary page and secondary page).Secondary page
Primary page In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5 minutes.
Audio and Telematics

225
208_en_Chap9b_SMEGplus_ed01-2015

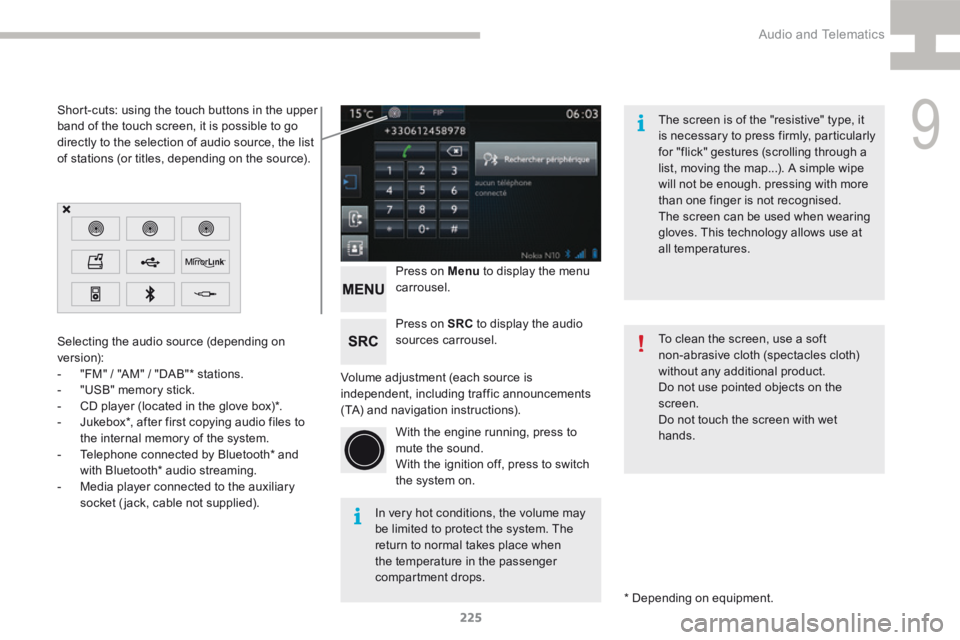

Volume adjustment (each source is
independent, including traffic announcements
(TA) and navigation instructions).Press on Menu
to display the menu
carrousel.
Press on SRC to display the audio
sources carrousel.
With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.
Selecting the audio source (depending on
version):
-
"FM" / "AM" / "DAB"* stations.
- "USB" memory stick.
- CD player (located in the glove box)*.
- Jukebox*, after first copying audio files to
the internal memory of the system.
- Telephone connected by Bluetooth* and
with Bluetooth* audio streaming.
- Media player connected to the auxiliary
socket (jack, cable not supplied).
* Depending on equipment.
Short-cuts: using the touch buttons in the upper
band of the touch screen, it is possible to go
directly to the selection of audio source, the list
of stations (or titles, depending on the source).
The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures.
In very hot conditions, the volume may
be limited to protect the system. The
return to normal takes place when
the temperature in the passenger
compartment drops. To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.
9
Audio and Telematics

226
208_en_Chap9b_SMEGplus_ed01-2015

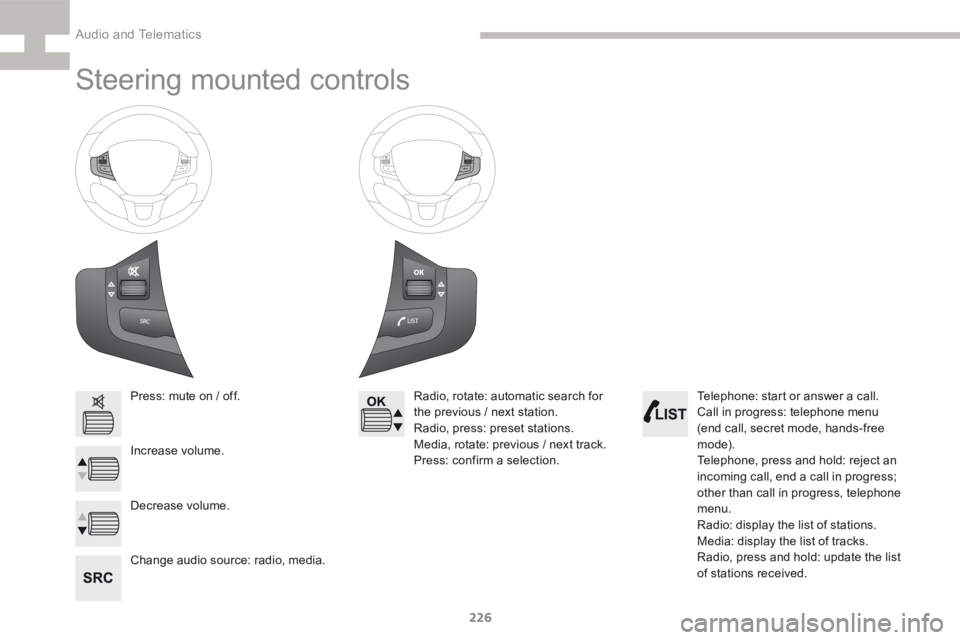

Steering mounted controls
Press: mute on / off.
Increase volume.
Change audio source: radio, media.Radio, rotate: automatic search for
the previous / next station.
Radio, press: preset stations.
Media, rotate: previous / next track.
Press: confirm a selection.
Decrease volume. Telephone: start or answer a call.
Call in progress: telephone menu
(end call, secret mode, hands-free
m o d e).
Telephone, press and hold: reject an
incoming call, end a call in progress;
other than call in progress, telephone
menu.
Radio: display the list of stations.
Media: display the list of tracks.
Radio, press and hold: update the list
of stations received.
Audio and Telematics

227
208_en_Chap9b_SMEGplus_ed01-2015

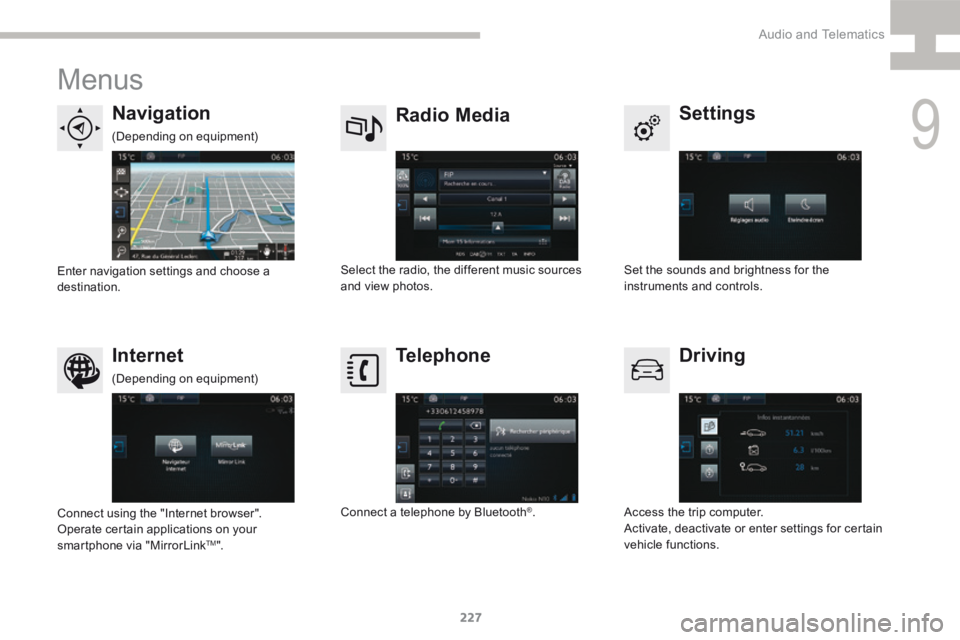

Menus
Settings
Radio Media
Navigation
Driving
Internet Telephone
Set the sounds and brightness for the
instruments and controls.
Select the radio, the different music sources
and view photos.
Enter navigation settings and choose a
destination.
Access the trip computer.
Activate, deactivate or enter settings for certain
vehicle functions.
Connect using the "Internet browser".
Operate certain applications on your
smartphone via "MirrorLink
TM". Connect a telephone by Bluetooth
®.
(Depending on equipment)
(Depending on equipment)
9
Audio and Telematics

228
208_en_Chap9b_SMEGplus_ed01-2015
Level 1Level 2Level 3
Navigation
NavigationRoute settings
