9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Cruise control/speed limiter
switches.
2.
Steering wheel adjustment control.
3.
Lighting and direction indicator
control stalk.
4.
Instrument panel.
5.
Driver's airbag.
Horn.
6.
Gear lever.
7.
Electric parking brake.
8.
Front armrest - Peugeot Connect
USB and/or auxiliary socket.
9.
Bonnet release.
10.
Driver's storage compartment
(Handbook).
11 .
Alarm button.
Parking sensors button.
Dynamic stability control button
(ESP/ASR).
Stop & Start deactivation button.
12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation
(NG4 3D).
13.
Door mirror controls.
Electric window controls.
Child lock.
14.
Front side window demisting vent.
15.
Windscreen demisting vent.
Page 12 of 328

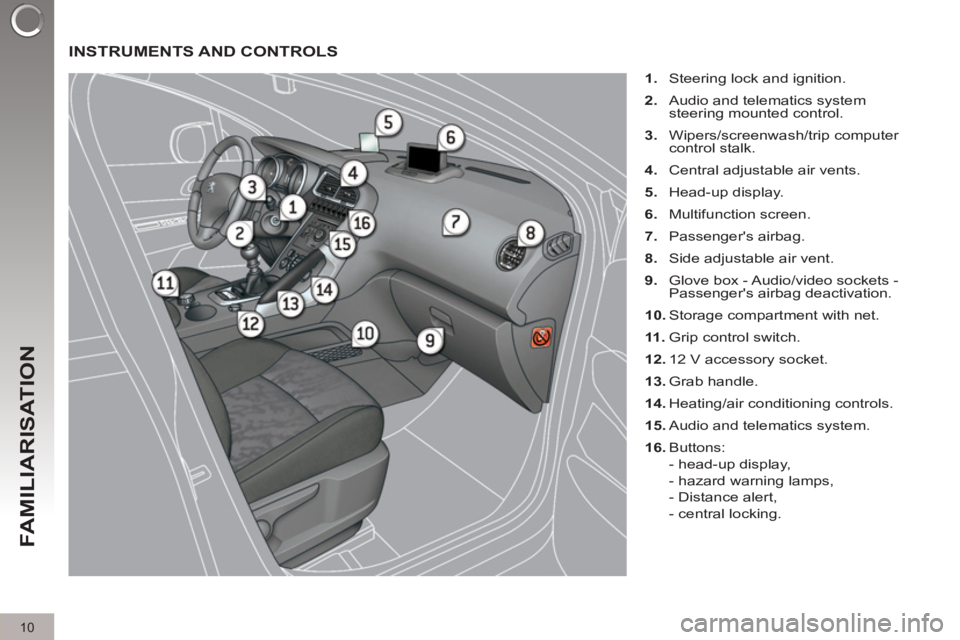

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Steering lock and ignition.
2.
Audio and telematics system
steering mounted control.
3.
Wipers/screenwash/trip computer
control stalk.
4.
Central adjustable air vents.
5.
Head-up display.
6.
Multifunction screen.
7.
Passenger's airbag.
8.
Side adjustable air vent.
9.
Glove box - Audio/video sockets -
Passenger's airbag deactivation.
10.
Storage compartment with net.
11 .
Grip control switch.
12.
12 V accessory socket.
13.
Grab handle.
14.
Heating/air conditioning controls.
15.
Audio and telematics system.
16.
Buttons:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.
Page 13 of 328

11
FAMILIARISATION
SITTING COMFORTABLY

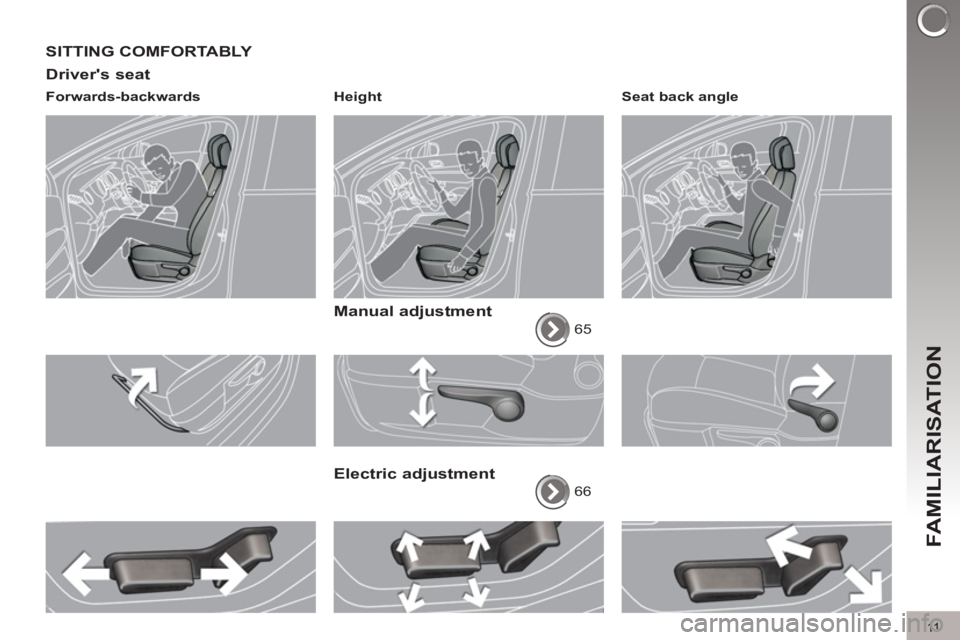

Driver's seat
Forwards-backwards
Height
Manual adjustment
65
Electric adjustment
66
Seat back angle
Page 14 of 328

12
FAMILIARISATION
SITTING COMFORTABLY

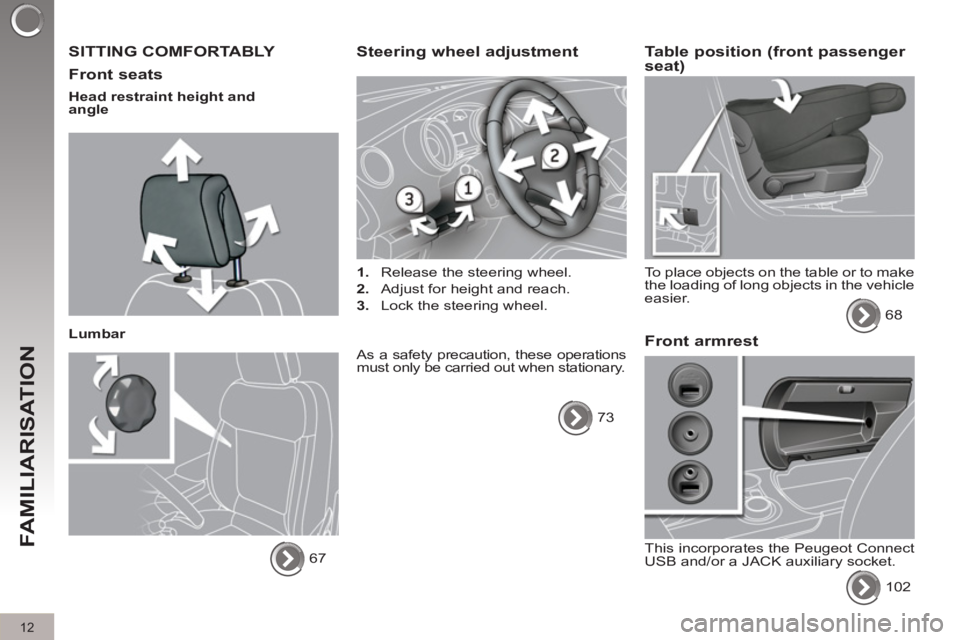

Front seats
Head restraint height and
angle
Lumbar
67
Steering wheel adjustment
1.
Release the steering wheel.
2.
Adjust for height and reach.
3.
Lock the steering wheel.
As a safety precaution, these operations
must only be carried out when stationary.
73
Table position (front passenger
seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier.
68
Front armrest
This incorporates the Peugeot Connect
USB and/or a JACK auxiliary socket.
102
Page 15 of 328

13
FAMILIARISATION
SITTING COMFORTABLY

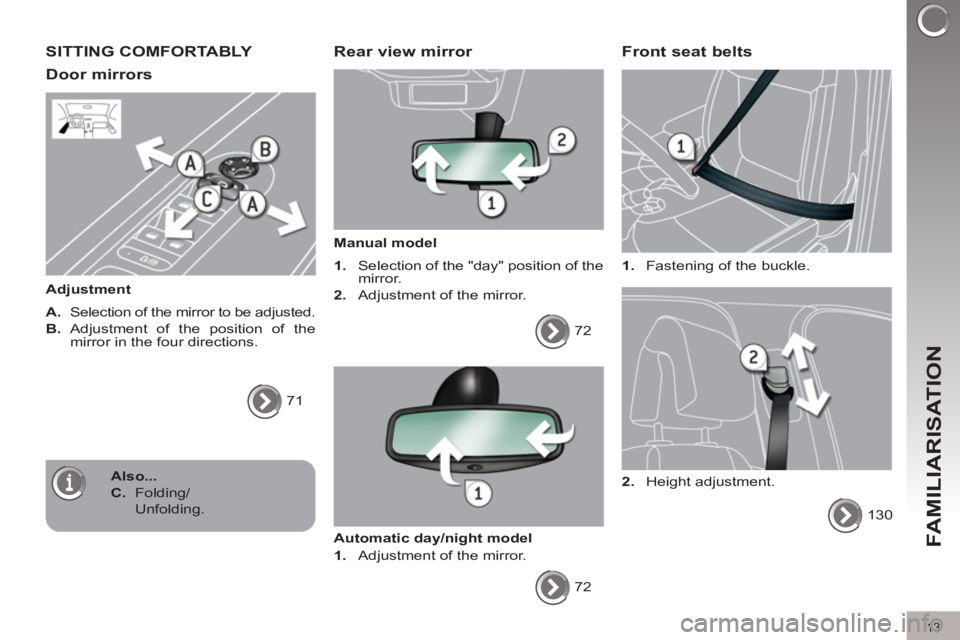

Door mirrors
Adjustment
A.
Selection of the mirror to be adjusted.
B.
Adjustment of the position of the
mirror in the four directions.
71
Rear view mirror
Manual model
1.
Selection of the "day" position of the
mirror.
2.
Adjustment of the mirror.
72
Automatic day/night model
1.
Adjustment of the mirror.
72
Front seat belts
1.
Fastening of the buckle.
130
2.
Height adjustment.
Also...
C.
Folding/
Unfolding.
Page 16 of 328

14
FAMILIARISATION
SEEING CLEARLY

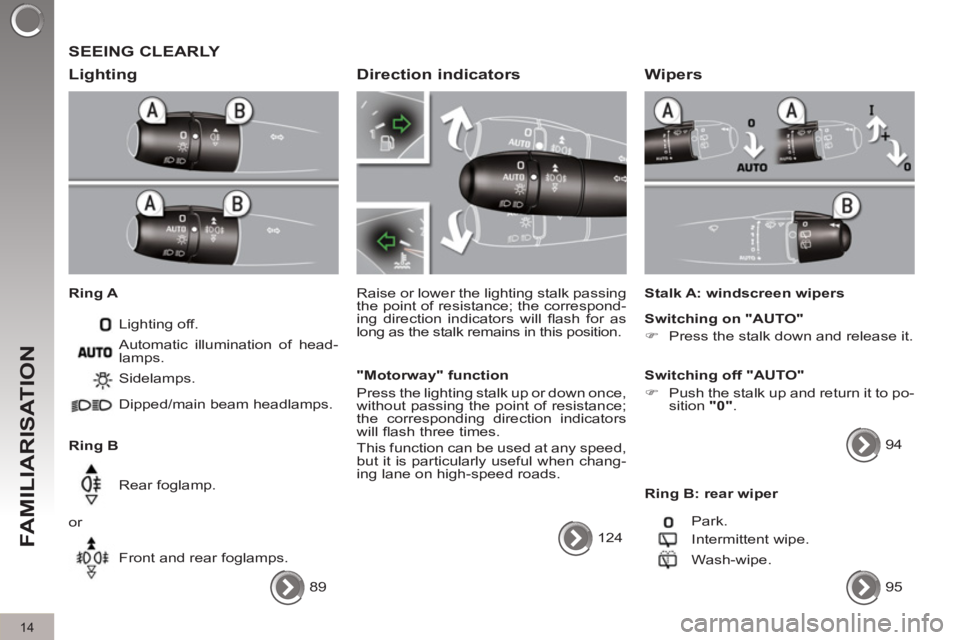

Lighting
Ring A
Lighting off.
Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of head-
lamps.
89
Direction indicators
Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this position.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.
124
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"
)
Press the stalk down and release it.
Switching off "AUTO"
)
Push the stalk up and return it to po-
sition "0"
.
94
Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
95
Page 17 of 328

15
FAMILIARISATION

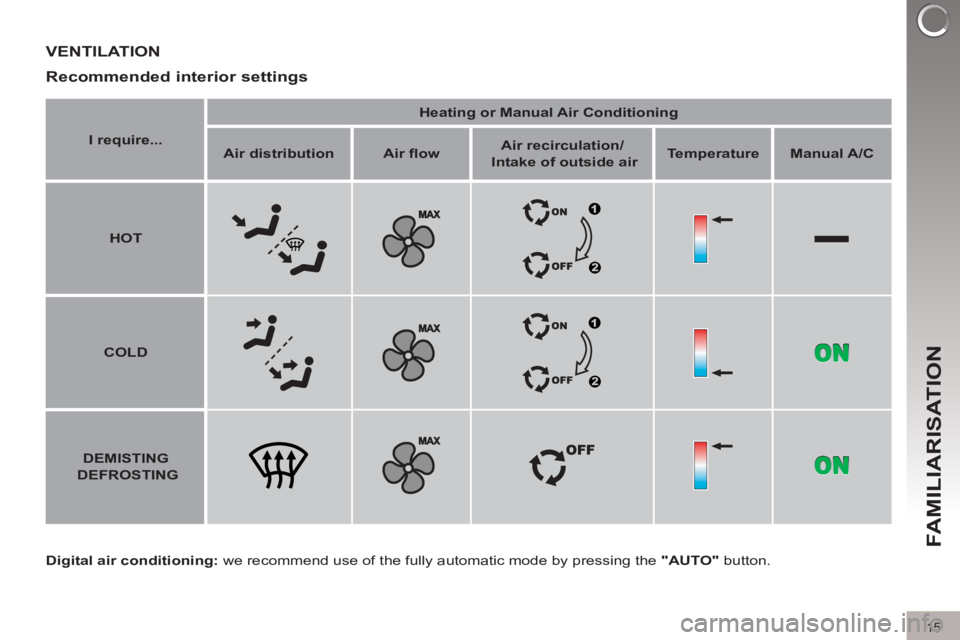

VENTILATION
Digital air conditioning:
we recommend use of the fully automatic mode by pressing the "AUTO"
button.
Recommended interior settings
I require...
Heating or Manual Air Conditioning
Air distribution
Air fl ow
Air recirculation/
Intake of outside air
Temperature
Manual A/C
HOT
COLD
DEMISTING
DEFROSTING
Page 18 of 328

16
FAMILIARISATION
MONITORING
Instrument panel
A.
With the ignition on, the needle
should indicate the level of fuel re-
maining.
B.
With the engine running, its associ-
ated low level warning lamp should
go off.
C.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
levels which are low.
27
Warning lamps
1.
With the ignition on, the orange and
red warning lamps come on.
2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
29
Switch panels
Lighting of the indicator lamp indicates
the status of the corresponding function.
A.
Deactivating the Stop
& Start system. 162
79
164
127
82, 123
145
124
147
B.
Volumetric alarm.
C.
Visual and audible
parking sensors.
D.
ESP OFF (without
Grip control).
E.
Child lock.
F.
Head-up display.
G.
Hazard warning lamps.
H.
Distance alert.
Lower
Central
I.
Central locking. 84
Page 19 of 328

17
FAMILIARISATION

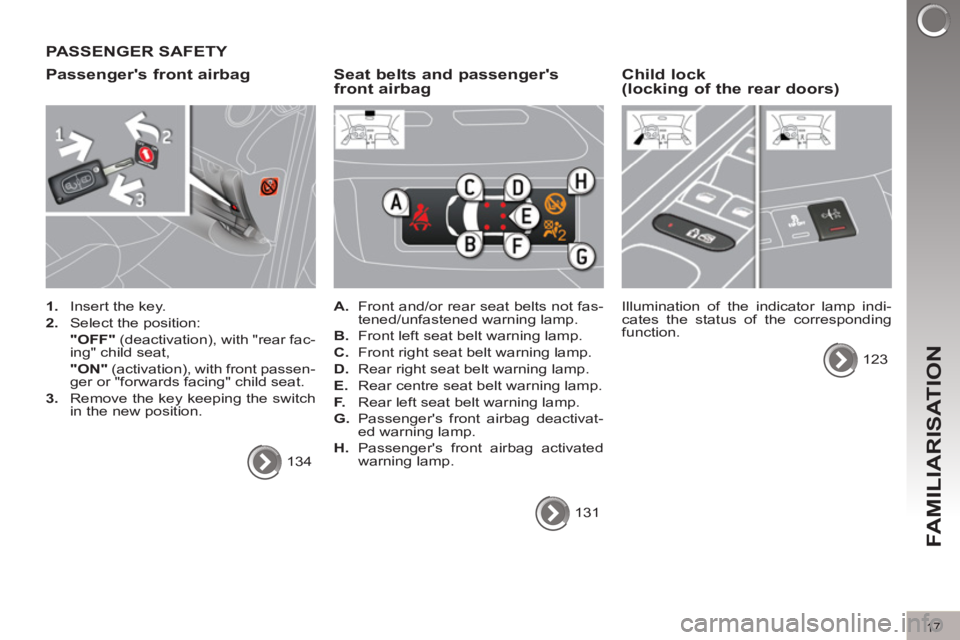

PASSENGER SAFETY
Passenger's front airbag
1.
Insert the key.
2.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front passen-
ger or "forwards facing" child seat.
3.
Remove the key keeping the switch
in the new position.
134
Seat belts and passenger's
front airbag
A.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.
B.
Front left seat belt warning lamp.
C.
Front right seat belt warning lamp.
D.
Rear right seat belt warning lamp.
E.
Rear centre seat belt warning lamp.
F.
Rear left seat belt warning lamp.
G.
Passenger's front airbag deactivat-
ed warning lamp.
H.
Passenger's front airbag activated
warning lamp.
131
Child lock
(locking of the rear doors)
Illumination of the indicator lamp indi-
cates the status of the corresponding
function.
123
