PEUGEOT 3008 2016 Service Manual

39
3008_en_Chap01_controle-marche_ed01-2015

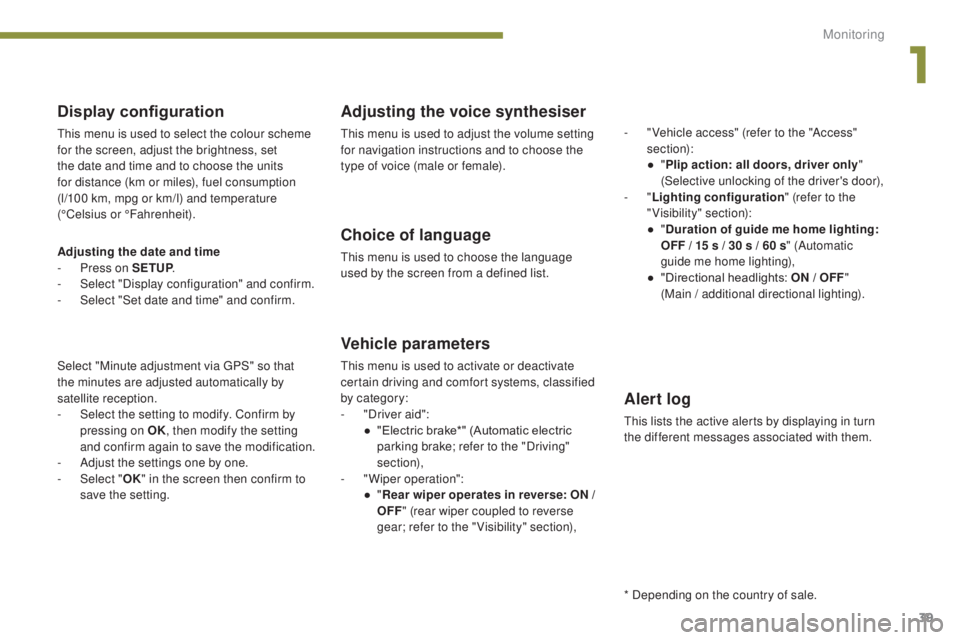

Display configuration
This menu is used to select the colour scheme
for the screen, adjust the brightness, set
the date and time and to choose the units
for distance (km or miles), fuel consumption
(l/100 km, mpg or km/l) and temperature
(°Celsius or °Fahrenheit).
Adjusting the voice synthesiser
This menu is used to adjust the volume setting
for navigation instructions and to choose the
type of voice (male or female).
Choice of language
This menu is used to choose the language
used by the screen from a defined list.
Vehicle parameters
This menu is used to activate or deactivate
certain driving and comfort systems, classified
by category:
-

"
Driver aid":
●

"
Electric brake*" (Automatic electric
parking brake; refer to the "Driving"
section),
-
"

Wiper operation":
●

"R

ear wiper operates in reverse: ON /
OFF " (rear wiper coupled to reverse
gear; refer to the " Visibility" section), -

"
Vehicle access" (refer to the "Access"
section):
●
"
P
lip action: all doors, driver only
"
(Selective unlocking of the driver's door),
- "
Lighting configuration " (refer to the
"Visibility" section):
●
"
D
uration of guide me home lighting:
OFF / 15 s / 30 s / 60 s
" (Automatic
guide me home lighting),
●
"
Directional headlights: ON / OFF
"
(Main / additional directional lighting).
Alert log
This lists the active alerts by displaying in turn
the different messages associated with them.
* Depending on the country of sale.
Adjusting the date and time
-

P

ress on SETUP
.
-
Sel

ect "Display configuration" and confirm.
-

S

elect "Set date and time" and confirm.
Select "Minute adjustment via GPS" so that
the

minutes are adjusted automatically by
satellite reception.
-
S
elect the setting to modify. Confirm by
pressing on OK , then modify the setting
and confirm again to save the modification.
-

A

djust the settings one by one.
-
Sel

ect " OK" in the screen then confirm to
save the setting.
1
Monitoring

40
3008_en_Chap01_controle-marche_ed01-2015

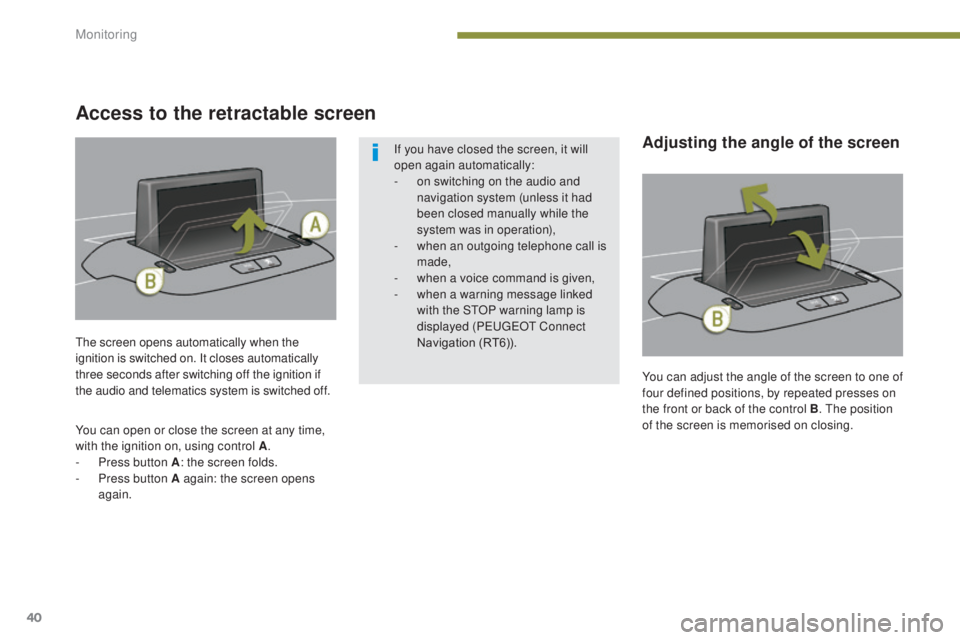

You can adjust the angle of the screen to one of
four defined positions, by repeated presses on
the front or back of the control B. The position
of the screen is memorised on closing.
The screen opens automatically when the
ignition is switched on. It closes automatically
three seconds after switching off the ignition if
the audio and telematics system is switched off.
You can open or close the screen at any time,
with the ignition on, using control A
.
-

P

ress button A : the screen folds.
-

P

ress button A again: the screen opens
again. If you have closed the screen, it will
open again automatically:
-

o

n switching on the audio and
navigation system (unless it had
been closed manually while the
system was in operation),
-

w

hen an outgoing telephone call is
made,
-
w

hen a voice command is given,
-

w

hen a warning message linked
with the STOP warning lamp is
displayed (PEUGEOT Connect
Navigation (RT6)).
Access to the retractable screen
Adjusting the angle of the screen
Monitoring

41
3008_en_Chap01_controle-marche_ed01-2015

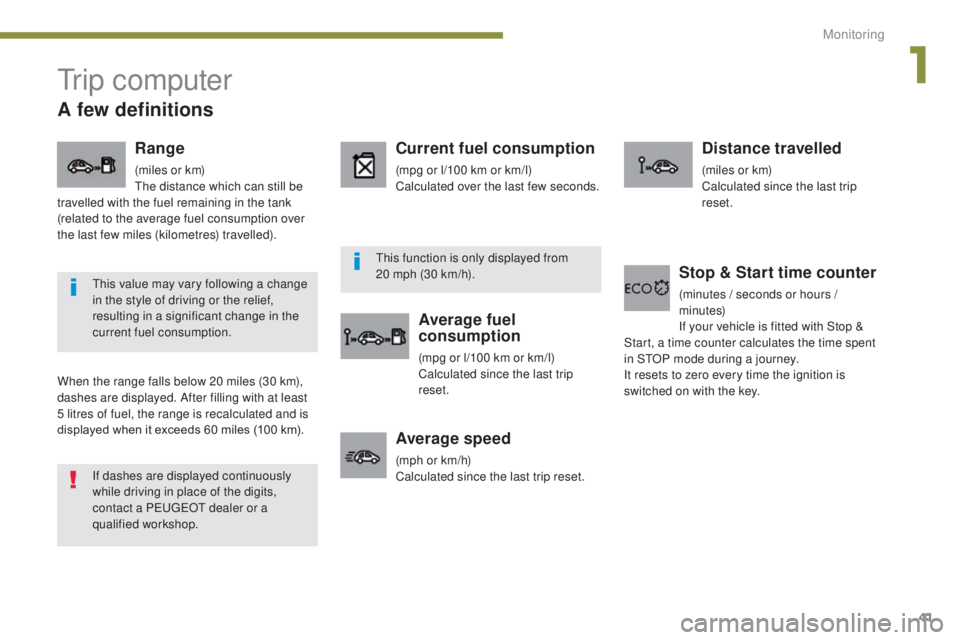

Tr i p c o m p u t e r
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
Range
(miles or km)
The distance which can still be
travelled with the fuel remaining in the tank
(related to the average fuel consumption over
the last few miles (kilometres) travelled).
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
Calculated since the last trip
reset.
Distance travelled
(miles or km)
Calculated since the last trip
reset.
Average speed
(mph or km/h)
Calculated since the last trip reset.
Stop & Start time counter
(minutes / seconds or hours /
m inutes)
If your vehicle is fitted with Stop &
Start, a time counter calculates the time spent
in STOP mode during a journey.
It resets to zero every time the ignition is
switched on with the key.
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop. This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption. This function is only displayed from
20

mph (30 km/h).
A few definitions
1
Monitoring

42
3008_en_Chap01_controle-marche_ed01-2015

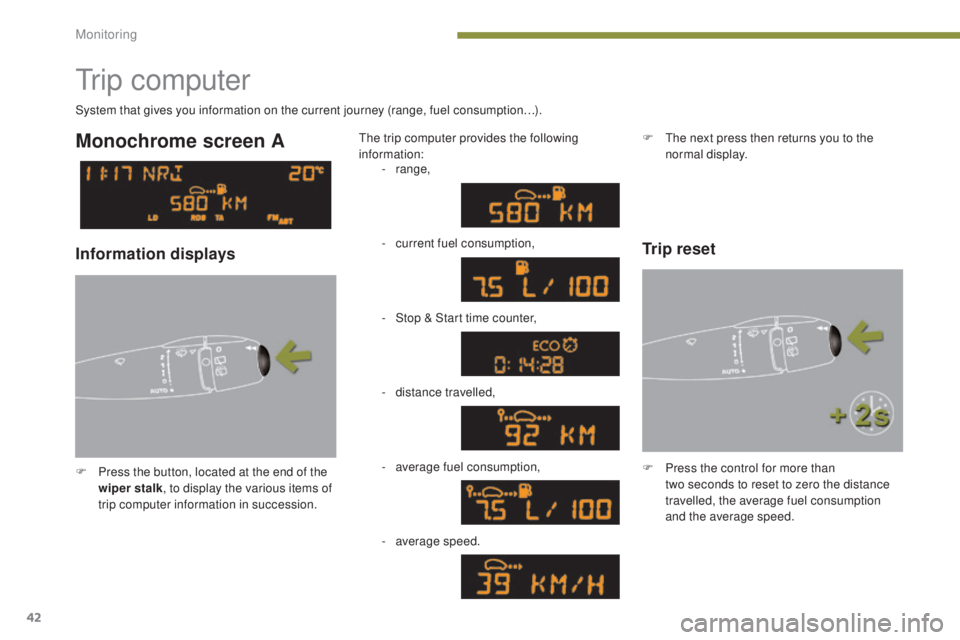

Tr i p c o m p u t e r
F Press the button, located at the end of the wiper stalk , to display the various items of
trip computer information in succession. The trip computer provides the following
information:
System that gives you information on the current journey (range, fuel consumption…).
Monochrome screen A
Information displays
-
range,
-
c
urrent fuel consumption,
-

S
top & Start time counter,
-
d

istance travelled,
-
a

verage fuel consumption,
Trip reset
F The next press then returns you to the normal display.
-
a

verage speed. F

P
ress the control for more than
two
seconds to reset to zero the distance
travelled, the average fuel consumption
and the average speed.
Monitoring

43
3008_en_Chap01_controle-marche_ed01-2015

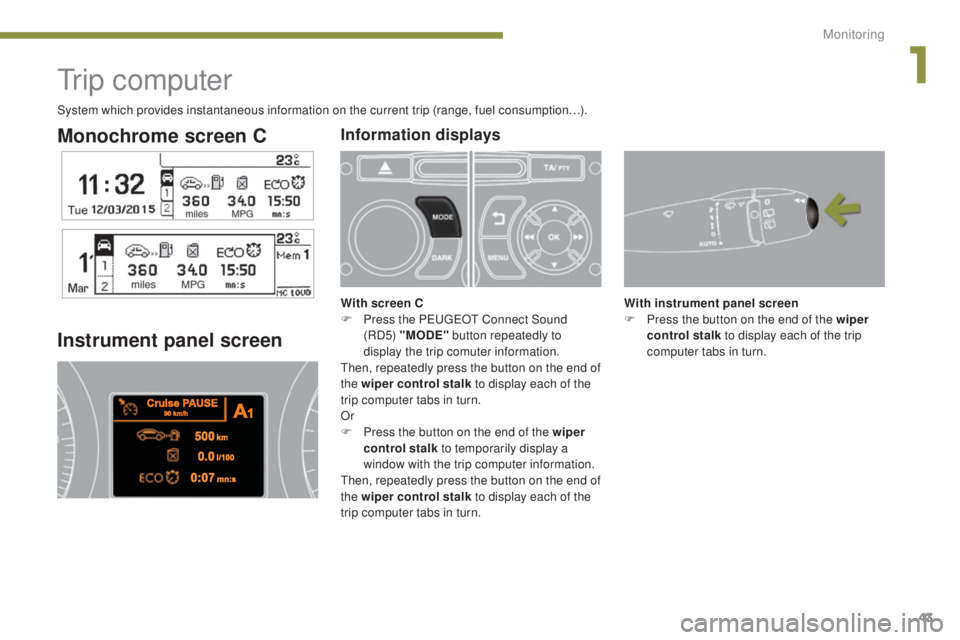

Monochrome screen C
Tr i p c o m p u t e r
Instrument panel screen
With instrument panel screen
F P ress the button on the end of the wiper
control stalk to display each of the trip
computer tabs in turn.
Information displays
With screen C
F P ress the PEUGEOT Connect Sound
(RD5) "MODE" button repeatedly to
display the trip comuter information.
Then, repeatedly press the button on the end of
the wiper control stalk to display each of the
trip computer tabs in turn.
Or
F

P
ress the button on the end of the wiper
control stalk to temporarily display a
window with the trip computer information.
Then, repeatedly press the button on the end of
the wiper control stalk to display each of the
trip computer tabs in turn.
System which provides instantaneous information on the current trip (range, fuel consumption…).
1
Monitoring

44
3008_en_Chap01_controle-marche_ed01-2015

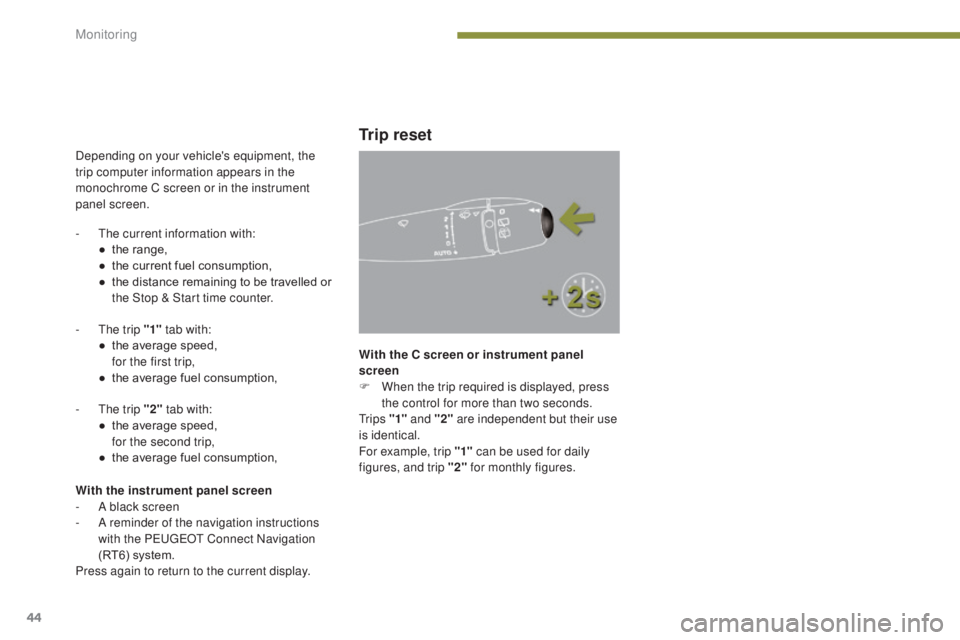

Depending on your vehicle's equipment, the
trip computer information appears in the
monochrome C screen or in the instrument
panel screen.
-
T
he current information with:
●

t
he range,
●

t
he current fuel consumption,
●

t
he distance remaining to be travelled or
the Stop & Start time counter.
-

T
he trip "1" tab with:
●

t
he average speed,
f

or the first trip,
●

t
he average fuel consumption,
-

T
he trip "2" tab with:
●

t
he average speed,
f

or the second trip,
●

t
he average fuel consumption, With the C screen or instrument panel
screen
F

W
hen the trip required is displayed, press
the control for more than two seconds.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
Trip reset
With the instrument panel screen
-
A b lack screen
-

A r
eminder of the navigation instructions
with the PEUGEOT Connect Navigation
(RT6) system.
Press again to return to the current display.
Monitoring

45
3008_en_Chap02_ouvertures_ed01-2015

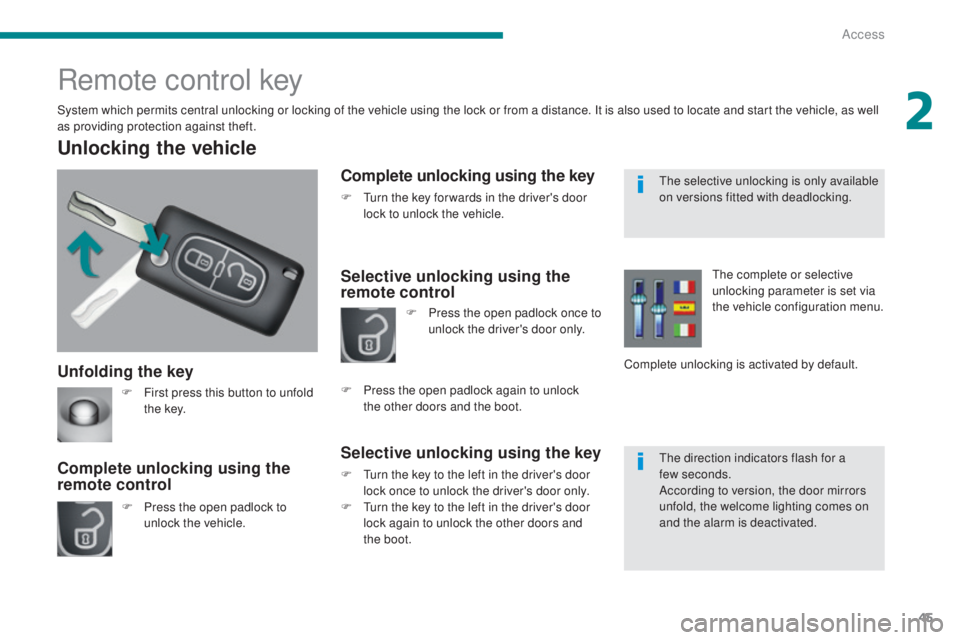

Unfolding the key
Unlocking the vehicle
F Press the open padlock to unlock the vehicle.
Complete unlocking using the
remote control
Remote control key
System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well
as providing protection against theft.
Complete unlocking using the key
F Turn the key for wards in the driver's door lock to unlock the vehicle.
Selective unlocking using the
remote control
Selective unlocking using the key
F Turn the key to the left in the driver's door lock once to unlock the driver's door only.
F

T
urn the key to the left in the driver's door
lock again to unlock the other doors and
the boot. F

P
ress the open padlock once to
unlock the driver's door only.
F
P
ress the open padlock again to unlock
the

other doors and the boot. The complete or selective
unlocking parameter is set via
the vehicle configuration menu.
Complete unlocking is activated by default.
F

F

irst press this button to unfold
t h e key. The selective unlocking is only available
on versions fitted with deadlocking.
The direction indicators flash for a
few
seconds.
According to version, the door mirrors
unfold, the welcome lighting comes on
and the alarm is deactivated.
2
Access

46
3008_en_Chap02_ouvertures_ed01-2015

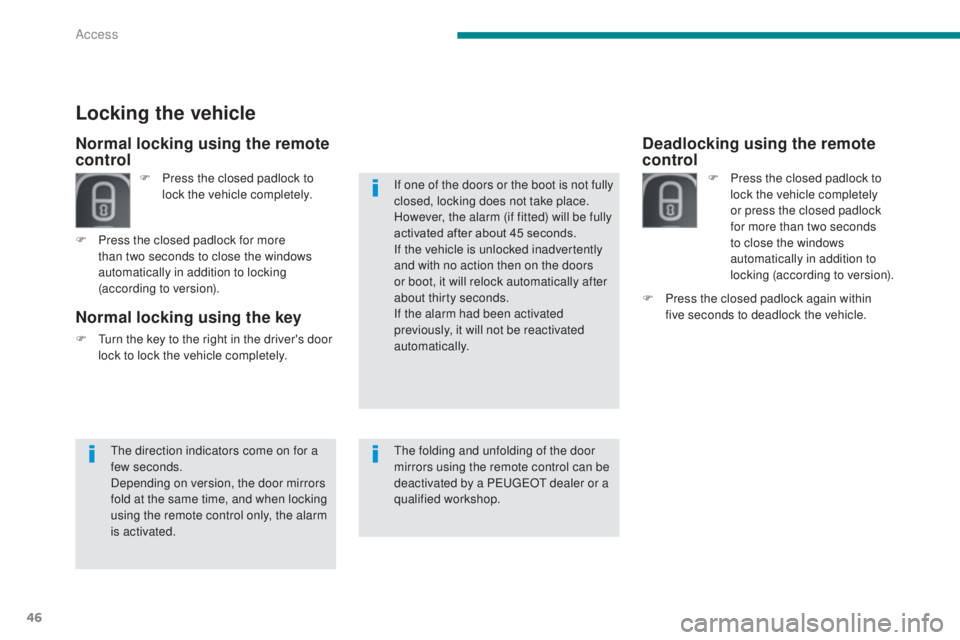

Deadlocking using the remote
control
F Press the closed padlock to lock the vehicle completely
or press the closed padlock
for more than two seconds
to close the windows
automatically in addition to
locking (according to version).
Normal locking using the key
F Turn the key to the right in the driver's door lock to lock the vehicle completely.
Locking the vehicle
F Press the closed padlock to lock the vehicle completely.
F

P

ress the closed padlock for more
than two seconds to close the windows
automatically in addition to locking
(according to version).
Normal locking using the remote
control
F Press the closed padlock again within five seconds to deadlock the vehicle.
If one of the doors or the boot is not fully
closed, locking does not take place.
However, the alarm (if fitted) will be fully
activated after about 45 seconds.
If the vehicle is unlocked inadvertently
and with no action then on the doors
or boot, it will relock automatically after
about thirty seconds.
If the alarm had been activated
previously, it will not be reactivated
automatically.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
The direction indicators come on for a
few seconds.
Depending on version, the door mirrors
fold at the same time, and when locking
using the remote control only, the alarm
is activated.
Access

47
3008_en_Chap02_ouvertures_ed01-2015

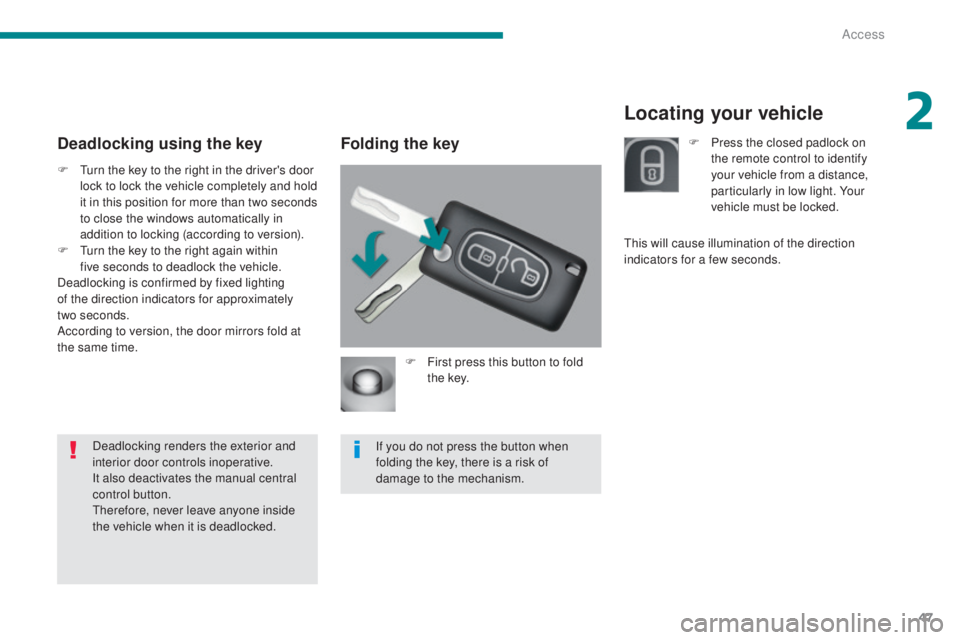

Locating your vehicle
Folding the key
F First press this button to fold t h e key.
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.
Deadlocking using the key
F Turn the key to the right in the driver's door lock to lock the vehicle completely and hold
it in this position for more than two seconds
to close the windows automatically in
addition to locking (according to version).
F

T
urn the key to the right again within
five


seconds to deadlock the vehicle.
Deadlocking is confirmed by fixed lighting
of the direction indicators for approximately
two


seconds.
According to version, the door mirrors fold at
the same time.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked. F

P
ress the closed padlock on
the remote control to identify
your vehicle from a distance,
particularly in low light. Your
vehicle must be locked.
This will cause illumination of the direction
indicators for a few seconds.
2
Access

48
3008_en_Chap02_ouvertures_ed01-2015

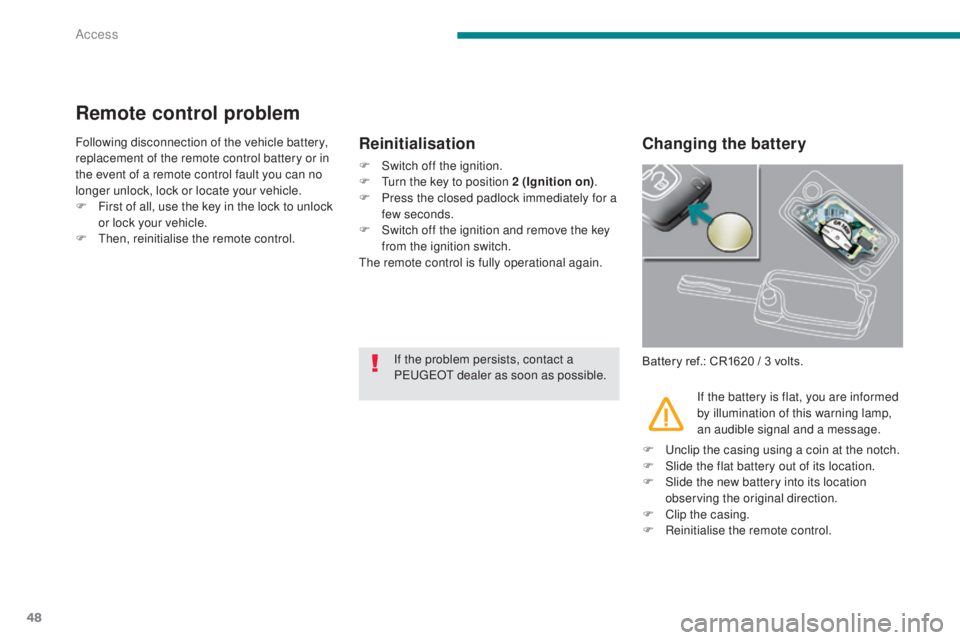

Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or in
the event of a remote control fault you can no
longer unlock, lock or locate your vehicle.
F
F
irst of all, use the key in the lock to unlock
or lock your vehicle.
F

T
hen, reinitialise the remote control.Changing the battery
Battery ref.: CR1620 / 3 volts.
Reinitialisation
F Switch off the ignition.
F T urn the key to position 2 (Ignition on) .
F

P
ress the closed padlock immediately for a
few seconds.
F

S
witch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again.
If the battery is flat, you are informed
by illumination of this warning lamp,
an audible signal and a message.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
F

U
nclip the casing using a coin at the notch.
F

S
lide the flat battery out of its location.
F

S
lide the new battery into its location
observing the original direction.
F

C
lip the casing.
F

R
einitialise the remote control.
Access
