PEUGEOT 3008 2017 User Guide

9
3008-2_en_Chap00b_vue-ensemble_ed01-2016

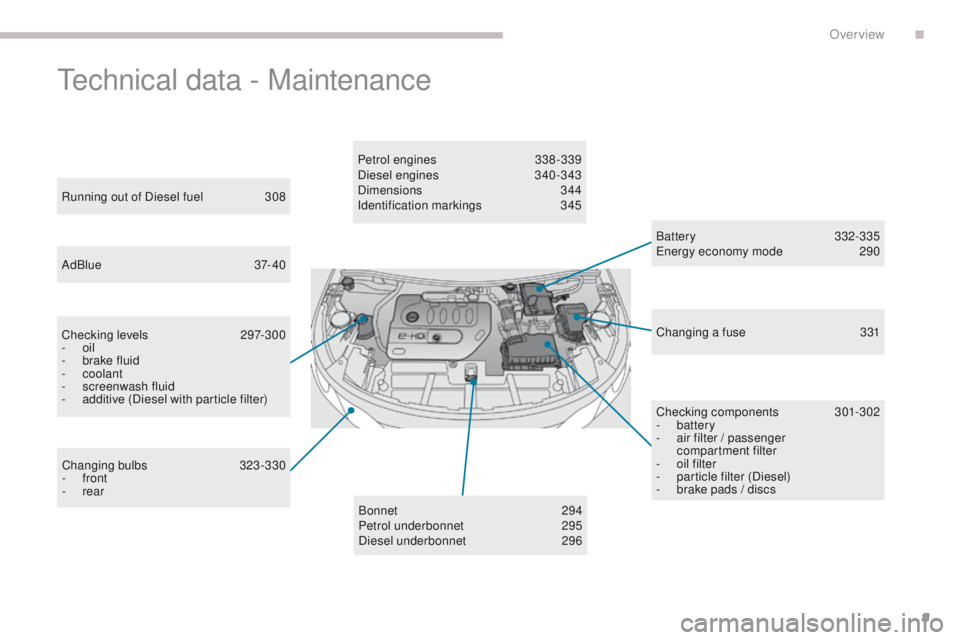

Technical data - Maintenance
Battery 332-335
Energy economy mode 2 90
Running out of Diesel fuel

3

08
AdBlue
3

7- 40
Checking levels
2

97-300
-

oil
-

b

rake fluid
-


coolant
-

s

creenwash fluid
-

a

dditive (Diesel with particle filter) Petrol engines

3

38 -339
Diesel engines
3

40-343
Dimensions


344
Identification markings
3

45
Checking components
3
01-302
-


battery
-

a
ir filter / passenger
compartment filter
-

o
il filter
-

p
article filter (Diesel)
-

b
rake pads / discs
Changing bulbs
3

23-330
-

front
-

rear Changing a fuse
3

31
Bonnet

2

94
Petrol underbonnet

2

95
Diesel underbonnet
2

96
.
Over view

3008-2_en_Chap00c_eco-conduite_ed01-2016
10
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic gearbox, give preference to automatic mode and
avoid pressing the accelerator pedal heavily or suddenly.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the ambient light
level does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also help reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well. The gear efficiency indicator invites you to engage the most suitable
gear: as soon as the indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox, this indicator appears
only in manual mode.
Eco-driving

3008-2_en_Chap00c_eco-conduite_ed01-2016
11

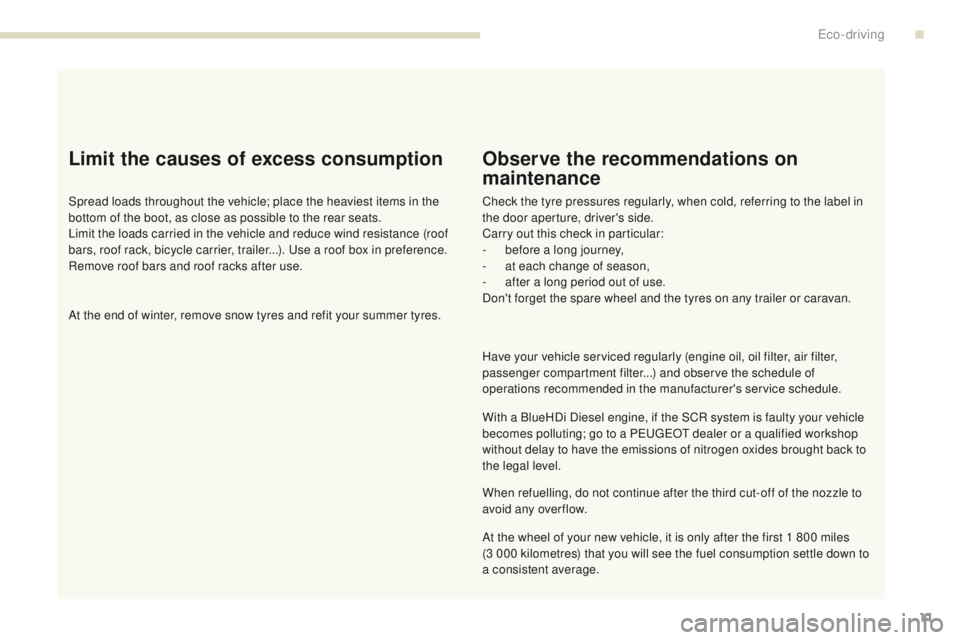

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a PEUGEOT dealer or a qualified workshop
without delay to have the emissions of nitrogen oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
Eco-driving

12
3008-2_en_Chap01_instruments-de-bord_ed01-2016

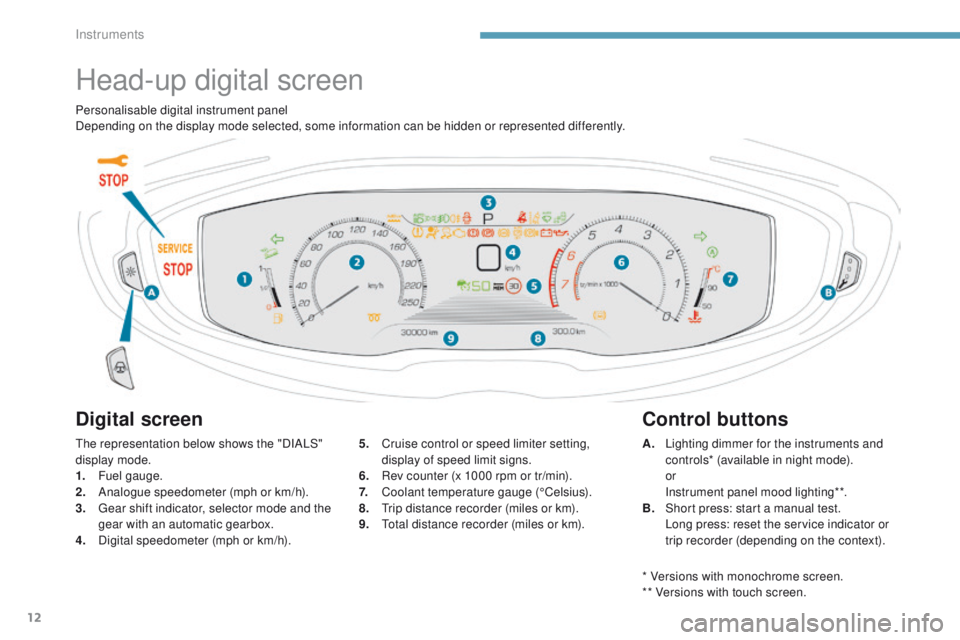

Head-up digital screen
Digital screen
The representation below shows the "DIALS"
display mode.
1.
F
uel gauge.
2.
A

nalogue speedometer (mph or km/h).
3.
G

ear shift indicator, selector mode and the
gear with an automatic gearbox.
4.
D

igital speedometer (mph or km/h). 5. C
ruise control or speed limiter setting,
display of speed limit signs.
6.
R

ev counter (x 1000 rpm or tr/min).
7.
C

oolant temperature gauge (°Celsius).
8.
T

rip distance recorder (miles or km).
9.
T

otal distance recorder (miles or km).
Control buttons
A. Lighting dimmer for the instruments and controls* (available in night mode).


or
I

nstrument panel mood lighting**.
B.
S

hort press: start a manual test.
L

ong press: reset the service indicator or
trip recorder (depending on the context).
Personalisable digital instrument panel
Depending on the display mode selected, some information can be hidden or represented differently.
* Versions with monochrome screen.
** Versions with touch screen.
Instruments

13
3008-2_en_Chap01_instruments-de-bord_ed01-2016

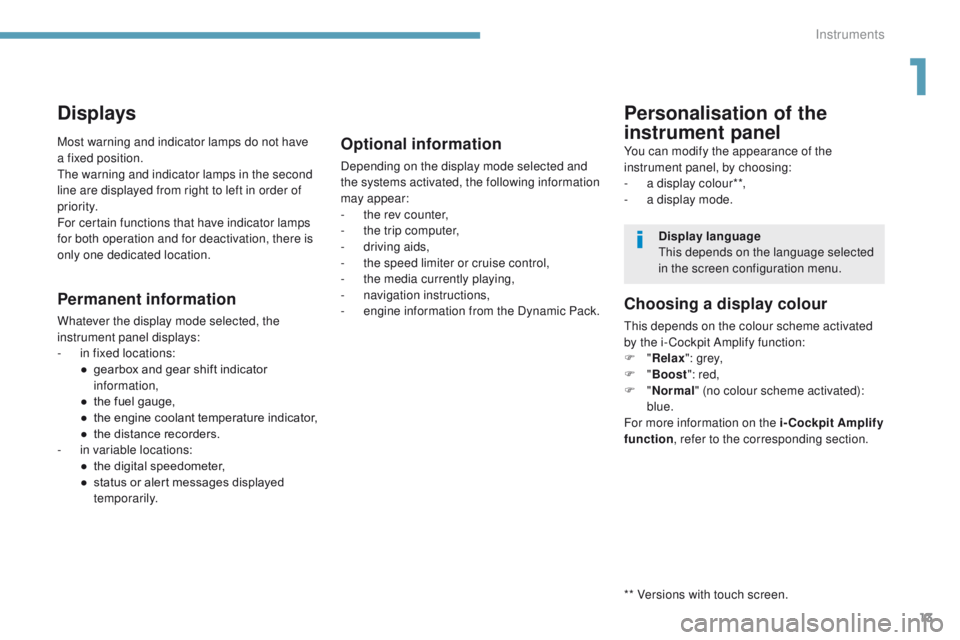

Displays
Permanent information
Whatever the display mode selected, the
instrument panel displays:
-
i
n fixed locations:
●

g
earbox and gear shift indicator
information,
●

t
he fuel gauge,
●
t

he engine coolant temperature indicator,
●

t
he distance recorders.
-

i
n variable locations:
●

t
he digital speedometer,
●

s
tatus or alert messages displayed
temporarily.
Most warning and indicator lamps do not have
a fixed position.
The warning and indicator lamps in the second
line are displayed from right to left in order of
priority.
For certain functions that have indicator lamps
for both operation and for deactivation, there is
only one dedicated location.
Personalisation of the
instrument panel
You can modify the appearance of the
instrument panel, by choosing:
-

a d
isplay colour**,
-

a d
isplay mode.
Display language
This depends on the language selected
in the screen configuration menu.
Choosing a display colour
This depends on the colour scheme activated
by the i- Cockpit Amplify function:
F "Relax ": grey,
F
"Boost ": red,
F
"Normal " (no colour scheme activated):
blue.
For more information on the i-Cockpit Amplify
function , refer to the corresponding section.
** Versions with touch screen.
Optional information
Depending on the display mode selected and
the systems activated, the following information
may appear:
-
t
he rev counter,
-

t
he trip computer,
-

d
riving aids,
-

t
he speed limiter or cruise control,
-

t
he media currently playing,
-
n

avigation instructions,
-

e
ngine information from the Dynamic Pack.
1
Instruments

14
3008-2_en_Chap01_instruments-de-bord_ed01-2016

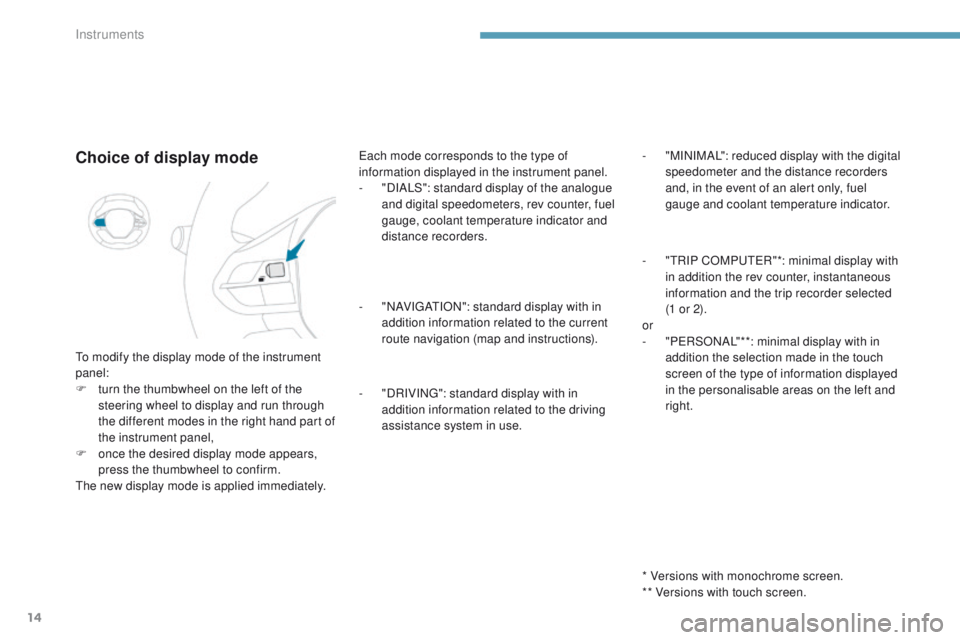

Choice of display mode
To modify the display mode of the instrument
panel:
F
t
urn the thumbwheel on the left of the
steering wheel to display and run through
the different modes in the right hand part of
the instrument panel,
F

o
nce the desired display mode appears,
press the thumbwheel to confirm.
The new display mode is applied immediately. Each mode corresponds to the type of
information displayed in the instrument panel.
-

"
DIALS": standard display of the analogue
and digital speedometers, rev counter, fuel
gauge, coolant temperature indicator and
distance recorders.
-
"
NAVIGATION": standard display with in
addition information related to the current
route navigation (map and instructions).
-
"
DRIVING": standard display with in
addition information related to the driving
assistance system in use.
* Versions with monochrome screen.
** Versions with touch screen. -
"
MINIMAL": reduced display with the digital
speedometer and the distance recorders
and, in the event of an alert only, fuel
gauge and coolant temperature indicator.
-
"
TRIP COMPUTER"*: minimal display with
in addition the rev counter, instantaneous
information and the trip recorder selected
(1 or 2).
or
- " PERSONAL"**: minimal display with in
addition the selection made in the touch
screen of the type of information displayed
in the personalisable areas on the left and
right.
Instruments

15
3008-2_en_Chap01_instruments-de-bord_ed01-2016

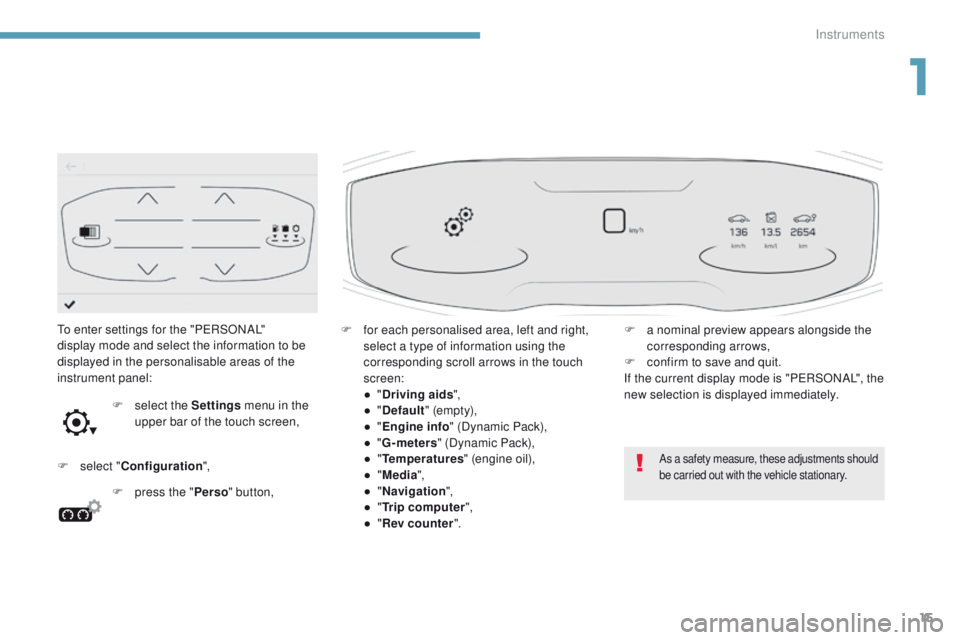

To enter settings for the "PERSONAL"
display mode and select the information to be
displayed in the personalisable areas of the
instrument panel:F

s
elect the Settings menu in the
upper bar of the touch screen,
F

p
ress the "Perso" button, F
f or each personalised area, left and right,
select a type of information using the
corresponding scroll arrows in the touch
screen:
●

"D

riving aids",
●

"D

efault" (empt y),
●

"En

gine info" (Dynamic Pack),
●

"G

-meters" (Dynamic Pack),
●

"T

emperatures" (engine oil),
●

"M

edia",
●

"N

avigation",
●

"T

rip computer",
●

"R

ev counter". F
a n ominal preview appears alongside the
corresponding arrows,
F

c
onfirm to save and quit.
If the current display mode is "PERSONAL", the
new selection is displayed immediately.
F

s
elect " Configuration ",
As a safety measure, these adjustments should
be carried out with the vehicle stationary.
1
Instruments

16
3008-2_en_Chap01_instruments-de-bord_ed01-2016

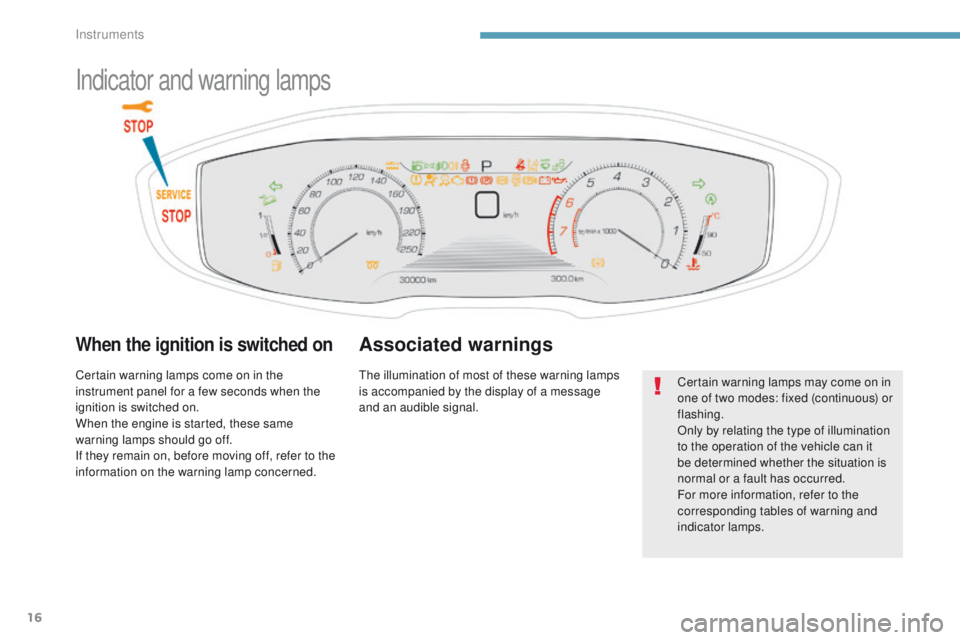

Indicator and warning lamps
When the ignition is switched on
Certain warning lamps come on in the
instrument panel for a few seconds when the
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred.
For more information, refer to the
corresponding tables of warning and
indicator lamps.
Associated warnings
The illumination of most of these warning lamps
is accompanied by the display of a message
and an audible signal.
Instruments

17
3008-2_en_Chap01_instruments-de-bord_ed01-2016

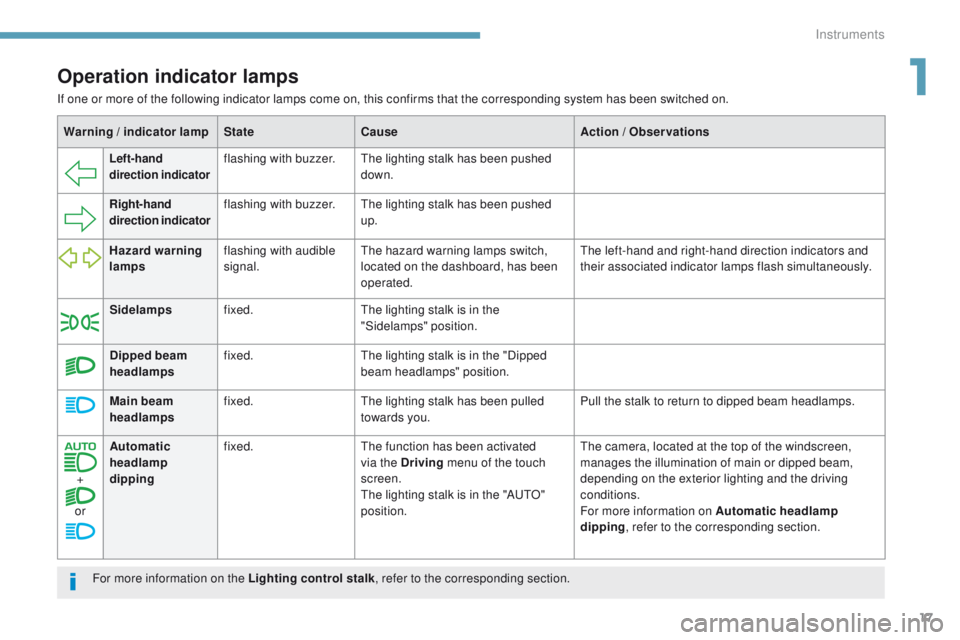

Warning / indicator lampStateCause Action / Observations
Left-hand
direction indicatorflashing with buzzer.The lighting stalk has been pushed
down.
Right-hand
direction indicator flashing with buzzer.
The lighting stalk has been pushed
up.
Hazard warning
lamps flashing with audible
signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.
Sidelamps fixed. The lighting stalk is in the
"Sidelamps" position.
Dipped beam
headlamps fixed.
The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
The lighting stalk has been pulled
towards you. Pull the stalk to return to dipped beam headlamps.
+
or Automatic
headlamp
dipping
fixed.
The function has been activated
via the Driving menu of the touch
screen.
The lighting stalk is in the "AUTO"
position. The camera, located at the top of the windscreen,
manages the illumination of main or dipped beam,
depending on the exterior lighting and the driving
conditions.
For more information on Automatic headlamp
dipping
, refer to the corresponding section.
Operation indicator lamps
For more information on the Lighting control stalk , refer to the corresponding section.
If one or more of the following indicator lamps come on, this confirms that the corresponding system has been switched on.
1
Instruments

18
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Diesel engine
pre-heating fixed.
When the ignition is switched on
with a key in the ignition switch or
a starting instruction made using
the
"START/STOP " button, the
engine temperature makes engine
pre-heating necessary. The period of illumination of the indicator lamp is
determined by the ambient conditions (up to about
thirty seconds in severe winter conditions).
With an ignition switch and key, wait until the indicator
lamp goes off before starting.
With Keyless Entry and Starting, once it goes off,
starting is immediate, on condition that the brake
pedal remains pressed with an automatic gearbox, or
the clutch pedal is pressed fully down with a manual
gearbox.
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
Stop & Star t fixed. When the vehicle stops (red lights, traffic
jams,
...) the Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.
flashes for a few
seconds, then goes
of f. STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Rear foglamps
fixed. The rear foglamps have been
switched on using the ring on the
lighting control stalk. Turn the ring on the lighting control stalk rear wards to
switch off the rear foglamps.
Front foglamps fixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
twice to switch off the front foglamps.
Instruments
