PEUGEOT 3008 2017 Service Manual

39
3008-2_en_Chap01_instruments-de-bord_ed01-2016

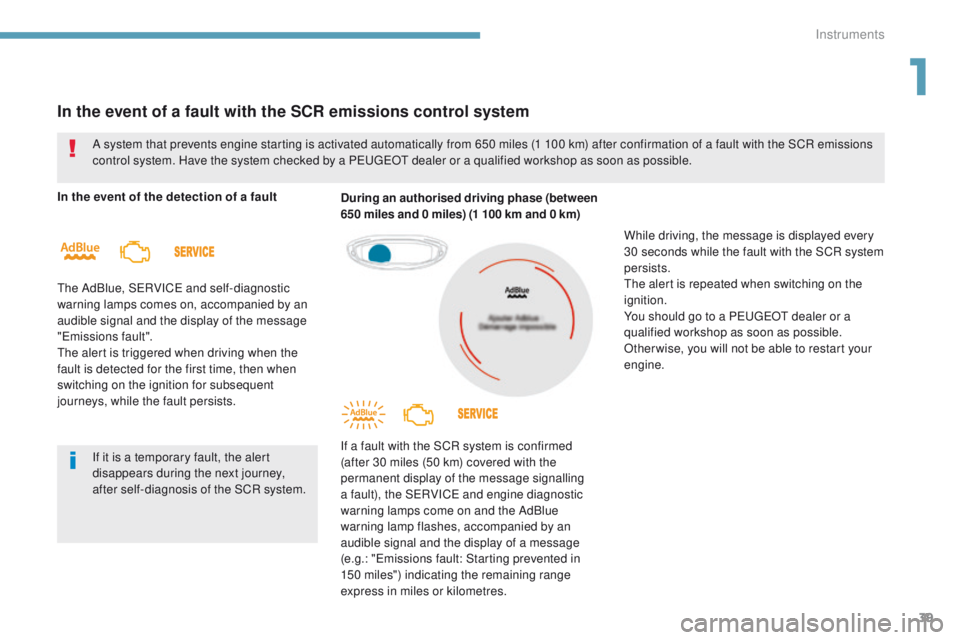

In the event of a fault with the SCR emissions control system
In the event of the detection of a fault
The AdBlue, SERVICE and self-diagnostic
warning lamps comes on, accompanied by an
audible signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)
If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the SERVICE and engine diagnostic
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g.: "Emissions fault: Starting prevented in
150 miles") indicating the remaining range
express in miles or kilometres.
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a PEUGEOT dealer or a qualified workshop as soon as possible.
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a PEUGEOT dealer or a
qualified workshop as soon as possible.
Other wise, you will not be able to restart your
engine.
1
Instruments

40
3008-2_en_Chap01_instruments-de-bord_ed01-2016

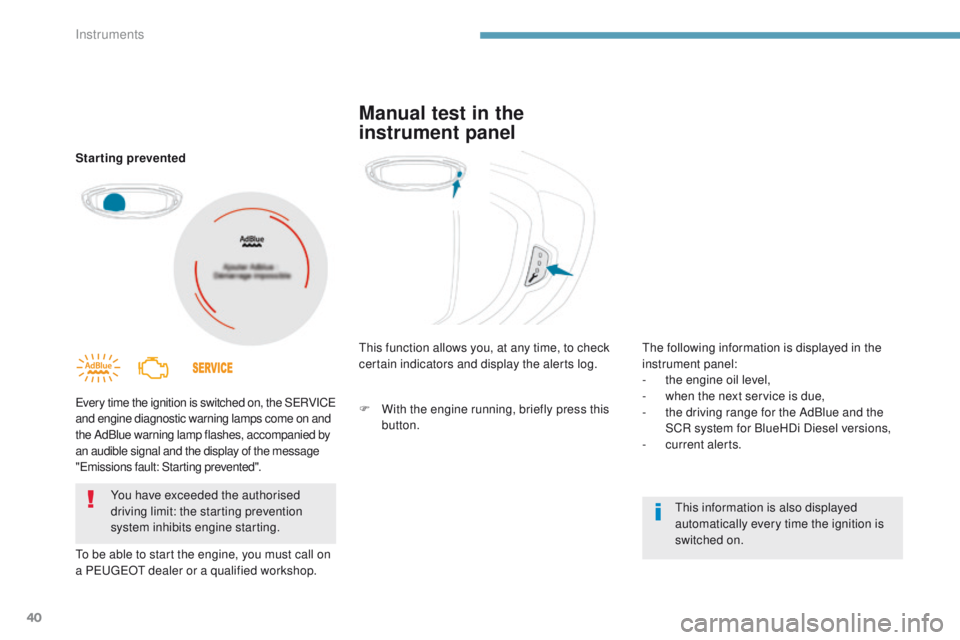

Starting prevented
Every time the ignition is switched on, the SERVICE
and engine diagnostic warning lamps come on and
the AdBlue warning lamp flashes, accompanied by
an audible signal and the display of the message
"Emissions fault: Starting prevented".
To be able to start the engine, you must call on
a PEUGEOT dealer or a qualified workshop.You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting. This function allows you, at any time, to check
certain indicators and display the alerts log.
This information is also displayed
automatically every time the ignition is
switched on.
Manual test in the
instrument panel
The following information is displayed in the
instrument panel:
-
t
he engine oil level,
-

w
hen the next service is due,
-

t
he driving range for the AdBlue and the
SCR system for BlueHDi Diesel versions,
-

c
urrent alerts.
F

W

ith the engine running, briefly press this
button.
Instruments

41
3008-2_en_Chap01_instruments-de-bord_ed01-2016

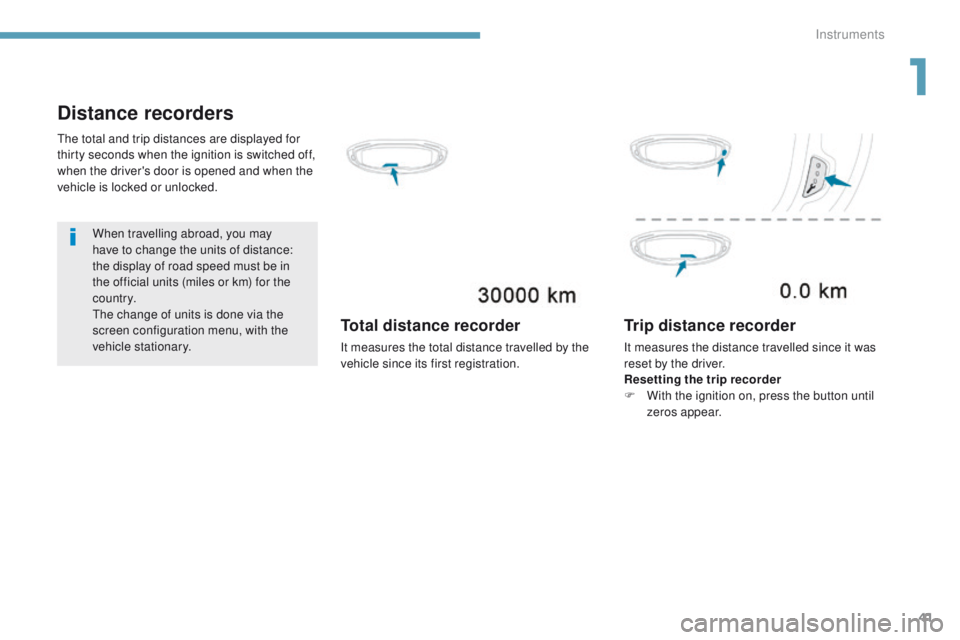

Distance recorders
When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
c o unt r y.
The change of units is done via the
screen configuration menu, with the
vehicle stationary.
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset by the driver.
Resetting the trip recorder
F

W
ith the ignition on, press the button until
zeros appear.
1
Instruments

42
3008-2_en_Chap01_instruments-de-bord_ed01-2016

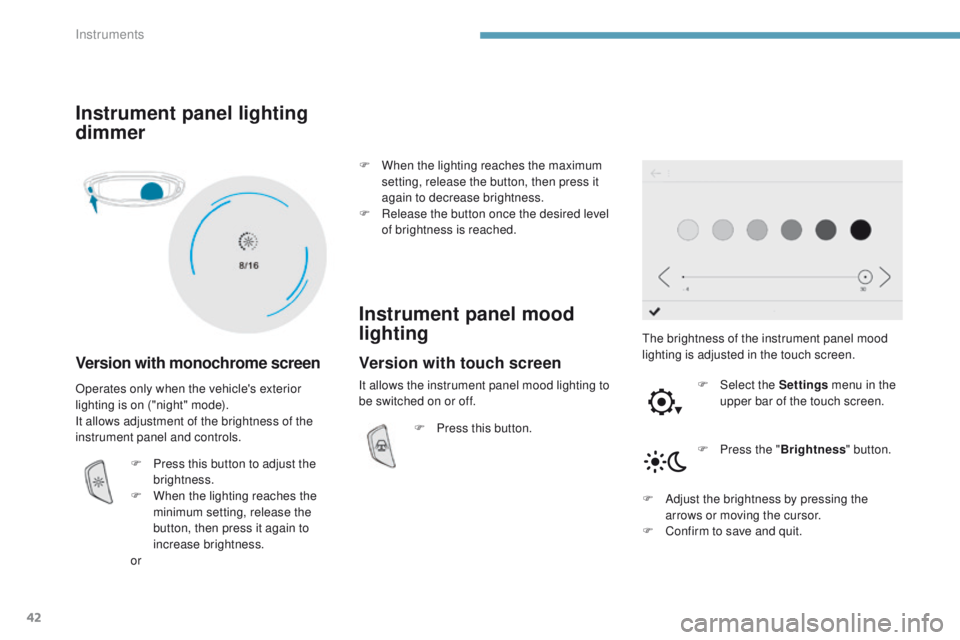

Instrument panel lighting
dimmer
Version with monochrome screen
The brightness of the instrument panel mood
lighting is adjusted in the touch screen.F

Sel
ect the Settings menu in the
upper bar of the touch screen.
Operates only when the vehicle's exterior
lighting is on ("night" mode).
It allows adjustment of the brightness of the
instrument panel and controls.
F

P

ress this button to adjust the
brightness.
F

W

hen the lighting reaches the
minimum setting, release the
button, then press it again to
increase brightness.
or F

W

hen the lighting reaches the maximum
setting, release the button, then press it
again to decrease brightness.
F

R

elease the button once the desired level
of brightness is reached.
Instrument panel mood
lighting
F Press this button.
F
P
ress the "Brightness " button.
F

A
djust the brightness by pressing the
arrows or moving the cursor.
F

C
onfirm to save and quit.
Version with touch screen
It allows the instrument panel mood lighting to
be switched on or off.
Instruments

43
3008-2_en_Chap01_instruments-de-bord_ed01-2016

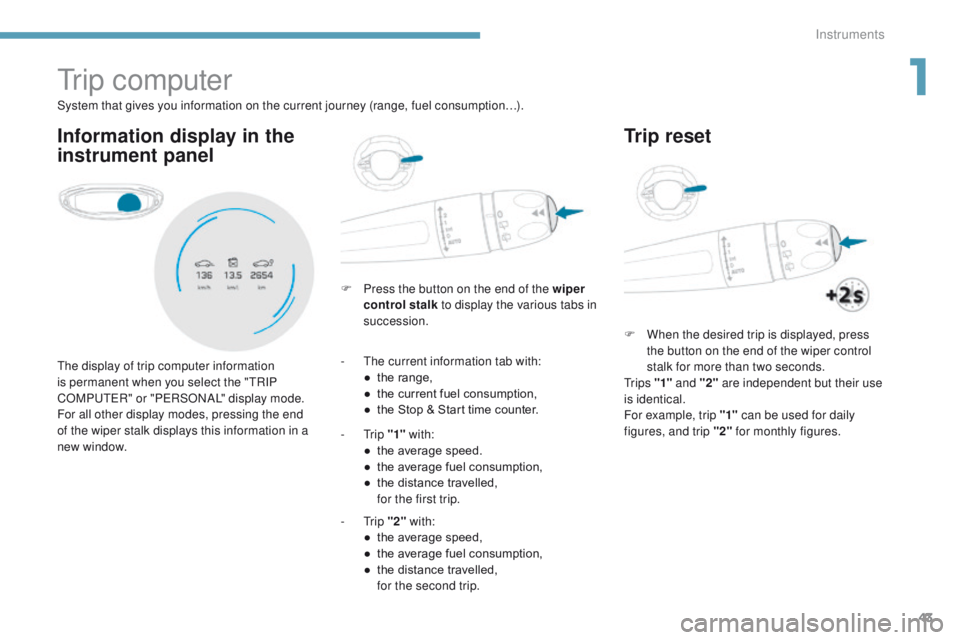

Tr i p c o m p u t e r
Information display in the
instrument panel
F Press the button on the end of the wiper control stalk to display the various tabs in
succession.
The display of trip computer information
is permanent when you select the "TRIP
COMPUTER" or "PERSONAL" display mode.
For all other display modes, pressing the end
of the wiper stalk displays this information in a
new window. System that gives you information on the current journey (range, fuel consumption…).
-
T
he current information tab with:
●

t
he range,
●

t
he current fuel consumption,
●

t
he Stop & Start time counter.
-
Trip "1" with:
●

t
he average speed.
●

t
he average fuel consumption,
●

t
he distance travelled,
f

or the first trip.
-
Trip "2" with:
●

t
he average speed,
●

t
he average fuel consumption,
●

t
he distance travelled,
f

or the second trip.
Trip reset
F When the desired trip is displayed, press the button on the end of the wiper control
stalk for more than two seconds.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
1
Instruments

44
3008-2_en_Chap01_instruments-de-bord_ed01-2016

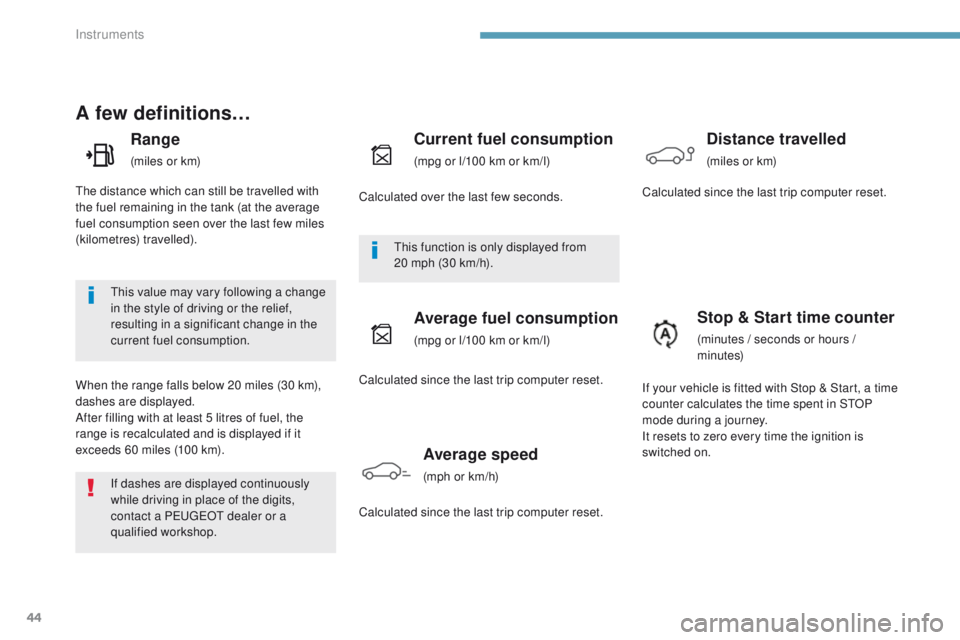

A few definitions…
Range
(miles or km)
When the range falls below 20 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
Average fuel consumption
(mpg or l/100 km or km/l)
Distance travelled
(miles or km)
Stop & Start time counter
(minutes / seconds or hours /
minutes)
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop. This function is only displayed from
20 mph (30 km/h).
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).
Calculated over the last few seconds.
Calculated since the last trip computer reset.
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on. Calculated since the last trip computer reset.
Average speed
(mph or km/h)
Calculated since the last trip computer reset.
Instruments

45
3008-2_en_Chap01_instruments-de-bord_ed01-2016

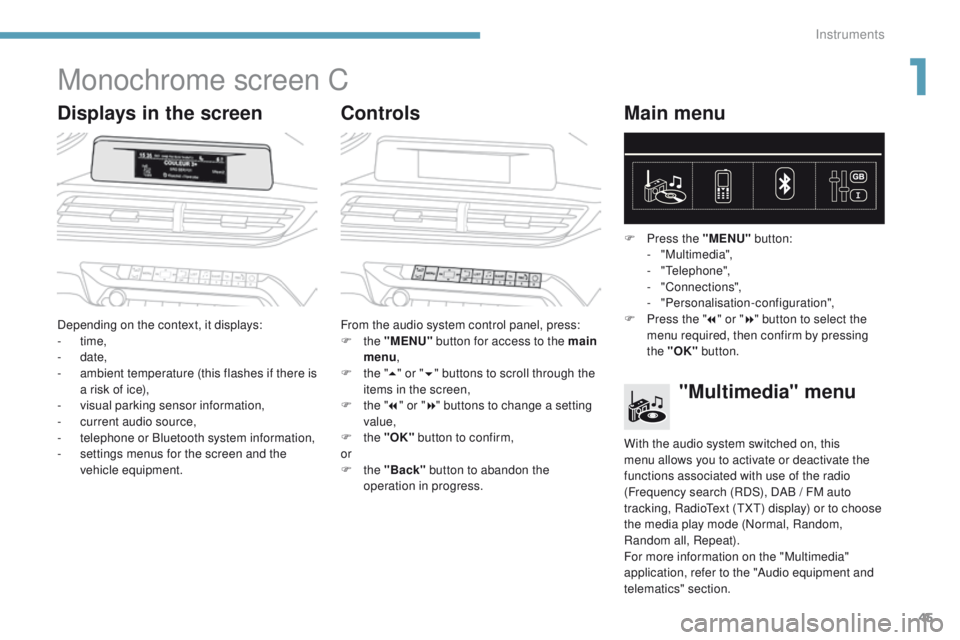

Monochrome screen C
Displays in the screenControlsMain menu
Depending on the context, it displays:
-
time,
-


date,
-

a
mbient temperature (this flashes if there is
a risk of ice),
-
v

isual parking sensor information,
-

c
urrent audio source,
-

t
elephone or Bluetooth system information,
-

s
ettings menus for the screen and the
vehicle equipment. From the audio system control panel, press:
F
the "MENU" button for access to the main
menu ,
F

t
he "5" or " 6" buttons to scroll through the
items in the screen,
F

t
he "7" or " 8" buttons to change a setting
value,
F
the "OK" button to confirm,
or
F
the "Back" button to abandon the
operation in progress. F

P
ress the "MENU"
button:
- "Multimedia",
-

"Telephone",
-

"Connections",
-

"Personalisation-configuration",
F P ress the "
7" or " 8" button to select the
menu required, then confirm by pressing
the "OK" button.
"Multimedia" menu
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(Frequency search (RDS), DAB
/ FM auto
tracking, RadioText (TXT) display) or to choose
the media play mode (Normal, Random,
Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio equipment and
telematics" section.
1
Instruments

46
3008-2_en_Chap01_instruments-de-bord_ed01-2016
"Telephone" menu
"Connections" menu
With the audio system on, this menu allows
a Bluetooth device (telephone, media player)
to be paired and the connection mode to be
defined (hands-free, playing audio files).
For more information on the "Connections"
application, refer to the "Audio equipment and
telematics" section. With the audio system switched on, this menu
allows you to make a call, view the calls log or
the various telephone directories.
For more information on the "Telephone"
application, refer to the "Audio equipment and
telematics" section.This menu gives access to the following
functions:
-
"
Define the vehicle parameters",
-
"
Choice of language",
-
"
Display configuration",
-
"
Comfort"
:
●
"
Rear wipe in reverse gear".
F

or more information on the Wipers
,
refer to the "Lighting and visibility"
section.
●
"
Parking assistance".
F

or more information on Parking
assistance , refer to the "Driving"
section.
●
"
Fatigue Detection System".
F

or more information on the Fatigue
detection system , refer to the "Driving"
section.
Define the vehicle parameters
This menu allows the activation or deactivation
of the following equipment, depending on
version:
-

"
Lighting" :
●

"
Follow-me-home headlamps".
●

"
Welcome lighting".
For more information on Exterior lighting ,
refer to the "Lighting and visibility" section.
"Personalisation-configuration" menu
- "Access to the vehicle" :
● " Plip action".
For more information on the Remote control
and selective door unlocking in particular, refer
to the "Access" section. -

"
Driving assistance"
:
●
"
Auto. emergency braking".
F

or more information on the Active
Safety Brake , refer to the "Driving"
section.
● " Speed recommendation".
F

or more information on Speed limit
recognition , refer to the "Driving"
section.
●

"
Tyre inflation".
F

or more information on Under-
inflation detection and reinitialisation in
particular, refer to the "Driving" section.
Instruments

47
3008-2_en_Chap01_instruments-de-bord_ed01-2016

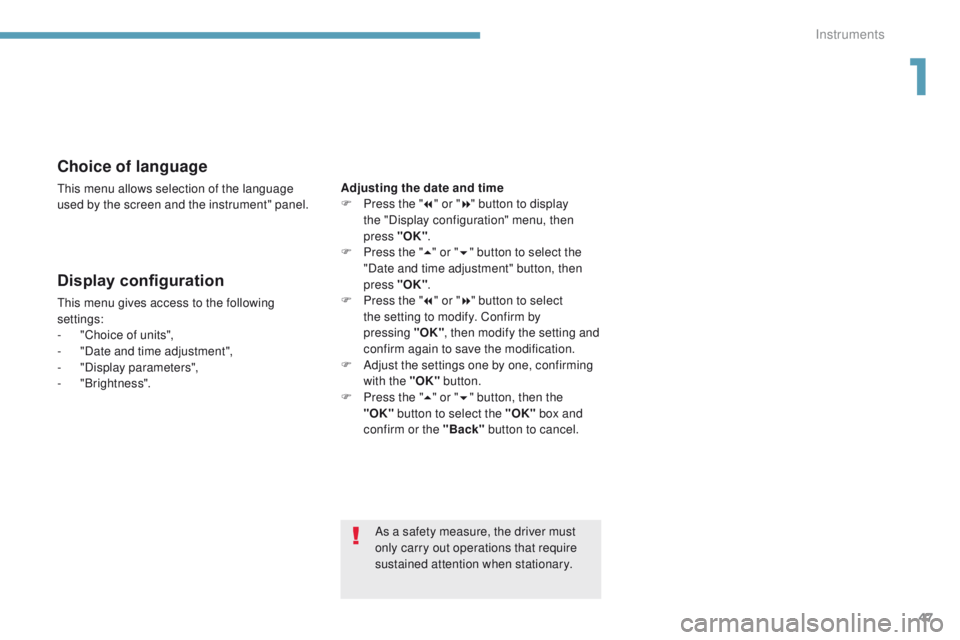

Choice of language
This menu allows selection of the language
used by the screen and the instrument" panel.
Display configuration
This menu gives access to the following
settings:
-
"
Choice of units",
-

"
Date and time adjustment",
-
"

Display parameters",
-


"Brightness". Adjusting the date and time
F

P
ress the "
7" or " 8" button to display
the "Display configuration" menu, then
press "OK"
.
F
P
ress the "
5" or " 6" button to select the
"Date and time adjustment" button, then
press "OK" .
F P ress the "
7" or " 8" button to select
the setting to modify. Confirm by
pressing


"OK", then modify the setting and
confirm again to save the modification.
F

A
djust the settings one by one, confirming
with the "OK" button.
F

P
ress the "5" or " 6" button, then the
"OK"


button to select the "OK" box and
confirm or the "Back" button to cancel.
As a safety measure, the driver must
only carry out operations that require
sustained attention when stationary.
1
Instruments

48
3008-2_en_Chap01_instruments-de-bord_ed01-2016

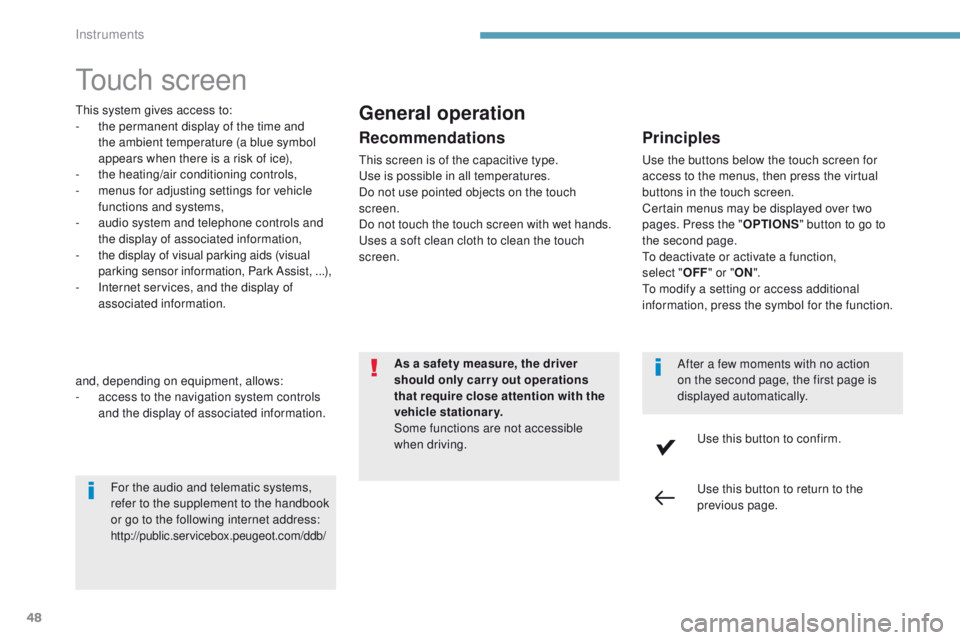

Touch screen
This system gives access to:
- t he permanent display of the time and
the ambient temperature (a blue symbol
appears when there is a risk of ice),
-
t

he heating/air conditioning controls,
-

m
enus for adjusting settings for vehicle
functions and systems,
-

a
udio system and telephone controls and
the display of associated information,
-
t

he display of visual parking aids (visual
parking sensor information, Park Assist, ...),
-

I
nternet services, and the display of
associated information.General operation
and, depending on equipment, allows:
- a ccess to the navigation system controls
and the display of associated information. As a safety measure, the driver
should only carr y out operations
that require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.
Recommendations
This screen is of the capacitive type.
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.
Principles
Use the buttons below the touch screen for
access to the menus, then press the virtual
buttons in the touch screen.
Certain menus may be displayed over two
pages. Press the "
OPTIONS" button to go to
the second page.
To deactivate or activate a function,
select


"OFF " or " ON".
To modify a setting or access additional
information, press the symbol for the function.
Use this button to confirm.
Use this button to return to the
previous page.
After a few moments with no action
on the second page, the first page is
displayed automatically.
For the audio and telematic systems,
refer to the supplement to the handbook
or go to the following internet address:
http://public.servicebox.peugeot.com/ddb/
Instruments
