"DISTANCE ALERT"
For the safety time to be observed, re-
fer to the current legislation or highway
code recommendations in your country.
The system operates when the speed
of your vehicle is higher than 45 mph
(70 km/h) and below 90 mph (150 km/h).
It has a programmable visual alert
which remains in the memory when the
ignition is switched off.
This system is a driving aid and cannot,
in any circumstances, take the place of
the vigilance and responsibility of the
driver.
1. On/off.
2. Alert value increase (+)/decrease (-).
The information is grouped together on
the head up display.
Once the system has been activated:
A. The speed of your vehicle is outside
the operating range.
B. Your vehicle is within the operating
range but no vehicle has been de-
tected.
C. The vehicle in front of you has been
detected.
The current time separating you from this vehicle is displayed permanently.
D. The time between your vehicle and
the vehicle in front is less than the
p r o g r a m m e d a l e r t v a l u e ( i t fl a s h e s ) .
Buttons Displays during operation
Driving aid which informs the driver of
the time interval (in seconds) separat-
ing him from the vehicle in front when
the driving conditions are stable.
It does not detect stationary vehicles
and does not carry out any action on
your vehicle.
Page 142 of 290
140
Activation
Deactivation
Press button 1 to deactivate the sys-
tem, the indicator light switches off.
Reactivation
Press button 1 again to reactivate
the system.
The last value programmed is retained and the indicator light comes on.
If the indicator light on but-
ton 1 fl a s h e s , h a v e t h e s y s -
tem checked by a PEUGEOT
dealer.
Operating limits
The system switches to standby auto-
matically if the sensor does not detect
t h e v e h i c l e i n f r o n t c o r r e c t l y ( v e r y d i f fi -
cult weather conditions, sensor misad-
justed, ...). A message is displayed on
the multifunction display.
The vehicle being followed may not be
detected in certain conditions such as,
for example:
- when turning,
- when changing lane,
- when the vehicle in front is either too far ahead (maximum range of
the sensor: 100 m) or stationary (in
a t r a f fi c j a m , . . . ) ,
When the vehicle being followed is ex-
cessively near (time between the two
vehicles less than 0.5 seconds), the dis-
p l a y r e m a i n s fi x e d a t 0 . 5 s e c o n d s .
Programming the alert value
Select the alert value required using
button 2 , in steps of 0.1 second:
- up to increase: "+",
- down to decrease: "-".
Example with a value of 2 seconds:
This system is not an anti-collision
radar and it does not act of the move-
ment of your vehicle. It is informative
and cannot, in any circumstances,
take the place of the vigilance and
responsibility of the driver.
Press button 1 , the indicator light
comes on.
The system is activated but will only op-
erate from 45 mph (70 km/h).
The alert value can be programmed to
between 0.9 second and 2.5 seconds.
The visual alert can be deactivated by
programming a value of 0 second. When the time (in seconds) between
your vehicle and the vehicle in front is
less than the programmed time (alert
v a l u e ) , a v i s u a l a l e r t fl a s h e s .
A safety time of 2 seconds is
recommended in normal driv-
ing conditions (correct traction
and speed) to avoid a collision
in the event of emergency braking.
Page 143 of 290
141
SPEED LIMITER
System which prevents the vehicle from
exceeding the speed programmed by
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
no longer has any effect. The controls of this system are grouped
together on stalk A .
1. Speed limiter mode selection dial
2. Programmed value decrease button
3. Programmed value increase button
4. Speed limiter on/off button
The programmed information is grouped
together on the instrument panel dis-
play.
5. Speed limiter on/off indication
6. Speed limiter mode selection indica-
tion
7. Programmed speed value
Steering wheel controls Displays on the instrument panel
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance and re-
sponsibility on the part of the driver.
The speed limiter is
switched on man-
ually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off by
manual operation of the control.
The programmed speed can be ex-
ceeded temporarily by pressing the ac-
c e l e r a t o r fi r m l y .
To return to the programmed speed,
simply slow down to a speed below the
programmed speed by releasing the ac-
celerator.
The programmed speed remains in the
memory when the ignition is switched off.
This information is also dis-
played on the head up display.
For further details about the
head up display, refer to this "Driving"
section.
Page 144 of 290
142
On a steep descent or in the
event of sharp acceleration,
the speed limiter will not be
able to prevent the vehicle from ex-
ceeding the programmed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned correctly,
- d o n o t fi t o n e m a t o n t o p o f a n - other.
Programming
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi r m l y past the point of resistance .
The speed limiter is deactivated temporarily and the pro-
g r a m m e d s p e e d , w h i c h i s s t i l l d i s p l a y e d , fl a s h e s .
Returning to the programmed speed, by means of intention-
al or unintentional deceleration of the vehicle, automati cally
c a n c e l s t h e fl a s h i n g o f t h e p r o g r a m m e d s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the
speed limiter mode is deselected.
The display returns to the distance
recorder.
Operating fault
In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have the system checked by a PEUGEOT
dealer.
Switch the speed limiter off by pressing button 4 : the dis-
p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the speed limiter back on by pressing button 4
again.
Set the speed value by pressing button 2 or 3 (e.g.: 55 mph
(90 km/h)).
You can then change the programmed speed using buttons
2 and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Switch the speed limiter on by pressing button 4 .
Turn dial 1 to the "LIMIT" position:
the speed limiter mode is selected
but is not switched on (OFF).
You do not have to switch the speed
limiter on in order to set the speed.
Page 145 of 290
143
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging:
- of fourth gear on the manual gear- box,
- of second gear on the piloted manu- al gearbox or automatic gearbox, in
sequential driving mode,
- of position A on the piloted manual
gearbox or D on the automatic gear-
box. The controls of this system are grouped
together on lever
A .
1. Cruise control mode selection dial
2. Speed programming/programmed
value decrease button
3. Speed programming/programmed
value increase button
4. Cruise control off/resume button The programmed information is grouped
together on the instrument panel display.
5. Cruise control off/resume indication
6. Cruise control mode selection indi-
cation
7. Programmed speed value
Steering wheel controls Displays on the instrument panel
The cruise control cannot, in
any circumstances, replace
the need to respect speed lim-
its, nor can it replace the need
for vigilance and responsibility on the
part of the driver.
The cruise control is
switched off
manually or by pressing the brake or
clutch pedal or on triggering of the ESP
system for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. This information is also dis-
played on the head up display.
For further details about the
head up display, refer to this "Driving"
section.
Page 146 of 290
144
When the cruise control is
switched on, be careful if you
maintain the pressure on one
of the programmed speed chang-
ing buttons: this may result in a very
rapid change in the speed of your ve-
hicle.
Do not use the cruise control on slip-
p e r y r o a d s o r i n h e a v y t r a f fi c .
On a steep descent, the cruise control
will not be able to prevent the vehi-
cle from exceeding the programmed
speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed
s p e e d r e s u l t s i n fl a s h i n g o f t h i s s p e e d o n t h e d i s p l a y .
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically ca n-
c e l s t h e fl a s h i n g o f t h e s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the cruise control mode is
deselected. The display returns to the distance rec order.
Operating fault
In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have it checked by a PEUGEOT dealer.
Set the programmed speed by ac-
celerating to the required speed, then
press button 2 or 3 (e.g.: 70 mph
(110 km/h)).
Switch off the cruise control by pressing button 4 : the
d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using buttons
2 and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Turn dial 1 to the "CRUISE" po-
sition: the cruise control mode is
selected but is not switched on
(OFF).
Page 147 of 290
145
6-SPEED MANUAL GEARBOX
As a safety precaution and to
facilitate starting of the engine:
- always select neutral,
- press the clutch pedal. Only engage reverse gear
when the vehicle is stationary
with the engine at idle.

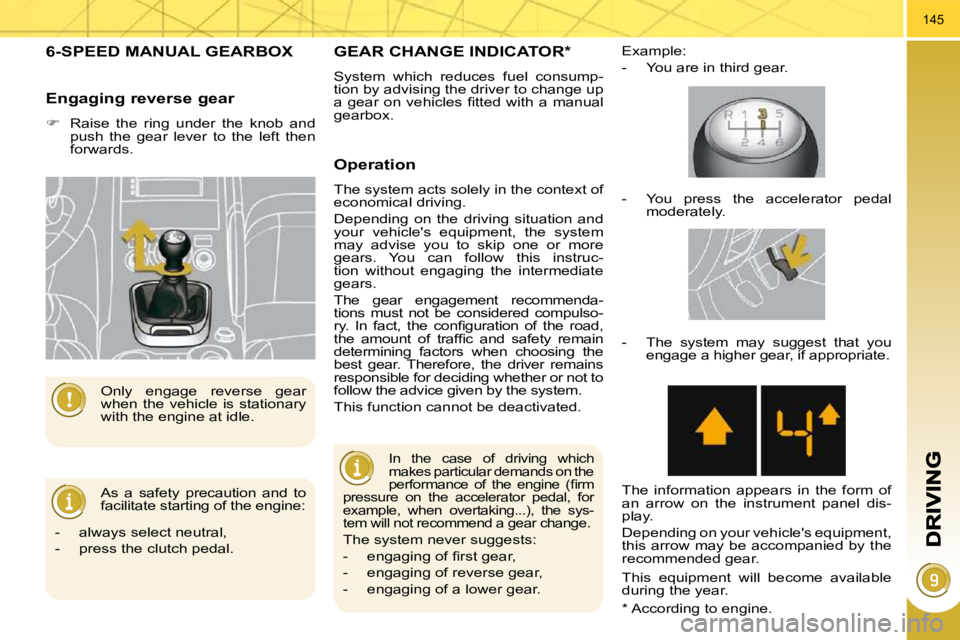

Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
* According to engine.
GEAR CHANGE INDICATOR *
System which reduces fuel consump-
tion by advising the driver to change up
a g e a r o n v e h i c l e s fi t t e d w i t h a m a n u a l
gearbox.
Operation
The system acts solely in the context of
economical driving.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulso-
r y . I n f a c t , t h e c o n fi g u r a t i o n o f t h e r o a d ,
t h e a m o u n t o f t r a f fi c a n d s a f e t y r e m a i n
determining factors when choosing the
best gear. Therefore, the driver remains
responsible for deciding whether or not to
follow the advice given by the system.
This function cannot be deactivated. Example:
- You are in third gear.
In the case of driving which
makes particular demands on the
p e r f o r m a n c e o f t h e e n g i n e ( fi r m
pressure on the accelerator pedal, for
example, when overtaking...), the sys-
tem will not recommend a gear change.
The system never suggests:
- e n g a g i n g o f fi r s t g e a r ,
- engaging of reverse gear,
- engaging of a lower gear. - You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
The information appears in the form of
an arrow on the instrument panel dis-
play.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear.
This equipment will become available
during the year.
Page 148 of 290
146

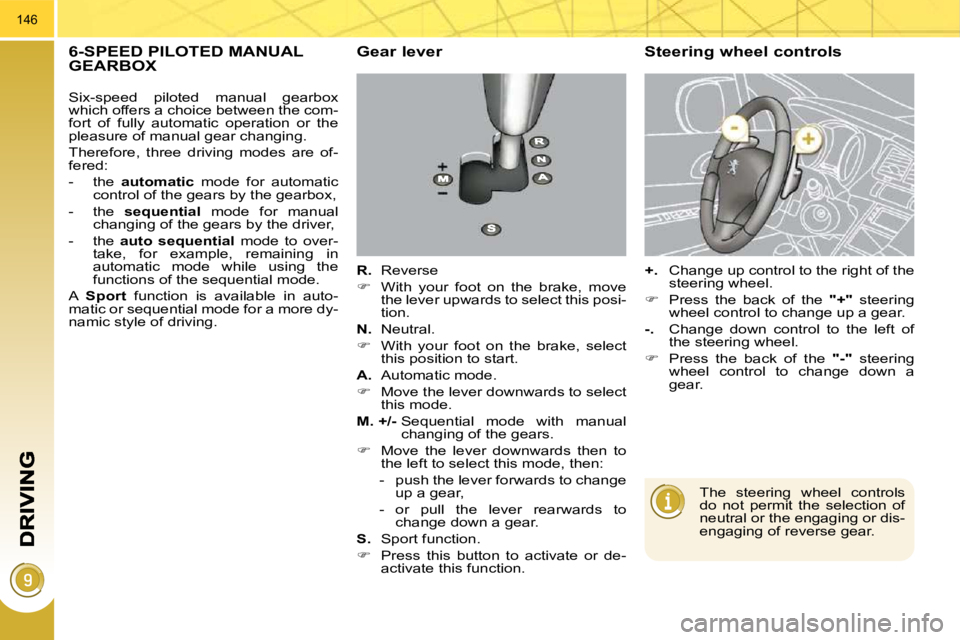

6-SPEED PILOTED MANUAL GEARBOX Gear lever
R. Reverse
With your foot on the brake, move
the lever upwards to select this posi-
tion.
N. Neutral.
With your foot on the brake, select
this position to start.
A. Automatic mode.
Move the lever downwards to select
this mode.
M. +/- Sequential mode with manual
changing of the gears.
Move the lever downwards then to
the left to select this mode, then:
- push the lever forwards to change up a gear,
- or pull the lever rearwards to change down a gear.
S. Sport function.
Press this button to activate or de-
activate this function.
Steering wheel controls
+. Change up control to the right of the
steering wheel.
Press the back of the "+" steering
wheel control to change up a gear.
-. Change down control to the left of
the steering wheel.
Press the back of the "-" steering
wheel control to change down a
gear.
The steering wheel controls
do not permit the selection of
neutral or the engaging or dis-
engaging of reverse gear.
Six-speed piloted manual gearbox
which offers a choice between the com-
fort of fully automatic operation or the
pleasure of manual gear changing.
Therefore, three driving modes are of-
fered:
- the
automatic mode for automatic
control of the gears by the gearbox,
- the sequential mode for manual
changing of the gears by the driver,
- the auto sequential mode to over-
take, for example, remaining in
automatic mode while using the
functions of the sequential mode.
A Sport function is available in auto-
matic or sequential mode for a more dy-
namic style of driving.
Page 149 of 290
147

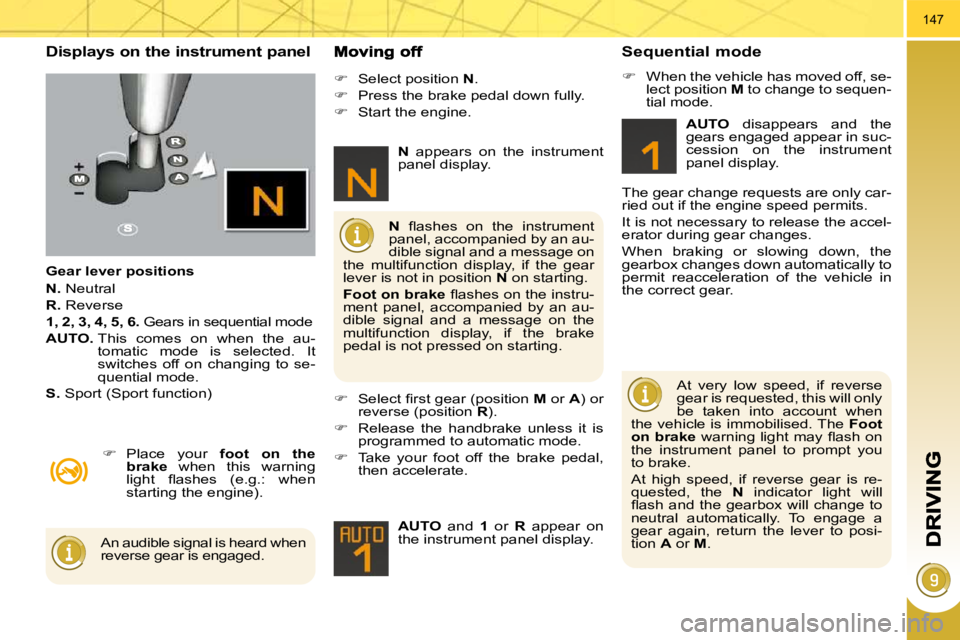

Displays on the instrument panel
Gear lever positions
N. Neutral
R. Reverse
1, 2, 3, 4, 5, 6. Gears in sequential mode
AUTO. This comes on when the au-
tomatic mode is selected. It
switches off on changing to se-
quential mode.
S. Sport (Sport function)
Place your foot on the
brake when this warning
l i g h t fl a s h e s ( e . g . : w h e n
starting the engine).
Select position N .
Press the brake pedal down fully.
Start the engine.
S e l e c t fi r s t g e a r ( p o s i t i o n M or A ) or
reverse (position R ).
Release the handbrake unless it is
programmed to automatic mode.
Take your foot off the brake pedal,
then accelerate.
AUTO and 1 or R appear on
the instrument panel display.
N fl a s h e s o n t h e i n s t r u m e n t
panel, accompanied by an au-
dible signal and a message on
the multifunction display, if the gear
lever is not in position N on starting.
Foot on brake fl a s h e s o n t h e i n s t r u -
ment panel, accompanied by an au-
dible signal and a message on the
multifunction display, if the brake
pedal is not pressed on starting.
An audible signal is heard when
reverse gear is engaged.
N appears on the instrument
panel display.
Sequential mode
When the vehicle has moved off, se-
lect position M to change to sequen-
tial mode.
AUTO disappears and the
gears engaged appear in suc-
cession on the instrument
panel display.
The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
gearbox changes down automatically to
permit reacceleration of the vehicle in
the correct gear.
At very low speed, if reverse
gear is requested, this will only
be taken into account when
the vehicle is immobilised. The Foot
on brake w a r n i n g l i g h t m a y fl a s h o n
the instrument panel to prompt you
to brake.
At high speed, if reverse gear is re-
quested, the N indicator light will
fl a s h a n d t h e g e a r b o x w i l l c h a n g e t o
neutral automatically. To engage a
gear again, return the lever to posi-
tion A or M .
Page 150 of 290
148
The gearbox is then operating in auto-
active mode, without any action on the
part of the driver. It continuously selects
the most suitable gear in relation to the
following parameters:
- style of driving,
- p r o fi l e o f t h e r o a d .
AUTO and the gear engaged
appear on the instrument pan-
el display.
Automatic mode
Following use of the sequential
mode, select position A to return to
the automatic mode.
"Auto sequential mode"
This mode enables you to overtake, for
example, remaining in automatic mode
while using the functions of the sequen-
tial mode.
Activate steering wheel control posi-
tion + or - .
The gearbox engages the gear request-
ed if the engine speed permits. AUTO is
still displayed on the instrument panel.
After a few moments without any action
on the controls, the gearbox resumes
automatic control of the gears.
On sharp acceleration, the
gearbox will not change up un-
less the driver acts on the gear
lever or the steering wheel controls.
Never select neutral N while the vehi-
cle is moving.
Only engage reverse gear R when
the vehicle is immobilised with the
brake pedal pressed.
For optimum acceleration, for
example when overtaking an-
other vehicle, press the accel-
e r a t o r p e d a l fi r m l y p a s t t h e p o i n t o f
resistance.
