PEUGEOT 3008 DAG 2009 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 3008 DAG, Model: PEUGEOT 3008 DAG 2009Pages: 290, PDF Size: 20.63 MB
Page 181 of 290
PRACTICAL INFORMATION

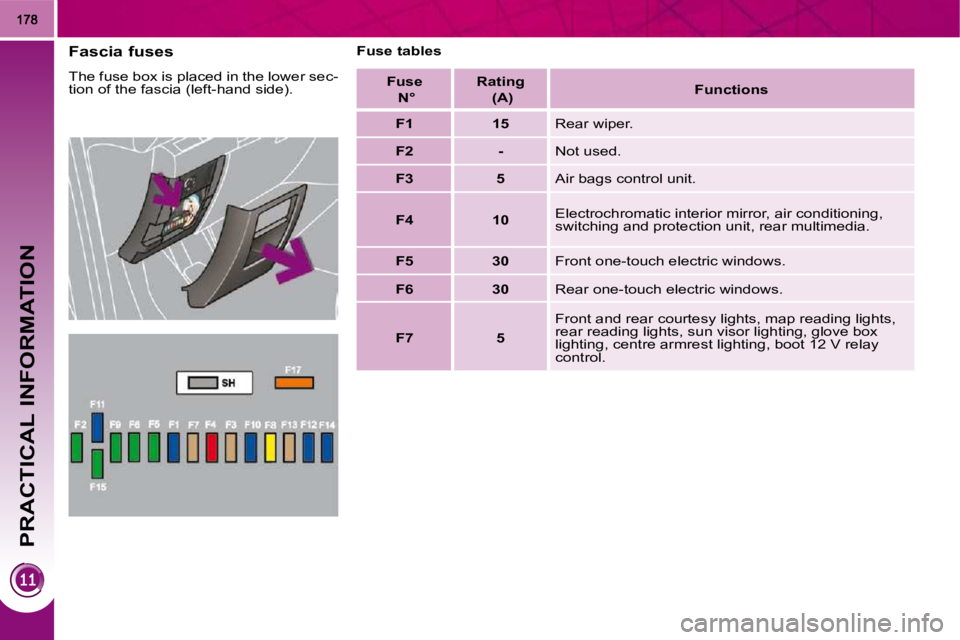

Fascia fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r s e c -
tion of the fascia (left-hand side). Fuse tables
Fuse N° Rating
(A) Functions
F1 15 R e a r w i p e r .
F2 - Not used.
F3 5 Air bags control unit.
F4 10 E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r , a i r c o n d i t i o n i n g ,
s w i t c h i n g a n d p r o t e c t i o n u n i t , r e a r m u l t i m e d i a .
F5 30 Front one-touch electric windows.
F6 30 R e a r o n e - t o u c h e l e c t r i c w i n d o w s .
F7 5 F r o n t a n d r e a r c o u r t e s y l i g h t s , m a p r e a d i n g l i g h t s ,
r e a r r e a d i n g l i g h t s , s u n v i s o r l i g h t i n g , g l o v e b o x
l i g h t i n g , c e n t r e a r m r e s t l i g h t i n g , b o o t 1 2 V r e l a y
control.
Page 182 of 290
PRACTICAL INFORMATION
179

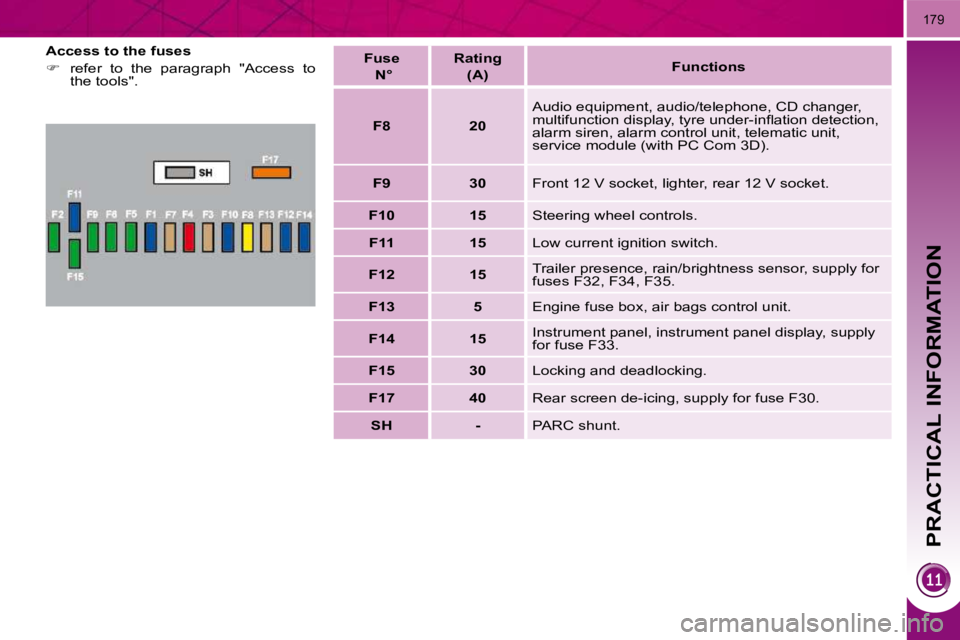

Access to the fuses
refer to the paragraph "Access to
the tools". Fuse
N° Rating
(A) Functions
F8 20 A u d i o e q u i p m e n t , a u d i o / t e l e p h o n e , C D c h a n g e r ,
m u l t i f u n c t i o n d i s p l a y , t y r e u n d e r - i n fl a t i o n d e t e c t i o n ,
a l a r m s i r e n , a l a r m c o n t r o l u n i t , t e l e m a t i c u n i t ,
service module (with PC Com 3D).
F9 30 F r o n t 1 2 V s o c k e t , l i g h t e r , r e a r 1 2 V s o c k e t .
F10 15 Steering wheel controls.
F11 15 Low current ignition switch.
F12 15 T r a i l e r p r e s e n c e , r a i n / b r i g h t n e s s s e n s o r , s u p p l y f o r
f u s e s F 3 2 , F 3 4 , F 3 5 .
F13 5 E n g i n e f u s e b o x , a i r b a g s c o n t r o l u n i t .
F14 15 I n s t r u m e n t p a n e l , i n s t r u m e n t p a n e l d i s p l a y , s u p p l y
for fuse F33.
F15 30 Locking and deadlocking.
F17 40 R e a r s c r e e n d e - i c i n g , s u p p l y f o r f u s e F 3 0 .
SH - P A R C s h u n t .
Page 183 of 290
PRACTICAL INFORMATION
180

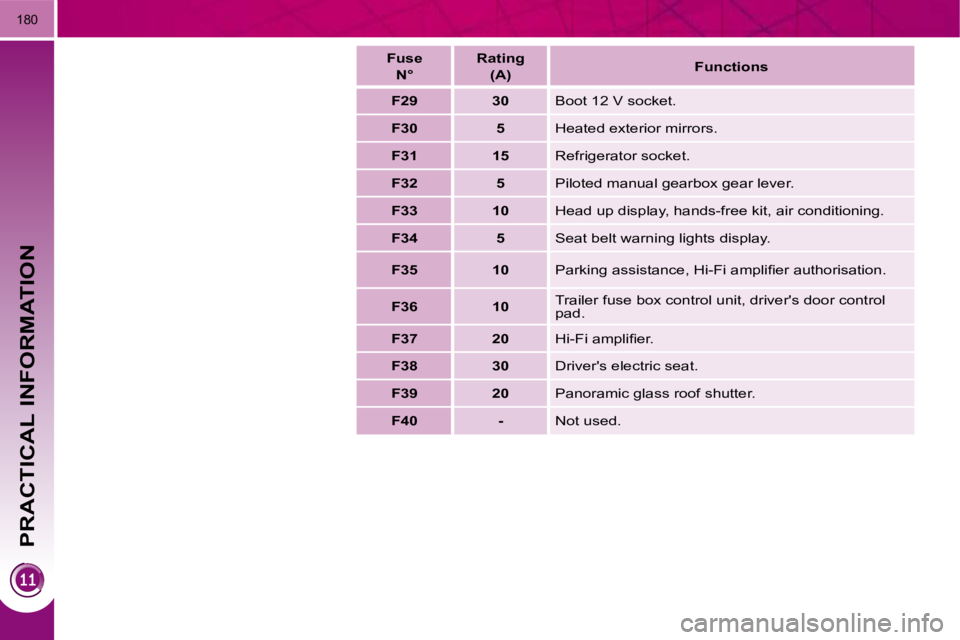

Fuse N° Rating
(A) Functions
F29 30 Boot 12 V socket.
F30 5 H e a t e d e x t e r i o r m i r r o r s .
F31 15 R e f r i g e r a t o r s o c k e t .
F32 5 P i l o t e d m a n u a l g e a r b o x g e a r l e v e r .
F33 10 H e a d u p d i s p l a y , h a n d s - f r e e k i t , a i r c o n d i t i o n i n g .
F34 5 Seat belt warning lights display.
F35 10 P a r k i n g a s s i s t a n c e , H i - F i a m p l i fi e r a u t h o r i s a t i o n .
F36 10 T r a i l e r f u s e b o x c o n t r o l u n i t , d r i v e r ' s d o o r c o n t r o l
pad.
F37 20 H i - F i a m p l i fi e r .
F38 30 D r i v e r ' s e l e c t r i c s e a t .
F39 20 Panoramic glass roof shutter.
F40 - Not used.
Page 184 of 290
PRACTICAL INFORMATION
181

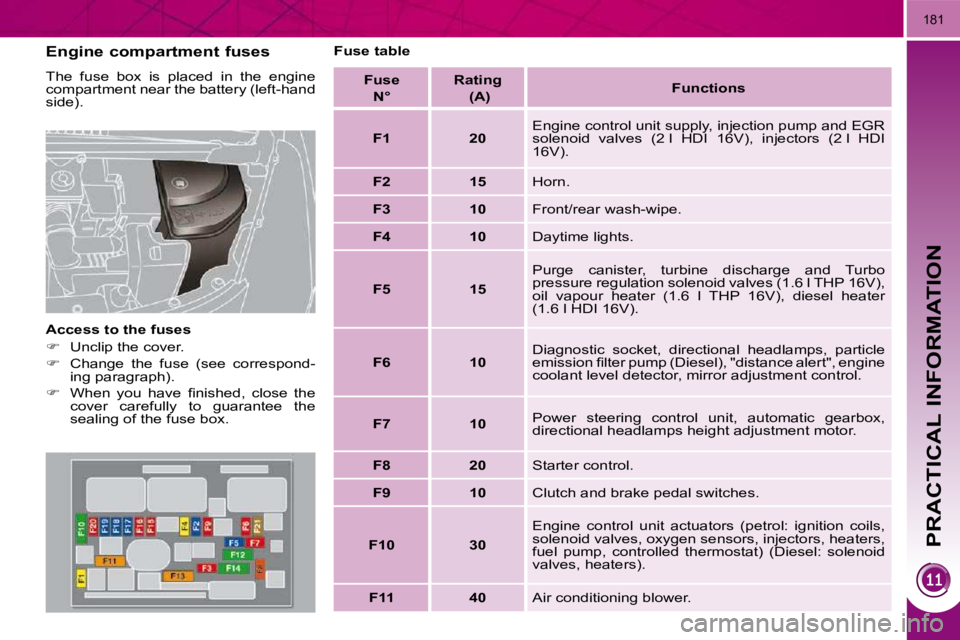

Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
side).
Access to the fuses
Unclip the cover.
Change the fuse (see correspond-
ing paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to guarantee the
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating
(A) Functions
F1 20 E n g i n e c o n t r o l u n i t s u p p l y , i n j e c t i o n p u m p a n d E G R
s o l e n o i d v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I
16V).
F2 15 Horn.
F3 10 F r o n t / r e a r w a s h - w i p e .
F4 10 Daytime lights.
F5 15 P u r g e c a n i s t e r , t u r b i n e d i s c h a r g e a n d T u r b o
p r e s s u r e r e g u l a t i o n s o l e n o i d v a l v e s ( 1 . 6 l T H P 1 6 V ) ,
o i l v a p o u r h e a t e r ( 1 . 6 l T H P 1 6 V ) , d i e s e l h e a t e r
( 1 . 6 l H D I 1 6 V ) .
F6 10 D i a g n o s t i c s o c k e t , d i r e c t i o n a l h e a d l a m p s , p a r t i c l e
e m i s s i o n fi l t e r p u m p ( D i e s e l ) , " d i s t a n c e a l e r t " , e n g i n e
c o o l a n t l e v e l d e t e c t o r , m i r r o r a d j u s t m e n t c o n t r o l .
F7 10 P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
directional headlamps height adjustment motor.
F8 20 Starter control.
F9 10 Clutch and brake pedal switches.
F10 30 E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
s o l e n o i d v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
f u e l p u m p , c o n t r o l l e d t h e r m o s t a t ) ( D i e s e l : s o l e n o i d
v a l v e s , h e a t e r s ) .
F11 40 Air conditioning blower.
Page 185 of 290
PRACTICAL INFORMATION
182

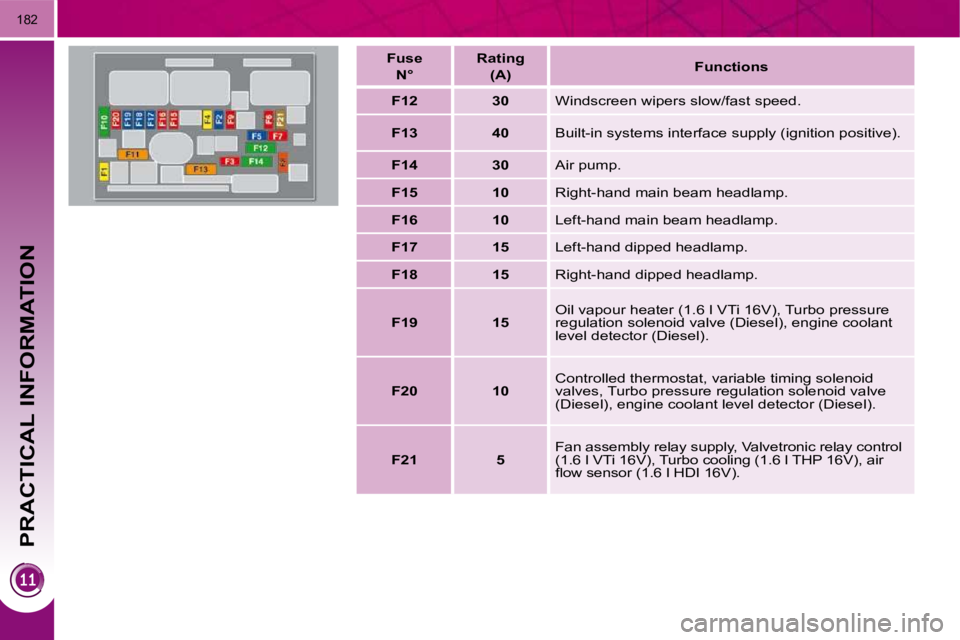

Fuse N° Rating
(A) Functions
F12 30 W i n d s c r e e n w i p e r s s l o w / f a s t s p e e d .
F13 40 Built-in systems interface supply (ignition positive).
F14 30 Air pump.
F15 10 R i g h t - h a n d m a i n b e a m h e a d l a m p .
F16 10 Left-hand main beam headlamp.
F17 15 Left-hand dipped headlamp.
F18 15 R i g h t - h a n d d i p p e d h e a d l a m p .
F19 15 O i l v a p o u r h e a t e r ( 1 . 6 l V T i 1 6 V ) , T u r b o p r e s s u r e
r e g u l a t i o n s o l e n o i d v a l v e ( D i e s e l ) , e n g i n e c o o l a n t
level detector (Diesel).
F20 10 C o n t r o l l e d t h e r m o s t a t , v a r i a b l e t i m i n g s o l e n o i d
v a l v e s , T u r b o p r e s s u r e r e g u l a t i o n s o l e n o i d v a l v e
( D i e s e l ) , e n g i n e c o o l a n t l e v e l d e t e c t o r ( D i e s e l ) .
F21 5 F a n a s s e m b l y r e l a y s u p p l y , V a l v e t r o n i c r e l a y c o n t r
o l
( 1 . 6 l V T i 1 6 V ) , T u r b o c o o l i n g ( 1 . 6 l T H P 1 6 V ) , a i r
fl o w s e n s o r ( 1 . 6 l H D I 1 6 V ) .
Page 186 of 290
PRACTICAL INFORMATION
183

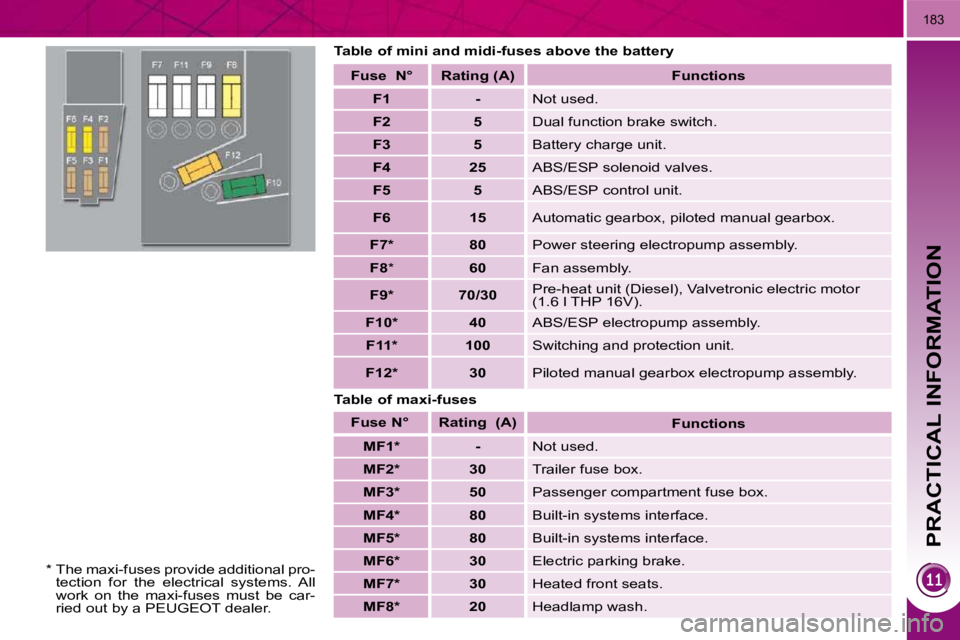

Table of mini and midi-fuses above the battery
Table of maxi-fuses Fuse N° Rating (A) Functions
F1 - Not used.
F2 5 Dual function brake switch.
F3 5 Battery charge unit.
F4 25 A B S / E S P s o l e n o i d v a l v e s .
F5 5 A B S / E S P c o n t r o l u n i t .
F6 15 A u t o m a t i c g e a r b o x , p i l o t e d m a n u a l g e a r b o x .
F7 * 80 Power steering electropump assembly.
F8 * 60 Fan assembly.
F9 * 70/30 P r e - h e a t u n i t ( D i e s e l ) , V a l v e t r o n i c e l e c t r i c m o t o r
(1.6 l THP 16V).
F10 * 40 A B S / E S P e l e c t r o p u m p a s s e m b l y .
F11 * 100 Switching and protection unit.
F12 * 30 P i l o t e d m a n u a l g e a r b o x e l e c t r o p u m p a s s e m b l y .
Fuse N° Rating (A) Functions
MF1 * - Not used.
MF2 * 30 T r a i l e r f u s e b o x .
MF3 * 50 P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF4 * 80 Built-in systems interface.
MF5 * 80 Built-in systems interface.
MF6 * 30 E l e c t r i c p a r k i n g b r a k e .
MF7 * 30 Heated front seats.
MF8 * 20 Headlamp wash.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o -
tection for the electrical systems. All
w o r k o n t h e m a x i - f u s e s m u s t b e c a r -
r i e d o u t b y a P E U G E O T d e a l e r .
Page 187 of 290
PRACTICAL INFORMATION
184
BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative termi-
nal (-) of the slave battery B .
Connect the other end of the green
or black cable to the earth point C
on your vehicle (engine mounting).
O p e r a t e t h e s t a r t e r , l e t t h e e n g i n e
run.
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
s e c u r e t h e b o n n e t s t r u t ,
remove the plastic cover to gain ac-
c e s s t o t h e t w o t e r m i n a l s ,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
b a t t e r y , i f n e c e s s a r y .
Page 188 of 290
PRACTICAL INFORMATION
185

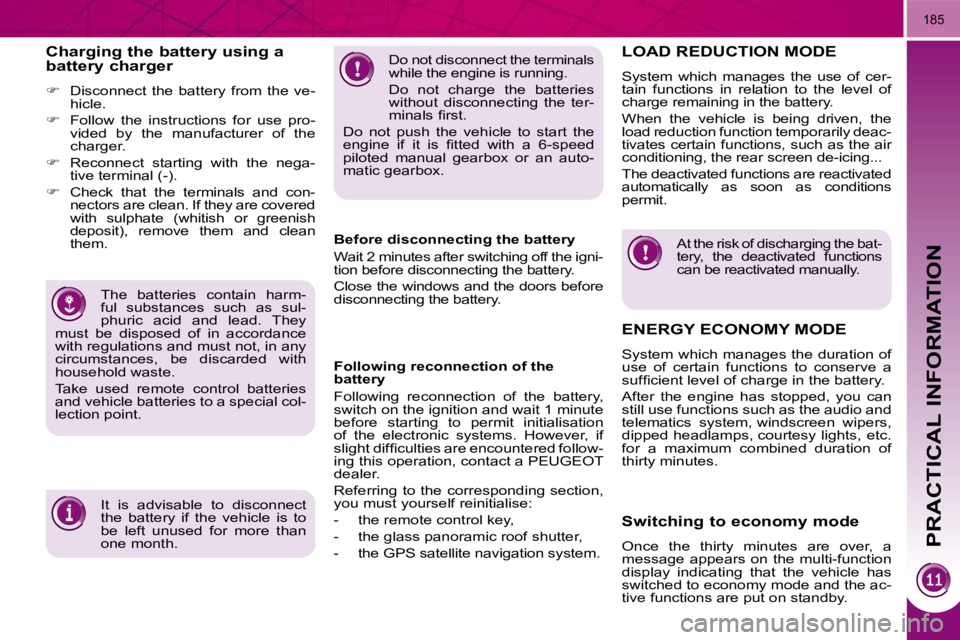

Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x o r a n a u t o -
m a t i c g e a r b o x .
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
w i t h r e g u l a t i o n s a n d m u s t n o t , i n a n y
c i r c u m s t a n c e s , b e d i s c a r d e d w i t h
household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
tive terminal (-).
Check that the terminals and con-
n e c t o r s a r e c l e a n . I f t h e y a r e c o v e r e d
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them. At the risk of discharging the bat-
t e r y , t h e d e a c t i v a t e d f u n c t i o n s
can be reactivated manually. LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily deac-
t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e a i r
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reactivated
automatically as soon as conditions
permit.
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
switch on the ignition and wait 1 minute
before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
i n g t h i s o p e r a t i o n , c o n t a c t a P E U G E O T
dealer.
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p e r s ,
d i p p e d h e a d l a m p s , c o u r t e s y l i g h t s , e t c .
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Page 189 of 290
PRACTICAL INFORMATION
185
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x o r a n a u t o -
m a t i c g e a r b o x .
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
w i t h r e g u l a t i o n s a n d m u s t n o t , i n a n y
c i r c u m s t a n c e s , b e d i s c a r d e d w i t h
household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
tive terminal (-).
Check that the terminals and con-
n e c t o r s a r e c l e a n . I f t h e y a r e c o v e r e d
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them. At the risk of discharging the bat-
t e r y , t h e d e a c t i v a t e d f u n c t i o n s
can be reactivated manually. LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily deac-
t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e a i r
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reactivated
automatically as soon as conditions
permit.
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
switch on the ignition and wait 1 minute
before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
i n g t h i s o p e r a t i o n , c o n t a c t a P E U G E O T
dealer.
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p e r s ,
d i p p e d h e a d l a m p s , c o u r t e s y l i g h t s , e t c .
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Page 190 of 290
PRACTICAL INFORMATION
185
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x o r a n a u t o -
m a t i c g e a r b o x .
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
w i t h r e g u l a t i o n s a n d m u s t n o t , i n a n y
c i r c u m s t a n c e s , b e d i s c a r d e d w i t h
household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
tive terminal (-).
Check that the terminals and con-
n e c t o r s a r e c l e a n . I f t h e y a r e c o v e r e d
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them. At the risk of discharging the bat-
t e r y , t h e d e a c t i v a t e d f u n c t i o n s
can be reactivated manually. LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily deac-
t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e a i r
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reactivated
automatically as soon as conditions
permit.
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
switch on the ignition and wait 1 minute
before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
i n g t h i s o p e r a t i o n , c o n t a c t a P E U G E O T
dealer.
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p e r s ,
d i p p e d h e a d l a m p s , c o u r t e s y l i g h t s , e t c .
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
