Peugeot 3008 Dag 2010 User Guide

14
SEEING CLEARLY
Lighting
Ring A Lighting off.
Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or Front and rear foglamps.
Automatic illumination of head-
lamps.
87
Direction indicators
Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this posi-
tion.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads. 118
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"

 Press the stalk down and release it.
Switching off "AUTO"

 Push the stalk up and return it to
position "0" .
91
Ring B: rear wiper Park.
Intermittent wipe.
Wash-wipe. 92

VENTILATION

Digital
air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.

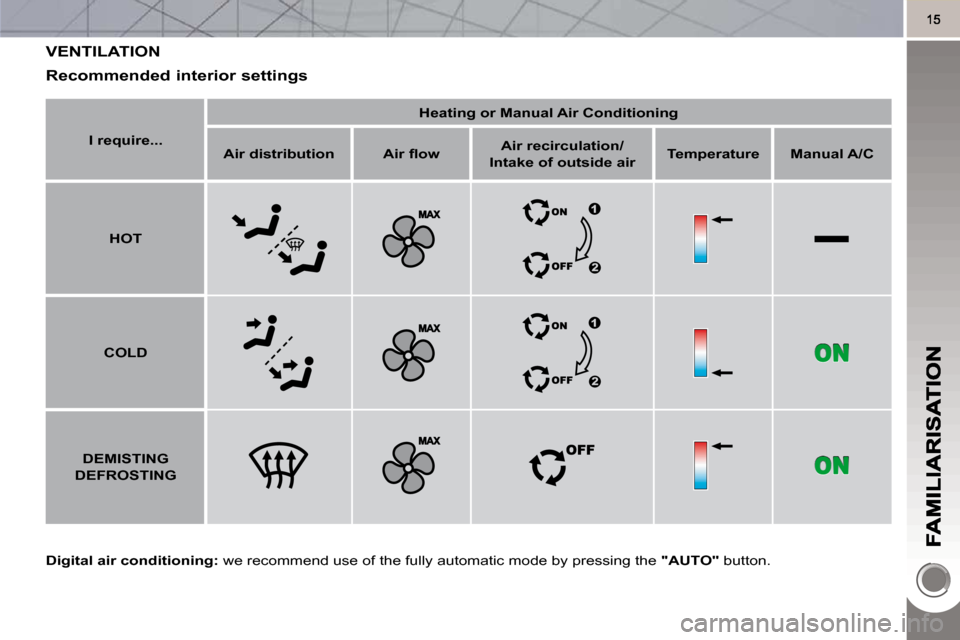

Recommended interior settings

I require...
Heating or Manual Air Conditioning

Air distribution Air fl ow
Air recirculation/

Intake of outside air
Temperature Manual A/C

HOT


COLD

DEMISTING

DEFROSTING

MONITORING
Instrument panel

A. With the ignition on, the needle
should indicate the level of fuel re-
maining.

B. With the engine running, its associ-
ated low level warning light should
switch off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
levels which are low.
24
Warning lamps

1. With the ignition on, the orange and
red warning lamps come on.

2. With the engine running, these
warning lamps should switch off.
If warning lamps remain on, refer to the
page concerned.
26
Switch panels
Lighting of the indicator lamp indicates
the status of the corresponding function.

A. Interior volumetric
protection alarm. 76
155
120
79, 117
139
118
141
72

B. Visual and audible
parking sensors.

C. ESP OFF (without
Grip control).

D. Child lock

E. Head-up display.

F. Hazard warning
lamps.

G. Distance alert.

H. Central locking.

Lower

Central

17
PASSENGER SAFETY
Passenger's front airbag

1. Insert the key.

2. Select the position:
"OFF" (deactivation), with "rear fac-
ing" child seat,
"ON" (activation), with front passen-
ger or "forwards facing" child seat.

3. Remove the key keeping the switch
in the new position.
128
front airbag

A. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B. Front left seat belt warning lamp.

C. Front right seat belt warning lamp.

D. Rear right seat belt warning lamp.

E. Rear centre seat belt warning lamp.

F. Rear left seat belt warning lamp.

G. Passenger's front airbag deactivat-
ed warning lamp.

H. Passenger's front airbag activated
warning lamp.
125
Child lock (locking of the rear doors)
Lighting of the indicator lamp indicates
the status of the corresponding function. 117

18
ARRANGE YOUR BOOT
3 position adjustable boot
Low position (150 kg max). 108

 To release the fl oor, push
slightly forwards then
raise.

 Use the stops A , placed on each
side of the boot to change the
height of the fl oor more easily. Intermediate position (100 kg max). High position (50 kg max) w
ith the lower
tailgate closed to isolate the lower part
of the boot.
From the high position, place the fl oor
in this position (at an angle), two stops
support it to allow access underneath it
or to the spare wheel.

19
ARRANGE YOUR BOOT
Rear seats

 Place the movable fl oor in the inter-
mediate position .

 Check that nothing is preventing
the seat backs from folding (front
seats suffi ciently advanced, head
restraints, seat belts, ...).

 Check also that no object on or
under the seat could hinder its
movement. 66

 Pull the control of the 1/3 section,
from the boot.
 Pull the control of the 2/3 section,
from the boot.
The seats are aligned with the movable
fl oor and the lower tailgate.

20
DRIVING SAFELY
Electric parking brake
Manual application/release
The parking brake can be applied man-
ually by pulling the control A .
When the ignition is on, the parking
brake can be released manually by

pressing the brake pedal and pulling
then releasing the control A . Automatic application/release
Press the accelerator and release the
clutch, the parking brake is released
automatically and progressively on ac-
celeration.
When the
engine is switched off , the
parking brake is applied automatically.
Before getting out of the
vehicle, check that the
braking warning lamp
( red ! ) and the warning
lamp P on the control A , are on (not
fl ashing).
If you get out of your vehicle
with the engine running, apply
the parking brake manually. Before getting out of the
vehicle, check that the
braking warning lamp
(
red ! ) and the warning
lamp P on the control A are on (not
fl ashing).
Do not leave a child alone in
the vehicle with the ignition on;
they could release the parking
brake.
131 Your vehicle is equipped with a system
which keeps it immobile for a short time
(approximately 2 seconds) to assist you
when starting on a hill, the time required
for you to move your foot from the brake
pedal to the accelerator pedal.
This function is only active:
- when the vehicle has been immobil-
ised completely with your foot on the
brake pedal,
- on certain gradients,
- when the driver's door is closed.
Do not get out of the vehicle
during the hill start assist tem-
porary hold phase. 136
If this warning lamp is lit on the
instrument panel, the automatic
application/release are deacti-
vated .

21
DRIVING SAFELY
Head-up display

1. Head-up display on/off.

2. Brightness adjustment.

3. Display height adjustment.
The adjustments must be
made with the engine running
and the vehicle stationary.
139
Distance alert

1. Distance alert on /off.

2. Alert value increase/decrease.
141
Grip control
ESP (normal mode).
122
Snow.
All terrain.
Sand.
ESP OFF.

22
DRIVING SAFELY
Speed limiter "LIMIT"

1. Limiter mode Selection/Off.

2. Decreasing the programmed value.

3. Increasing the programmed value.

4. Speed limiter On/Off.
The values must be set with
the engine running.
143
Cruise control "CRUISE"

1. Cruise control mode Selection/Off.

2. Programming a speed/Decreasing
the programmed value.

3. Programming a speed/Increasing
the programmed value.

4. Cruise control Off/Resume.
In order to be programmed or
activated, the vehicle speed
must be higher than 25 mph
(40 km/h), with at least fourth gear
engaged on the manual gearbox
(second gear for the 6-speed elec-
tronic gear control gearbox or auto-
matic gearbox).
145
Display on the instrument panel
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected. Cruise control
Speed limiter

23
148
DRIVING SAFELY
6-speed electronic gear control gearbox
This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.

1. Gear lever.

2. Button "S" (sport) .
"Tiptronic - Porsche system" gearbox
This six-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.

1. Gear lever.

2. Button "S" (sport) .

3. Button "  " (snow) .
Moving off

 Select position N and press the
brake pedal fi rmly while starting the
engine.

 Engage fi rst gear (position A or M )
or reverse (position R ) using the
gear lever 1 .

 Take your foot off the brake pedal
then accelerate.
 Select position P or N and press the
brake pedal fi rmly while starting the
engine.

 Select position R , D or M .

 Take your foot off the brake pedal,
then accelerate.

3. Steering mounted "-" paddle.

4. Steering mounted "+" paddle.
152
Moving off
