Peugeot 3008 Dag 2010 Owner's Manual

4
EXTERIOR
Welcome lighting
This additional exterior and interior light-
ing, controlled remotely, makes your ap-
proach to the vehicle easier when the
light is poor. 88
Directional lighting
This lighting automatically provides addi-
tional visibility when cornering. 90 Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
103
Grip control
This special traction control system im-
proves the traction of 2 wheel drive
vehicles in snow, mud and sand. 122

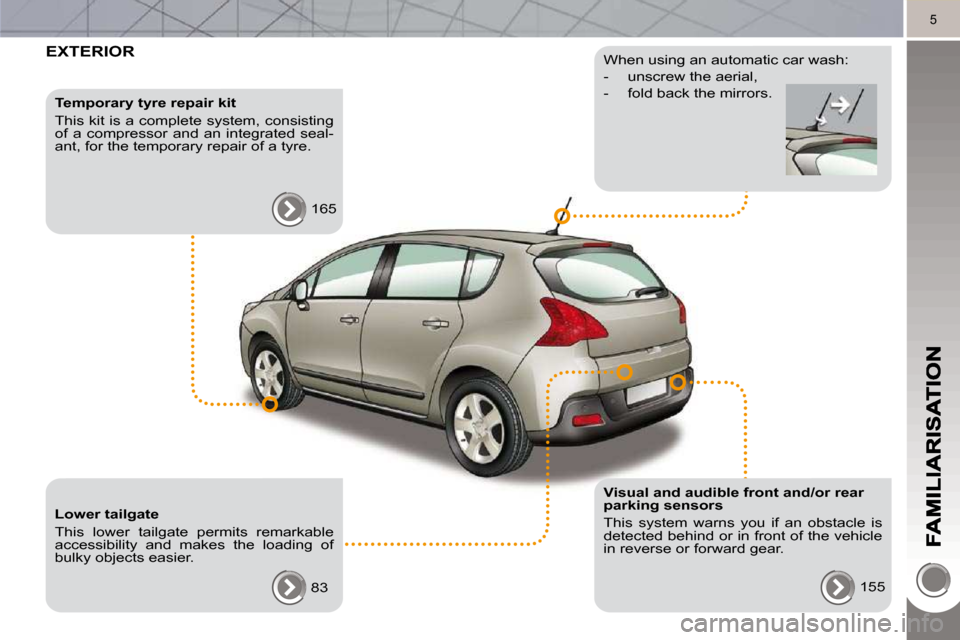

5
EXTERIOR
Temporary tyre repair kit
This kit is a complete system, consisting
of a compressor and an integrated seal-
ant, for the temporary repair of a tyre. 165
Lower tailgate
This lower tailgate permits remarkable
accessibility and makes the loading of
bulky objects easier. 83 Visual and audible front and/or rear
parking sensors
This system warns you if an obstacle is
detected behind or in front of the vehicle
in reverse or forward gear.
155
When using an automatic car wash:
- unscrew the aerial,
- fold back the mirrors.

6
OPEN
Remote control key

A. Unfolding/Folding of the key.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Deadlocking of the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
or
71 When the light is poor, detected by
a sensor, the remote switching on of
the dipped headlamps and sidelamps
makes your approach to the vehicle
easier.
This function can be programmed via
the confi guration menu.
88 84
Fuel tank

1. Opening the fuel fi ller fl ap.

2. Opening and hooking the fuel fi ller
cap.
The type of fuel to be used is indicated
on the inner face of the fuel fi ller fl ap.
Capacity of the tank: approximately
60 litres.
Welcome lighting

7
OPEN
Boot
Opening

 After unlocking the vehicle using the
remote control or the key, press the
handle A and lift the tailgate.
Closing

 After closing the lower tailgate, pull
the handle B downwards to guide
the tailgate.
Lower tailgate
82 Opening

 Push the handle C to the right and
tilt the tailgate D .
Closing

 Raise the tailgate D , push it fully to
close it, check that it is locked cor-
rectly.
83

8
INTERIOR

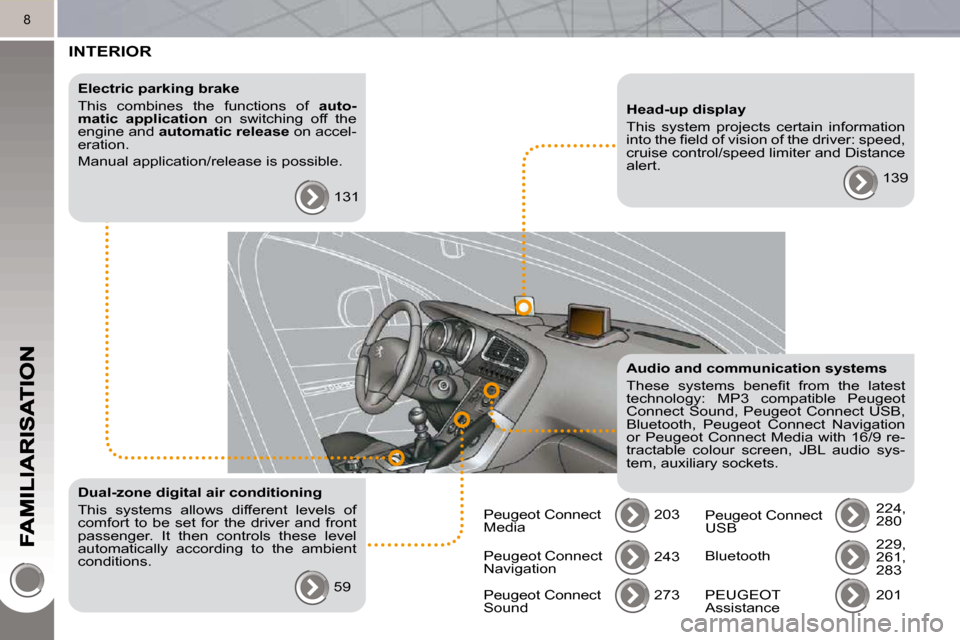

Electric parking brake
This combines the functions of auto-
matic application on switching off the
engine and automatic release on accel-
eration.
Manual application/release is possible.
131
Audio and communication systems
These systems benefi t from the latest
technology: MP3 compatible Peugeot
Connect Sound, Peugeot Connect USB,
Bluetooth, Peugeot Connect Navigation
or Peugeot Connect Media with 16/9 re-
tractable colour screen, JBL audio sys-
tem, auxiliary sockets. 203
Head-up display
This system projects certain information
into the fi eld of vision of the driver: speed,
cruise control/speed limiter and Distance
alert.
139
Dual-zone digital air conditioning
This systems allows different levels of
comfort to be set for the driver and front
passenger. It then controls these level
automatically according to the ambient
conditions. 59 Peugeot Connect
Navigation
243
273
Peugeot Connect
Sound
Peugeot Connect
Media
Peugeot Connect
USB 224,
280
Bluetooth 229,
261,
283
201
PEUGEOT
Assistance

9
INSTRUMENTS AND CONTROLS
1. Cruise control/speed limiter
switches.

2. Steering wheel adjustment control.

3. Lighting and direction indicator
control stalk.

4. Instrument panel.

5. Driver's airbag.
Horn.

6. Gear lever.

7. Electric parking brake.

8. Front armrest - Peugeot Connect
USB and/or auxiliary socket.

9. Bonnet release.

10. Driver's storage compartment
(Handbook).

11. Alarm button.
Parking sensors button.
Dynamic stability control button (ESP/ASR).

12. Manual headlamp adjustment.
Instrument panel navigator associated with the Peugeot
Connect Media.

13. Door mirror controls.
Electric window controls.
Child lock.

14. Front side window demisting vent.

15. Windscreen demisting vent.

10
INSTRUMENTS AND CONTROLS

1. Steering lock and ignition.

2. Audio and telematics system
steering mounted control.

3. Wipers/wash-wipe/trip computer
control stalk.

4. Central adjustable air vents.

5. Head-up display.

6. Multifunction screen.

7. Passenger's airbag.

8. Side adjustable air vent.

9. Glove box - Audio/video sockets -
Passenger's airbag deactivation.

10. Storage compartment with net.

11. Grip control switch.

12. 12 V accessories socket.

13. Grab handle.

14. Heating/air conditioning controls.

15. Audio and telematics system.

16. Buttons:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.

11
SITTING COMFORTABLY
Driver's seat
Forwards-backwards Height
Manual adjustment
62
Electric adjustment
63 Seat back angle

12
SITTING COMFORTABLY
Front seats
Head restraint height and angle
Lumbar 64
Steering wheel adjustment

1. Unlock the control.

2. Adjust for height and reach.

3. Lock the control.
As a safety precaution, these opera-
tions must only be carried out when
stationary. 70
Table position (front passenger seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier. 65
Front armrest
This incorporates the Peugeot Connect
USB and/or a JACK auxiliary socket.
99

13
SITTING COMFORTABLY
Door mirrors
Adjustment

A. Selection of the mirror to be adjusted.

B. Adjustment of the position of the
mirror in the four directions.
68
Rear view mirror
Manual model

1. Selection of the "day" position of the
mirror.

2. Adjustment of the mirror.
69
Automatic day/night model

1. Adjustment of the mirror.
69
Front seat belts

1. Fastening of the buckle.
124

2. Height adjustment.

Also...

C. Folding/Unfolding.
