PRACTICAL INFORMATION
196
CHANGING A WIPER BLADE

Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching
off the ignition, operate the wiper
stalk to position the wiper blades
vertically on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to park
the wiper blades.







From the front






Access to the tools

The towing eye is installed in the boot
under the fl oor.
To gain access to it:


)
open the boot,

)
raise the fl oor,

)
remove the towing eye from the
holder.



From the rear RECOVERING THE VEHICLE ON
A FLAT-BED

Procedure for having your vehicle re-
covered on a fl at bed lorry or trailer.


Always recover the vehicle
on a fl at bed lorry or trailer.

Never tow the vehicle with the
four wheels on the ground (or the
front or rear wheels only), you risk
damaging the transmission.
Place the gear selector in position N

and switch off the engine ( Ready

lamp off).


)
On the front bumper, unclip the cover
by pressing at the bottom.

)
Screw the towing eye in fully.



)
On the rear bumper, unclip the cover
by pressing at the bottom.

)
Screw the towing eye in fully.

)
Switch on the hazard warning lamps
on the recovered vehicle.

232
05
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV TRAFFIC
SETUPADDR
BOOK
TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, for example: Black and blue trian
gle: general information, for example:
With the current audio source
displayed on the screen, press
th
e dial.

The shortcut menu for the source appears and
gives access to:

Select Traffi c Announcements
(TA)and press the dial to confi rm and go
to the associated settings.

TA


The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is interrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
RECEIVING TA MESSAGES
- the station transmits TA messages.
- the station does not transmit TA messa
ges.
- TA messa
ges are not activated.

272
04NAVIGATION - GUIDANCE
Press NAV to display the"Navigation - guidance" menu.
ADJUSTING THE GUIDANCE SPEECH SYNTHESIS
Select " Guidance options
" and confi rm.
ADJUSTING THE VOLUME/DEACTIVATION
Select " Set speech synthesis" andconfi rm.
Select the volume graph and confi rm.

Select "Deactivate " to deactivate voice messages.
Select " OK " and press the dial to confi rm.

Adjust the volume to the desired level and confi rm.
The volume o
f messages can be adjusted during the transmissionof the message using the volume adjustment control.The volume settin
g of guidance messages is also accessible via the "SETUP" / " Voice synthesis " menu.

276
05TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS

Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:
RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report
is transmitted, the current audio source (Radio, CD, USB, …) isinterrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
Pr
ess RADIO
to display the menu.
Select " Guidance options
" then confi rm.

A
ctivate or deactivate " TA
" then confi rm.

The volume settin
g for TA messages can be adjusted only during the
transmission of this type of alert.

Activate or deactivate the function at any time by pressing the button.
Durin
g a message, press the button to interrupt it.

314
04 AUDIO
Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the quality of the original player.
Without pressin
g the EJECT button, insert a CD in the player, playbegins automatically.

CD
PLAYING A CD


To play a disc which has already been
inserted, press the SOURCE buttonseveral times in succession andselect CD.

Pr
ess one of the buttons to select a
track on the CD.
Press the LI
ST REFRESH button to display the list of tracks on
the CD.

Pr
ess and hold one of the buttons for
fast forwards or fast backwards.






RECEIVING TA MESSAGES
Press the TA button to activate or
deactivate traffi c messages.
The TA
(Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is
interrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.

321
06

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's ke
ypad. See steps 1 to 9 on theprevious pages. During the pairing phase, the
vehicle must be stationary with the key in the
i
gnition.
Select the telephone to be connected from the telephone functionmenu.
The audio s
ystem connects to a newly paired telephone automatically.

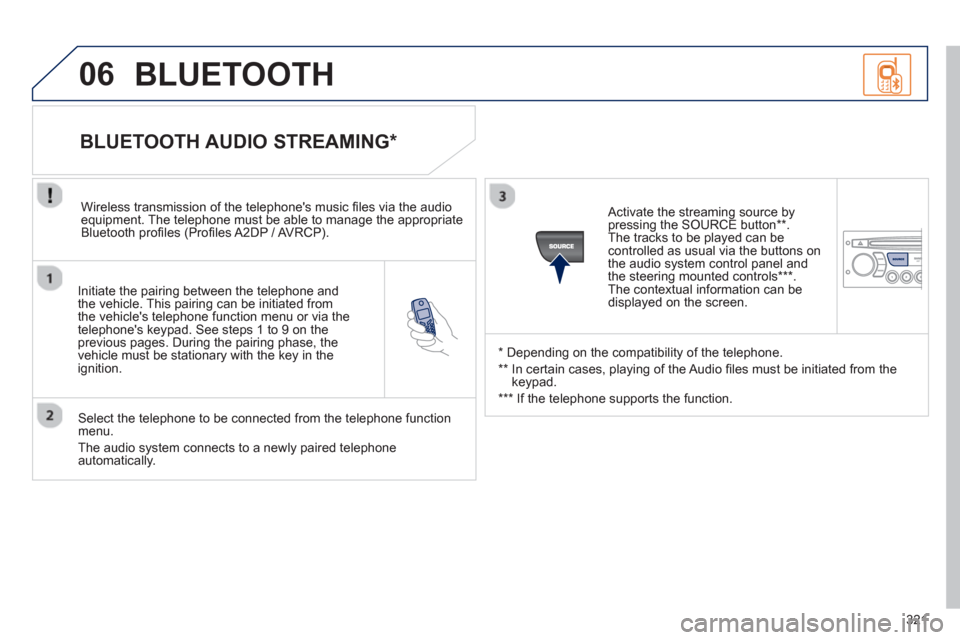

BLUETOOTH AUDIO STREAMING *


Wireless transmission of the telephone's music fi les via the audioequipment. The telephone must be able to manage the appropriate
Bluetooth profi les (Profi les A2DP / AVRCP).
*

Depending on the compatibility of the telephone.
**

In certain cases, playing of the Audio fi les must be initiated from the
keypad.
***
If the tele
phone supports the function.
Activate the streaming source by
pressin
g the SOURCE button ** .
The tracks to be played can becontrolled as usual via the buttons on
the audio system control panel and
the steering mounted controls *** .
The contextual information can bedisplayed on the screen.
BLUETOOTH
