21
Diesel engines and towed loads
Engines1.6 litre BlueHDi
10 0 S&S 1.6 litre BlueHDi
115 S & S 1.6 litre BlueHDi
115 S & S 1.6 litre BlueHDi
120 S&S 1.6 litre BlueHDi
120 S&S
Gearboxes BVM
(Manual 5-speed) BVM6
(Manual 6-speed) E AT 6
(Auto. 6-speed) BVM6
(Manual 6-speed) E AT 6
(Auto. 6-speed)
Codes DV6FD BE4 STTDV6FC ML6C
STT DV6FC AT6III
STT DV6FC ML6C
STT DV6FC AT6III
STT
Model codes
MC... BHYB/C2B
BHYB/C2F BHXH/C2B
BHXH/C2F BHXW/C2B
BHXW/C2F BHZH/C2B
BHZH/C2F -
BHZH/C2K BHZW/C2B
BHZW/C2F
Cylinder capacity (cm³) 1,5 6 01,5 6 01,5 6 01,5 6 01,5 6 0
Max power: EU standard (kW) 7385 8588 88
Fuel DieselDieselDieselDieselDiesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,3 0 0
1,5 0 01,3 0 01,5 0 0 - 1,4 0 0 1,3 0 0
Unbraked trailer (kg) 680685695685695
Recommended nose weight (kg) 8080808080
9
Technical data
Page 562 of 566
22
Diesel engines and towed loads
Engines2.0 litre BlueHDi 1502.0 litre BlueHDi 1502.0 litre BlueHDi 150
S&S 2.0 litre BlueHDi 180
S&S
Gearboxes BVM6
(Manual 6-speed) E AT 6
(Auto. 6-speed) BVM6
(Manual 6-speed) E AT 6
(Auto. 6-speed)
Codes DW10FD ML6CDW10FD AM6IIIDW10FD ML6C STT DW10FC AM6III STT
Model codes
MR... M9... AHXG/C2 A
AHX V/C2 AAHRH/C2B
AHRH/C2F
AHSH/C2B AHSH/C2F
AHXH/C2B AHXH/C2F AHWW/C2B
AHWW/C2F
Cylinder capacity (cm³) 1 9971 9971 9971 997
Max power: EU standard (kW) 11 011 011 013 3
Fuel DieselDieselDieselDiesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 600
6002,000 1,70 0
Unbraked trailer (kg) 600600 74 5750
Recommended nose weight (kg) 707080 80
Technical data
Page 563 of 566
23

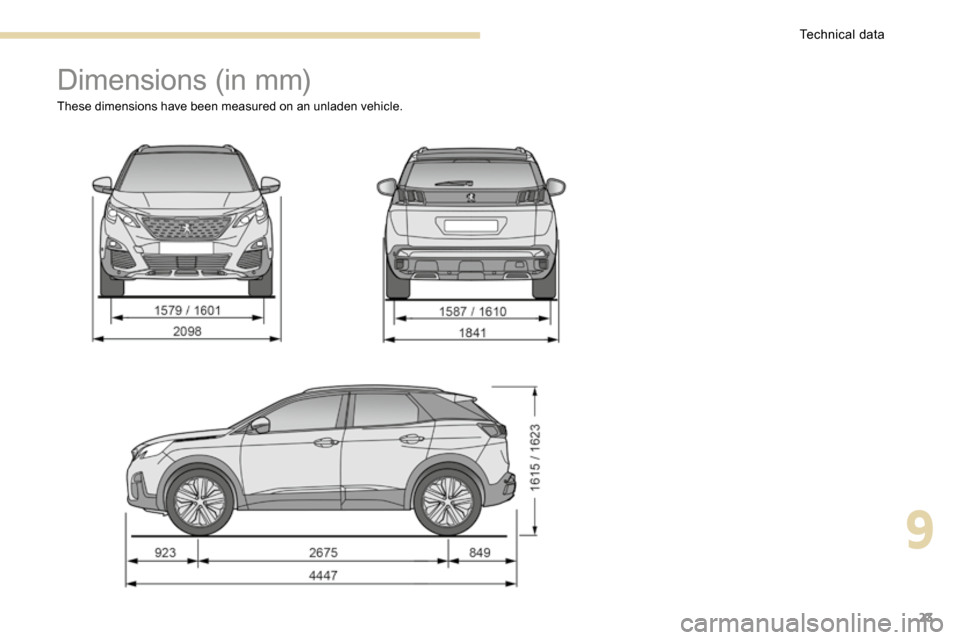

Dimensions (in mm)
These dimensions have been measured on an unladen vehicle.
9
Technical data
Page 564 of 566
24
Identification markings
Different visible markings for the identification of your vehicle.
A. Vehicle identification number (VIN),
under the bonnet.
The number is engraved on the body structure.
B. Vehicle identification number (VIN), on
the dashboard.
The number is recorded on a label, visible
through the windscreen.
C. Manufacturer's label.
This self-destructing label is affixed near to the
right-hand door.
It bears the following information:
- the name of the manufacturer,
- the European Whole Vehicle Type Approval
number, -
the spare tyre pressure.
It also indicates the paint colour code.
The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm. In this case 0.3 bar (30 kPa) should be
added to the pressures given on the label. Never reduce the pressure of a warm
tyre.Low tyre pressures increase fuel
consumption.
-
the vehicle identification number (VIN),
- the maximum authorised vehicle weight
(the Gross Vehicle Weight or GV W),
- the maximum authorised train weight
(GT W),
- the maximum weight on the front axle,
- the maximum weight on the rear axle.
D. Tyres / paint code label.
This label is affixed near to the driver's door.
It bears the following information about the tyres:
- the tyre pressures, unladen and laden,
- the tyre specification, made up of the
dimensions and type as well as the load
and speed indices,
Technical data
