Peugeot 301 2015 Owner's Manual

109
301_en_Chap08_securite-enfants_ed01-2014

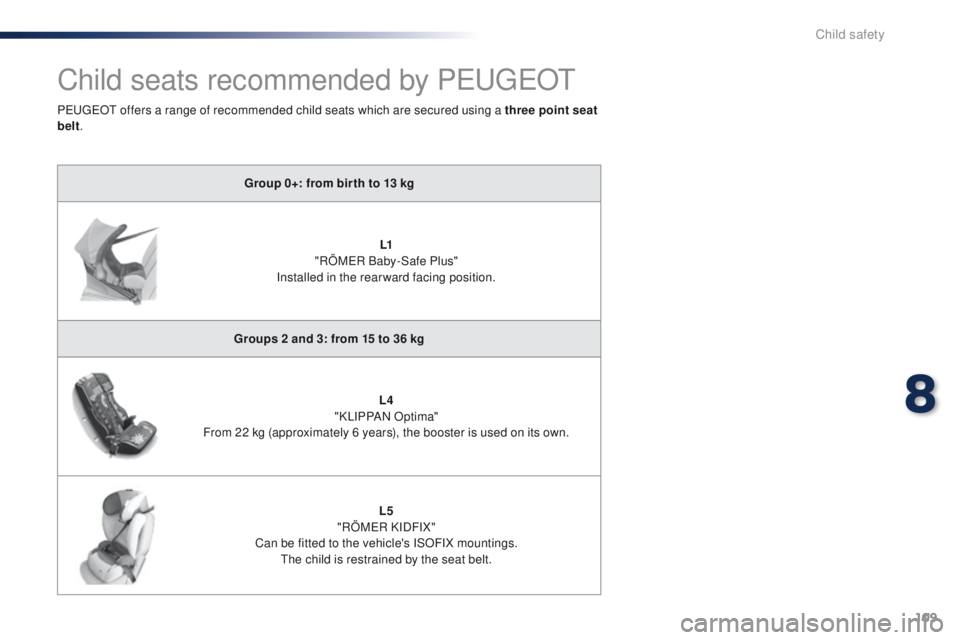

Child seats recommended by PEUGEOT
Group 0+: from bir th to 13 kgL1
"RÖMER Baby-Safe Plus"
Installed in the rearward facing position.
Groups 2 and 3: from 15 to 36 kg L4
"KLIPPAN Optima"
From 22 kg (approximately 6 years), the booster is used on its own.
L5
"RÖMER KIDFIX"
Can be fitted to the vehicle's ISOFIX mountings. The child is restrained by the seat belt.
PEUGEOT offers a range of recommended child seats which are secured using a three point seat
belt
.
8
Child safety

110
301_en_Chap08_securite-enfants_ed01-2014
Installing a child seat using the seat belt
Weight of the child and indicative age
Seat Under 13 kg
(groups 0 (b) a n d 0 +)
Up to approx 1 year From 9 to 18 kg
(g r o u p 1)
1 to 3 years approx From 15 to 25 kg
(group 2)
3 to 6 years approx From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger seat without
height adjuster (c) (e) U
UUU
Outer rear seats (d) UUUU
Centre rear seat XXXX
(a)
U

niversal child seat: child seat that can be installed in all vehicles using a seat belt.
(b )

G

roup 0: from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front
passenger seat.
(c )

C

onsult the legislation in force in your country before installing your child on this seat.
(d)
T

o install a child seat at the rear, rear ward or for ward facing, move the seat in front for ward,
then straighten the backrest to allow enough space for the child seat and the child's legs.
(e)
W

hen a rear ward facing child seat is installed on the front passenger seat , the passenger's
airbag must be deactivated. Otherwise, the child would risk being seriously injured or
killed if the airbag were deployed . When a for ward facing child seat is installed on the front
passenger seat , the passenger's airbag must remain activate.
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved
(a)

in accordance with the weight of the child and the seat in the vehicle.
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
U
:

S
eat suitable for the installation of a
child seat secured using a seat belt and
universally approved, rearward facing and/
or forward facing.
X:
S

eat not suitable for the installation of a
child seat of the weight group indicated.
Child safety

111
301_en_Chap08_securite-enfants_ed01-2014
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it for wards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
-
a r
ear ward facing child seat,
-

t
he child's feet for a child seat fitted
forward facing.
To do this, move the front seat for wards
and, if necessary, move its backrest into the
upright position.

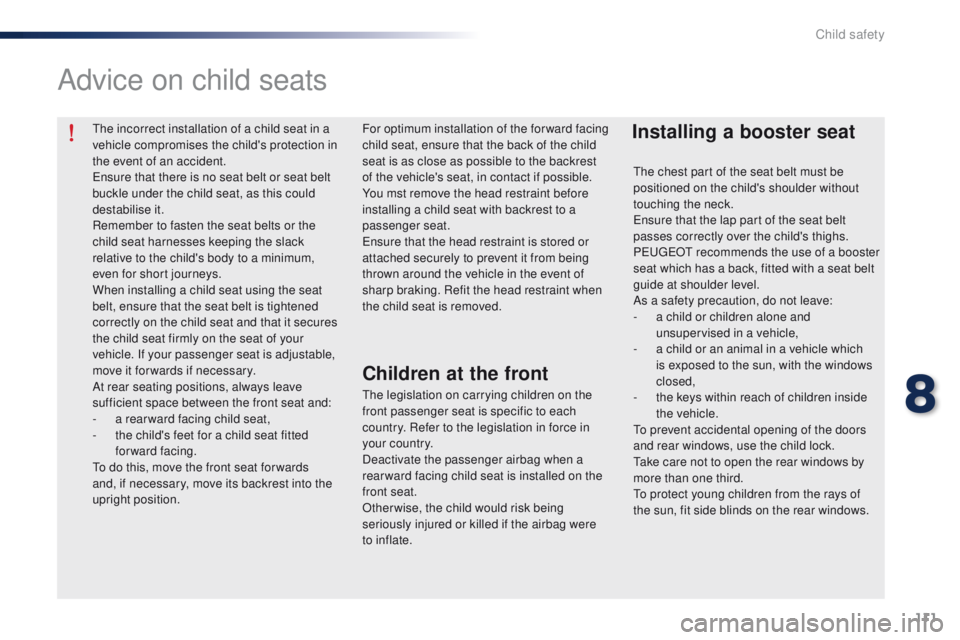

Advice on child seats
Installing a booster seatFor optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, in contact if possible.
You mst remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
Children at the front
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger airbag when a
rear ward facing child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate. The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

a c
hild or children alone and
unsupervised in a vehicle,
-
a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
- t he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
8
Child safety

112
301_en_Chap08_securite-enfants_ed01-2014

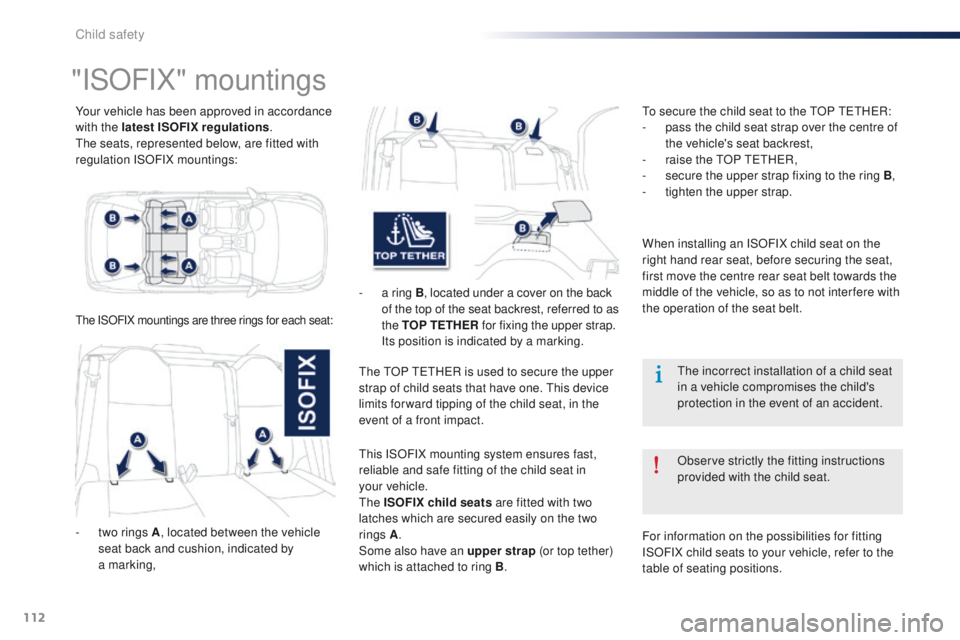

Your vehicle has been approved in accordance
with the latest ISOFIX regulations.
The seats, represented below, are fitted with
regulation ISOFIX mountings:
"ISOFIX" mountings
- two rings A , located between the vehicle
seat back and cushion, indicated by
a


marking, To secure the child seat to the TOP TETHER:
-

p
ass the child seat strap over the centre of
the vehicle's seat backrest,
-
r
aise the TOP TETHER,
-
s
ecure the upper strap fixing to the ring B,
-
t
ighten the upper strap.
Observe strictly the fitting instructions
provided with the child seat.
For information on the possibilities for fitting
ISOFIX child seats to your vehicle, refer to the
table of seating positions.
-
a r

ing B
, located under a cover on the back
of the top of the seat backrest, referred to as
the TOP TETHER for fixing the upper strap.
I
ts position is indicated by a marking.
The ISOFIX mountings are three rings for each seat:
The TOP TETHER is used to secure the upper
strap of child seats that have one. This device
limits for ward tipping of the child seat, in the
event of a front impact.
This ISOFIX mounting system ensures fast,
reliable and safe fitting of the child seat in
your


vehicle.
The ISOFIX child seats are fitted with two
latches which are secured easily on the two
rings A .
Some also have an upper strap (or top tether)
which is attached to ring B .When installing an ISOFIX child seat on the
right hand rear seat, before securing the seat,
first move the centre rear seat belt towards the
middle of the vehicle, so as to not inter fere with
the operation of the seat belt.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Child safety

113
301_en_Chap08_securite-enfants_ed01-2014

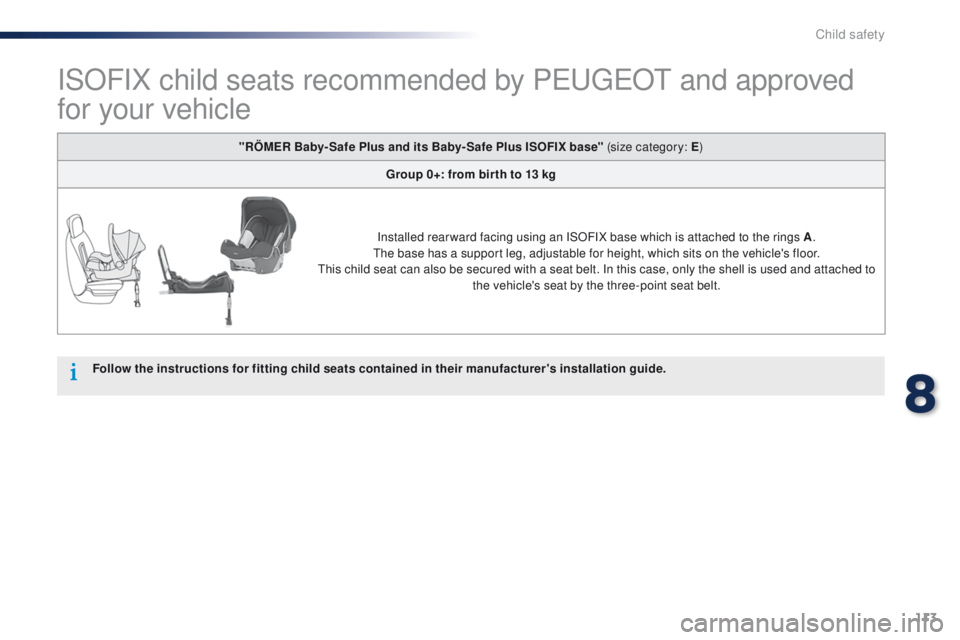

ISOFIX child seats recommended by PEUGEOT and approved
for your vehicle
Follow the instructions for fitting child seats contained in their manufacturer's installation guide."RÖMER Baby- Safe Plus and its Baby- Safe Plus ISOFIX base" (size category: E
)
Group 0+: from bir th to 13 kg
Installed rear ward facing using an ISOFIX base which is attached to the rings A .
The base has a support leg, adjustable for height, which sits on the vehicle's floor.
This child seat can also be secured with a seat belt. In this case, only the shell is used and attached to the vehicle's seat by the three-point seat belt.
8
Child safety

114
301_en_Chap08_securite-enfants_ed01-2014

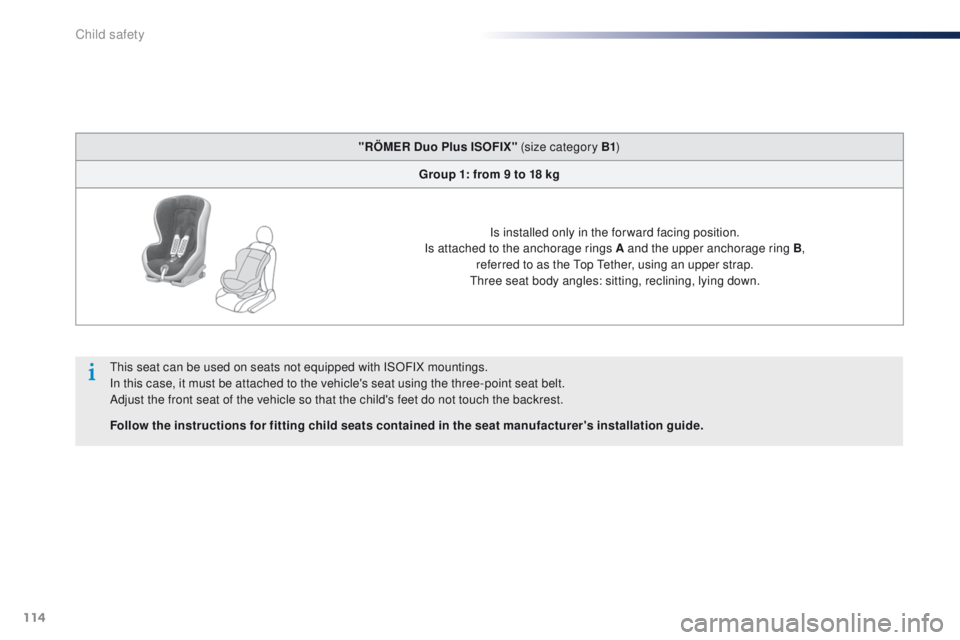

"RÖMER Duo Plus ISOFIX" (size category B1)
Group 1: from 9 to 18 kg
Is installed only in the forward facing position.
Is attached to the anchorage rings A and the upper anchorage ring B, referred to as the Top Tether, using an upper strap.
Three seat body angles: sitting, reclining, lying down.
This seat can be used on seats not equipped with ISOFIX mountings.
In this case, it must be attached to the vehicle's seat using the three-point seat belt.
Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
Child safety

115
301_en_Chap08_securite-enfants_ed01-2014

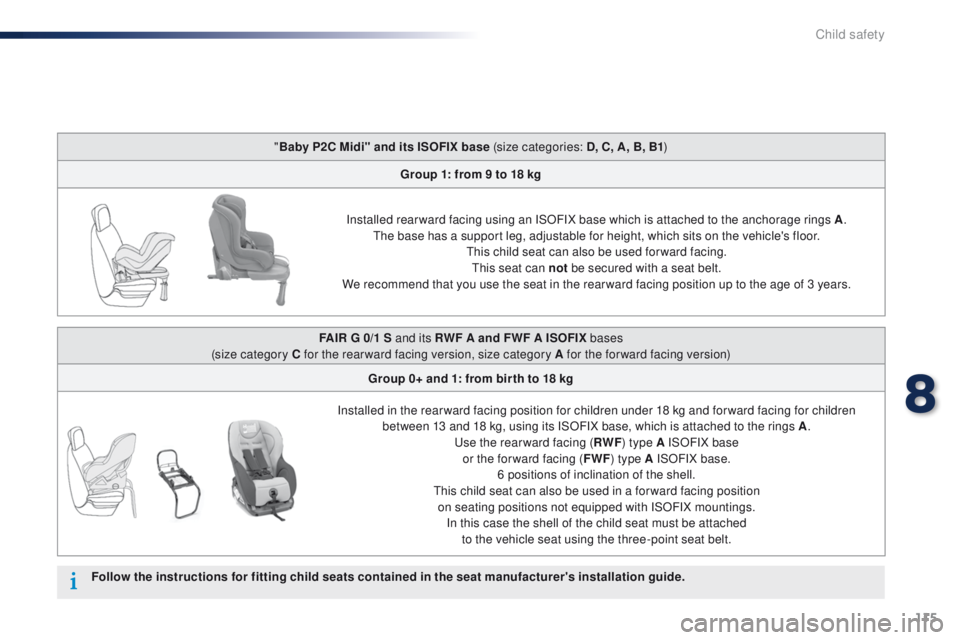

"Baby P2C Midi" and its ISOFIX base (size categories: D, C, A, B, B1 )
Group 1: from 9 to 18 kg
Installed rear ward facing using an ISOFIX base which is attached to the anchorage rings A .
The base has a support leg, adjustable for height, which sits on the vehicle's floor. This child seat can also be used for ward facing.This seat can not be secured with a seat belt.
We recommend that you use the seat in the rear ward facing position up to the age of 3 years.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide. FAIR G 0/1 S and its RWF A and FWF A ISOFIX bases
(size category C for the rear ward facing version, size category A for the for ward facing version)
Group 0+ and 1: from bir th to 18 kg
Installed in the rear ward facing position for children under 18 kg and for ward facing for children between 13 and 18 kg, using its ISOFIX base, which is attached to the rings A .
Use the rear ward facing ( RWF) type A ISOFIX base
or the for ward facing ( FWF) type A ISOFIX base.
6 positions of inclination of the shell.
This child seat can also be used in a for ward facing position on seating positions not equipped with ISOFIX mountings. In this case the shell of the child seat must be attached to the vehicle seat using the three-point seat belt.
8
Child safety

116
301_en_Chap08_securite-enfants_ed01-2014

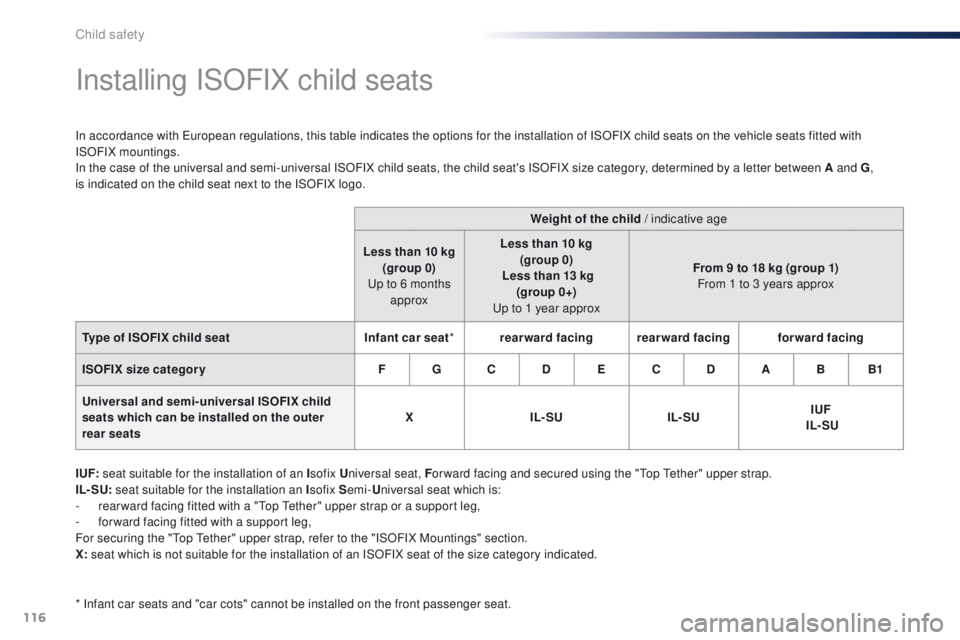

Installing ISOFIX child seats
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with
ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter between A and G,
is indicated on the child seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg (group 0)
Up to 6 months approx Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to 1 year approx From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat*rearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Universal and semi-universal ISOFIX child
seats which can be installed on the outer
rear seats X
IL- SU IL- SU IUF

IL- SU
I UF: seat suitable for the installation of an I sofix Universal seat, F or ward facing and secured using the "Top Tether" upper strap.
IL- SU: seat suitable for the installation an I sofix Semi-Universal seat which is:
-

r
ear ward facing fitted with a "Top Tether" upper strap or a support leg,
-

f
or ward facing fitted with a support leg,
For securing the "Top Tether" upper strap, refer to the "ISOFIX Mountings" section.
X: seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.
* Infant car seats and "car cots" cannot be installed on the front passenger seat.
Child safety

117
301_en_Chap08_securite-enfants_ed01-2014

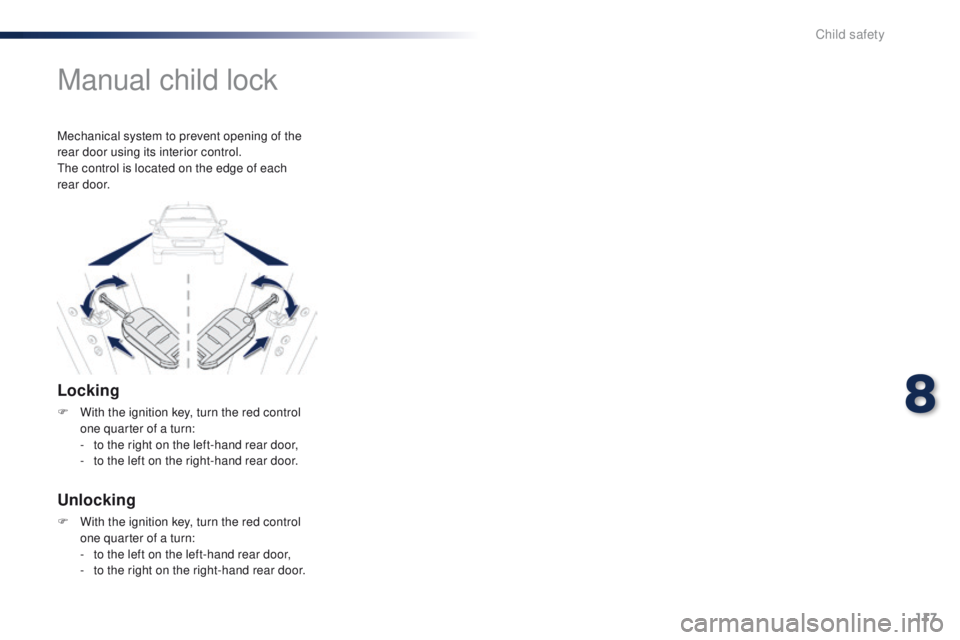

Manual child lock
Locking
F With the ignition key, turn the red control one quarter of a turn:
-

t
o the right on the left-hand rear door,
-

t
o the left on the right-hand rear door.
Unlocking
F With the ignition key, turn the red control one quarter of a turn:
-

t
o the left on the left-hand rear door,
-

t
o the right on the right-hand rear door.
Mechanical system to prevent opening of the
rear door using its interior control.
The control is located on the edge of each
rear


door.
8
Child safety

118
301_en_Chap09_info-pratiques_ed01-2014

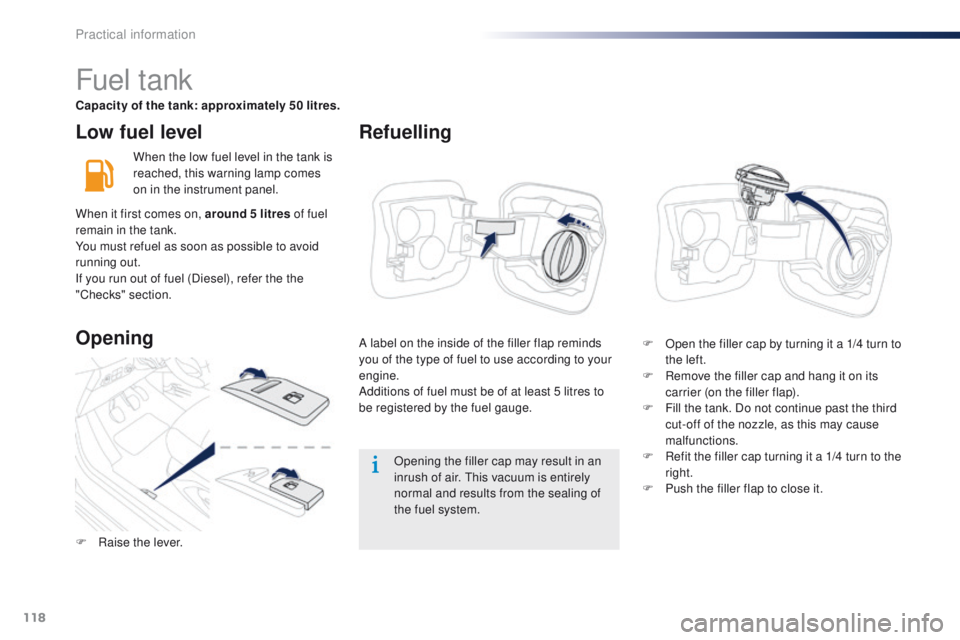

Low fuel level
When the low fuel level in the tank is
reached, this warning lamp comes
on in the instrument panel.Opening the filler cap may result in an
inrush of air. This vacuum is entirely
normal and results from the sealing of
the fuel system.
Fuel tank
Capacity of the tank: approximately 50 litres. A label on the inside of the filler flap reminds
you of the type of fuel to use according to your
engine.
Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
Refuelling
F Open the filler cap by turning it a 1/4 turn to the left.
F

R
emove the filler cap and hang it on its
carrier (on the filler flap).
F

F
ill the tank. Do not continue past the third
cut-off of the nozzle, as this may cause
malfunctions.
F

R
efit the filler cap turning it a 1/4 turn to the
right.
F

P
ush the filler flap to close it.Opening
F Raise the lever. When it first comes on, around 5 litres of fuel
remain in the tank.
You must refuel as soon as possible to avoid
running out.
If you run out of fuel (Diesel), refer the the
"Checks" section.
Practical information
