Peugeot 301 2015 Owner's Manual

149
301_en_Chap09_info-pratiques_ed01-2014

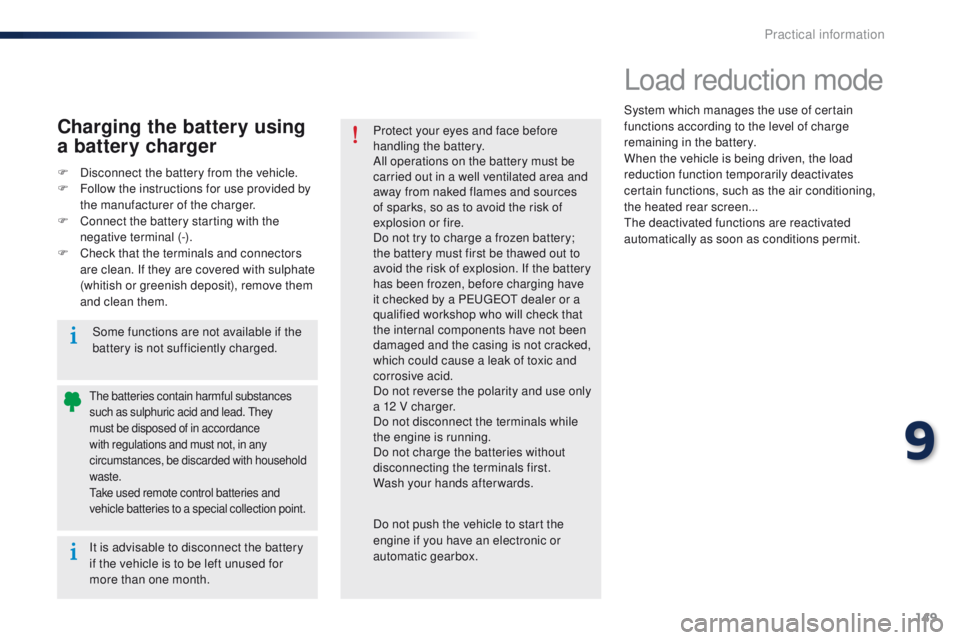

Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.
The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with household
waste.
Take used remote control batteries and
vehicle batteries to a special collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Do not try to charge a frozen battery;
the battery must first be thawed out to
avoid the risk of explosion. If the battery
has been frozen, before charging have
it checked by a PEUGEOT dealer or a
qualified workshop who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
Do not reverse the polarity and use only
a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands afterwards.
Do not push the vehicle to start the
engine if you have an electronic or
automatic gearbox.Charging the battery using
a battery charger
F Disconnect the battery from the vehicle.
F F ollow the instructions for use provided by
the manufacturer of the charger.
F

C
onnect the battery starting with the
negative terminal (-).
F

C
heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.
Some functions are not available if the
battery is not sufficiently charged.
9
Practical information

150
301_en_Chap09_info-pratiques_ed01-2014
System which manages the duration of use of
certain functions to retain a sufficient level of
charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wipers, dipped
beam headlamps,
courtesy lamps, etc. for
a maximum combined duration of about
thirty


minutes.
Electrical energy economy mode
Switching to economy mode
Once this time has elapsed, a message
appears in the screen indicating that the
vehicle has switched to economy mode and the
active functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.
Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
F
T
o restore these functions immediately,
start the engine and let it run for at least
five minutes.
A flat battery prevents the engine from
starting (refer to the corresponding
section).
Practical information

151
301_en_Chap09_info-pratiques_ed01-2014
Changing a wiper blade
Before removing a front
wiper blade
F Within one minute after switching off the ignition, operate the wiper stalk to
position the wiper blades vertically on
the


windscreen.
Removing
F Raise the corresponding wiper arm.
F U nclip the wiper blade and remove it.
Fitting
F Put the corresponding new wiper blade in place and clip it.
F

F
old down the wiper arm carefully.
After fitting a front wiper
blade
F Switch on the ignition.
F O perate the wiper stalk again to park the
wiper blades.
9
Practical information

152
301_en_Chap09_info-pratiques_ed01-2014
Towing the vehicle
Access to the tools
The towing eye is installed in the boot under
t h e f l o o r.
To gain access to it:
F
o
pen the boot,
F

l
ift the floor and remove it,
F

r
emove the towing eye from the holder.
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
-

v
ehicle broken down on a motor way or fast road,
-
f

our-wheel drive vehicle,
-

when it is not possible to put the gearbox into neutral, unlock the steering, or release the parking brake,- towing with only two wheels on the ground,
- w here there is no approved towing arm available...
Procedure for having your vehicle towed.
Practical information

153
301_en_Chap09_info-pratiques_ed01-2014
Towing your vehicleTowing another vehicle
F On the front bumper, unclip the cover by
pressing on the left edge.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar. Put the gear lever into neutral
(position


N for an electronic or
automatic gearbox).
Failure to follow this instruction may
cause damage to some components
(braking, transmission...) and the
absence of braking assistance when
the engine is restarted.
F U nlock the steering by turning the key
in the ignition one notch and release the
parking brake.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently, drive slowly and for a short
distance. This towing is strictly prohibited (risk of
damaging your vehicle).
9
Practical information

154
301_en_Chap09_info-pratiques_ed01-2014
Towing a trailer
We recommend the use of genuine
PEUGEOT towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a PEUGEOT dealer or a
qualified workshop.
If the towbar is not fitted by a
PEUGEOT dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.
Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.
Practical information

155
301_en_Chap09_info-pratiques_ed01-2014
Driving advice
Distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
Side wind
F Take into account the increased sensitivity to side wind.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer.
Refer to the "Technical data" section for details
of the weights and towed loads which apply to
your vehicle.
The rear parking sensors will be
deactivated automatically if a genuine
PEUGEOT towbar is used.
9
Practical information

156
301_en_Chap09_info-pratiques_ed01-2014
Very cold climate screen(s)*
Removable protective screen(s) which prevents the accumulation of snow at the radiator cooling fan.
Depending on version, you have one or two screens.
Fitting
F Offer up the corresponding screen to the lower or upper section of the front bumper.
F

P
ress around its edge to engage its fixing
clips one by one.
Removal
F Use a screwdriver as a lever to release each of the fixings of each screen in turn.
* According to country. Do not forget to remove the very cold
climate screen (or screens):
-
w

hen the ambient temperature
exceeds 10 °C,
-
w

hen towing,
-
a

t speeds above 75 mph (120 km/h).
Practical information

157
301_en_Chap09_info-pratiques_ed01-2014
Accessories
A wide range of accessories and genuine parts is available from the PEUGEOT dealer network.
These accessories and parts are all suitable for your vehicle and benefit from PEUGEOT's
recommendation and warranty.
"Comfort":
door deflectors, side blinds and rear screen
blind, smoker kit, portable scented air
freshener, boot dividers, coat hanger, armrest,
insulated module, reading lamp, cruise control,
boot storage, front and rear parking sensors,
glove box lid...
"Transport solutions":
towbars, towbar harnesses, canoe carrier, roof
bars, bicycle carrier on towbar, bicycle carrier
on roof bars, ski carrier, roof boxes, aluminium
roof rack....
"Security and safety":
wheel security bolts, child seats, breathalyzer,
first aid kit, warning triangle, high visibility vest,
snow chains, non-slip covers, foglamp kit, fire
extinguisher...
Tow bar, which mst be fitted by
PEUGEOT dealer or a qualified
workshop.
Advice on care and maintenance
Recommendations on the care and
maintenance your vehicle are given in the
warranty and maintenance record.
"Styling":
gear lever knob, spoiler, parking brake lever
grip, spoiler, alloy wheels, foglamp trims,
chromed mirror shells, aluminium footrest,
chrome exhaust tailpipes, stickers, door sill
finishers, ligne S badge, wheel trims, front
spoiler...
9
Practical information

158
301_en_Chap09_info-pratiques_ed01-2014

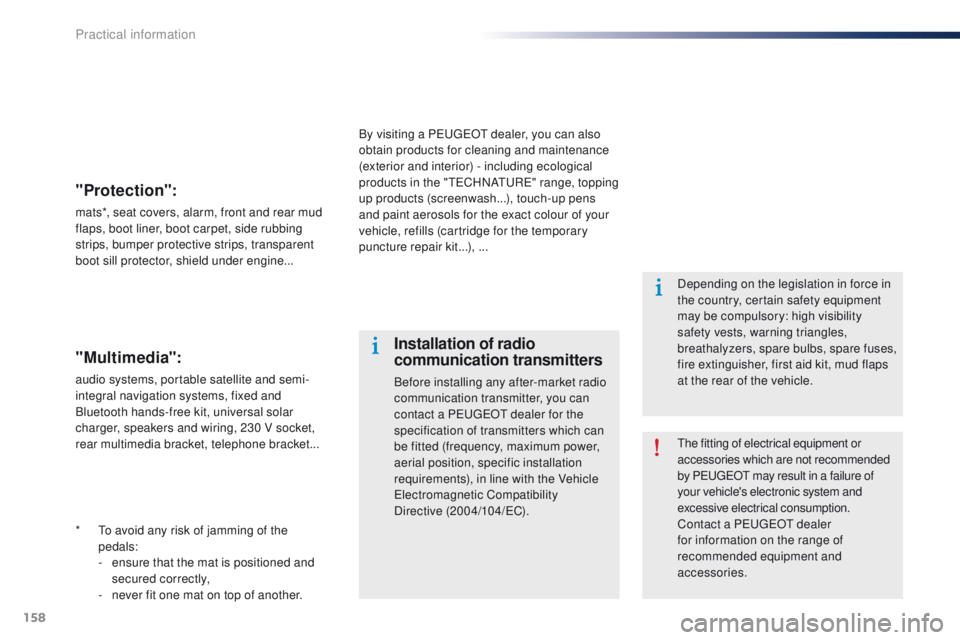

* To avoid any risk of jamming of the pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
"Protection":
mats*, seat covers, alarm, front and rear mud
flaps, boot liner, boot carpet, side rubbing
strips, bumper protective strips, transparent
boot sill protector, shield under engine...
The fitting of electrical equipment or
accessories which are not recommended
by PEUGEOT may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a PEUGEOT dealer
for information on the range of
recommended equipment and
accessories.
Installation of radio
communication transmitters
Before installing any after-market radio
communication transmitter, you can
contact a PEUGEOT dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
By visiting a PEUGEOT dealer, you can also
obtain products for cleaning and maintenance
(exterior and interior) - including ecological
products in the "TECHNATURE" range, topping
up products (screenwash...), touch-up pens
and paint aerosols for the exact colour of your
vehicle, refills (cartridge for the temporary
puncture repair kit...), ...
"Multimedia":
audio systems, portable satellite and semi-
integral navigation systems, fixed and
Bluetooth hands-free kit, universal solar
charger, speakers and wiring, 230 V socket,
rear multimedia bracket, telephone bracket...
Practical information
