Technical data
301-add_en_Chap11_caracteristiques-techniques_ed01-2014
EnginePureTech 72V T i 115PureTech 82PureTech 82 S&S
Gearbox Manual (5-speed)
ETG electronic (5-speed)
Manual (5-speed) Automatic (4-speed) Manual (5-speed)
ETG electronic (5-speed)
Model code: DD... HMY0 HMY0/P NFP0 NFP6 NFP9 HMZ6 HMZ6/PS
Cubic capacity (cc) 1 199 1 587 1 199 1 200
Bore x stroke (mm) 75 x 90.5 78.5 x 82 75 x 90.5 75 x 90.6
Max power: EU standard (kW) * 53 85 60 60
Max power engine speed (rpm) 5 500 6 050 5 750 5 750
Max torque: EU standard (Nm) 11 0 150 118 118
Max torque engine speed (rpm) 3 000 4 000 2 750 2 750
Fuel Unleaded 91 RON to 98 RON Unleaded 91 RON to 98 RON Unleaded 91 RON to 98 RON
Unleaded 91 RON to 98 RON
Catalytic converter yes yes yes yes
Engine oil capacity in litres (with filter replacement) 3.25 3.5 3.25 3.25
Petrol engines
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

24
Technical data
301-add_en_Chap11_caracteristiques-techniques_ed01-2014
EngineHDi 92BlueHDi 100
Gearbox Manual (5-speed) Manual (5-speed)
Model code: DD... 9HJC 9HP0 BHY6
Cubic capacity (cc) 1 560 1 560
Bore x stroke (mm) 75 x 88 75 x 88.3
Max power: EU standard (kW) * 68 73
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 230 254
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter yes yes
Particle filter no yes yes
Engine oil capcity in litres (with filter replacement) 3.75 3.75
Diesel engines
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

25
11
Technical data
301-add_en_Chap11_caracteristiques-techniques_ed01-2014
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
EngineHDi 92BlueHDi 100
Gearbox Manual (5-speed) Manual (5-speed)
Model code: DD... 9HJC 9HP0 BHY6
- Unladen weight 1 090 1 090
- Kerb weight * 1 165 1 165
- Gross vehicle weight (GV W) 1 549 1 548 1 585
- Gross train weight (GTW) on a 12% gradient 2 299 2 298 2 335
- Braked trailer (within GTW limit) on a 10% or 12% gradient 750 750
- Braked trailer ** (with load transfer with the GTW limit) 1 010 1 010
- Unbraked trailer 580 580
- Recommended nose weight 55 55
Diesel weights (in kg)

1
1
Monitoring
301-add_en_Chap01_controle-de-marche_ed01-2014

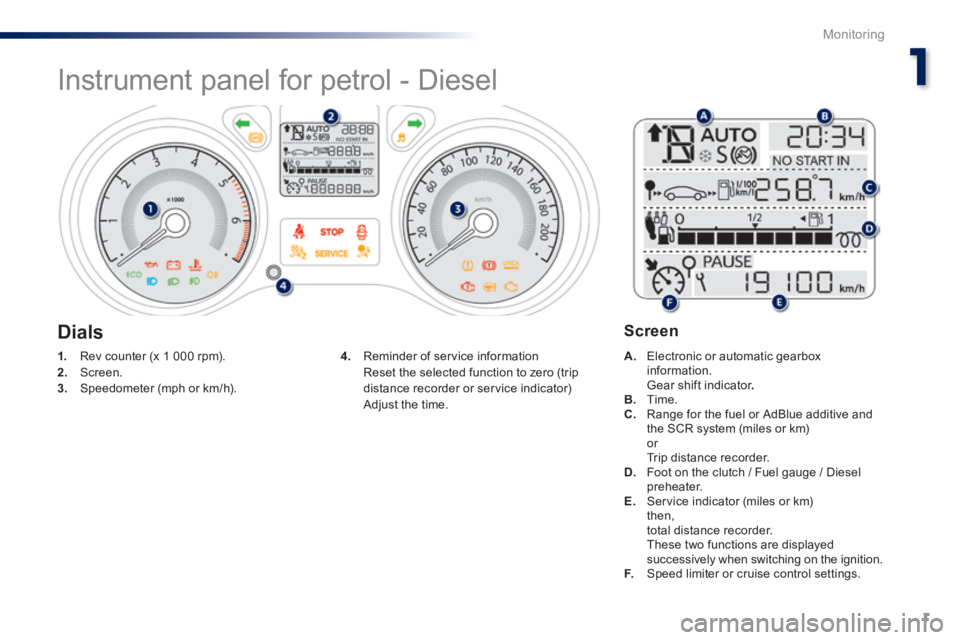

Instrument panel for petrol - Diesel
1. Rev counter (x 1 000 rpm). 2. Screen. 3. Speedometer (mph or km/h).
A. Electronic or automatic gearbox information. Gear shift indicator .B. Time. C. Range for the fuel or AdBlue additive and the SCR system (miles or km) or Trip distance recorder. D. Foot on the clutch / Fuel gauge / Diesel preheater. E. Service indicator (miles or km) then, total distance recorder. These two functions are displayed successively when switching on the ignition .F. Speed limiter or cruise control settings.
4. Reminder of service information Reset the selected function to zero (trip distance recorder or service indicator) Adjust the time.
Dials Screen

2
Monitoring
Warning / indicator lampStateCauseAction / Observations
AdBlue ® additive® additive® (BlueHDi Diesel) fixed, on switching on the ignition, accompanied by an audible signal and a message indicating the remaining driving range.
The remaining driving range is between 350 miles (600 km) and 1500 miles (2400 km).
Have the AdBlue ® additive tank topped up as soon ® additive tank topped up as soon ®
as possible: go to a PEUGEOT dealer or a qualified workshop, or carry out this operation yourself by referring to the corresponding section.
+ flashing associated with the SERVICE warning lamp, accompanied by an audible signal and a message indicating the remaining driving range.
The remaining driving range is between 0 and 350 miles (600 km). You must top-up the AdBlue ® additive tank to ® additive tank to ®avoid a breakdown : go to a PEUGEOT dealer or a qualified workshop, or carry out this operation yourself by referring to the corresponding section.
flashing, associated with the SERVICE warning lamp, accompanied by an audible signal and a message indicating that starting is prevented.
The AdBlue ® tank is empty: the ® tank is empty: the ®
starting inhibition system required by legislation prevents starting of the engine.
To be able to start the engine, you must top-up theAdBlue ® additive tank: go to a PEUGEOT dealer or a ® additive tank: go to a PEUGEOT dealer or a ®
qualified workshop, or carry out this operation yourself by referring to the corresponding section. It is essential to add at least 3.8 litres of AdBlue ® to ® to ®
the additive tank.

1
3
Monitoring
301-add_en_Chap01_controle-de-marche_ed01-2014
Warning / indicator lampStateCauseAction / Observations
+
+
SCR emissions control system (BlueHDi Diesel)
fixed, on switching on the ignition, associated with the SERVICE and engine diagnostic warning lamps, accompanied by an audible signal
and a message.
A fault with the SCR emissions control system has been detected. This alert disappears once the exhaust emissions return to normal levels.
flashing, on switching on the ignition, associated with the SERVICE and engine diagnostic warning lamps, accompanied by an audible signal and a message indicating the remaining driving range.
After confirmation of the fault with the emissions control system, you can drive for up to 650 miles (1 100 km) before the engine starting inhibition system is triggered.
Contact a PEUGEOT dealer or a qualified workshop without delay , without delay , without delayto avoid a breakdown .
flashing, on switching on the ignition, associated with the SERVICE and engine diagnostic warning lamps, accompanied by an audible signal and a message.
You have exceeded the authorised driving limit following confirmation of a fault with the emissions control system: the engine starting inhibition system prevents starting of the engine.
To be able to start the engine, you must call on a PEUGEOT dealer or a qualified workshop.

4
Monitoring
Warning / indicator lampStateCauseAction / Observations
Stop & Star t fixed. When the vehicle stops (red lights, traffic jams, ...) the Stop & Start system has put the engine into STOP mode.
The warning lamp goes off and the engine restarts automatically in START mode, as soon as you want to move off.
flashes for a few seconds, then goes of f.
STOP mode is temporarily unavailable. or START mode is invoked automatically.
For more information on special cases with STOP mode and START mode, refer to the "Stop & Start" section.
Foot on the clutch fixed. In the STOP mode of Stop & Start, changing to START mode is refused because the clutch pedal is not fully down.
You must declutch fully to allow the change to engine START mode.

1
5
Monitoring
301-add_en_Chap01_controle-de-marche_ed01-2014

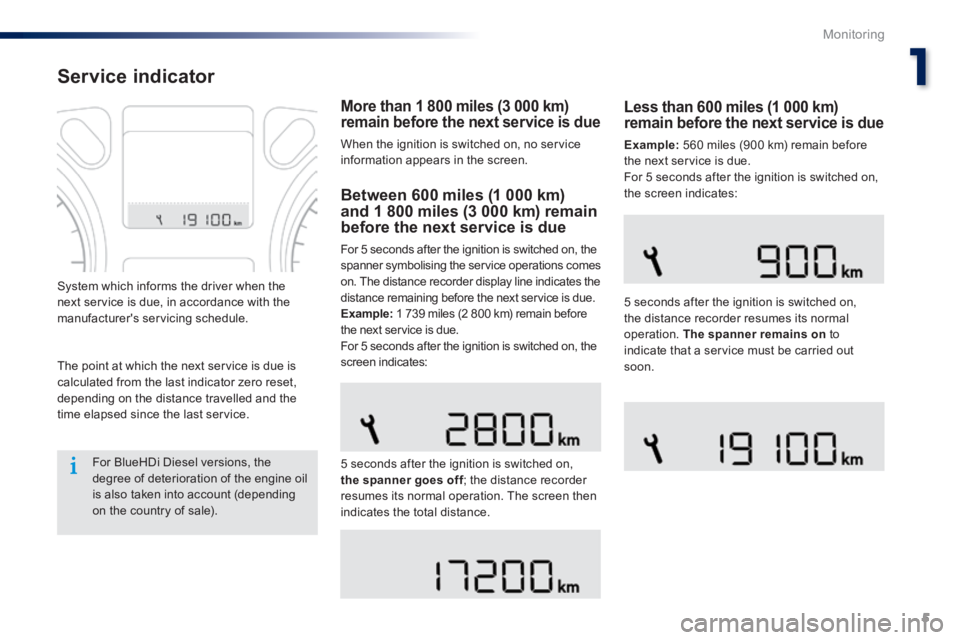

Service indicator
The point at which the next service is due is calculated from the last indicator zero reset, depending on the distance travelled and the time elapsed since the last service.
System which informs the driver when the next service is due, in accordance with the manufacturer's servicing schedule.
Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the service operations comes on. The distance recorder display line indicates the distance remaining before the next service is due. Example: 1 739 miles (2 800 km) remain before the next service is due. For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the spanner goes off ; the distance recorder the spanner goes off ; the distance recorder the spanner goes offresumes its normal operation. The screen then indicates the total distance.
Less than 600 miles (1 000 km) remain before the next service is due
Example: 560 miles (900 km) remain before the next service is due. For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on to indicate that a service must be carried out soon.
For BlueHDi Diesel versions, the degree of deterioration of the engine oil is also taken into account (depending on the country of sale).
More than 1 800 miles (3 000 km) remain before the next service is due
When the ignition is switched on, no service information appears in the screen.

6
Monitoring
Service overdue

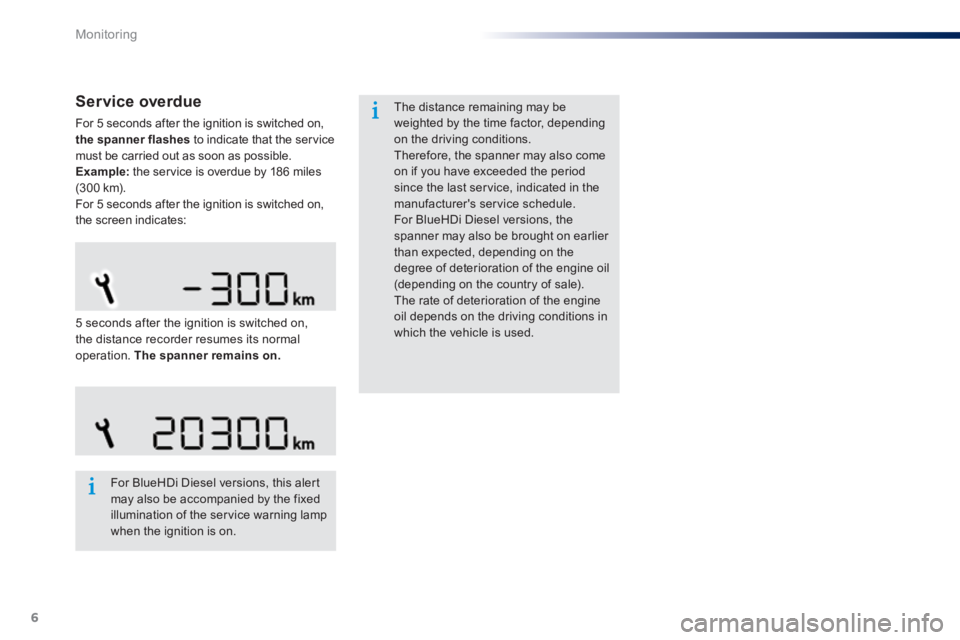

For 5 seconds after the ignition is switched on, the spanner flashes to indicate that the service must be carried out as soon as possible. Example: the service is overdue by 186 miles (3 0 0 k m). For 5 seconds after the ignition is switched on, the screen indicates:
For BlueHDi Diesel versions, this alert may also be accompanied by the fixed illumination of the service warning lamp when the ignition is on.
The distance remaining may be weighted by the time factor, depending on the driving conditions. Therefore, the spanner may also come on if you have exceeded the period since the last service, indicated in the manufacturer's service schedule . For BlueHDi Diesel versions, the spanner may also be brought on earlier than expected, depending on the degree of deterioration of the engine oil (depending on the country of sale). The rate of deterioration of the engine oil depends on the driving conditions in which the vehicle is used. 5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on .

7
5
Driving
301-add_en_Chap05_conduite_ed01-2014

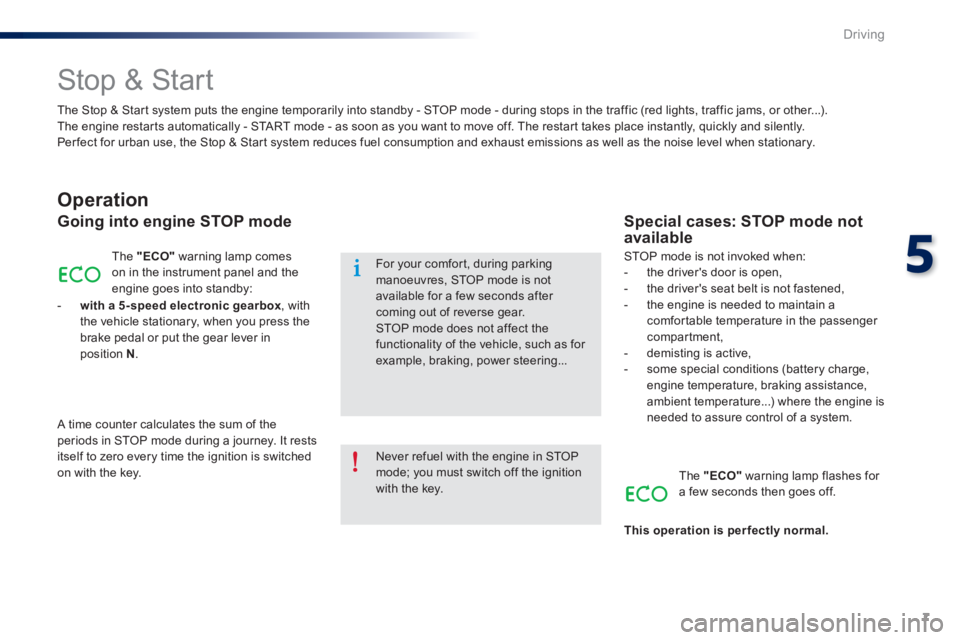

Stop & Start
Operation
Going into engine STOP mode
The "ECO" warning lamp comes on in the instrument panel and the engine goes into standby:
- with a 5-speed electronic gearbox , with the vehicle stationary, when you press the brake pedal or put the gear lever in position N .
A time counter calculates the sum of the periods in STOP mode during a journey. It rests itself to zero every time the ignition is switched on with the key.
Special cases: STOP mode not available
STOP mode is not invoked when: - the driver's door is open, - the driver's seat belt is not fastened, - the engine is needed to maintain a comfortable temperature in the passenger compartment, - demisting is active, - some special conditions (battery charge, engine temperature, braking assistance, ambient temperature...) where the engine is needed to assure control of a system.
The "ECO" warning lamp flashes for a few seconds then goes off.
This operation is perfectly normal.
The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently. Per fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Never refuel with the engine in STOP mode; you must switch off the ignition with the key.
For your comfort, during parking manoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear. STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...
