Peugeot 301 2017 Owner's Manual

99

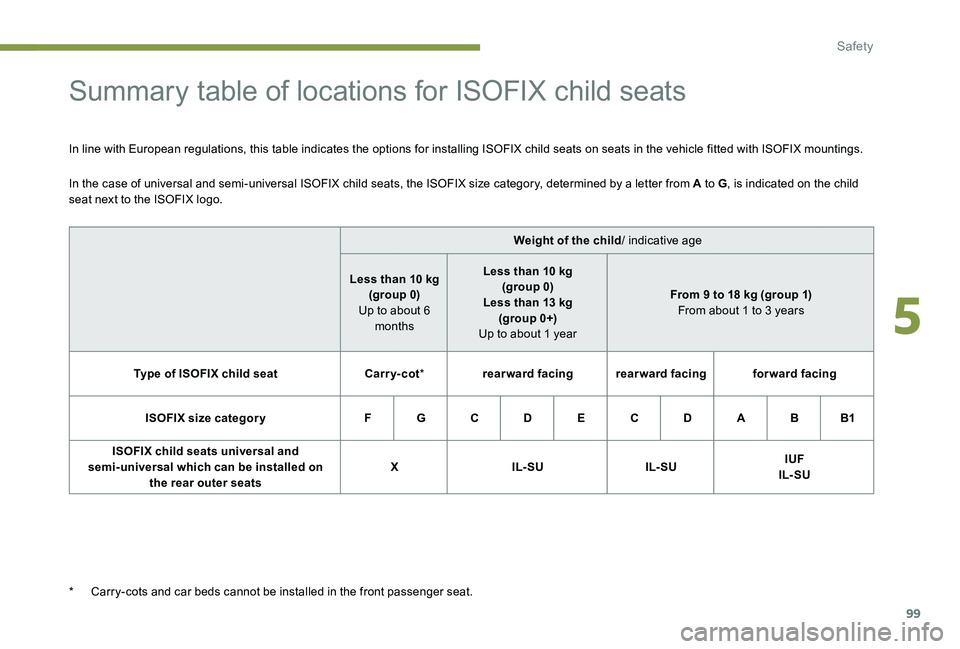

Summary table of locations for ISOFIX child seats
In line with European regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child
seat next to the ISOFIX logo.
Weight of the child/ indicative age
Less than 10 kg (group 0)
Up to about 6 months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to about 1 year From 9 to 18 kg (group 1)
From about 1 to 3 years
Type of ISOFIX child seat Carry- cot* rearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
ISOFIX child seats universal and
semi-universal which can be installed on the rear outer seats X
IL- SU IL- SU IUF
IL- SU
*

C
arry-cots and car beds cannot be installed in the front passenger seat.
5
Safety

100
I UF:seat suitable for the installation of
an Isofix U niversal seat, " For ward
facing", secured using the top tether.
IL- SU: seat suitable for the installation of
an Isofix S emi-Universal seat which
is either:
-

"
rear ward facing" fitted with a
top tether or a support leg,
-

"
for ward facing" fitted with a
support leg.
For advice on securing of the
upper strap, refer to the "ISOFIX
mountings" section.
X: seat which is not suitable for the
installation of an ISOFIX seat of the
size category indicated.

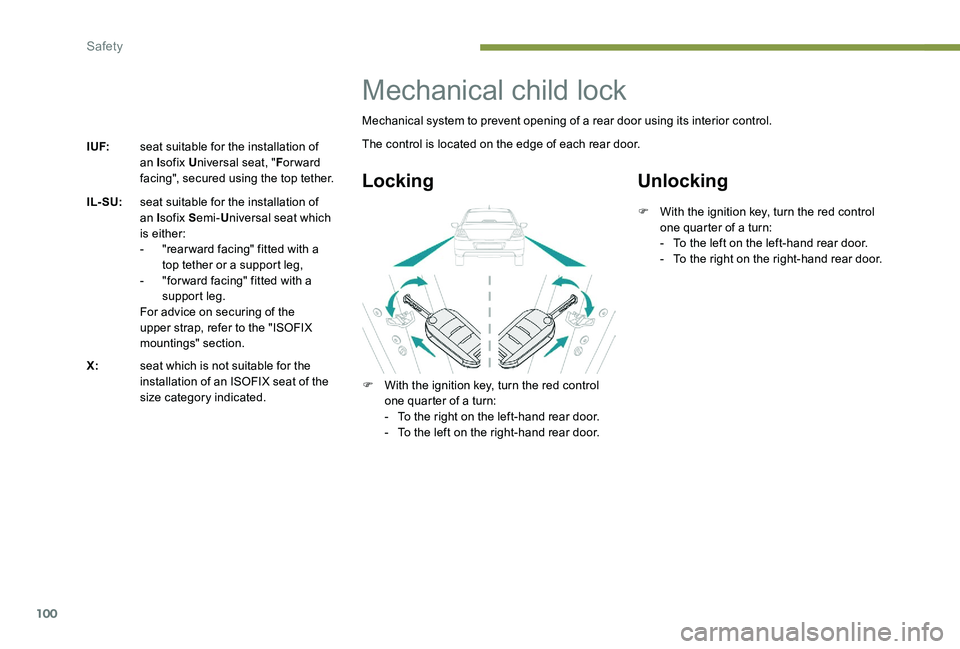

Mechanical child lock
Mechanical system to prevent opening of a rear door using its interior control.
The control is located on the edge of each rear door.
Locking Unlocking
F With the ignition key, turn the red control
one quarter of a turn:
-

T
o the right on the left-hand rear door.
-

T
o the left on the right-hand rear door. F

W
ith the ignition key, turn the red control
one quarter of a turn:
-
T
o the left on the left-hand rear door.
-
T
o the right on the right-hand rear door.
Safety

101
Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
Important!
Never drive with the parking brake
applied - Risk of overheating and damage
to the braking system!
Risk of fire!
As the exhaust system of your vehicle
is very hot, even several minutes after
switching off the engine, do not park or run
the engine over areas where inflammable
substances and materials are present:
grass, leaves, etc.
Never leave a vehicle unsupervised with
the engine running. If you have to leave
your vehicle with the engine running, apply
the parking brake and put the gearbox into
neutral or position N or P, depending on
the type of gearbox.
If you are obliged to drive through water:
-

c

heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d

eactivate the Stop & Start system,
-

d

rive as slowly as possible without stalling.
Under no circumstances exceed 10 km/h,
-

d

o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a PEUGEOT dealer or a qualified workshop.
6
Driving

102

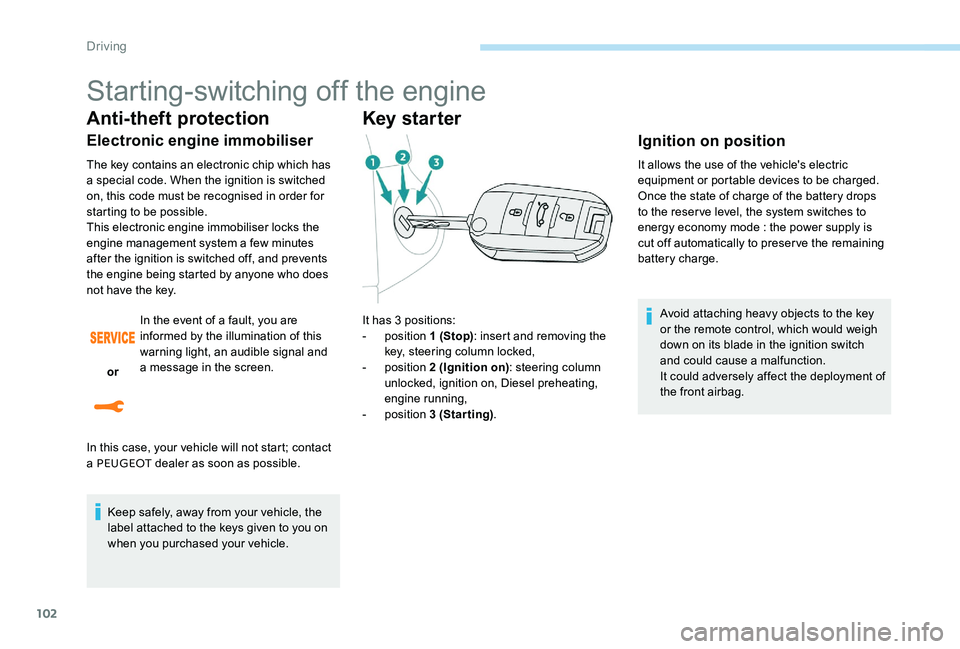

Starting-switching off the engine
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off, and prevents
the engine being started by anyone who does
not have the key. or In the event of a fault, you are
informed by the illumination of this
warning light, an audible signal and
a message in the screen.
In this case, your vehicle will not start; contact
a PEUGEOT dealer as soon as possible.
Keep safely, away from your vehicle, the
label attached to the keys given to you on
when you purchased your vehicle.
Key star ter
It has 3 positions:
- position 1 (Stop): insert and removing the
key, steering column locked,
-
position 2 (Ignition on) : steering column
unlocked, ignition on, Diesel preheating,
engine running,
-
position 3 (Starting) .
Ignition on position
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Once the state of charge of the battery drops
to the reserve level, the system switches to
energy economy mode : the power supply is
cut off automatically to preserve the remaining
battery charge.
Avoid attaching heavy objects to the key
or the remote control, which would weigh
down on its blade in the ignition switch
and could cause a malfunction.
It could adversely affect the deployment of
the front airbag.
Driving

103

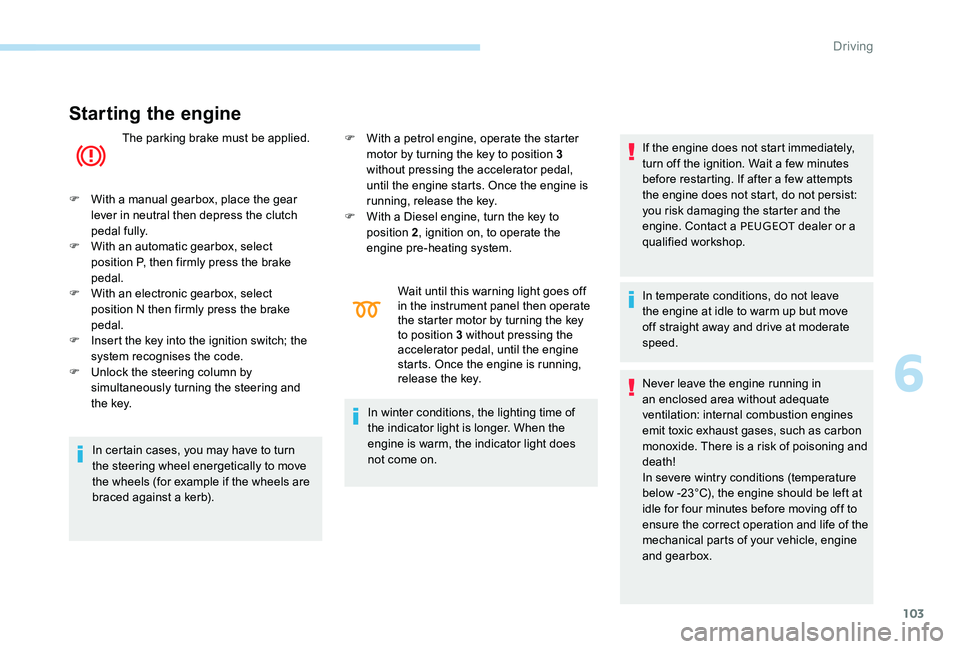

Starting the engine
The parking brake must be applied.
F

W

ith a manual gearbox, place the gear
lever in neutral then depress the clutch
pedal fully.
F

W

ith an automatic gearbox, select
position P, then firmly press the brake
pedal.
F

W

ith an electronic gearbox, select
position N then firmly press the brake
pedal.
F

I

nsert the key into the ignition switch; the
system recognises the code.
F

U

nlock the steering column by
simultaneously turning the steering and
t h e key.
In certain cases, you may have to turn
the steering wheel energetically to move
the wheels (for example if the wheels are
braced against a kerb). F
W ith a petrol engine, operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
F

W
ith a Diesel engine, turn the key to
position 2 , ignition on, to operate the
engine pre-heating system.
Wait until this warning light goes off
in the instrument panel then operate
the starter motor by turning the key
to position 3 without pressing the
accelerator pedal, until the engine
starts. Once the engine is running,
release the key.
In winter conditions, the lighting time of
the indicator light is longer. When the
engine is warm, the indicator light does
not come on. If the engine does not start immediately,
turn off the ignition. Wait a few minutes
before restarting. If after a few attempts
the engine does not start, do not persist:
you risk damaging the starter and the
engine. Contact a PEUGEOT
dealer or a
qualified workshop.
In temperate conditions, do not leave
the engine at idle to warm up but move
off straight away and drive at moderate
speed.
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion engines
emit toxic exhaust gases, such as carbon
monoxide. There is a risk of poisoning and
death!
In severe wintry conditions (temperature
below -23°C), the engine should be left at
idle for four minutes before moving off to
ensure the correct operation and life of the
mechanical parts of your vehicle, engine
and gearbox.
6
Driving

104

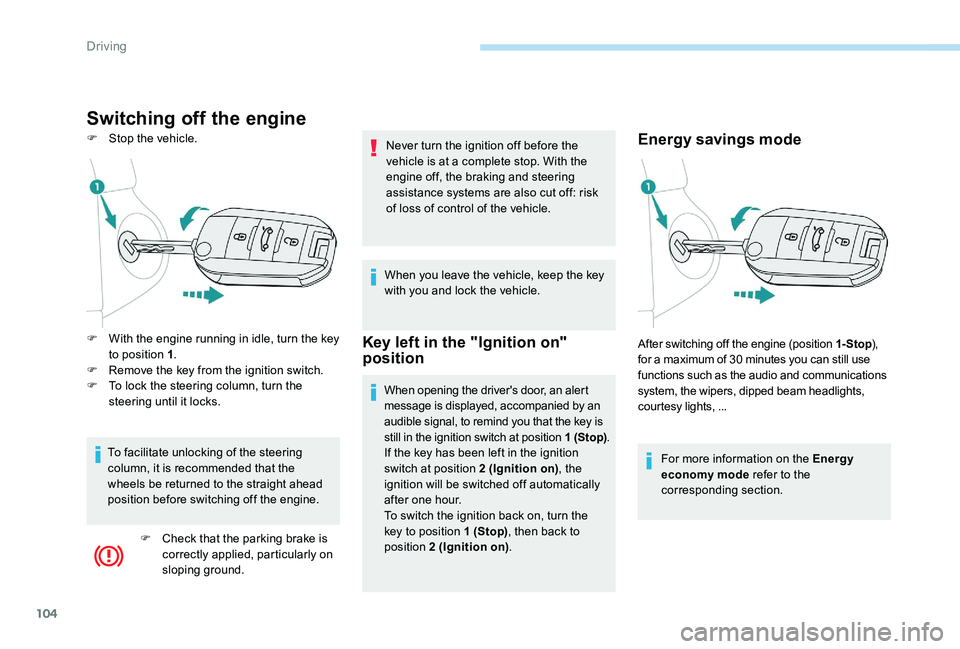

Switching off the engine
F Stop the vehicle.Energy savings mode
For more information on the Energy
economy mode refer to the
corresponding section.
F

W

ith the engine running in idle, turn the key
to position 1 .
F

R

emove the key from the ignition switch.
F

T

o lock the steering column, turn the
steering until it locks.
To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine. F

C

heck that the parking brake is
correctly applied, particularly on
sloping ground. After switching off the engine (position 1- Stop
),
for a maximum of 30 minutes you can still use
functions such as the audio and communications
system, the wipers, dipped beam headlights,
courtesy lights, ...
Never turn the ignition off before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off: risk
of loss of control of the vehicle.
When you leave the vehicle, keep the key
with you and lock the vehicle.
When opening the driver's door, an alert
message is displayed, accompanied by an
audible signal, to remind you that the key is
still in the ignition switch at position 1 (Stop) .
If the key has been left in the ignition
switch at position 2 (Ignition on) , the
ignition will be switched off automatically
after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position 2 (Ignition on) .
Key left in the "Ignition on"
position
Driving

105

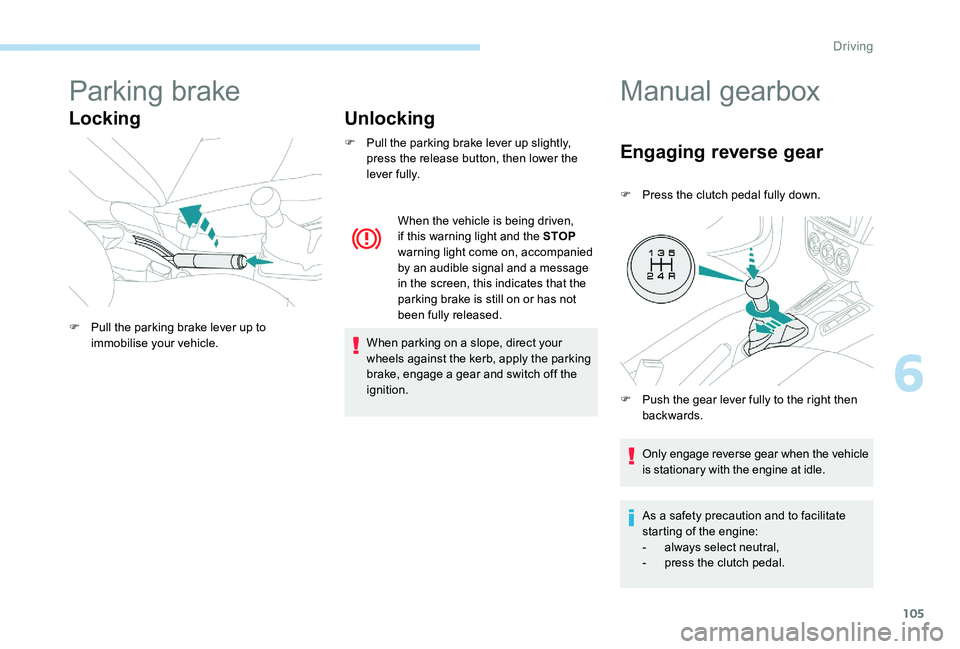

Parking brake
LockingUnlocking
F Pull the parking brake lever up slightly,
press the release button, then lower the
lever fully.
When parking on a slope, direct your
wheels against the kerb, apply the parking
brake, engage a gear and switch off the
ignition. When the vehicle is being driven,
if this warning light and the STOP

warning light come on, accompanied
by an audible signal and a message
in the screen, this indicates that the
parking brake is still on or has not
been fully released.
Manual gearbox
Engaging reverse gear
F Press the clutch pedal fully down.
F

P
ush the gear lever fully to the right then
backwards.
F

P

ull the parking brake lever up to
immobilise your vehicle.
As a safety precaution and to facilitate
starting of the engine:
-

a
lways select neutral,
-

p
ress the clutch pedal.
Only engage reverse gear when the vehicle
is stationary with the engine at idle.
6
Driving

106

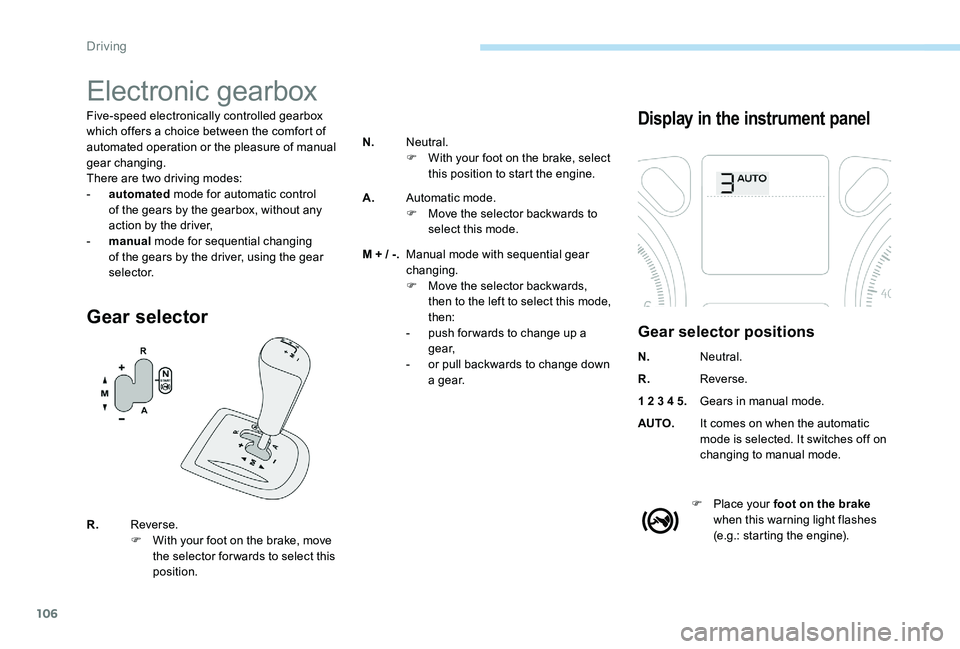

Electronic gearbox
Five-speed electronically controlled gearbox
which offers a choice between the comfort of
automated operation or the pleasure of manual
gear changing.
There are two driving modes:
-
a
utomated mode for automatic control
of the gears by the gearbox, without any
action by the driver,
-

man
ual mode for sequential changing
of the gears by the driver, using the gear
selector.
Gear selector
Display in the instrument panel
Gear selector positions
N. Neutral.
R. Reverse.
1 2 3 4 5. Gears in manual mode.
AUTO. It comes on when the automatic
mode is selected. It switches off on
changing to manual mode.
F

P
lace your foot on the brake
when this warning light flashes
(e.g.: starting the engine).
R.
Reverse.
F

W

ith your foot on the brake, move
the selector for wards to select this
position. N.
Neutral.
F

W

ith your foot on the brake, select
this position to start the engine.
A. Automatic mode.
F

M

ove the selector backwards to
select this mode.
M + / -. Manual mode with sequential gear
changing.
F

M

ove the selector backwards,
then to the left to select this mode,
then:
-

p

ush for wards to change up a
g e a r,
-
o
r pull backwards to change down
a g e a r.
Driving

107
Moving off
F Select position N.
F P ress the brake pedal firmly.
F

S
tart the engine.
You must keep your foot on the brake
pedal while starting the engine.
If the engine does not start:
-
If N is flashing in the instrument panel,
move the selector to position A then to
position N .
-

I
f the “Foot on brake” message
appears, press the brake pedal
harder.
N appears in the instrument cluster.
F

Sel
ect automated mode (position A ),
manual mode (position M ) or reverse
(position R ) AUTO
and 1, 1 or R appear on the
instrument cluster.
F

R
elease the parking brake.
F

G
radually release the brake pedal.
The vehicle then moves off straight away
(refer to the section on the "Autonomous
traction function").
F
Accelerate.
Do not press the brake and clutch pedals
simultaneously. This can cause very rapid
wear on the clutch.Autonomous traction function
This function provides great flexibility in
manoeuvring the vehicle at low speed (when
parking, in traffic jams, …).
With the gear selector in position A , M or R,
the vehicle moves as soon as you take your
foot off the brake pedal , at low speed and
with the engine at idle.
When the engine is running, never leave
children in the vehicle without supervision.
The autonomous traction function may
be temporarily unavailable if the clutch
temperature is too high or the slope too
steep.
6
Driving

108

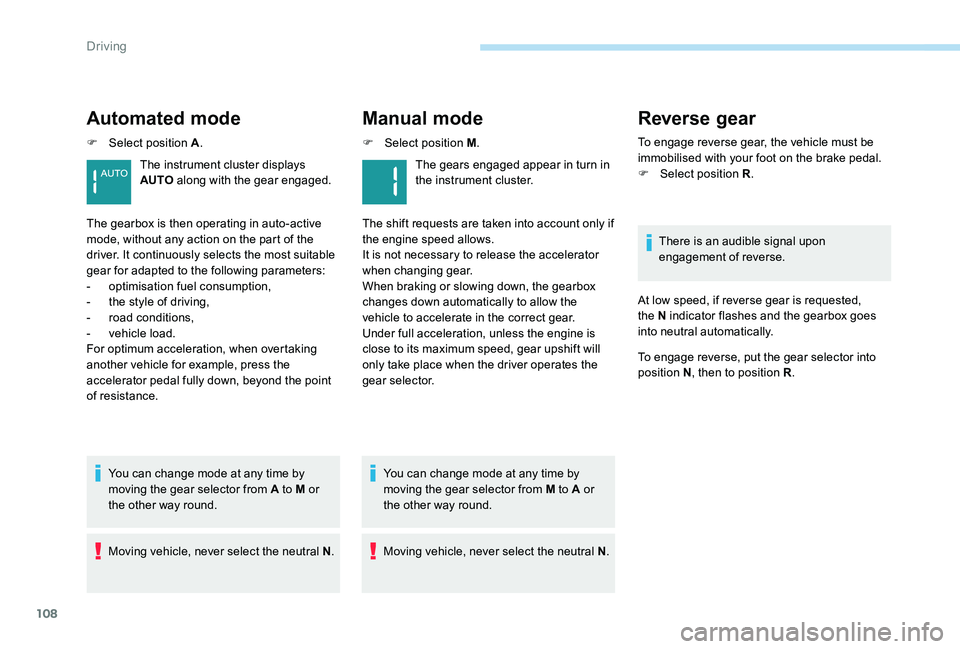

Automated mode
F Select position A.
You can change mode at any time by
moving the gear selector from A to M or
the other way round.
Moving vehicle, never select the neutral N .
The instrument cluster displays
AUTO
along with the gear engaged.
The gearbox is then operating in auto-active
mode, without any action on the part of the
driver. It continuously selects the most suitable
gear for adapted to the following parameters:
-
o

ptimisation fuel consumption,
-

t
he style of driving,
-

r
oad conditions,
-

v
ehicle load.
For optimum acceleration, when overtaking
another vehicle for example, press the
accelerator pedal fully down, beyond the point
of resistance.
Manual mode
F Select position M .
Moving vehicle, never select the neutral N .
You can change mode at any time by
moving the gear selector from M to A or
the other way round. The gears engaged appear in turn in
the instrument cluster.
The shift requests are taken into account only if
the engine speed allows.
It is not necessary to release the accelerator
when changing gear.
When braking or slowing down, the gearbox
changes down automatically to allow the
vehicle to accelerate in the correct gear.
Under full acceleration, unless the engine is
close to its maximum speed, gear upshift will
only take place when the driver operates the
gear selector.
Reverse gear
To engage reverse gear, the vehicle must be
immobilised with your foot on the brake pedal.
F
Sel
ect position R .
There is an audible signal upon
engagement of reverse.
At low speed, if reverse gear is requested,
the N indicator flashes and the gearbox goes
into neutral automatically.
To engage reverse, put the gear selector into
position N , then to position R .
Driving
