MAINTENANCE OF YOUR 306 CABRIOLET
18
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals:
¥ Every 20 000 miles (30 000km) or every 2 years for petrol engines. The extension of the service intervals means that the engine oil level must be checked regularly; topping up of the oil between oil changes is normal.
It is for this reason, and for your complete peace of mind, that your PEUGEOT dealer will carry out a levels check and top-up midway between each routine service, at the time or distance intervals specified. This will be undertaken free of charge, provided that the maintenance of your vehicle has been carried out within the
Peugeot network. At the same time, your Peugeot dealer will offer you a PEUGEOT Safety Check, for a nominal fee.
A PEUGEOT professional will carry out a quick check and will top up the levels if necessary (oil up to 1 litre, coolant and screen wash).
If the oil level is too low, there is a risk of serious damage to the engine: check the engine oil level at least every 1 500 m iles
(2 500km), depending on the conditions of use.
The date of the intermediate visit is not shown by the service indicator. It is to be carried out at least every 10 000 miles (15 000km) for petrol engines.

MAINTENANCE OF YOUR 306 CABRIOLET19
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked during each regular service at the PEUGEOT dealer. NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.

MAINTENANCE OF YOUR 306 CABRIOLET19
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked during each regular service at the PEUGEOT dealer. NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.

MAINTENANCE OF YOUR 306 CABRIOLET21
PEUGEOT SERVICING LEVELS A AND C
Level
Operations Description of operations for 1st serviceServicesACIntermediate visit
DRAIN AND REFILL- Engine drain and refill.- Oil filter.
REPLACEMENT- Fuel filter (Petrol).
- Air filter element.
- Spark plugs (Petrol).
- Engine oil (check + top up).
- Manual gearbox oil (check + top up).
- Battery (check + top up) if plug is removable.
LEVEL- Front/rear windscreen wash (check + top up).
- Coolant (check + top up).
- Brake fluid (check + top up).
- Power steering fluid (check + top up according to specification).
- Operation of lights and indicators.
- Condition of glass, headlamp and light lenses and mirrors.
- Horn.
- Windscreen washer jets.
- Condition of wiper blades.
- Condition and tension of ancillary drive belts.
- Handbrake.
- Condition of hydraulic circuits (hoses and covers), check for leaks.
CHECK- Condition of rubber boots and gaiters.
- Brake pad wear.
- Clearances, hubs, rods, ball joints, flxible mountings.
- Sealing of dampers.
- Wear of rear linings.
- Condition and pressure of tyres (including spare wheel).
- Emission control check according to current legislation (Petrol).
- Pollen filter check (according to specification).
- Visual check of the whole vehicle by a PEUGEOT dealer.
ROAD TEST
: All driving conditions : Specific conditions

23
MAINTENANCE OF YOUR 306 CABRIOLET

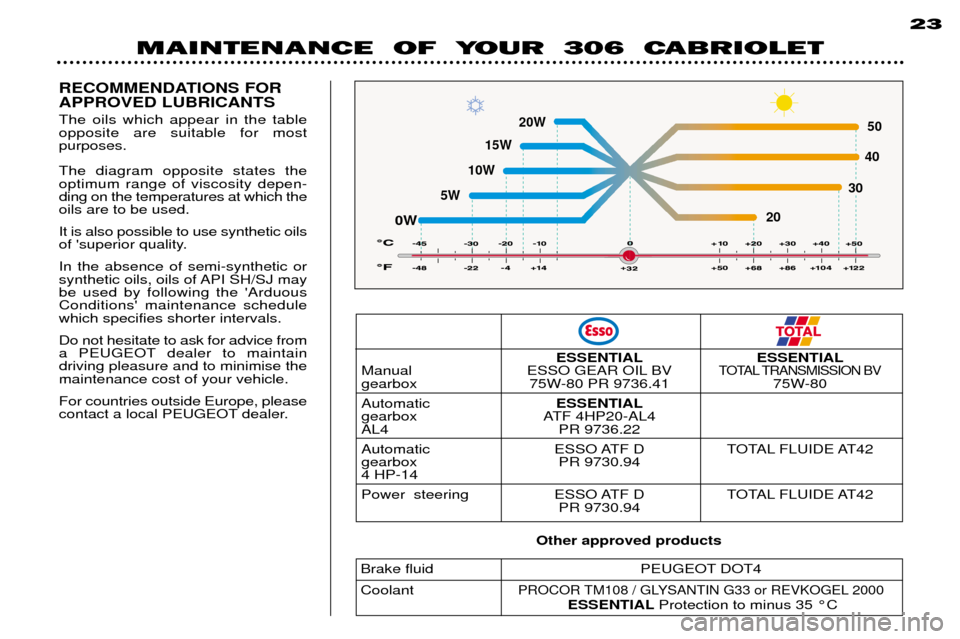

0W203040
50
20W
15W
10W
5W
RECOMMENDATIONS FOR APPROVED LUBRICANTS The oils which appear in the table opposite are suitable for most purposes. The diagram opposite states the optimum range of viscosity depen-ding on the temperatures at which theoils are to be used. It is also possible to use synthetic oils
of 'superior quality. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ maybe used by following the 'ArduousConditions' maintenance schedulewhich specifies shorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
TOTAL
ESSENTIAL ESSENTIAL
Manual ESSO GEAR OIL BVTOTAL TRANSMISSION BVgearbox 75W-80 PR 9736.41 75W-80 Automatic ESSENTIAL
gearbox ATF 4HP20-AL4
AL4 PR 9736.22
Automatic ESSO ATF D TOTAL FLUIDE AT42
gearbox PR 9730.944 HP-14
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108 / GLYSANTIN G33 or REVKOGEL 2000ESSENTIAL Protection to minus 35 ¡C
Other approved products

88
YOUR 306 CABRIOLET IN DETAIL
1Low coolant level.
2 Main beam headlamp.
3 Dipped beam headlamp.
4 Speedometer.
5 Left indicator.
6 Low oil pressure warning light.
7 Handbrake, low brake fluid level and electronic brake force distribution.
8 Battery charge.
9 Right indicator. 10
Rev counter.
11 Front fog lamps.
12 Brake pad wear warning light*.
13 Rear fog lamp.
14 ABS: anti-lock braking system*.
15 Fuel gauge.
16 Low fuel level.
17 STOP warning.
18 Seat belt not fastened warninglight*. 19
Side airbags warning light*.
20 Front airbags warning light* anddisarming of passenger airbag* .
21 Autodiagnostics*.
22 Trip recorder and service indicator.
23 Trip recorder zero reset and clocksetting.
24 Coolant temperature gauge.
* According to specification or country.
12 3 4 56789 1 0 11 1 2
24 23 22 21 20 19 18 17 16 15
13 14
INSTRUMENT PANEL

89
YOUR 306 CABRIOLET IN DETAIL
1Low coolant level*.
2 Main beam headlamp.
3 Dipped beam headlamp.
4 Speedometer.
5 Left indicator.
6 Low oil pressure warning light.
7 Gear indicator (automatic gear- box).
8 Handbrake, low brake fluid leveland electronic brake force distri-bution.
9 Battery charge. 10
Right indicator.
11 Rev counter.
12 Front fog lamps*.
13 Rear fog lamp.
14 ABS: anti-lock braking system*.
15 Fuel gauge.
16 Low fuel level.
17 Oil level.
18 STOP warning. 19
Seat belt not fastened warning light*.
20 Side airbags warning light*.
21 Front airbags warning light* and disarming of passenger airbag*
22 Autodiagnostics*.
23 Trip recorder and service indicator.
24 Trip recorder zero reset and clocksetting.
25 Coolant temperature gauge.
* According to specification.
INSTRUMENT PANEL
4 5 6 7 8 9 10 11 12 13 14
3 2 1
25 24 23 22 21 20 19 18 17 16 15

90
YOUR 306 CABRIOLET IN DETAIL
A warning light which remains permanently lit indicates that the unit
concerned is not operating correctly.Do not ignore this warning: contact
a PEUGEOT dealer as soon as pos-sible.
Handbrake, low brake fluid level and electronic brakeforce distribution warninglight
Indicates either:
- that the handbrake is on or has not been released correctly,
- an excessive drop in the brake fluid level (if the light remains lit even with the handbrake released),
- lit at the same time as the ABS war- ning light, it indicates a malfunction ofthe braking system.`
- a malfunction of the braking system, if lit at the same time as the ABSwarning light.
Stop immediately.
Contact a PEUGEOT dealer.
STOP warning light
(Together with the oil pressure warning light)
You must stop.
Contact a PEUGEOT dealer. Oil pressure warning light
Together with the STOP warning light.
You must stop. Indicates either:
- oil pressure is too low
- a lack of oil in the lubricating circuit
Top up the oil level if necessary.
Contact a PEUGEOT dealer.
Battery charge warning light Indicates either:
- faulty operation of the
battery charging circuit
- loose battery or starter terminals
- a broken or loose alternator drive belt
- an alternator fault
Contact a PEUGEOT dealer.
Low coolant level warning light*
You must stop.
Wait until the engine cools before topping up.
The cooling circuit is pressurised. When opening to top up, turn the cap to the first notch to let the pressuredrop.
Contact a PEUGEOT dealer. Engine autodiagnostic warning light* This comes on each time the ignition is switched on. If itcomes on when driving, this
indicates faulty operation of the injec-tion, ignition or emission controlsystem. There is a risk of damage to the cat- alytic converter if your vehicle is fitted with one.
Contact a PEUGEOT dealer.
Low fuel warning light Indicates that there are approximately 1.3 gallons(6 litres) of fuel remainingin the fuel tank.
(The capacity of the tank is approxi-mately 50 litres).
INSTRUMENTS AND CONTROLS
* According to specification.

91
YOUR 306 CABRIOLET IN DETAIL
Anti-lock braking system (ABS) warninglight It comes on for 3 seconds
each time the ignition is switched on. If it comes on at over 8 m.p.h. (12 km/h.) it indicates a malfunction
of the ABS.
However, the vehicle retains conven- tional servo-assisted braking.
Contact a PEUGEOT dealer.
Front airbags* and disarming ofpassenger airbag* For operation, see section on AIR BAGS
Side air bags** For operation, see
section on AIR BAGS.
* According to specification.
Oil gauge* When the ignition is on, this indicates the oil level: The reading is only valid if the vehicle is on level ground and the engine has
been switched off for 10 minutes.
- needle in zone
C, the oil level is
correct
- needle in zone D, check the oil level
using the dipstick and top up if
necessary.
Never exceed the maximum level onthe dipstick.
The oil level indicator switches off approximately 15 seconds after star-ting the engine.
Front brake pad wearwarning light*
For your safety, change the brake pads when thewarning light comes on.
Contact a PEUGEOT dealer.
DC
* According to specification.
Coolant temperature gauge
- needle in zone
A, the temperature
is correct.
- needle in zone B, the temperature
is too high.
The STOP warning light comes on.
You must stop.
Contact a PEUGEOT dealer.A
B

91
YOUR 306 CABRIOLET IN DETAIL
Anti-lock braking system (ABS) warninglight It comes on for 3 seconds
each time the ignition is switched on. If it comes on at over 8 m.p.h. (12 km/h.) it indicates a malfunction
of the ABS.
However, the vehicle retains conven- tional servo-assisted braking.
Contact a PEUGEOT dealer.
Front airbags* and disarming ofpassenger airbag* For operation, see section on AIR BAGS
Side air bags** For operation, see
section on AIR BAGS.
* According to specification.
Oil gauge* When the ignition is on, this indicates the oil level: The reading is only valid if the vehicle is on level ground and the engine has
been switched off for 10 minutes.
- needle in zone
C, the oil level is
correct
- needle in zone D, check the oil level
using the dipstick and top up if
necessary.
Never exceed the maximum level onthe dipstick.
The oil level indicator switches off approximately 15 seconds after star-ting the engine.
Front brake pad wearwarning light*
For your safety, change the brake pads when thewarning light comes on.
Contact a PEUGEOT dealer.
DC
* According to specification.
Coolant temperature gauge
- needle in zone
A, the temperature
is correct.
- needle in zone B, the temperature
is too high.
The STOP warning light comes on.
You must stop.
Contact a PEUGEOT dealer.A
B
