39
MAINTENANCE OF YOUR 306 CABRIOLET

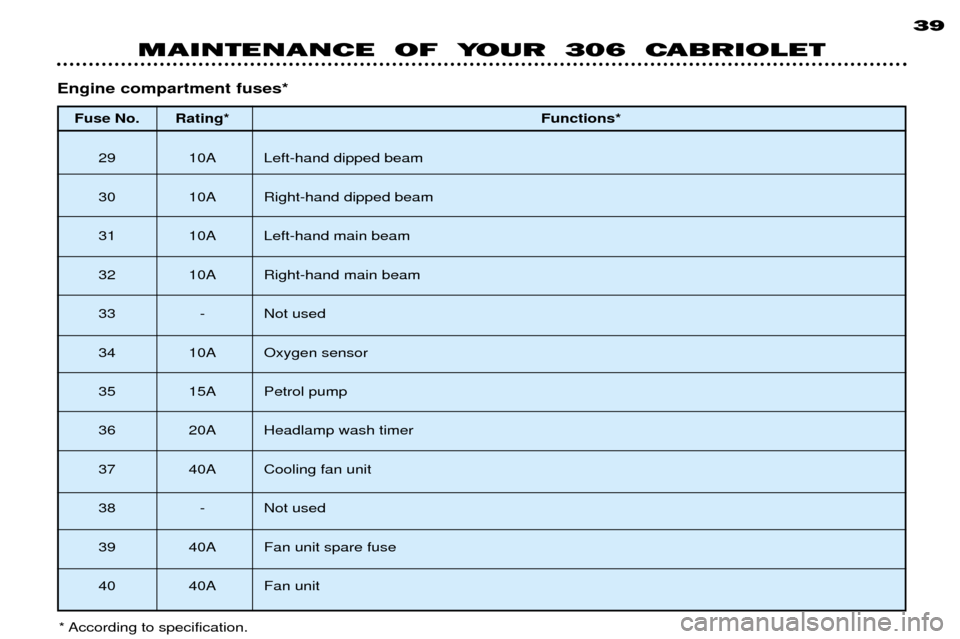

Fuse No. Rating*Functions*
29 10A Left-hand dipped beam
30 10A Right-hand dipped beam
31 10A Left-hand main beam
32 10A Right-hand main beam
33 - Not used
34 10A Oxygen sensor
35 15A Petrol pump
36 20A Headlamp wash timer
37 40A Cooling fan unit
38 - Not used
39 40A Fan unit spare fuse
40 40A Fan unit
* According to specification.
Engine compartment fuses*

37
MAINTENANCE OF YOUR 306 CABRIOLET
* According to specification.
Fascia fuse box
Fuse No. Rating* Functions*
15 20A Tow-bar socket
16 30A Front windows relay
17 20A Horn
18 10A Front fog lamps
19 10A Right tail light
20 30A Blower
21 10A Left tail light - Number plate light - Front sidelights
22 10A Blower relay - Heated rear screen and mirrors
23 20A Lighter
24 10A Radio
25 10A Electric hood Ð Central air conditioning and switch
26 30A Windscreen wiper and screen-wash pump control - Windscreen wiper motor - Windscreen wiper timer
27 15A Glove box lighting - Direction indicators Ð Electric mirrors control Ð Map reader light Ð Vanity mirror Ð Passenger compartment temperature sensor
28 15A Instrument panel - Clock - Electric windows relay and heated seats
