Peugeot 306 C Dag 2001 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2001, Model line: 306 C Dag, Model: Peugeot 306 C Dag 2001Pages: 133, PDF Size: 2.05 MB
Page 1 of 133
1
24
191814
15
16
17
234578910111213126
23
212220
2YOUR 306 CABRIOLET AT A GLANCE
Page 2 of 133

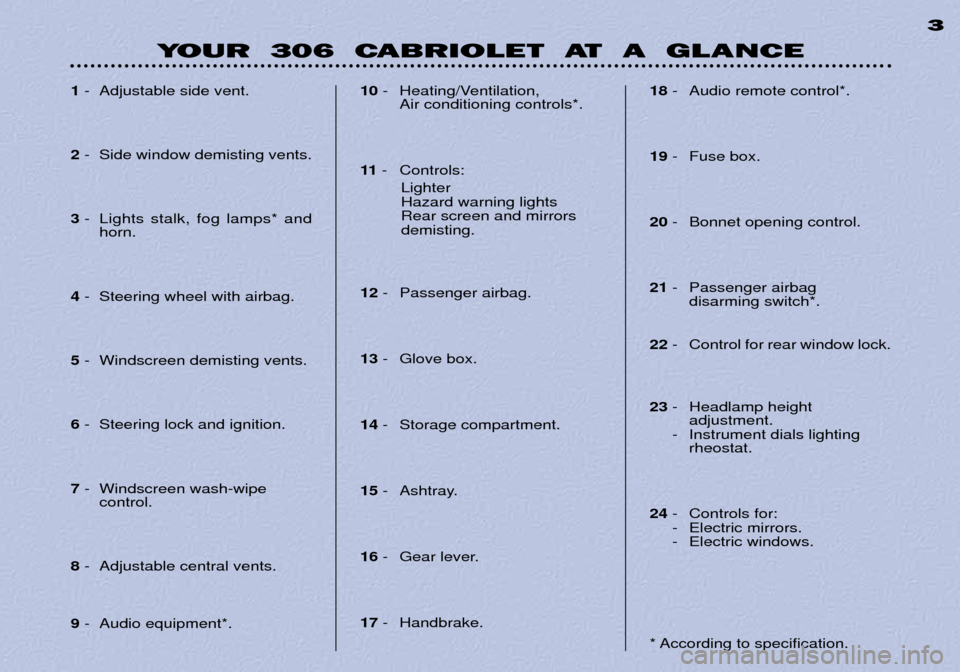

1- Adjustable side vent.
2 - Side window demisting vents.
3 - Lights stalk, fog lamps* and
horn.
4 - Steering wheel with airbag.
5 - Windscreen demisting vents.
6 - Steering lock and ignition.
7 - Windscreen wash-wipe
control.
8 - Adjustable central vents.
9 - Audio equipment*. 10
- Heating/Ventilation,
Air conditioning controls*.
11 - Controls:
Lighter Hazard warning lightsRear screen and mirrors demisting.
12 - Passenger airbag.
13 - Glove box.
14 - Storage compartment.
15 - Ashtray.
16 - Gear lever.
17 - Handbrake. 18
- Audio remote control*.
19 - Fuse box.
20 - Bonnet opening control.
21 - Passenger airbag
disarming switch*.
22 - Control for rear window lock.
23 - Headlamp height
adjustment.
- Instrument dials lighting rheostat.
24 - Controls for:
- Electric mirrors.
- Electric windows.
* According to specification.
YOUR 306 CABRIOLET AT A GLANCE 3
Page 3 of 133
103
YOUR 306 CABRIOLET AT A GLANCE
6

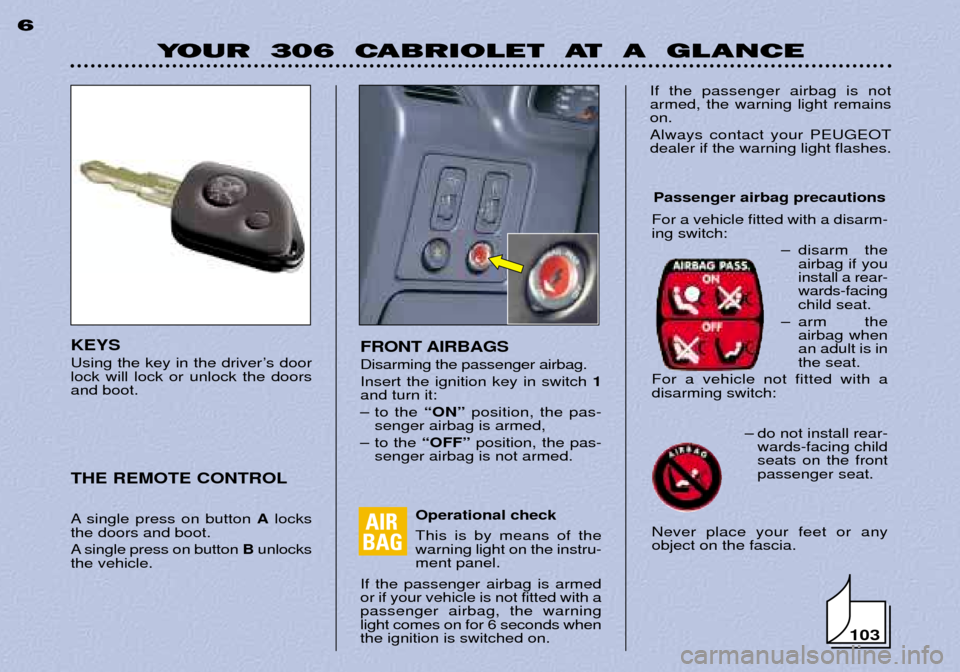

FRONT AIRBAGS Disarming the passenger airbag. Insert the ignition key in switch 1
and turn it:
Ð to the ÒONÓposition, the pas-
senger airbag is armed,
Ð to the ÒOFFÓposition, the pas-
senger airbag is not armed.
Operational check This is by means of the warning light on the instru-ment panel. If the passenger airbag is notarmed, the warning light remainson. Always contact your PEUGEOT dealer if the warning light flashes.
THE REMOTE CONTROL
A single press on button Alocks
the doors and boot.
A single press on button Bunlocks
the vehicle.
KEYS
Using the key in the driverÕs door lock will lock or unlock the doorsand boot.
Passenger airbag precautions
If the passenger airbag is armed or if your vehicle is not fitted with apassenger airbag, the warninglight comes on for 6 seconds whenthe ignition is switched on.For a vehicle fitted with a disarm-ing switch:
Ð disarm theairbag if youinstall a rear-wards-facingchild seat.
Ð arm the airbag whenan adult is inthe seat.
For a vehicle not fitted with a disarming switch:
Ð do not install rear-wards-facing childseats on the frontpassenger seat.
Never place your feet or anyobject on the fascia.
Page 4 of 133
YOUR 306 CABRIOLET AT A GLANCE5

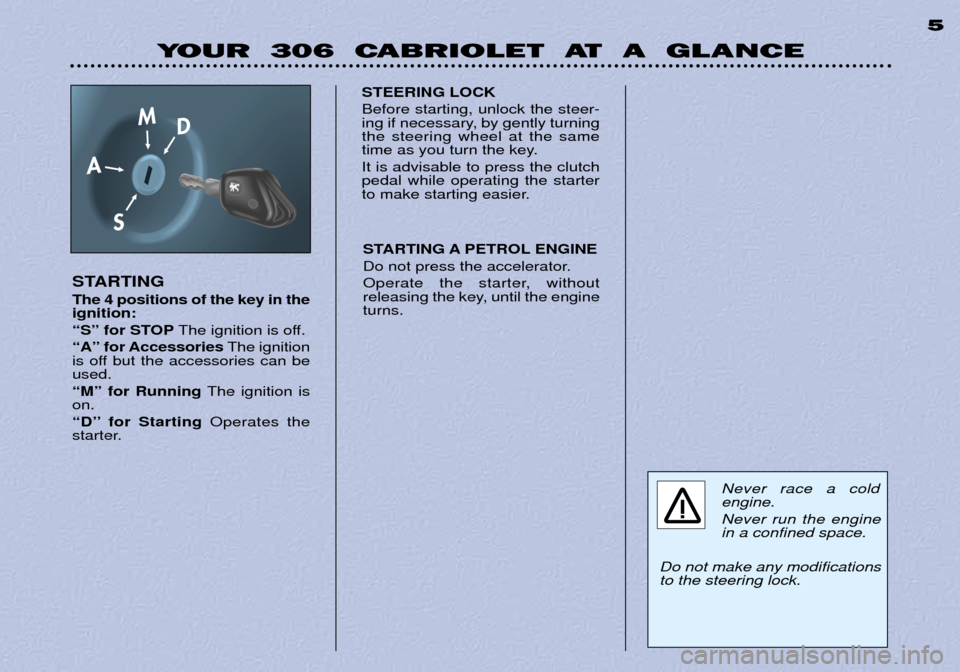

STARTING The 4 positions of the key in the ignition:
ÒSÓ for STOP The ignition is off.
ÒAÓ for Accessories The ignition
is off but the accessories can be used. ÒMÓ for Running The ignition is
on.
ÒDÕÕ for Starting Operates the
starter. STEERING LOCK Before starting, unlock the steer-
ing if necessary, by gently turningthe steering wheel at the same
time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier.
STARTING A PETROL ENGINE
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engineturns.
Never race a coldengine. Never run the engine in a confined space.
Do not make any modificationsto the steering lock.
Page 5 of 133
YOUR 306 CABRIOLET AT A GLANCE
4

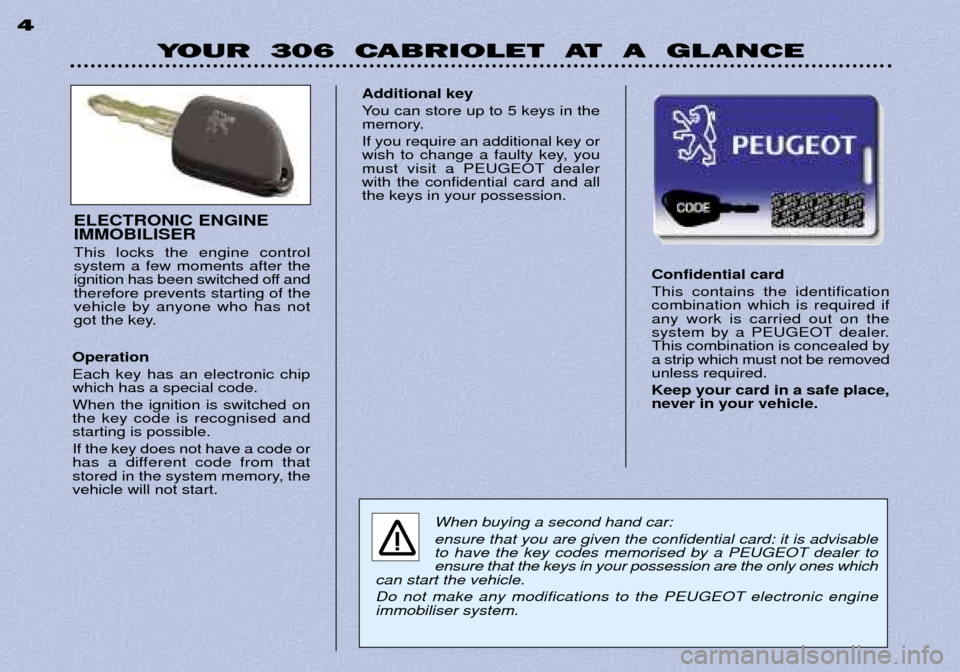

Confidential card This contains the identification combination which is required ifany work is carried out on the
system by a PEUGEOT dealer.This combination is concealed bya strip which must not be removedunless required. Keep your card in a safe place, never in your vehicle.
ELECTRONIC ENGINEIMMOBILISER This locks the engine control system a few moments after the
ignition has been switched off andtherefore prevents starting of thevehicle by anyone who has not
got the key.
Operation Each key has an electronic chip which has a special code. When the ignition is switched on the key code is recognised andstarting is possible. If the key does not have a code or
has a different code from that
stored in the system memory, thevehicle will not start. Additional key
You can store up to 5 keys in the
memory. If you require an additional key or
wish to change a faulty key, you
must visit a PEUGEOT dealerwith the confidential card and allthe keys in your possession.
When buying a second hand car: ensure that you are given the confidential card: it is advisable to have the key codes memorised by a PEUGEOT dealer toensure that the keys in your possession are the only ones which
can start the vehicle. Do not make any modifications to the PEUGEOT electronic engine immobiliser system.
Page 6 of 133
8786
AB3
2
1
0
4
YOUR 306 CABRIOLET AT A GLANCE7

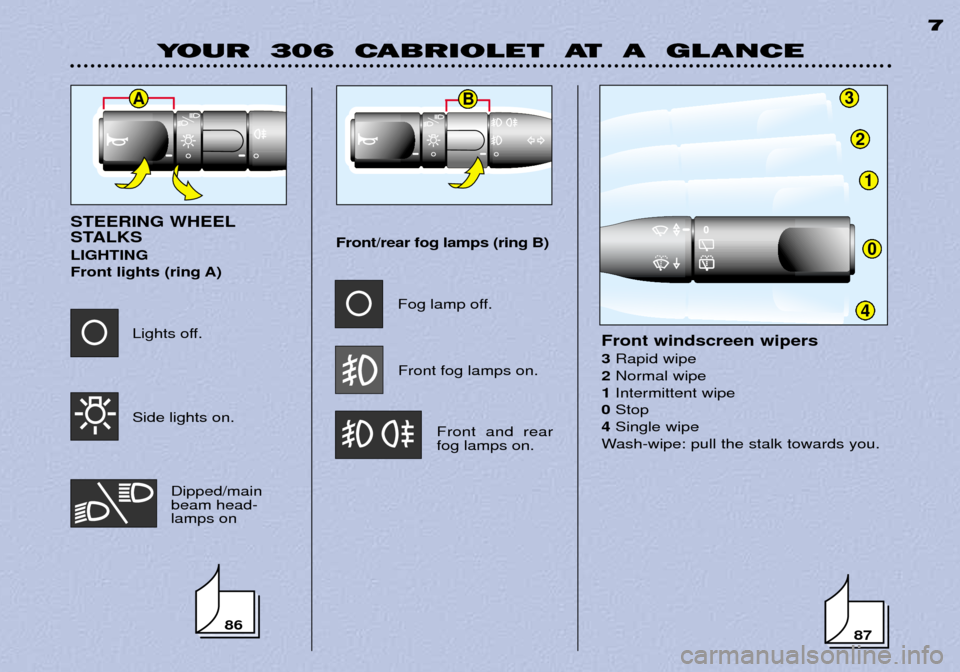

STEERING WHEEL
STALKS LIGHTING
Front lights (ring A)Front/rear fog lamps (ring B)
Front and rear fog lamps on. Front windscreen wipers 3
Rapid wipe
2 Normal wipe
1 Intermittent wipe
0 Stop
4 Single wipe
Wash-wipe: pull the stalk towards you.
Lights off. Side lights on.
Dipped/main beam head-lamps on Fog lamp off.
Front fog lamps on.
Page 7 of 133
82
5
3
21
4
82
YOUR 306 CABRIOLET AT A GLANCE
10

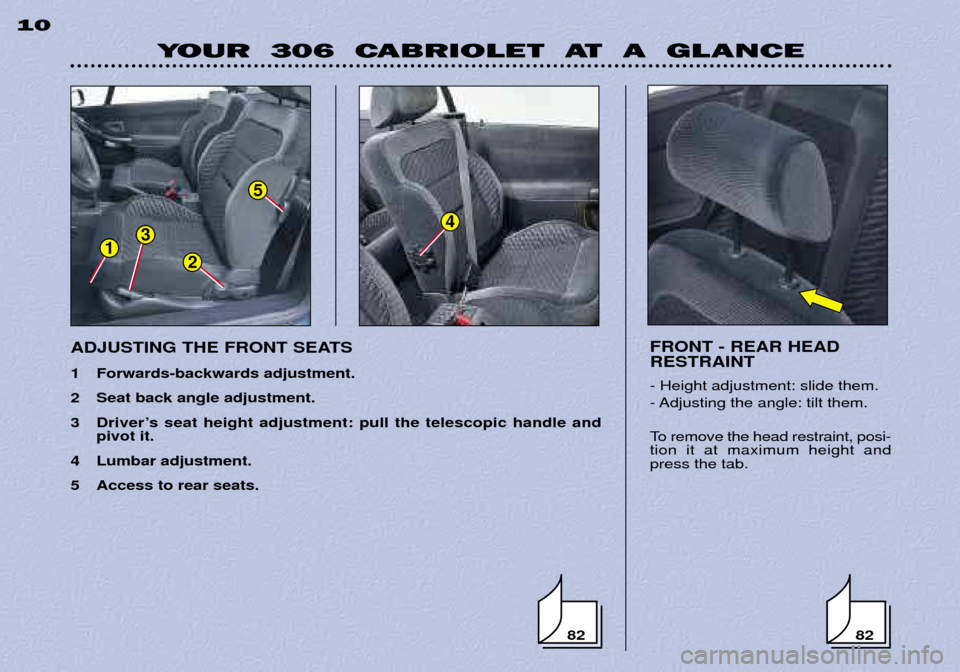

FRONT - REAR HEAD RESTRAINT - Height adjustment: slide them.
- Adjusting the angle: tilt them.
To remove the head restraint, posi- tion it at maximum height andpress the tab.
ADJUSTING THE FRONT SEATS
1 Forwards-backwards adjustment.
2 Seat back angle adjustment.
3 DriverÕs seat height adjustment: pull the telescopic handle and
pivot it.
4 Lumbar adjustment.
5 Access to rear seats.
Page 8 of 133
96
12
34
A
94

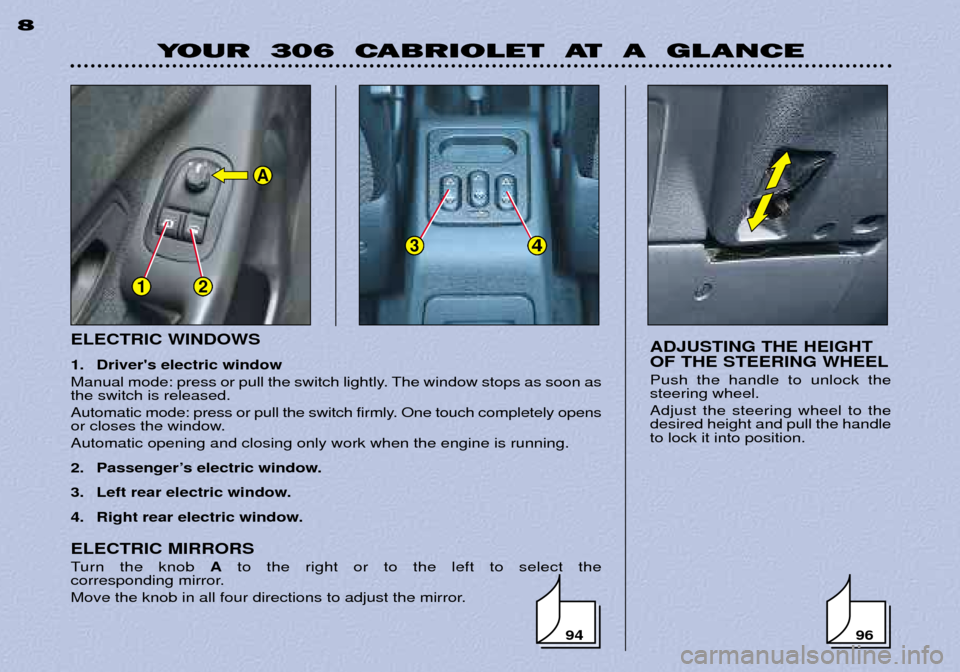

ELECTRIC WINDOWS
1. Driver's electric window
Manual mode: press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode: press or pull the switch firmly. One touch completely opens
or closes the window. Automatic opening and closing only work when the engine is running.
2. PassengerÕs electric window.
3. Left rear electric window.
4. Right rear electric window.
YOUR 306 CABRIOLET AT A GLANCE
8
ADJUSTING THE HEIGHT OF THE STEERING WHEEL Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handleto lock it into position.
ELECTRIC MIRRORS
Turn the knob
Ato the right or to the left to select the
corresponding mirror.
Move the knob in all four directions to adjust the mirror.
Page 9 of 133
88
1
YOUR 306 CABRIOLET AT A GLANCE9
9
FUEL FILLER FLAP
To open: firmly pull the handle on the floor to the outside of the driverÕs seat.
To close: from outside, push the flap back and check that it is secured
correctly. Filling with fuel Switch off the engine. There is a holder for the fuel filler cap.
A label on the inside of the flap shows which fuels are permitted and which are not allowed.
The capacity of the tank is approximately 11 gallons (50 litres).
Fuel low warning light The fuel low warning light indicates that the quantity of fuel remaining in the tank is approximately 1.3 gallons (6 litres).
Outside the vehicle Raise the catch 1and support the
bonnet as it rises.
OPENING THE BONNET Inside the vehicle:
Pull the
handle.
81
Page 10 of 133
46
1
12
YOUR 306 CABRIOLET AT A GLANCE11

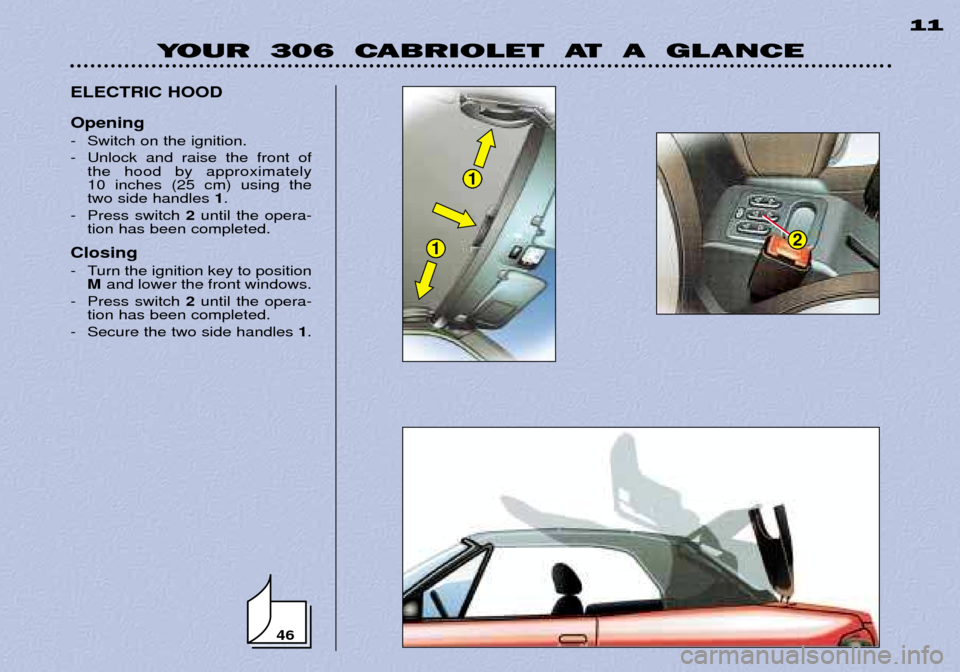

ELECTRIC HOOD Opening
- Switch on the ignition.
- Unlock and raise the front of the hood by approximately 10 inches (25 cm) using thetwo side handles 1.
- Press switch 2until the opera-
tion has been completed.
Closing
- Turn the ignition key to position M and lower the front windows.
- Press switch 2until the opera-
tion has been completed.
- Secure the two side handles 1.
