set clock Peugeot 306 C Dag 2001 Owner's Manual

12 3 4 56789 10 11 1 2
24 23 22 21 20 19 18 17 16 15
13 14
88

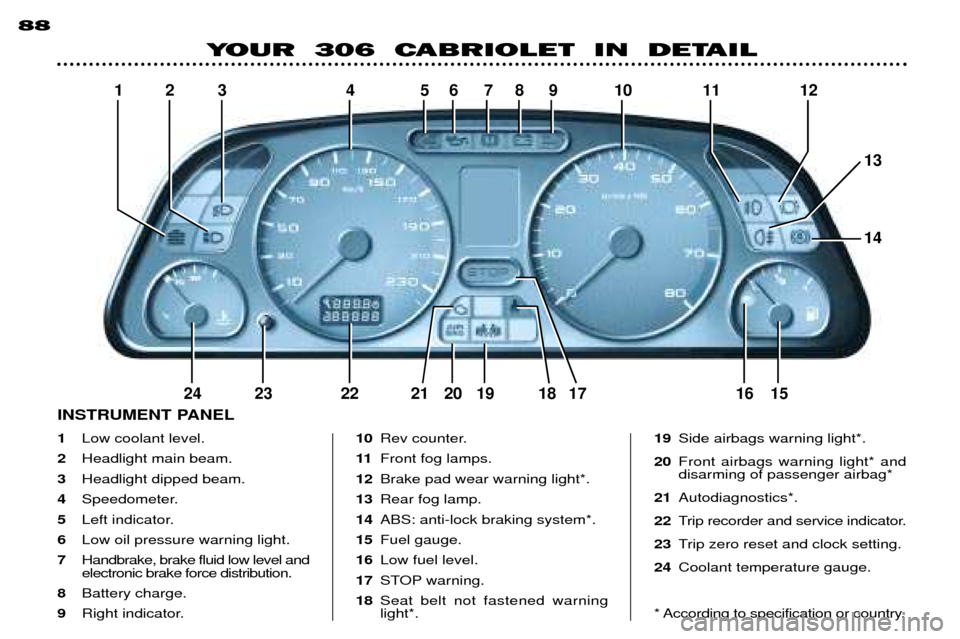

YOUR 306 CABRIOLET IN DETAIL
1Low coolant level.
2 Headlight main beam.
3 Headlight dipped beam.
4 Speedometer.
5 Left indicator.
6 Low oil pressure warning light.
7 Handbrake, brake fluid low level and electronic brake force distribution.
8 Battery charge.
9 Right indicator. 10
Rev counter.
11 Front fog lamps.
12 Brake pad wear warning light*.
13 Rear fog lamp.
14 ABS: anti-lock braking system*.
15 Fuel gauge.
16 Low fuel level.
17 STOP warning.
18 Seat belt not fastened warninglight*. 19
Side airbags warning light*.
20 Front airbags warning light* anddisarming of passenger airbag*
21 Autodiagnostics*.
22 Trip recorder and service indicator.
23 Trip zero reset and clock setting.
24 Coolant temperature gauge.
* According to specification or country.

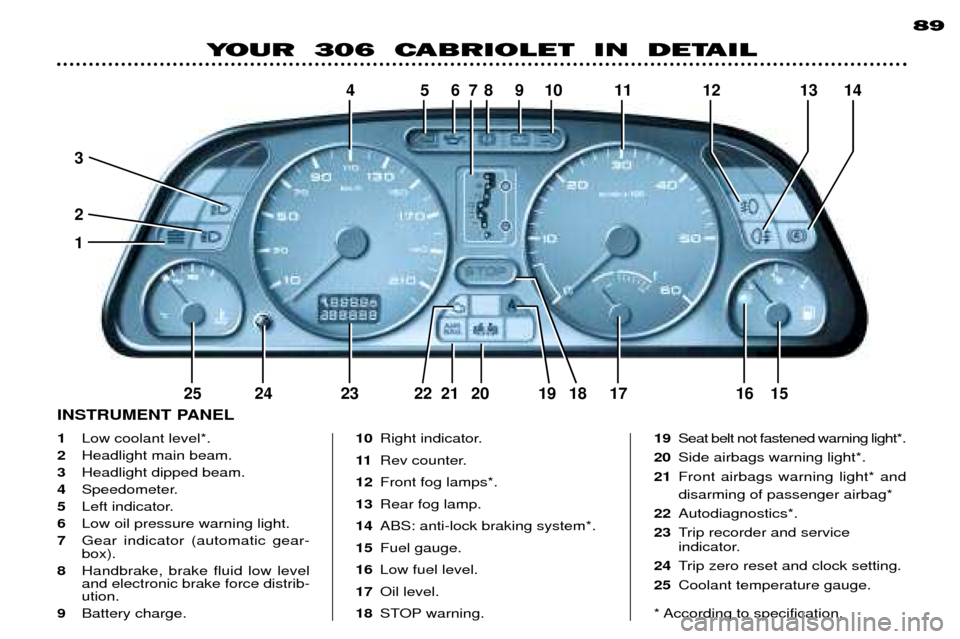

INSTRUMENT PANEL

4 5 6 7 8 9 10 11 12 13 14
3 2 1
25 24 23 22 21 20 19 18 17 16 15
89
YOUR 306 CABRIOLET IN DETAIL
1Low coolant level*.
2 Headlight main beam.
3 Headlight dipped beam.
4 Speedometer.
5 Left indicator.
6 Low oil pressure warning light.
7 Gear indicator (automatic gear- box).
8 Handbrake, brake fluid low leveland electronic brake force distrib-ution.
9 Battery charge. 10
Right indicator.
11 Rev counter.
12 Front fog lamps*.
13 Rear fog lamp.
14 ABS: anti-lock braking system*.
15 Fuel gauge.
16 Low fuel level.
17 Oil level.
18 STOP warning. 19
Seat belt not fastened warning light*.
20 Side airbags warning light*.
21 Front airbags warning light* and disarming of passenger airbag*
22 Autodiagnostics*.
23 Trip recorder and service
indicator.
24 Trip zero reset and clock setting.
25 Coolant temperature gauge.
* According to specification.
INSTRUMENT PANEL

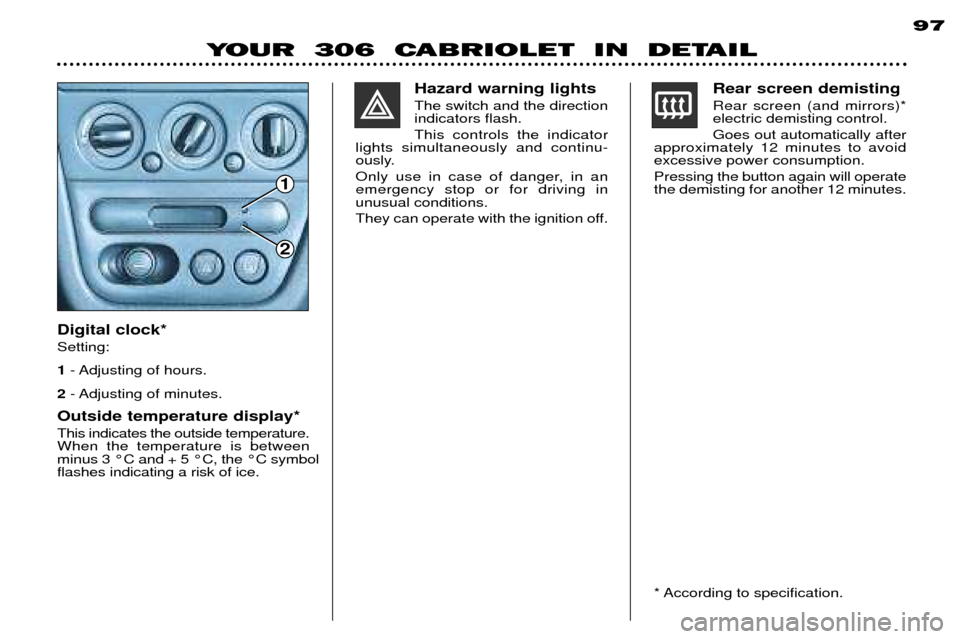

Digital clock* Setting: 1- Adjusting of hours.
2 - Adjusting of minutes.
Outside temperature display* This indicates the outside temperature. When the temperature is betweenminus 3 ¡C and + 5 ¡C, the ¡C symbolflashes indicating a risk of ice.
1
2
YOUR 306 CABRIOLET IN DETAIL 97
Rear screen demisting Rear screen (and mirrors)* electric demisting control. Goes out automatically after
approximately 12 minutes to avoid excessive power consumption. Pressing the button again will operate the demisting for another 12 minutes.
* According to specification.
Hazard warning lights The switch and the direction indicators flash. This controls the indicator
lights simultaneously and continu-
ously.
Only use in case of danger, in an emergency stop or for driving inunusual conditions.
They can operate with the ignition off.
