MAINTENANCE OF YOUR 306
22
THE MAINTENANCE CYCLE FOR YOUR 306 DIESEL (INDIRECT INJECTION NON-TURBO)
Service every 10,000 miles (15 000 km) or every 2 years
MILES (KM) 10,000 (15 000) 20,000 (30 000) 30,000 (45 000) 40,000 (60 000) 50,000 (75 000)
1st Service at 6,000 miles (10 000 km)* or 6 months*
The validity of the Warranty depends on this service.
60,000 (90 000) 70,000 (105 000) 80,000 (120 000) 90,000 (135 000) 100,000 (150 000) 110,000 (165 000)
+ timing belt replacement
* Whichever comes first
Brake fluid replacement every 2 years or every 40,000 (60 000km).
These operations are carried out with synthetic based oil; Fuel Economy oil or
synthetic oil can also be used. Intermediate visit

MAINTENANCE OF YOUR 30623
PEUGEOT SERVICING LEVELS A AND C
: All driving conditions : Arduous conditions
Level
Operations Description of operations for 1st serviceFirst serviceACIntermediate visit
DRAIN AND REFILL- Engine oil- Bleed fuel filter (diesel)- Oil filter.- Fuel filter (Petrol).REPLACEMENT- Fuel filter element (Diesel).- Air filter element.- Spark plugs (Petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removableLEVEL- Front/rear windscreen wash (check + top up).- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers), check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, rods, ball joints, flexible mountings- Shock absorbers for leaks- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (Petrol).- Smoke opacity (Diesel).- Pollen filter check (according to specification). - Visual check of the whole vehicle by a PEUGEOT dealer.
SERVICE- Courtesy vehicle
ROAD TEST

F
NL
SF
GR
A
D
CH
I
N
P
E
B
DK
GB
L
S
IRL
ACTIV
A
D
IES EL 7000
10W 40
AC TIVA D
IES EL 9000
5W 40
AC TIVA 9000
5W 30*
U
LT R A
DIESE L
10W 40
U LT R A
5W 30*
U LT R O
N D IES EL
5W 40
QUAR
TZ D IESEL 7000
10W 40
Q U
AR TZ 9000
5W 40
Q UAR
TZ 9000
5W 30*
AC TIV
A 7000
10W 40
AC TIV A 9000
5W 40
AC TIVA 9000
5W 30*
Q U
AR
TZ 7000
15W 50
U
LT R A
10W 40
U LT R A
5W 30*
U LT R ON

5W 40
U LT R O
N

0W 30
QUA R
TZ 7000
10W 40
Q U
AR TZ 9000
0W 40
Q U
AR TZ 9000
5W 40
Q U
AR TZ 9000
5W 30*

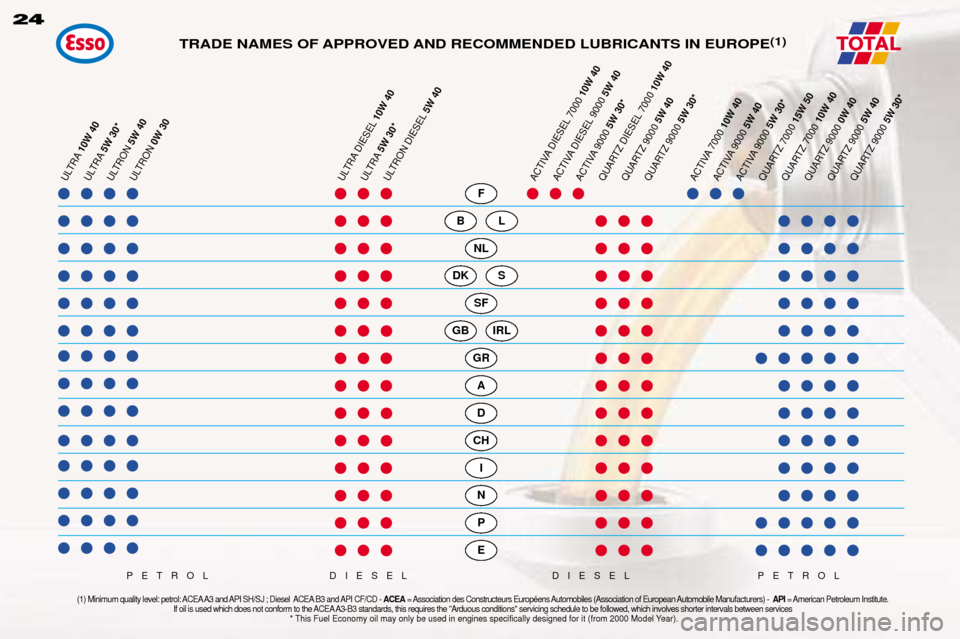

TOTALTRADE NAMES OF APPROVED AND RECOMMENDED LUBRICANTS IN EUROPE (1)
(1) Minimum quality level: petrol: ACEA A3 and API SH/SJ ; Diesel ACEA B3 and API CF/CD -
ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) - API= American Petroleum Institute.
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous conditions" servicing schedule to be followed, which involves shorter intervals between services * This Fuel Economy oil may only be used in engines specifically designed for it (from 2000 Model Year).
DIESEL
DIESEL
PETROL PETROL
24

0W203040
50
20W
15W
10W
5W
25
MAINTENANCE OF YOUR 306

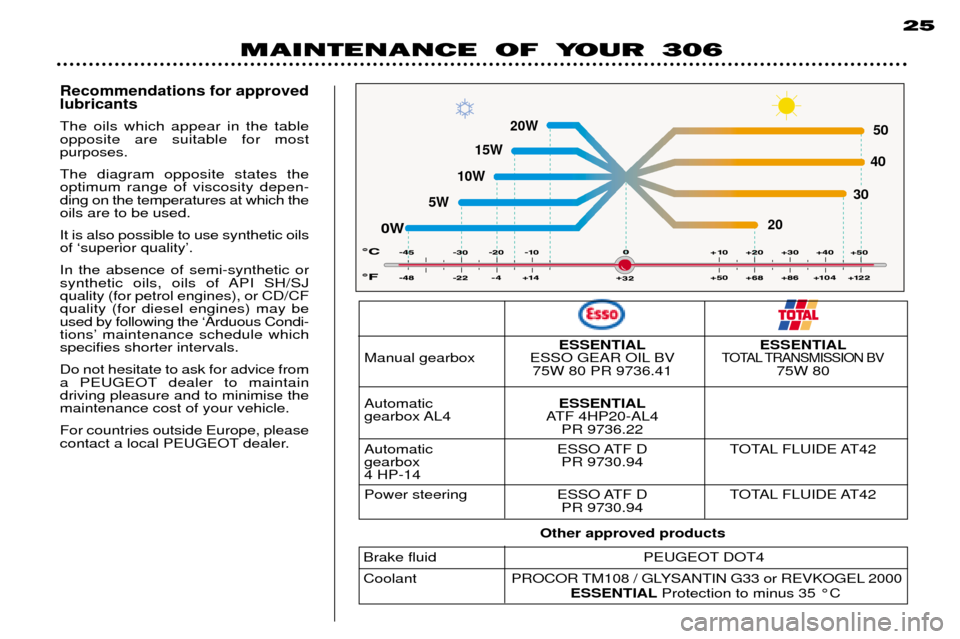

Recommendations for approved lubricants
The oils which appear in the tableopposite are suitable for most purposes. The diagram opposite states the optimum range of viscosity depen-ding on the temperatures at which theoils are to be used. It is also possible to use synthetic oils of Ôsuperior qualityÕ. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJquality (for petrol engines), or CD/CFquality (for diesel engines) may beused by following the ÔArduous Condi-
tionsÕ maintenance schedule whichspecifies shorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
ESSENTIAL ESSENTIAL
Manual gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W 80 PR 9736.41 75W 80
Automatic ESSENTIAL
gearbox AL4 ATF 4HP20-AL4 PR 9736.22
Automatic ESSO ATF D TOTAL FLUIDE AT42
gearbox PR 9730.944 HP-14
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Brake fluid PEUGEOT DOT4 Coolant PROCOR TM108 / GLYSANTIN G33 or REVKOGEL 2000
ESSENTIAL Protection to minus 35 ¡C
Other approved products

5678 910 11 12 13 14 15
4 321
26 25 24 23 22 21 20 19 18 17 16
92
