PRACTICAL INFORMATION
96
2 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir
2 - Windscreen/headlamp wash reservoir*
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Fuse box
7 - Air filter 8 -
Dipstick
9 - Engine oil filler cap
* According to specification

PRACTICAL INFORMATION
98
2 LITRE HDI TURBO DIESEL
ENGINE (90 bhp/110 bhp) 1 -
Power steering reservoir
2 - Windscreen/headlamp wash reservoir* 3 -
Coolant reservoir
4 - Brake fluid reservoir
5 - Battery
6 - Fuse box 7 -
Air filter
8 - Dipstick
9 - Engine oil filler cap
10 -Priming pump*
* According to specification

CHECKING THE LEVELS Oil level Check the level regularly and top
up between changes. The maxi-mum consumption is 0.5 l per 600miles (1000 km). Check the level with the vehicle level, engine cold, using the oil levelgauge on the instrument panel orthe dipstick.
Dipstick There are two marks onthe dipstick : A= maximum
Never fill past this mark.B = minimum
To maintain the reliability of engines and emissioncontrol systems, the useof additives in engine oilis prohibited.
Oil change According to the information given in
"PEUGEOT SERVICING" .
WARNING: avoid used oil from
coming into prolonged contact withthe skin.Viscosity selection In all cases, the oil selected must meet the manufacturer's require-ments. Brake fluid level:
- The level must always be between the DANGER and MAXIMUM
marks in the reservoir.
- If the level drops substantially, contact a PEUGEOT dealer imme-
diately.
Fluid change:
- must be carried out according to the manufacturer's servicing sche- dule,
- use fluids approved by the manu- facturer, which fulfil DOT4 stan-dards.
WARNING: brake and clutch fluid is
harmful to health and very corrosive.
Avoid all contact with the skin. Cooling system Use the fluid approved by the manu-
facturer. When the engine is warm, the tem- perature of the coolant is controlled
by the engine fan. As this fan canoperate with the ignition key remo-ved and because the cooling systemis pressurised, wait for at least onehour after the engine has stoppedbefore carrying out any work. Slacken the cap to the first notch torelease the pressure to prevent anyrisk of scalding. When the pressurehas dropped, remove the cap andtop up the level. Note :
the coolant does not need to
be changed. Used oil Do not dispose of used oil, brake fluid or coolant into drains or into theground. Power steering reservoir Open the reservoir, with the engi-
ne at ambient temperature. Thelevel should always be above theMIN. mark and close to the MAX.mark.
Windscreen and headlampwash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(reservoir capacity 3.5 litres or 6.5litres with headlamp wash).
* According to specification
PRACTICAL INFORMATION 99

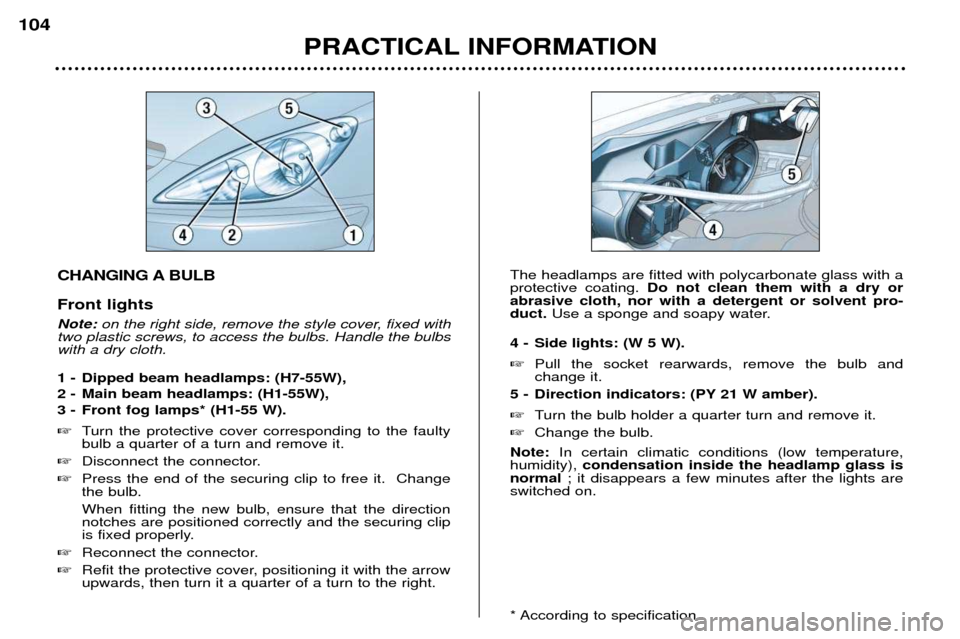

CHANGING A BULB Front lights Note: on the right side, remove the style cover, fixed with
two plastic screws, to access the bulbs. Handle the bulbs with a dry cloth.
1 - Dipped beam headlamps: (H7-55W),
2 - Main beam headlamps: (H1-55W),
3 - Front fog lamps* (H1-55 W). Turn the protective cover corresponding to the faulty bulb a quarter of a turn and remove it.
Disconnect the connector.
Press the end of the securing clip to free it. Changethe bulb. When fitting the new bulb, ensure that the direction notches are positioned correctly and the securing clip
is fixed properly.
Reconnect the connector.
Refit the protective cover, positioning it with the arrowupwards, then turn it a quarter of a turn to the right. The headlamps are fitted with polycarbonate glass with aprotective coating.
Do not clean them with a dry or
abrasive cloth, nor with a detergent or solvent pro-duct. Use a sponge and soapy water.
4 - Side lights: (W 5 W). Pull the socket rearwards, remove the bulb and change it.
5 - Direction indicators: (PY 21 W amber). Turn the bulb holder a quarter turn and remove it.
Change the bulb.
Note: In certain climatic conditions (low temperature,
humidity), condensation inside the headlamp glass is
normal ; it disappears a few minutes after the lights are
switched on.
* According to specification
PRACTICAL INFORMATION
104

PRACTICAL INFORMATION109
Fuse N¡ Rating*
Functions*
1 10 A Automatic gearbox reversing lights switch - Automatic gearbox starting inhibitor relay control - Manual gearbox reversing
lights switch - Vehicle speed sensor - Pre-heating control unit -
Water in diesel sensor - DW air flow sensor.
2 15 A Canister solenoid valve - Fuel pump.
3 10 A Power steering control unit - ABS or ESP control unit.
4 10 A Injection control unit - Fan unit relay control - Additional heating relay control -
Automatic gearbox control unit - Automatic gearbox sequential control -
Automatic gearbox shiftlock relay.
5 15 A Particulate emission filter control unit.
6 15 A Front fog lamps.
7 20 A Headlamp wash pump.
8 20 A Fan unit relay control - Injection supply control unit.
9 15 A Left dipped beam
10 15 A Right dipped beam
11 10 A Left main beam
12 10 A Right main beam
13 15 A Horn
14 10 A Front and rear headlamps wash pump
15 30 A Oxygen sensors - Exhaust gas recirculation solenoid valve - Ignition coil - Diesel high pressure regulator - Injectors supply (petrol).
16 40 A Petrol engine air pump with automatic gearbox.
17 30 A Low/high speed front wiper.
18 40 A Air conditioning blower.
* According to specification.

PRACTICAL INFORMATION107
Fuse no. Rating*
Functions*
9 30 A Electric windows - Press operation windows (incompatible with non-press operation windows) - Sunroof.
10 15 A Diagnostic socket - 12 volts rear socket.
11 15 A Audio equipment - Multifunction display B - Steering whel controls - Automatic gearbox.
12 10 A Front right side lights, rear right side lights, number plate and trailer lighting -
Central locking switches/ alarm/ESP/hazard warning lights - Air conditioning/ash
tray light - Heated seats switches - Lighter - Automatic gearbox switches -
Headlamp beam corrector.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30 A Rear windows.
16 5 A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Airbags.
17 10 A Rear right brake light, additional brake light Front electric window/sunroof.
18 10 A Diagnostic socket - Steering wheel controls - Brake pedal (stop) and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left side light, rear left side light - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A Instrument panel - Audio equipment - Multifunction display - Air conditioning.
26 30 A Heated rear screen.
* According to specification
