boot Peugeot 307 SW Dag 2002.5 User Guide

22-07-2002
CHANGING A WHEEL

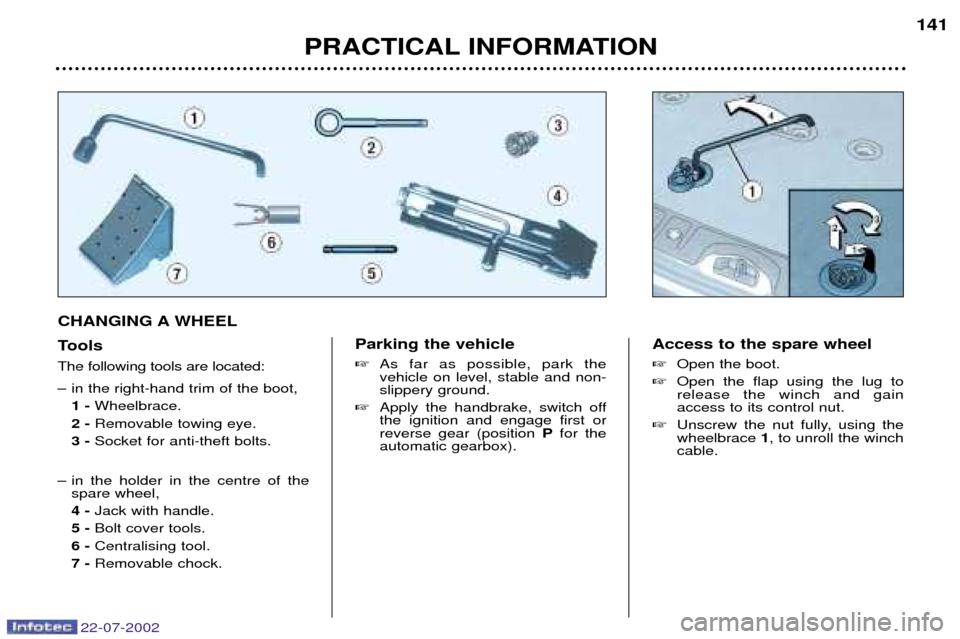

Tools The following tools are located:
Ð in the right-hand trim of the boot,1 - Wheelbrace.
2 - Removable towing eye.
3 - Socket for anti-theft bolts.
Ð in the holder in the centre of the spare wheel, 4 - Jack with handle.
5 - Bolt cover tools.
6 - Centralising tool.
7 - Removable chock. Parking the vehicle
As far as possible, park the vehicle on level, stable and non-slippery ground.
Apply the handbrake, switch offthe ignition and engage first orreverse gear (position Pfor the
automatic gearbox). Access to the spare wheel
Open the boot.
Open the flap using the lug to release the winch and gainaccess to its control nut.
Unscrew the nut fully, using thewheelbrace 1, to unroll the winch
cable.
PRACTICAL INFORMATION 141

22-07-2002
PRACTICAL INFORMATION143
For your safety, always change the wheel:
- on level, stable, non-slippery ground,
- with the handbrake on and the ignition switched off,
- with first or reverse gear enga- ged (position Pfor the automatic
gearbox),
- with the vehicle chocked. Never go underneath a vehicle that is supported only by a jack(use a ramp) Never refit the holder under the vehicle without the sparewheel. After changing the wheel:
- have the correct positioning of the punctured wheel, the tighte- ning of the bolts and the tyrepressure checked by a PEUGEOT dealer as soon aspossible.
- have the punctured tyre repai- red and refit it to the vehicle assoon as possible.
- have the correct positioning of the spare wheel checked by a
PEUGEOT dealer. Store the rest of the tools in the right-hand trim of the boot.
Fitting a wheel
Position the wheel using the cen- tralising tool 5to assist you.
Tighten the bolts by hand andremove the centralising tool 5.
Partly tighten the bolts using thewheelbrace 1.
Fold the jack 4and remove it.
Fully tighten the bolts using thewheelbrace 1.
Replace the wheel trim, startingby placing the wheel trim notchopposite the valve, and press iton using the palm of the hand.
Put the corresponding tools in
the holder and secure its cover.
Place the holder on the groundand align the spare wheel on it.
Pass the notched hook into the
holder cover.
Refit the wheel under the vehicletightening the winch control nutusing the wheelbrace 1.
Fully tighten and check that the
wheel is horizontally flush
against the rear floor.
Close the flap using the lug tolock the winch.

22-07-2002
PRACTICAL INFORMATION147
Third brake light: 4 W 5 W bulbs. Remove the tailgate upper trim carefully by unclipping it on eitherside, perpendicular to its direc-tion of engagement.
Insert a screwdriver into the twoouter holes Bto press on the two
tabs C.
Push the light unit outwards whilemaintaining the pressure on thetabs.
Pull the light unit outwards whiletilting it.
Change the faulty bulb.
When refitting, ensure that thelight unit tabs are engaged cor-rectly and that the tailgate uppertrim has been put back in place
correctly.
Remove the bulb holder pressing on the tabs A,
Change the faulty bulb.
Note: if necessary, use the wheel-
brace to remove the nuts. When refitting, take care to position
the bulb holder and the light correctly.
Number plate lights (W 5 W) Insert a thin screwdriver into one of the external holes of the lens.
Push it outwards to unclip it.
Remove the lens.
Change the faulty bulb.
Rear lights
1 - Brake lights (P 21 W).
2 - Side lights (R 5 W).
3 - Direction indicators (P 21 W).
4 - Reversing light (P 21 W), right
side.
Fog lamp (P 21 W), left side.
These 5 bulbs are changed by remo- ving the light: Remove the corresponding boot side trim to access the light,
Remove the light fixing nut insidethe boot,
Remove the light fixing nut outsidethe boot,
Remove the light,
Unclip the harness,

22-07-2002
TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)
You should always use a tow bar. The removable towing eye is inside the boot right-hand trim. From the front: Unclip the cover, by pressing the bottom part,
Screw in the removable towing eye as far as it will go.
From the rear: Unclip the top of the cover using a coin,
Screw in the removable towing eye as far as it will go.
Lifting (2 wheels only on the road ) It is preferable to raise the vehicle with a professional lifting device. Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
- lever in position
N,
- tow the vehicle at less than 50 km/h over a maximum distance of 50 km,
- do not add oil to the gearbox.
PRACTICAL INFORMATION
154
When towing with the engine switched off, thereis no braking or steeringassistance.

22-07-2002
PRACTICAL INFORMATION159
ACCESSORIES FOR YOUR 307 SW
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee.
Ð Safety :
Anti-theft alarms, window engraving, wheel locks, first aid kit, warning triangle...
Ð Comfort : Telephone console, front centre arm rest, covers compatible with side air bags, mats, boot
tray, cool box, door deflectors, CD storage, side sun blinds and rear blind, additional seats...
Ð Communication : Audio system, telephone, hands-free kit, speakers, amplifiers, CD changer, navigation sys-tems,
Ð Customising : Alloy wheels, trims, sport exhaust, aluminium or PVC door sills, mud flaps...
Ð Leisure : Tow bar, transverse roof bars, roof box, snow chains, ski carrier, bicycle carrier, entertain-
ment screen kit, DVD player...
Ð Children : Booster seats and child seats...
Ð
Maintenance products: Screenwash, interior and exterior cleaning and maintenance products...
Ð Commercial use : Kit for transformation into a van...
Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.
