navigation system Peugeot 307 SW Dag 2002.5 Owner's Manual

22-07-2002
YOUR 307 SW IN DETAIL35
MULTIFUNCTION SCREENS Presentation Monochrome screen B This enables the following informa- tion to be displayed:
Ð the time,
Ð the date,
Ð the outside temperature (the ¡
C
symbol flashes when there is a risk of ice),
Ð the radio displays,
Ð the status of the openings (doors, bonnet ...),
Ð the warning (e.g. "Battery charge fault") or information (e.g. "Passenger air bag disarmed")messages displayed temporarilycan be cleared by pressing button1or 2,
Ð the trip computer (see correspon- ding section).Monochrome screen CT and colour screen DT These two systems are controlled by the RT3 audio/telephone keypad.
They enable the following informa-tion to be displayed:
Ð the time,
Ð the date,
Ð the outside temperature (a messa- ge warns you when there is a risk of ice),
Ð the audio source displays (radio, CD,...),
Ð the telematic system displays (telephone, services,...),
Ð the status of the openings (doors, bonnet,...),
Ð the warning (e.g. "Fuel level low") and vehicle functions status (e.g."Passenger air bag disarmed")
messages displayed temporarily,
Ð the trip computer display (see cor- responding section),
Ð the satellite navigation system dis- plays (see corresponding section).
Note: to enable you to use all of your
system's functions, you have two CDROMs: one, "Configuration",contains the software and thevarious display and spoken informa-
tion languages, the other,"Navigation", contains the satellitenavigation system map data. Monochrome screen CT General menu Press the
"MENU"button to access
the general menu and select one of
the following applications:
Ð navigation - guidance (see section "Satellite navigation system"),
Ð trip computer (see corresponding section),
Ð directory (see "RT3 audio/telepho- ne" section),
Ð telematics (see "RT3 audio/tele- phone" section),
Ð configuration (see corresponding section).

22-07-2002
YOUR 307 SW IN DETAIL
36
Parameter configuration Monochrome screen B Press button 1for two seconds to
gain access to the settings. Then, each press of this button per- mits scrolling of the various parame-ters.
Ð language of the information dis- played,
Ð speed unit (km or miles),
Ð temperature unit (degrees Celcius or Fahrenheit),
Ð time format (12 or 24 hours),
Ð hour,
Ð minute,
Ð year,
Ð month,
Ð day. Pressing button 2enables you to
change the parameter selected. Continue pressing the button forrapid scrolling. After ten seconds without action, the
screen returns to the usual display,the modified data is recorded.
Ð configuration (see corresponding
section).
Ð map (see section "Satellite naviga- tion system")
A few definitions... Superimposed display: a window appears over the current application for a short while, toannounce a change of status of ano-ther application. Permanent application: main application currently in use,dis-
played in the main screen window. Contextual menu: limited menu associated with the main application currently in use, dis-
played in the main screen window.
Colour screen DT General menu Press the
"MENU"button to access
the general menu and select one of
the following applications: navigation - guidance (see section "Satellite navigation system"),
Ð trip computer (see corresponding section),
Ð directory (see "RT3 audio/telepho- ne" section),
Ð telematics (see "RT3 audio/tele- phone" section),

22-07-2002
YOUR 307 SW IN DETAIL
36
Parameter configuration Monochrome screen B Press button 1for two seconds to
gain access to the settings. Then, each press of this button per- mits scrolling of the various parame-ters.
Ð language of the information dis- played,
Ð speed unit (km or miles),
Ð temperature unit (degrees Celcius or Fahrenheit),
Ð time format (12 or 24 hours),
Ð hour,
Ð minute,
Ð year,
Ð month,
Ð day. Pressing button 2enables you to
change the parameter selected. Continue pressing the button forrapid scrolling. After ten seconds without action, the
screen returns to the usual display,the modified data is recorded.
Ð configuration (see corresponding
section).
Ð map (see section "Satellite naviga- tion system")
A few definitions... Superimposed display: a window appears over the current application for a short while, toannounce a change of status of ano-ther application. Permanent application: main application currently in use,dis-
played in the main screen window. Contextual menu: limited menu associated with the main application currently in use, dis-
played in the main screen window.
Colour screen DT General menu Press the
"MENU"button to access
the general menu and select one of
the following applications: navigation - guidance (see section "Satellite navigation system"),
Ð trip computer (see corresponding section),
Ð directory (see "RT3 audio/telepho- ne" section),
Ð telematics (see "RT3 audio/tele- phone" section),

YOUR 307 SW IN DETAIL67

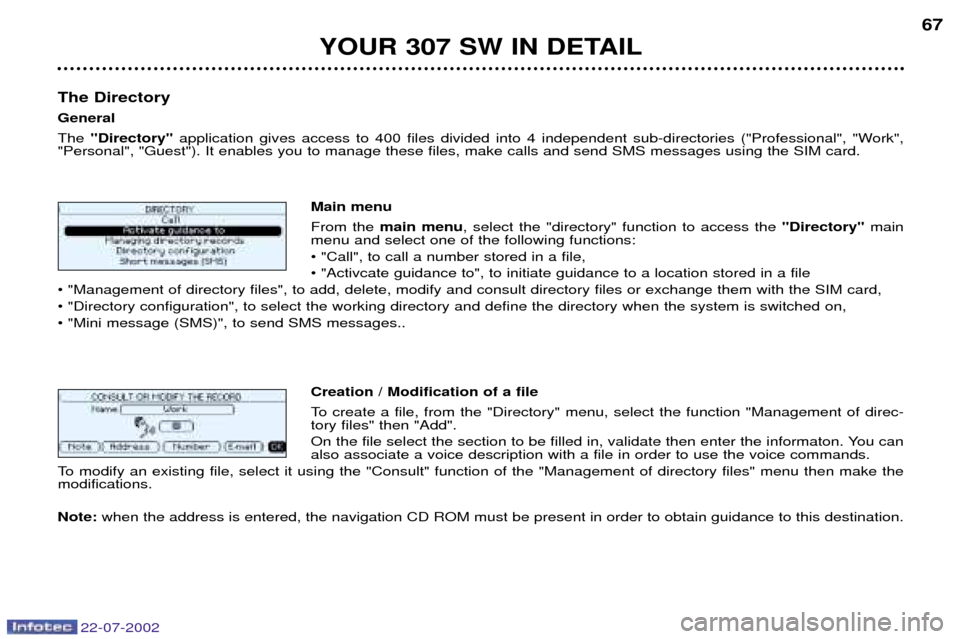

The Directory GeneralThe "Directory" application gives access to 400 files divided into 4 independent sub-directories ("Professional", "Work",
"Personal", "Guest"). It enables you to manage these files, make calls and send SMS messages using the SIM card.
Main menuFrom the main menu , select the "directory" function to access the "Directory"main
menu and select one of the following functions: ¥ "Call", to call a number stored in a file,¥ "Activcate guidance to", to initiate guidance to a location stored in a file
¥ "Management of directory files", to add, delete, modify and consult directory files or exchange them with the SIM card,¥ "Directory configuration", to select the working directory and define the directory when the system is switched on,¥ "Mini message (SMS)", to send SMS messages..
Creation / Modification of a file
To create a file, from the "Directory" menu, select the function "Management of direc- tory files" then "Add".
On the file select the section to be filled in, validate then enter the informaton. You can also associate a voice description with a file in order to use the voice commands.
To modify an existing file, select it using the "Consult" function of the "Management of directory files" menu then make themodifications. Note: when the address is entered, the navigation CD ROM must be present in order to obtain guidance to this destination.
22-07-2002

22-07-2002
YOUR 307 SW IN DETAIL
72

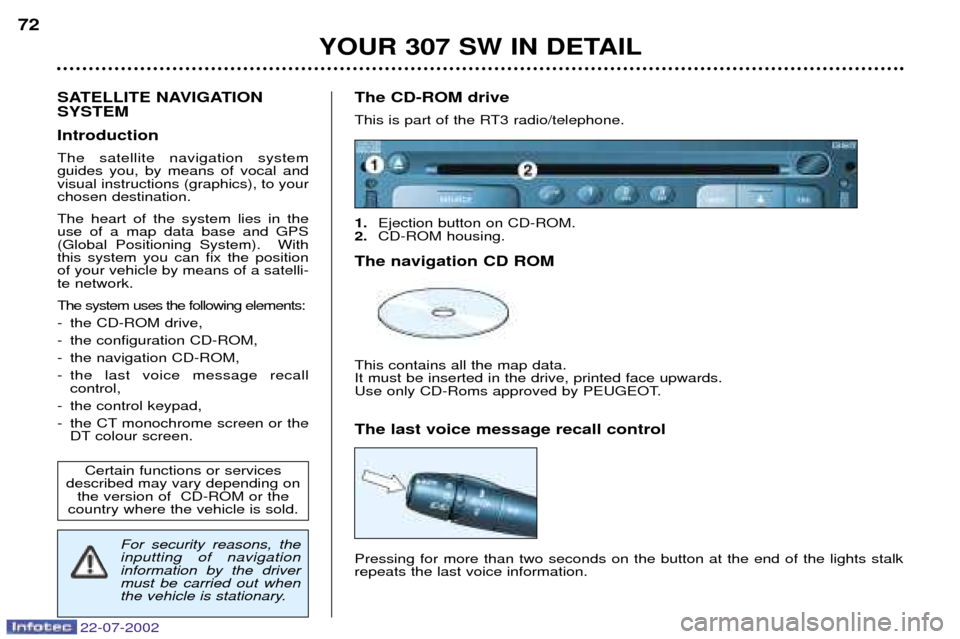

SATELLITE NAVIGATION SYSTEM Introduction The satellite navigation system guides you, by means of vocal andvisual instructions (graphics), to yourchosen destination. The heart of the system lies in the use of a map data base and GPS(Global Positioning System). Withthis system you can fix the positionof your vehicle by means of a satelli-te network. The system uses the following elements:
- the CD-ROM drive,
- the configuration CD-ROM,
- the navigation CD-ROM,
- the last voice message recallcontrol,
- the control keypad,
- the CT monochrome screen or the DT colour screen. The CD-ROM drive
This is part of the RT3 radio/telephone. 1.
Ejection button on CD-ROM.
2. CD-ROM housing.
The navigation CD ROMThis contains all the map data. It must be inserted in the drive, printed face upwards.
Use only CD-Roms approved by PEUGEOT. The last voice message recall control Pressing for more than two seconds on the button at the end of the lights stalk repeats the last voice information.
Certain functions or services
described may vary depending on the version of CD-ROM or the
country where the vehicle is sold.
For security reasons, the inputting of navigationinformation by the drivermust be carried out when
the vehicle is stationary.

22-07-2002
YOUR 307 SW IN DETAIL73
Dial; this has two functions: Ð Rotation of the dial:
This allows you to move roundthe screen and thus select a function.
It also allows you : Ð with a "setting" type parameter, after selection, to increase or decreasethe
value,
Ð with a "list"type parameter, to open the list and scroll throughthe values.
Ð with mapguidance, to increase the zoom.
Ð Pressing the dial: This allows:
Ð access to the list of controls (contextual menu) of the permanent display, if
there is no other display superimposed.
Ð confirmation of the selected function or the modified value.
Ð selection of a "setting" or "list" type parameter for modification.
"MODE" button:
Ð Brief press: modification of permanent display (audio system, navigation / gui- dance...),
Ð Pressing for more than two seconds displays general information
"ESC" button:
Ð Brief press: cancellingof operation in progress or erasingof last superimpo-
sed display.
Ð Pressing for more than two seconds: erasing of all superimposed displays and return to the permanent display.
"MENU" button:
Ð Brief pressure: access to the general menu.
Ð Pressing for more than two seconds: acces to the help menu.
The control pads These let you select and validate the functions, controls and programmesdisplayed. The control pad is an integral part of
the RT3 radio/telephone.

22-07-2002
PRACTICAL INFORMATION159
ACCESSORIES FOR YOUR 307 SW
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee.
Ð Safety :
Anti-theft alarms, window engraving, wheel locks, first aid kit, warning triangle...
Ð Comfort : Telephone console, front centre arm rest, covers compatible with side air bags, mats, boot
tray, cool box, door deflectors, CD storage, side sun blinds and rear blind, additional seats...
Ð Communication : Audio system, telephone, hands-free kit, speakers, amplifiers, CD changer, navigation sys-tems,
Ð Customising : Alloy wheels, trims, sport exhaust, aluminium or PVC door sills, mud flaps...
Ð Leisure : Tow bar, transverse roof bars, roof box, snow chains, ski carrier, bicycle carrier, entertain-
ment screen kit, DVD player...
Ð Children : Booster seats and child seats...
Ð
Maintenance products: Screenwash, interior and exterior cleaning and maintenance products...
Ð Commercial use : Kit for transformation into a van...
Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.
