Peugeot 307 SW Dag 2002 Owner's Guide

Instrument panel display After switching on the ignition, three functions are shown in succession:
- service indicator (see corresponding section),
- engine oil level indicator,
- total distance recorder (total and trip distances).Note:the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level indicator When the ignition is switched on, the engine oil level is indicated for approxima- tely 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whether the display is correct; a surplus of oil can cause damage to the engine.
Contact a PEUGEOT dealer without delay. Minimum
Check the level with the dipstick and top it up. The figure shown is only correct if the vehicle has been on stable, level ground, withthe engine stopped, for 10 minutes. Oil level gauge fault Flashing of the segments, the square or of "min" and "max" indi- cates a fault in the oil level gauge. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer. Lighting rheostat With the lights on, press the button tovary the intensity ofthe lighting on theinstrument panel andthe multi-function dis-
play. When the ligh-
ting reaches the minimum (or maxi-mum) setting, release the buttonthen press it again to increase (orreduce) the brightness. As soon as the lighting is of the required brightness, release the but-ton.
Trip recorder zero reset With the ignition on, press the button.
INSTRUMENTS AND CONTROLS
34

YOUR 307 SW IN DETAIL35
THE MULTI-FUNCTION
DISPLAY Multi-function display B Presentation This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (the
¡C
symbol flashes when there is a risk of ice),
- the radio displays,
- the status of the doors (door, bon- net open),
- the temporarily displayed warning messages (e.g. ''battery low'') or information messages (e.g. "pas-senger air bag disarmed'') can becleared by pressing button 1or 2,
- the trip computer (see correspon- ding section).Setting the parameters Keep button 1pressed for two
seconds to access the settings. Then, individual presses on this but- ton allow you to scroll through thevarious parameters:
- language in which the information is displayed,
- unit of distance (kms or miles),
- unit of temperature (degrees Celsius or Fahrenheit),
- time format (12 or 24 hour mode),
- hour,
- minutes,
- year,
- month,
- day. Pressing button 2allows you to
change the parameter selected. Maintain the pressure for rapid scrol-ling. After ten seconds without operation, the screen returns to the current dis-
play, the modified data are recorded.
For safety reasons, confi-guration of the multi-func-tion displays by the drivermust be carried out when
stationary.

AUDIO RB3
YOUR 307 SW IN DETAIL
36
Stalk movement Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1+ 2 Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio) -
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio) -
Selection of the previous track (CD)
5 - Press the end Change of source (radio/cassette/CD changer)
6 - Rotation Selection of next station stored in memory (radio) -
(clockwise) Selection of next CD.
7 - Rotation Selection of previous station stored in memory (radio) -
(anti-clockwise) Selection of previous CD.

YOUR 307 SW IN DETAIL37
Button Function
A RDS RDS function on / off.
Press for more than 2 seconds : regional following mode on/off.
BT ATraffic information priority on/off.
C Press fully: cassette rewind.
D Press fully: fast forward.
C+D j
j k
k
Press half way: reversal of direction of play of the cassette.
j
j j
j k
k k
k
Press fully: ejection of the cassette.
E Increase bass/treble setting.
F Decrease bass/treble setting.
G Adjustment of bass, treble, loudness, sound distribution and automatic volume correction.
H SRC Selection of source: radio, cassette or CD changer.
Press for more than 2 seconds: CD shuffle.
I kk Manual and automatic search of higher frequency.
Selection of next CD track and PTY (radio).
J jj Manual and automatic search of lower frequency.
Selection of previous CD track and PTY (radio).
K MAN Manual/automatic operation of buttons Iand Jin radio mode.
L BND Selection of FM1, FM2, FMast and AM wavebands.
AST Press for more than 2 seconds: automatic storing of stations in memory (autostore).
M Radio on/off. N Ð
Decrease volume.
O +Increase volume.
1 to 6 12 34 56 Selection of station stored in memory.
Press for more than 2 seconds: storing of a station in memory.
1 to 5 1 2 3 4 5 Selection of a CD changer disc.

GENERAL FUNCTIONSOn/off With the ignition key in the accessories or ignition position, press button Mto switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press button Oto increase the volume, or button Nto decrease it.
Continuous pressure on buttons Oand Nallows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Gseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader ( FAD), balance (BAL)and automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button G
after configuration of the automatic volume correction. Note : bass and treble settings are specific to each source. It is possible to set them differently for radio,
cassette (RB3), CD (RD3) and CD changer.
YOUR 307 SW IN DETAIL
40

Adjusting the bassWhen "BASS" is displayed, press button Eor Fto vary the setting.
- "BASS -9" for a minimum bass setting,
- "BASS 0" for a normal setting,
- "BASS +9" for a maximum bass setting.
Adjusting the treble When "TREB" is displayed, press button Eor Fto vary the setting.
- "TREB -9" for a minimum treble setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum treble setting.
Adjusting the loudnessThis function automatically emphasises bass and treble tones. Press button Eor Fto switch the function on or off.
Adjusting the front/rear sound distribution (Fader) When "FAD" is displayed, press button Eor F.
Button Eincreases the volume at the front.
Button Fincreases the volume at the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Eor F.
Button Eincreases the volume on the right-hand side.
Button Fincreases the volume on the left-hand side.
Automatic volume correction "CAV"This function enables the volume to be automatically adjusted depending on the level of noise produced by the speed of the vehicle. Press buttons Eor Fto switch the function on or off.
YOUR 307 SW IN DETAIL 41

RADIO Notes on radio reception
Your car radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are
subject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the
signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting radio mode

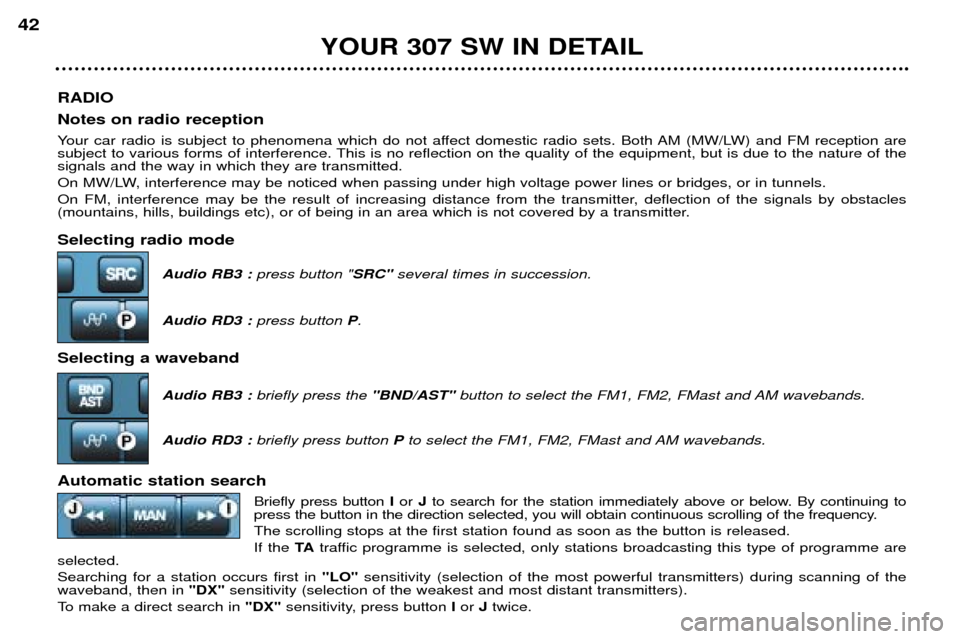

Audio RB3 : press button " SRC"several times in succession.
Audio RD3 : press button P.
Selecting a waveband Audio RB3 : briefly press the "BND/AST"button to select the FM1, FM2, FMast and AM wavebands.
Audio RD3 : briefly press button Pto select the FM1, FM2, FMast and AM wavebands.
Automatic station search Briefly press buttonIor Jto search for the station immediately above or below. By continuing to
press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.If the TAtraffic programme is selected, only stations broadcasting this type of programme are
selected.Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX" sensitivity, press button Ior Jtwice.
YOUR 307 SW IN DETAIL
42

Manual station search Press the"MAN" button.
Briefly press button Ior Jto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.
Automatic storing of FM stations in the memory (autostore)
Audio RB3 : press and hold the "BND/AST" button for more than two seconds.
Audio RD3 : press and hold button "P" for more than two seconds.
Your radio automatically stores the 6 stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly press buttons "1" to "6" to recall the corresponding station.
YOUR 307 SW IN DETAIL 43

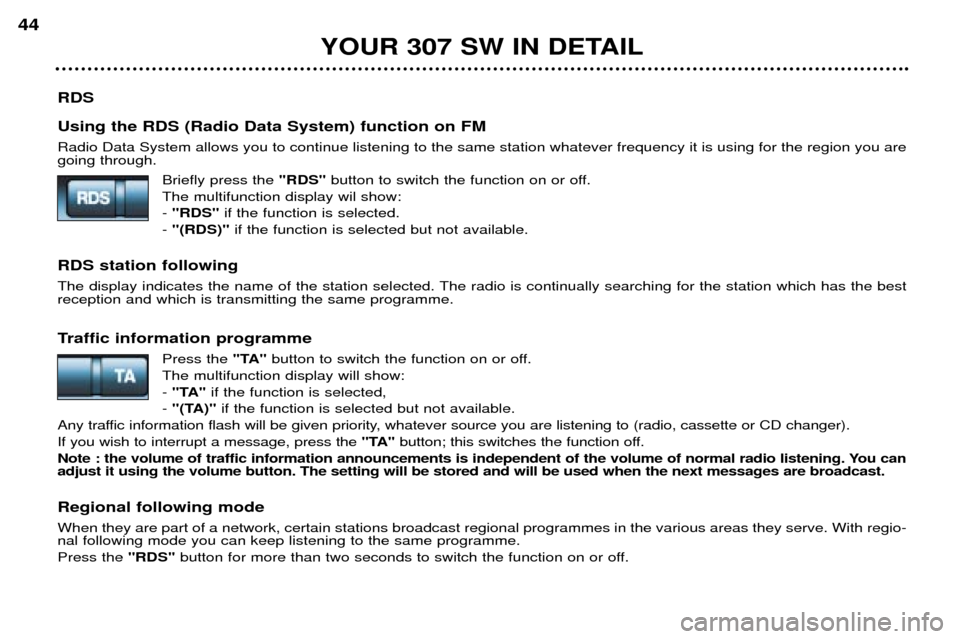

RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station whatever frequency it is using for the region you are going through.Briefly press the "RDS"button to switch the function on or off.
The multifunction display wil show: - "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the"TA"button to switch the function on or off.
The multifunction display will show: - "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broadcast. Regional following mode When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
YOUR 307 SW IN DETAIL
44

CASSETTE: AUDIO RB3 Selecting cassette modeWhen a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, press the "SRC"button several times to select cassette mode.
Note: before inserting the cassette, ensure that the tape is taut.
Ejecting the cassette Fully press buttons Cand Dto eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a
side. To manually reverse the direction of play, press the 2 buttons Cand Dhalf way.
Fast forward/rewindFully press button C or Dto fast forward or rewind the cassette. At the end of the fast forward/rewind, the set plays the cur-
rent side. Recommendations for using casssettes - Use good quality cassettes.
- Avoid use of cassettes which play for longer than 90 minutes.- Never expose the cassettes to heat or the direct rays of the sun.
- Re-tighten the tape if necessary before introducing the cassette in the player.- Clean the playing head regularly with a damp type cleaning cassette.
