Peugeot 307 SW Dag 2003 Owner's Manual

YOUR 307 SW AT A GLANCE1
Pages
Seats 88-102
Steering wheel controls 110-116
Instrument dials 28-29
Ventilation, air conditioning 82-87
Mirrors 118-119
Pages
Checks 136-140
Access 103-109
Fuel filler flap 109
Changing a bulb 145-147
Changing a wheel 141-144
Each model may only be fitted with some of the equipment shown, according to its specification and the technical requirements in the country of first registration of the vehicle.
14-04-2003

2YOUR 307 SW AT A GLANCE
14-04-2003

14-04-2003
3YOUR 307 SW AT A GLANCE

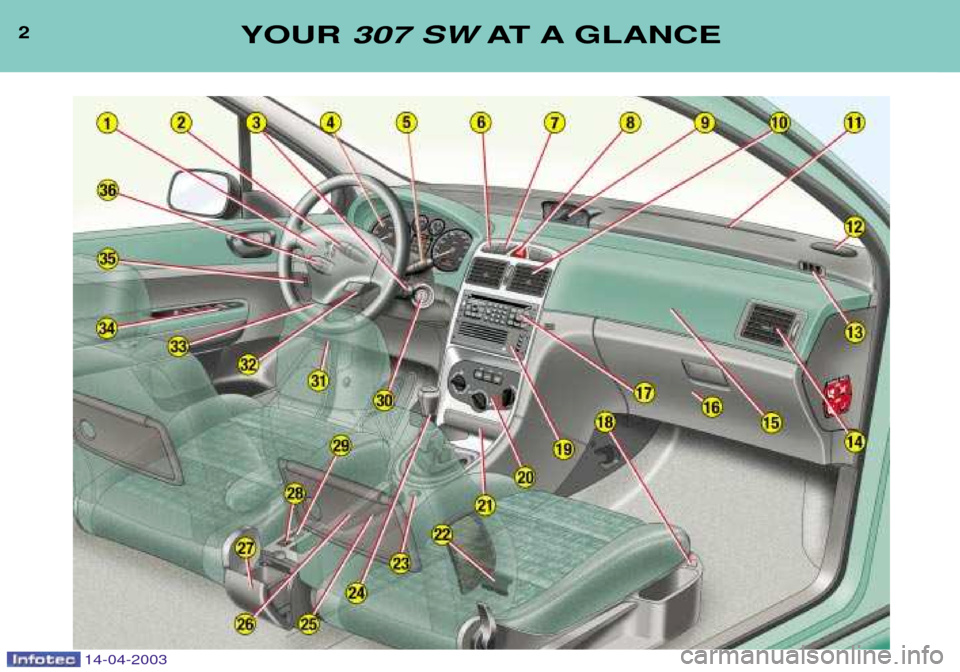

1 -Driver's air bag. Horn.
2 - Lights and direction indicators stalk.
3 - Audio remote control stalk.
4 - Instrument dials.
5 - Windscreen wash-wipestalk.
Trip computer stalk.
6 - Alarm button.
7 - Central locking button.
8 - Hazard warning lights switch.
9 - Multi-function display.
10 - Central adjustable ventilation and air flowregulation vents.
11 - Windscreen demistingvents.
12 - Speaker (tweeter) location.
13 - Side window demistingvent. 14 -
Side adjustable ventilation and air flow regulation vent.
15 - Passenger air bag.
16 - Glove box.
17 - RB3, RD3 or RT3 audioequipment.
18 - Heated seat switches.
19 - CD changer.
20 - Ventilation / air conditioningcontrols.
21 - Front ashtray.
22 - Rear footwell heating vent.
23 - 12 V accessories socket.
24 - Gear lever.
25 - Can holder.
26 - Handbrake.
27 - Waste container. 28 -
Passenger air bag disarming switch*.
29 - Panoramic roof concealingflap control.
30 - Steering lock and ignition.
31 - Bonnet opening control.
32 - Steering wheel adjustmentcontrol.
33 - Fuse box.
34 - Electric mirror controls.Window controls.Rear window lockingcontrol.
35 - Headlamp height adjustment.
36 - Cruise control
* According to destination

4YOUR 307 SW AT A GLANCE
14-04-2003
THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the front doors, the fuelfiller cap, the glove box and thepassenger air bag disarmingswitch. Central locking
From the driver's door, the keys allow you to lock, deadlock orunlock the doors and the tailgateand to fold back the exterior mir-rors. If one of the doors or the boot is open, it is impossible to operatethe central locking; an audiblesignal indicates locking by remo-te control. The remote control performs the same functions at a distance. The remote control key Locking Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Note: a long press on button A,
in addition to deadlocking, auto- matically closes the windows.
Vehicles fitted with deadlocking
Deadlocking renders theinternal and external doorlocking controls inoperative.
Press button Ato deadlock the
vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Note : a long press on button A
permits automatic closing of the windows, in addition to deadloc-king.
A second press on button Ain
the five seconds following dead- locking, changes deadlocking tonormal locking. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds.
Unlocking Press button Bto unlock the
vehicle. This is confirmed by rapid flashing of the direction indicators. Note : If the vehicle is locked
and unlocking is activated inad- vertently without the doors beingopened within 30 seconds,the vehicle will re-lock
automatically.
STARTING
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces-sories can be used. 2nd notch, Running position: the ignition is on. Starting position:
operates the starter.
103

5YOUR 307 SW AT A GLANCE
14-04-2003
STEERING WHEEL
STALKS LIGHTING
Front and rear lights (ring A)
Lights off. Side lights.Dipped / main beam headlamps. Automatic switching on of lights
Automatic switching on of lights
To activate or disarm the func- tion, place the key in the acces-sories position, the lights stalk inposition 0and press the end of
the lights stalk for more than twoseconds.Vehicles fitted with a rear fog lamp (ring B)
Rear fog lamp (rotation of the ringforwards)
Vehicles fitted with front foglamps and a rear fog lamp(ring C) Front fog lamps (first rotation of the ring forwards)
Front fog lampsand rear fog lamp(second rotationof the ring
forwards)
Switching off: rotation ofthe ring rearwards.WINDSCREEN WIPERS Front 2 Rapid wipe
1 Normal wipe
I Intermittent wipe
or
AUTO Automatic wipe
0 Off
Single wipe
Wash-wipe: pull the stalk towards you.
Automatic wipe In the AUTO position,
the wiper operates auto- matically and adjusts its
speed to the intensityof the rainfall .
Rear
Off Intermittent Wash- wipe wipe
11 0
11 2

14-04-2003
6YOUR 307 SW AT A GLANCE
FRONT SEATS 1- Forwards-backwards adjust- ment.
2- Seat back angle adjustment.
3- Driver or passenger seatheight adjustment.
4- Heated seats switch.
5- Front removable armrest.
6- Head restraint height andangle adjustment
To raise or lower the headrestraint, pull it forwards, sliding it at the same time.
Never drive with thehead restraints removed.
7- Storage drawer.
8- "Aircraft" type table.
88

14-04-2003
Manoeuvring an additional seat:
- seat back angle adjustment (1),
- head restraint height adjust- ment (2),
- folding (3),
- removal/refitting (4).
7YOUR 307 SW AT A GLANCE
REAR SEATS Manoeuvring a side seat:
- forwards-backwards adjust-
ment (1),
- seat back angle adjustment (2),
- head restraint height adjust- ment (3),
- folding (4),
- removal/refitting (5). Manoeuvring a centre seat:
- forwards-backwards adjust-
ment (1),
- seat back angle adjustment, table position (2),
- head restraint height adjust- ment (3),
- folding (4),
- removal/refitting (5).
90

8YOUR 307 SW AT A GLANCE
14-04-2003
SEAT MODULARITY AND CONFIGURATIONS
100
5 seats 5 seats with centre seat in row 3
6 seats with one additional seat 7 seats with two additional seats
Transportation of long objects with table position Loading of a large volume

14-04-2003
9YOUR 307 SW AT A GLANCE
AIR BAGS The air bag system has been desi- gned to maximise the safety of theoccupants in the event of seriouscollisions. It works in conjunctionwith the force limiting seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the pas- senger air bag disarm the air bag if you ins- tall a rear facing child seat,
 activate the air bag for an
adult passenger. Disarming the passengerair bag*
with the ignition off, insert the key into slot 1and turn the
passenger air bag switch tothe "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again.
Operating check
With the ignition switched on (2nd notch), illumina-tion of the warning light,accompanied by an
audible signal and the message"Passenger air bag disarmed"
on the multi-function display, indi-cates that the passenger air bag isdisarmed (switch in the "OFF"
position). The warning light remains on throughout the disarming process. Side air bags* and curtain air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. Curtain air bags are incorporated into the door pillars and the top ofthe passenger compartment. They are deployed independently
of each other, depending on whichside the collision occurs.
* According to country.
133134

14-04-2003
Safety auto-reverse: When the window is closing and meets an obstacle, it stops and lowers again.
ELECTRIC MIRRORS
10YOUR 307 SW AT A GLANCE
ELECTRIC WINDOWS
1 - Driver"s electric window
2 - Passenger"s electric window.
3 - Rear right electric window.
4 - Rear left electric window.
5 - Disarming the rear window switches. STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT When stationary, pull handle A
to unlock the steering wheel.
 Adjust the height and depth of the steering wheel.
 Lock it by pushing handle Ain
fully.
Manual operation:  Press or pull the switch lightly.
The window stops as soon as the switch is released. Automatic operation:
Press or pull the switch firmly.
One touch completely opens or
closes the window.
11 7
 Slide button 6to the right or
left to select the correspon-
ding mirror.
 Then move button 7in all four
directions to adjust.
 Move button 6back to the
centre position. When parking the vehicle, themirrors can be folded back
manually, electrically bypulling button
6rearwards
or automatically on lockingthe vehicle.
11 8120
