child lock Peugeot 307 SW Dag 2003 Owner's Manual

14-04-2003

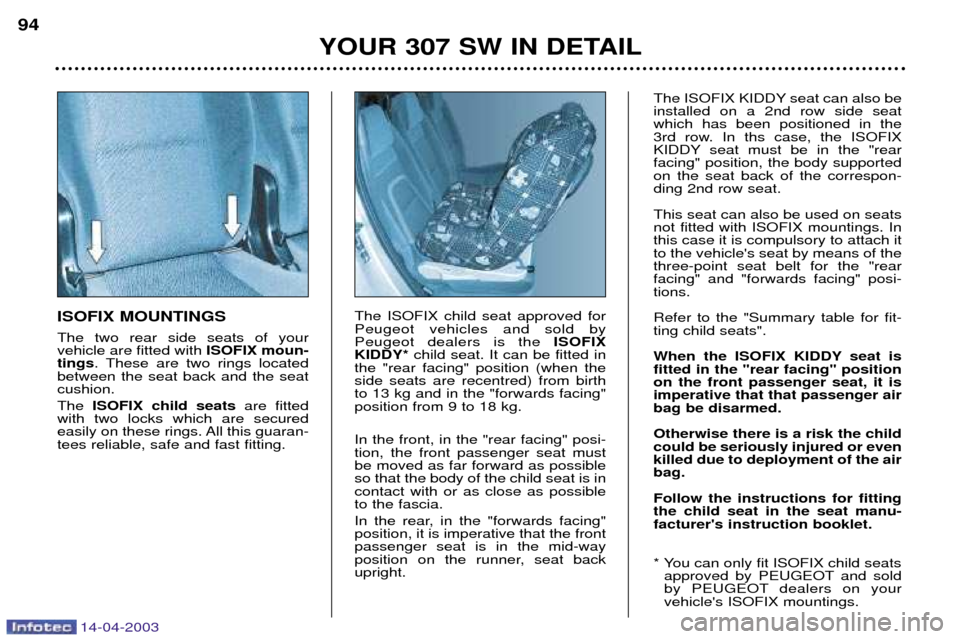

ISOFIX MOUNTINGS The two rear side seats of your vehicle are fitted with ISOFIX moun-
tings . These are two rings located
between the seat back and the seatcushion. The ISOFIX child seats are fitted
with two locks which are secured
easily on these rings. All this guaran-tees reliable, safe and fast fitting. The ISOFIX child seat approved forPeugeot vehicles and sold byPeugeot dealers is the
ISOFIX
KIDDY* child seat. It can be fitted in
the "rear facing" position (when theside seats are recentred) from birthto 13 kg and in the "forwards facing"position from 9 to 18 kg. In the front, in the "rear facing" posi- tion, the front passenger seat mustbe moved as far forward as possibleso that the body of the child seat is incontact with or as close as possibleto the fascia.
In the rear, in the "forwards facing" position, it is imperative that the frontpassenger seat is in the mid-way
position on the runner, seat backupright.
YOUR 307 SW IN DETAIL
94
The ISOFIX KIDDY seat can also be installed on a 2nd row side seatwhich has been positioned in the
3rd row. In ths case, the ISOFIX
KIDDY seat must be in the "rearfacing" position, the body supportedon the seat back of the correspon-ding 2nd row seat. This seat can also be used on seats not fitted with ISOFIX mountings. Inthis case it is compulsory to attach itto the vehicle's seat by means of thethree-point seat belt for the "rearfacing" and "forwards facing" posi-tions. Refer to the "Summary table for fit- ting child seats".
When the ISOFIX KIDDY seat is fitted in the "rear facing" positionon the front passenger seat, it isimperative that that passenger airbag be disarmed. Otherwise there is a risk the child could be seriously injured or evenkilled due to deployment of the airbag. Follow the instructions for fitting the child seat in the seat manu-facturer's instruction booklet.
* You can only fit ISOFIX child seats
approved by PEUGEOT and sold
by PEUGEOT dealers on yourvehicle's ISOFIX mountings.

14-04-2003
YOUR 307 SW IN DETAIL
96

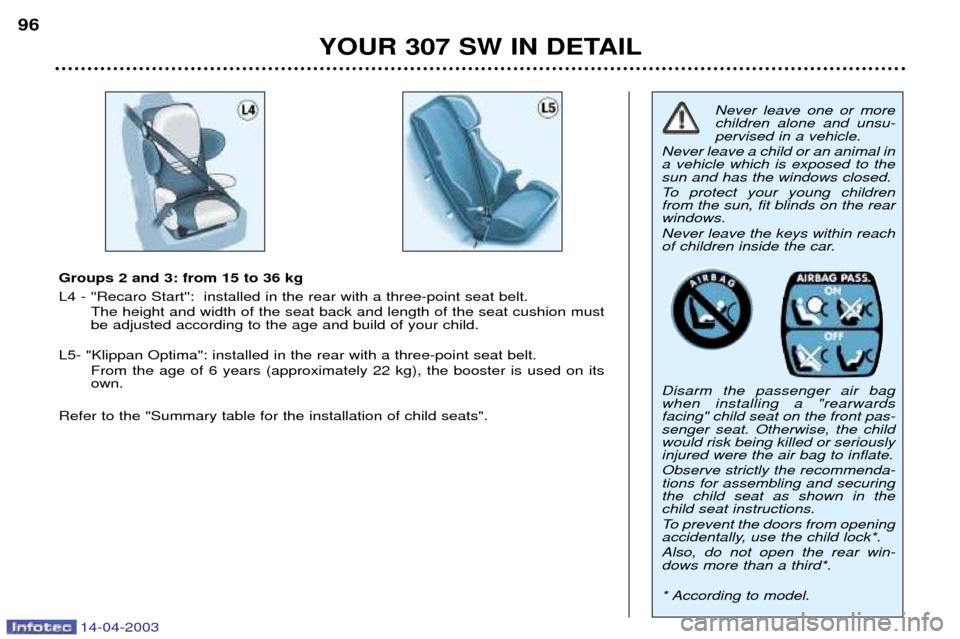

Never leave one or more children alone and unsu-pervised in a vehicle.
Never leave a child or an animal ina vehicle which is exposed to thesun and has the windows closed.
To protect your young children from the sun, fit blinds on the rearwindows. Never leave the keys within reach
of children inside the car. Disarm the passenger air bag when installing a "rearwardsfacing" child seat on the front pas-senger seat. Otherwise, the childwould risk being killed or seriouslyinjured were the air bag to inflate. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in thechild seat instructions.
To prevent the doors from opening
accidentally, use the child lock*. Also, do not open the rear win- dows more than a third*.
* According to model.
Groups 2 and 3: from 15 to 36 kg
L4 - ''Recaro Start'': installed in the rear with a three-point seat belt. The height and width of the seat back and length of the seat cushion must be adjusted according to the age and build of your child.
L5- "Klippan Optima": installed in the rear with a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on itsown.
Refer to the "Summary table for the installation of child seats".

14-04-2003

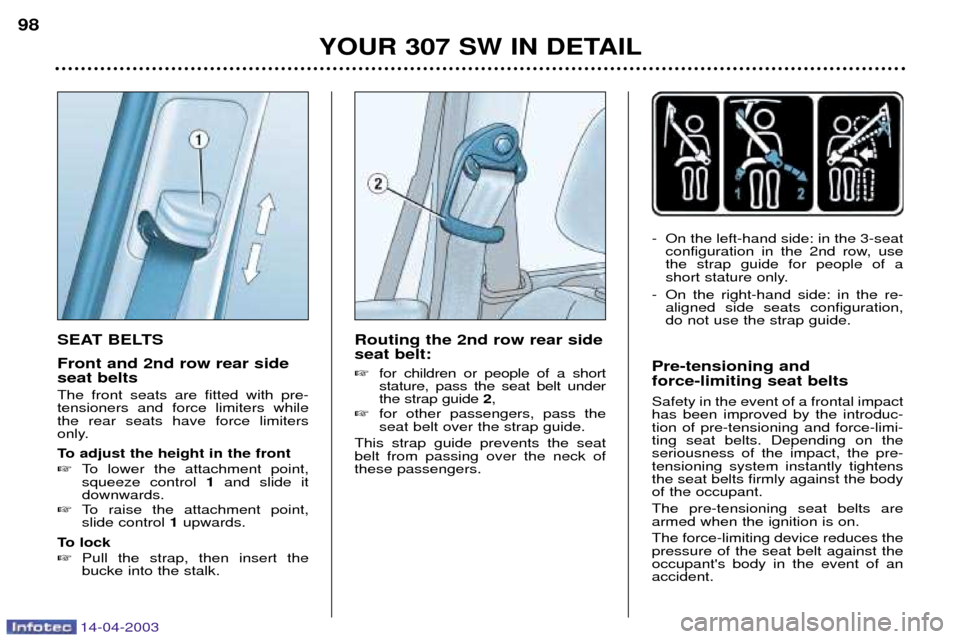

SEAT BELTS Front and 2nd row rear side seat belts The front seats are fitted with pre- tensioners and force limiters whilethe rear seats have force limiters
only.
To adjust the height in the front To lower the attachment point, squeeze control 1and slide it
downwards.
 To raise the attachment point,slide control 1upwards.
To lock  Pull the strap, then insert the bucke into the stalk. Routing the 2nd row rear side seat belt:
for children or people of a short stature, pass the seat belt underthe strap guide 2,
 for other passengers, pass theseat belt over the strap guide.
This strap guide prevents the seatbelt from passing over the neck ofthese passengers. - On the left-hand side: in the 3-seat
configuration in the 2nd row, usethe strap guide for people of a
short stature only.
- On the right-hand side: in the re- aligned side seats configuration,do not use the strap guide.
Pre-tensioning and force-limiting seat belts Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning and force-limi-ting seat belts. Depending on theseriousness of the impact, the pre-tensioning system instantly tightensthe seat belts firmly against the bodyof the occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt against theoccupant's body in the event of anaccident.
YOUR 307 SW IN DETAIL
98

14-04-2003
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogram-ming. Nevertheless, do not operate the deadlocking device if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - Ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 307 SW IN DETAIL 105

14-04-2003
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogram-ming. Nevertheless, do not operate the deadlocking device if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - Ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 307 SW IN DETAIL 105

14-04-2003

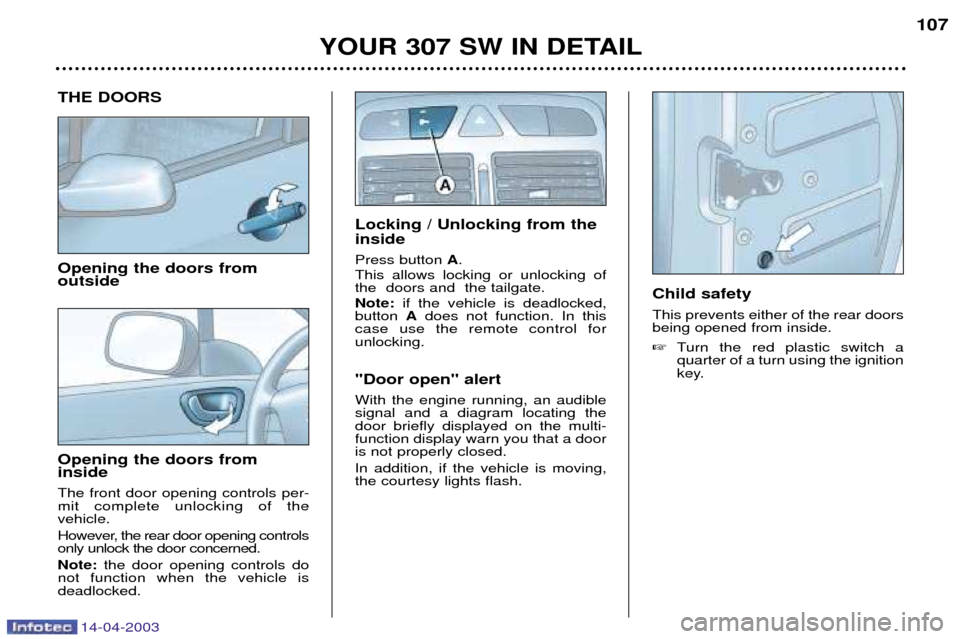

THE DOORS Opening the doors from outside Opening the doors from inside The front door opening controls per- mit complete unlocking of thevehicle.
However, the rear door opening controls only unlock the door concerned. Note:the door opening controls do
not function when the vehicle is deadlocked. Locking / Unlocking from the inside Press button
A.
This allows locking or unlocking of the doors and the tailgate. Note: if the vehicle is deadlocked,
button Adoes not function. In this
case use the remote control for unlocking. "Door open" alert With the engine running, an audible signal and a diagram locating thedoor briefly displayed on the multi-function display warn you that a dooris not properly closed. In addition, if the vehicle is moving, the courtesy lights flash. Child safety This prevents either of the rear doors being opened from inside.
Turn the red plastic switch a quarter of a turn using the ignition
key.
YOUR 307 SW IN DETAIL 107

14-04-2003
YOUR 307 SW IN DETAIL117

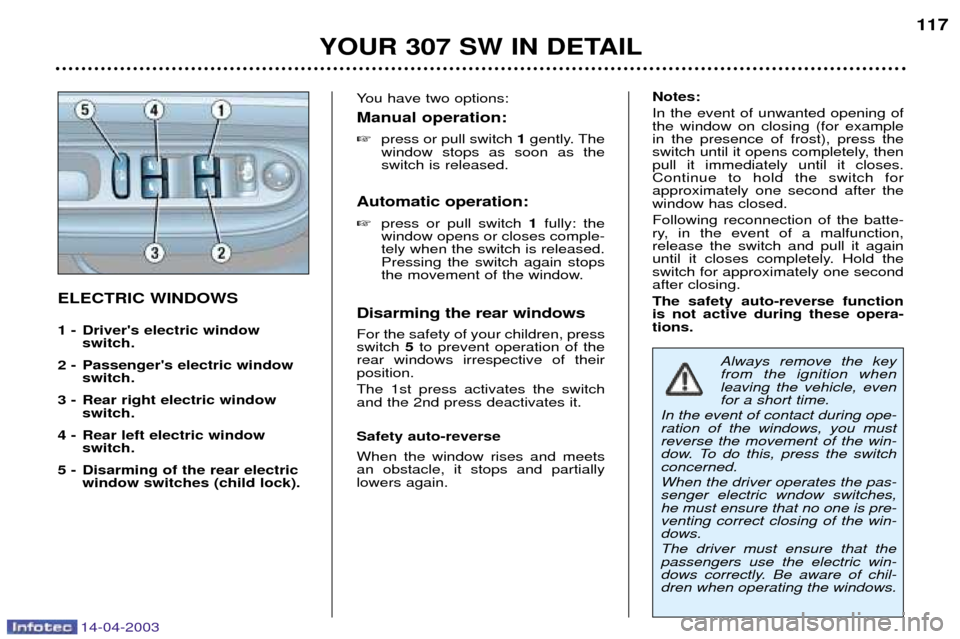

ELECTRIC WINDOWS
1 - Driver's electric window
switch.
2 - Passenger's electric window switch.
3 - Rear right electric window switch.
4 - Rear left electric window switch.
5 - Disarming of the rear electric window switches (child lock). Notes: In the event of unwanted opening of the window on closing (for examplein the presence of frost), press the
switch until it opens completely, thenpull it immediately until it closes.Continue to hold the switch forapproximately one second after thewindow has closed. Following reconnection of the batte-
ry, in the event of a malfunction,release the switch and pull it again
until it closes completely. Hold theswitch for approximately one secondafter closing. The safety auto-reverse function is not active during these opera-tions.
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
In the event of contact during ope-ration of the windows, you mustreverse the movement of the win-
dow. To do this, press the switchconcerned. When the driver operates the pas- senger electric wndow switches,he must ensure that no one is pre-venting correct closing of the win-dows. The driver must ensure that the passengers use the electric win-
dows correctly. Be aware of chil-dren when operating the windows.
You have two options: Manual operation:  press or pull switch 1gently. The
window stops as soon as the switch is released.
Automatic operation:  press or pull switch 1fully: the
window opens or closes comple- tely when the switch is released.Pressing the switch again stops
the movement of the window.
Disarming the rear windows For the safety of your children, press switch 5to prevent operation of the
rear windows irrespective of theirposition. The 1st press activates the switch and the 2nd press deactivates it. Safety auto-reverse When the window rises and meets an obstacle, it stops and partiallylowers again.

14-04-2003
PRACTICAL INFORMATION159

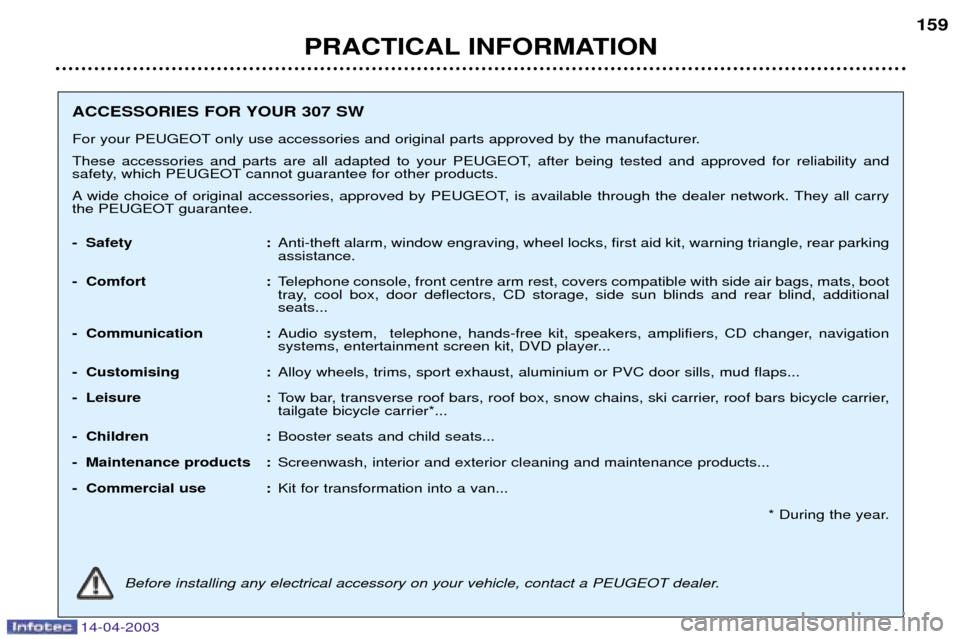

ACCESSORIES FOR YOUR 307 SW
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee.
- Safety :
Anti-theft alarm, window engraving, wheel locks, first aid kit, warning triangle, rear parking assistance.
- Comfort : Telephone console, front centre arm rest, covers compatible with side air bags, mats, boot
tray, cool box, door deflectors, CD storage, side sun blinds and rear blind, additionalseats...
- Communication : Audio system, telephone, hands-free kit, speakers, amplifiers, CD changer, navigation
systems, entertainment screen kit, DVD player...
- Customising : Alloy wheels, trims, sport exhaust, aluminium or PVC door sills, mud flaps...
- Leisure : Tow bar, transverse roof bars, roof box, snow chains, ski carrier, roof bars bicycle carrier,tailgate bicycle carrier*...
- Children : Booster seats and child seats...
- Maintenance products : Screenwash, interior and exterior cleaning and maintenance products...
- Commercial use : Kit for transformation into a van...
* During the year.
Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.
