VISIBILITY Do not cover the rain sensor
located on the windscreen
behind the interior mirror.
When using an automatic car
wash, switch off the ignition.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipe.
Activation
Activation of the function is accom-
panied by a message on the multi-
function display.
Turn ring A to the i rst notch
for intermittent wiping.
When reverse gear is en-
gaged, if the windscreen
wipers are in operation, the
rear wiper will start wiping.
To activate or deactivate
this function, go to the
multi-function display con-
i guration menu.
If there is a signii cant ac-
cumulation of snow or ice and when
using a bicycle carrier on the tailgate,
deactivate the automatic rear wiping
by going to the multifunction display
coni guration menu.
Turn ring A past the i rst
notch; the windscreen wash
then the windscreen wiper
operate for a i xed period.
Deactivation
Deactivation of the function is ac-
companied by a message on the
multifunction display.
The function is deactivated when the
windscreen wipers stalk is moved to
position
I , 1 or 2 .

In the event of
malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in in-
termittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Rear windscreen wash 1. Front courtesy light
In this position, the courtesy
light comes on automati-
cally:
- when the vehicle is unlocked,
- when the key is removed from the ignition, - when a door is opened,
- when the vehicle location func- tion is used.
Permanently off.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- with the ignition off, 30 seconds
after the last door is closed.
COURTESY LIGHTS Rear windscreen wiper

The automatic windscreen
wipers function must be
reactivated if the ignition
has been switched off for
more than one minute, by press-
ing the stalk downwards.

79
VISIBILITY

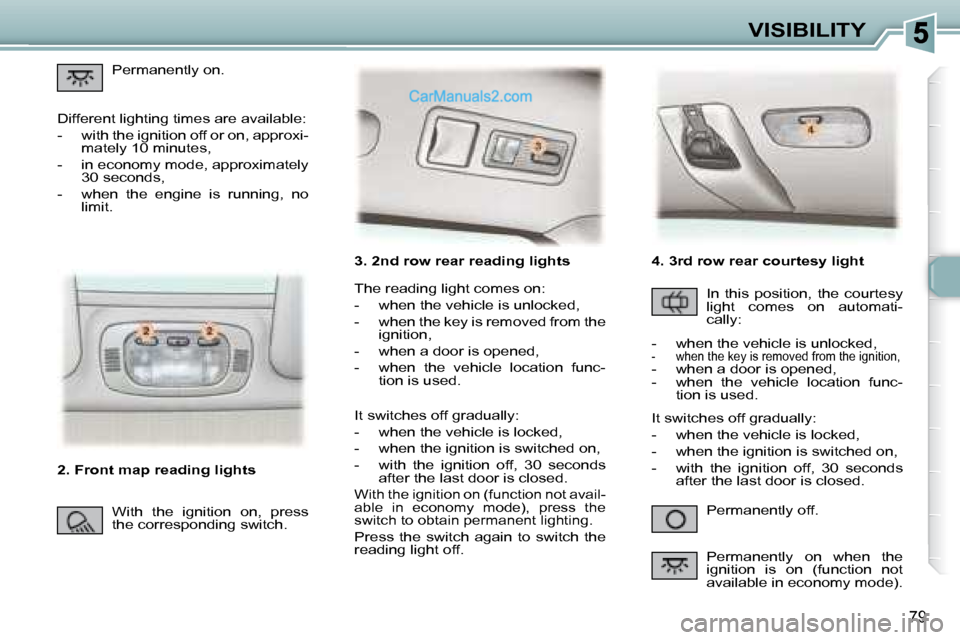

3. 2 nd row rear reading lights
Permanently off.
The reading light comes on:
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the vehicle location func- tion is used.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- with the ignition off, 30 seconds after the last door is closed.
With the ignition on (function not avail-
able in economy mode), press the
switch to obtain permanent lighting.
Press the switch again to switch the
reading light off. In this position, the courtesy
light comes on automati-
cally:
4. 3 rd row rear courtesy light
Permanently on when the
ignition is on (function not
available in economy mode).
- when the vehicle is unlocked,
- when the key is removed from the ignition, - when a door is opened,
- when the vehicle location func-
tion is used.
Permanently on.
2. Front map reading lights
Different lighting times are available:
- with the ignition off or on, approxi-
mately 10 minutes,
- in economy mode, approximately 30 seconds,
- when the engine is running, no limit.
With the ignition on, press
the corresponding switch. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- with the ignition off, 30 seconds
after the last door is closed.

80
LAYOUT
With the ignition on, the mirror is
automatically lit up when the l ap is
opened. The athermic windscreen has two
non-rel ective zones located either
side of the base of the interior mir-
ror.
They are intended for afi xing toll
cards and/or car park tickets.

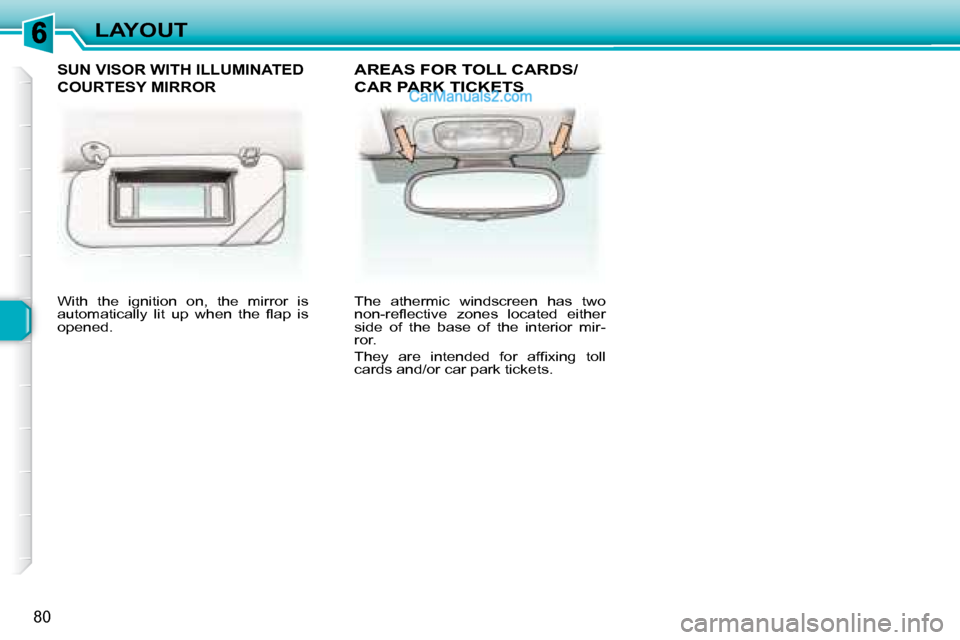

SUN VISOR WITH ILLUMINATED
COURTESY MIRROR
AREAS FOR TOLL CARDS/
CAR PARK TICKETS

81
LAYOUT

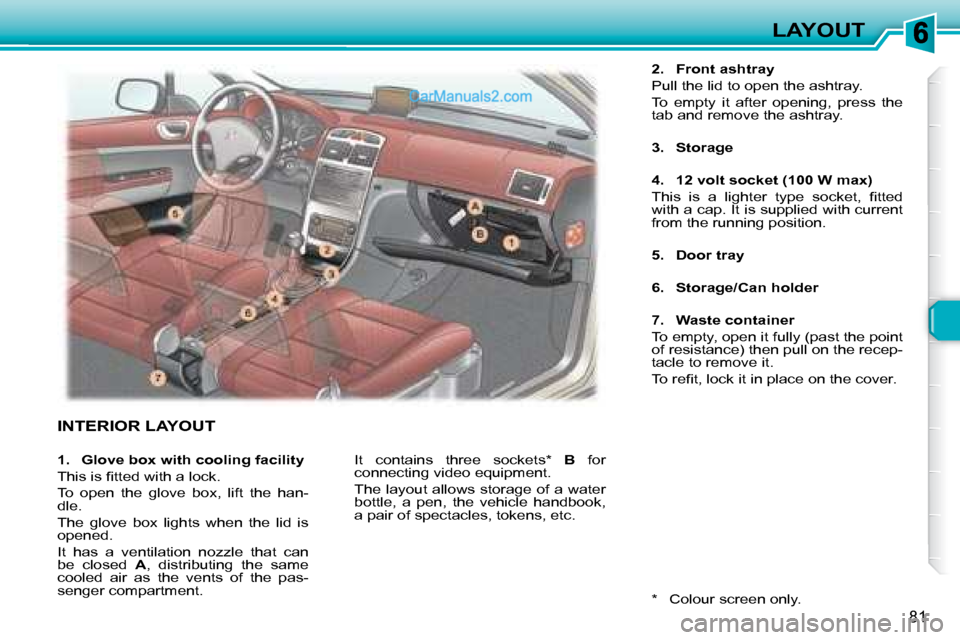

INTERIOR LAYOUT

2. Front ashtray
Pull the lid to open the ashtray.
To empty it after opening, press the
tab and remove the ashtray.
3. Storage

4. 12 volt socket (100 W max)
This is a lighter type socket, i tted
with a cap. It is supplied with current
from the running position.
5. Door tray

6. Storage/Can holder

7. Waste container
To empty, open it fully (past the point
of resistance) then pull on the recep-
tacle to remove it.
To rei t, lock it in place on the cover.
It contains three sockets * B for
connecting video equipment.
The layout allows storage of a water
bottle, a pen, the vehicle handbook,
a pair of spectacles, tokens, etc.
* Colour screen only.

1. Glove box with cooling facility
This is i tted with a lock.
To open the glove box, lift the han-
dle.
The glove box lights when the lid is
opened.
It has a ventilation nozzle that can
be closed A , distributing the same
cooled air as the vents of the pas-
senger compartment.

82
LAYOUT
When i tting the mat for the i rst time,
use only the i xings supplied in the
wallet attached.
When removing the mat on the
driver's side:
- push the seat as far back as possible,
- unscrew the i xings fully,
- remove the i xings, then the mat.
FITTING/REMOVING THE MAT
When rei tting, position the
mat correctly and replace the
i xings by pressing them in.
Ensure that the mat is se-
cured correctly.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned correctly.
- never i t one mat on top of an- other. For further details, refer to the
operating manuals "Video kit
operation" and "VMA8582 7
inch LCD colour monitor".

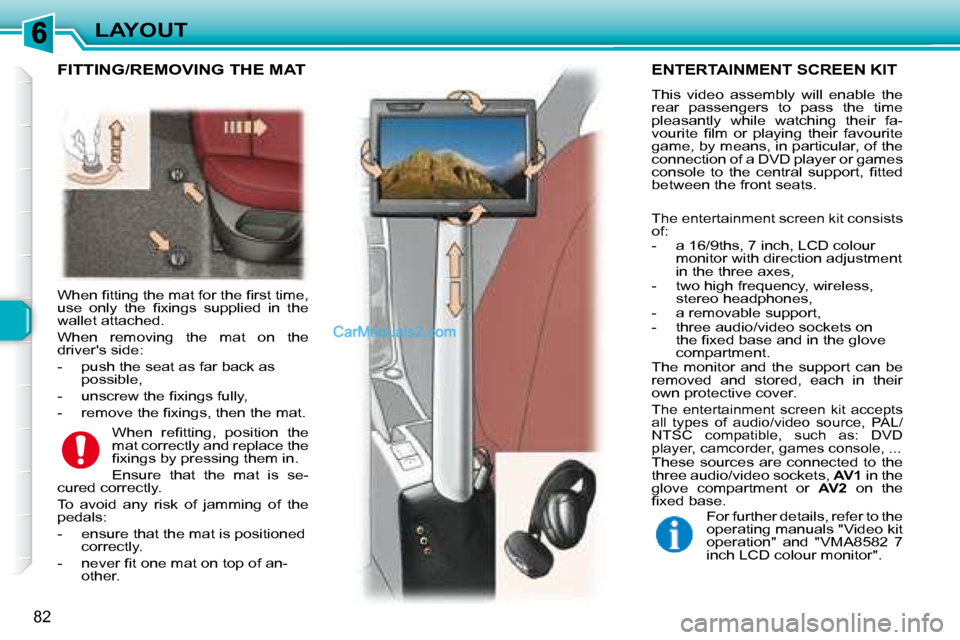

ENTERTAINMENT SCREEN KIT
This video assembly will enable the
rear passengers to pass the time
pleasantly while watching their fa-
vourite i lm or playing their favourite
game, by means, in particular, of the
connection of a DVD player or games
console to the central support, i tted
between the front seats.
The entertainment screen kit consists
of:
- a 16/9 ths , 7 inch, LCD colour monitor with direction adjustment
in the three axes,
- two high frequency, wireless, stereo headphones,
- a removable support,
- three audio/video sockets on the i xed base and in the glove
compartment.
The monitor and the support can be
removed and stored, each in their
own protective cover.
The entertainment screen kit accepts
all types of audio/video source, PAL/
NTSC compatible, such as: DVD
player, camcorder, games console, ...
These sources are connected to the
three audio/video sockets, AV1 in the
glove compartment or AV2 on the
i xed base.

83
LAYOUT

84
LAYOUT

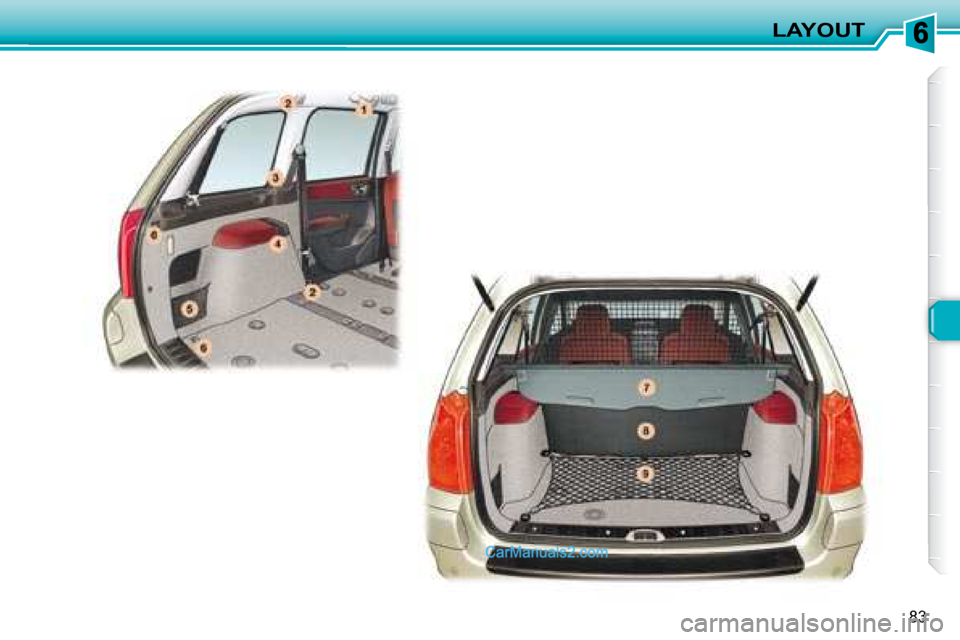

BOOT LAYOUT
4. Rear armrests with grab handle
5. Storage nets
One of them contains the luggage
retaining net.
6. Luggage retaining net fastenings ("hammock"
version) in the tailgate
Fold the net in two.
Secure the two centre hooks in the
stowing rings on the l oor.
Secure the net's remaining four
hooks on the boot pillars.
7. Load space cover
To install it:
- position one end of the cover roller in the 2 nd row,
- compress the opposite end of the roller and position it,
- release it to allow it to engage,
- unroll the cover as far as the boot pillars,
- insert the cover guides in the rails in the pillars, To remove it:
- remove the cover guides from
the pillar rails,
- return the cover into its roller,
- compress it and remove it from its support at the 2 nd row,
To store it, pull it back and place it
with the two storage nets, already
lowered.

Note: the roller has two hooks for
securing the luggage retaining net
depending on where it is installed.
8. High load retaining net
9. Luggage retaining net
Secure the net's seven hooks in the
stowing rings and the fastenings on
the l oor.
See coni guration of the nets (next
page).
1. Grab handles and
coat hooks
2. High load retaining net fastenings
The high load retaining net can be
i tted in the 2 nd or 3 rd row.
Open the covers of the corresponding
upper fastenings.
Fit the ends of the metal bar in these
fastenings.
Secure the two opaque material
strap hooks in the stowing rings on
the l oor.
The rings are located directly below
the corresponding upper fastenings.
Pull the two straps taut.
Secure the two hooks on the elastic
parts of the opaque material in these
rings.

Note: the net must be positioned so
that the label can be seen from the
boot. This ensures that the central
seat belt is routed correctly.
3.12 volt socket (100 W max)
This is a 12 volt socket (lighter type),
installed on the load space cover left
support.
It is supplied from the "Running" po-
sition.

85
LAYOUT

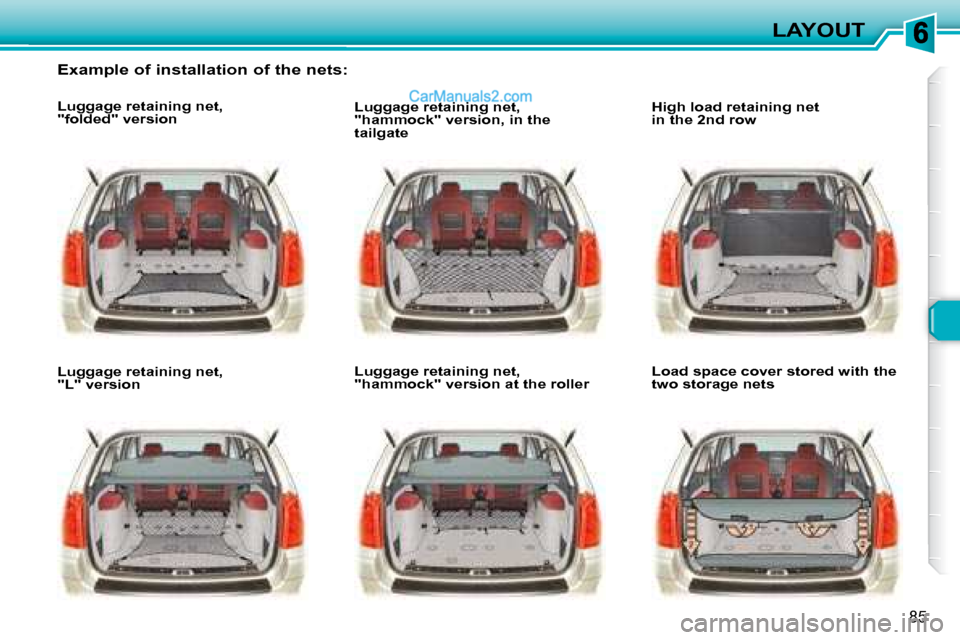

Example of installation of the nets:
Luggage retaining net,
"folded" version
Luggage retaining net,
"L" version Luggage retaining net,
"hammock" version, in the
tailgate
Luggage retaining net,
"hammock" version at the roller
High load retaining net
in the 2nd row
Load space cover stored with the
two storage nets

86

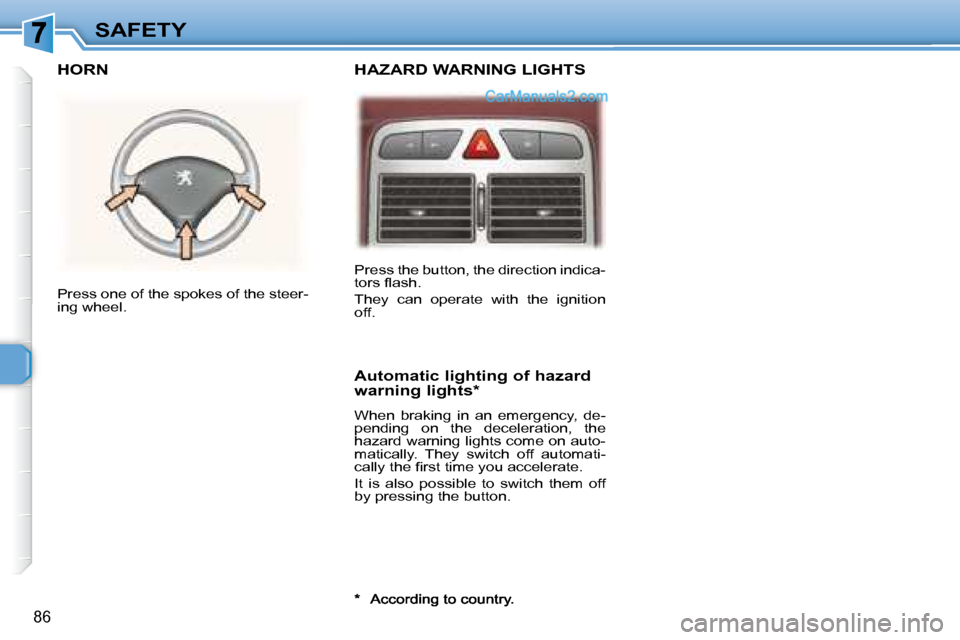

SAFETY Press the button, the direction indica-
tors l ash.
They can operate with the ignition
off.
Press one of the spokes of the steer-
ing wheel.
Automatic lighting of hazard
warning lights *
When braking in an emergency, de-
pending on the deceleration, the
hazard warning lights come on auto-
matically. They switch off automati-
cally the i rst time you accelerate.
It is also possible to switch them off
by pressing the button.
HAZARD WARNING LIGHTS HORN

87
SAFETY
Sensors i tted in each valve check
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)). The service warning light
comes on on the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
display locating the wheel
concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. Puncture
The
STOP warning light comes on on
the instrument panel, accompanied
by an audible signal and a message
on the multi-function display locating
the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
tured or very del ated tyre), and have
the tyre pressure checked as soon
as possible.
The service warning light
comes on on the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
display locating the wheel or wheels
which are not detected or indicating a
fault in the system.
Contact a PEUGEOT dealer to re-
place the faulty sensor(s). All repairs and changing of
tyres on a wheel i tted with
this system must be carried
out by a PEUGEOT dealer.
If, when changing a tyre, you
install a wheel which is not detect-
ed by your vehicle (example: i tting
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
The tyre under-inl ation detection
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly.
This system does not eliminate
the need to have the tyre pressure
checked regularly (see manufactur-
er's label on the door pillar) to ensure
that the optimum dynamic perform-
ance of the vehicle is maintained and
prevent premature wear of the tyres,
particularly in arduous driving condi-
tions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Re-
member to check the pressure of the
spare wheel.
The tyre under-inl ation detection
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.
Flat tyre Sensor(s) not detected or faulty
Notes:
This message is also displayed when
one of the wheels is away from the
vehicle (being repaired) or when one
or more wheels without a sensor are
i tted.
The spare wheel is not i tted with a
sensor.
TYRE UNDER-INFLATION
DETECTION
