Page 51 of 199
COMFORT
49

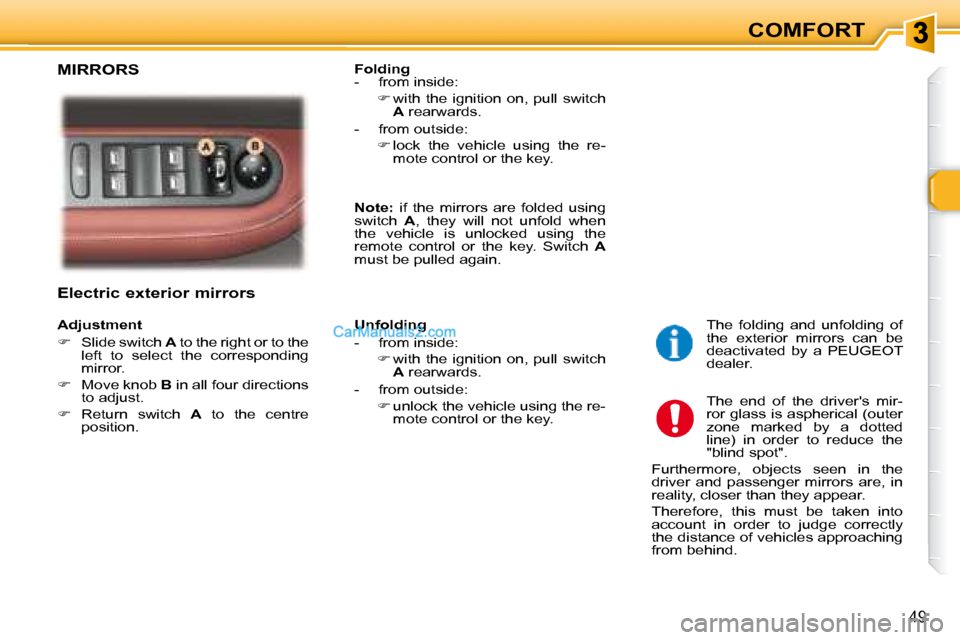

Electric exterior mirrors
Adjustment
S l i d e s w i t c h A to the right or to the
l e f t t o s e l e c t t h e c o r r e s p o n d i n g
mirror.
Move knob B in all four directions
t o a d j u s t .
R e t u r n s w i t c h A to the centre
p o s i t i o n . Folding
- f r o m i n s i d e :
w i t h t h e i g n i t i o n o n , p u l l s w i t c h
A r e a r w a r d s .
- f r o m o u t s i d e :
l o c k t h e v e h i c l e u s i n g t h e r e -
mote control or the key.
Unfolding
- f r o m i n s i d e :
w i t h t h e i g n i t i o n o n , p u l l s w i t c h
A r e a r w a r d s .
- f r o m o u t s i d e :
u n l o c k t h e v e h i c l e u s i n g t h e r e -
mote control or the key. The folding and unfolding of
t h e e x t e r i o r m i r r o r s c a n b e
deactivated by a PEUGEOT
dealer.
Note: if the mirrors are folded using
s w i t c h A , t h e y w i l l n o t u n f o l d w h e n
the vehicle is unlocked using the
r e m o t e c o n t r o l o r t h e k e y . S w i t c h A
m u s t b e p u l l e d a g a i n .
MIRRORS
T h e e n d o f t h e d r i v e r ' s m i r -
r o r g l a s s i s a s p h e r i c a l ( o u t e r
zone marked by a dotted
line) in order to reduce the
" b l i n d s p o t " .
F u r t h e r m o r e , o b j e c t s s e e n i n t h e
d r i v e r a n d p a s s e n g e r m i r r o r s a r e , i n
r e a l i t y , c l o s e r t h a n t h e y a p p e a r .
Therefore, this must be taken into
a c c o u n t i n o r d e r t o j u d g e c o r r e c t l y
t h e d i s t a n c e o f v e h i c l e s a p p r o a c h i n g
from behind.
Page 52 of 199
COMFORT
50

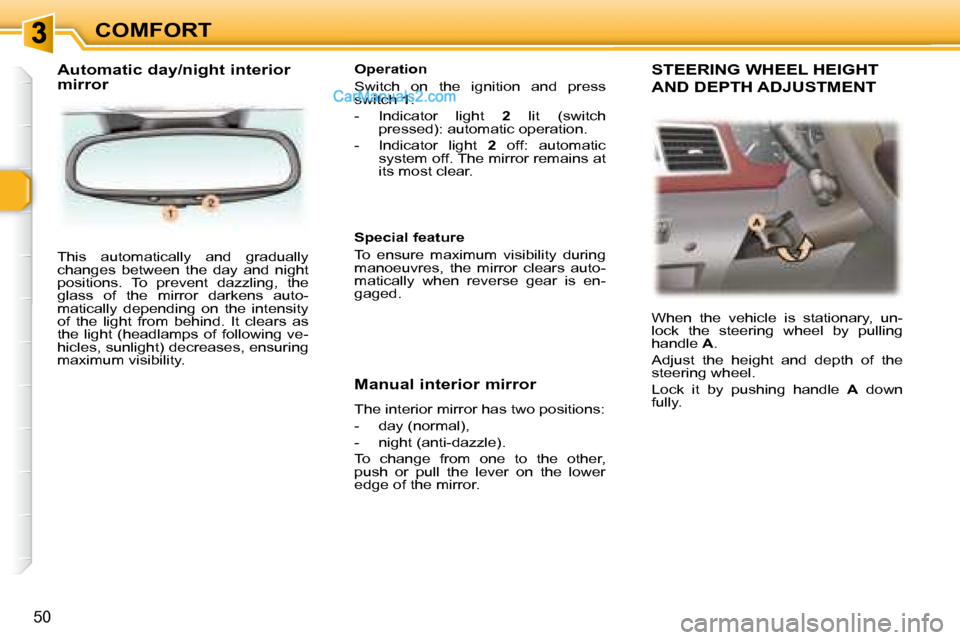

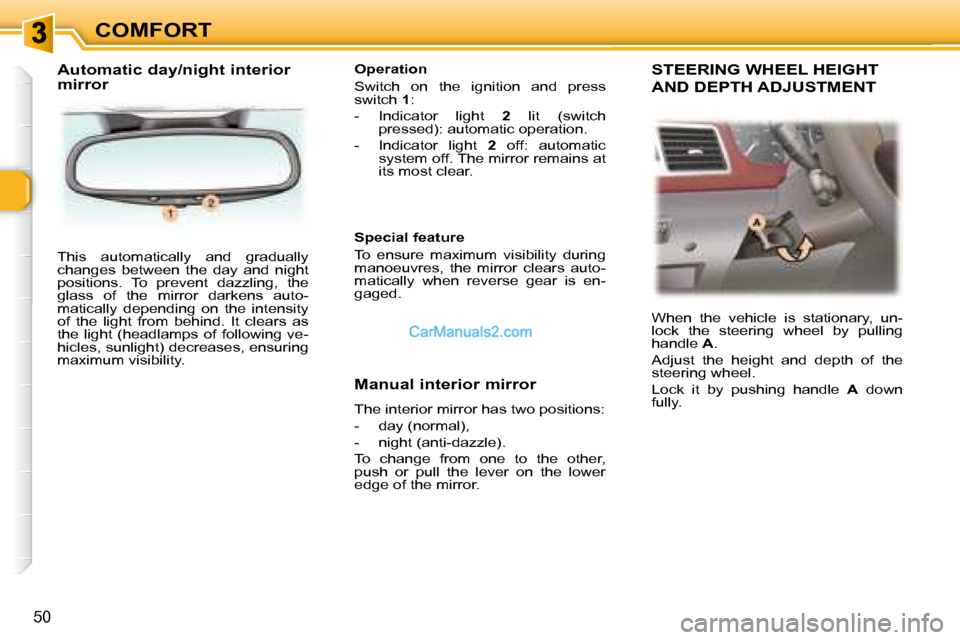

This automatically and gradually
c h a n g e s b e t w e e n t h e d a y a n d n i g h t
p o s i t i o n s . T o p r e v e n t d a z z l i n g , t h e
g l a s s o f t h e m i r r o r d a r k e n s a u t o -
m a t i c a l l y d e p e n d i n g o n t h e i n t e n s i t y
of the light from behind. It clears as
t h e l i g h t ( h e a d l a m p s o f f o l l o w i n g v e -
hicles, sunlight) decreases, ensuring
m a x i m u m v i s i b i l i t y . Manual interior mirror
T h e i n t e r i o r m i r r o r h a s t w o p o s i t i o n s :
- d a y ( n o r m a l ) ,
- n i g h t ( a n t i - d a z z l e ) .
To change from one to the other,
p u s h o r p u l l t h e l e v e r o n t h e l o w e r
edge of the mirror.
Operation
S w i t c h o n t h e i g n i t i o n a n d p r e s s
s w i t c h
1 :
- I n d i c a t o r l i g h t 2 l i t ( s w i t c h
p r e s s e d ) : a u t o m a t i c o p e r a t i o n .
- I n d i c a t o r l i g h t 2 o f f : a u t o m a t i c
system off. The mirror remains at
its most clear.
Special feature
T o e n s u r e m a x i m u m v i s i b i l i t y d u r i n g
m a n o e u v r e s , t h e m i r r o r c l e a r s a u t o -
m a t i c a l l y w h e n r e v e r s e g e a r i s e n -
gaged. W h e n t h e v e h i c l e i s s t a t i o n a r y , u n -
l o c k t h e s t e e r i n g w h e e l b y p u l l i n g
handle A .
A d j u s t t h e h e i g h t a n d d e p t h o f t h e
s t e e r i n g w h e e l .
L o c k i t b y p u s h i n g h a n d l e A d o w n
fully.
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
Automatic day/night interior
mirror
Page 53 of 199
COMFORT
50
This automatically and gradually
c h a n g e s b e t w e e n t h e d a y a n d n i g h t
p o s i t i o n s . T o p r e v e n t d a z z l i n g , t h e
g l a s s o f t h e m i r r o r d a r k e n s a u t o -
m a t i c a l l y d e p e n d i n g o n t h e i n t e n s i t y
of the light from behind. It clears as
t h e l i g h t ( h e a d l a m p s o f f o l l o w i n g v e -
hicles, sunlight) decreases, ensuring
m a x i m u m v i s i b i l i t y . Manual interior mirror
T h e i n t e r i o r m i r r o r h a s t w o p o s i t i o n s :
- d a y ( n o r m a l ) ,
- n i g h t ( a n t i - d a z z l e ) .
To change from one to the other,
p u s h o r p u l l t h e l e v e r o n t h e l o w e r
edge of the mirror.
Operation
S w i t c h o n t h e i g n i t i o n a n d p r e s s
s w i t c h
1 :
- I n d i c a t o r l i g h t 2 l i t ( s w i t c h
p r e s s e d ) : a u t o m a t i c o p e r a t i o n .
- I n d i c a t o r l i g h t 2 o f f : a u t o m a t i c
system off. The mirror remains at
its most clear.
Special feature
T o e n s u r e m a x i m u m v i s i b i l i t y d u r i n g
m a n o e u v r e s , t h e m i r r o r c l e a r s a u t o -
m a t i c a l l y w h e n r e v e r s e g e a r i s e n -
gaged. W h e n t h e v e h i c l e i s s t a t i o n a r y , u n -
l o c k t h e s t e e r i n g w h e e l b y p u l l i n g
handle A .
A d j u s t t h e h e i g h t a n d d e p t h o f t h e
s t e e r i n g w h e e l .
L o c k i t b y p u s h i n g h a n d l e A d o w n
fully.
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
Automatic day/night interior
mirror
Page 54 of 199
COMFORT
51

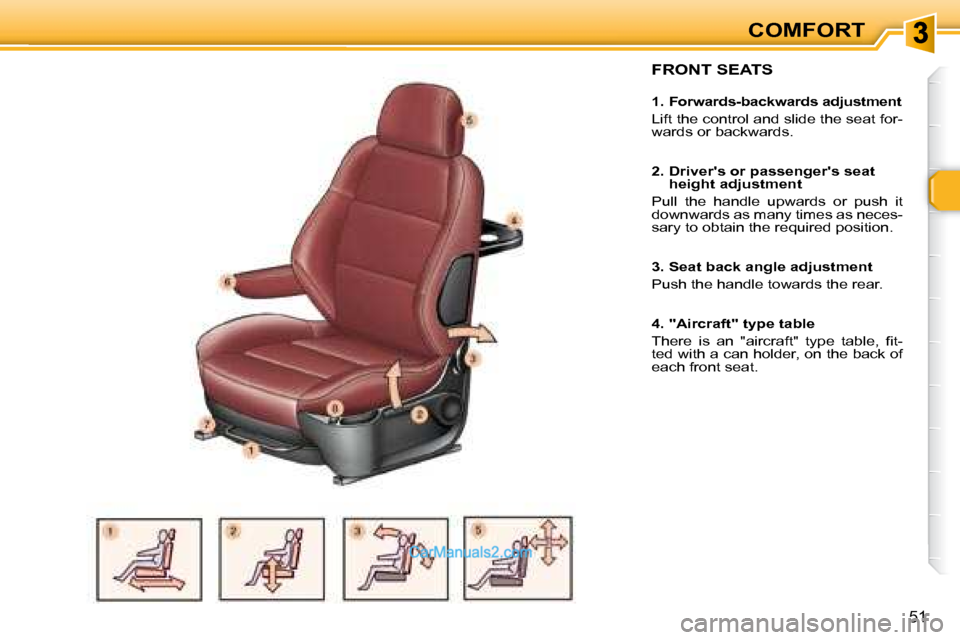

FRONT SEATS
1. Forwards-backwards adjustment
L i f t t h e c o n t r o l a n d s l i d e t h e s e a t f o r -
w a r d s o r b a c k w a r d s .
2. Driver's or passenger's seat height adjustment
P u l l t h e h a n d l e u p w a r d s o r p u s h i t
d o w n w a r d s a s m a n y t i m e s a s n e c e s -
s a r y t o o b t a i n t h e r e q u i r e d p o s i t i o n .
3. Seat back angle adjustment
P u s h t h e h a n d l e t o w a r d s t h e r e a r .
4. "Aircraft" type table
T h e r e i s a n " a i r c r a f t " t y p e t a b l e , i t -
t e d w i t h a c a n h o l d e r , o n t h e b a c k o f
each front seat.
Page 55 of 199
COMFORT
52

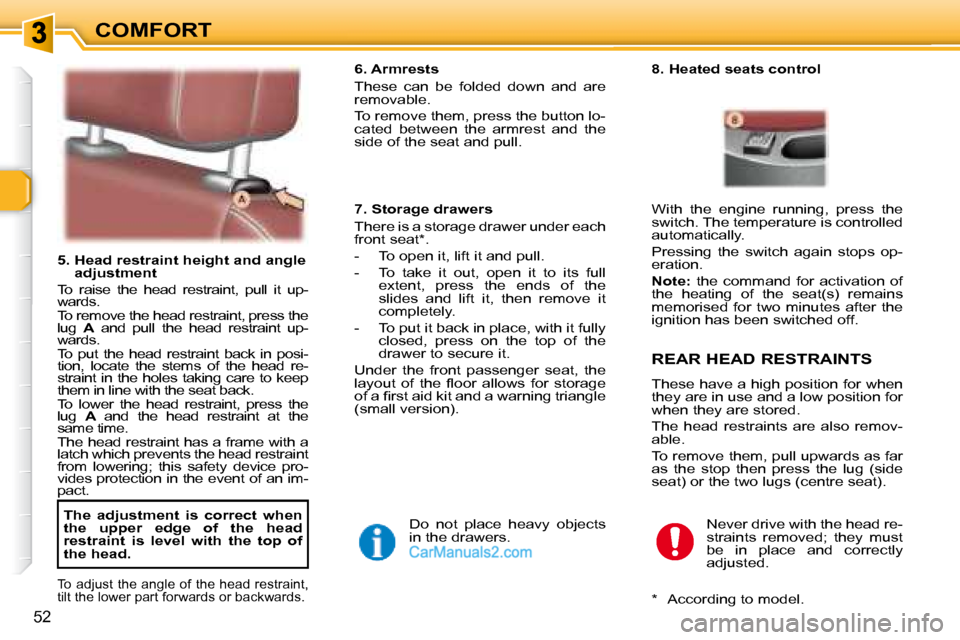

5. Head restraint height and angle adjustment
T o r a i s e t h e h e a d r e s t r a i n t , p u l l i t u p -
w a r d s .
T o r e m o v e t h e h e a d r e s t r a i n t , p r e s s t h e
lug A a n d p u l l t h e h e a d r e s t r a i n t u p -
w a r d s .
T o p u t t h e h e a d r e s t r a i n t b a c k i n p o s i -
t i o n , l o c a t e t h e s t e m s o f t h e h e a d r e -
s t r a i n t i n t h e h o l e s t a k i n g c a r e t o k e e p
t h e m i n l i n e w i t h t h e s e a t b a c k .
T o l o w e r t h e h e a d r e s t r a i n t , p r e s s t h e
lug A and the head restraint at the
same time.
T h e h e a d r e s t r a i n t h a s a f r a m e w i t h a
l a t c h w h i c h p r e v e n t s t h e h e a d r e s t r a i n t
f r o m l o w e r i n g ; t h i s s a f e t y d e v i c e p r o -
v i d e s p r o t e c t i o n i n t h e e v e n t o f a n i m -
p a c t . 8. Heated seats control
N e v e r d r i v e w i t h t h e h e a d r e -
s t r a i n t s r e m o v e d ; t h e y m u s t
b e i n p l a c e a n d c o r r e c t l y
a d j u s t e d .
REAR HEAD RESTRAINTS
T h e s e h a v e a h i g h p o s i t i o n f o r w h e n
t h e y a r e i n u s e a n d a l o w p o s i t i o n f o r
w h e n t h e y a r e s t o r e d .
T h e h e a d r e s t r a i n t s a r e a l s o r e m o v -
able.
T o r e m o v e t h e m , p u l l u p w a r d s a s f a r
a s t h e s t o p t h e n p r e s s t h e l u g ( s i d e
s e a t ) o r t h e t w o l u g s ( c e n t r e s e a t ) .
6. Armrests
T h e s e c a n b e f o l d e d d o w n a n d a r e
removable.
T o r e m o v e t h e m , p r e s s t h e b u t t o n l o -
c a t e d b e t w e e n t h e a r m r e s t a n d t h e
s i d e o f t h e s e a t a n d p u l l .
7. Storage drawers
T h e r e i s a s t o r a g e d r a w e r u n d e r e a c h
front seat * .
- T o o p e n i t , l i f t i t a n d p u l l .
- T o t a k e i t o u t , o p e n i t t o i t s f u l l
e x t e n t , p r e s s t h e e n d s o f t h e
slides and lift it, then remove it
c o m p l e t e l y .
- T o p u t i t b a c k i n p l a c e , w i t h i t f u l l y c l o s e d , p r e s s o n t h e t o p o f t h e
d r a w e r t o s e c u r e i t .
U n d e r t h e f r o n t p a s s e n g e r s e a t , t h e
l a y o u t o f t h e l o o r a l l o w s f o r s t o r a g e
o f a i r s t a i d k i t a n d a w a r n i n g t r i a n g l e
(small version).
The adjustment is correct when
the upper edge of the head
restraint is level with the top of
the head.
T o a d j u s t t h e a n g l e o f t h e h e a d r e s t r a i n t ,
t i l t t h e l o w e r p a r t f o r w a r d s o r b a c k w a r d s .
D o n o t p l a c e h e a v y o b j e c t s
i n t h e d r a w e r s . W i t h t h e e n g i n e r u n n i n g , p r e s s t h e
s w i t c h . T h e t e m p e r a t u r e i s c o n t r o l l e d
automatically.
P r e s s i n g t h e s w i t c h a g a i n s t o p s o p -
eration.
Note: the command for activation of
the heating of the seat(s) remains
m e m o r i s e d f o r t w o m i n u t e s a f t e r t h e
i g n i t i o n h a s b e e n s w i t c h e d o f f .
* According to model.
Page 56 of 199
COMFORT
53

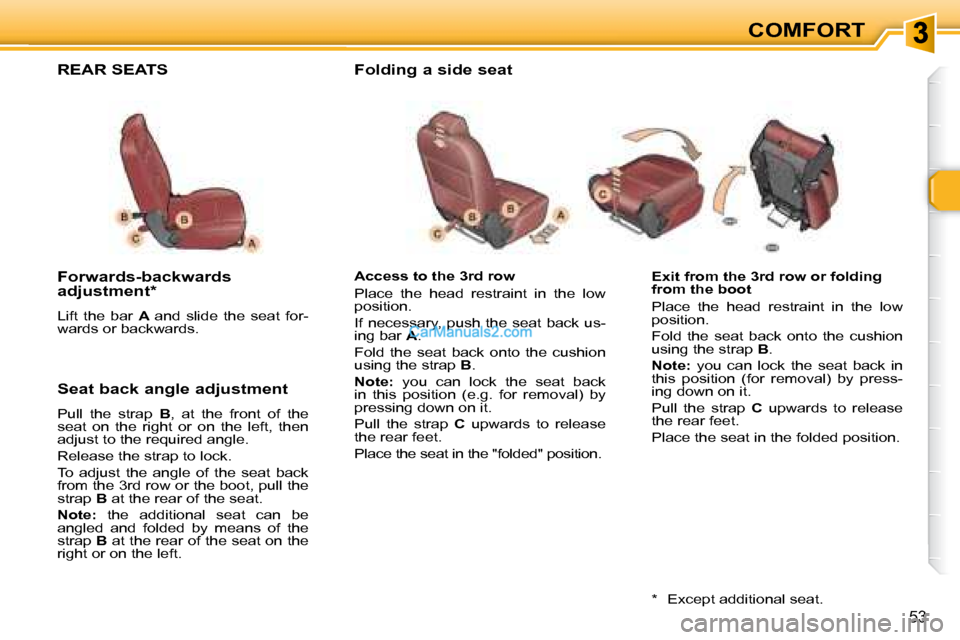

Exit from the 3rd row or folding
from the boot
P l a c e t h e h e a d r e s t r a i n t i n t h e l o w
p o s i t i o n .
Fold the seat back onto the cushion
u s i n g t h e s t r a p B .
Note: you can lock the seat back in
t h i s p o s i t i o n ( f o r r e m o v a l ) b y p r e s s -
i n g d o w n o n i t .
P u l l t h e s t r a p C u p w a r d s t o r e l e a s e
the rear feet.
P l a c e t h e s e a t i n t h e f o l d e d p o s i t i o n .
Forwards-backwards
adjustment *
Lift the bar
A a n d s l i d e t h e s e a t f o r -
w a r d s o r b a c k w a r d s .
* E x c e p t a d d i t i o n a l s e a t .
Seat back angle adjustment
P u l l t h e s t r a p B , at the front of the
seat on the right or on the left, then
a d j u s t t o t h e r e q u i r e d a n g l e .
R e l e a s e t h e s t r a p t o l o c k .
T o a d j u s t t h e a n g l e o f t h e s e a t b a c k
f r o m t h e 3 r d r o w o r t h e b o o t , p u l l t h e
s t r a p B at the rear of the seat.
Note: the additional seat can be
angled and folded by means of the
s t r a p B at the rear of the seat on the
right or on the left. Access to the 3rd row
P l a c e t h e h e a d r e s t r a i n t i n t h e l o w
p o s i t i o n .
I f n e c e s s a r y , p u s h t h e s e a t b a c k u s -
ing bar
A .
Fold the seat back onto the cushion
u s i n g t h e s t r a p B .
Note: you can lock the seat back
i n t h i s p o s i t i o n ( e . g . f o r r e m o v a l ) b y
p r e s s i n g d o w n o n i t .
P u l l t h e s t r a p C u p w a r d s t o r e l e a s e
the rear feet.
P l a c e t h e s e a t i n t h e " f o l d e d " p o s i t i o n .
Folding a side seat
REAR SEATS
Page 57 of 199
COMFORT
54

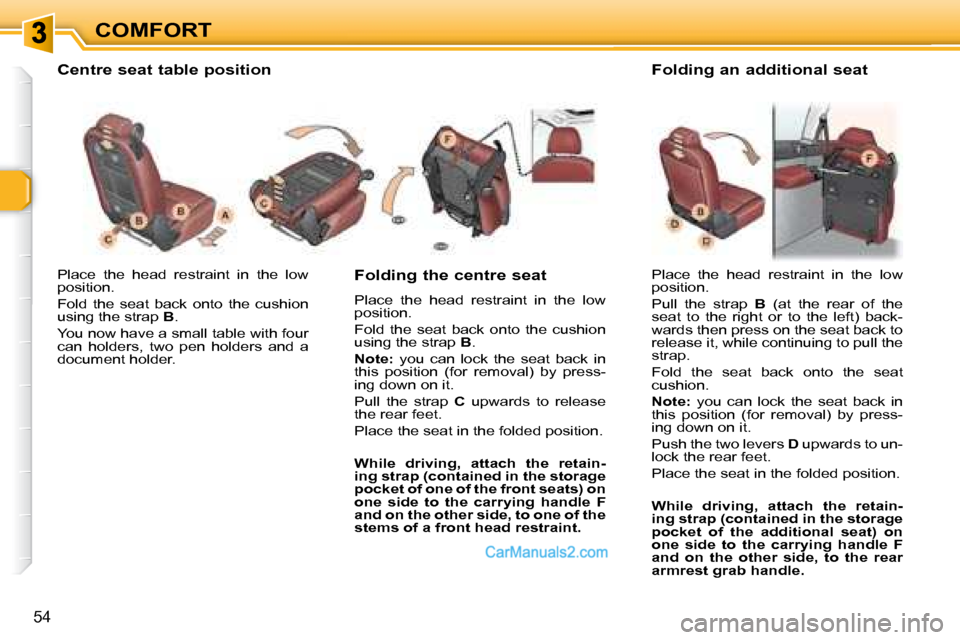

P l a c e t h e h e a d r e s t r a i n t i n t h e l o w
p o s i t i o n .
Fold the seat back onto the cushion
u s i n g t h e s t r a p B .
Y o u n o w h a v e a s m a l l t a b l e w i t h f o u r
c a n h o l d e r s , t w o p e n h o l d e r s a n d a
document holder. Folding the centre seat
P l a c e t h e h e a d r e s t r a i n t i n t h e l o w
p o s i t i o n .
Fold the seat back onto the cushion
u s i n g t h e s t r a p
B .
Note: you can lock the seat back in
t h i s p o s i t i o n ( f o r r e m o v a l ) b y p r e s s -
i n g d o w n o n i t .
P u l l t h e s t r a p C u p w a r d s t o r e l e a s e
the rear feet.
P l a c e t h e s e a t i n t h e f o l d e d p o s i t i o n .
While driving, attach the retain-
ing strap (contained in the storage
pocket of one of the front seats) on
one side to the carrying handle F
and on the other side, to one of the
stems of a front head restraint. P l a c e t h e h e a d r e s t r a i n t i n t h e l o w
p o s i t i o n .
P u l l t h e s t r a p
B (at the rear of the
s e a t t o t h e r i g h t o r t o t h e l e f t ) b a c k -
w a r d s t h e n p r e s s o n t h e s e a t b a c k t o
r e l e a s e i t , w h i l e c o n t i n u i n g t o p u l l t h e
s t r a p .
Fold the seat back onto the seat
cushion.
Note: you can lock the seat back in
t h i s p o s i t i o n ( f o r r e m o v a l ) b y p r e s s -
i n g d o w n o n i t .
P u s h t h e t w o l e v e r s D u p w a r d s t o u n -
lock the rear feet.
P l a c e t h e s e a t i n t h e f o l d e d p o s i t i o n .
While driving, attach the retain-
ing strap (contained in the storage
pocket of the additional seat) on
one side to the carrying handle F
and on the other side, to the rear
armrest grab handle.
Centre seat table position
Folding an additional seat
Page 58 of 199
COMFORT

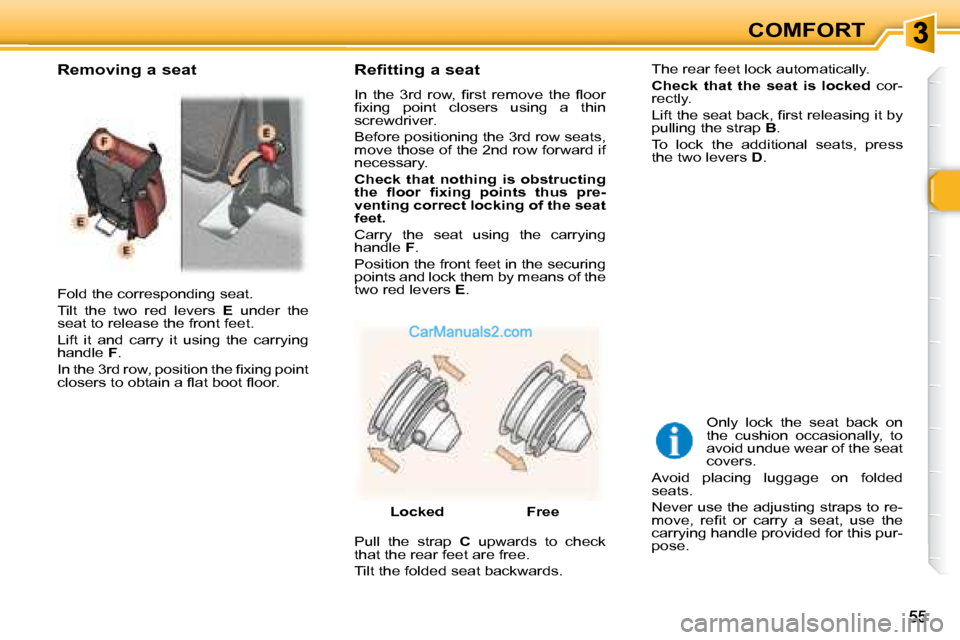

F o l d t h e c o r r e s p o n d i n g s e a t .
T i l t t h e t w o r e d l e v e r s E under the
seat to release the front feet.
Lift it and carry it using the carrying
handle F .
I n t h e 3 r d r o w , p o s i t i o n t h e i x i n g p o i n t
c l o s e r s t o o b t a i n a l a t b o o t l o o r . Refitting a seat
I n t h e 3 r d r o w , i r s t r e m o v e t h e l o o r
i x i n g p o i n t c l o s e r s u s i n g a t h i n
s c r e w d r i v e r .
B e f o r e p o s i t i o n i n g t h e 3 r d r o w s e a t s ,
m o v e t h o s e o f t h e 2 n d r o w f o r w a r d i f
necessary.
Check that nothing is obstructing
t h e l o o r i x i n g p o i n t s t h u s p r e -
venting correct locking of the seat
feet.
Carry the seat using the carrying
handle F .
Position the front feet in the securing
p o i n t s a n d l o c k t h e m b y m e a n s o f t h e
t w o r e d l e v e r s E .
Locked
P u l l t h e s t r a p C u p w a r d s t o c h e c k
that the rear feet are free.
T i l t t h e f o l d e d s e a t b a c k w a r d s . The rear feet lock automatically.
Check that the seat is locked c o r -
rectly.
L i f t t h e s e a t b a c k , i r s t r e l e a s i n g i t b y
p u l l i n g t h e s t r a p B .
T o l o c k t h e a d d i t i o n a l s e a t s , p r e s s
t h e t w o l e v e r s D .
Only lock the seat back on
the cushion occasionally, to
a v o i d u n d u e w e a r o f t h e s e a t
covers.
A v o i d p l a c i n g l u g g a g e o n f o l d e d
seats.
N e v e r u s e t h e a d j u s t i n g s t r a p s t o r e -
m o v e , r e i t o r c a r r y a s e a t , u s e t h e
c a r r y i n g h a n d l e p r o v i d e d f o r t h i s p u r -
p o s e .
Free
Removing a seat
Page 59 of 199
COMFORT
56

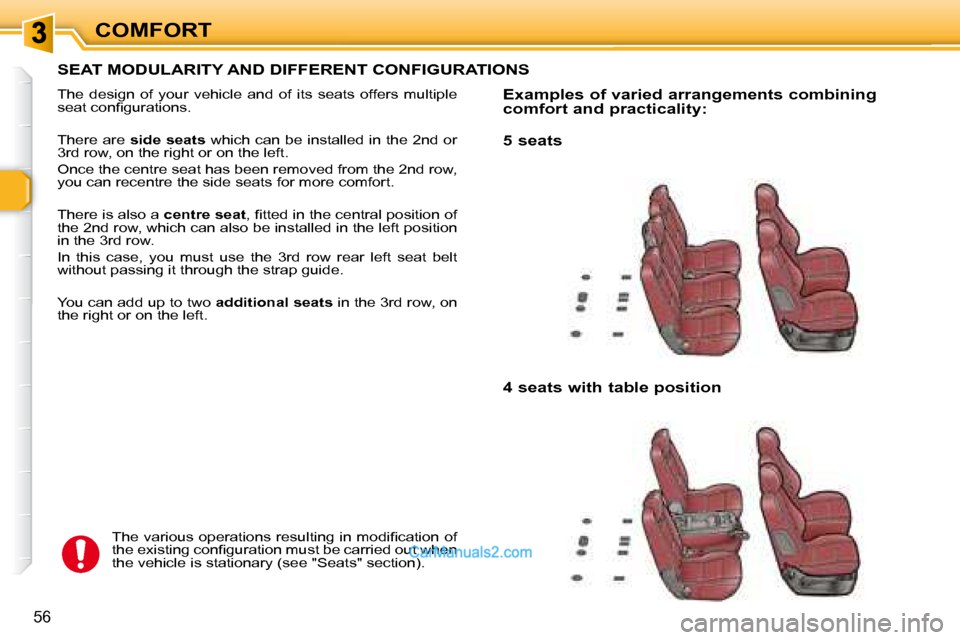

SEAT MODULARITY AND DIFFERENT CONFIGURATIONS
T h e d e s i g n o f y o u r v e h i c l e a n d o f i t s s e a t s o f f e r s m u l t i p l e
s e a t c o n i g u r a t i o n s .
There are side seats w h i c h c a n b e i n s t a l l e d i n t h e 2 n d o r
3 r d r o w , o n t h e r i g h t o r o n t h e l e f t .
O n c e t h e c e n t r e s e a t h a s b e e n r e m o v e d f r o m t h e 2 n d r o w ,
you can recentre the side seats for more comfort.
There is also a centre seat , i t t e d i n t h e c e n t r a l p o s i t i o n o f
t h e 2 n d r o w , w h i c h c a n a l s o b e i n s t a l l e d i n t h e l e f t p o s i t i o n
i n t h e 3 r d r o w .
I n t h i s c a s e , y o u m u s t u s e t h e 3 r d r o w r e a r l e f t s e a t b e l t
w i t h o u t p a s s i n g i t t h r o u g h t h e s t r a p g u i d e .
Y o u c a n a d d u p t o t w o additional seats i n t h e 3 r d r o w , o n
the right or on the left.
T h e v a r i o u s o p e r a t i o n s r e s u l t i n g i n m o d i i c a t i o n o f
t h e e x i s t i n g c o n i g u r a t i o n m u s t b e c a r r i e d o u t w h e n
the vehicle is stationary (see "Seats" section). Examples of varied arrangements combining
comfort and practicality:
5 seats
4 seats with table position
Page 60 of 199
COMFORT

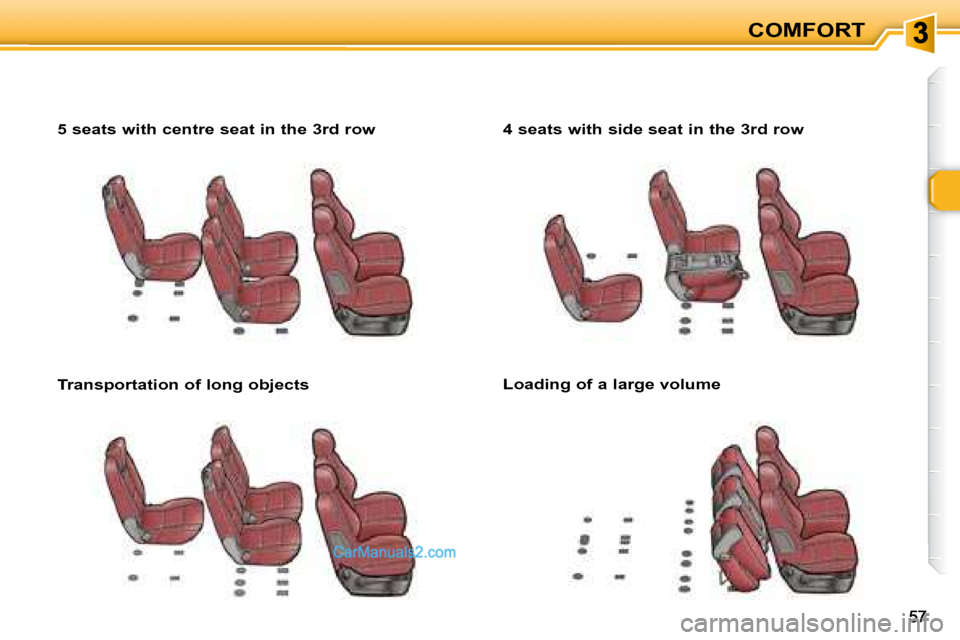

5 seats with centre seat in the 3rd row
Transportation of long objects 4 seats with side seat in the 3rd row
Loading of a large volume
