Page 71 of 328
69
COMFORT
Folding the seat from the boot
Each section of the bench seat (1/3 or
2/3) has its own control to release the
seat back and its seat cushion from the
boot.
)
Check that nothing is preventing
the seat back from folding (head re-
straint, seat belts, ...),
)
check also that no object on or under
the seat could hinder its movement,
)
pull the control from the boot.
REAR SEATS
Never drive with rear passen-
gers when the head restraints
are removed; the head re-
straints must be in place and in the
high position.
Rear head restraints
These have a high position (comfort and
safety) and a low position (rear visibility).
They can also be removed.
To remove a head restraint:
)
pull the head restraint fully upwards,
)
then, press the lug A
. Bench seat the left-hand (2/3) or right-
hand (1/3) section of which can be fold-
ed to adapt the boot load space.
Page 72 of 328
70
COMFORT
The seat cushion lowers to be
covered by the seat back; this
leaves a fl at boot fl oor, if the
adjustable fl oor is in the intermediate
position.

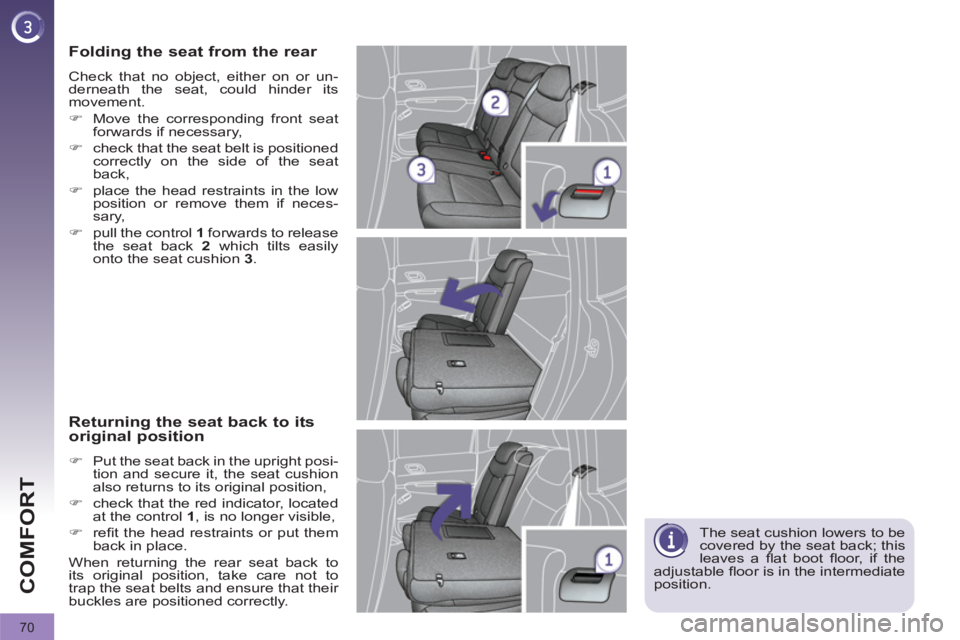

Folding the seat from the rear
Check that no object, either on or un-
derneath the seat, could hinder its
movement.
)
Move the corresponding front seat
forwards if necessary,
)
check that the seat belt is positioned
correctly on the side of the seat
back,
)
place the head restraints in the low
position or remove them if neces-
sary,
)
pull the control 1
forwards to release
the seat back 2
which tilts easily
onto the seat cushion 3
.
Returning the seat back to its
original position
)
Put the seat back in the upright posi-
tion and secure it, the seat cushion
also returns to its original position,
)
check that the red indicator, located
at the control 1
, is no longer visible,
)
refi t the head restraints or put them
back in place.
When returning the rear seat back to
its original position, take care not to
trap the seat belts and ensure that their
buckles are positioned correctly.

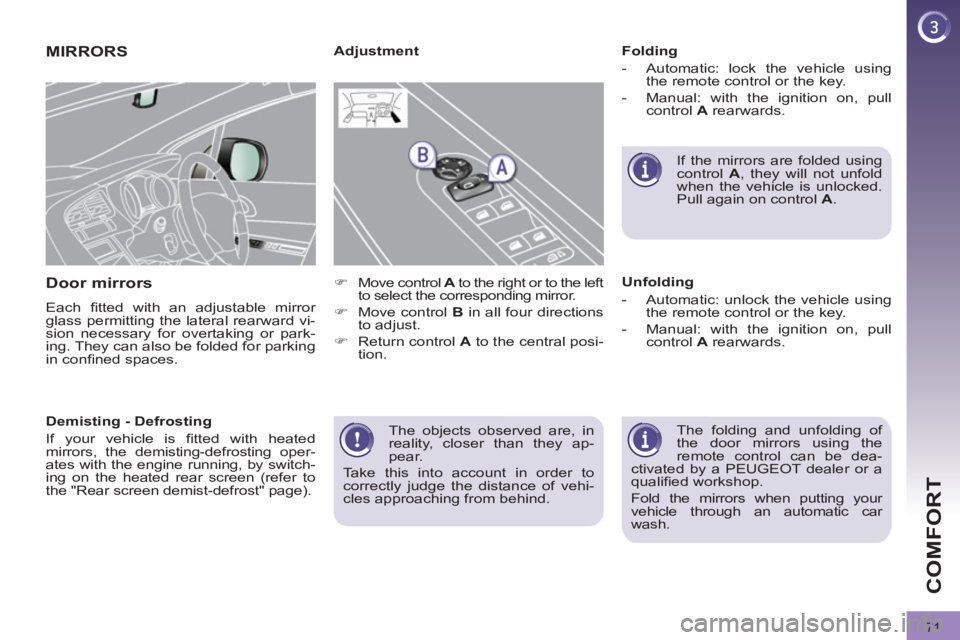

Page 73 of 328
71
COMFORT
The objects observed are, in
reality, closer than they ap-
pear.
Take this into account in order to
correctly judge the distance of vehi-
cles approaching from behind.
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.
Folding
- Automatic: lock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
The folding and unfolding of
the door mirrors using the
remote control can be dea-
ctivated by a PEUGEOT dealer or a
qualifi ed workshop.
Fold the mirrors when putting your
vehicle through an automatic car
wash.
Adjustment
Unfolding
- Automatic: unlock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central posi-
tion.
Demisting - Defrosting
If your vehicle is fi tted with heated
mirrors, the demisting-defrosting oper-
ates with the engine running, by switch-
ing on the heated rear screen (refer to
the "Rear screen demist-defrost" page).
Page 74 of 328
72
COMFORT
Adjustment
)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".
Manual day/night model
Day/night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the normal
"day" position.

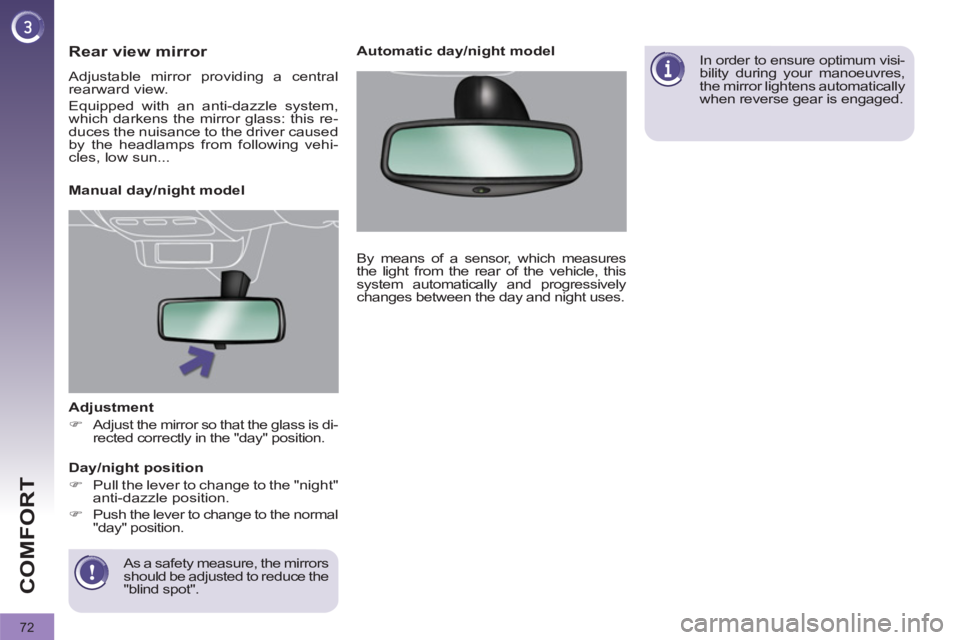

Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...
In order to ensure optimum visi-
bility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night uses.
Page 75 of 328
73
COMFORT

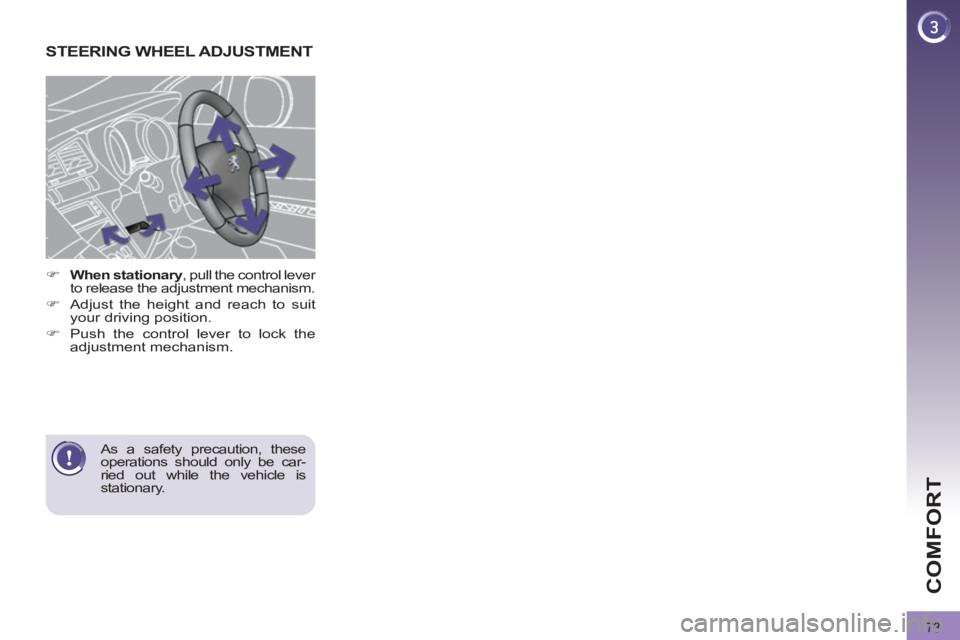

STEERING WHEEL ADJUSTMENT
)
When stationary
, pull the control lever
to release the adjustment mechanism.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the
adjustment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.
Page 76 of 328
74
ACCESS
Unfolding the key
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Complete unlocking using the
remote control

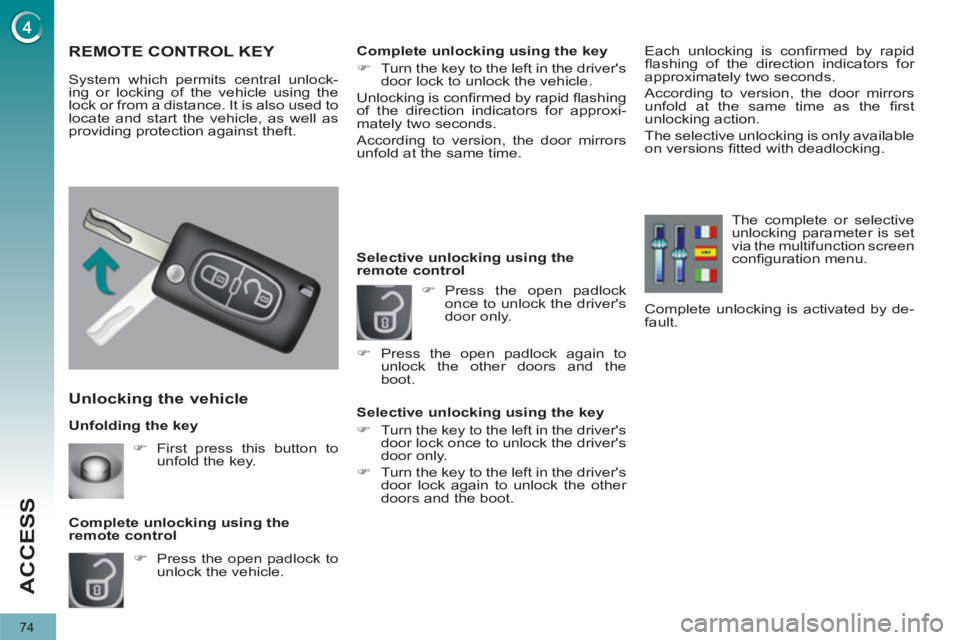

REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Complete unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Selective unlocking using the
remote control
Selective unlocking using the key
)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
)
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.
)
Press the open padlock
once to unlock the driver's
door only.
)
Press the open padlock again to
unlock the other doors and the
boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst
unlocking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction screen
confi guration menu.
Complete unlocking is activated by de-
fault.
)
First press this button to
unfold the key.
Page 77 of 328
75
ACCESS
Locating your vehicle
)
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the direc-
tion indicators for a few seconds. Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking using the remote
control
Deadlocking using the key
Folding the key
)
Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).
)
Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds un-
less a door is opened.
Normal locking using the key
)
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximate-
ly two seconds.
According to version, the door mirrors
fold at the same time.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.

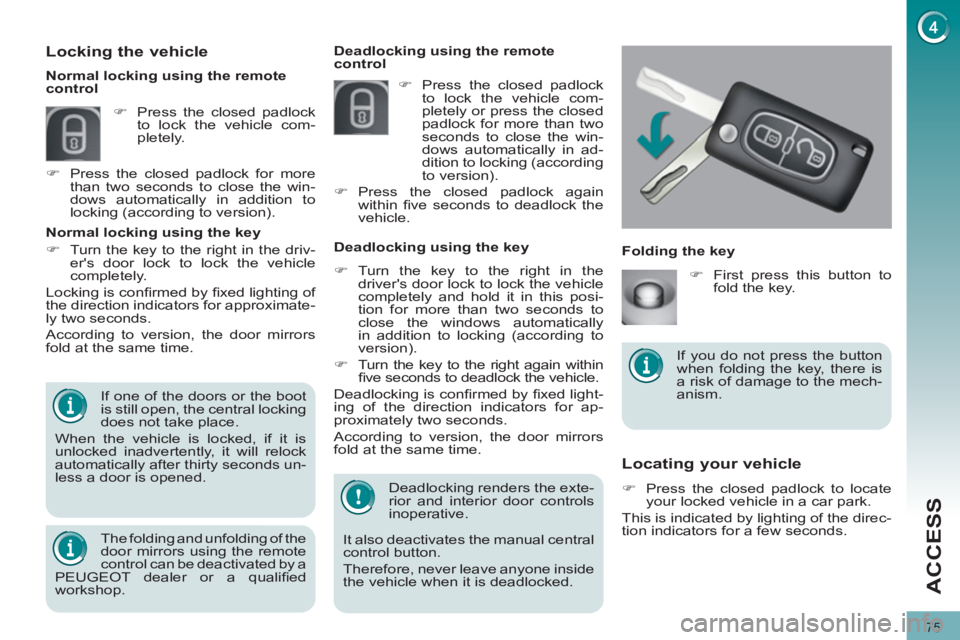

Locking the vehicle
)
Press the closed padlock
to lock the vehicle com-
pletely.
)
Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking (according to version).
Normal locking using the remote
control
)
Turn the key to the right in the
driver's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically
in addition to locking (according to
version).
)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
)
First press this button to
fold the key.
If you do not press the button
when folding the key, there is
a risk of damage to the mech-
anism.
Page 78 of 328
76
ACCESS

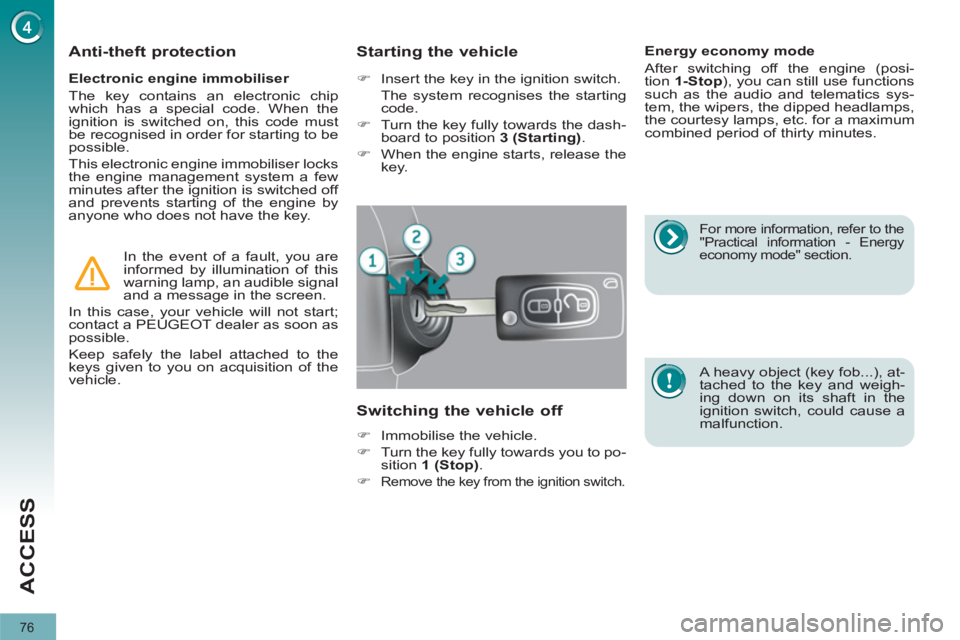

Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start;
contact a PEUGEOT dealer as soon as
possible.
Keep safely the label attached to the
keys given to you on acquisition of the
vehicle.
For more information, refer to the
"Practical information - Energy
economy mode" section.
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release the
key.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to po-
sition 1 (Stop)
.
)
Remove the key from the ignition switch.
Energy economy mode
After switching off the engine (posi-
tion 1-Stop
), you can still use functions
such as the audio and telematics sys-
tem, the wipers, the dipped headlamps,
the courtesy lamps, etc. for a maximum
combined period of thirty minutes.
A heavy object (key fob...), at-
tached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.
Page 79 of 328
77
ACCESS

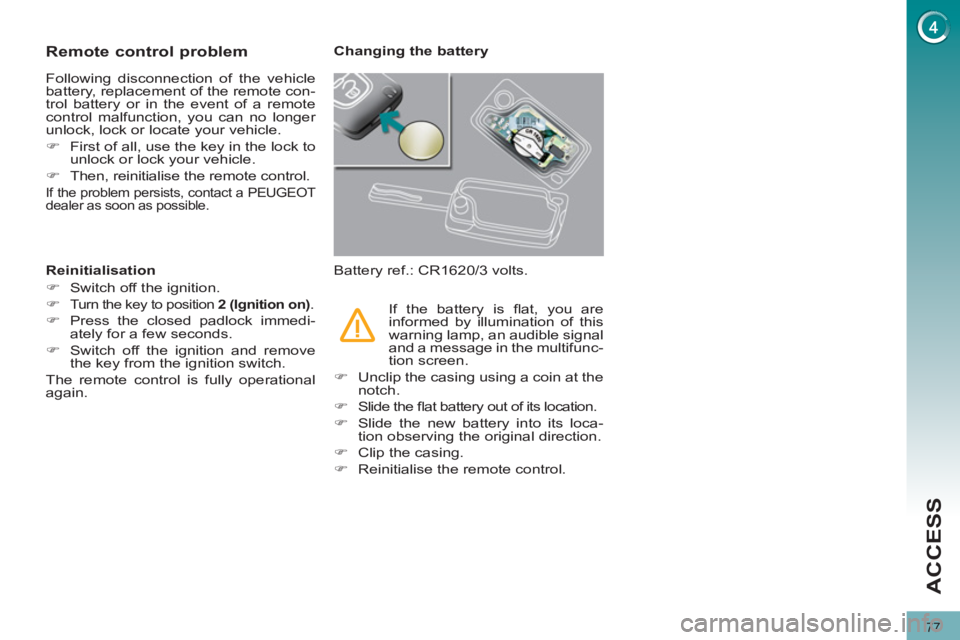

Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition on)
.
)
Press the closed padlock immedi-
ately for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
Page 80 of 328
78

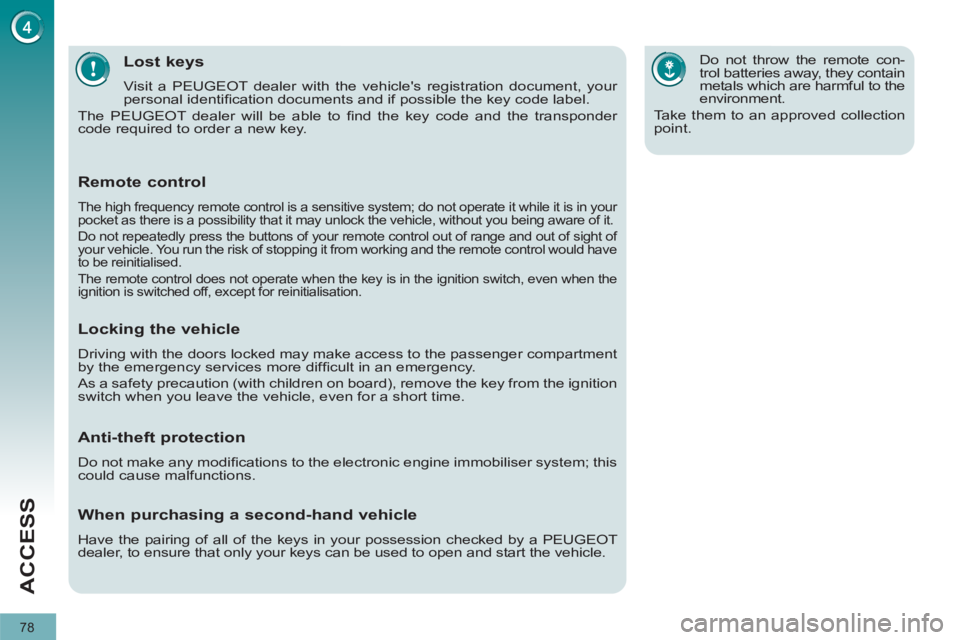

ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's registration document, your
personal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to fi nd the key code and the transponder
code required to order a new key.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the
ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition
switch when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system; this
could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicle.
