Peugeot 308 2014.5 Owner's Manual - RHD (UK, Australia)

249
F unclip the left and right access covers.
F R emove the screws located in each
opening.
F
u
n
clip the boot trim for access to the lamp
connector.
F

D
isconnect the lamp connector.
F

R
emove the lamp fixing nut.
F

C
arefully remove the lamp from the
outside.
F

U
nscrew the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.
Foglamp
(tailgate)
F Open the tailgate and then remove the large plastic cover.
7
Practical information

250

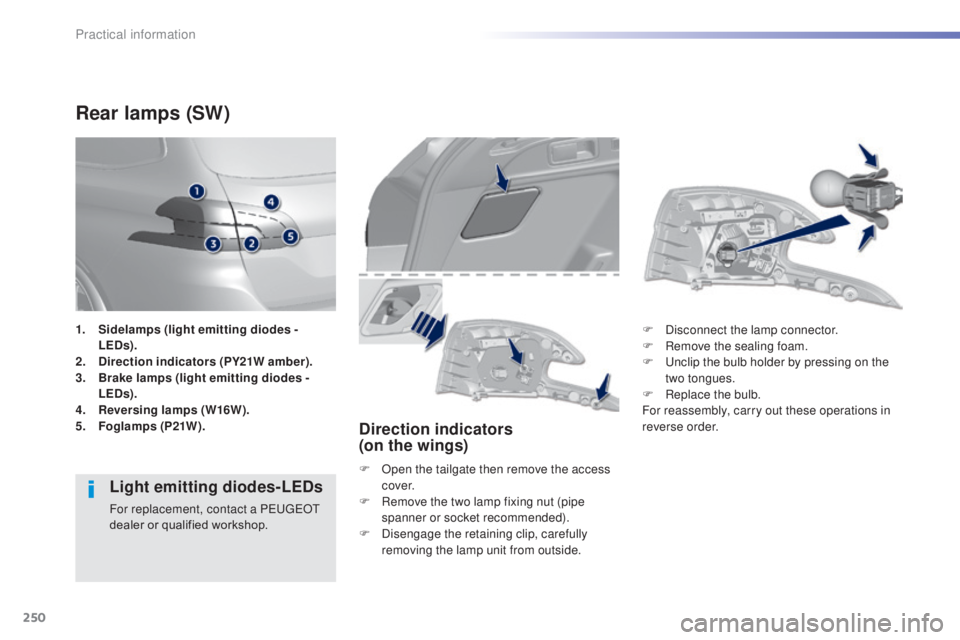

Rear lamps (SW)
Light emitting diodes-LEDs
For replacement, contact a PeugeOt
dealer or qualified workshop.
Direction indicators
(on the wings)
F Open the tailgate then remove the access c ove r.
F

R
emove the two lamp fixing nut (pipe
spanner or socket recommended).
F

D
isengage the retaining clip, carefully
removing the lamp unit from outside. F

D
isconnect the lamp connector.
F
R
emove the sealing foam.
F u
n
clip the bulb holder by pressing on the
two tongues.
F
R
eplace the bulb.
For reassembly, carry out these operations in
reverse order.
1.
S

idelamps (light emitting diodes -
LEDs).
2.
D

irection indicators (PY21W amber).
3.
B

rake lamps (light emitting diodes -
LEDs).
4.
R

eversing lamps (W16W).
5.
F

oglamps (P21W).
Practical information

251

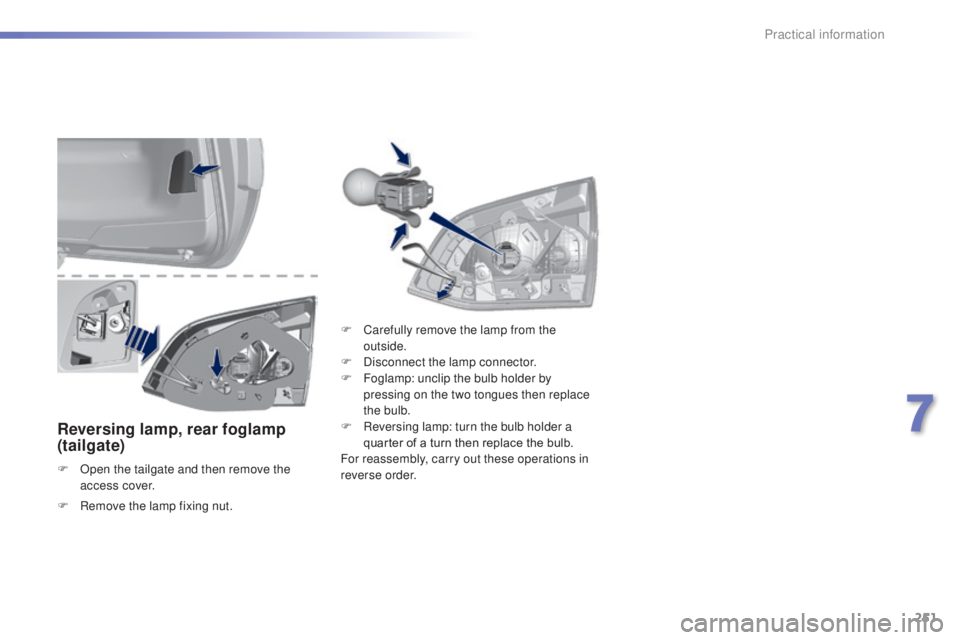

Reversing lamp, rear foglamp
(tailgate)
F Open the tailgate and then remove the access cover. F

C
arefully remove the lamp from the
outside.
F
D
isconnect the lamp connector.
F
F
oglamp: unclip the bulb holder by
pressing on the two tongues then replace
the bulb.
F
R
eversing lamp: turn the bulb holder a
quarter of a turn then replace the bulb.
For reassembly, carry out these operations in
reverse order.
F

R
emove the lamp fixing nut.
7
Practical information

252
For the replacement of this type of lamp,
contact a PEUGEOT dealer or a qualified
workshop.

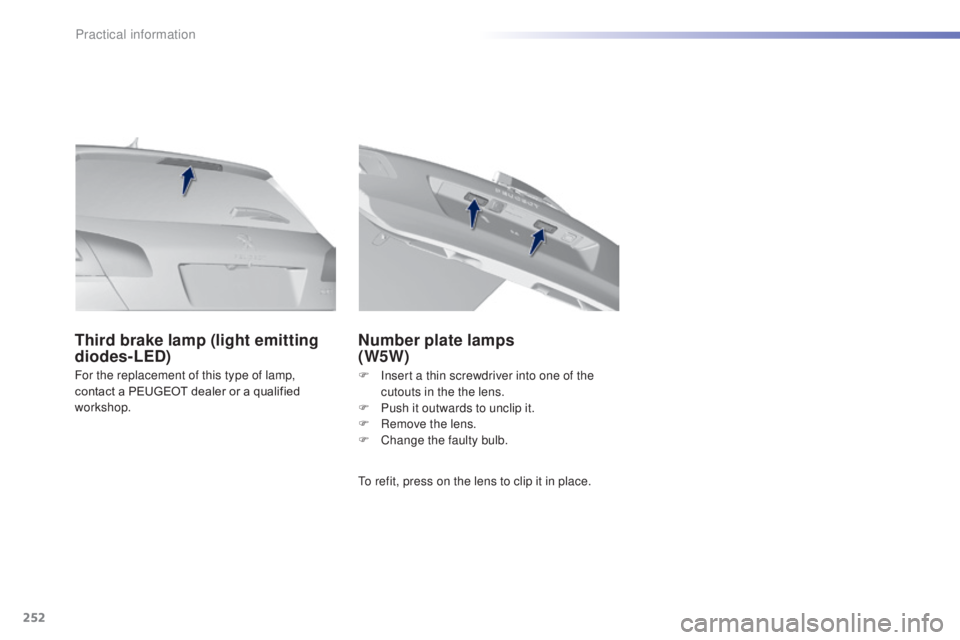

Third brake lamp (light emitting
diodes-LED)Number plate lamps
(W5W)
to refit, press on the lens to clip it in place. F
I
nsert a thin screwdriver into one of the
cutouts in the the lens.
F
P
ush it outwards to unclip it.
F
R
emove the lens.
F
C
hange the faulty bulb.
Practical information

253
F unclip the cover by pulling at the top left, then right.
F

D
isengage the cover completely and turn it
ove r.

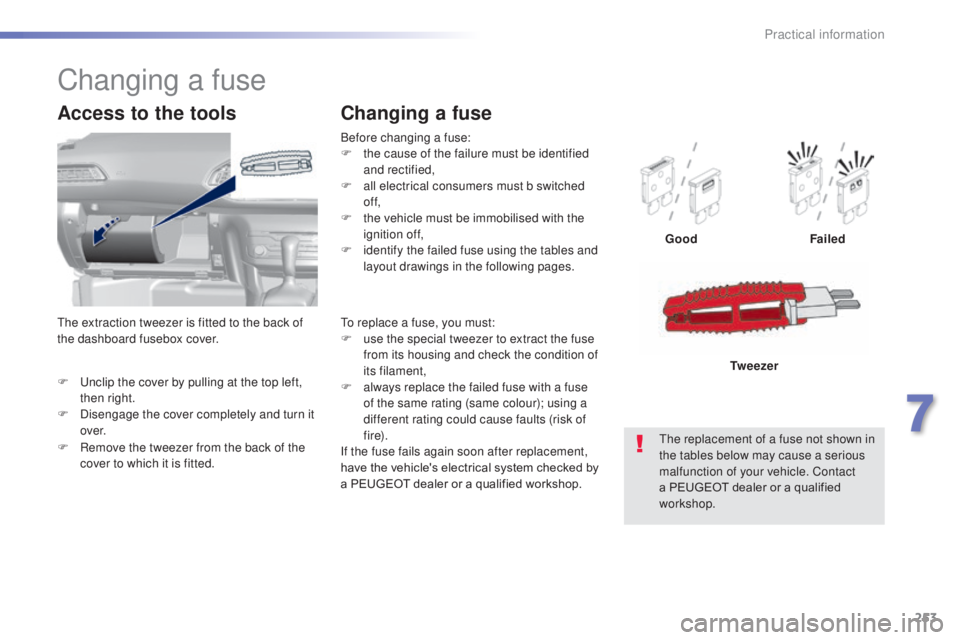

Access to the tools
Before changing a fuse:
F t he cause of the failure must be identified
and rectified,
F

a
ll electrical consumers must b switched
of f,
F

t
he vehicle must be immobilised with the
ignition off,
F

i
dentify the failed fuse using the tables and
layout drawings in the following pages.
Changing a fuse
Good Failed
th

e replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a PEUGEOT dealer or a qualified
workshop. Tw e e z e r
Changing a fuse
to replace a fuse, you must:
F
u se the special tweezer to extract the fuse
from its housing and check the condition of
its filament,
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a PEUGEOT dealer or a qualified workshop.
F

R

emove the tweezer from the back of the
cover to which it is fitted.th
e extraction tweezer is fitted to the back of
the dashboard fusebox cover.
7
Practical information

254

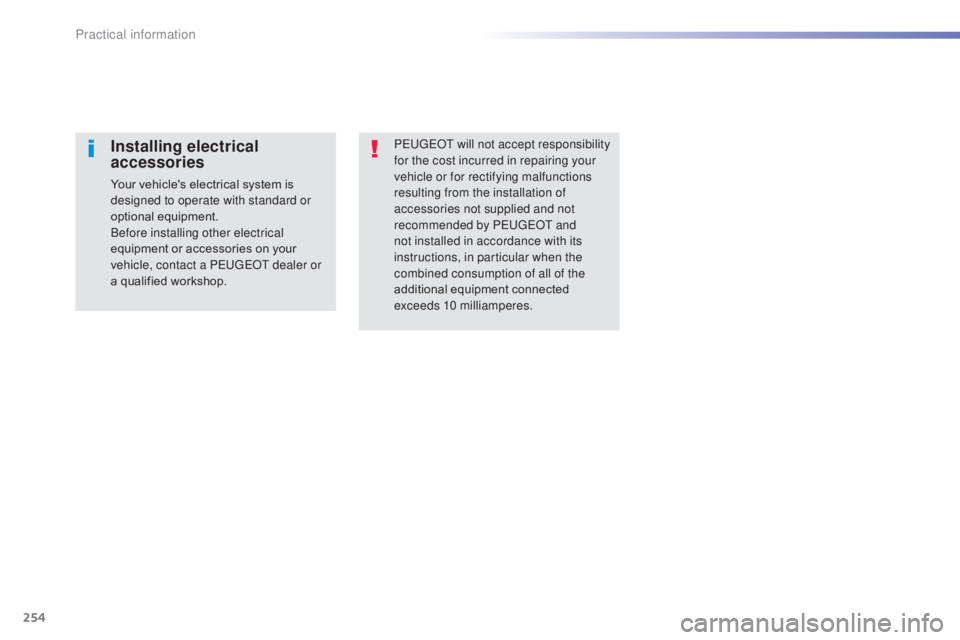

PeugeOt will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by P
e

uge
Ot
and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a P
e

uge
Ot
dealer or
a qualified workshop.
Practical information

255

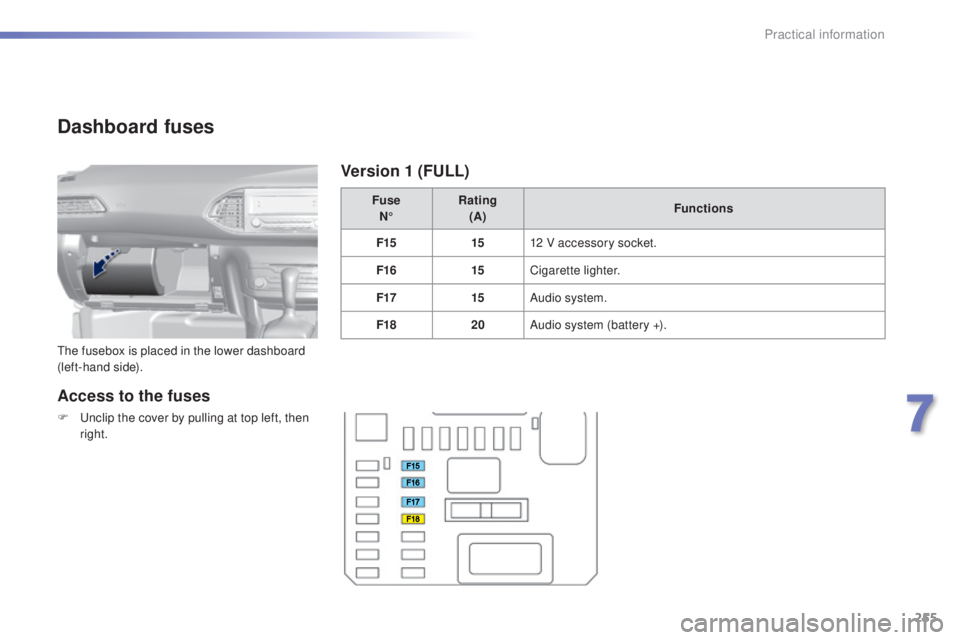

Dashboard fuses
the fusebox is placed in the lower dashboard
(left-hand side).Fuse
N° Rating
(A) Functions
F15 1512 V accessory socket.
F16 15Cigarette lighter.
F17 15Audio system.
F18 20Audio system (battery +).
Access to the fuses
F unclip the cover by pulling at top left, then
right.
Version 1 (FULL)
7
Practical information

256

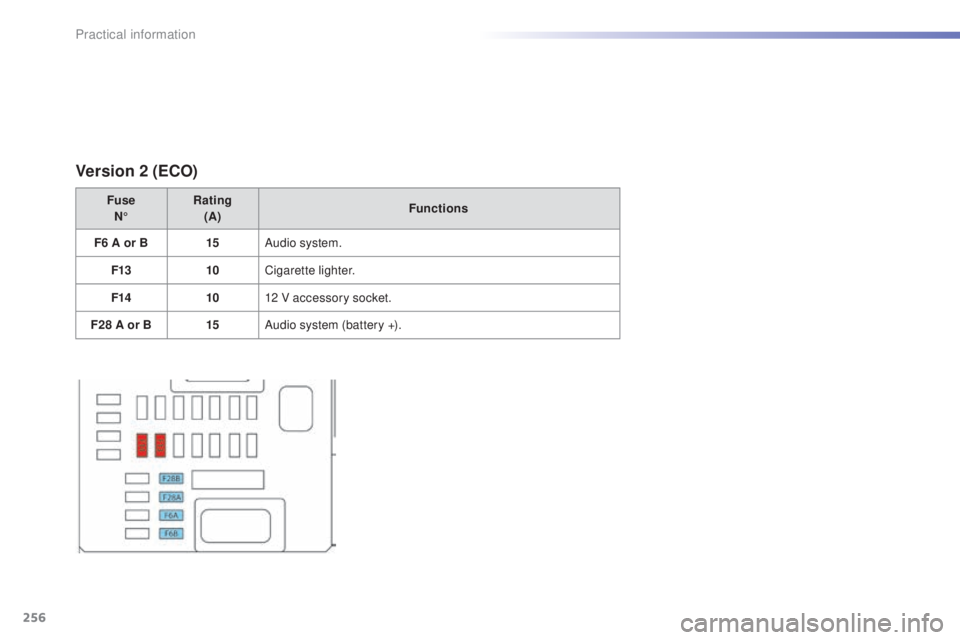

Version 2 (ECO)
FuseN° Rating
(A) Functions
F6 A or B 15Audio system.
F13 10Cigarette lighter.
F14 1012 V accessory socket.
F28 A or B 15Audio system (battery +).
Practical information

257

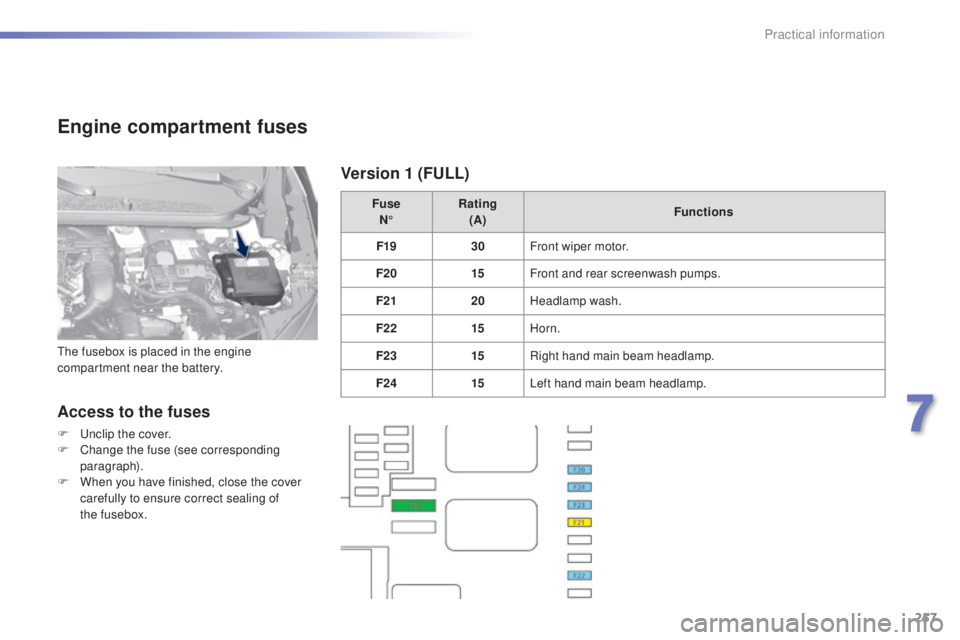

Engine compartment fuses
Access to the fuses
F unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of
the


fusebox. Fuse
N° Rating
(A) Functions
F19 30Front wiper motor.
F20 15Front and rear screenwash pumps.
F21 20Headlamp wash.
F22 15Horn.
F23 15Right hand main beam headlamp.
F24 15Left hand main beam headlamp.
th
e fusebox is placed in the engine
compartment near the battery.
Version 1 (FULL)
7
Practical information

258

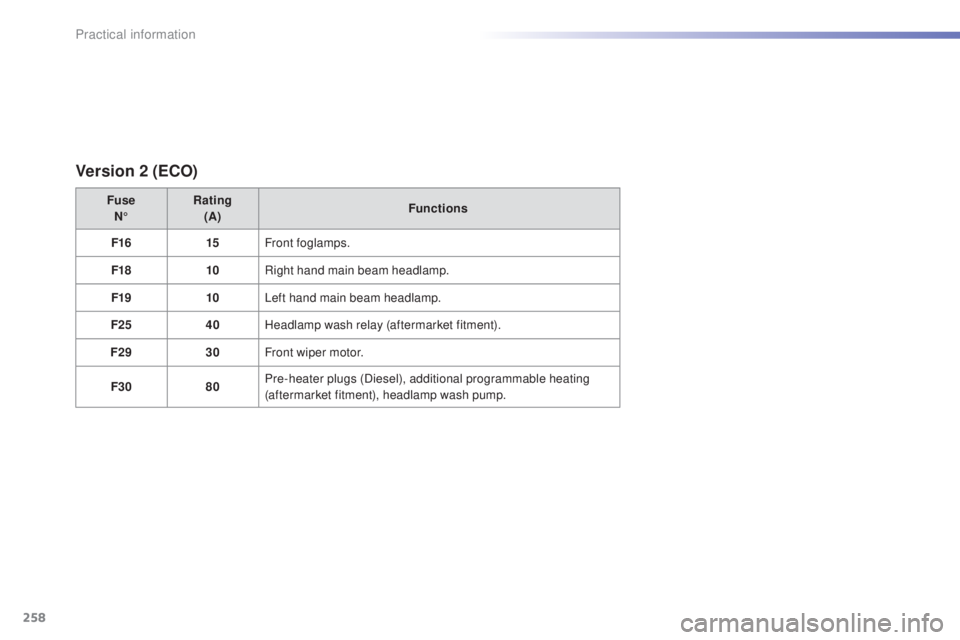

Version 2 (ECO)
FuseN° Rating
(A) Functions
F16 15Front foglamps.
F18 10Right hand main beam headlamp.
F19 10Left hand main beam headlamp.
F25 40Headlamp wash relay (aftermarket fitment).
F29 30Front wiper motor.
F30 80Pre-heater plugs (Diesel), additional programmable heating
(aftermarket fitment), headlamp wash pump.
