Peugeot 308 2014 Owner's Manual - RHD (UK, Australia)

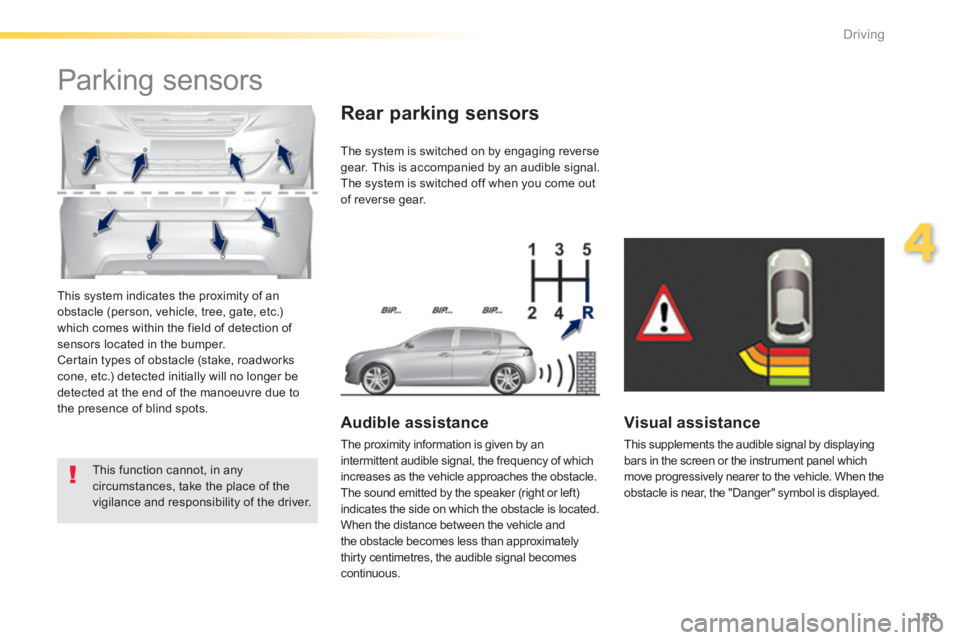

159
4
Driving
This system indicates the proximity of an obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensors located in the bumper. Certain types of obstacle (stake, roadworks cone, etc.) detected initially will no longer be detected at the end of the manoeuvre due to the presence of blind spots.

Parking sensors
This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
The system is switched on by engaging reverse gear. This is accompanied by an audible signal. The system is switched off when you come out of reverse gear.
Audible assistance
The proximity information is given by an intermittent audible signal, the frequency of which increases as the vehicle approaches the obstacle. The sound emitted by the speaker (right or left) indicates the side on which the obstacle is located. When the distance between the vehicle and the obstacle becomes less than approximately thirty centimetres, the audible signal becomes continuous.
Rear parking sensors
Visual assistance
This supplements the audible signal by displaying bars in the screen or the instrument panel which move progressively nearer to the vehicle. When the obstacle is near, the "Danger" symbol is displayed.

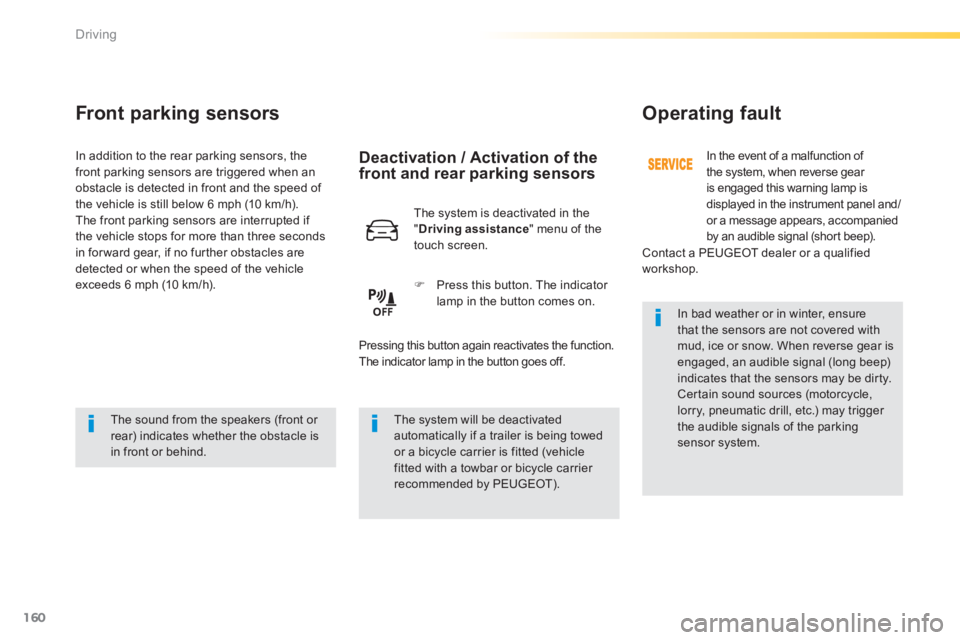

160
Driving
Front parking sensors
The sound from the speakers (front or rear) indicates whether the obstacle is in front or behind.
The system will be deactivated automatically if a trailer is being towed or a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by PEUGEOT).
In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow. When reverse gear is engaged, an audible signal (long beep) indicates that the sensors may be dirty. Certain sound sources (motorcycle, lorry, pneumatic drill, etc.) may trigger the audible signals of the parking sensor system.
In addition to the rear parking sensors, the front parking sensors are triggered when an obstacle is detected in front and the speed of the vehicle is still below 6 mph (10 km/h). The front parking sensors are interrupted if the vehicle stops for more than three seconds in for ward gear, if no further obstacles are detected or when the speed of the vehicle exceeds 6 mph (10 km/h).
Deactivation / Activation of the front and rear parking sensors
Operating fault
In the event of a malfunction of the system, when reverse gear is engaged this warning lamp is displayed in the instrument panel and/or a message appears, accompanied by an audible signal (short beep).
Contact a PEUGEOT dealer or a qualified workshop.
The system is deactivated in the " Driving assistance " menu of the touch screen.
 Press this button. The indicator lamp in the button comes on.
Pressing this button again reactivates the function. The indicator lamp in the button goes off.

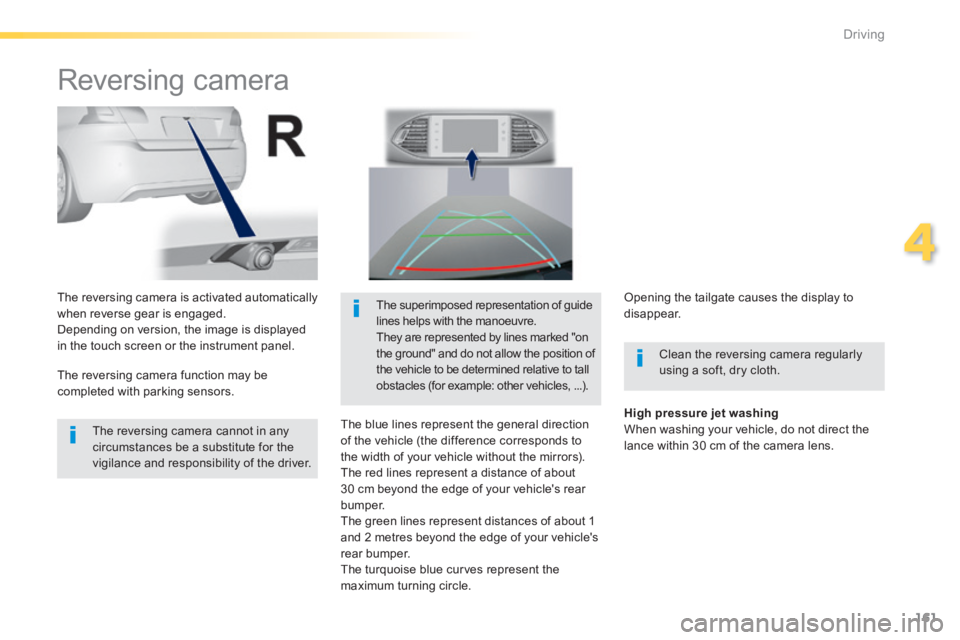

161
4
Driving

Reversing camera
Clean the reversing camera regularly using a soft, dry cloth.
The reversing camera is activated automatically when reverse gear is engaged. Depending on version, the image is displayed in the touch screen or the instrument panel.
The superimposed representation of guide lines helps with the manoeuvre. They are represented by lines marked "on the ground" and do not allow the position of the vehicle to be determined relative to tall obstacles (for example: other vehicles, ...).
The blue lines represent the general direction
of the vehicle (the difference corresponds to the width of your vehicle without the mirrors). The red lines represent a distance of about 30 cm beyond the edge of your vehicle's rear b u m p e r. The green lines represent distances of about 1 and 2 metres beyond the edge of your vehicle's rear bumper. The turquoise blue curves represent the maximum turning circle.
The reversing camera cannot in any circumstances be a substitute for the vigilance and responsibility of the driver.
The reversing camera function may be completed with parking sensors.
Opening the tailgate causes the display to disappear.
High pressure jet washing When washing your vehicle, do not direct the lance within 30 cm of the camera lens.

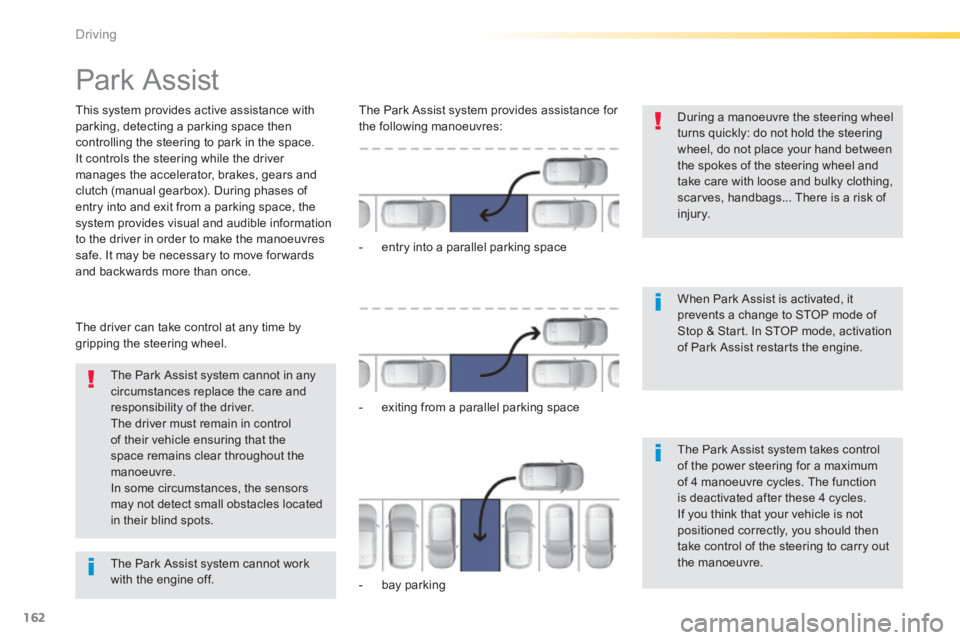

162
Driving

Park Assist
This system provides active assistance with parking, detecting a parking space then controlling the steering to park in the space. It controls the steering while the driver manages the accelerator, brakes, gears and clutch (manual gearbox). During phases of entry into and exit from a parking space, the system provides visual and audible information
to the driver in order to make the manoeuvres safe. It may be necessary to move for wards and backwards more than once.
During a manoeuvre the steering wheel turns quickly: do not hold the steering wheel, do not place your hand between the spokes of the steering wheel and take care with loose and bulky clothing, scarves, handbags... There is a risk of injury.
When Park Assist is activated, it prevents a change to STOP mode of Stop & Start. In STOP mode, activation of Park Assist restarts the engine.
The Park Assist system cannot in any circumstances replace the care and responsibility of the driver. The driver must remain in control of their vehicle ensuring that the space remains clear throughout the manoeuvre. In some circumstances, the sensors may not detect small obstacles located in their blind spots.
The driver can take control at any time by gripping the steering wheel.
The Park Assist system provides assistance for the following manoeuvres:
- entry into a parallel parking space
- exiting from a parallel parking space
- bay parking
The Park Assist system takes control of the power steering for a maximum of 4 manoeuvre cycles. The function is deactivated after these 4 cycles. If you think that your vehicle is not positioned correctly, you should then take control of the steering to carry out the manoeuvre. The Park Assist system cannot work with the engine off.

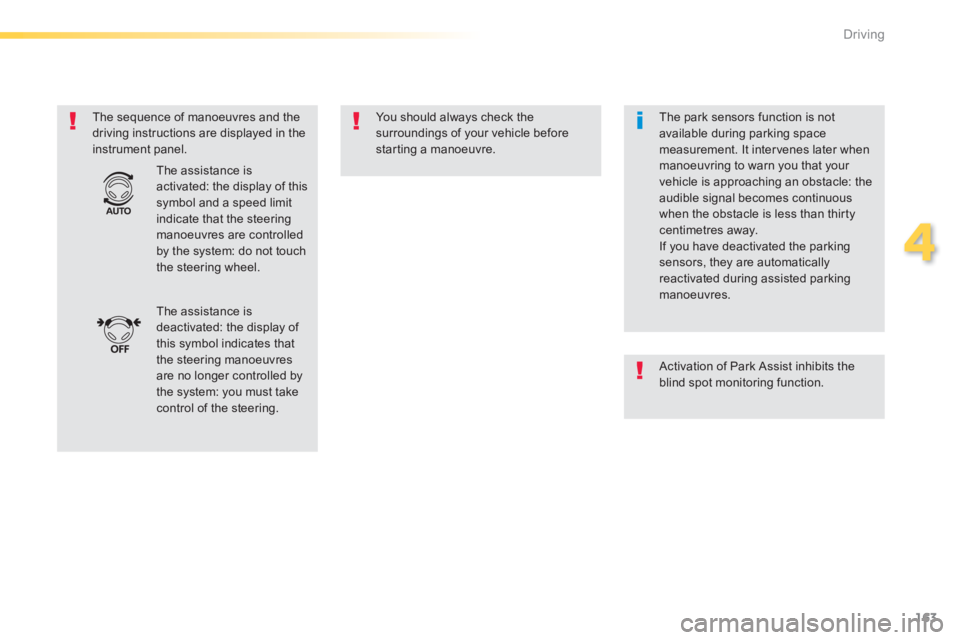

163
4
Driving
The sequence of manoeuvres and the driving instructions are displayed in the instrument panel.
You should always check the surroundings of your vehicle before starting a manoeuvre.
The assistance is deactivated: the display of this symbol indicates that the steering manoeuvres are no longer controlled by the system: you must take control of the steering.
The assistance is activated: the display of this symbol and a speed limit indicate that the steering manoeuvres are controlled by the system: do not touch the steering wheel.
The park sensors function is not available during parking space measurement. It intervenes later when manoeuvring to warn you that your vehicle is approaching an obstacle: the audible signal becomes continuous when the obstacle is less than thirty centimetres away. If you have deactivated the parking sensors, they are automatically reactivated during assisted parking manoeuvres.
Activation of Park Assist inhibits the blind spot monitoring function.

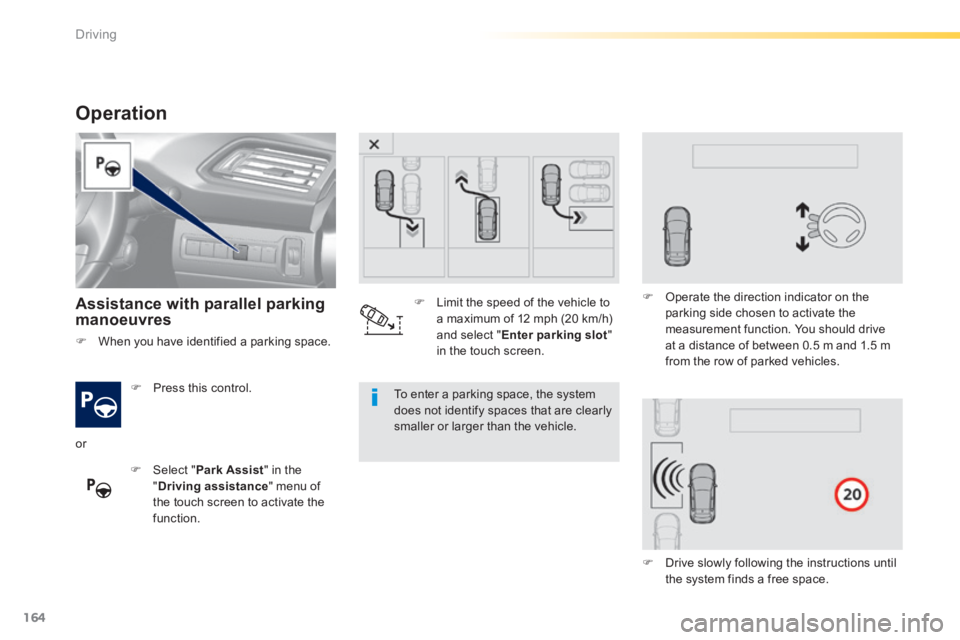

164
Driving
Operation
Assistance with parallel parking manoeuvres
 Press this control.
 Select " Park Assist " in the " Driving assistance " menu of the touch screen to activate the function.
To enter a parking space, the system does not identify spaces that are clearly smaller or larger than the vehicle.
or
 Limit the speed of the vehicle to a maximum of 12 mph (20 km/h) and select " Enter parking slot " in the touch screen.
 Operate the direction indicator on the parking side chosen to activate the measurement function. You should drive at a distance of between 0.5 m and 1.5 m from the row of parked vehicles.
 Drive slowly following the instructions until the system finds a free space.
 When you have identified a parking space.

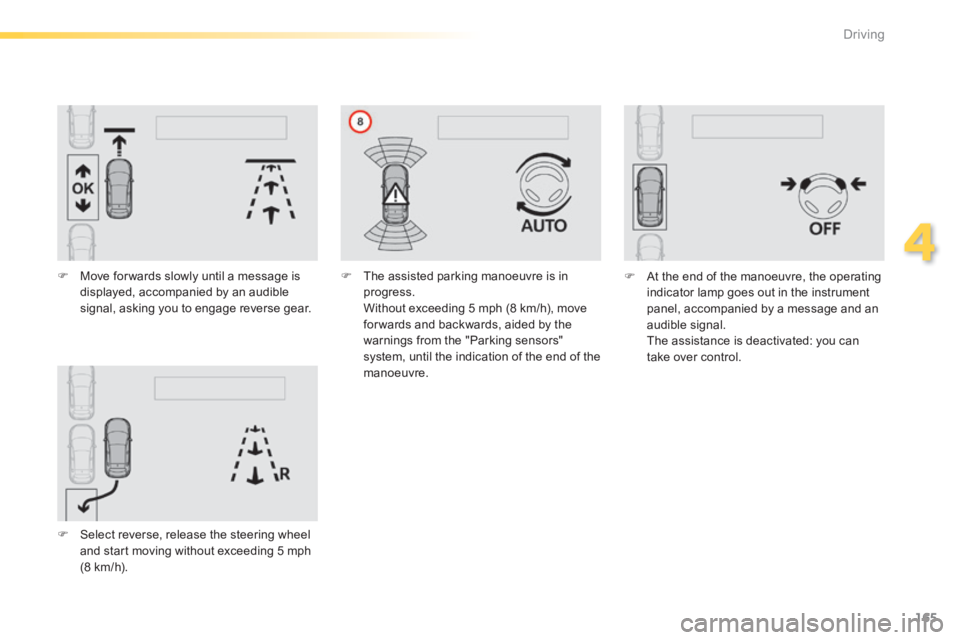

165
4
Driving
 Move for wards slowly until a message is displayed, accompanied by an audible signal, asking you to engage reverse gear.
 Select reverse, release the steering wheel and start moving without exceeding 5 mph (8 km/h).
 The assisted parking manoeuvre is in progress. Without exceeding 5 mph (8 km/h), move for wards and backwards, aided by the warnings from the "Parking sensors" system, until the indication of the end of the manoeuvre.
 At the end of the manoeuvre, the operating indicator lamp goes out in the instrument panel, accompanied by a message and an audible signal. The assistance is deactivated: you can take over control.

166
Driving

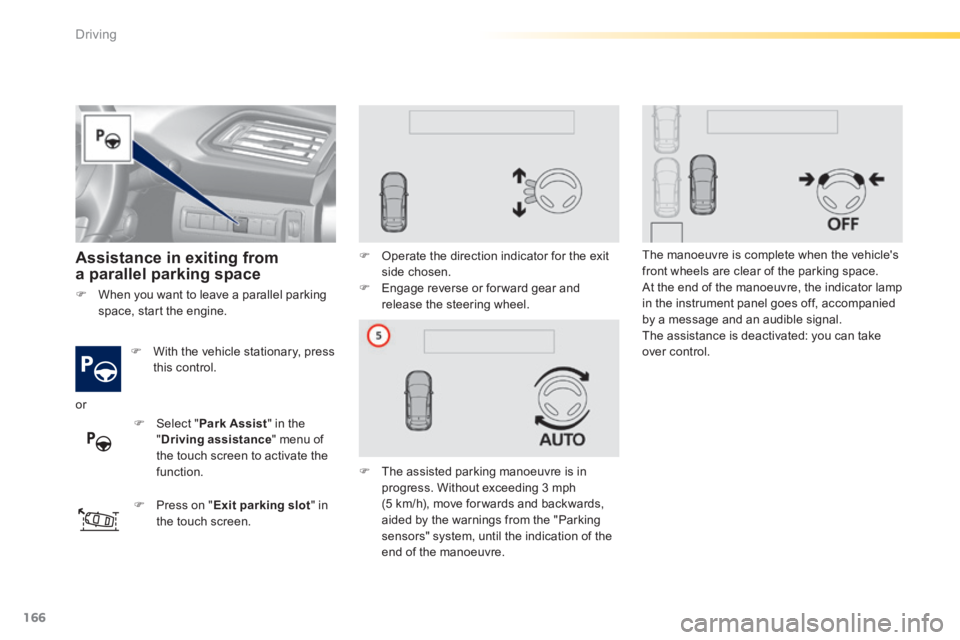

Assistance in exiting from a parallel parking space
 With the vehicle stationary, press this control.
 Press on " Exit parking slot " in the touch screen.
 Operate the direction indicator for the exit side chosen.  Engage reverse or for ward gear and release the steering wheel.
 The assisted parking manoeuvre is in progress. Without exceeding 3 mph (5 km/h), move for wards and backwards, aided by the warnings from the "Parking sensors" system, until the indication of the end of the manoeuvre.
The manoeuvre is complete when the vehicle's front wheels are clear of the parking space. At the end of the manoeuvre, the indicator lamp in the instrument panel goes off, accompanied by a message and an audible signal. The assistance is deactivated: you can take over control.
 When you want to leave a parallel parking space, start the engine.
or
 Select " Park Assist " in the " Driving assistance " menu of the touch screen to activate the function.

167
4
Driving
 Once you have identified a parking zone, press this control at the steering wheel,

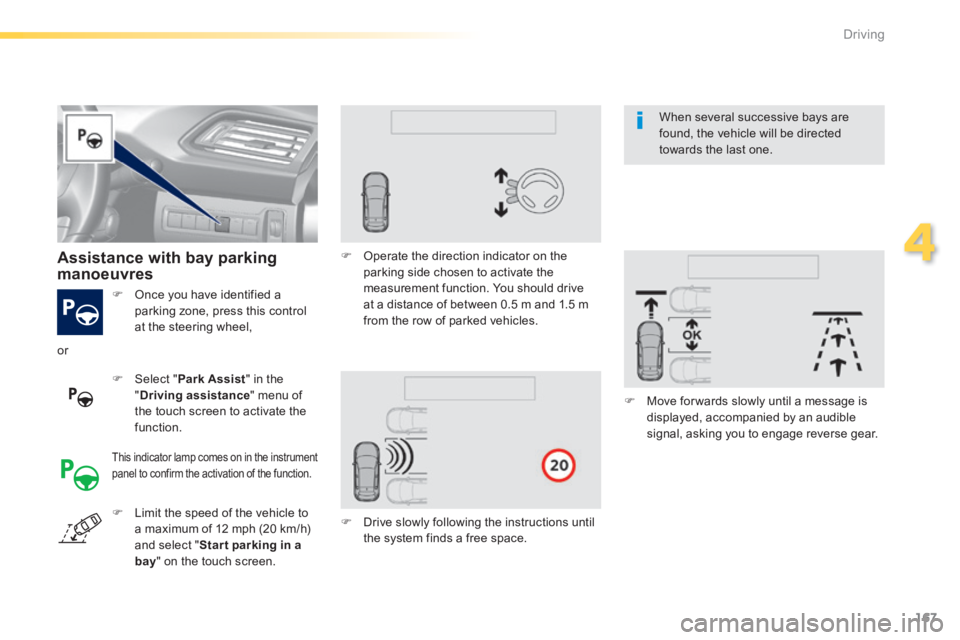

Assistance with bay parking manoeuvres
 Select " Park Assist " in the " Driving assistance " menu of the touch screen to activate the function.
This indicator lamp comes on in the instrument panel to confirm the activation of the function.
 Operate the direction indicator on the parking side chosen to activate the measurement function. You should drive at a distance of between 0.5 m and 1.5 m from the row of parked vehicles.
 Drive slowly following the instructions until
the system finds a free space.
 Move for wards slowly until a message is displayed, accompanied by an audible
signal, asking you to engage reverse gear.
or
 Limit the speed of the vehicle to a maximum of 12 mph (20 km/h)
and select " Star t parking in a bay " on the touch screen.
When several successive bays are found, the vehicle will be directed towards the last one.

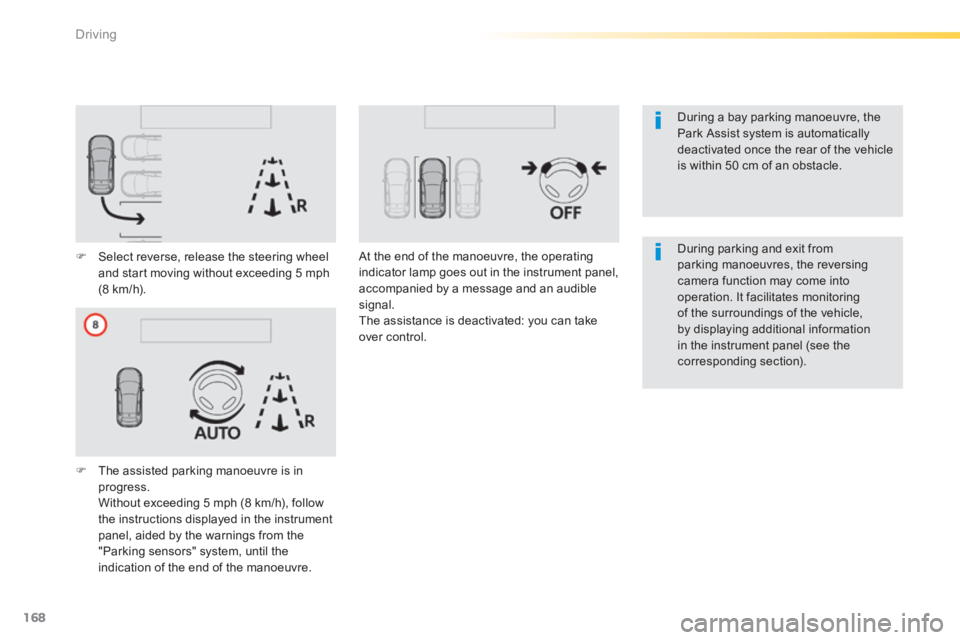

168
Driving
During a bay parking manoeuvre, the Park Assist system is automatically deactivated once the rear of the vehicle is within 50 cm of an obstacle.
 Select reverse, release the steering wheel and start moving without exceeding 5 mph (8 km/h).
 The assisted parking manoeuvre is in progress. Without exceeding 5 mph (8 km/h), follow the instructions displayed in the instrument
panel, aided by the warnings from the "Parking sensors" system, until the indication of the end of the manoeuvre.
At the end of the manoeuvre, the operating indicator lamp goes out in the instrument panel, accompanied by a message and an audible signal. The assistance is deactivated: you can take over control.
During parking and exit from parking manoeuvres, the reversing camera function may come into operation. It facilitates monitoring of the surroundings of the vehicle, by displaying additional information in the instrument panel (see the corresponding section).
