Peugeot 308 2014 Owner's Manual - RHD (UK, Australia)

239
7
Practical information
Integrated direction indicator side repeaters
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of these bulbs.
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of the light emitting diode - LED.

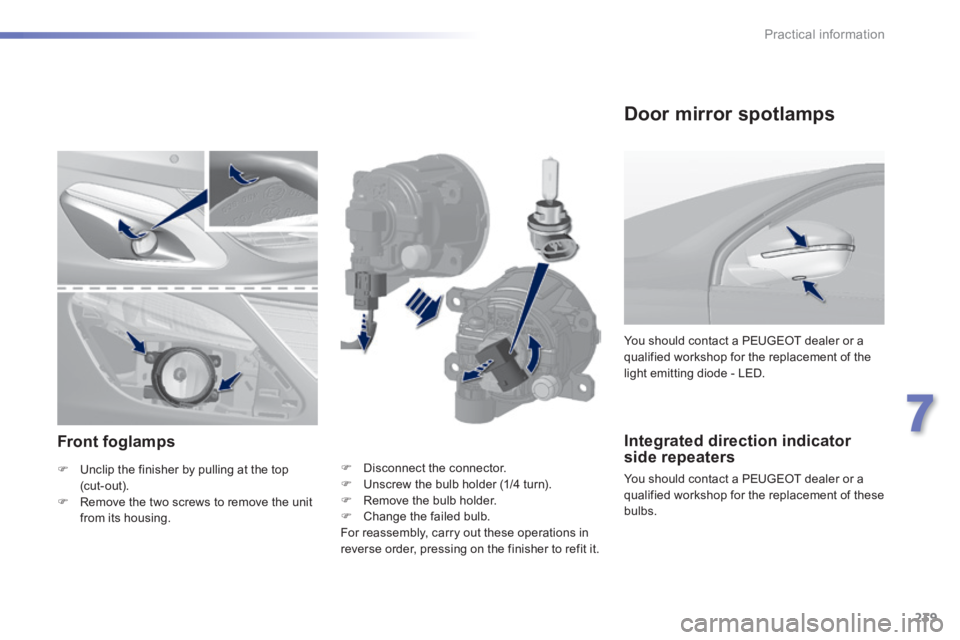

Front foglamps
 Unclip the finisher by pulling at the top (cut-out).  Remove the two screws to remove the unit from its housing.
 Disconnect the connector.  Unscrew the bulb holder (1/4 turn).  Remove the bulb holder.  Change the failed bulb. For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.
Door mirror spotlamps

240

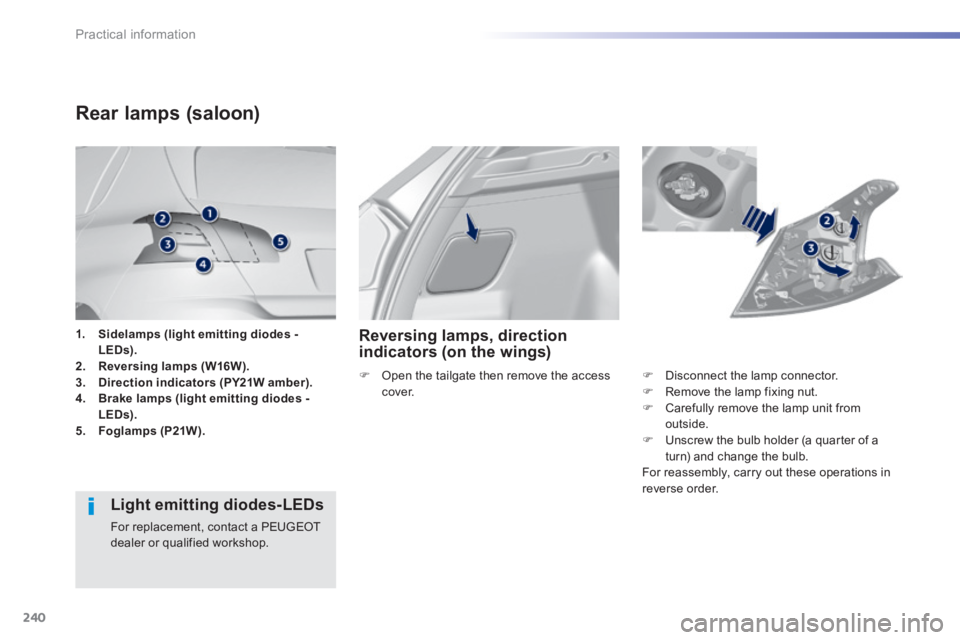

Practical information
1. Sidelamps (light emitting diodes - LEDs).2. Reversing lamps (W16W).3. Direction indicators (PY21W amber).4. Brake lamps (light emitting diodes - LEDs).5. Foglamps (P21W).
Rear lamps (saloon)
Light emitting diodes-LEDs
For replacement, contact a PEUGEOT
dealer or qualified workshop.
Reversing lamps, direction indicators (on the wings)
 Disconnect the lamp connector.  Remove the lamp fixing nut.  Carefully remove the lamp unit from outside.  Unscrew the bulb holder (a quarter of a turn) and change the bulb. For reassembly, carry out these operations in reverse order.
 Open the tailgate then remove the access cover.

241
7
Practical information
 Unclip the left and right access covers.  Remove the screws located in each opening.  Unclip the boot trim for access to the lamp connector.  Disconnect the lamp connector.  Remove the lamp fixing nut.  Carefully remove the lamp from the outside.  Unscrew the bulb holder (a quarter of a turn) and change the bulb. For reassembly, carry out these operations in reverse order.

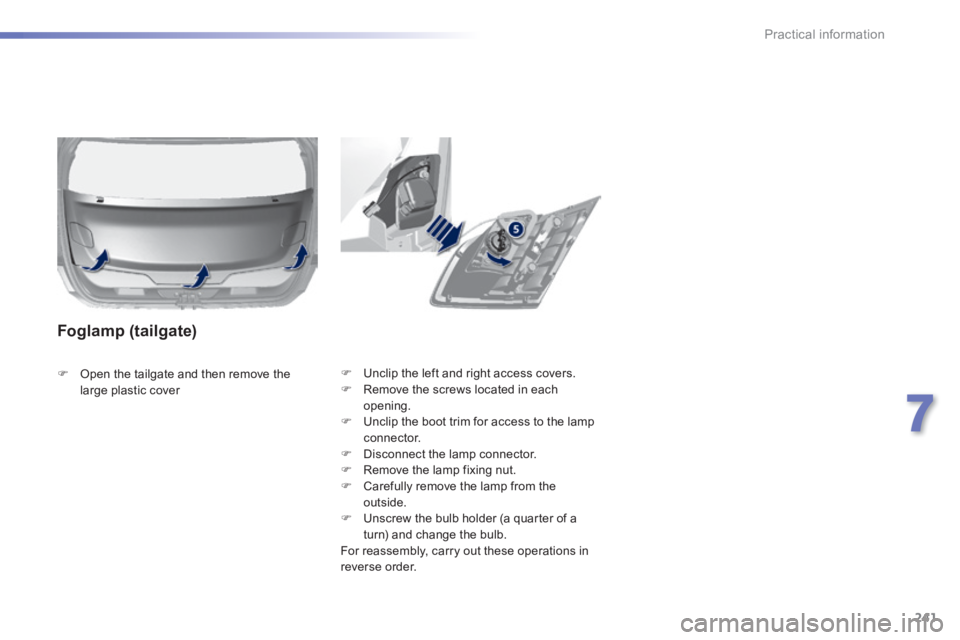

Foglamp (tailgate)
 Open the tailgate and then remove the large plastic cover

242
Practical information

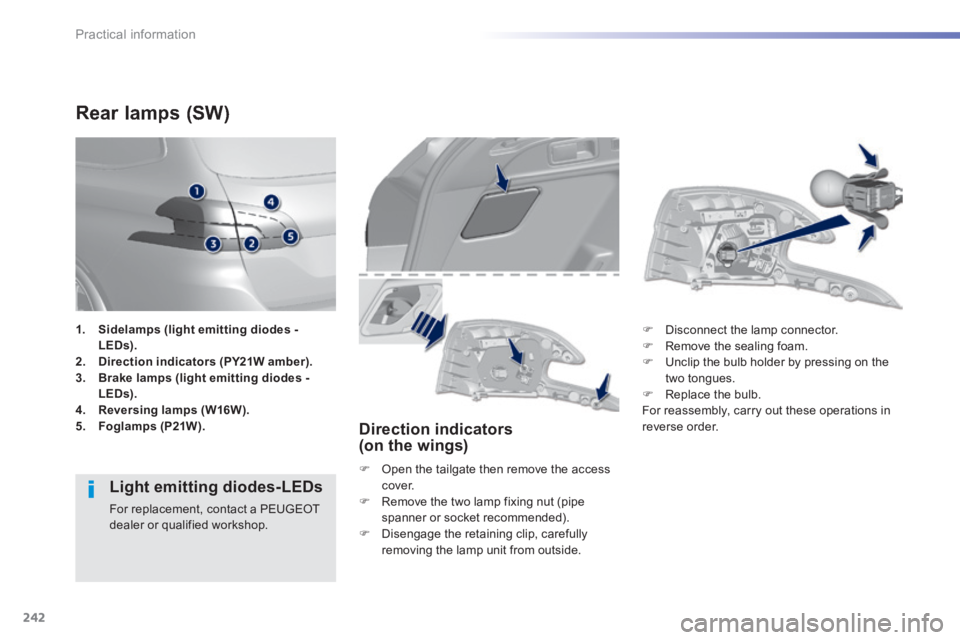

Rear lamps (SW)
Light emitting diodes-LEDs
For replacement, contact a PEUGEOT dealer or qualified workshop.
Direction indicators (on the wings)
 Open the tailgate then remove the access cover.  Remove the two lamp fixing nut (pipe spanner or socket recommended).  Disengage the retaining clip, carefully removing the lamp unit from outside.
 Disconnect the lamp connector.  Remove the sealing foam.  Unclip the bulb holder by pressing on the two tongues.  Replace the bulb. For reassembly, carry out these operations in reverse order.
1. Sidelamps (light emitting diodes - LEDs).2. Direction indicators (PY21W amber).3. Brake lamps (light emitting diodes - LEDs).4. Reversing lamps (W16W).5. Foglamps (P21W).

243
7
Practical information

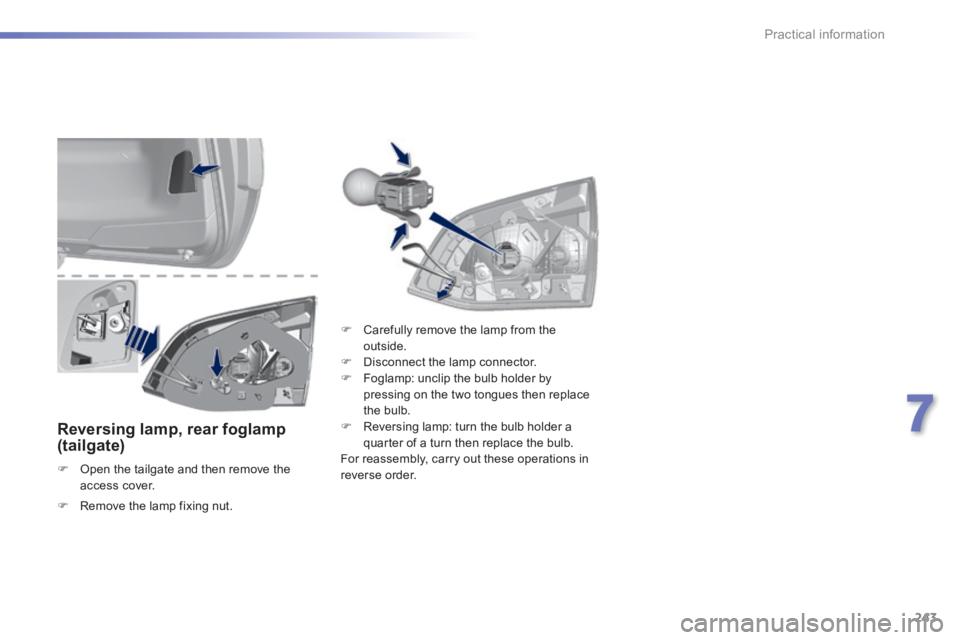

Reversing lamp, rear foglamp (tailgate)
 Open the tailgate and then remove the access cover.
 Carefully remove the lamp from the outside.  Disconnect the lamp connector.  Foglamp: unclip the bulb holder by pressing on the two tongues then replace the bulb.  Reversing lamp: turn the bulb holder a quarter of a turn then replace the bulb. For reassembly, carry out these operations in reverse order.
 Remove the lamp fixing nut.

244
Practical information
For the replacement of this type of lamp, contact a PEUGEOT dealer or a qualified workshop.

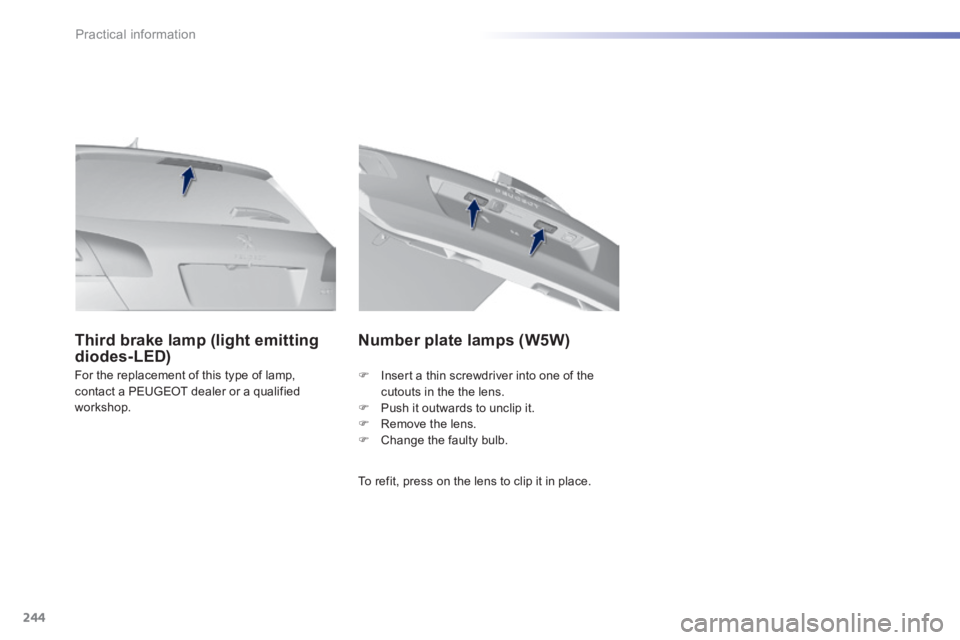

Third brake lamp (light emitting diodes-LED)
Number plate lamps (W5W)
To refit, press on the lens to clip it in place.
 Insert a thin screwdriver into one of the cutouts in the the lens.  Push it outwards to unclip it.  Remove the lens.  Change the faulty bulb.

245
7
Practical information
 Unclip the cover by pulling at the top left, then right.  Disengage the cover completely and turn it over.

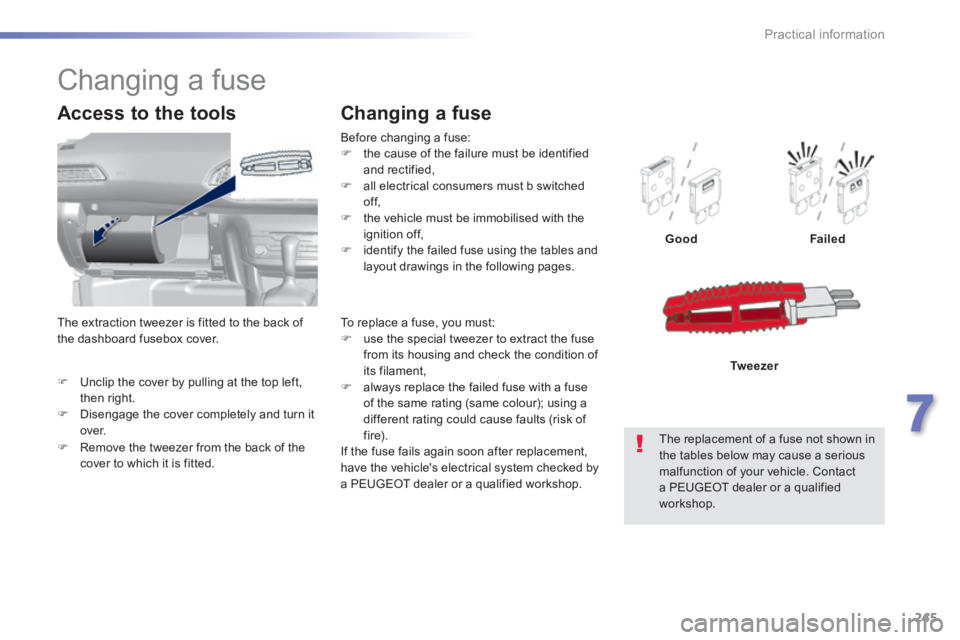

Access to the tools
Before changing a fuse:  the cause of the failure must be identified and rectified,  all electrical consumers must b switched of f,  the vehicle must be immobilised with the ignition off,  identify the failed fuse using the tables and layout drawings in the following pages.
Changing a fuse
GoodFailed
The replacement of a fuse not shown in the tables below may cause a serious malfunction of your vehicle. Contact a PEUGEOT dealer or a qualified workshop.
Tw e e z e r
Changing a fuse
To replace a fuse, you must:  use the special tweezer to extract the fuse from its housing and check the condition of its filament,  always replace the failed fuse with a fuse of the same rating (same colour); using a different rating could cause faults (risk of f i r e). If the fuse fails again soon after replacement, have the vehicle's electrical system checked by a PEUGEOT dealer or a qualified workshop.
 Remove the tweezer from the back of the cover to which it is fitted.
The extraction tweezer is fitted to the back of the dashboard fusebox cover.

246
Practical information

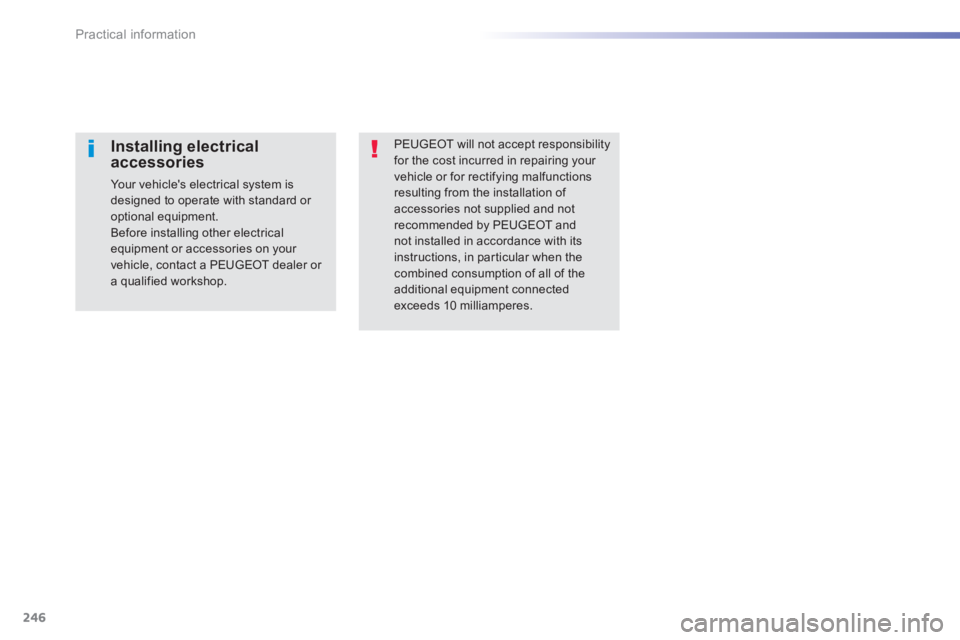

PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is designed to operate with standard or optional equipment. Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer or a qualified workshop.

247
7
Practical information

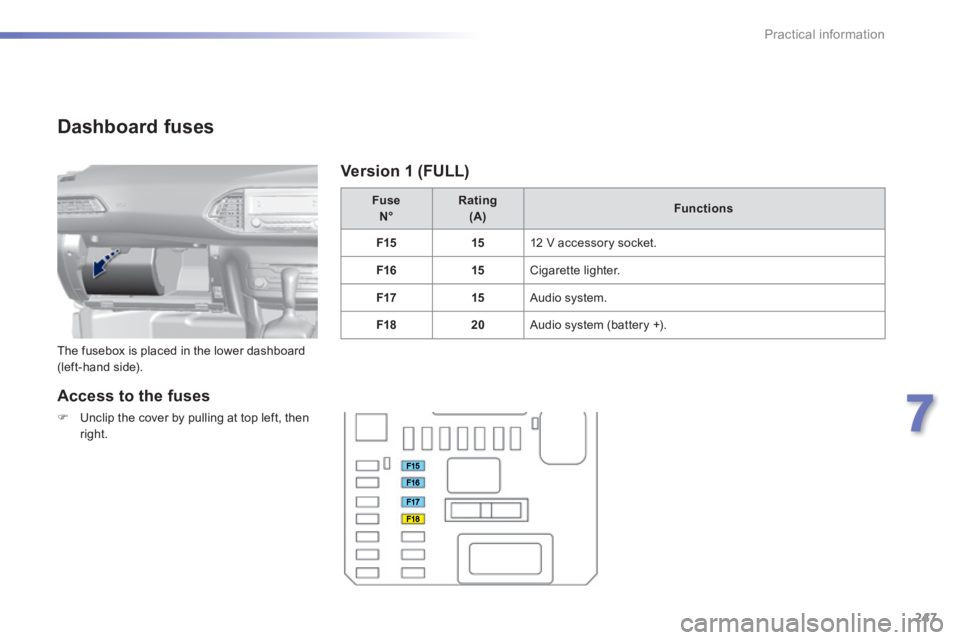

Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).
Fuse N° Rating (A)Functions
F1515 12 V accessory socket.
F1615 Cigarette lighter.
F1715 Audio system.
F1820 Audio system (battery +).
Access to the fuses
 Unclip the cover by pulling at top left, then
right.
Version 1 (FULL)

248
Practical information

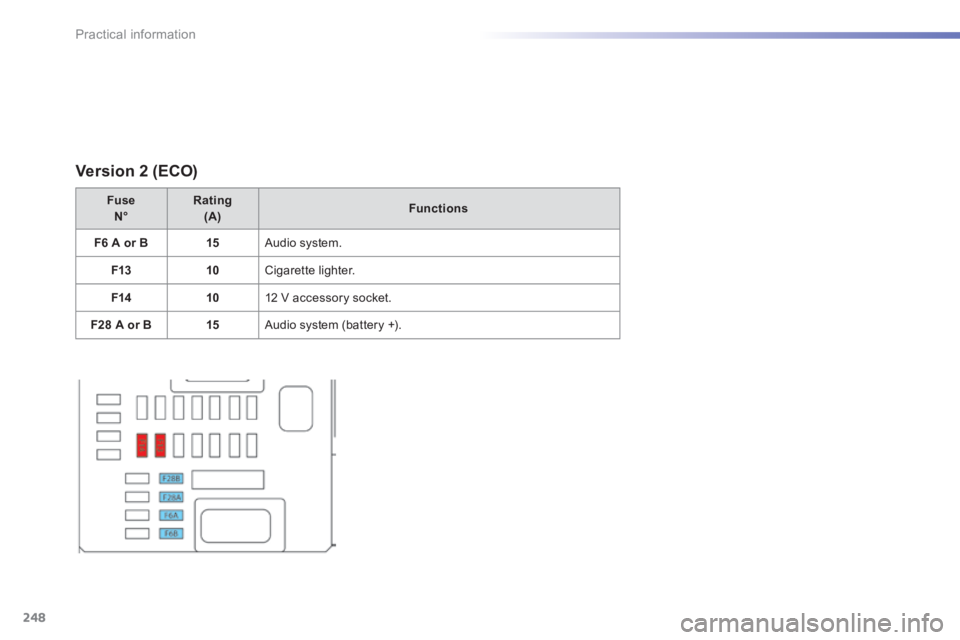

Version 2 (ECO)
Fuse N°Rating (A)Functions
F6 A or B15 Audio system.
F1310 Cigarette lighter.
F1410 12 V accessory socket.
F28 A or B15 Audio system (battery +).
