Peugeot 308 2014 Owner's Manual

06
SRC
379
308_EN_CHAP10D_RD45_ED02_2013

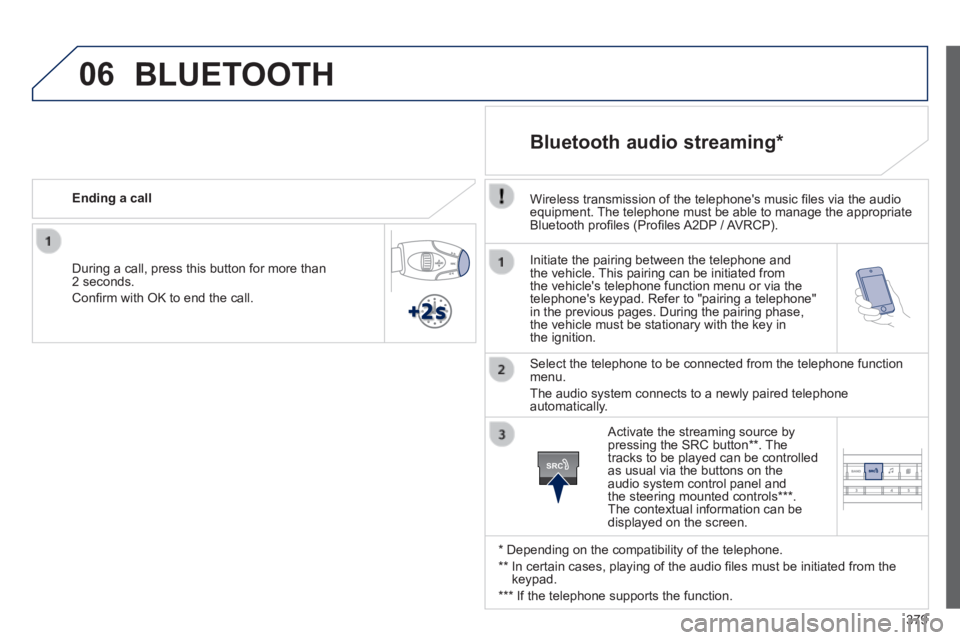

Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keypad. Refer to "pairing a telephone" in the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu.
The audio system connects to a newly paired telephone automatically.

Bluetooth audio streaming *
Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate Bluetooth profi les (Profi les A2DP / AVRCP).
* Depending on the compatibility of the telephone.
** In certain cases, playing of the audio fi les must be initiated from the keypad.
*** If the telephone supports the function.
Activate the streaming source by pressing the SRC button ** . The tracks to be played can be controlled as usual via the buttons on the audio system control panel and the steering mounted controls *** . The contextual information can be displayed on the screen.
During a call, press this button for more than 2 seconds.
Confi rm with OK to end the call.
Ending a call
BLUETOOTH

07
380
308_EN_CHAP10D_RD45_ED02_2013

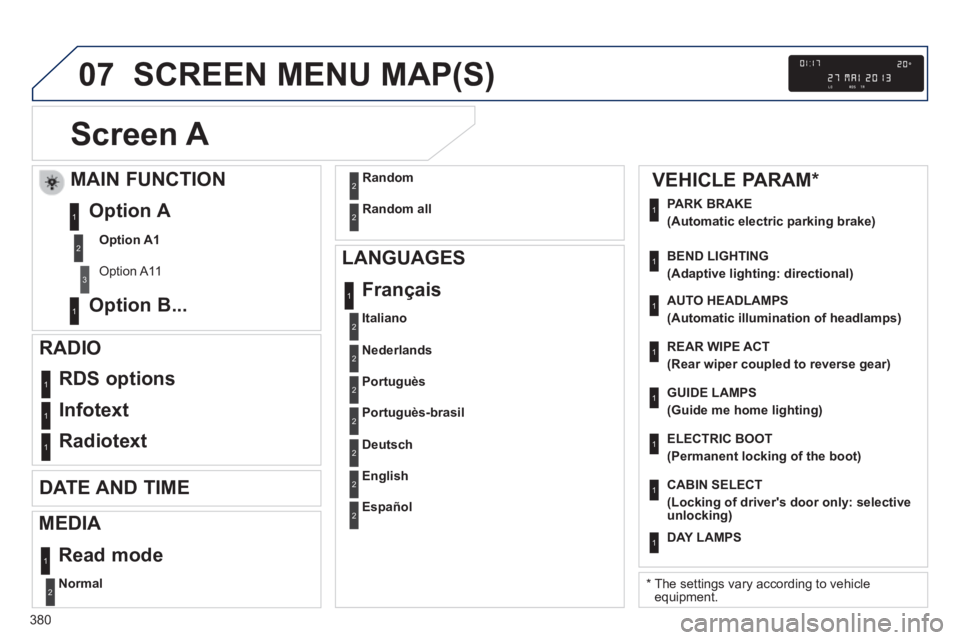

SCREEN MENU MAP(S)
Screen A
Normal2
RDS options 1
Infotext 1
Radiotext 1
LANGUAGES Français
1
MAIN FUNCTION
Option A1
Option A11
Option A
Option B... 1
2
3
1
RADIO
DATE AND TIME
MEDIA Read mode
1
Random2
Random all 2
Italiano2
Nederlands2
Portuguès2
Portuguès-brasil2
Deutsch2
English2
Español2
VEHICLE PARAM *
PARK BRAKE
(Automatic electric parking brake)
BEND LIGHTING
(Adaptive lighting: directional)
AUTO HEADLAMPS
(Automatic illumination of headlamps)
REAR WIPE ACT
(Rear wiper coupled to reverse gear)
GUIDE LAMPS
(Guide me home lighting)
CABIN SELECT
(Locking of driver's door only: selective unlocking)
ELECTRIC BOOT
(Permanent locking of the boot)
DAY LAMPS
* The settings vary according to vehicle equipment.
1
1
1
1
1
1
1
1

07
381
308_EN_CHAP10D_RD45_ED02_2013
SCREEN MENU MAP(S)
Dial2
Media parameters
Choice of playback mode
Normal
1
2
3
Random 3
Random all 3
Repeat 3
Choice of track listing
By folders
2
3
By artists 3
By genres 3
By playlists 3
Call 1
Directory2
Calls list2
Voice mail box2
Directory management
Consult an entry
1
2
Delete an entry2
Delete all entries2
Telephone management
Telephone status
1
2
Hang up 1
Connections management 1
Search for a device 1
MEDIA TELEPHONE BLUETOOTH CONNECTION

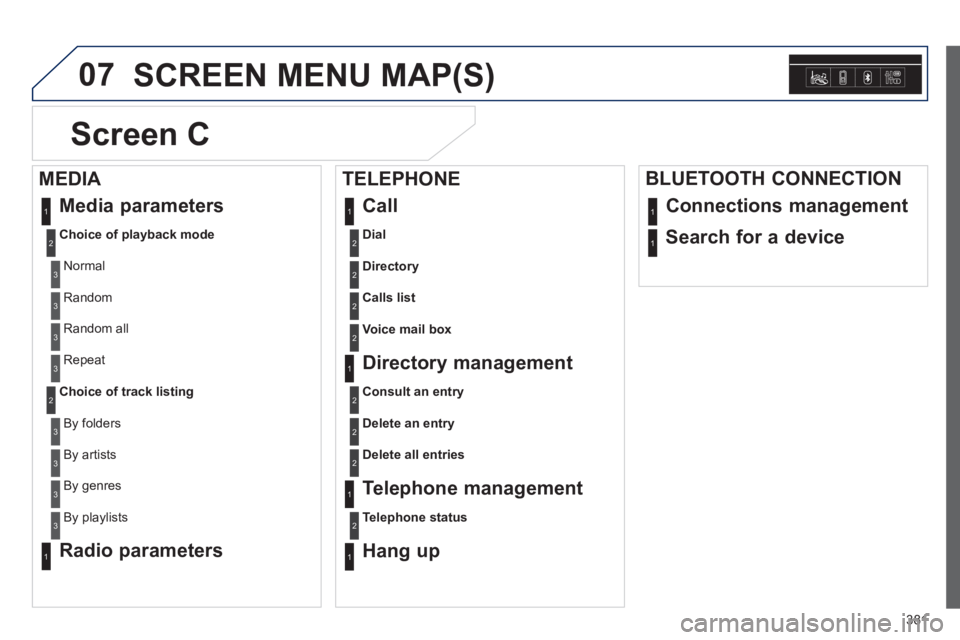

Screen C
Radio parameters 1

07
382
308_EN_CHAP10D_RD45_ED02_2013

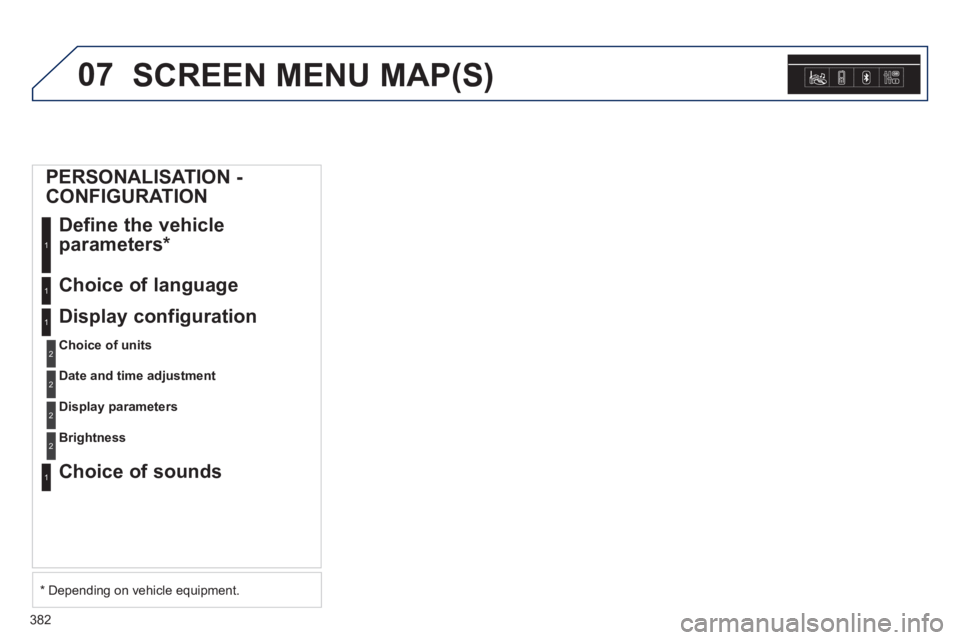

SCREEN MENU MAP(S)
PERSONALISATION -
CONFIGURATION Define the vehicle
parameters *
1
Choice of language 1
Display configuration
Choice of units
1
2
Date and time adjustment2
Display parameters2
Choice of sounds 1
Brightness2
* Depending on vehicle equipment.

383
308_EN_CHAP10D_RD45_ED02_2013

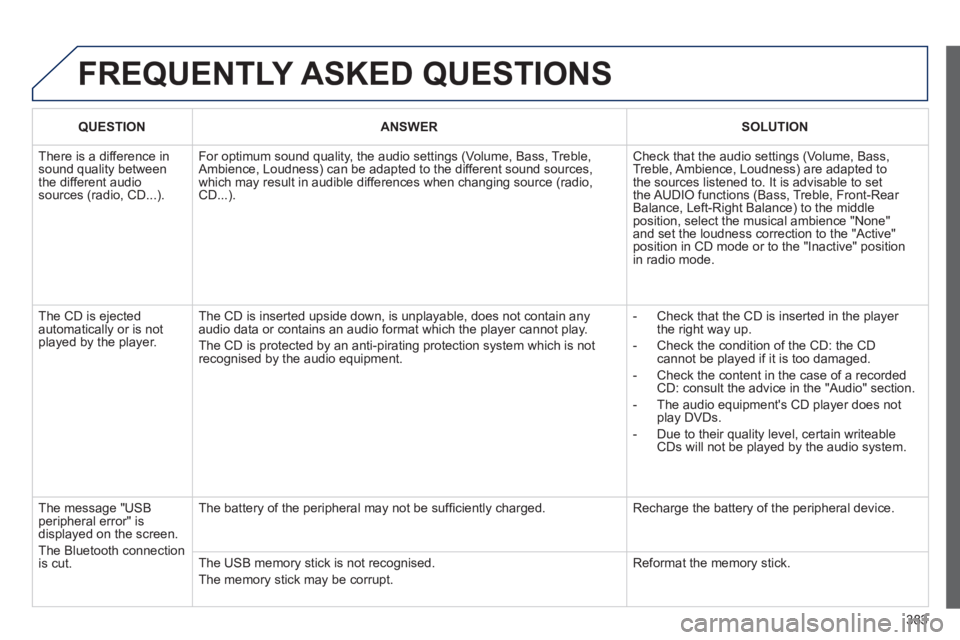

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The message "USB peripheral error" is displayed on the screen.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.

384
308_EN_CHAP10D_RD45_ED02_2013

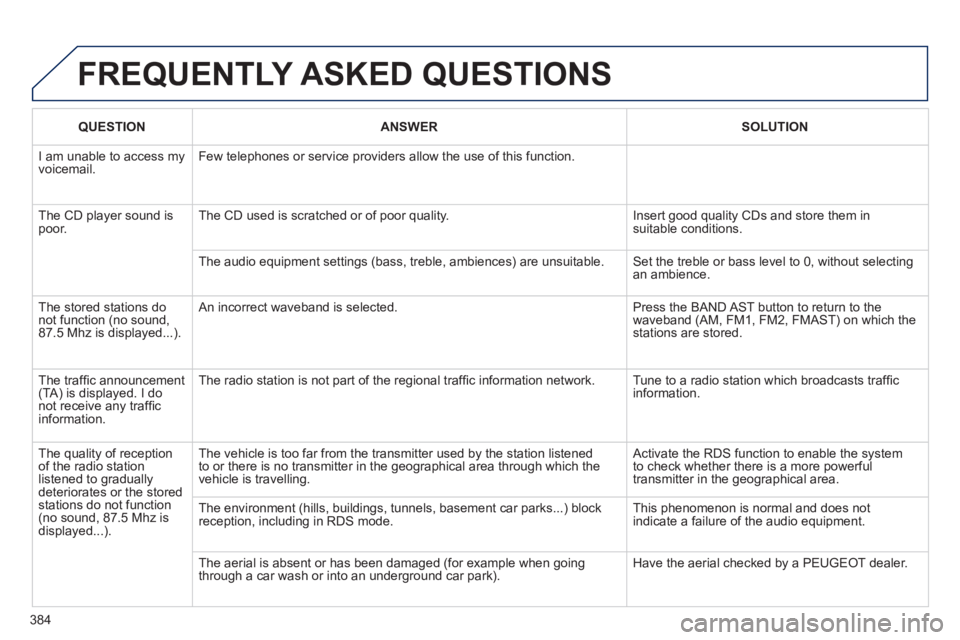

QUESTIONANSWERSOLUTION
I am unable to access my voicemail. Few telephones or service providers allow the use of this function.
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c information.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the\
vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
FREQUENTLY ASKED QUESTIONS

385
308_EN_CHAP10D_RD45_ED02_2013

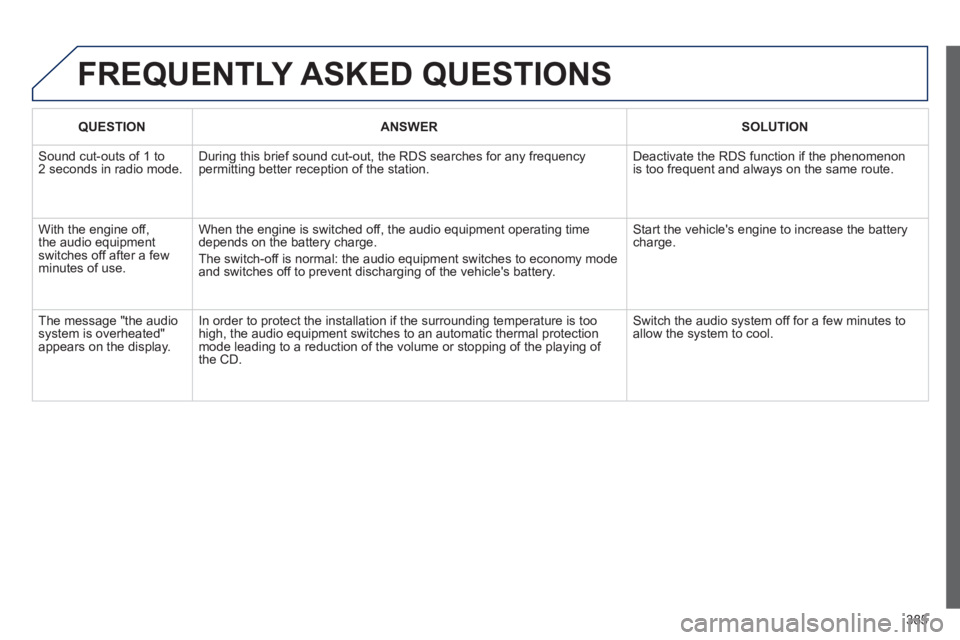

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of \
the CD.
Switch the audio system off for a few minutes to allow the system to cool.

386
308_EN_CHAP10D_RD45_ED02_2013

387
.
Alphabetical index
308_EN_CHAP11_INDEX ALPHA _ED02-2013
230 V socket .............................................84, 88
Accessories .........................................263, 264Accessory position .......................................11 0Accessory socket, 12V .............................84, 87AdBlue® ........................................................AdBlue® ........................................................AdBlue®271Additive, AdBlue ......................................25, 271Adjusting headlamps ....................................180Adjusting head restraints ................................79Adjusting the steering wheel ..........................75Airbags ....................................................23, 19 9Airbags, curtain .....................................202, 203Airbags, front........................................200, 203Airbags, lateral ......................................202, 203Air conditioning ...........................10, 97, 99, 101Air conditioning, digital .................................101Air conditioning, manual ...........................9 7, 9 9Air distribution adjustment ..............98, 10 0, 103Air filter ..........................................................Air filter ..........................................................Air filter283Air flow ............................................................10Air flow adjustment ...........................97, 99, 103Air intake .......................................................105Air recirculation .............................................105Air vents ..........................................................95Alarm ...............................................................65Anti-theft .................................................5 0 , 112Armrest ...............................................84, 86, 89Armrest, front ..................................................86Armrest, rear ...................................................Armrest, rear ...................................................Armrest, rear89Assistance call .............................188, 289, 290Audible warning ............................................188Audio cable ...........................310, 313, 314, 376Audio streaming (Bluetooth) .........310, 313, 379Automatic braking on risk of collision .....................................22, 151, 15 4
Automatic emergency braking ................................................151, 15 4Automatic illumination of headlamps ......................................174, 178Automatic operation of hazard warning lamps ..........................................................187Automatic rain sensitive windscreen wipers .................................................181, 183Auxiliary sockets .......84, 87, 310, 314, 374, 376
Changing a fuse ....................................245 -250Changing a wheel .................................2 27-2 3 3Changing a wiper blade ........................18 4, 256Changing the date ...............................42, 43, 44Changing the remote control battery.........................................52, 62Changing the time ...............................42, 43, 44Checking levels .....................................280-282Checking the engine oil level ..................29, 280Checking tyre pressures (using the kit) ..............................................226Checks ..................................................267-284Child lock .......................................................220Children .................................198, 200, 204-220Child seats ....................204 -206, 210, 211, 219Child seats, conventional ..............................210Child seats, ISOFIX ......................213, 215, 216Cold climate screen ......................................259Collision risk alert .........................................151Colour screen .......................................294, 295Connectors, audio ............87, 310, 314, 374, 376Container, AdBlue .........................................276Coolant level ...........................................26, 281Coolant temperature indicator ........................Coolant temperature indicator ........................Coolant temperature indicator26Courtesy lamps .............................................185Cruise control ................................132, 13 6, 13 9Cruise control, active ....................................13 9Cup holder .......................................................Cup holder .......................................................Cup holder84
A
B
C
D
Battery ...........................................251-254, 283Battery, charging ...........................................254Battery, remote control .......................52, 62, 63Bicycle carrier ...............................................Bicycle carrier ...............................................Bicycle carrier263Blind spot sensors ........................................15 6Blue HDi ........................................................271Bluetooth (hands-free) ..........................352, 377Bluetooth (telephone) ............................352, 377Bonnet ...........................................................267Bonnet stay ...................................................267Boot ...........................................................90, 91Boot (opening) ...........................................54, 58Brake discs ....................................................284Brake lamps ..........................................240, 242Brake pads ....................................................284Brakes .....................................................24, 284
Capacity, fuel tank ..........................................72CD .........................................................310, 370CD MP3 .................................................310, 371Central locking ..........................................46-53Changing a bulb ....................................235 -244
DAB (Digital Audio Broadcasting) ....................308, 309, 372, 373Date (setting) .......................................42, 43, 44Daytime running lamps ........235, 236, 238, 239Deactivating ESP ..........................................195Deactivating the passenger airbag ...............200Deadlocking ..............................................49, 57

388
Alphabetical index
308_EN_CHAP11_INDEX ALPHA _ED02-2013
Filling with fuel ...........................................7 2 -74Fitting a wheel ...............................................232Fitting roof bars .....................................262, 263Fittings, boot .............................................90, 91Flashing indicators ........187, 235, 238, 240, 242Foglamps ......................................................175Foglamps, front ....................................235, 239Foglamps, rear ......................Foglamps, rear ......................Foglamps, rear240, 241, 243, 244Folding the rear seats .....................................82Frequency (radio) .................................305, 369Front seats ................................................76 -78Fuel............................................................10 , 74Fuel consumption ............................................10Fuel filler cap ...................................................72Fuel filler flap ...................................................72Fuel gauge ..........................................12, 22, 72Fuel tank..............................................12, 22, 72Fuses .....................................................245 -250
Gearbox, automatic ...automatic ...automatic10, 12, 15, 121, 124, 129, 130, 284Gearbox, manual ..............10, 12, 15, 121, 122, 129, 284Gear lever, automatic gearbox .....................124Gear lever, manual gearbox .........................12 2Gear shift indicator .......................................Gear shift indicator .......................................Gear shift indicator123Glove box, cooled ...........................................84Guidance .......................................................320Guide-me-home ....................................17 7, 178Jack ...............................................................227Jack cable .....................................................314
Identification plates .......................................287Ignition on......................................104, 108, 110Indicator lamps, status ..............................13 -25Indicators, direction ......................................187Inflating accessories (using the kit) ..............226Inflating tyres ..........................................10, 287Inputs for audio system .....................84, 87, 310, 314, 374, 376Instrument panel .............................................12Instrument panel screen ...................12, 2 2, 123Intelligent Traction Control ............................19 4Interior fittings .................................................84Interior mood lighting ....................................18 6ISOFIX ..........................................................213ISOFIX mountings.................................213, 214
Halogen headlamps ..............................235, 237Hands-free kit .......................................352, 377Hazard warning lamps ............................94, 187Headlamp adjustment ...................................180Headlamp wash ............................................182Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir282Head restraints, front ......................................79Head restraints, rear .................................Head restraints, rear .................................Head restraints, rear82, 83Heated seats ...................................................79Heating ..............................................97, 99, 101Height and reach adjustment, steering wheel ..............................................75High load retaining net ..................................396Hill start assist ...............................................121
F
G
J
I
H
Eco-driving .....................................................10Economy mode .............................................255Electric window controls .................................69Electronic engine immobiliser...........50, 63, 112Electronic stability control (ESC) ..................193Emergency boot release .................................60Emergency call ............................188, 289, 290Emergency starting .......................................253Emergency warning lamps .....................94, 187Energy economy mode .................................255Engine compartment ...........................268, 269Engine compartment fusebox .......................249Engine, Diesel .................................74, 269, 270Engine oil level ........................................29, 280Engine, petrol ..................................74, 268, 285
Defrosting ..............................................10 6, 107Demisting ..............................................10 6, 107Denon (audio system) ...................................291Diesel ..............................................................74Diesel additive level ......................................282Diesel engine pre-heat warning lamp ............15Digital Audio Broadcasting (DA B) .................................308, 309, 372, 373Dimensions ...................................................286Dipped beam .................................173, 235, 237Dipstick ....................................................29, 280Direction indicators .......187, 235, 238, 240, 242Distance alert ................................................147Doors backup control ......................................61Driving economically ......................................10Driving positions (storing) ...............................78Dynamic emergency braking ........................118Dynamic (sport) .............................................128Dynamic stability control (DSC) ........17, 21, 195
E
Environment .................10, 52, 62, 96, 254, 282ESC/ASR .......................................................193
