Peugeot 308 2015 Owner's Manual

219
308_en_Chap06_securite_ed01-2015
Locations for child seats secured with the seat belt
Weight of the child / indicative age
Seat Less than 13 kg
(groups 0 (b) and 0+)
up t

o 1 year approx From 9 to 18 kg
(g r o u p 1)
From 1 to 3 years approx
From 15 to 25 kg (group 2)
From 3 to 6 years approx
From 22 to 36 kg (group 3)
From 6 to 10 years approx
Front passenger seat (c)
-

w
ith height adjustment U (R)U (R)U (R)U (R)
-

w
ithout height adjustment
(straightening the backrest) U (R)
U (R)U (R)U (R)
In accordance with the
e
u
ropean regulation, this table indicates the options for the installation of child seats secured using the seat belt and universally
approved (a) in relation to the weight of the child and the seat in the vehicle.
Hatchback
Outer rear seats (d) UUUU
Centre rear seat (d) U (1)U (1) XX
SW
Outer rear seats (d) UUUU
Centre rear seat (d) XXXX
6
Safety

220
308_en_Chap06_securite_ed01-2015

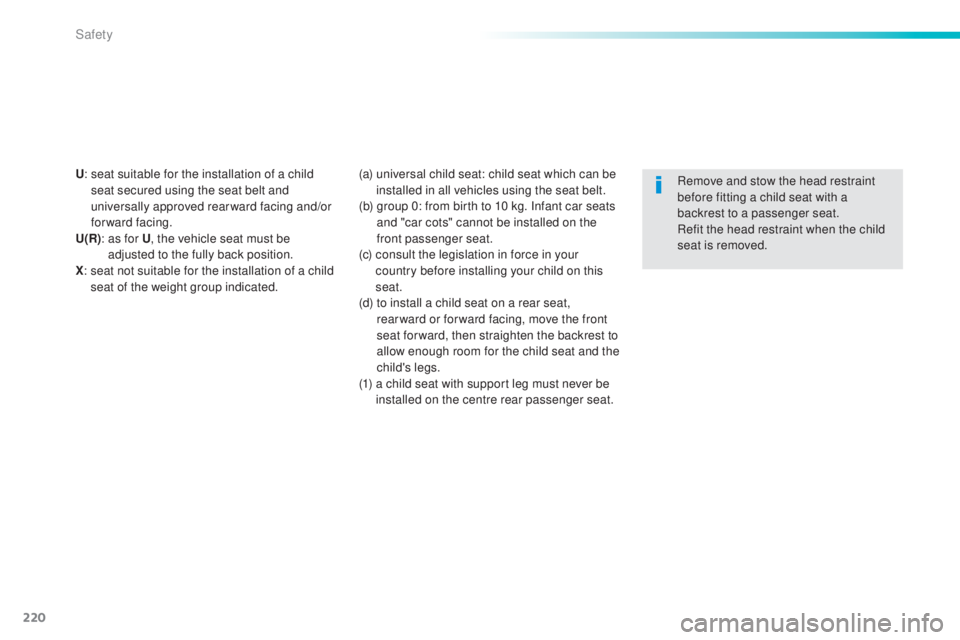

U: seat suitable for the installation of a child
seat secured using the seat belt and
universally approved rear ward facing and/or
forward facing.
U(R) :

a
s for U, the vehicle seat must be
adjusted to the fully back position.
X :

s
eat not suitable for the installation of a child
seat of the weight group indicated. Remove and stow the head restraint
before fitting a child seat with a
backrest to a passenger seat.
Refit the head restraint when the child
seat is removed.
(a)
u niversal child seat: child seat which can be
installed in all vehicles using the seat belt.
(b)

g
roup 0: from birth to 10 kg. Infant car seats
and "car cots" cannot be installed on the
front passenger seat.
(c)

c
onsult the legislation in force in your
country before installing your child on this
seat.
(d)

t
o install a child seat on a rear seat,
rear ward or for ward facing, move the front
seat for ward, then straighten the backrest to
allow enough room for the child seat and the
child's legs.
(1)

a c
hild seat with support leg must never be
installed on the centre rear passenger seat.
Safety

221
308_en_Chap06_securite_ed01-2015

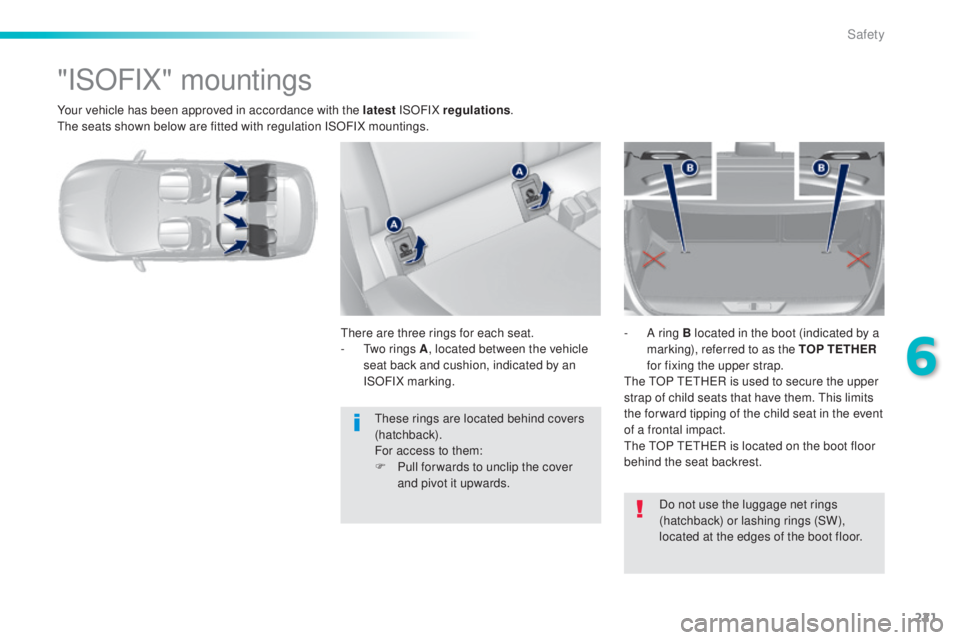

Your vehicle has been approved in accordance with the latest ISOFIX regulations.th
e seats shown below are fitted with regulation ISOFIX mountings.
"ISOFIX" mountings
there are three rings for each seat.
- tw o rings A , located between the vehicle
seat back and cushion, indicated by an
ISOFIX marking. -
A r ing B located in the boot (indicated by a
marking), referred to as the TOP TETHER
for fixing the upper strap.
th

e t
O
P tet
HeR i
s used to secure the upper
strap of child seats that have them.
t
h
is limits
the for ward tipping of the child seat in the event
of a frontal impact.
th

e t
O
P tet
HeR i
s located on the boot floor
behind the seat backrest.
Do not use the luggage net rings
(hatchback) or lashing rings (SW),
located at the edges of the boot floor.
th

ese rings are located behind covers
(hatchback).
For access to them:
F

P
ull for wards to unclip the cover
and pivot it upwards.
6
Safety

222
308_en_Chap06_securite_ed01-2015

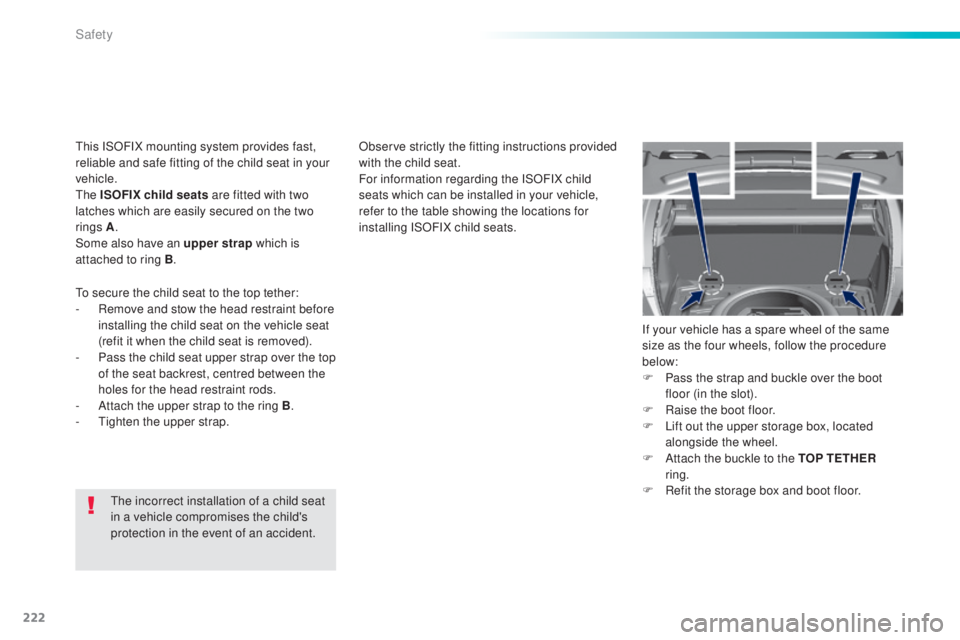

the incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.Observe strictly the fitting instructions provided
with the child seat.
For information regarding the ISOFIX child
seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.
to s

ecure the child seat to the top tether:
-

R

emove and stow the head restraint before
installing the child seat on the vehicle seat
(refit it when the child seat is removed).
-

P

ass the child seat upper strap over the top
of the seat backrest, centred between the
holes for the head restraint rods.
-

A

ttach the upper strap to the ring B
.
-
t
i

ghten the upper strap. If your vehicle has a spare wheel of the same
size as the four wheels, follow the procedure
below:
F
P
ass the strap and buckle over the boot
floor (in the slot).
F
Ra
ise the boot floor.
F
L
ift out the upper storage box, located
alongside the wheel.
F
A
ttach the buckle to the TOP TETHER
ring.
F R efit the storage box and boot floor.
th

is ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
th

e ISOFIX child seats are fitted with two
latches which are easily secured on the two
rings A .
Some also have an upper strap which is
attached to ring B .
Safety

223
308_en_Chap06_securite_ed01-2015

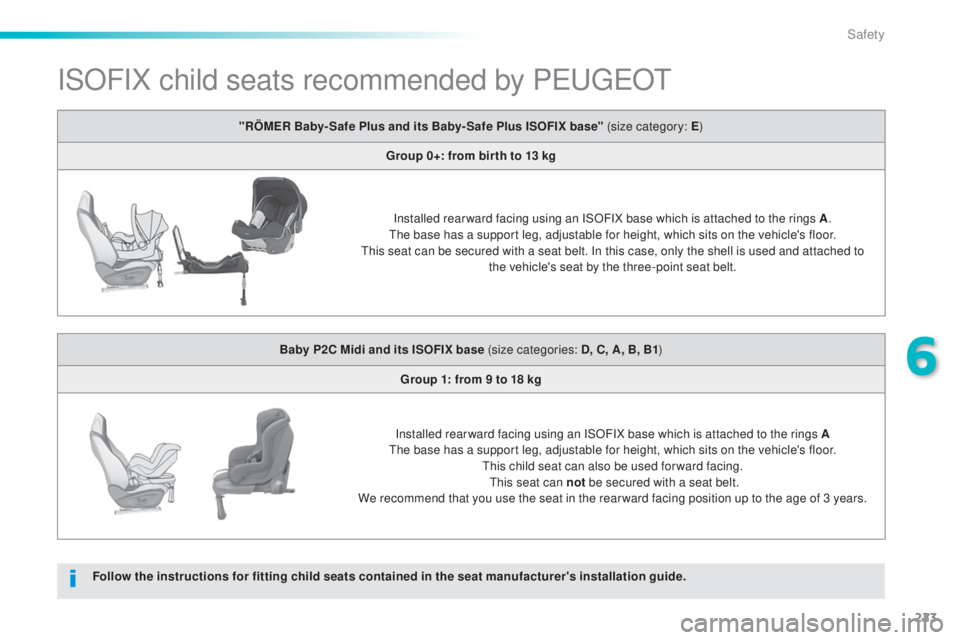

ISOFIX child seats recommended by PeugeOt
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide."RÖMER Baby- Safe Plus and its Baby- Safe Plus ISOFIX base" (size category: E
)
Group 0+: from bir th to 13 kg
Installed rear ward facing using an ISOFIX base which is attached to the rings A .
th
e base has a support leg, adjustable for height, which sits on the vehicle's floor.
th

is seat can be secured with a seat belt. In this case, only the shell is used and attached to
the vehicle's seat by the three-point seat belt.
Baby P2C Midi and its ISOFIX base (size categories: D, C, A, B, B1 )
Group 1: from 9 to 18 kg
Installed rear ward facing using an ISOFIX base which is attached to the rings A
th
e base has a support leg, adjustable for height, which sits on the vehicle's floor.
th

is child seat can also be used for ward facing.
t
h
is seat can not
be secured with a seat belt.
We recommend that you use the seat in the rear ward facing position up to the age of 3 years.
6
Safety

224
308_en_Chap06_securite_ed01-2015

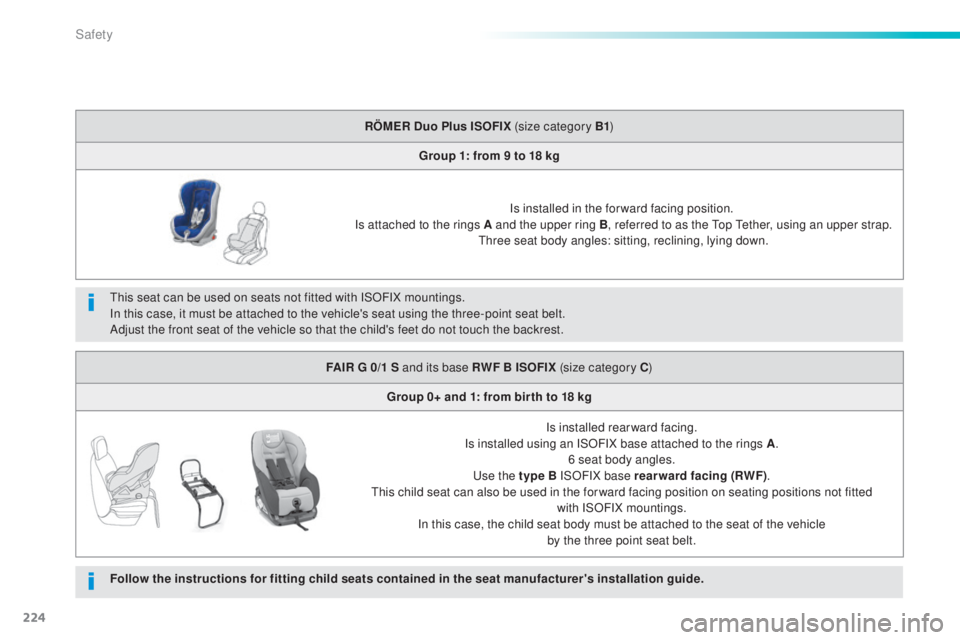

this seat can be used on seats not fitted with ISOFIX mountings.
In this case, it must be attached to the vehicle's seat using the three-point seat belt.
Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.RÖMER Duo Plus ISOFIX (size category B1
)
Group 1: from 9 to 18 kg
Is installed in the forward facing position.
Is attached to the rings A and the upper ring B , referred to as the t
o
p t
e
ther, using an upper strap.
t
h
ree seat body angles: sitting, reclining, lying down.
FAIR G 0/1 S and its base RWF B ISOFIX (size category C )
Group 0+ and 1: from bir th to 18 kg
Is installed rearward facing.
Is installed using an ISOFIX base attached to the rings A .
6 seat body angles.
us

e the type B ISOFIX base rearward facing (RWF).
th

is child seat can also be used in the for ward facing position on seating positions not fitted with ISOFIX mountings.
In this case, the child seat body must be attached to the seat of the vehicle by the three point seat belt.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
Safety

225
308_en_Chap06_securite_ed01-2015

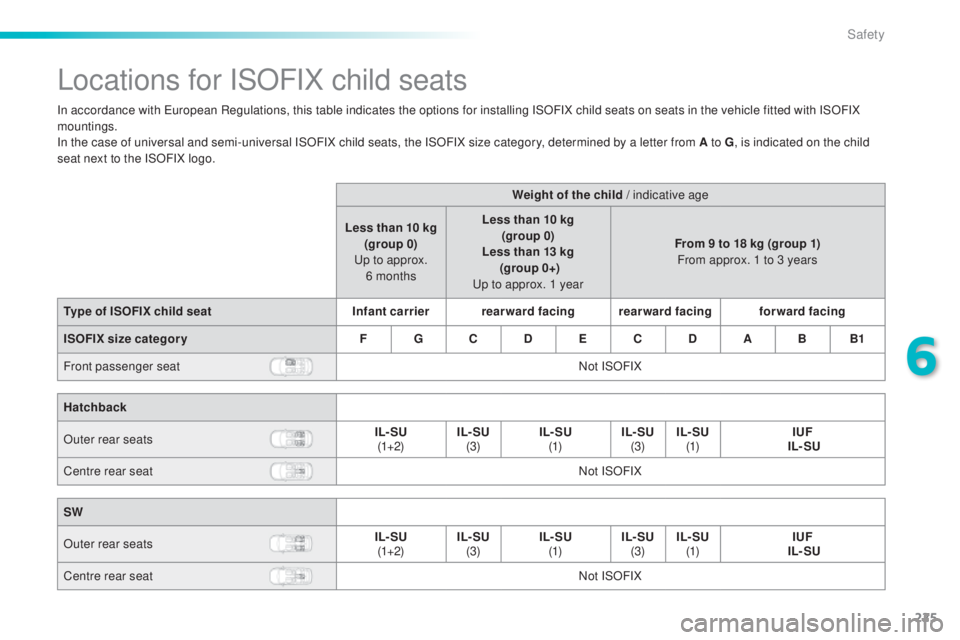

Locations for ISOFIX child seats
In accordance with european Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G , is indicated on the child
seat next to the ISOFIX logo.
Weight of the child
/ indicative age
Less than 10 kg (group 0)
u

p to approx. 6
monthsLess than 10 kg
(group 0)
Less than 13 kg (group 0+)
up t

o approx. 1 yearFrom 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Infant carrierrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Front passenger seat Not ISOFIX
Hatchback
Outer rear seats IL- SU

(1+2) IL- SU

(3) IL- SU

(1) IL- SU

(3) IL- SU

(1) IUF

IL- SU
Centre rear seat Not ISOFIX
SW
Outer rear seats IL- SU

(1+2) IL- SU

(3) IL- SU

(1) IL- SU

(3) IL- SU

(1) IUF

IL- SU
Centre rear seat Not ISOFIX
6
Safety

226
308_en_Chap06_securite_ed01-2015

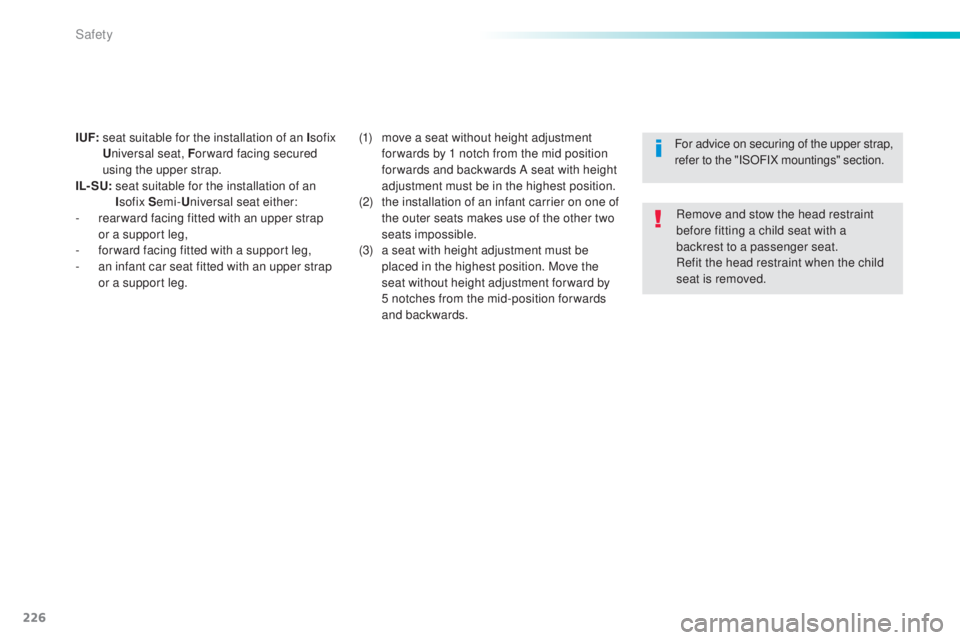

I UF: seat suitable for the installation of an I sofix
U niversal seat, F or ward facing secured
using the upper strap.
IL- SU:

s
eat suitable for the installation of an
I sofix S emi-Universal seat either:
-

r
ear ward facing fitted with an upper strap
or a support leg,
-

f
or ward facing fitted with a support leg,
-

a
n infant car seat fitted with an upper strap
or a support leg. For advice on securing of the upper strap,
refer to the "ISOFIX mountings" section.
(1)
m ove a seat without height adjustment
for wards by 1 notch from the mid position
for wards and backwards A seat with height
adjustment must be in the highest position.
(2)

t
he installation of an infant carrier on one of
the outer seats makes use of the other two
seats impossible.
(3)

a s
eat with height adjustment must be
placed in the highest position. Move the
seat without height adjustment for ward by
5 notches from the mid-position for wards
and backwards. Remove and stow the head restraint
before fitting a child seat with a
backrest to a passenger seat.
Refit the head restraint when the child
seat is removed.
Safety

227
308_en_Chap06_securite_ed01-2015

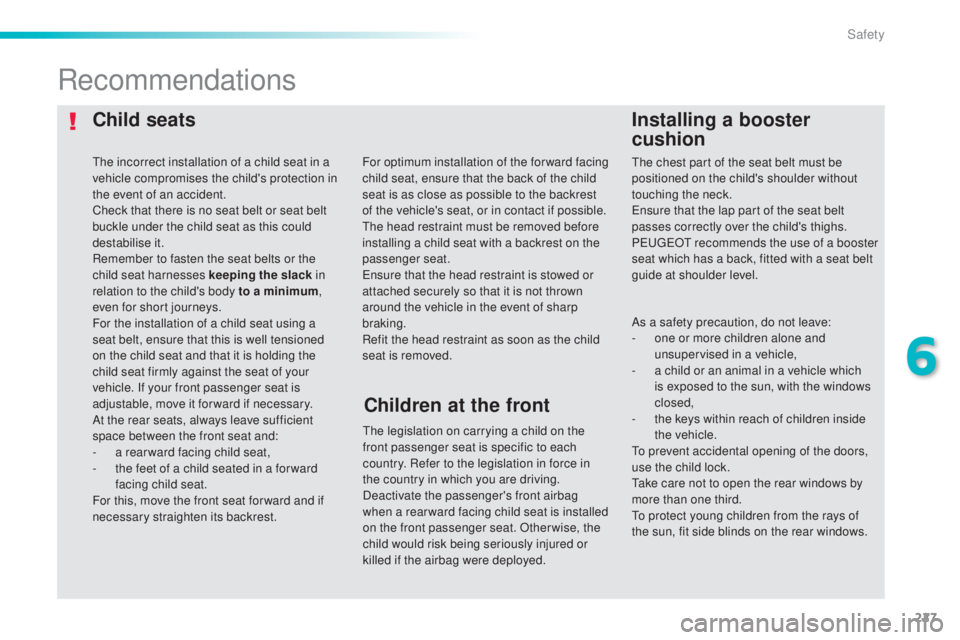

Child seatsInstalling a booster
cushion
Recommendations
the legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
the country in which you are driving.
Deactivate the passenger's front airbag
when a rear ward facing child seat is installed
on the front passenger seat. Otherwise, the
child would risk being seriously injured or
killed if the airbag were deployed.
For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, or in contact if possible.
th

e head restraint must be removed before
installing a child seat with a backrest on the
passenger seat.
en
sure that the head restraint is stowed or
attached securely so that it is not thrown
around the vehicle in the event of sharp
braking.
Refit the head restraint as soon as the child
seat is removed.
th

e incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For the installation of a child seat using a
seat belt, ensure that this is well tensioned
on the child seat and that it is holding the
child seat firmly against the seat of your
vehicle. If your front passenger seat is
adjustable, move it forward if necessary.
At the rear seats, always leave sufficient
space between the front seat and:
-

a r

ear ward facing child seat,
-

t

he feet of a child seated in a for ward
facing child seat.
For this, move the front seat for ward and if
necessary straighten its backrest.
Children at the front
the chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
en

sure that the lap part of the seat belt
passes correctly over the child's thighs.
P
e

uge
Ot
recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.

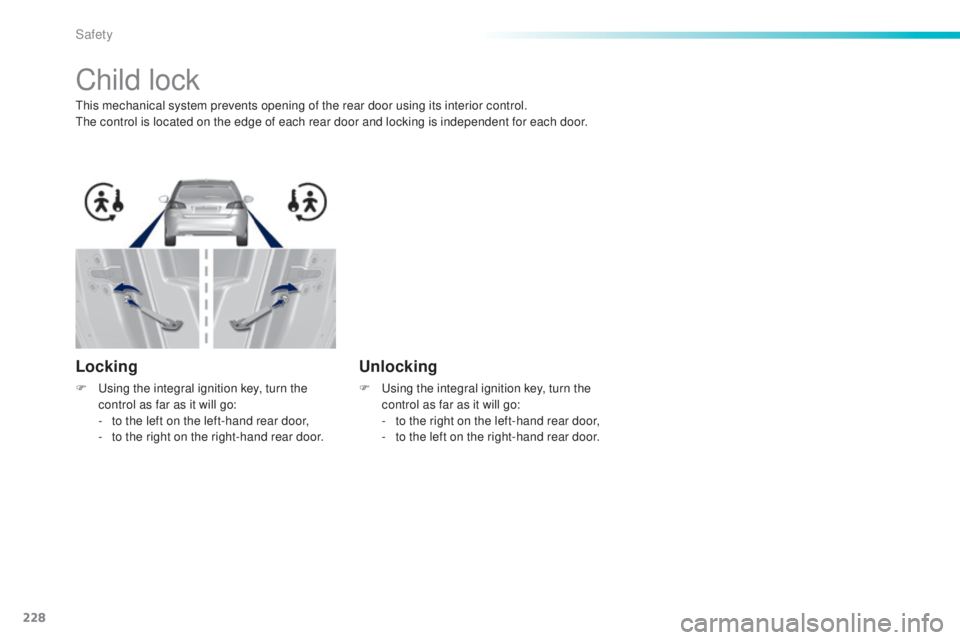

to p

revent accidental opening of the doors,
use the child lock.
ta

ke care not to open the rear windows by
more than one third.
to p

rotect young children from the rays of
the sun, fit side blinds on the rear windows.
6
Safety

228
308_en_Chap06_securite_ed01-2015
Child lock
this mechanical system prevents opening of the rear door using its interior control.the control is located on the edge of each rear door and locking is independent for each door.
Locking
F using the integral ignition key, turn the control as far as it will go:
-

t
o the left on the left-hand rear door,
-

t
o the right on the right-hand rear door.
Unlocking
F using the integral ignition key, turn the control as far as it will go:
-

t
o the right on the left-hand rear door,
-

t
o the left on the right-hand rear door.
Safety
