Peugeot 308 2015 Owner's Manual

239
308_en_Chap07_info-pratiques_ed01-2015

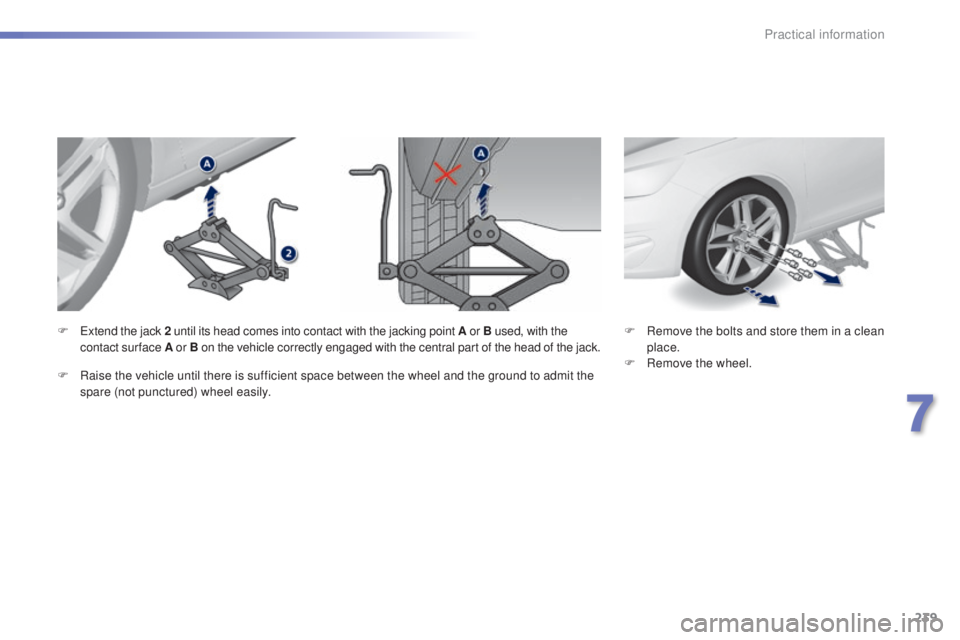

F Remove the bolts and store them in a clean place.
F

R
emove the wheel.
F
ex
tend the jack 2
until its head comes into contact with the jacking point A or B used, with the
contact sur face A or B on the vehicle correctly engaged with the central part of the head of the jack.
F

Ra

ise the vehicle until there is sufficient space between the wheel and the ground to admit the
spare (not punctured) wheel easily.
7
Practical information

240
308_en_Chap07_info-pratiques_ed01-2015

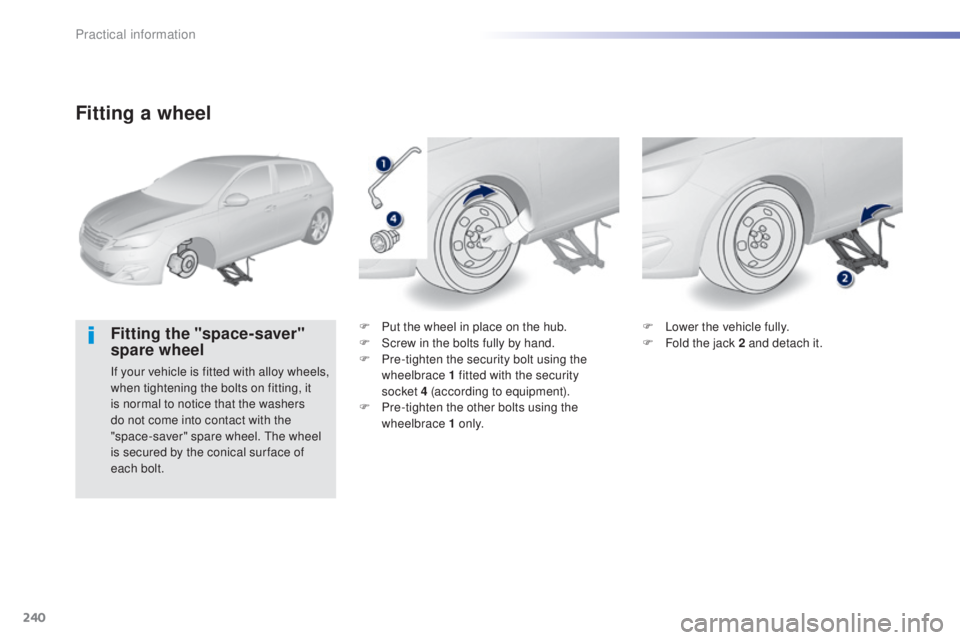

Fitting a wheel
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. t
h
e wheel
is secured by the conical sur face of
each bolt. F

P
ut the wheel in place on the hub.
F
S
crew in the bolts fully by hand.
F P re-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket 4 (according to equipment).
F

P
re-tighten the other bolts using the
wheelbrace 1 o n l y. F

L
ower the vehicle fully.
F
F
old the jack 2 and detach it.
Practical information

241
308_en_Chap07_info-pratiques_ed01-2015

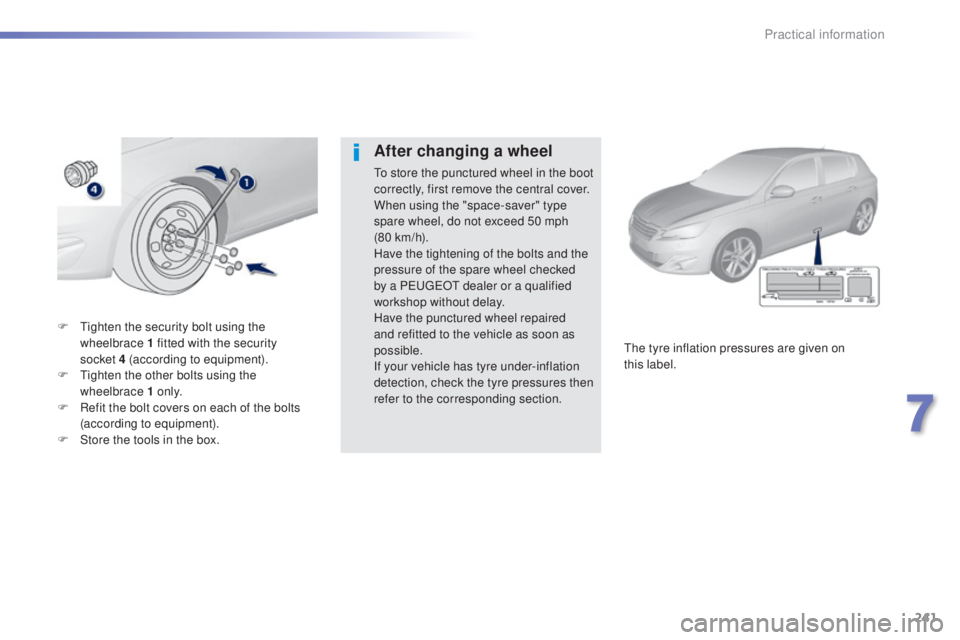

F tighten the security bolt using the wheelbrace 1 fitted with the security
socket


4 (according to equipment).
F
t
i
ghten the other bolts using the
wheelbrace 1 o n l y.
F

R
efit the bolt covers on each of the bolts
(according to equipment).
F

S
tore the tools in the box.
th
e tyre inflation pressures are given on
this


label.
After changing a wheel
to store the punctured wheel in the boot
correctly, first remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80


km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a P
e

uge
Ot
dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
If your vehicle has tyre under-inflation
detection, check the tyre pressures then
refer to the corresponding section.
7
Practical information

242
308_en_Chap07_info-pratiques_ed01-2015

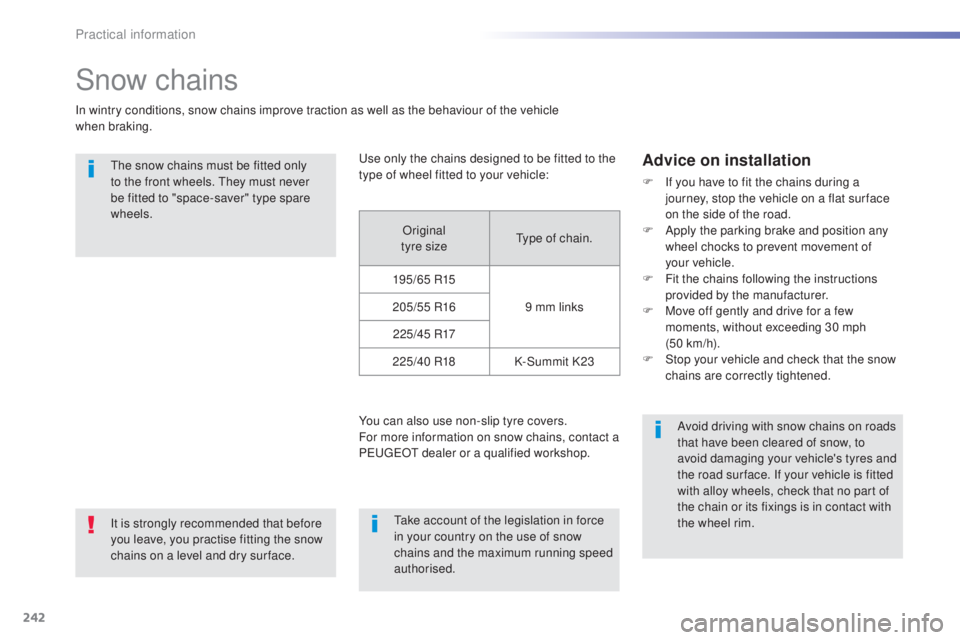

Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle
when braking.
th

e snow chains must be fitted only
to the front wheels.
t
h
ey must never
be fitted to "space-saver" type spare
wheels.
ta

ke account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised. Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
us

e only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
You can also use non-slip tyre covers.
For more information on snow chains, contact a
P
e

uge
Ot
dealer or a qualified workshop.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of
your


vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50


km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
Original
tyre size
ty

pe of chain.
195/65 R15 9 mm links
205/55 R16
2 2 5 /4 5 R17
225/40 R18 K-Summit K23
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
Practical information

243
308_en_Chap07_info-pratiques_ed01-2015
Changing a bulb
Front lamps
Model with "full LED" technology
headlamps
1. Daytime running lamps / sidelamps (light emitting diodes - LEDs).
2.
D

ipped beam headlamps (light emitting
diodes - full LEDs).
3.
M

ain beam headlamps (light emitting
diodes - full LEDs).
4.
D

irection indicators (PY21-21W).
Model with halogen headlamps
1. Dipped beam headlamps (H7-55W).
2. M ain beam headlamps (HB3).
3.
D

irection indicators (PY21-21W).
4.
D

aytime running lamps / sidelamps
(light emitting diodes - LEDs).
For H7 type bulbs with lugs... take care to
observe their correct installation so as to
ensure the best lighting performance.
Front fog lamps (H11)
Direction indicators
(GT version)
For the replacement of this type of LeD l amp,
contact a Pe ugeOt dealer or a qualified
workshop.
A replacement kit for the L
eD

s is available from
P
e

uge
Ot d
ealers.
7
Practical information

244
308_en_Chap07_info-pratiques_ed01-2015
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.th
e headlamps are fitted with
polycarbonate glass with a protective
coating:
F

d

o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u

se a sponge and soapy water or a
pH neutral product,
F

w

hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D

o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (
uV

) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Daytime running lamps / sidelamps
For the replacement of this type of LeD l amp
and lighting guides, contact a Pe ugeOt dealer
or a qualified workshop.
A replacement kit for the L
eD

s is available from
P
e

uge
Ot d
ealers.
Practical information

245
308_en_Chap07_info-pratiques_ed01-2015
Main beam headlamps
(halogen model)
F Remove the protective plastic cover by pulling on the tab.
F
t
u
rn the connector (with its bulb) towards
the top (1/4 turn).
F

R
emove the bulb by pulling it out and
change it.
For reassembly, carry out these operations in
reverse order.
Dipped beam headlamps
(halogen model)
F Remove the protective plastic cover by
pulling on the tab.
F

D
isconnect the bulb connector.
F

D
isengage the two springs (press then
move them outwards).
F
e
x
tract the bulb by pulling and change it.
For reassembly, carry out these operations in
reverse order.
Be aware that the area behind the
right-hand headlamp (facing forwards)
may be hot, with the risk of burns
(over flow
pipe).
to a

llow the headlamp to be moved for ward
a few centimetres for access to the bulbs,
proceed as follows:
F
M
ove the orange clip towards the rear
then while pressing on the black part
(located above the orange clip) pull on the
connector.
F

R

emove the two screws holding the lamp.
F

D

isengage the rear pin then the front
centre piece.
F

M

ove the lamp for wards.
Tips for removing the headlamp
(halogen model)
7
Practical information

246
308_en_Chap07_info-pratiques_ed01-2015
For reassembly, carry out these operations in
reverse order.
Direction indicators
(halogen model)
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
Daytime running lamps /
sidelamps
("full LED" technology model)
For the replacement of this type of "full LeD"
light emitting diode lamps, contact a Pe ugeOt
dealer or a qualified workshop.
Direction indicators
("full LED" technology model)
the direction indicator bulb is located below
the front lamp.
F
u
n
clip the finisher by pulling at the top
(cut-out).
F
u
n
screw the bulb holder (1/4 turn).
F

C
hange the failed bulb.
For reassembly, carry out these operations in
reverse order. Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
F
u
n

screw the bulb holder (1/4 turn).
F

R

emove the bulb holder.
F

C

hange the failed bulb.
Practical information

247
308_en_Chap07_info-pratiques_ed01-2015
Integrated direction indicator
side repeaters
You should contact a PeugeOt dealer or a
qualified workshop for the replacement of these
bulbs. You should contact a P
e
uge
Ot
dealer or a
qualified workshop for the replacement of the
light emitting diode - L
eD
.
Front foglamps
F unclip the finisher by pulling at the top
(cut-out).
F

R
emove the two screws to remove the unit
from its housing. F
D isconnect the connector.
F un screw the bulb holder (1/4 turn).
F

R
emove the bulb holder.
F

C
hange the failed bulb.
For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.
Door mirror spotlamps
7
Practical information

248
308_en_Chap07_info-pratiques_ed01-2015
1. Sidelamps (light emitting diodes - LEDs).
2.
R

eversing lamps (W16W).
3.
D

irection indicators (PY21W amber).
4.
B

rake lamps (light emitting diodes -
LEDs).
5.
F

oglamps (P21W).
Rear lamps (hatchback)
Light emitting diodes-LEDs
For replacement, contact a Pe ugeOt
dealer or qualified workshop.
Reversing lamps, direction
indicators (on the wings)
F Disconnect the lamp connector.
F R emove the lamp fixing nut.
F

C
arefully remove the lamp unit from
outside.
F
u
n
screw the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.
F
O
pen the tailgate then remove the access
c ove r.
