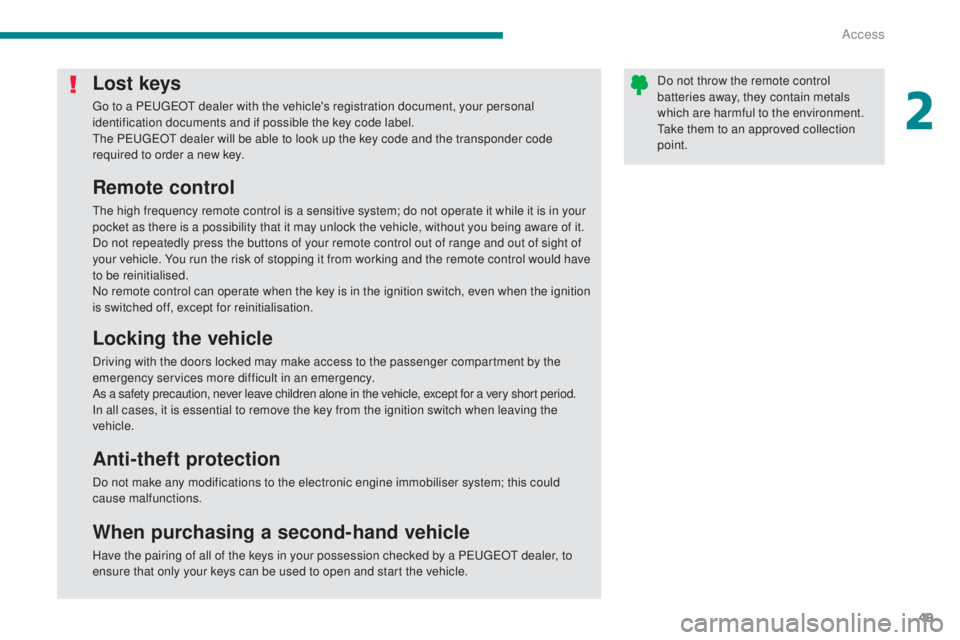

Lost keys
Go to a PEUGEOT dealer with the vehicle's registration document, your personal
identification documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder code
required to order a new key.Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the
emergency services more difficult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving the
vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could
cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT dealer, to
ensure that only your keys can be used to open and start the vehicle.
2
Access

50
3008_en_Chap02_ouvertures_ed01-2015

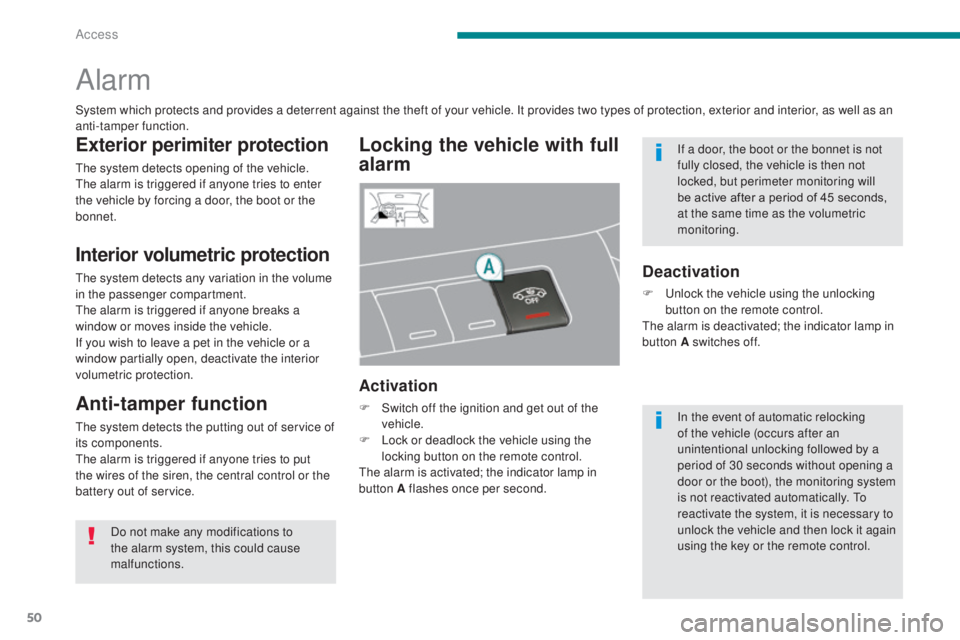

Alarm
Locking the vehicle with full
alarm
Activation
F Switch off the ignition and get out of the vehicle.
F

L
ock or deadlock the vehicle using the
locking button on the remote control.
The alarm is activated; the indicator lamp in
button A flashes once per second.
Exterior perimiter protection
The system detects opening of the vehicle.
The alarm is triggered if anyone tries to enter
the vehicle by forcing a door, the boot or the
bonnet.
Interior volumetric protection
The system detects any variation in the volume
in the passenger compartment.
The alarm is triggered if anyone breaks a
window or moves inside the vehicle.
If you wish to leave a pet in the vehicle or a
window partially open, deactivate the interior
volumetric protection.
Anti-tamper function
The system detects the putting out of service of
its components.
The alarm is triggered if anyone tries to put
the wires of the siren, the central control or the
battery out of service.
Deactivation
F Unlock the vehicle using the unlocking button on the remote control.
The alarm is deactivated; the indicator lamp in
button A switches off.
System which protects and provides a deterrent against the theft of your vehicle. It provides two types of protection, exterior and interior, as well as an
anti-tamper function.
Do not make any modifications to
the alarm system, this could cause
malfunctions. In the event of automatic relocking
of the vehicle (occurs after an
unintentional unlocking followed by a
period of 30 seconds without opening a
door or the boot), the monitoring system
is not reactivated automatically. To
reactivate the system, it is necessary to
unlock the vehicle and then lock it again
using the key or the remote control. If a door, the boot or the bonnet is not
fully closed, the vehicle is then not
locked, but perimeter monitoring will
be active after a period of 45 seconds,
at the same time as the volumetric
monitoring.
Access

51
3008_en_Chap02_ouvertures_ed01-2015

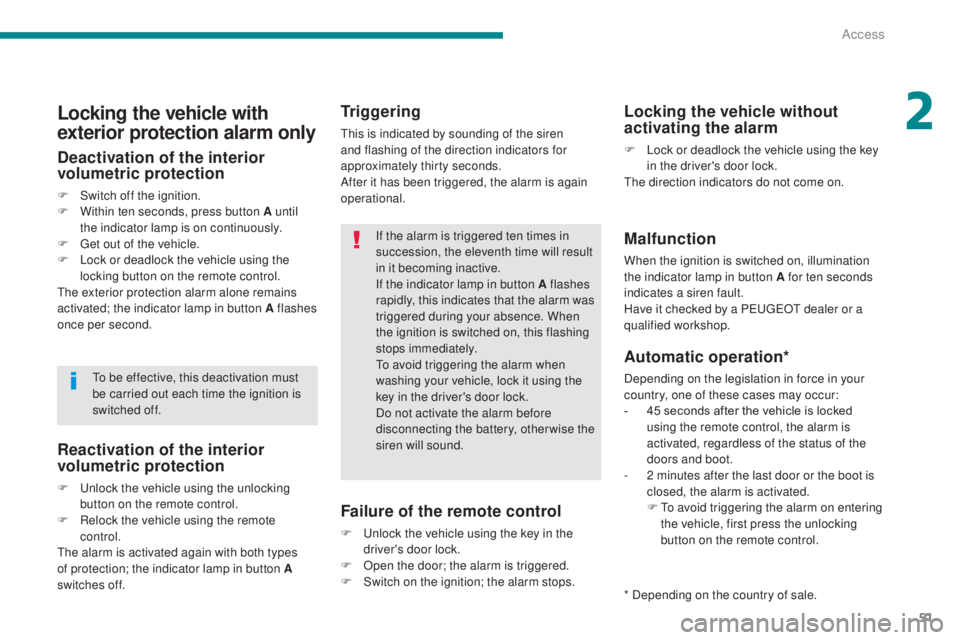

Triggering
This is indicated by sounding of the siren
and flashing of the direction indicators for
approximately thirty seconds.
After it has been triggered, the alarm is again
operational.
Failure of the remote control
F Unlock the vehicle using the key in the driver's door lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops.
Malfunction
When the ignition is switched on, illumination
the indicator lamp in button A for ten seconds
indicates a siren fault.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key in the driver's door lock.
The direction indicators do not come on.
Automatic operation*
Depending on the legislation in force in your
country, one of these cases may occur:
-

4
5 seconds after the vehicle is locked
using the remote control, the alarm is
activated, regardless of the status of the
doors and boot.
-

2 m
inutes after the last door or the boot is
closed, the alarm is activated.
F

T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking
button on the remote control.
If the alarm is triggered ten times in
succession, the eleventh time will result
in it becoming inactive.
If the indicator lamp in button A flashes
rapidly, this indicates that the alarm was
triggered during your absence. When
the ignition is switched on, this flashing
stops immediately.
To avoid triggering the alarm when
washing your vehicle, lock it using the
key in the driver's door lock.
Do not activate the alarm before
disconnecting the battery, otherwise the
siren will sound.
Reactivation of the interior
volumetric protection
F Unlock the vehicle using the unlocking
button on the remote control.
F

R
elock the vehicle using the remote
control.
The alarm is activated again with both types
of protection; the indicator lamp in button A
switches off.
Locking the vehicle with
exterior protection alarm only
Deactivation of the interior
volumetric protection
F Switch off the ignition.
F W ithin ten seconds, press button A until
the indicator lamp is on continuously.
F

G
et out of the vehicle.
F

L
ock or deadlock the vehicle using the
locking button on the remote control.
The exterior protection alarm alone remains
activated; the indicator lamp in button A flashes
once per second.
To be effective, this deactivation must
be carried out each time the ignition is
switched off.
* Depending on the country of sale.
2
Access

52
3008_en_Chap02_ouvertures_ed01-2015

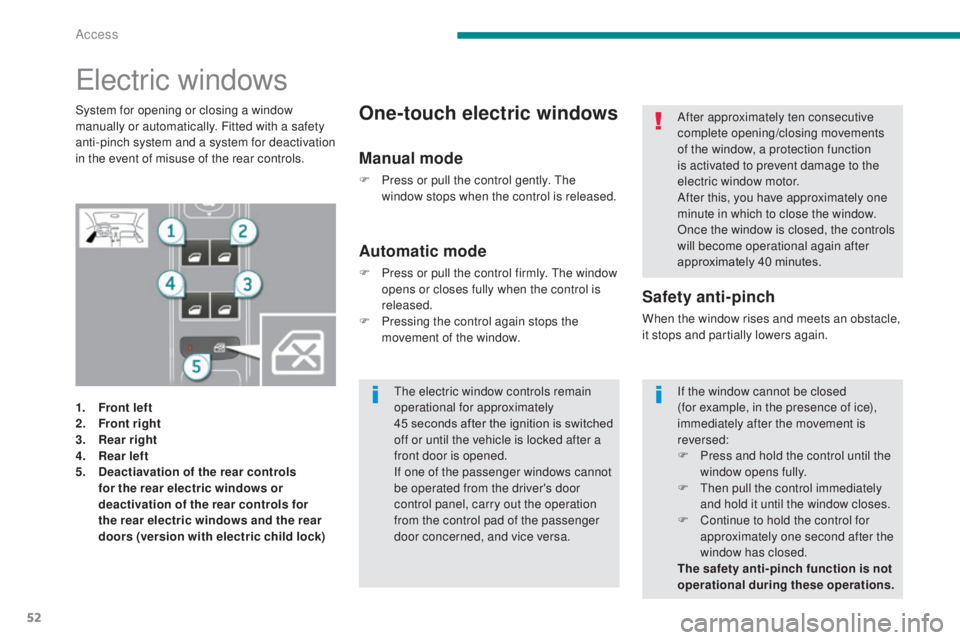

Electric windows
1. Front lef t
2. Front right
3.
R

ear right
4.
R

ear left
5.
D

eactiavation of the rear controls
for the rear electric windows or
deactivation of the rear controls for
the rear electric windows and the rear
doors (version with electric child lock)
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and partially lowers again.
Automatic mode
F Press or pull the control firmly. The window opens or closes fully when the control is
released.
F

P
ressing the control again stops the
movement of the window.
One-touch electric windowsSystem for opening or closing a window
manually or automatically. Fitted with a safety
anti-pinch system and a system for deactivation
in the event of misuse of the rear controls.
Manual mode
F Press or pull the control gently. The window stops when the control is released. After approximately ten consecutive
complete opening/closing movements
of the window, a protection function
is activated to prevent damage to the
electric window motor.
After this, you have approximately one
minute in which to close the window.
Once the window is closed, the controls
will become operational again after
approximately 40 minutes.
The electric window controls remain
operational for approximately
45
seconds after the ignition is switched
off or until the vehicle is locked after a
front door is opened.
If one of the passenger windows cannot
be operated from the driver's door
control panel, carry out the operation
from the control pad of the passenger
door concerned, and vice versa. If the window cannot be closed
(for
example, in the presence of ice),
immediately after the movement is
reversed:
F

P
ress and hold the control until the
window opens fully.
F

T
hen pull the control immediately
and hold it until the window closes.
F

C
ontinue to hold the control for
approximately one second after the
window has closed.
The safety anti-pinch function is not
operational during these operations.
Access

53
3008_en_Chap02_ouvertures_ed01-2015

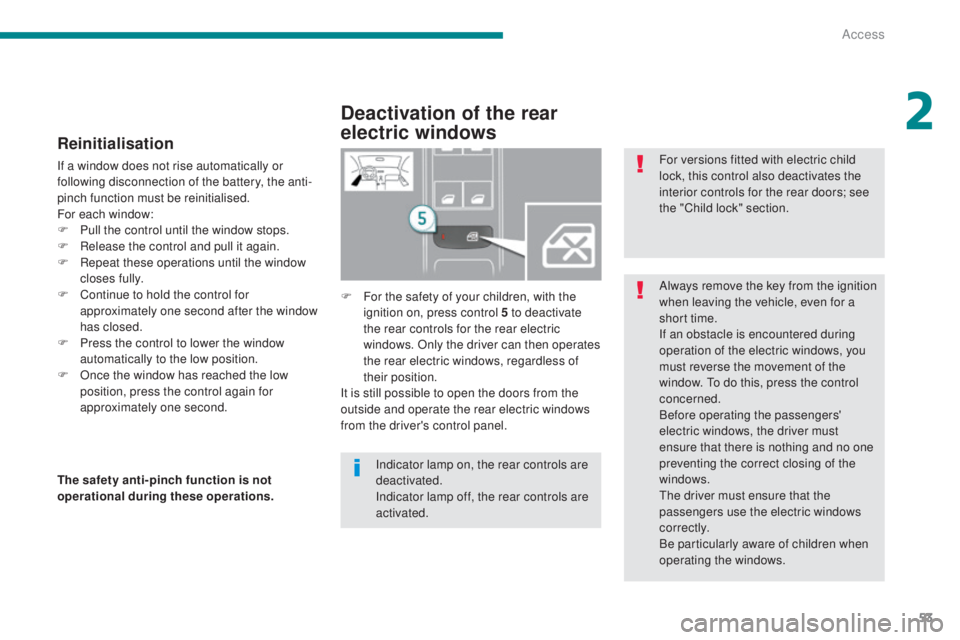

Reinitialisation
If a window does not rise automatically or
following disconnection of the battery, the anti-
pinch function must be reinitialised.
For each window:
F
P
ull the control until the window stops.
F

R
elease the control and pull it again.
F

R
epeat these operations until the window
closes fully.
F

C
ontinue to hold the control for
approximately one second after the window
has closed.
F

P
ress the control to lower the window
automatically to the low position.
F

O
nce the window has reached the low
position, press the control again for
approximately one second.
Deactivation of the rear
electric windows
F For the safety of your children, with the ignition on, press control 5 to deactivate
the rear controls for the rear electric
windows. Only the driver can then operates
the rear electric windows, regardless of
their position.
It is still possible to open the doors from the
outside and operate the rear electric windows
from the driver's control panel.
The safety anti-pinch function is not
operational during these operations. Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
If an obstacle is encountered during
operation of the electric windows, you
must reverse the movement of the
window. To do this, press the control
concerned.
Before operating the passengers'
electric windows, the driver must
ensure that there is nothing and no one
preventing the correct closing of the
windows.
The driver must ensure that the
passengers use the electric windows
c o r r e c t l y.
Be particularly aware of children when
operating the windows. For versions fitted with electric child
lock, this control also deactivates the
interior controls for the rear doors; see
the "Child lock" section.
2
Access

54
3008_en_Chap02_ouvertures_ed01-2015
Doors
F After unlocking the vehicle completely using the remote control or the key, pull the
door handle.
With selective unlocking, pull the driver's door
handle.
From inside
F Pull the door control (front or rear) to open the door; this unlocks this vehicle
completely.
Closing
When a door or the boot is not closed correctly:
-
W
hen the engine is running ,
this warning lamp comes on,
accompanied by a message in
the multifunction screen for a
few


seconds,
Opening
From outside
- When the vehicle is moving (speed higher than 6 mph (10 km/h)), this
warning lamp comes on, accompanied
by an audible signal and a message for a
few


seconds.
The interior door controls do not
operate when the vehicle is deadlocked.
Access

55
3008_en_Chap02_ouvertures_ed01-2015

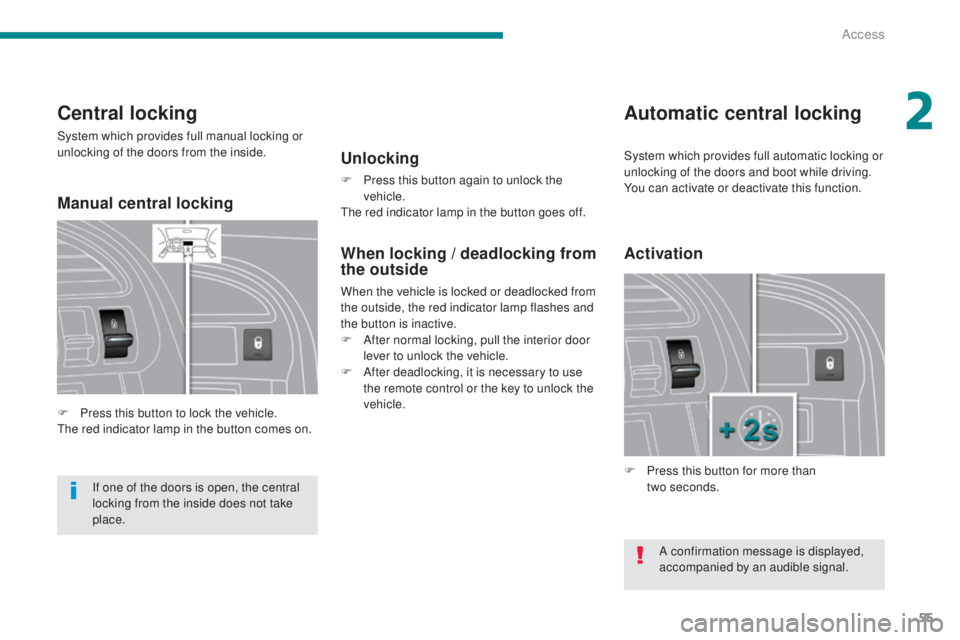

Central locking
System which provides full manual locking or
unlocking of the doors from the inside.
F
P
ress this button to lock the vehicle.
The red indicator lamp in the button comes on.
Automatic central locking
Unlocking
F Press this button again to unlock the vehicle.
The red indicator lamp in the button goes off.
Activation
F Press this button for more than two seconds.
If one of the doors is open, the central
locking from the inside does not take
place.
When locking / deadlocking from
the outside
When the vehicle is locked or deadlocked from
the outside, the red indicator lamp flashes and
the button is inactive.
F

A
fter normal locking, pull the interior door
lever to unlock the vehicle.
F

A
fter deadlocking, it is necessary to use
the remote control or the key to unlock the
vehicle.
A confirmation message is displayed,
accompanied by an audible signal.
System which provides full automatic locking or
unlocking of the doors and boot while driving.
You can activate or deactivate this function.
Manual central locking
2
Access

56
3008_en_Chap02_ouvertures_ed01-2015
Automatic locking
Above 6 mph (10 km/h), the doors and boot
lock automatically.
If one of the doors is open, the automatic
central locking does not take place.
If the boot is open, the automatic central
locking of the doors is active.
Deactivation
F Press this button again for more than two seconds.
Unlocking
F Above 6 mph (10 km/h), press this button to unlock the doors and boot temporarily.
In the event of an impact, the doors
unlock automatically.

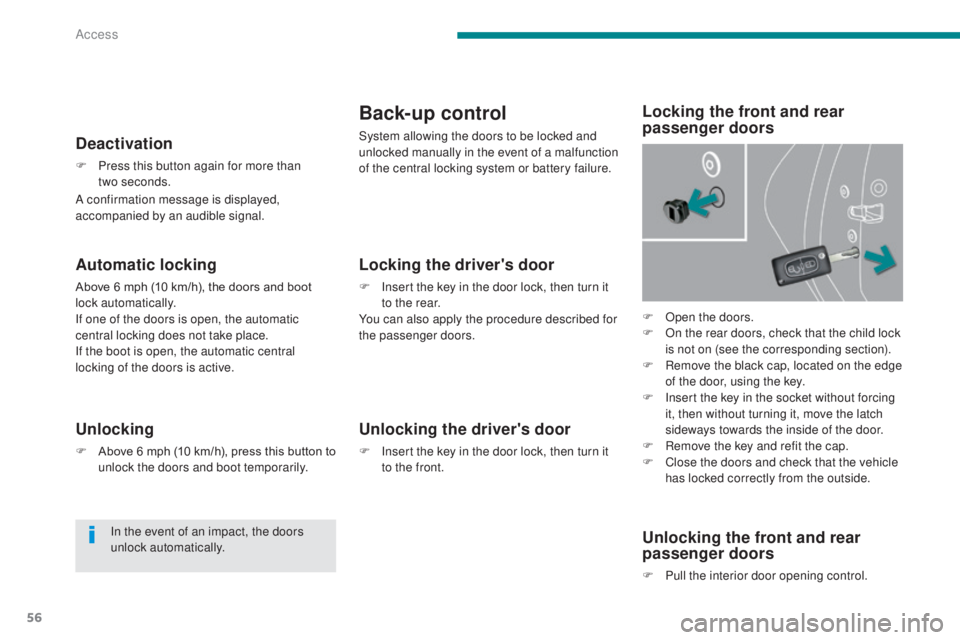

Back-up control
System allowing the doors to be locked and
unlocked manually in the event of a malfunction
of the central locking system or battery failure.
F

O
pen the doors.
F

O
n the rear doors, check that the child lock
is not on (see the corresponding section).
F

R
emove the black cap, located on the edge
of the door, using the key.
F

I
nsert the key in the socket without forcing
it, then without turning it, move the latch
sideways towards the inside of the door.
F

R
emove the key and refit the cap.
F

C
lose the doors and check that the vehicle
has locked correctly from the outside.
Locking the driver's door
F Insert the key in the door lock, then turn it to the rear.
You can also apply the procedure described for
the passenger doors.
Unlocking the driver's door
F Insert the key in the door lock, then turn it to the front.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
F Pull the interior door opening control.
A confirmation message is displayed,
accompanied by an audible signal.
Access

57
3008_en_Chap02_ouvertures_ed01-2015

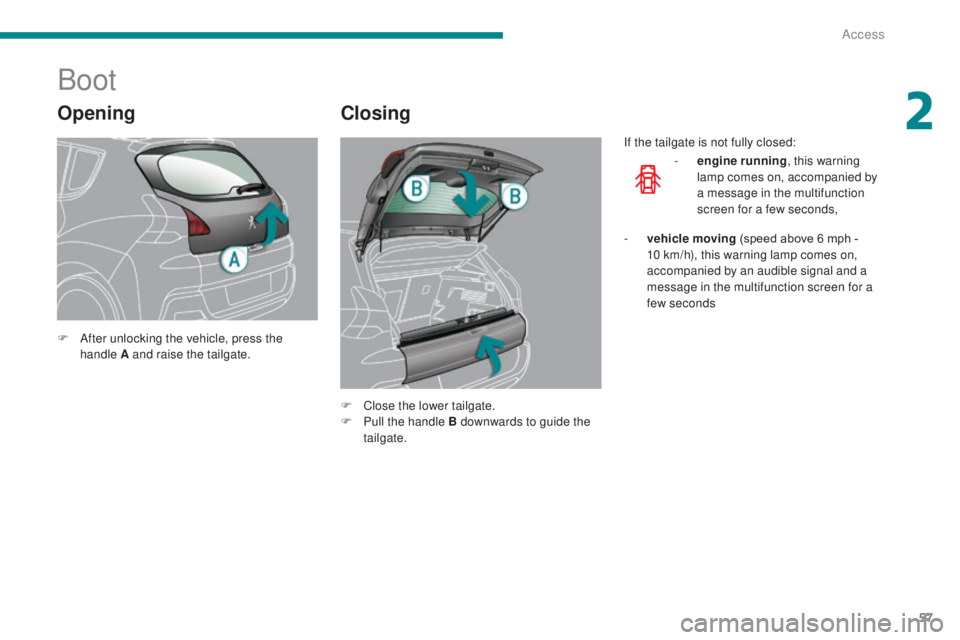

Opening
Boot
Closing
F After unlocking the vehicle, press the handle A and raise the tailgate.
F

C
lose the lower tailgate.
F

P
ull the handle B downwards to guide the
tailgate. If the tailgate is not fully closed:
-
e
ngine running
, this warning
lamp comes on, accompanied by
a message in the multifunction
screen for a few seconds,
-
v
ehicle moving
(speed above 6 mph -
10 km/h), this warning lamp comes on,
accompanied by an audible signal and a
message in the multifunction screen for a
few seconds
2
Access

58
3008_en_Chap02_ouvertures_ed01-2015

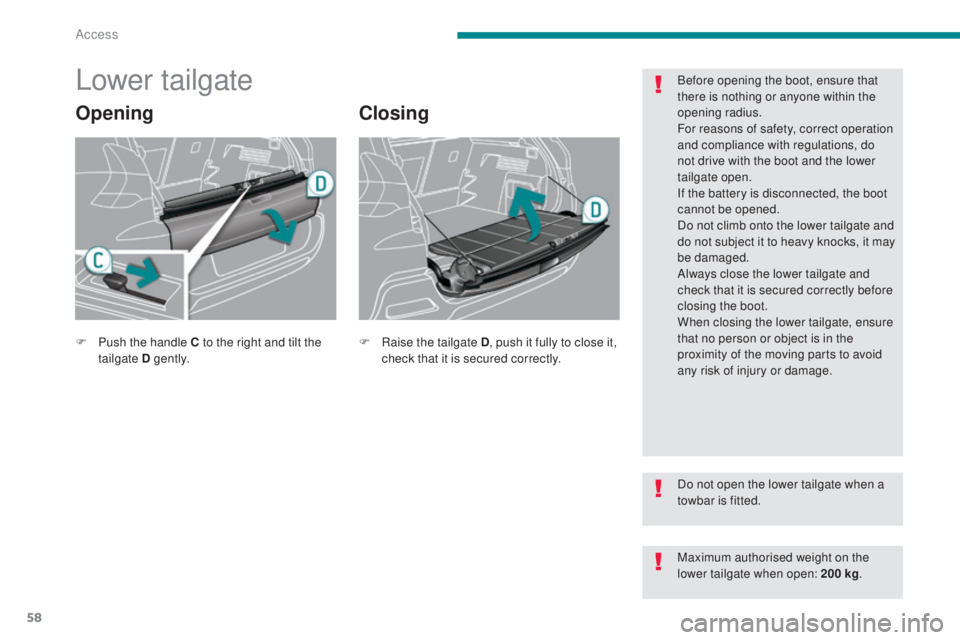

Lower tailgate
OpeningClosing
Before opening the boot, ensure that
there is nothing or anyone within the
opening radius.
For reasons of safety, correct operation
and compliance with regulations, do
not drive with the boot and the lower
tailgate open.
If the battery is disconnected, the boot
cannot be opened.
Do not climb onto the lower tailgate and
do not subject it to heavy knocks, it may
be damaged.
Always close the lower tailgate and
check that it is secured correctly before
closing the boot.
When closing the lower tailgate, ensure
that no person or object is in the
proximity of the moving parts to avoid
any risk of injury or damage.
Do not open the lower tailgate when a
towbar is fitted.
Maximum authorised weight on the
lower tailgate when open: 200 kg .
F

P

ush the handle C to the right and tilt the
tailgate D g e nt l y. F

Ra

ise the tailgate D , push it fully to close it,
check that it is secured correctly.
Access
