Peugeot 308 2017 User Guide

9
308_en_Chap00b_vue-densemble_ed01-2016
Maintenance - technical data
Dimensions 289-291
Identification markings 2 92
Running out of fuel, Diesel
(priming pump)
2

74
Checking levels
2

28-230
-

oil
-

b

rake fluid
-


coolant
-
s

creenwash, headlamp wash fluid
-

a

dditive (Diesel with particle filter)
Checking components
23

1-232
-


battery
-

a

ir filter / passenger
compartment filter
-

o

il filter
-

p

article filter (Diesel)
-

b

rake pads / discs
Changing bulbs
2

52-261
-

front
-

rear 12 V battery
2
68 -271
Load reduction, economy mode
2
19
en

gine compartment
fuses
26
2, 266-267
Opening the bonnet

2

25
un

der the bonnet, petrol

2

26
un

der the bonnet, Diesel

2

27
Petrol engines

2

75 -277
Diesel engines
2

81-284
AdBlue


233-237 Petrol weights

2
78 -280
Diesel weights
2
85 -288
.
Over view

10
308_en_Chap00c_eco-conduite_ed01-2016
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
eco-driving
eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. th ese
practices contribute towards a reduction in fuel consumption and
CO
2 emissions and also help to reduce the background traffic noise.
I
f your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
th

e gear shift indicator invites you to engage the most suitable gear:
as soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.
eco-driving

11
308_en_Chap00c_eco-conduite_ed01-2016

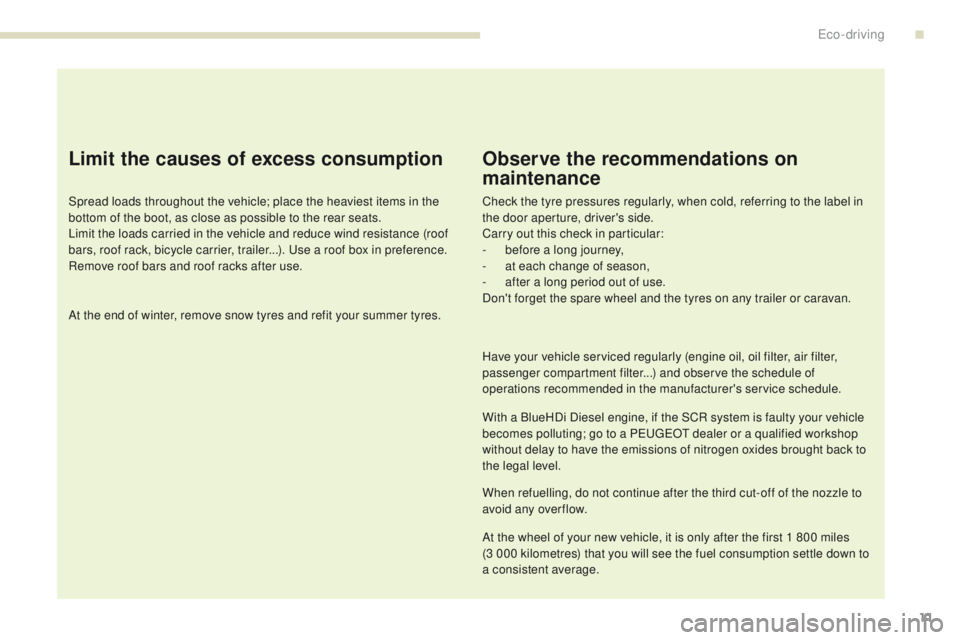

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). u
s
e a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-

b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a P
e

uge
Ot
dealer or a qualified workshop
without delay to have the emissions of nitrogen oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
eco-driving

12
Instrument panel
1. Fuel gauge.
2. Analogue speedometer (mph or km/h).
3.


e
n
gine oil level indicator.
4.


g
e
ar shift indicator.


g
e
ar with an automatic gearbox.
5.
D

igital speedometer (mph or km/h).
6.
C

ruise control or speed limiter settings. A. M
ain lighting dimmer.
B. R eset the trip distance recorder.
I

nstantaneous information on:
-


servicing,
-
r

emaining driving range with the
emissions additive.
7. S
ervice indicator, then total distance
recorder (miles or km).


t
h
ese functions are displayed in turn when
the ignition is switched on.
8.


t
r
ip distance recorder (miles or km).
9.
R

ev counter (x 1 000 rpm or tr/min),
graduation according to engine (petrol or
Diesel).
10.


e
ng
ine coolant temperature gauge.
Dials and screens Control buttons
Instruments

13
308_en_Chap01_instruments-de-bord_ed01-2016

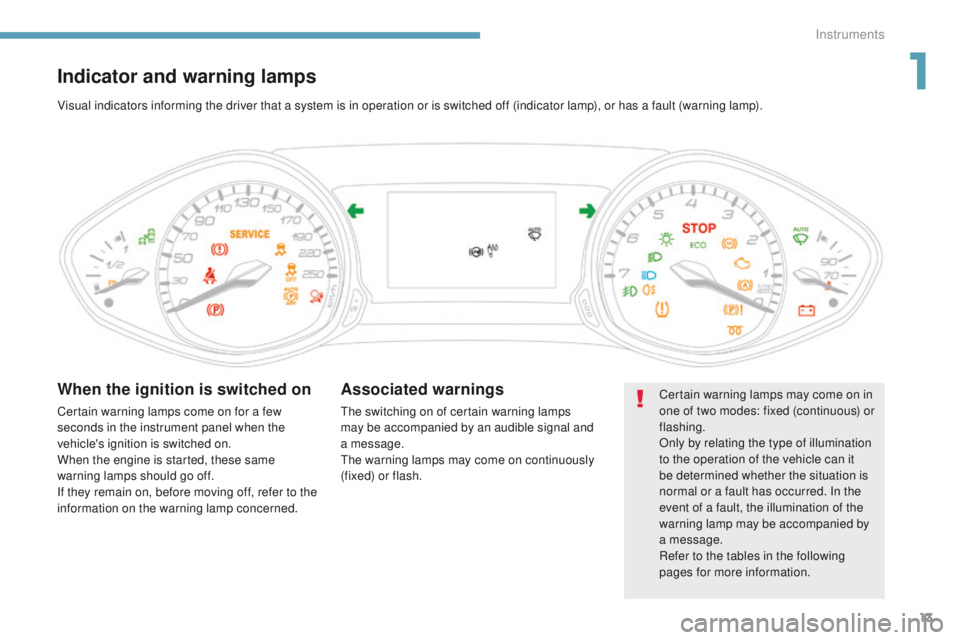

Indicator and warning lamps
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred. In the
event of a fault, the illumination of the
warning lamp may be accompanied by
a message.
Refer to the tables in the following
pages for more information.
Visual indicators informing the driver that a system is in operation or is switched off (indicator lamp), or has a fault (warning lamp).When the ignition is switched on
Certain warning lamps come on for a few
seconds in the instrument panel when the
vehicle's ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
the switching on of certain warning lamps
may be accompanied by an audible signal and
a


message.
th

e warning lamps may come on continuously
(fixed) or flash.
1
Instruments

14

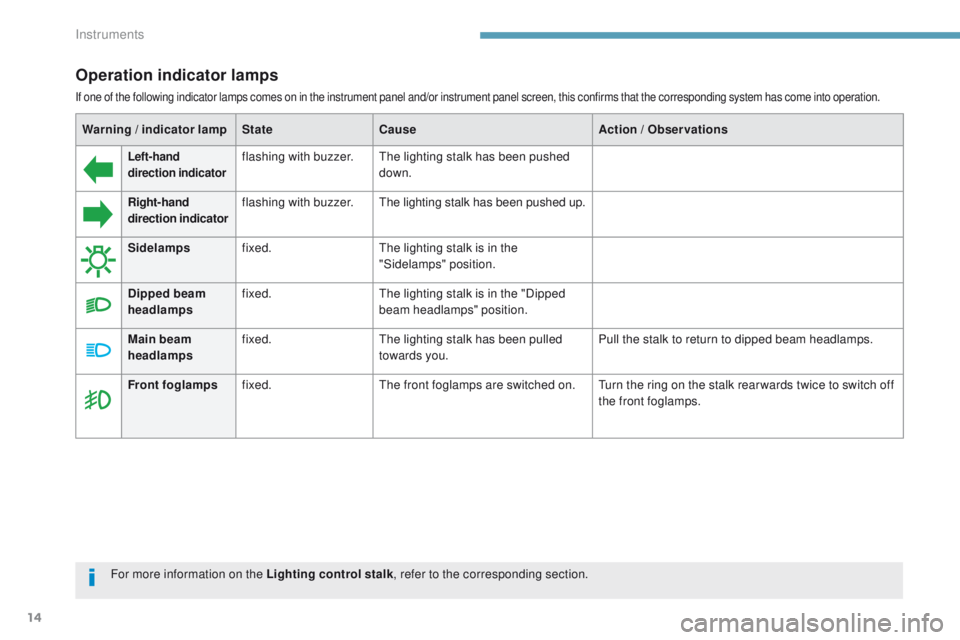

Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Warning / indicator lamp State Cause Action / Observations
Left-hand
direction indicatorflashing with buzzer.th e lighting stalk has been pushed
down.
Right-hand
direction indicatorflashing with buzzer.th e lighting stalk has been pushed up.
Sidelamps fixed.
th

e lighting stalk is in the
"Sidelamps" position.
Dipped beam
headlamps fixed.
th

e lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
th

e lighting stalk has been pulled
towards you. Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed.
th

e front foglamps are switched on.
tu
rn the ring on the stalk rear wards twice to switch off
the front foglamps.
For more information on the Lighting control stalk , refer to the corresponding section.
Instruments

15
308_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Rear foglamps fixed.
th

e rear foglamps are on.
tu
rn the ring on the stalk rear ward to switch off the
rear foglamps.
Diesel engine
pre-heating fixed.
th

e ignition switch is at the
2
nd position (ignition on) or the
" ST
ART/STOP " button has been
pressed. Wait until the warning lamp goes off before starting.
Once it goes off, starting is immediate, on condition that:
-
t he clutch pedal is pressed fully down with a
manual gearbox,
-

p
ressure is maintained on the brake pedal with an
automatic gearbox.
th

e period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Parking brake fixed.
th

e parking brake is applied or not
fully released.
to s

witch off the warning lamp: with your foot on the
brake pedal, release the parking brake.
If your vehicle has an electric parking brake: with your
foot on the brake pedal, push the brake control lever.
Observe the safety recommendations.
For more information on the Manual parking
brake and the Electric parking brake , refer to the
corresponding section.
1
Instruments

16
Warning / indicator lamp State Cause Action / Observations
Automatic
wiping fixed.
th

e wiper control has been pushed
down. Automatic front wiping is activated.
to d

eactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Passenger 's
airbag system fixed.
the control switch, located at the
passenger's end of the dashboard, is at
the
"ON " position.
the

passenger's front airbag is activated.
In this case, do not install a rear ward
facing child seat on the front passenger
seat.
turn the control switch to the " OFF" position to
deactivate the passenger's front airbag.
You can install a rear ward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp


on).
Stop & Star t fixed. When the vehicle stops (red lights, traffic
jams,

...) the Stop & Start system has put
the engine into S
tO

P mode.
th
e warning lamp goes off and the engine restarts
automatically in S
tA

R
t
mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
of f. S
tO

P mode is temporarily
unavailable,
or
S
tA

R
t

mode is invoked
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Blind spot
monitoring system
(depending on
ve r s i o n) fixed.
th

e blind spot monitoring system has
been activated. For more information on the Blind spot monitoring
system, refer to the corresponding section.
Instruments

17
308_en_Chap01_instruments-de-bord_ed01-2016

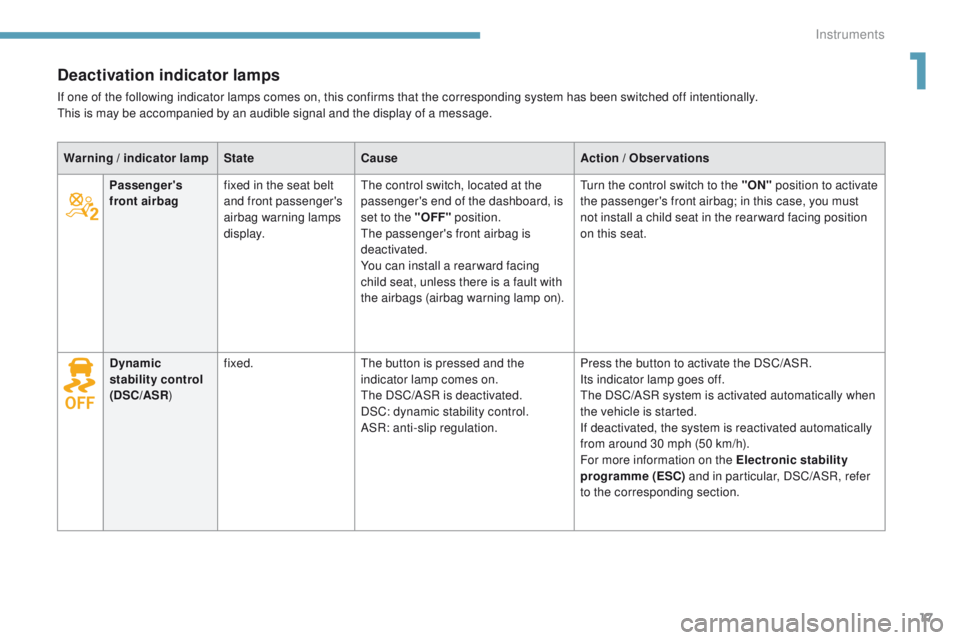

Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.this is may be accompanied by an audible signal and the display of a message.
Warning


/ indicator lamp State Cause Action


/ Observations
Passenger's
front airbag fixed in the seat belt
and front passenger's
airbag warning lamps
display.
th

e control switch, located at the
passenger's end of the dashboard, is
set to the "OFF" position.
the

passenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is a fault with
the airbags (airbag warning lamp on).
tu

rn the control switch to the "ON" position to activate
the passenger's front airbag; in this case, you must
not install a child seat in the rear ward facing position
on this seat.
Dynamic
stability control
(DSC/ASR )fixed.
th

e button is pressed and the
indicator lamp comes on.
the

DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation. Press the button to activate the DSC/ASR.
Its
indicator lamp goes off.
th

e DSC/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information on the Electronic stability
programme (ESC) and in particular, DSC/ASR, refer
to the corresponding section.
1
Instruments

18

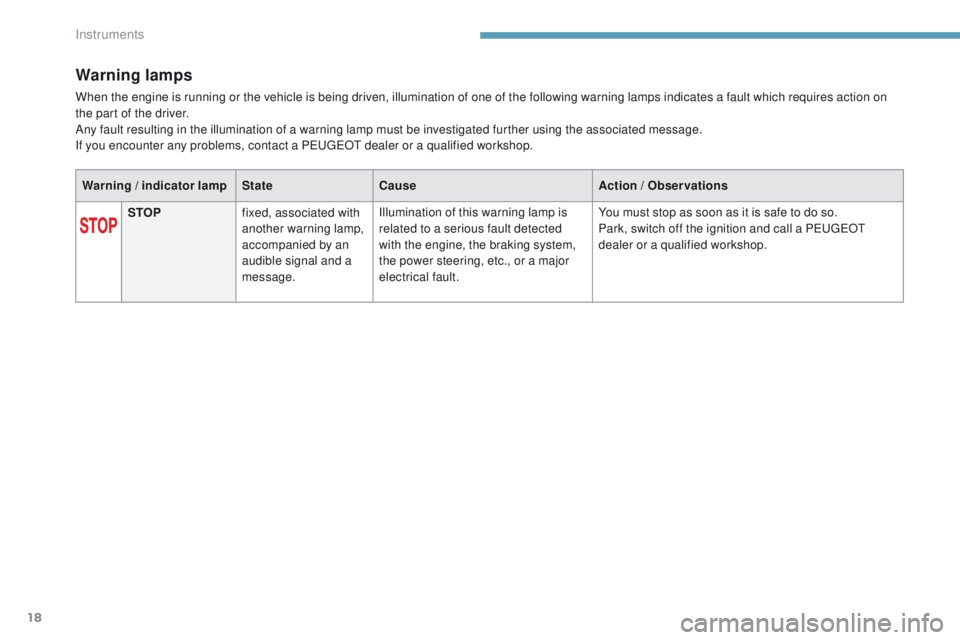

Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further using the associated message.
If you encounter any problems, contact a P
e
uge
Ot
dealer or a qualified workshop.
Warning


/ indicator lamp State Cause Action


/ Observations
STOP fixed, associated with
another warning lamp,
accompanied by an
audible signal and a
message. Illumination of this warning lamp is
related to a serious fault detected
with the engine, the braking system,
the power steering, etc., or a major
electrical fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a P
e

uge
Ot

dealer or a qualified workshop.
Instruments
