Peugeot 308 2017 Workshop Manual

49
308_en_Chap01_instruments-de-bord_ed01-2016
Screen A (without audio system)
F Once you have selected a setting using the "5 " or " 6" buttons, press the "OK"
button to change its value.
F

W
ait for approximately ten seconds without
any action to allow the change to be
registered or press the "ESC" button to
cancel.
th

e screen then returns to the normal display.
F

P

ress the "MENU" button to gain access
to the main menu , then press the "5"
or

" 6 "

buttons to go to the Display
settings menu.
F

P

ress the "OK" button to select the menu
required. F

O

nce you have selected a setting, press
the " 7" or " 8" buttons to change its value.
You have access to the following settings:
-
year,
-
month,
-


d ay,
-


h o u r,
-


minutes,
-

1
2 or 24 hour mode.
Screen A
F Press the " 5" or " 6" buttons to switch
respectively to the previous or next setting.
F

P
ress the "OK" button to register the
change and return to the normal display or
press the "]" button to cancel.
1
Instruments

50
308_en_Chap02_ouvertures_ed01-2016
System for the central locking or unlocking
of the vehicle using the door lock or from a
distance.
It is also used to open and close the fuel filler
cap, locate and start the vehicle, as well as
providing protection against theft.
Remote control key
Unfolding / Folding the key
F Press this button to unfold or fold the key.
Complete unlocking
Using the keyUsing the remote control
F Press this button to unlock the
vehicle.
un

locking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time.
F
t
u

rn the key to the front of the vehicle to
unlock the vehicle, then pull the handle to
open the door.
If your vehicle has an alarm, this is not
deactivated. Opening a door will trigger the
alarm, which can then be stopped by switching
the ignition on.
If you do not press the button, you risk
damaging the remote control.
Access

51
308_en_Chap02_ouvertures_ed01-2016

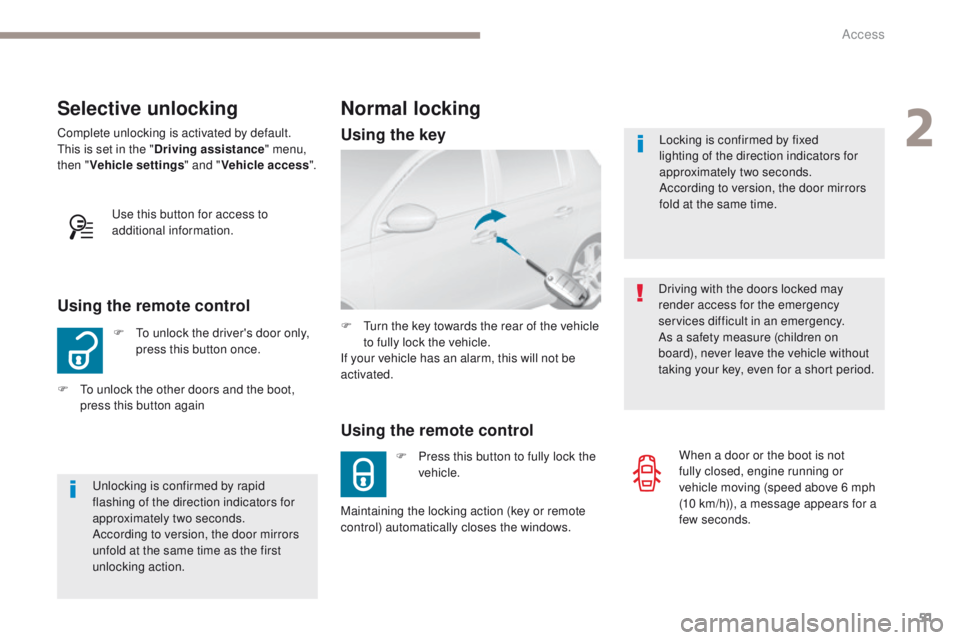

Selective unlocking
F to unlock the driver's door only, press this button once.
Using the remote control
Complete unlocking is activated by default.this is set in the " Driving assistance " menu,
then " Vehicle settings " and "Vehicle access ".
un

locking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the first
unlocking action.
F
t
o u
nlock the other doors and the boot,
press this button again
us

e this button for access to
additional information. Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.
Driving with the doors locked may
render access for the emergency
services difficult in an emergency.
As a safety measure (children on
board), never leave the vehicle without
taking your key, even for a short period.
Normal locking
Using the remote control
F Press this button to fully lock the vehicle.
F
t
u

rn the key towards the rear of the vehicle
to fully lock the vehicle.
If your vehicle has an alarm, this will not be
activated.
Maintaining the locking action (key or remote
control) automatically closes the windows. When a door or the boot is not
fully closed, engine running or
vehicle moving (speed above 6 mph
(10
km/h)), a message appears for a
few seconds.
Using the key
2
Access

52
308_en_Chap02_ouvertures_ed01-2016

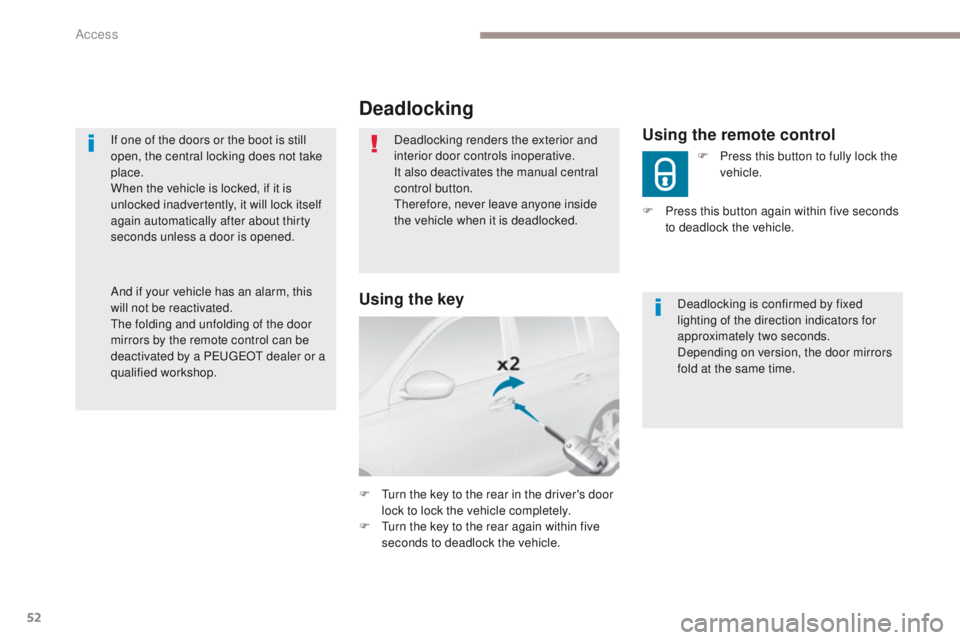

If one of the doors or the boot is still
open, the central locking does not take
place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
And if your vehicle has an alarm, this
will not be reactivated.
th
e folding and unfolding of the door
mirrors by the remote control can be
deactivated by a P
e

uge
Ot
dealer or a
qualified workshop.
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
th

erefore, never leave anyone inside
the vehicle when it is deadlocked.
F
t
u
rn the key to the rear in the driver's door
lock to lock the vehicle completely.
F
t
u
rn the key to the rear again within five
seconds to deadlock the vehicle. Deadlocking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
Depending on version, the door mirrors
fold at the same time.Using the remote control
F Press this button to fully lock the
vehicle.
F

P

ress this button again within five seconds
to deadlock the vehicle.
Using the key
Access

53
308_en_Chap02_ouvertures_ed01-2016

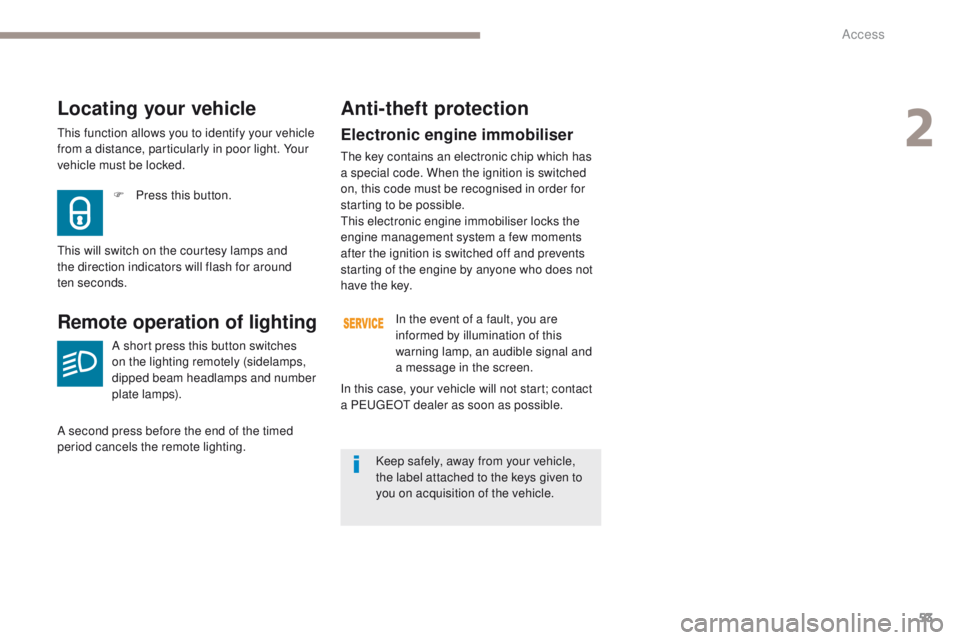

Electronic engine immobiliser
the key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
th
is electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
F

P

ress this button.
Locating your vehicle
this will switch on the courtesy lamps and
the direction indicators will flash for around
ten

seconds.
Remote operation of lighting
A short press this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).
A second press before the end of the timed
period cancels the remote lighting.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
In this case, your vehicle will not start; contact
a P
e

uge
Ot
dealer as soon as possible.
th

is function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
2
Access

54
308_en_Chap02_ouvertures_ed01-2016

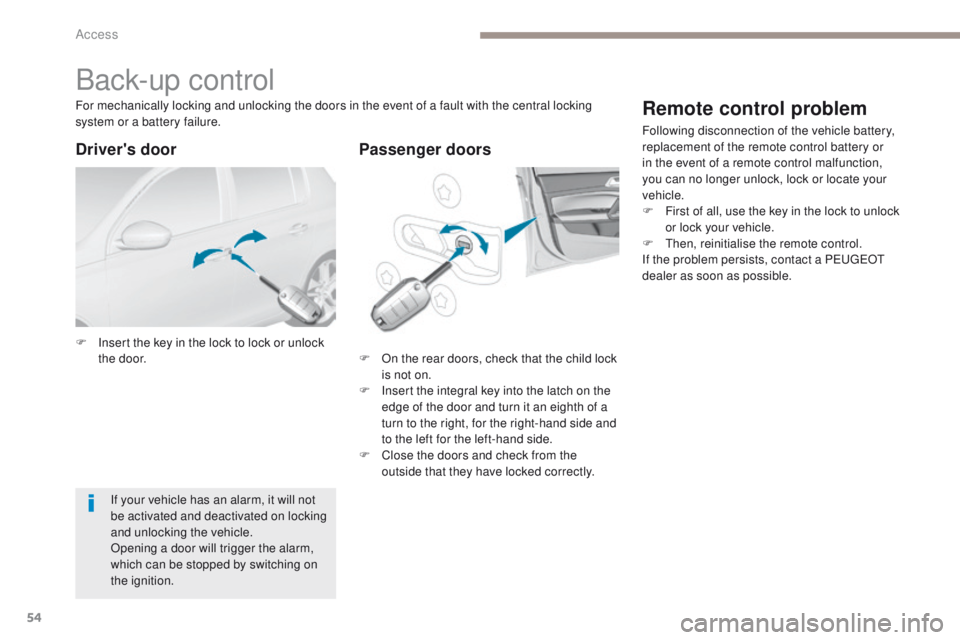

Back-up control
F Insert the key in the lock to lock or unlock the door. F
O n the rear doors, check that the child lock
is not on.
F

I
nsert the integral key into the latch on the
edge of the door and turn it an eighth of a
turn to the right, for the right-hand side and
to the left for the left-hand side.
F

C
lose the doors and check from the
outside that they have locked correctly.
For mechanically locking and unlocking the doors in the event of a fault with the central locking
system or a battery failure.
If your vehicle has an alarm, it will not
be activated and deactivated on locking
and unlocking the vehicle.
Opening a door will trigger the alarm,
which can be stopped by switching on
the ignition.
Driver's door Passenger doors
Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F

F
irst of all, use the key in the lock to unlock
or lock your vehicle.
F
t
hen
, reinitialise the remote control.
If the problem persists, contact a P
e

uge
Ot

dealer as soon as possible.
Access

55
308_en_Chap02_ouvertures_ed01-2016

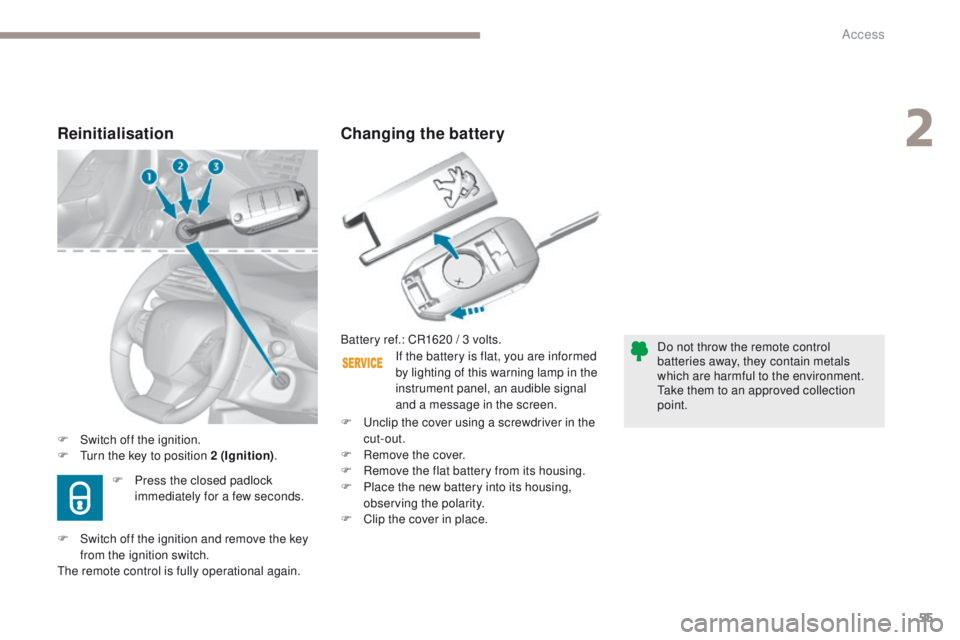

Changing the battery
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
ta
ke them to an approved collection
point.
If the battery is flat, you are informed
by lighting of this warning lamp in the
instrument panel, an audible signal
and a message in the screen.
F

S

witch off the ignition.
F
t
u

rn the key to position 2 (Ignition) .Battery ref.: CR1620 / 3 volts.
F

P

ress the closed padlock
immediately for a few seconds.
F

S

witch off the ignition and remove the key
from the ignition switch.
th

e remote control is fully operational again.
Reinitialisation
F unclip the cover using a screwdriver in the cut-out.
F

R
emove the cover.
F

R
emove the flat battery from its housing.
F

P
lace the new battery into its housing,
observing the polarity.
F

C
lip the cover in place.
2
Access

56
308_en_Chap02_ouvertures_ed01-2016

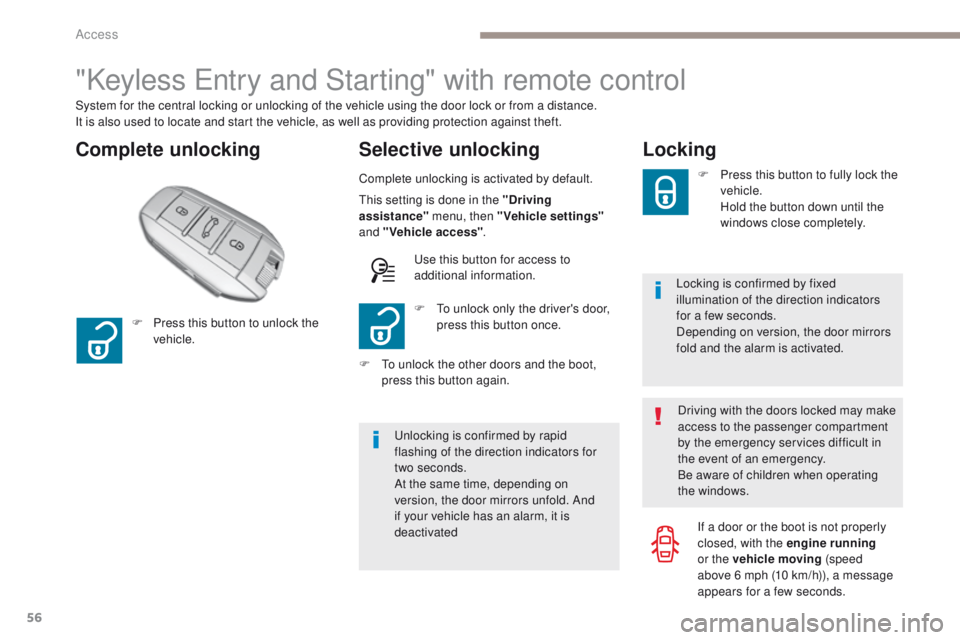

"Keyless entry and Starting" with remote control
Complete unlocking Selective unlocking
System for the central locking or unlocking of the vehicle using the door lock or from a distance.
It is also used to locate and start the vehicle, as well as providing protection against theft.
Complete unlocking is activated by default.
un

locking is confirmed by rapid
flashing of the direction indicators for
two


seconds.
At the same time, depending on
version, the door mirrors unfold. And
if your vehicle has an alarm, it is
deactivated F
t
o u
nlock only the driver's door,
press this button once.
F

P
ress this button to unlock the
vehicle.
F
t
o u
nlock the other doors and the boot,
press this button again.
th

is setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
us

e this button for access to
additional information.
Locking
Locking is confirmed by fixed
illumination of the direction indicators
for a few seconds.
Depending on version, the door mirrors
fold and the alarm is activated. F

P
ress this button to fully lock the
vehicle.
H
old the button down until the
windows close completely.
Driving with the doors locked may make
access to the passenger compartment
by the emergency services difficult in
the event of an emergency.
Be aware of children when operating
the windows. If a door or the boot is not properly
closed, with the engine running
or the vehicle moving (speed
above 6
mph (10 km/h)), a message
appears for a few seconds.
Access

57
308_en_Chap02_ouvertures_ed01-2016
this function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
Locating your vehicle
F Press this button.
As a safety measure (children on
board), never leave the vehicle without
taking the key for the Keyless
e
n
try
and Starting system, even for a short
period.
gu

ard against theft when the key for
the Keyless
e
n
try and Starting system
is in the recognition zone with the
vehicle unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use.
t
o
r

estore these functions, press one of
the remote control buttons or start the
engine with the electronic key in the
reader.
th

is will switch on the courtesy lamps and
the direction indicators will flash for around
ten


seconds.
2
Access

58
308_en_Chap02_ouvertures_ed01-2016

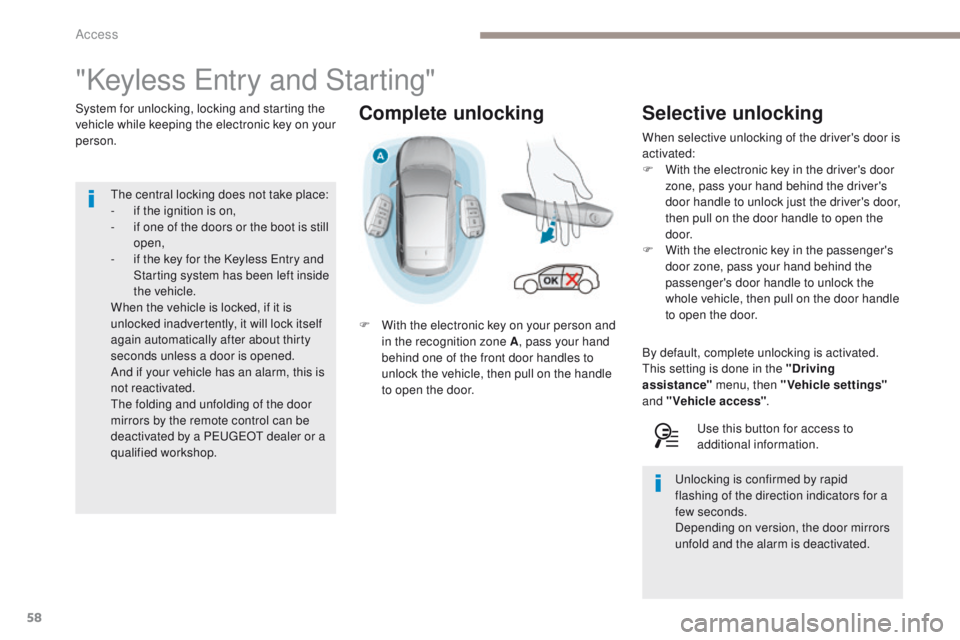

Complete unlocking
"Keyless entry and Starting"
System for unlocking, locking and starting the
vehicle while keeping the electronic key on your
person.
F

W
ith the electronic key on your person and
in the recognition zone A , pass your hand
behind one of the front door handles to
unlock the vehicle, then pull on the handle
to open the door.
th

e central locking does not take place:
-

i
f the ignition is on,
-

i
f one of the doors or the boot is still
open,
-

i
f the key for the Keyless e
n
try and
Starting system has been left inside
the vehicle.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
And if your vehicle has an alarm, this is
not reactivated.
th

e folding and unfolding of the door
mirrors by the remote control can be
deactivated by a P
e

uge
Ot
dealer or a
qualified workshop.Selective unlocking
When selective unlocking of the driver's door is
activated:
F

W
ith the electronic key in the driver's door
zone, pass your hand behind the driver's
door handle to unlock just the driver's door,
then pull on the door handle to open the
d o o r.
F

W
ith the electronic key in the passenger's
door zone, pass your hand behind the
passenger's door handle to unlock the
whole vehicle, then pull on the door handle
to open the door.
By default, complete unlocking is activated.
th

is setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
us

e this button for access to
additional information.
un

locking is confirmed by rapid
flashing of the direction indicators for a
few


seconds.
Depending on version, the door mirrors
unfold and the alarm is deactivated.
Access
