Servicing Peugeot 308 2017 Owner's Manual

12

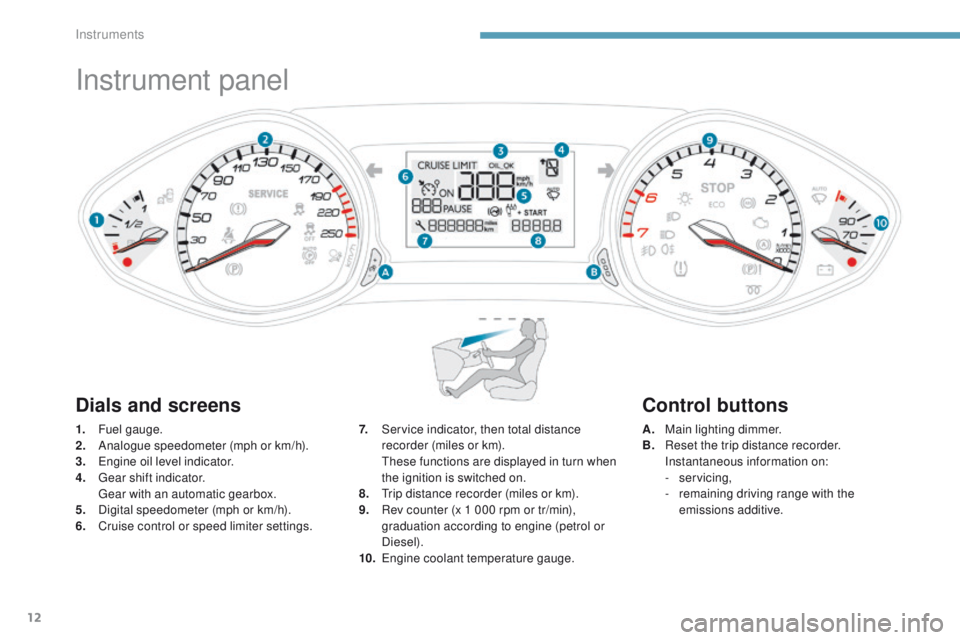

Instrument panel
1. Fuel gauge.
2. Analogue speedometer (mph or km/h).
3.


e
n
gine oil level indicator.
4.


g
e
ar shift indicator.


g
e
ar with an automatic gearbox.
5.
D

igital speedometer (mph or km/h).
6.
C

ruise control or speed limiter settings. A. M
ain lighting dimmer.
B. R eset the trip distance recorder.
I

nstantaneous information on:
-


servicing,
-
r

emaining driving range with the
emissions additive.
7. S
ervice indicator, then total distance
recorder (miles or km).


t
h
ese functions are displayed in turn when
the ignition is switched on.
8.


t
r
ip distance recorder (miles or km).
9.
R

ev counter (x 1 000 rpm or tr/min),
graduation according to engine (petrol or
Diesel).
10.


e
ng
ine coolant temperature gauge.
Dials and screens Control buttons
Instruments

19
308_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Service on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the cause of fault by means of the message
displayed in the screen.
You can deal with some faults or anomalies yourself,
such as an open door, or the start of saturation of the
particle filter (as soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at least
37
mph (60 km/h), until the warning lamp goes off).
For other faults, such as a failure of the under-inflation
detection system, contact a P
e

uge
Ot
dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message displayed;
you must contact a P
e

uge
Ot
dealer or a qualified
workshop.
+ fixed, associated with
flashing and then fixed
display of the service
spanner.
the

servicing interval has been
exceeded. Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
1
Instruments

28

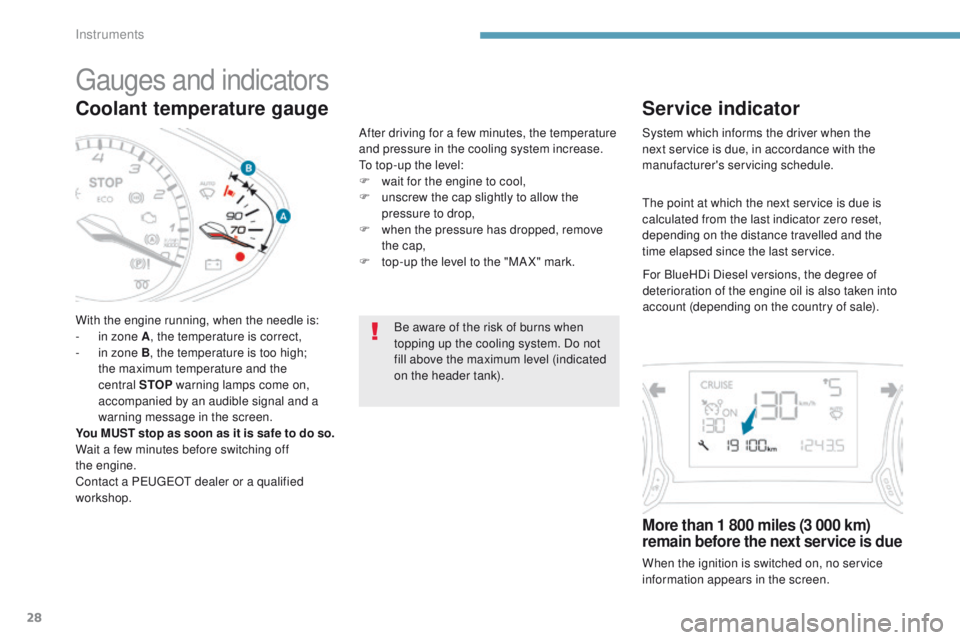

Coolant temperature gauge
With the engine running, when the needle is:
- i n zone A , the temperature is correct,
-

i
n zone B, the temperature is too high;
the maximum temperature and the
central STOP warning lamps come on,
accompanied by an audible signal and a
warning message in the screen.
You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off
the


engine.
Contact a P
e

uge
Ot
dealer or a qualified
workshop. After driving for a few minutes, the temperature
and pressure in the cooling system increase.
to t

op-up the level:
F
w
ait for the engine to cool,
F
u
nscrew the cap slightly to allow the
pressure to drop,
F
w
hen the pressure has dropped, remove
the cap,
F
t
op-up the level to the "MA X" mark.
Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the header tank).
gauges and indicators
Service indicator
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
th
e point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service.
For BlueHDi Diesel versions, the degree of
deterioration of the engine oil is also taken into
account (depending on the country of sale).
Instruments

215
308_en_Chap07_info-pratiques_ed01-2016

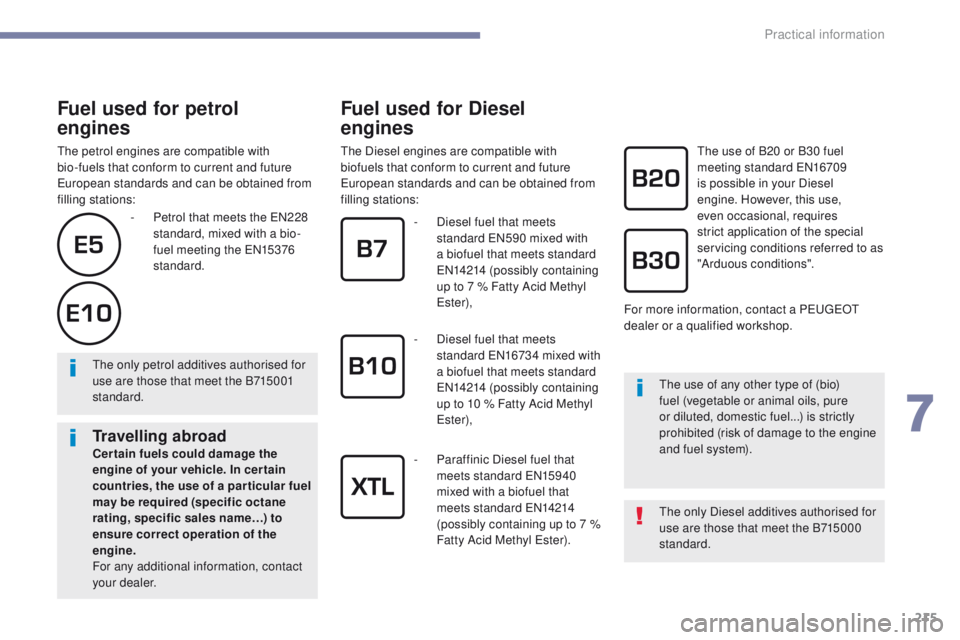

Fuel used for petrol
engines
the petrol engines are compatible with
bio-fuels that conform to current and future
eu

ropean standards and can be obtained from
filling stations:
Fuel used for Diesel
engines
the Diesel engines are compatible with
biofuels that conform to current and future
eu

ropean standards and can be obtained from
filling stations:
th

e only Diesel additives authorised for
use are those that meet the B715000
standard.
th

e only petrol additives authorised for
use are those that meet the B715001
standard.
th

e use of any other type of (bio)
fuel (vegetable or animal oils, pure
or diluted, domestic fuel...) is strictly
prohibited (risk of damage to the engine
and fuel system).
-

Pe

trol that meets the
e
N

228
standard, mixed with a bio-
fuel meeting the
e
N

15376
standard. -

D
iesel fuel that meets
standard
e
N
590 mixed with
a biofuel that meets standard
eN

14214 (possibly containing
up to 7 % Fatty Acid Methyl
es

ter),
-

D
iesel fuel that meets
standard
e
N
16734 mixed with
a biofuel that meets standard
eN

14214 (possibly containing
up to 10 % Fatty Acid Methyl
es

ter),
-

P
araffinic Diesel fuel that
meets standard
e
N
15940
mixed with a biofuel that
meets standard
e
N
14214
(possibly containing up to 7 %
Fatty Acid Methyl
e
s
ter).th e use of B20 or B30 fuel
meeting standard eN 16709
is possible in your Diesel
engine. However, this use,
even occasional, requires
strict application of the special
servicing conditions referred to as
"Arduous conditions".
For more information, contact a P
e

uge
Ot

dealer or a qualified workshop.
Travelling abroadCer tain fuels could damage the
engine of your vehicle. In cer tain
countries, the use of a par ticular fuel
may be required (specific octane
rating, specific sales name…) to
ensure correct operation of the
engine.
For any additional information, contact
your dealer.
7
Practical information

232
308_en_Chap07_info-pratiques_ed01-2016

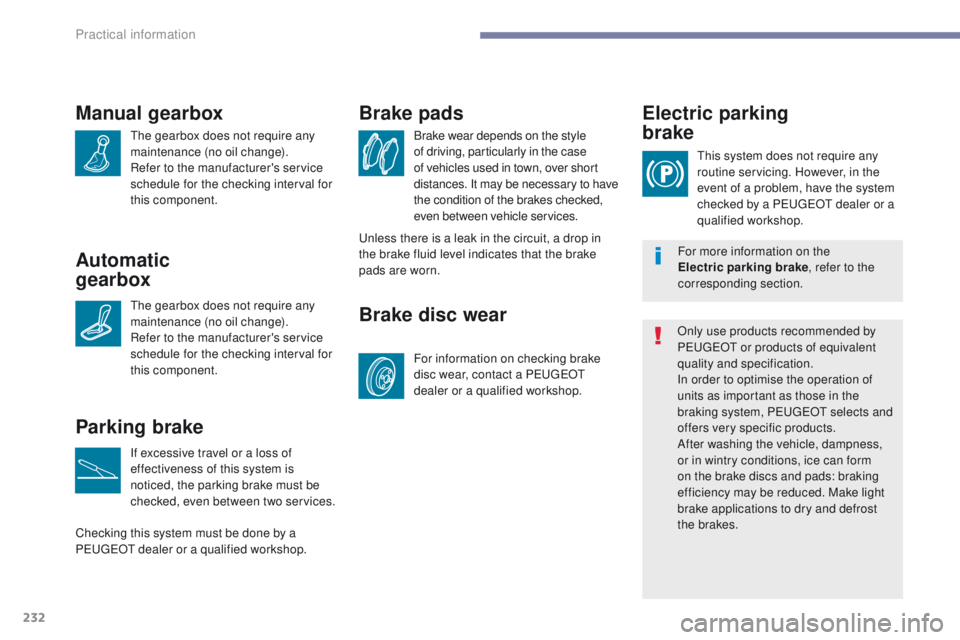

Manual gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Brake pads
For information on checking brake
disc wear, contact a Pe
ugeOt
dealer or a qualified workshop.
Brake disc wear Electric parking
brake
this system does not require any
routine servicing. However, in the
event of a problem, have the system
checked by a P
e

uge
Ot
dealer or a
qualified workshop.
Only use products recommended by
P
e

uge
Ot
or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, P
e

uge
Ot
selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
Checking this system must be done by a
P
e

uge
Ot
dealer or a qualified workshop.
un
less there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
Automatic
gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component. For more information on the
Electric parking brake
, refer to the
corresponding section.
Practical information

341
308_en_Chap10b_SMegplus_ed01-2016
PeugeOt Connect Apps
these applications use vehicle data such as
the current speed, mileage, remaining fuel
range or even
g
P
S position to provide pertinent
information.
As a safety measure, some functions can only
be used when stationary.
th
e "My
Peuge
O
t
" application is a link between
the user, the manufacturer and its dealer network.
It allows the customer to know everything about
their vehicle: servicing plan, accessory range,
service contracts taken out, ...
It also makes possible the sending of the vehicle's
mileage to the "My Peuge
O
t
" site, or to identify
a dealer.
Press on the "Connected services"
menu to display the applications.
Plug the "P
e

uge
Ot

Connect
Apps" connection key into the
uS

B port.
* Depending on country. "P
e

uge
Ot

Connect Apps"* is
a service providing driving aid
applications in real time; it gives access
to useful information such as the state
of the traffic, danger zones, fuel prices,
the availability of parking places, tourist
sites, weather conditions, correct
addresses…
It includes access to the mobile
network associated with the use
of these applications. "P
e

uge
Ot


Connect Apps"* is a service available
under subscription contract from
P
e

uge
Ot d

ealers, depending on
country and the type of touch screen,
both before and after delivery of a new
vehicle.
.
