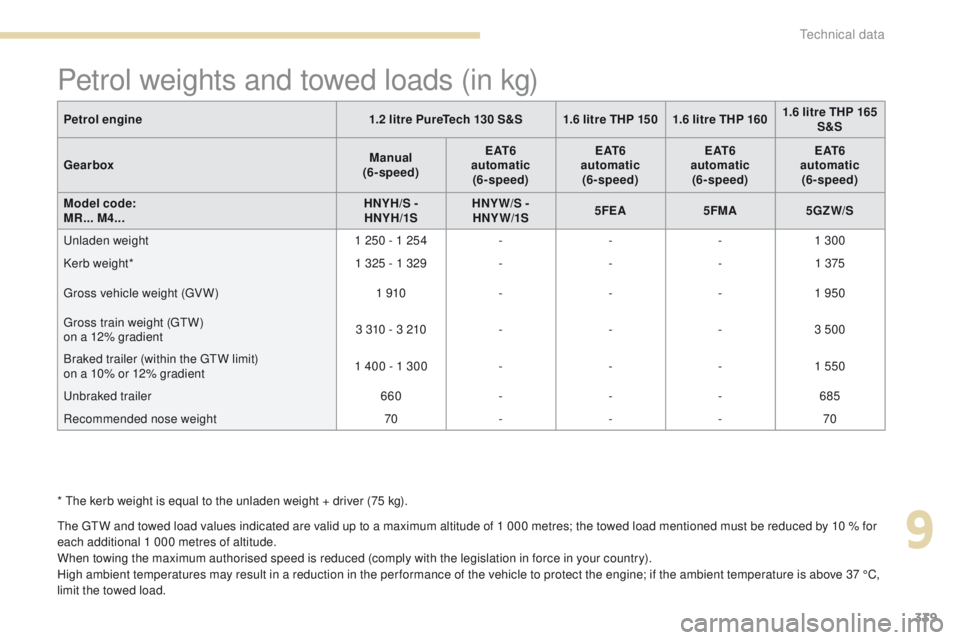

Petrol weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.Petrol engine
1.2 litre PureTech 130 S&S 1.6 litre THP 150 1.6 litre THP 160 1.6 litre THP 165
S&S
Gearbox Manual
(6- speed) E AT 6
automatic (6- speed) E AT 6
automatic (6- speed) E AT 6
automatic (6- speed) E AT 6
automatic (6- speed)
Model code:
MR... M4... HNYH/S -
HNYH/1S HNY W/S -
HNY W/1S 5FEA
5FMA5GZW/S
Unladen weight 1 250 - 1 254---1 300
Kerb weight* 1 325 - 1 329---1 375
Gross vehicle weight (GV W) 1 910---1 950
Gross train weight (GTW)
on a 12% gradient 3 310 - 3 210
---3 500
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 1 400 - 1 300
---1 550
Unbraked trailer 660---685
Recommended nose weight 70---70
* The kerb weight is equal to the unladen weight + driver (75 kg).
9
Technical data

340
3008-2_en_Chap09_caracteristiques_ed01-2016
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).Diesel engine
1.6 litre BlueHDi
100 S&S 1.6 litre BlueHDi 115 S&S
1.6 litre BlueHDi 120 S&S
Gearbox Manual
(5 - speed) Manual
(6- speed) E AT 6
automatic (6- speed) Manual
(6- speed) E AT 6
automatic (6- speed)
Model code:
MC... BHY6/SBHXH/S
BHXH/1S BHXW/S
BHX W/1S BHZH/S
BHZH/1S BHZW/S
BHZ W/1S
Cubic capacity (cc) 1 5601 560 1 560
Bore x stroke (mm) 75 x 88.375 x 88.3 75 x 88,3
Max power*: EU standard (kW) 7385 88
Max power speed (rpm) 3 7503 750 3 750
Max torque: UE standard (Nm) 254300 300
Max torque speed (rpm) 1 7501 750 1 750
Fuel DieselDiesel Diesel
Catalytic converter Ye sYe s Ye s
Particle filter Ye sYe s Ye s
Engine oil capacity (in litres) (with filter
replacement) 3.75
3.75 3.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
Technical data

341
3008-2_en_Chap09_caracteristiques_ed01-2016
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
Diesel engine
2.0 litre BlueHDi 1502.0 litre BlueHDi 150
S&S 2.0 litre BlueHDi 180
S&S
Gearbox Manual
(6- speed) E AT 6
automatic (6- speed) Manual
(6- speed) E AT 6
automatic (6- speed)
Model code:
MJ... -
-AHRH/S
AHSH/S
AHXH/S AHWW/S
Cubic capacity (cc) --1 997 1 997
Bore x stroke (mm) --85 x 88 85 x 88
Max power*: EU standard (kW) --11 0 132
Max power speed (rpm) --4 000 3 750
Max torque: EU standard (Nm) --370 400
Max torque speed (rpm) --2 000 2 000
Fuel DieselDieselDieselDiesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sYe sYe sYe s
Engine oil capacity (in litres) (with filter
replacement) -
-6 .1 5 .1
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Diesel engines and gearboxes
9
Technical data

342
3008-2_en_Chap09_caracteristiques_ed01-2016

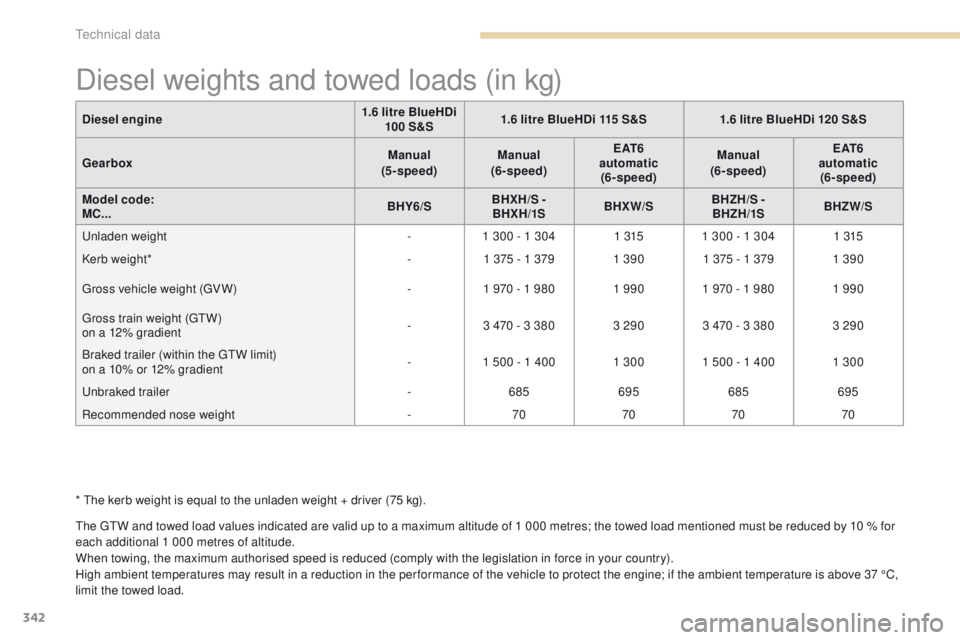

Diesel weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.Diesel engine
1.6 litre BlueHDi
100 S&S 1.6 litre BlueHDi 115 S&S
1.6 litre BlueHDi 120 S&S
Gearbox Manual
(5 -speed ) Manual
(6- speed) E AT 6
automatic (6- speed) Manual
(6- speed) E AT 6
automatic (6- speed)
Model code:
MC... BHY6/SBHXH/S -
BHXH/1S BHXW/SBHZH/S -
BHZH/1S BHZW/S
Unladen weight -1 300 - 1 304 1 3151 300 - 1 304 1 315
Kerb weight* -1 375 - 1 379 1 390 1 375 - 1 379 1 390
Gross vehicle weight (GV W) -1 970 - 1 980 1 990 1 970 - 1 980 1 990
Gross train weight (GTW)
on a 12% gradient -
3 470 - 3 380 3 290 3 470 - 3 380 3 290
Braked trailer (within the GTW limit)
on a 10% or 12% gradient -
1 500 - 1 400 1 300 1 500 - 1 400 1 300
Unbraked trailer -685 695685695
Recommended nose weight -70 707070
* The kerb weight is equal to the unladen weight + driver (75 kg).
Technical data

343
3008-2_en_Chap09_caracteristiques_ed01-2016

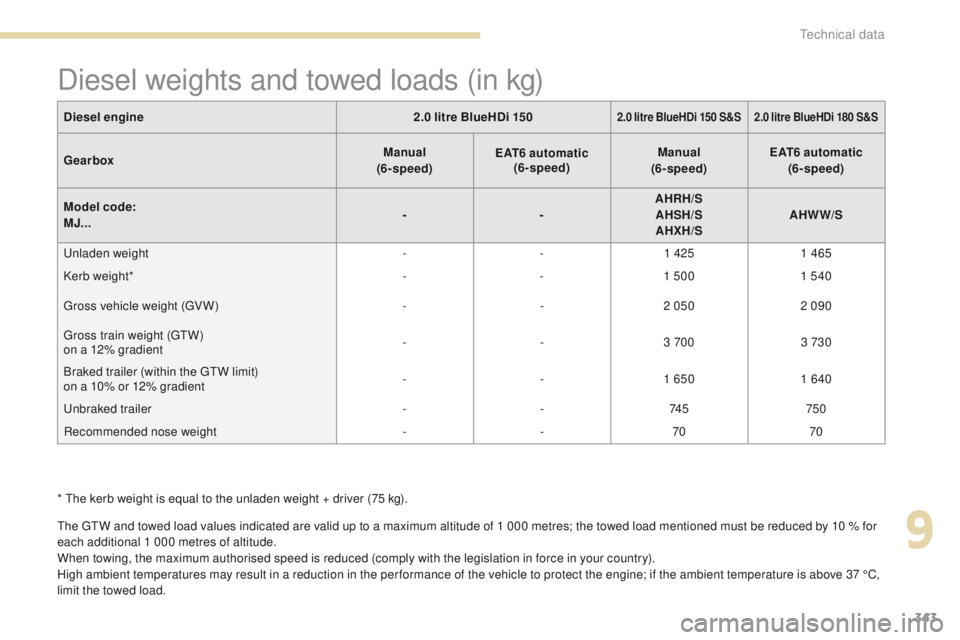

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.Diesel engine
2.0 litre BlueHDi 150
2.0 litre BlueHDi 150 S&S 2.0 litre BlueHDi 180 S&S
GearboxManual
(6- speed) EAT6 automatic
(6- speed) Manual
(6- speed) EAT6 automatic
(6- speed)
Model code:
MJ... -
-AHRH/S
AHSH/S
AHXH/S AHWW/S
Unladen weight --1 425 1 465
Kerb weight* --1 500 1 540
Gross vehicle weight (GV W) --2 050 2 090
Gross train weight (GTW)
on a 12% gradient -
-3 700 3 730
Braked trailer (within the GTW limit)
on a 10% or 12% gradient -
-1 650 1 640
Unbraked trailer --74 5 750
Recommended nose weight --70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
Diesel weights and towed loads (in kg)
9
Technical data

344
3008-2_en_Chap09_caracteristiques_ed01-2016

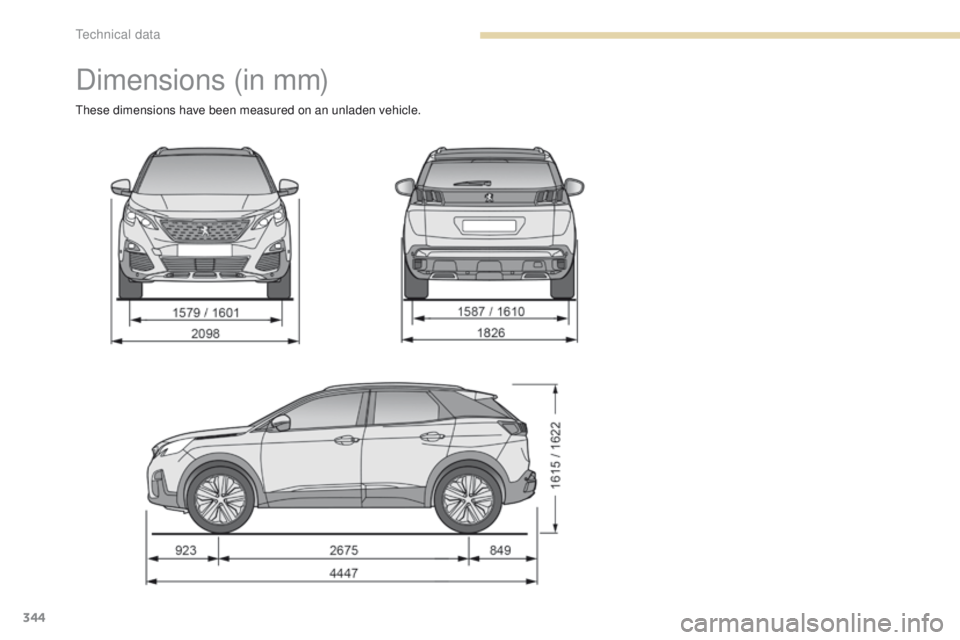

Dimensions (in mm)
These dimensions have been measured on an unladen vehicle.
Technical data

345
3008-2_en_Chap09_caracteristiques_ed01-2016

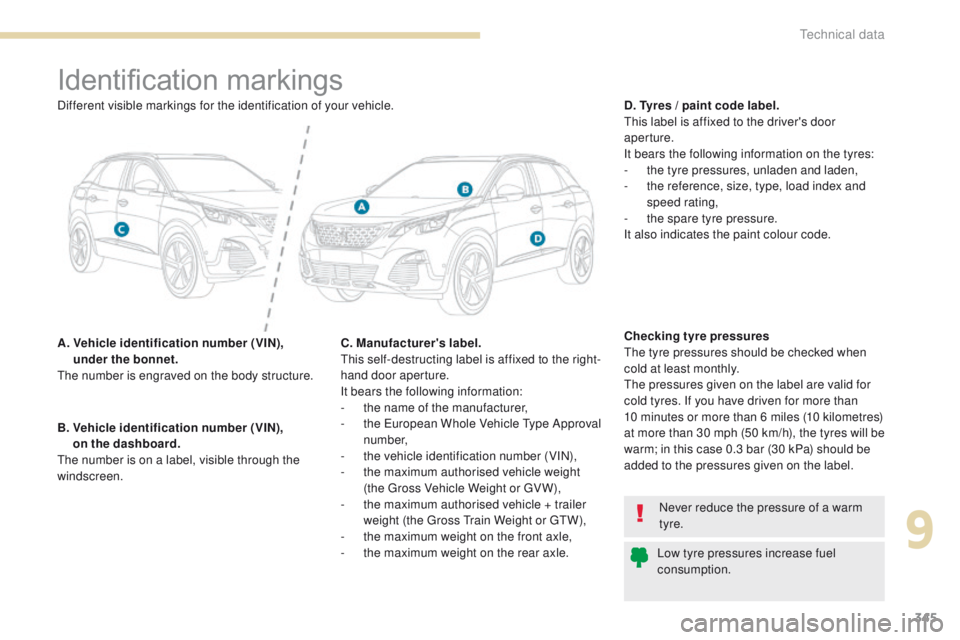

Identification markings
A. Vehicle identification number (VIN), under the bonnet.
The number is engraved on the body structure. D. Tyres / paint code label.
This label is affixed to the driver's door
aperture.
It bears the following information on the tyres:
-

t
he tyre pressures, unladen and laden,
-
t
he reference, size, type, load index and
speed rating,
-
t
he spare tyre pressure.
It also indicates the paint colour code.
B.
V
ehicle identification number (VIN),
on the dashboard.
The number is on a label, visible through the
windscreen.
Never reduce the pressure of a warm
tyre.
Low tyre pressures increase fuel
consumption.
Different visible markings for the identification of your vehicle.
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm; in this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.
C. Manufacturer's label.
This self-destructing label is affixed to the right-
hand door aperture.
It bears the following information:
-

t
he name of the manufacturer,
-

t
he European Whole Vehicle Type Approval
number,
-

t
he vehicle identification number (VIN),
-

t
he maximum authorised vehicle weight
(the Gross Vehicle Weight or GV W),
-

t
he maximum authorised vehicle + trailer
weight (the Gross Train Weight or GTW),
-

t
he maximum weight on the front axle,
-

t
he maximum weight on the rear axle.
9
Technical data

346
3008-2_en_Chap11_index-alpha_ed01-2016

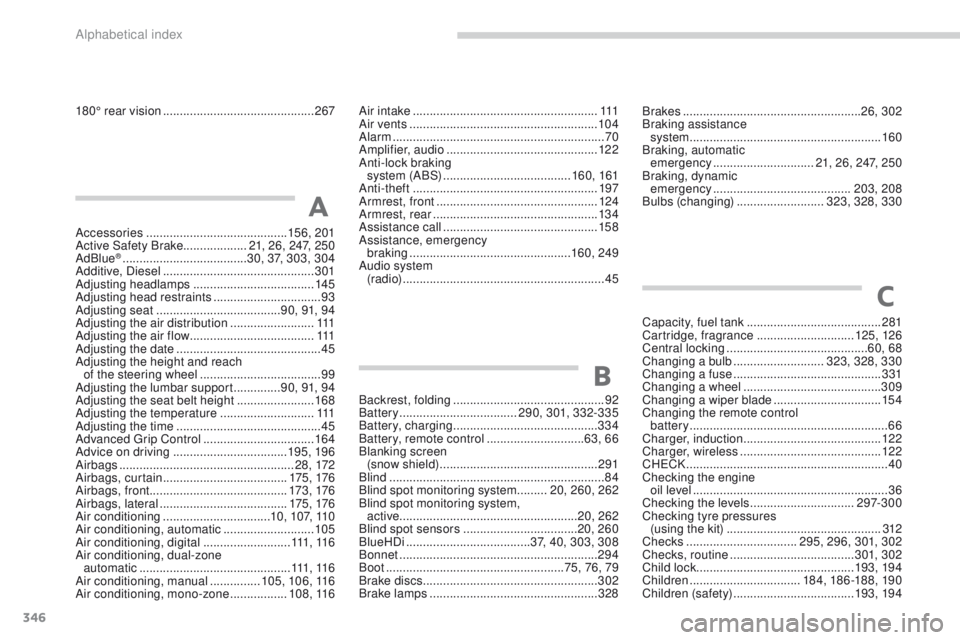

180° rear vision .............................................2 67Air intake .......................................................111
Air vents ........................................................104
Alarm


...............................................................70
Amplifier, audio


.............................................12 2
Anti-lock braking system (ABS)

......................................16

0, 161
Anti-theft


.......................................................197
Armrest, front
................................................124
Armrest, rear
................................................. 13

4
Assistance call


..............................................15 8
Assistance, emergency braking
...............

.................................160, 249
Audio system (r adi o)


............................................................45
C
Capacity, fuel tank .............................. ..........281
Cartridge, fragrance .............................125, 126
Central locking


.......................................... 60, 68
Changing a bulb


........................... 323, 328 , 330
Changing a fuse


............................................ 331
Changing a wheel


......................................... 309
Changing a wiper blade


................................15 4
Changing the remote control battery
........................................................... 66
C

harger, induction

......................................... 12 2
Charger, wireless


.......................................... 12 2
CHECK
................

............................................ 40
Checking the engine oil level


.......................................................... 36
Checking the levels


...............................2 97- 3 0 0
Checking tyre pressures (using the kit)
..............................

................312
Checks
...............

..................295, 296 , 301, 302
Checks, routine


..................................... 301, 302
Child lock
...............................

................193, 19 4
Children
...............................

..18 4 , 18 6 -188 , 19 0
Children (safety)
...............................

.....193 , 19 4
Backrest, folding


............................................. 92
Battery


................................... 290, 301 , 332-335
Battery, charging


........................................... 334
Battery, remote control
............................. 63,

66
Blanking screen
(snow shield)
...............................

................ 291
Blind


................................................................ 84
Blind spot monitoring system

......... 20, 260 , 262
Blind spot monitoring system, active ..................................................... 20, 262
Blind spot sensors


.................................. 20, 260
BlueHDi


..................................... 37, 40 , 303 , 308
Bonnet


........................................................... 294
Boot


..................................................... 75, 76 , 79
Brake discs
.................................................... 3

02
Brake lamps


.................................................. 328
B
Brakes ..................................................... 26, 302
Braking assistance system
......................................................... 160
Braking, automatic emergency


.............................. 21, 26 , 247 , 250
Braking, dynamic emergency


......................................... 203, 208
Bulbs (changing)
.......................... 32

3, 328 , 330
Accessories


.......................................... 15 6, 201
Active Safety Brake................... 21, 26 , 247 , 250
AdBlue
® ..................................... 3 0, 37 , 303 , 304
Additive, Diesel ............................................. 301
Adjusting headlamps


.................................... 145
Adjusting head restraints


................................ 93
Adjusting seat


..................................... 90, 91 , 94
Adjusting the air distribution


.........................111
Adjusting the air flow


..................................... 111
Adjusting the date


........................................... 45
Adjusting the height and reach of the steering wheel


.................................... 99
Adjusting the lumbar support


..............90, 91 , 94
Adjusting the seat belt height


.......................168
Adjusting the temperature
............................ 111
A

djusting the time

........................................... 45
Advanced Grip Control


................................. 16 4
Advice on driving


.................................. 195, 19 6
Airbags


.................................................... 28, 172
Airbags, curtain
..................................... 17

5, 176
Airbags, front ......................................... 173, 176
Airbags, lateral


...................................... 175, 176
Air conditioning


................................ 10, 107 , 11 0
Air conditioning, automatic


...........................105
Air conditioning, digital


.......................... 111, 11 6
Air conditioning, dual-zone automatic
............................................. 111,

11 6
Air conditioning, manual


...............105, 10 6 , 11 6
Air conditioning, mono-zone


.................108, 11 6
A

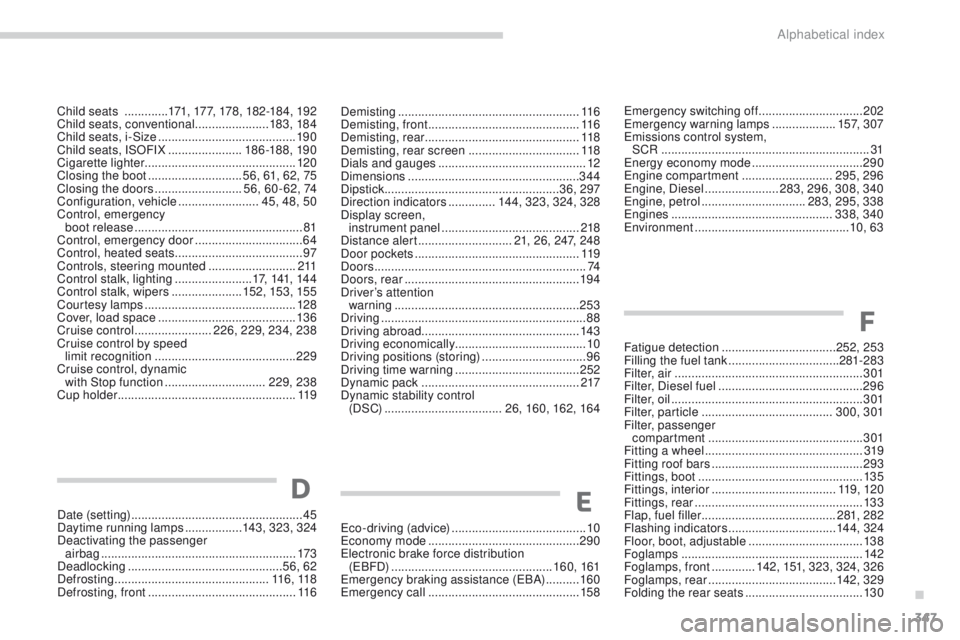

Alphabetical index

347
3008-2_en_Chap11_index-alpha_ed01-2016
Demisting ......................................................11 6
Demisting, front ............................................. 11 6
Demisting, rear
.............................................. 11

8
Demisting, rear screen


.................................118
Dials and gauges


............................................ 12
Dimensions


................................................... 344
Dipstick
................

.................................... 36, 297
Direction indicators


..............14 4, 323 , 324, 328
Display screen, instrument panel
...............................

..........218
Distance alert


............................ 21, 26 , 247 , 248
Door pockets
................................................. 11

9
Doors


............................................................... 74
Doors, rear
.................................................... 19 4
Driver’s attention warning
...............................

........................253
Driving


............................................................. 88
Driving abroad ............................................... 143
Driving economically ....................................... 10
Driving positions (storing)


...............................96
Driving time warning


..................................... 252
Dynamic pack
..............................

.................217
Dynamic stability control (DSC)


................................... 26, 160 , 162, 16 4 Emergency switching off ...............................
2 02
Emergency warning lamps ................... 15
7, 307
Emissions control system, SCR


..............................................................31
Energy economy mode


.................................290
Engine compartment


...........................295, 296
Engine, Diesel
...................... 28

3, 296 , 308 , 340
Engine, petrol


...............................283, 295 , 338
Engines


................................................338, 340
Environment
...............................

...............10, 63
Child seats
.............
17
1
, 17 7 , 178 , 182-18 4 , 192
Child seats, conventional
...................... 183, 18 4
Child seats, i-Size

...............................

.......... 19 0
Child seats, ISOFIX

...................... 18

6 -188 , 19 0
Cigarette lighter ............................................. 120
Closing the boot

............................ 56, 61 , 62 , 75
Closing the doors


.......................... 56, 60-62 , 74
Configuration, vehicle


........................ 45, 48 , 50
Control, emergency boot release


.................................................. 81
Control, emergency door


................................ 64
Control, heated seats


...................................... 97
Controls, steering mounted


.......................... 2 11
Control stalk, lighting
....................... 17,

141 , 14 4
Control stalk, wipers

..................... 152, 153 , 155
Courtesy lamps

............................................. 128
Cover, load space

......................................... 13

6
Cruise control
....................... 2

26 , 229 , 234 , 238
Cruise control by speed limit recognition


.......................................... 229
Cruise control, dynamic with Stop function


.............................. 229, 238
Cup holder

...............................

...................... 11 9
F
Fatigue detection .................................. 252, 253
Filling the fuel tank ................................. 28
1-283
Filter, air
...............

......................................... 301
Filter, Diesel fuel


........................................... 296
Filter, oil


......................................................... 301
Filter, particle


....................................... 300, 301
Filter, passenger compartment
.............................................. 3

01
Fitting a wheel

...............................
................319
Fitting roof bars


............................................. 293
Fittings, boot
................................................. 13

5
Fittings, interior


..................................... 11 9, 120
Fittings, rear
...............................

...................13 3
Flap, fuel filler

...............................
.........281, 282
Flashing indicators


................................ 14 4, 324
Floor, boot, adjustable


..................................13 8
Foglamps


...................................................... 142
Foglamps, front


.............142, 151 , 323 , 324, 326
Foglamps, rear


...................................... 142, 329
Folding the rear seats


...................................13 0
D
Date (setting) ............................... ....................45
Daytime running lamps .................143, 323 , 324
Deactivating the passenger airbag
.......................................................... 17

3
Deadlocking


.............................................. 56, 62
Defrosting


.............................................. 11 6, 118
Defrosting, front
............................................ 11

6E
Eco-driving (advice) ........................................ 10
Economy mode ............................................. 290
Electronic brake force distribution (EBFD)


................................................ 160, 161
Emergency braking assistance (EBA)
.......... 16

0
Emergency call
............................................. 15

8
.
Alphabetical index

348
3008-2_en_Chap11_index-alpha_ed01-2016
Headlamps, automatic dipping ...............17, 149
Headlamps, automatic illumination


.................................. 141, 146 , 147
Headlamps, dipped beam


................17, 323-325
Headlamps, halogen


..................................... 324
Headlamps, main beam
................... 17,

323-325
Head restraints, front
...................................... 93
Head restraints, rear
..................................... 13 0
Heating


.................................... 10, 104 , 10 6 , 108
Hi-Fi system
.................................................. 12 2
Hill Assist Descent Control
.................................................. 20,

166
Hill start assist

............................................... 2

16
Horn ............................................................... 157Inflating tyres
..........................................
10, 345
Inflating tyres and accessories (using the kit)
..........................312
Instrument panel
..................... 12,

13, 40 , 42, 43
Intelligent Traction Control
........................................................ 16

1
ISOFIX


..........................................................187
Isofix mountings
...............................

.............18 6
i- Cockpit amplify function


................................. 98, 102 , 125, 217
Ignition
................

................................... 19 9, 201
Immobiliser, electronic


............................63, 197
Indicator, AdBlue
®
range
....................................................... 30, 37
Indicator, coolant temperature


.................................................. 32
Indicator, engine oil level


.................................................... 36, 40
Indicator lamps, operation


........................................... 17, 19 , 21
Indicator lamps, status


............................................................ 19
Indicators, direction


.............................. 14 4, 324 Jack
........

.......................................................
310
Jump starting
..............................
..................
333
I
J
Key ..................................................... 54, 63 , 64
Key, electronic ..................................... 58, 60-62
Keyless Entry and Starting


......................58, 61- 63 , 197, 200
Key not recognised
....................................... 202
Key with remote control
......................................................... 19

7
Kit, temporary puncture repair


................................................... 309, 312
K
Fuel .......................................................... 10, 283
Fuel consumption ............................................ 10
Fu
el tank ................................................ 281, 282
Fuses


............................................................. 331
Gauge, fuel .................................................... 281
Gearbox, automatic
....... 10,

2 11, 216 , 217, 219 , 302 , 332
Gearbox, manual


....10, 210 , 216 , 217, 219 , 302
Gear lever
..............................

.........................10
Gear lever, automatic gearbox
................

....................................... 2 11
Gear lever, manual gearbox
................

....................................... 210
Gear shift indicator


....................................... 218
Glove box
...................................................... 120
Grab handles
................................................ 11

9
G
Hands-free access ..........................................78
H ands-free tailgate ............................. 76,
78, 79
Hazard warning lamps


..........................157, 307
Headlamp adjustment


...................................145
H
Alphabetical index
